Acer X1128H DLP 3D SVGA Projector - 4800 Lumens, 20000:1
Acer
Acer X1128H DLP 3D SVGA Projector - 4800 Lumens, 20000:1
The Acer X1128H DLP 3D SVGA Projector is designed for presenters and educators who need reliable, bright images in well-lit, medium-sized rooms. With 4,800 lumens of brightness and a 20,000:1 contrast ratio, it produces clear, vivid visuals without needing to dim the lights. Acer LumiSense™, ColorBoost3D™, and ColorSafe II work together to keep colours accurate and consistent throughout the lamp's life.
Why this product
4,800 lumens for well-lit rooms
At 4,800 ANSI lumens in Standard mode, it delivers clearly visible images even in rooms with significant ambient light, making it practical for daytime meetings and classrooms.
Long lamp life in ECO mode
Switching to ECO mode extends lamp life to up to 10,000 hours while reducing brightness to 3,600 ANSI lumens and cutting power draw to 205 W.
Accurate colour with ColorSafe II
ColorSafe II actively manages dynamic RGB levels to prevent colour decay over the lamp's lifespan, so images stay true to the original source.
Flexible image sizing from 23" to 300"
The 1.1x manual zoom and a throw ratio of 1.94 to 2.16 give enough flexibility to fill screens of very different sizes from a typical throw distance.
Four projection orientations
It supports Front, Rear, Ceiling, and Rear Ceiling modes, and is ceiling-mountable, making it straightforward to install in fixed or temporary setups.
BlueLightShield™ reduces eye strain
Acer BlueLightShield™ filters unnecessary blue light output, which is useful in environments where the projector is in extended daily use.
- Brightness (Standard)4,800 ANSI Lumens
- Brightness (ECO)3,600 ANSI Lumens
- Native Resolution800 x 600 (SVGA)
- Contrast Ratio20,000:1
- Image Size23" (58.4 cm) ~ 300" (762 cm)
- Lamp Life (ECO)10,000 hours
- Weight2.8 kg (6.2 lb)
- Projection SystemDLP™
- SKUACE-3890
- EAN4710886258254

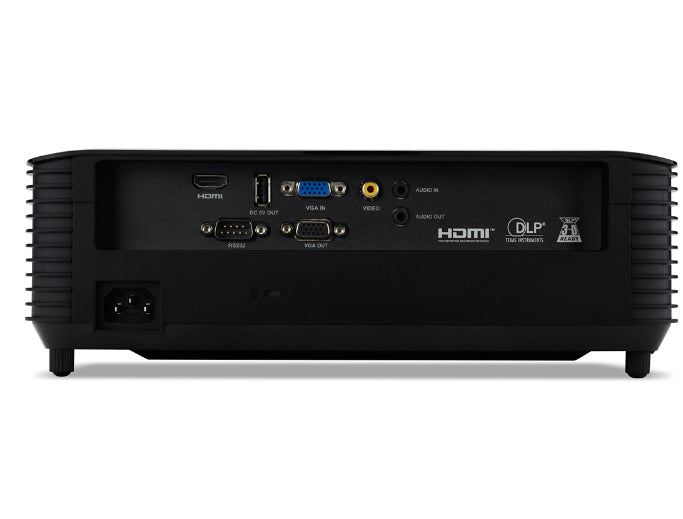

- Connects to laptops and desktops via VGA (D-sub) input — one port included.
- Accepts composite video (RCA) input, so older video sources such as DVD players can be connected directly.
- Audio input and output via 3.5 mm mini jack allows pass-through to external speakers or direct audio from a source device.
- VGA output (D-sub) lets you loop the signal to a second display or monitor simultaneously.
- Ceiling-mountable with support for all four projection orientations, compatible with standard ceiling-mount installations.
- No HDMI port is present, so devices that output only HDMI will require an adapter not included in the box.
Best for
- Presenters in well-lit meeting rooms who need 4,800 lumens of brightness to compete with ambient light without closing blinds.
- Educators and trainers who use the projector daily and benefit from up to 10,000 hours of lamp life in ECO mode.
- Installations needing flexible screen sizes, as it can project images from 23" up to 300" with manual zoom adjustment.
- Fixed-room installations where ceiling mounting is preferred and all four projection orientations are needed.
- Buyers with legacy equipment who rely on VGA or composite video connections from older computers and AV sources.
Trade-offs
- Users who need HDMI connectivity — no HDMI port is built in, so modern source devices will require a separate adapter.
- Home cinema use requiring high native resolution — the native resolution is 800 x 600 (SVGA), which is lower than the HD or Full HD expected for film viewing.
- Ultra-portable use — at 2.8 kg and 313 × 240 × 113.7 mm, it is not designed as a compact carry-around projector.
- Large-venue or auditorium use where a single unit is expected to fill a very large screen — the throw ratio and zoom range are optimised for medium-sized rooms.
Project with clarity with the X1128H projector. Get bright, clear images even in well-lit, medium-sized rooms with up to 4,800 lumens of brightness. True-to-life colors are possible thanks to Acer LumiSense™, ColorBoost3D™, and Color Safe II, while Acer BlueLightShield™ protects your eyes.
4,800 Lumens Brightness
See crystal-clear, vibrant images from a distance in daylight or medium to large rooms with up to 4,800 lumens of brightness.
Acer ColorBoost3D™
Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D™ technology.
Acer ColorSafe II
Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.
Acer BlueLightShield™
Protect your eyes from unnecessary strain by utilizing Acer BlueLightShield™ technology.
Integrated Speakers
What you hear will be just as good as what you see with the powerful built-in speakers.
General
| Brand | Acer |
|---|---|
| Projection System | DLP™ |
| Projection Mode | Front, Rear, Ceiling, Rear Ceiling |
| Installation | Ceiling Mountable |
Image & Optics
| Native Resolution | 800 x 600 |
|---|---|
| Maximum Resolution | 1920 x 1200 |
| Brightness (Standard) | 4,800 ANSI Lumens |
| Brightness (ECO) | 3,600 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Aspect Ratio | 4:3 (Native), 16:9 (Supported) |
| Image Size | 23" (58.4 cm) ~ 300" (762 cm) |
| Throw Ratio | 1.94 to 2.16 (51" @ 2 m) |
| Zoom Ratio | 1.1x |
| Lens | F = f/2.41~f/2.53, f = 21.85 mm~24.01 mm, Manual Zoom, Manual Focus |
| Projection Offset (Half-Height) | 130% |
| Vertical Sync Rate | 24 ~ 120 Hz |
| Horizontal Sync Rate | 15 to 100 kHz |
Connectivity & Audio
| VGA In | x1, D-sub |
|---|---|
| VGA Out | x1, D-sub |
| Video In | x1, RCA |
| Audio In | x1, 3.5 mm mini jack |
| Audio Out | x1, 3.5 mm mini jack |
| Speaker | 3 W (built-in) |
Lamp & Power
| Light Source | Lamp 220 W |
|---|---|
| Lamp Life (Standard) | 6,000 hours |
| Lamp Life (ECO) | 10,000 hours |
| Power Consumption (Standard) | 275 W |
| Power Consumption (ECO) | 205 W |
| Standby Power | 0.5 W |
| Dimensions (W × D × H) | 313 mm × 240 mm × 113.70 mm |
| Weight | 2.8 kg (6.2 lb) |
