ADATA EC680 NVMe M.2 SSD Enclosure USB 3.2 Gen2 10Gbps
ADATA
ADATA EC680 NVMe M.2 SSD Enclosure USB 3.2 Gen2 10Gbps
The ADATA EC680 NVMe M.2 SSD Enclosure USB 3.2 Gen2 10Gbps lets you repurpose an existing M.2 PCIe NVMe drive as a portable external SSD, saving you from discarding a working drive after a computer upgrade. It suits anyone who wants a fast, tool-free way to access NVMe storage across Windows, macOS, Android, and Linux without needing a screwdriver or specialist software.
Why this product

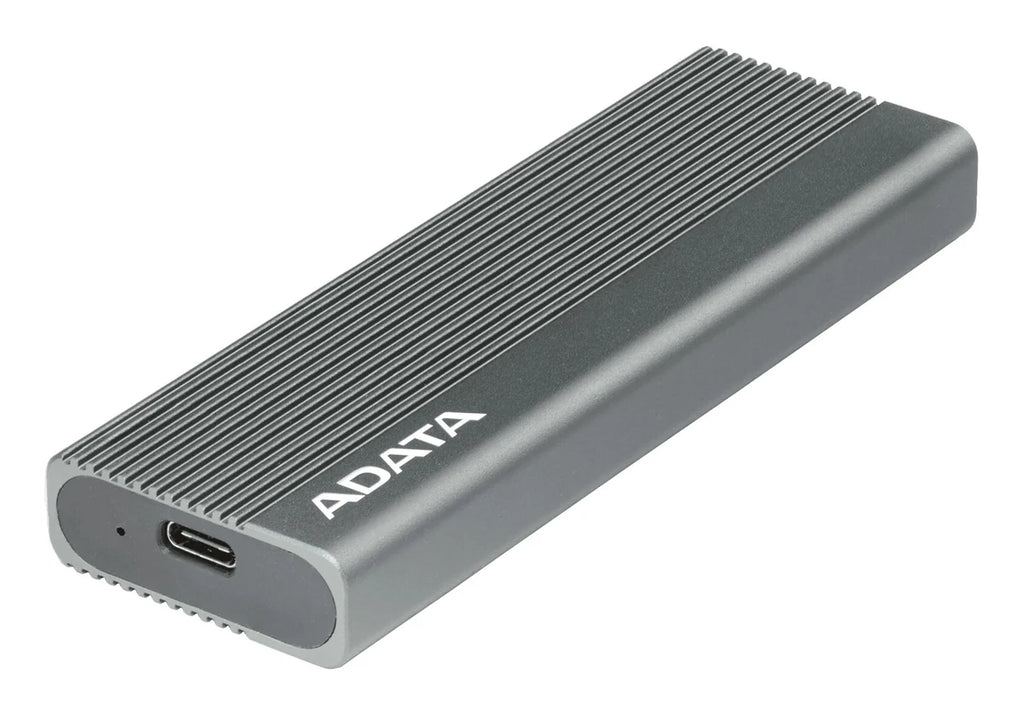

Up to 10 Gbps USB 3.2 Gen2 interface
The Type-C port runs at USB 3.2 Gen2 speeds, supporting read/write performance up to 1,050 / 1,000 MB/s when paired with a compatible NVMe drive.
Fits four M.2 form factors
It accepts 2230, 2242, 2260, and 2280 M.2 NVMe PCIe drives, covering the most common sizes found in laptops and desktops.
Tool-free slide-latch installation
A side latch ejects the inner tray so you can swap an M.2 SSD in seconds — no screwdriver or specialist tools required.
Aluminium alloy casing aids heat dissipation
The misty rock grey aluminium alloy shell with a three-dimensional textured fin design helps spread heat from the drive during sustained transfers.
Broad OS compatibility out of the box
It works with Windows 8 and later, macOS X 10.6 and later, Linux Kernel 2.6 and later, and Android 5.0 and later with no device driver needed on Android.
- InterfaceUSB 3.2 Gen2 Type-C (10 Gbps)
- Bus speedPCIe Gen3 x2
- Read / WriteUp to 1,050 / 1,000 MB/s
- Compatible form factors2230, 2242, 2260, 2280 (M.2 NVMe PCIe)
- Dimensions116.42 x 38.24 x 13.75 mm
- Weight69 g
- WarrantyLimited 2-year
- ColorMetal Gray
- SKUADA-3593
- EAN4711658152527
- Compatible with M.2 NVMe PCIe drives in 2230, 2242, 2260, and 2280 form factors.
- Works with Windows 8 / 8.1 / 10, macOS X 10.6 or later, Linux Kernel 2.6 or later, and Android 5.0 or later.
- Connects via USB 3.2 Gen2 Type-C; a USB 3.2 Type-C to C cable is included in the box.
- macOS use requires reformatting the drive before use.
- Android 5.0 or later works with no device driver needed, but the host device must support USB OTG or USB-C data.
- Not compatible with M.2 SATA drives — it supports PCIe (NVMe) only.
Best for
- Upgraders repurposing a replaced NVMe drive — instead of discarding an old M.2 PCIe drive after a laptop or desktop upgrade, it gives that drive a second life as fast portable storage.
- Users who need high-speed external transfers — with read/write speeds up to 1,050 / 1,000 MB/s via USB 3.2 Gen2, it is suited to tasks like video editing or large file transfers that exhaust slower USB drives.
- People who swap drives frequently — the tool-free slide-latch design makes changing the installed M.2 drive quick and straightforward without any tools.
- Multi-platform users — broad support for Windows, macOS, Linux, and Android means one enclosure works across different machines and operating systems.
Trade-offs
- M.2 SATA SSD owners — it supports PCIe (NVMe) only, so M.2 SATA drives are not compatible.
- Users without a compatible USB-C host port — the enclosure uses a USB 3.2 Gen2 Type-C connection; users on older USB-A-only systems will need a cable or adapter not included in the box.
- Those needing a longer warranty — it carries a limited 2-year warranty, which is shorter than some competing enclosures.
The ADATA EC680 enclosure gives your old internal M.2 PCIe a new lease on life as an external SSD. The EC680 supports USB 3.2 Gen2 interface, with Type-C port, providing transmission speed up to 10 Gbps. Misty rock grey aluminum alloy case is its top feature. This improves heat spread and provide better grip. It also works with all major operating systems, including macOS, Windows, and Android.
Fast USB 3.2 Gen2 Speeds
EC680 Enclosure supports PCIe Gen3 x2 bus speed to increase read/write performance to 1,050 /1,000 MB/s.
Compatible with Multiple SSDs Form Factors
EC680 Enclosure is compatible with 2230, 2242, 2260, 2280 M.2 form factors, providing wide range and compatibility.
Fast & Intuitive Tool-less Installation

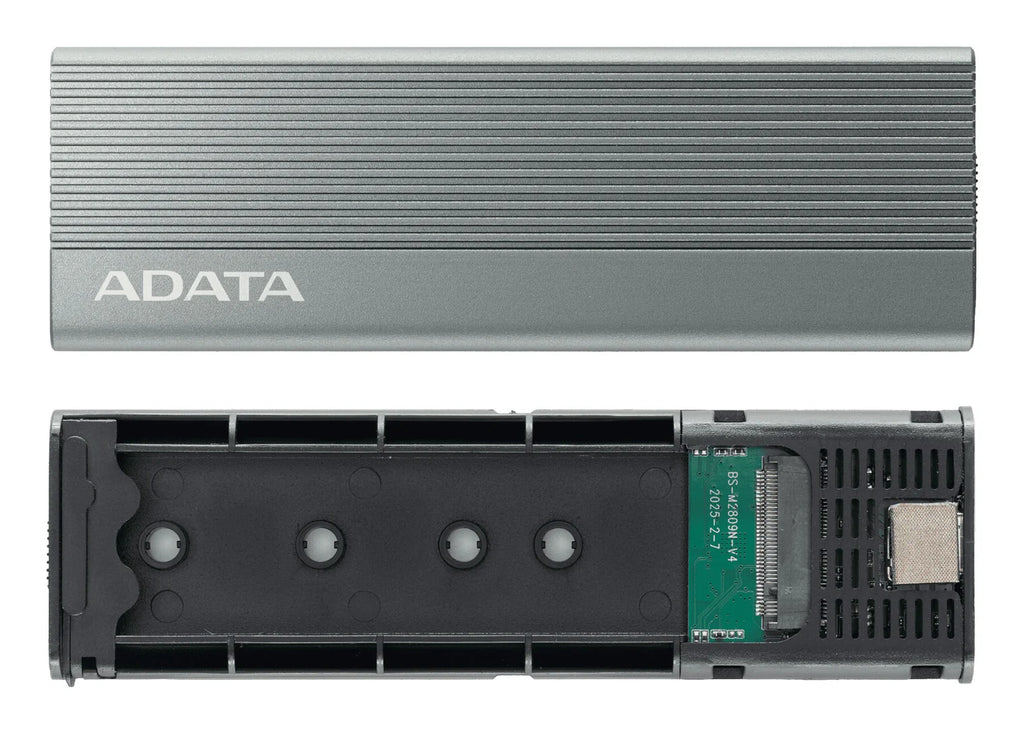

The EC680 emphasizes a convenient tool-less installation design. After removing an old M.2 SSD from your computer, perhaps following an upgrade. Just simply slide the side latch on the EC680 to eject the inner tray for swapping SSD. The entire process requires no tools, making it quick, intuitive, and effortless.
Efficient Cooling, Distinctive Style

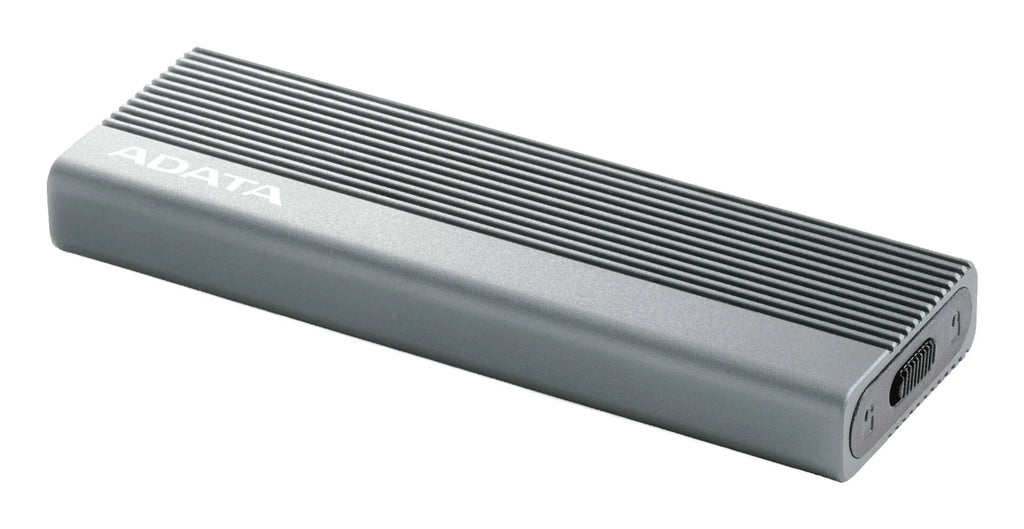

EC680 PCIe M.2 SSD Enclosure features an exquisite misty rock grey aluminum alloy casing, incorporating a unique, three-dimensional textured fin design. This design not only effectively enhances heat dissipation efficiency for stable operation but also provides a secure and comfortable grip, representing a perfect fusion of form and function.
General
| Brand | ADATA |
|---|---|
| Part number | EC680-CCGY |
| Color | Metal Gray |
| EAN | 4711658152527 |
| UPC | 842243036121 |
Drive
| SSD compatibility | M.2 PCIe (NVMe) |
|---|---|
| Supported form factors | 2230, 2242, 2260, 2280 |
| Interface | USB 3.2 Gen2 Type-C (USB 10 Gbps) |
| Bus speed | PCIe Gen3 x2 |
Performance
| Sequential read | Up to 1,050 MB/s |
|---|---|
| Sequential write | Up to 1,000 MB/s |
Physical & reliability
| Dimensions (L x W x H) | 116.42 x 38.24 x 13.75 mm / 4.58 x 1.50 x 0.54 in |
|---|---|
| Weight | 69 g / 2.43 oz |
| Casing material | Aluminium alloy |
| System requirements | Windows 8/8.1/10; macOS X 10.6 or later (reformatting required); Linux Kernel 2.6 or later; Android 5.0 or later |

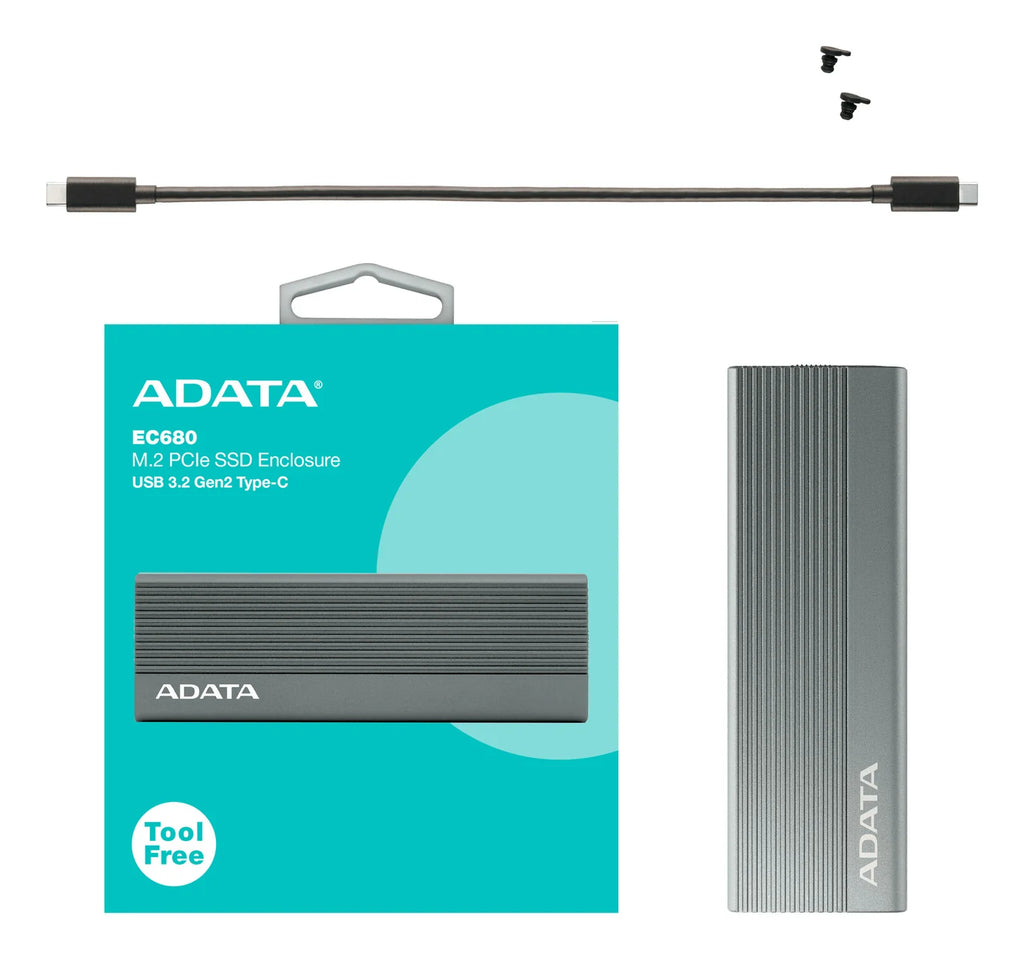

| Accessories included | USB 3.2 Type-C to C cable, Quick Installation Guide |
| Warranty | Limited 2-year |
