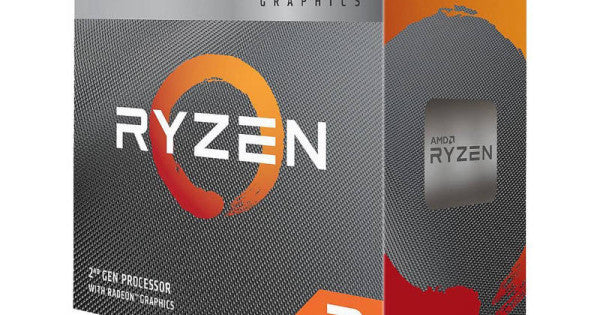

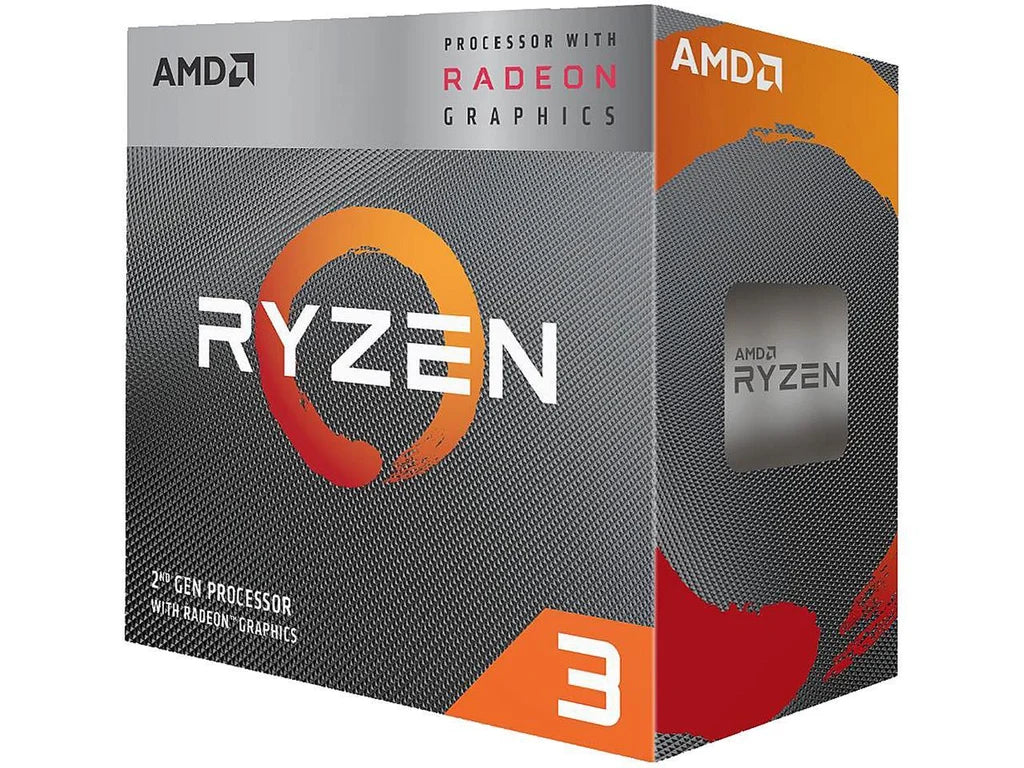

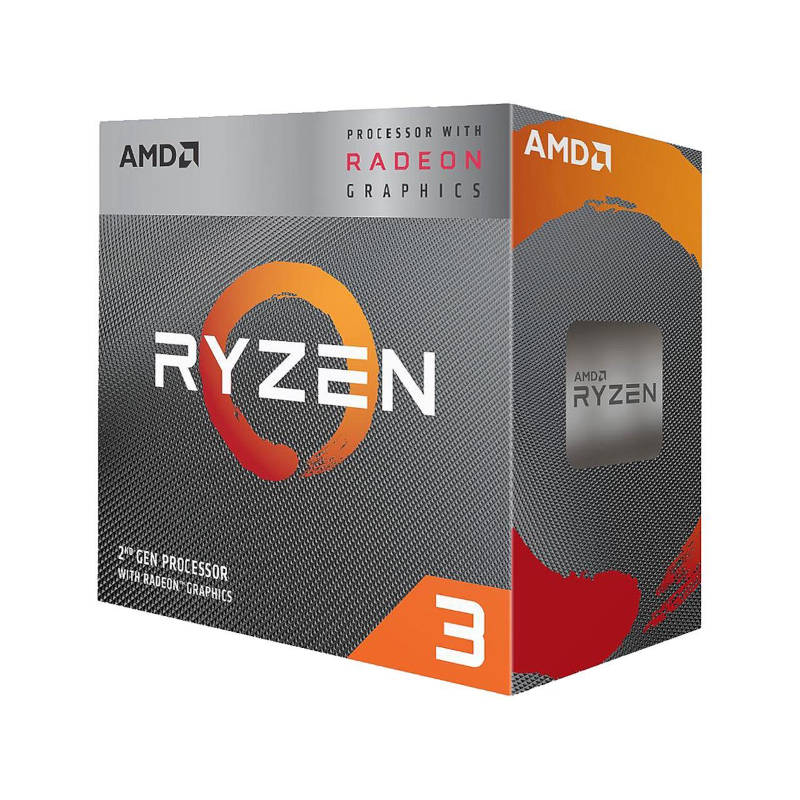

AMD Ryzen 3 3200G 4-Core AM4 Processor with Radeon Vega 8
AMD
AMD Ryzen 3 3200G 4-Core AM4 Processor with Radeon Vega 8
The AMD Ryzen 3 3200G 4-Core AM4 Processor with Radeon Vega 8 is a desktop APU aimed at budget builders and compact system integrators who need capable CPU and display output from a single chip. It combines a quad-core processor with integrated Radeon Vega 8 graphics, removing the need for a discrete GPU in everyday desktop and light creative workloads. The included Wraith Stealth cooler and unlocked multiplier make it a practical starting point for first-time builders or those upgrading an existing AM4 platform.
Why this product
Integrated Radeon Vega 8 graphics on-chip
The Radeon Vega 8 GPU runs at 1250 MHz and outputs via DisplayPort and HDMI, so no discrete graphics card is required for display connectivity.
Quad-core with 4.0 GHz boost
Four cores run from a 3.6 GHz base up to 4.0 GHz boost, covering everyday multitasking, web browsing and light productivity without bottlenecks.
Unlocked for overclocking
The multiplier is fully unlocked, letting builders push clocks beyond stock settings on a compatible AM4 motherboard.

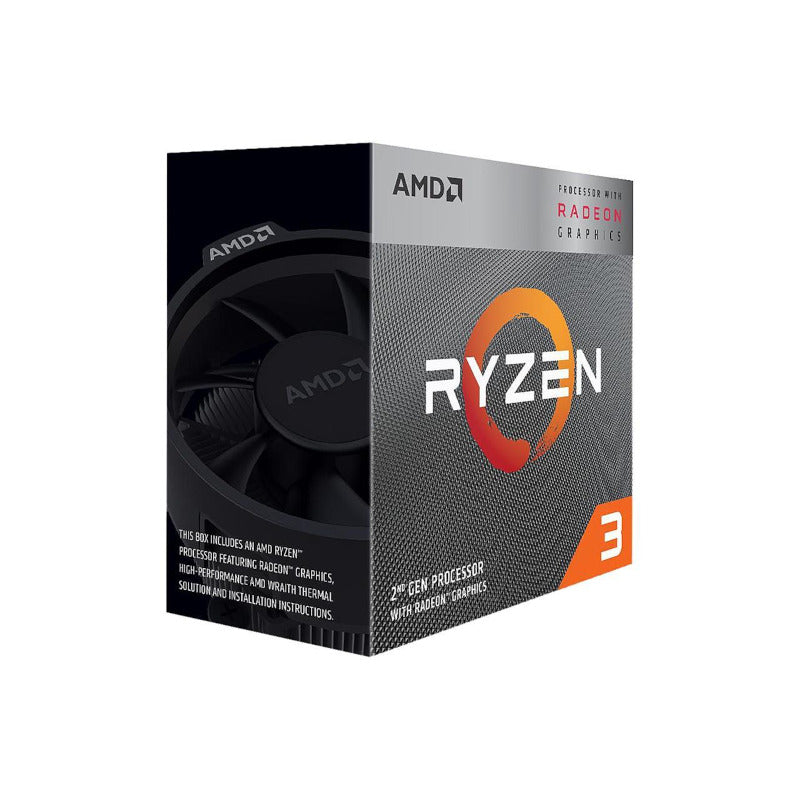

Wraith Stealth cooler included
The box includes AMD's Wraith Stealth thermal solution, so no separate cooler purchase is needed to get the system running.
Configurable TDP down to 45W
AMD's cTDP support lets the processor operate anywhere from 45W to 65W, which can help in thermally constrained or small-form-factor builds.
12nm FinFET process node
Built on 12nm FinFET, the chip balances clock-speed headroom and power efficiency within the AM4 ecosystem.
- CPU Cores / Threads4 / 4
- Base / Boost Clock3.6 GHz / Up to 4.0 GHz
- Integrated GraphicsRadeon Vega 8 @ 1250 MHz
- SocketAM4
- Default TDP65W
- Memory SupportDDR4 up to 2933 MHz, Dual-Channel
- Included CoolerWraith Stealth
- OverclockingUnlocked
- SKUAMD-1830
- EAN730143309851
- Fits any AM4 socket motherboard that supports Picasso-generation APUs — check your board's CPU support list before purchasing.
- Requires DDR4 system memory; supports dual-channel configuration at up to 2933 MHz.
- Compatible with Windows 10 (64-bit), RHEL x86 64-bit, and Ubuntu x86 64-bit. OS support may vary by motherboard manufacturer.
- Connects to displays via DisplayPort or HDMI through the motherboard's rear-panel outputs when using the integrated Vega 8 graphics.
- PCIe 3.0 x8 is available for a discrete GPU slot; adding a dedicated GPU will bypass the integrated graphics for gaming or GPU-compute tasks.
- Not compatible with AM3+, AM5 or any Intel platform socket.
Best for
- Budget desktop builds where avoiding the cost of a discrete graphics card is a priority.
- Compact or small-form-factor systems that benefit from the adjustable 45–65W cTDP range.
- AM4 platform upgrades for users moving from an older Ryzen chip on a compatible board who want integrated display output.
- First-time builders who want a complete out-of-box experience, since the Wraith Stealth cooler is included.
- Overclocking enthusiasts on a tight budget, given the fully unlocked multiplier.
Trade-offs
- Demanding gaming or GPU-compute workloads — the integrated Vega 8 at 1250 MHz is not a substitute for a dedicated graphics card in those scenarios.
- Heavily threaded workloads — with only 4 cores and 4 threads, tasks such as video encoding or 3D rendering that scale with thread count will be limited.
- DDR5 or DDR3 platforms — the processor supports DDR4 only, up to 2933 MHz.
- AM5 or next-generation platform builders — the AM4 socket is not forward-compatible with AMD's newer AM5 ecosystem.
Platform: Boxed Processor
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 3 Desktop Processors with Radeon™ Vega Graphics
# of CPU Cores: 4
# of Threads: 4
Max. Boost Clock: Up to 4.0GHz
Base Clock: 3.6GHz
Total L1 Cache: 384KB
Total L2 Cache: 2MB
Total L3 Cache: 4MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
CMOS: 12nm FinFET
Unlocked for Overclocking: Yes
CPU Socket: AM4
Thermal Solution (PIB): Wraith Stealth
Thermal Solution (MPK): Wraith Stealth
Max. Operating Temperature (Tjmax): 95°C
Launch Date: 7/7/2019
*OS Support: Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version: PCIe® 3.0 x8
System Memory Type: DDR4
Memory Channels: 2
System Memory Specification: Up to 2933MHz
Graphics Capabilities
Graphics Model: Radeon™ Vega 8 Graphics
# of GPU Cores: 8
Graphics Core Count: 8
Graphics Frequency: 1250 MHz
Display Port: Yes
HDMI™: Yes
General
| Brand | AMD |
|---|---|
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 3 Desktop Processors with Radeon™ Vega Graphics |
| Platform | Boxed Processor |
| Product ID (PIB) | YD3200C5FHBOX |
| Launch Date | 7/7/2019 |
| OS Support | Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
Processor
| CPU Socket | AM4 |
|---|---|
| CPU Cores | 4 |
| Threads | 4 |
| Base Clock | 3.6 GHz |
| Max Boost Clock | Up to 4.0 GHz |
| Total L1 Cache | 384KB |
| Total L2 Cache | 2MB |
| Total L3 Cache | 4MB |
| Process Node | 12nm FinFET |
| Unlocked for Overclocking | Yes |
| Default TDP | 65W |
| Configurable TDP (cTDP) | 45–65W |
| Max Operating Temperature (Tjmax) | 95°C |
| Thermal Solution (PIB / MPK) | Wraith Stealth |
Memory & Connectivity
| System Memory Type | DDR4 |
|---|---|
| Memory Channels | 2 |
| Max Memory Speed | Up to 2933 MHz |
| PCIe Version | PCIe 3.0 x8 |
Integrated Graphics
| Graphics Model | Radeon™ Vega 8 Graphics |
|---|---|
| GPU Cores | 8 |
| Graphics Frequency | 1250 MHz |
| DisplayPort Output | Yes |
| HDMI Output | Yes |
