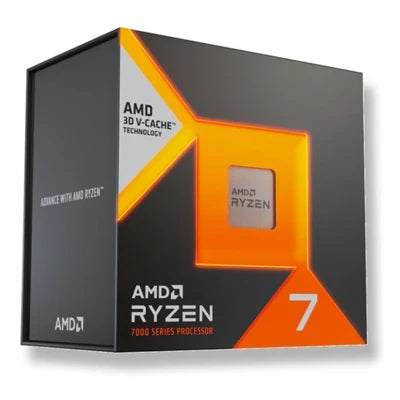

AMD Ryzen 7 7700X3D 8-Core AM5 Processor - 96MB, 120W
AMD
AMD Ryzen 7 7700X3D 8-Core AM5 Processor - 96MB, 120W
The AMD Ryzen 7 7700X3D 8-Core AM5 Processor is built for enthusiast desktop gamers who want a meaningful cache advantage over standard Ryzen 7 chips. Its 96 MB L3 cache, delivered through AMD 3D V‑Cache™ technology, feeds the CPU with more data per clock cycle, reducing stalls in the game loops that matter most. Built on a Zen 4 architecture with a 5 nm process node, it suits builders who want strong per-core gaming performance on the AM5 platform without moving to a 16-core part.
Why this product
96 MB L3 cache via 3D V‑Cache™
The stacked 96 MB L3 cache is the defining feature: it keeps more game data closer to the CPU cores, reducing the latency cost of fetching from system memory.
8 cores, 16 threads on Zen 4
Eight physical cores with simultaneous multi-threading give it enough parallelism for gaming, streaming and background workloads running at the same time.
Unlocked for overclocking
It supports AMD Precision Boost Overdrive, Curve Optimizer voltage offsets and AMD Ryzen™ Master, giving experienced builders several tools to push performance beyond stock settings.
PCIe® 5.0 and DDR5 platform
The AM5 socket brings PCIe® 5.0 lanes and DDR5 memory support, keeping the platform relevant for fast NVMe storage and future GPU generations.
Comprehensive security features built in
It includes AMD Secure Processor, firmware TPM, AMD-V virtualisation, AMD Shadow Stack and Windows Secured-Core PC support, covering both consumer and light workstation security requirements.
- Cores / Threads8 / 16
- Base Clock4 GHz
- Max Boost ClockUp to 4.5 GHz
- L3 Cache96 MB
- Default TDP120 W
- SocketAM5
- Memory TypeDDR5
- Max Memory128 GB
- SKUAMD-2012
- EAN730143318488
- Fits any AM5 motherboard, including those with A620, B650, B650E, X670, X670E, B840, B850, X870 and X870E chipsets.
- Requires DDR5 memory (UDIMM); supports up to 128 GB across two memory channels.
- ECC memory is supported, but the motherboard must also support ECC for it to function.
- Integrated AMD Radeon™ Graphics are present (2 cores at 2200 MHz), suitable for display output and setup, but not intended for gaming or GPU-accelerated workloads.
- Does not fit AM4 motherboards — AM5 and AM4 sockets are physically incompatible.
- No cooler is included in the box; a compatible AM5 cooler must be purchased separately.
Best for
- High-refresh-rate gamers who want strong per-core performance and a large L3 cache to keep frame rates consistent at high framerates.
- Streamers and content creators running a game and a software encoder simultaneously, where 8 cores and 16 threads spread the load effectively.
- New AM5 builds where DDR5 memory and PCIe® 5.0 storage are already planned, making full use of the platform.
- Overclockers and tuners who want access to Precision Boost Overdrive, Curve Optimizer and AMD Ryzen™ Master without moving to a higher-tier chip.
Trade-offs
- Heavily threaded professional workloads such as 3D rendering or video encoding at scale, where a higher core-count processor would deliver substantially more throughput.
- AM4 platform owners who do not want to replace their motherboard and memory — this processor requires AM5 and DDR5.
- Budget builders who need a boxed cooler included, as no thermal solution is supplied.
- Systems with a 120 W TDP limit should confirm their cooler and VRM can sustain the rated 120 W default TDP, particularly in compact or ITX enclosures.
Whatever the setting or resolution, lead your team to victory with elite gaming performance from a powerful 8‑core AMD gaming processor featuring AMD 3D V‑Cache™ technology.
General
| Brand | AMD |
|---|---|
| Product Name | AMD Ryzen™ 7 7700X3D |
| Series | Ryzen 7000 Series |
| Architecture | Zen 4 |
| Process Node | TSMC 5nm FinFET |
| Market Segment | Enthusiast Desktop |
| Form Factor | Desktop / Boxed Processor |
| Instruction Set | x86-64 |
Performance
| CPU Cores | 8 |
|---|---|
| Threads (SMT) | 16 |
| Base Clock | 4 GHz |
| Max Boost Clock | Up to 4.5 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache (3D V‑Cache™) | 96 MB |
| Default TDP | 120 W |
| Max Operating Temperature | 95°C |
Platform & Memory
| CPU Socket | AM5 |
|---|---|
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory Type | DDR5 (UDIMM) |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Max Memory Speed | 2x1R DDR5-5200 / 2x2R DDR5-5200 / 4x1R DDR5-3600 / 4x2R DDR5-3600 |
| ECC Support | Yes (requires motherboard support) |
| PCIe Version | PCIe® 5.0 |
| PCIe Lanes (Total / Usable) | 28 / 24 |
| Native USB 3.2 Gen 2 (10 Gbps) | 4 |
| Native USB 2.0 (480 Mbps) | 1 |
Integrated Graphics & Security
| Integrated Graphics | AMD Radeon™ Graphics |
|---|---|
| Graphics Cores | 2 |
| Graphics Frequency | 2200 MHz |
| AMD Secure Processor | Yes |
| Firmware TPM | Yes |
| AMD-V Virtualisation | Yes |
| Windows Secured-Core PC | Yes |
| OS Support | Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Cooler Included | No |
