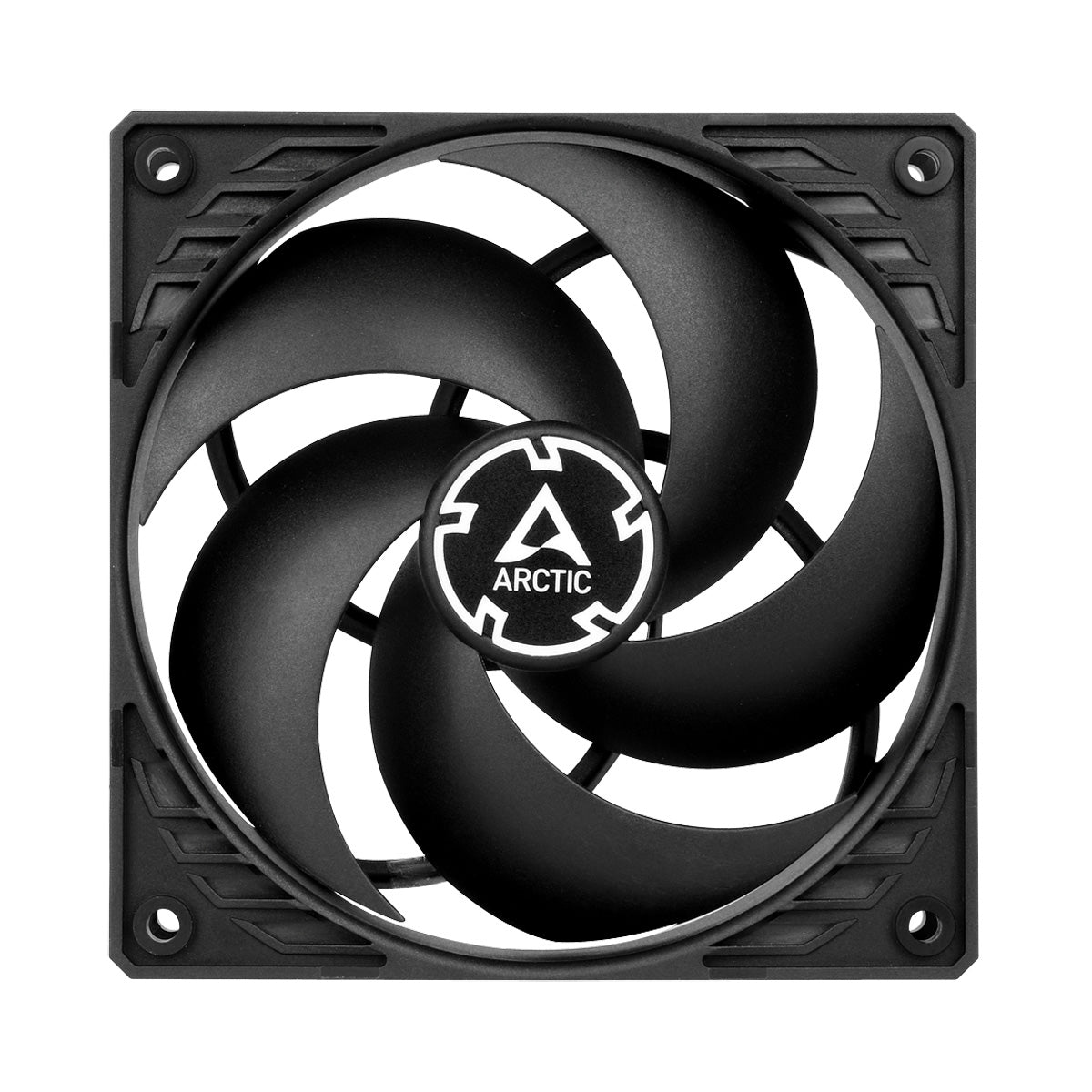

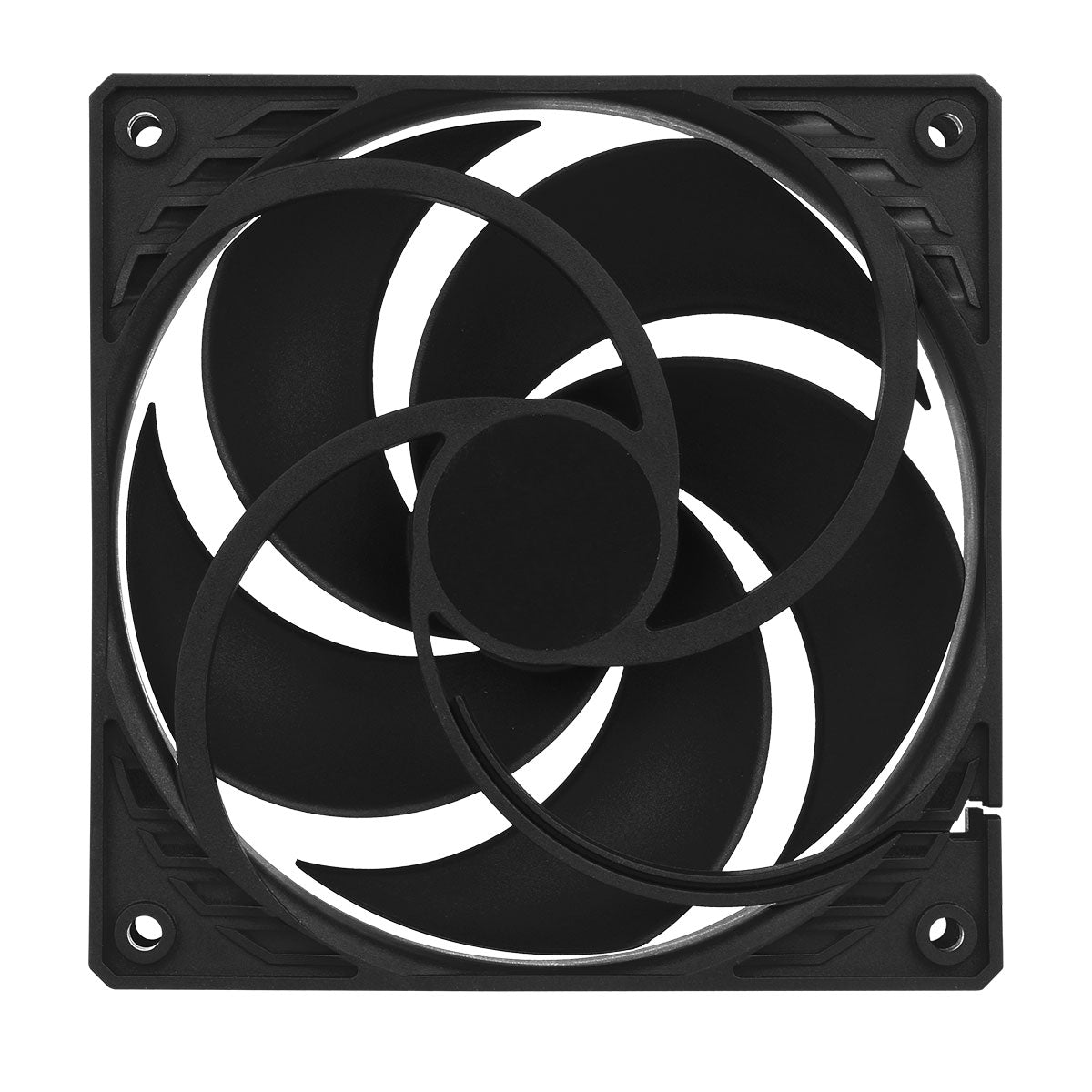

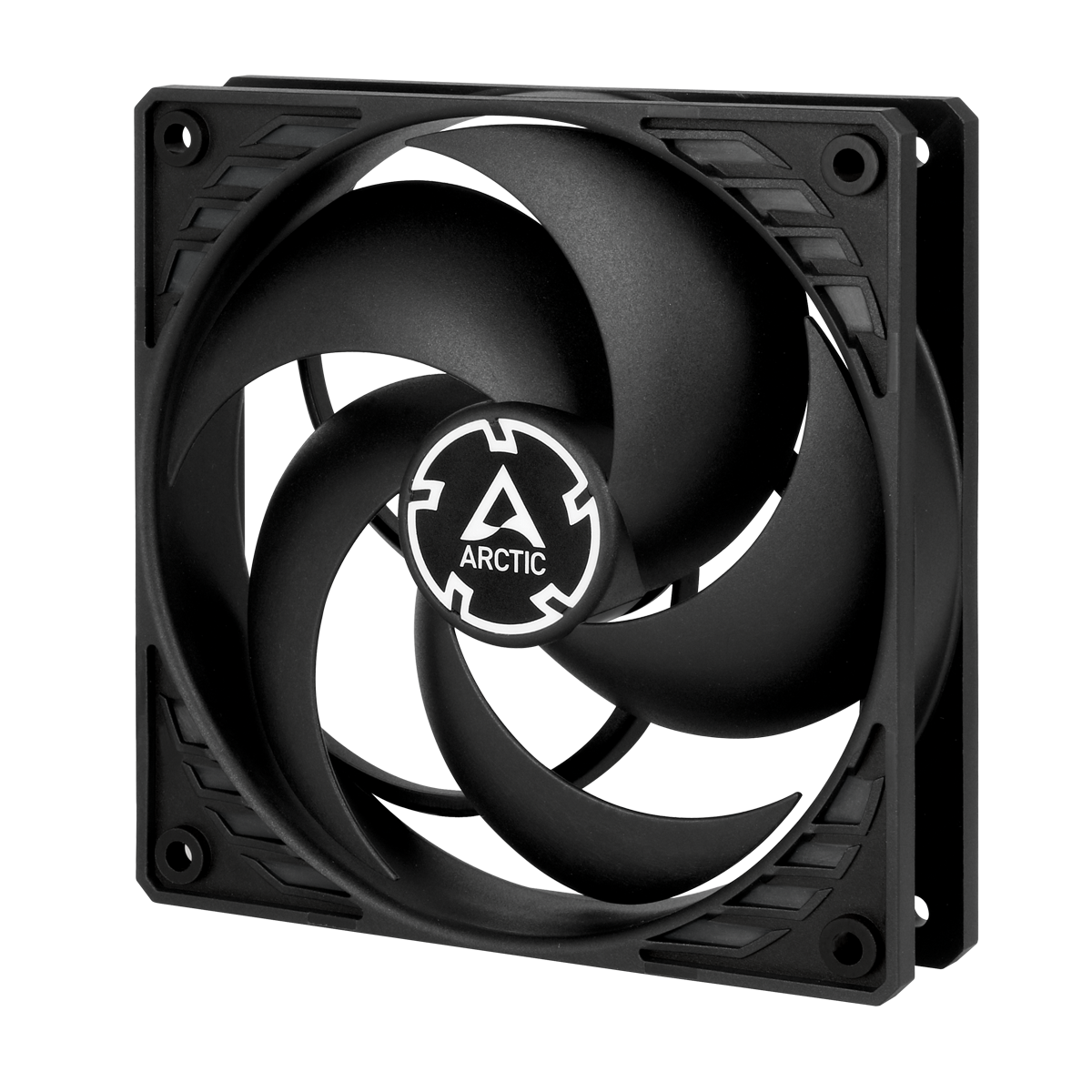

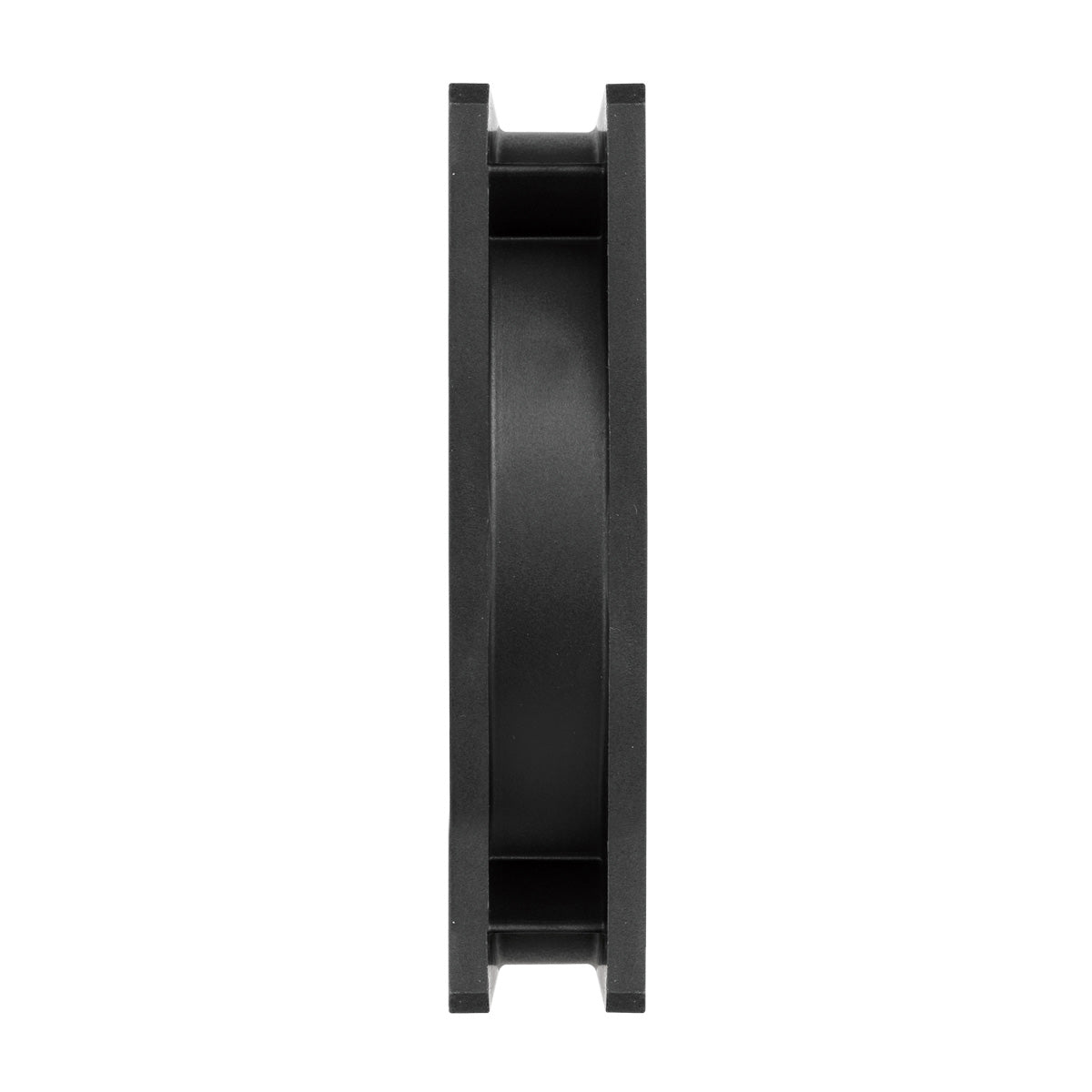

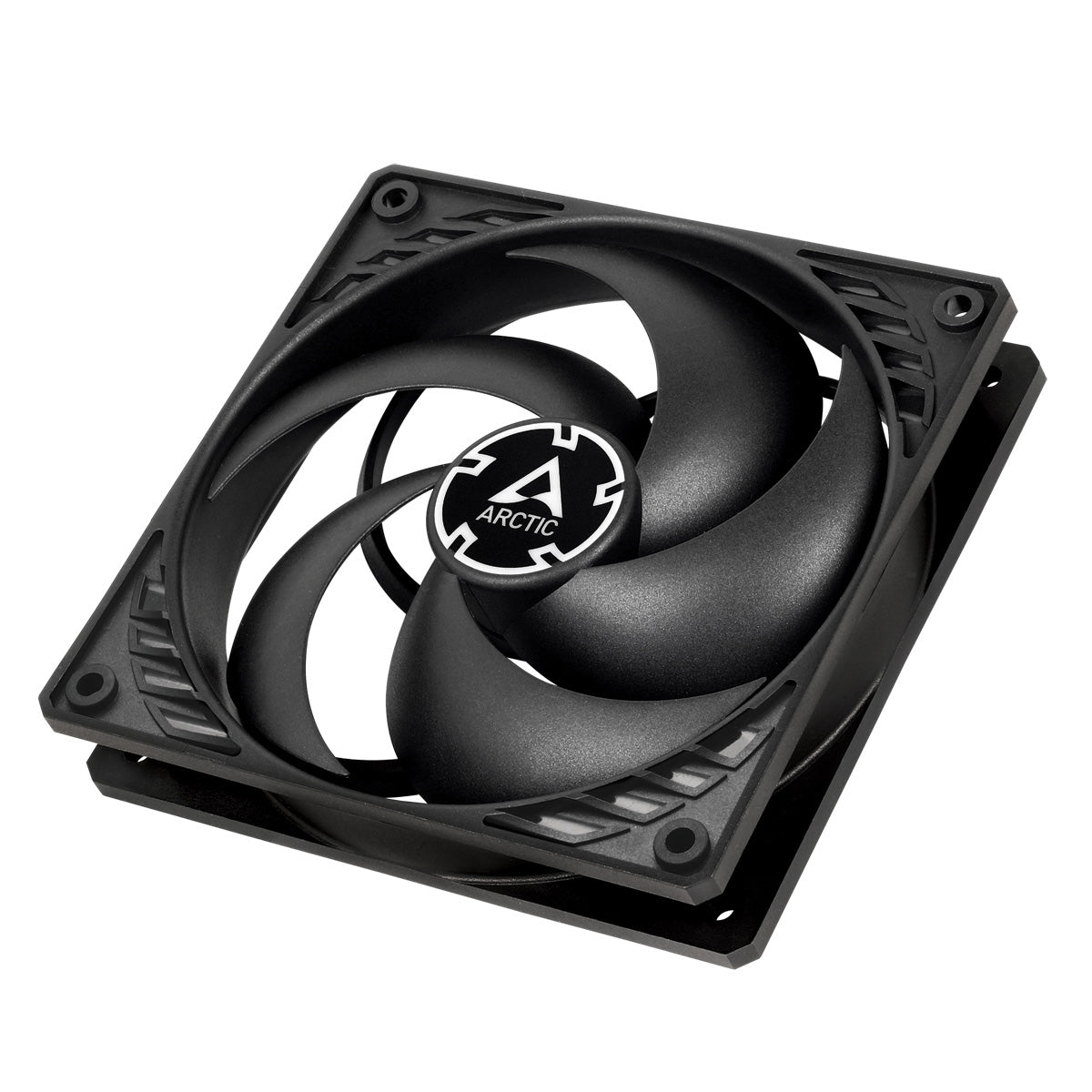

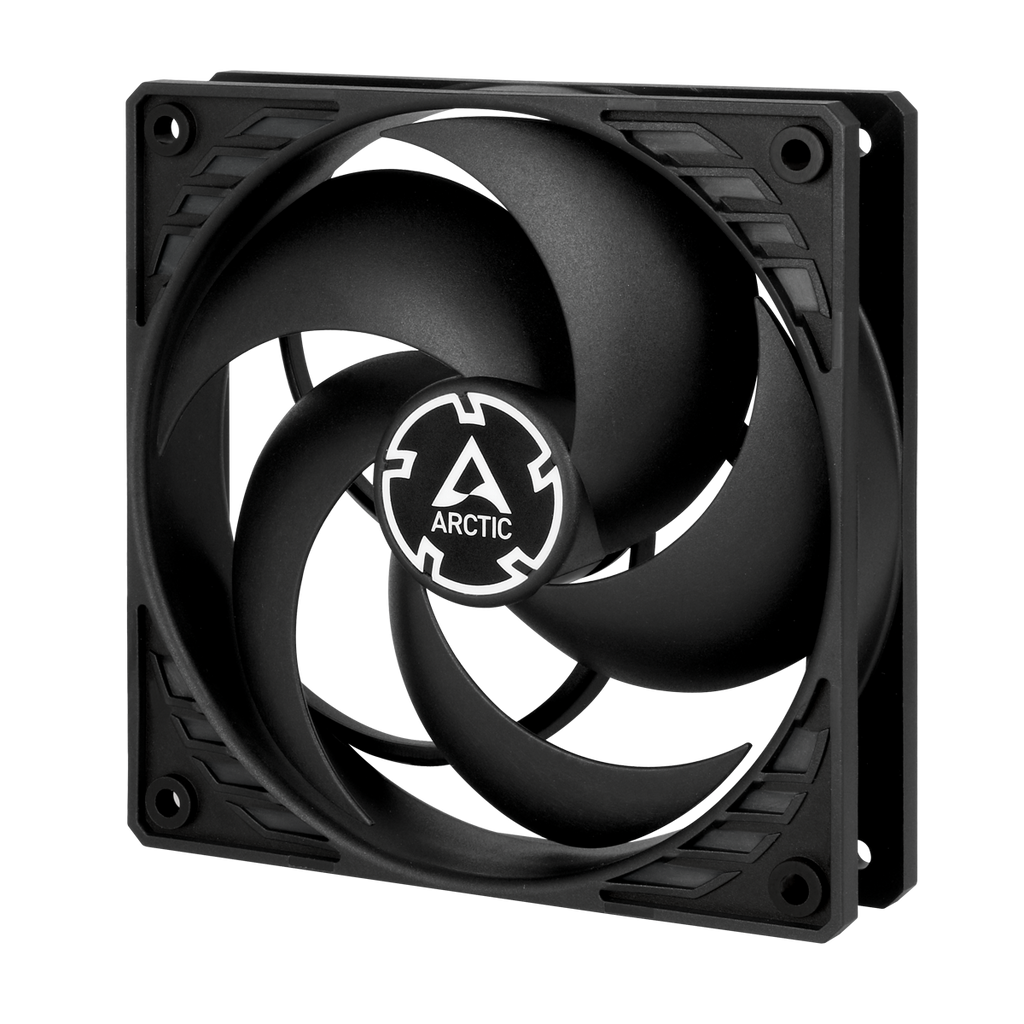

Arctic P12 Pressure Optimised 12cm Case Fan with Fluid Dynamic 1800 RPM
ARCTIC
Arctic P12 Pressure Optimised 12cm Case Fan with Fluid Dynamic 1800 RPM
- The fan guarantees extremely efficient cooling, even with increased air resistance.
- Particularly suitable for use on heatsinks and radiators.
- Strong cooling performance due to an updated engine technology and a newly developed fan design.
- Less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
- Two way installation.
- Push warm air out of the case.
- Pull cool air into your case.
- Limited 6 years warranty.
Product Description
Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests levelled to 28 dB (A), the new P-fans left many competitors behind.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P12.
Specifications
Performance
|
Fan Speed: |
1800 rpm |
|
Airflow: |
56.3 cfm | 95.7 m³/h |
|
Static Pressure: |
2.20 mmH2O |
|
Noise Level: |
0.3 Sone |
|
Operating Ambient Temperature: |
0—40 °C |
|
Warranty: |
6 Years |
Fan
|
Fan Frame: |
Standard |
|
Control Type: |
Fixed Speed |
|
Connector: |
3-Pin Connector |
|
Fan Bearing: |
Fluid Dynamic Bearing |
Electric Characteristics
|
Typical Voltage: |
12 V DC |
|
Starting Voltage: |
2.8 V |
|
Current | Voltage: |
0.16 A | 12 V DC |
|
Cable Length: |
400 mm |
Size & Weight
|
Length: |
120 mm |
|
Width: |
120 mm |
|
Height: |
25 mm |
|
Weight: |
139 g |
Technical specifications & manual
