ARCTIC P12 Pro A-RGB 120mm PWM Fan - 600-3000 RPM
The ARCTIC P12 Pro A-RGB 120mm PWM Fan is a high-pressure cooling fan suited to demanding setups like radiators, perforated panels, and mesh filters. Its fluid dynamic bearing and optimized blade design keep noise low while maintaining effective airflow across its full speed range. The A-RGB lighting and PWM daisy-chain support let you sync multiple fans through a single connector.
Why this product
High static pressure for tight spaces
At 8.00 mmH₂O, it pushes air through radiators and dense filters more effectively than standard fans.
PWM control with zero RPM mode
Speed adjusts from 600 to 3000 RPM via 4-pin PWM, and the fan stops completely below 5% PWM to save power and cut noise when cooling demand drops.
Fluid dynamic bearing for quiet running
The self-lubricating bearing minimizes friction and vibration, paired with a revised blade design that balances performance and smooth operation.
Daisy-chain up to six fans
Connect multiple fans via the built-in PWM socket and control them all synchronously from a single motherboard header.

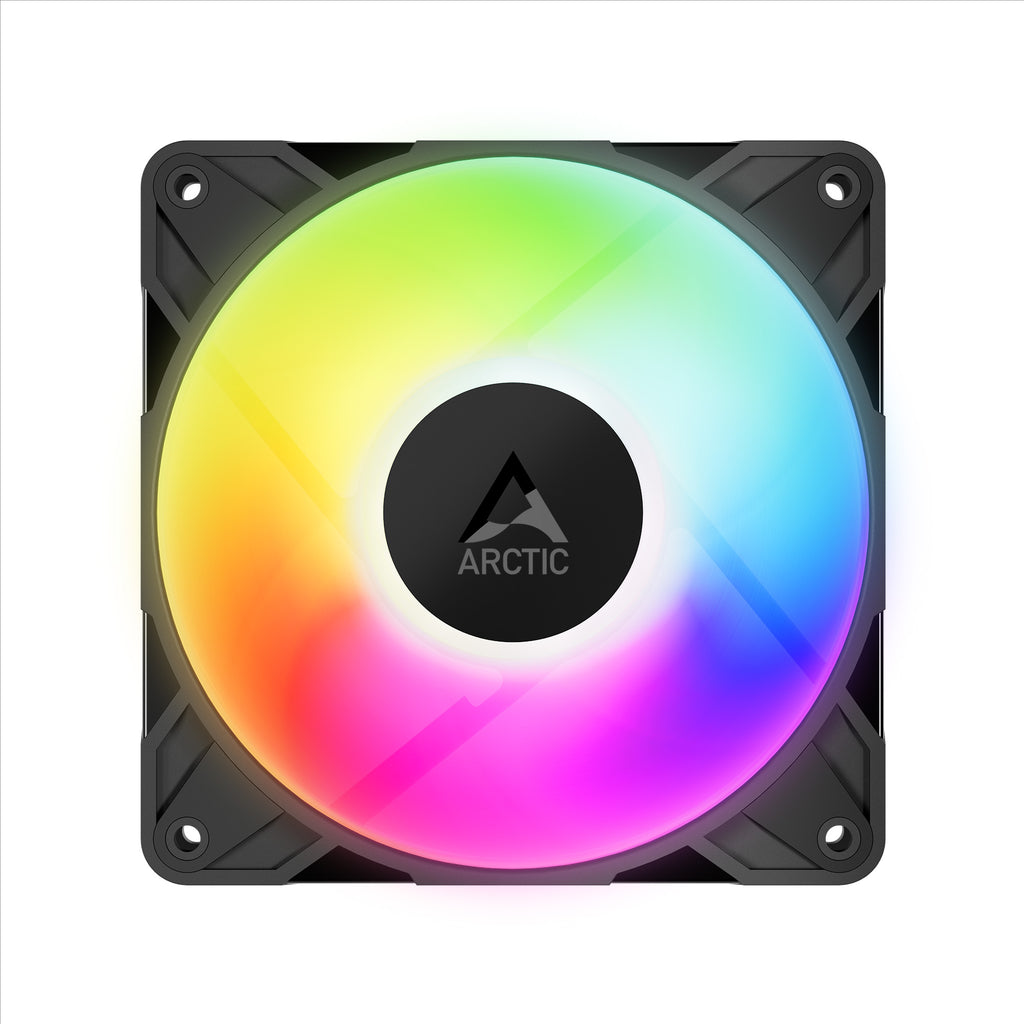

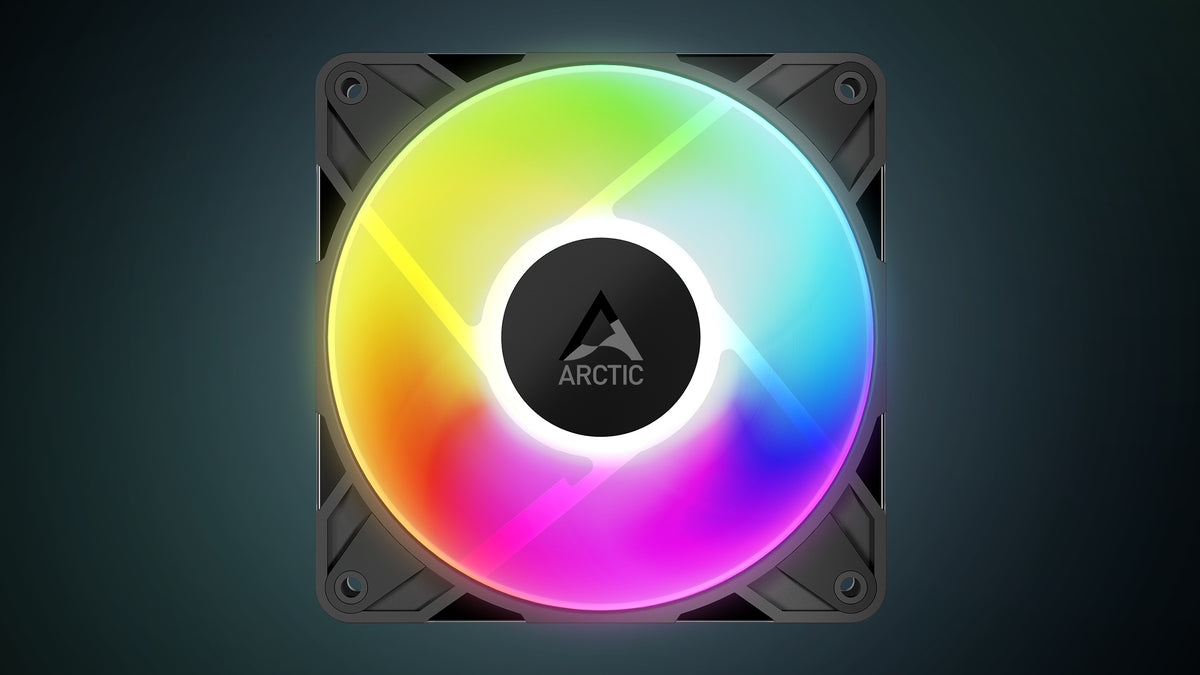

A-RGB lighting control
Digital RGB header lets you sync the lighting to your motherboard or external controller for coordinated aesthetics.
6-year warranty
Long coverage backs the quality of the bearing and construction.
- Size120 mm
- Speed range600–3000 RPM
- Maximum airflow77 CFM
- Static pressure8.00 mmH₂O
- Bearing typeFluid Dynamic Bearing (FDB)
- Lighting5V A-RGB
- Warranty6 years
- SKUARC-3533
- EAN4895265000133
- Works with any motherboard or fan controller that has a standard 4-pin PWM header.
- A-RGB lighting compatible with most modern RGB controllers supporting 5V digital RGB (WS2812B protocol or equivalent).
- Fits any 120 mm fan mounting location with clearance for the 25 mm depth.
- Can daisy-chain up to six fans total via the built-in PWM socket; beyond that requires a fan hub or splitter.
Best for

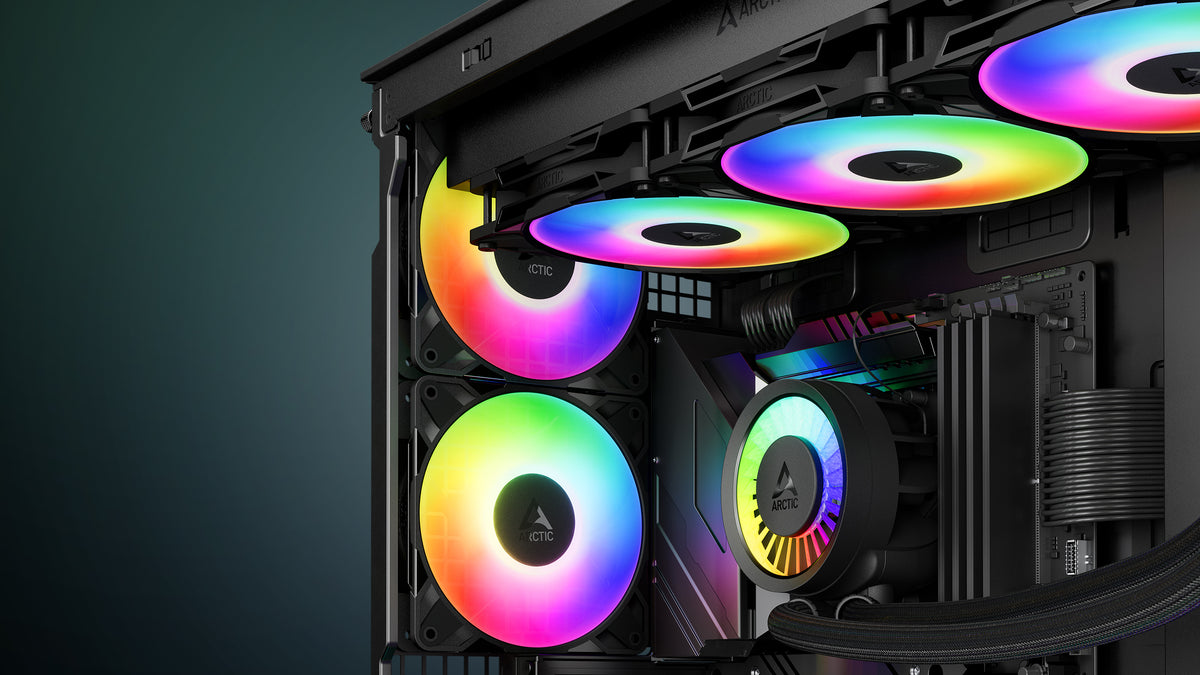

- Liquid CPU coolers and AIO radiators needing higher static pressure to push air through dense fin stacks.
- Perforated front panels and mesh dust filters where standard airflow fans lose efficiency.
- Builders wanting synchronized RGB lighting and multiple fans controlled from a single header.
- Users prioritizing quiet operation thanks to the fluid dynamic bearing and wide speed range down to 600 RPM.
- Systems needing long-term reliability with 6-year factory coverage.
Trade-offs
- Open-frame case builds where high static pressure is unnecessary and standard airflow fans would suffice.
- Systems with legacy RGB controllers that do not support 5V A-RGB (WS2812B) standard.
- Setups running more than six fans on a single PWM header without an external hub.
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

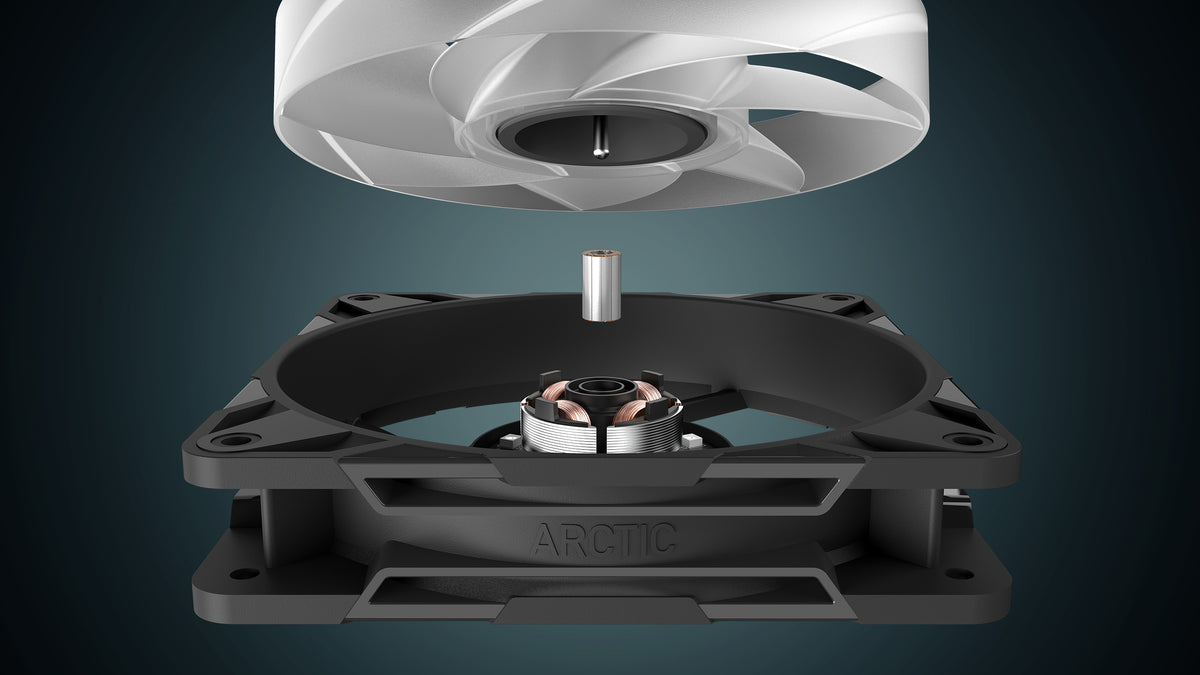

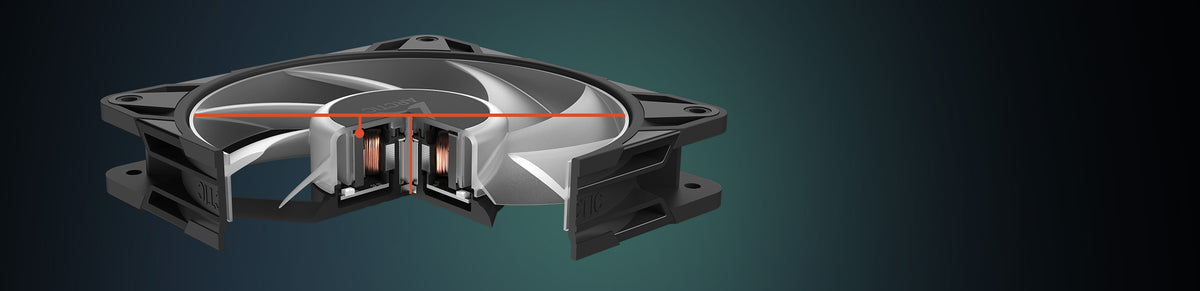

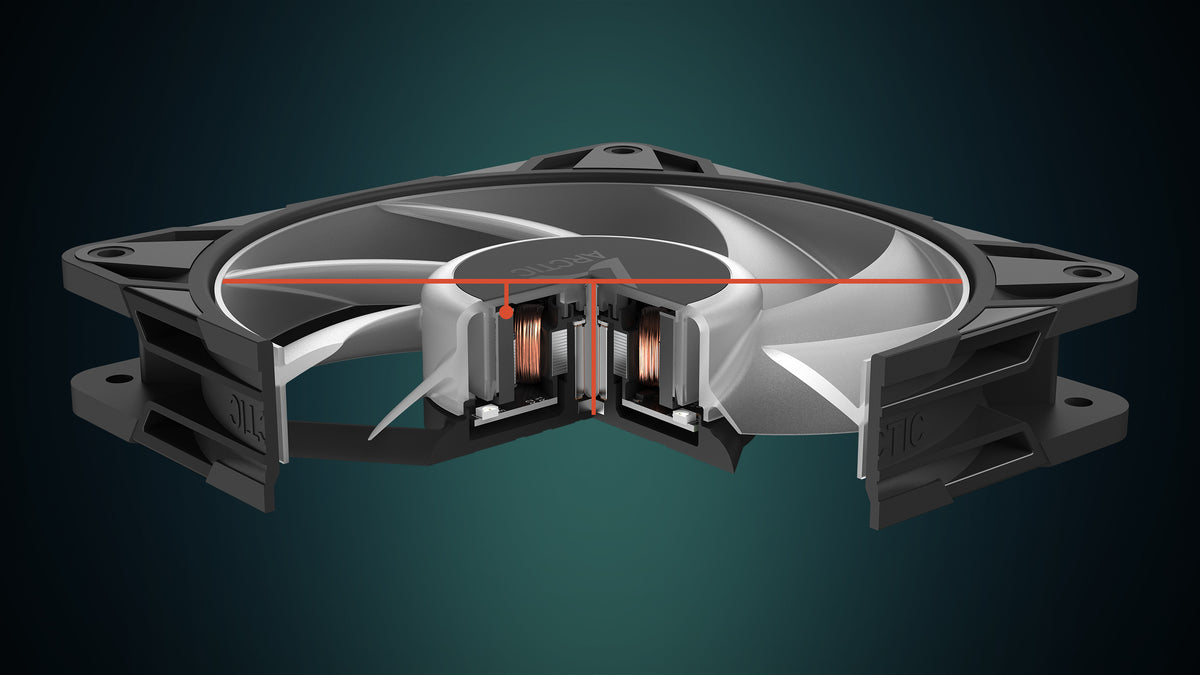

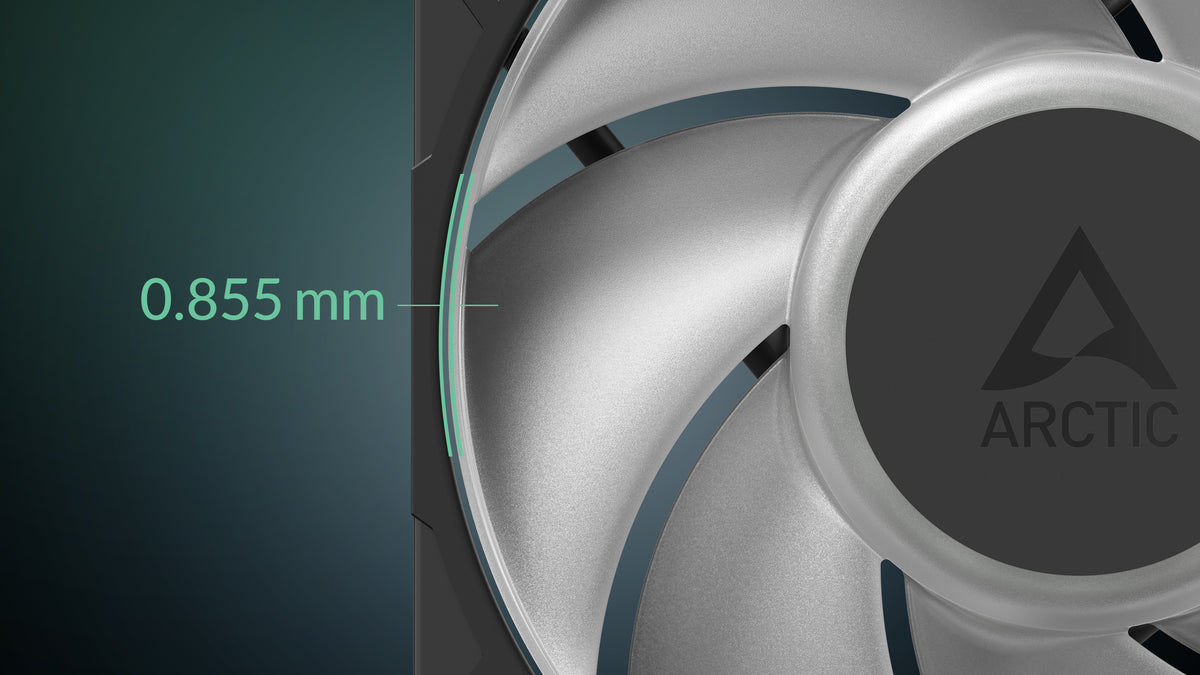

Revised fan blade design for an optimal balance of performance and smooth operation. A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Fan
| Brand | ARCTIC |
|---|---|
| Model | P12 Pro A-RGB |
| Part number | ACFAN00309A |
| Size | 120 mm |
| Thickness | 25 mm |
| Material | Plastic |
Performance
| Speed range | 600–3000 RPM |
|---|---|
| Maximum airflow | 77 CFM |
| Maximum static pressure | 8.00 mmH₂O |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Zero RPM mode | 0 RPM at <5% PWM |
Acoustics & power
| Voltage | 12 V |
|---|---|
| Power connection | 4-pin PWM plug + 4-pin PWM socket |
| PWM frequency | Target 25 kHz (21–28 kHz acceptable) |
| Cable length | 400 mm + 80 mm daisy-chain cable |
| Lighting | 5V A-RGB (WS2812B) |
| Warranty | 6 years |
