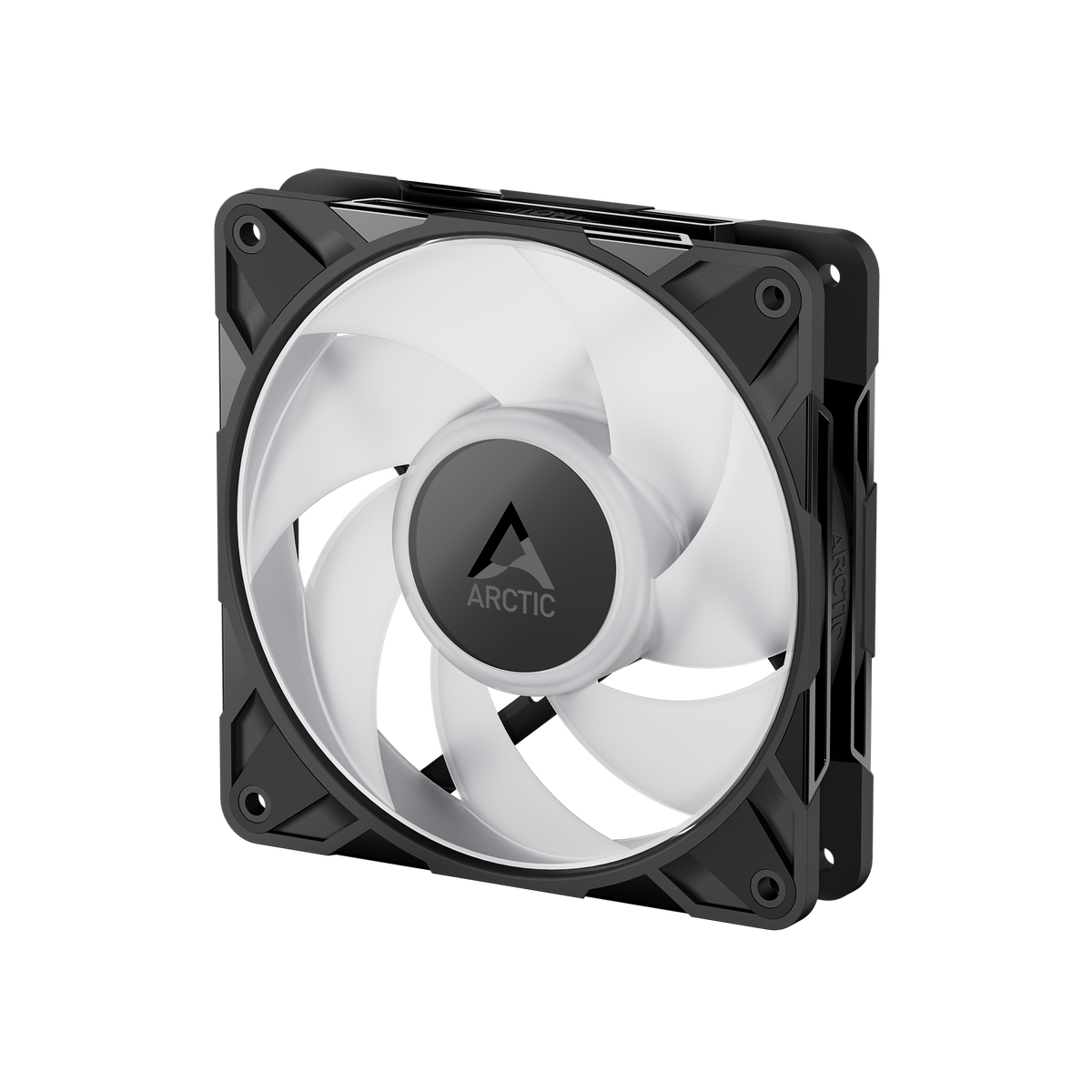

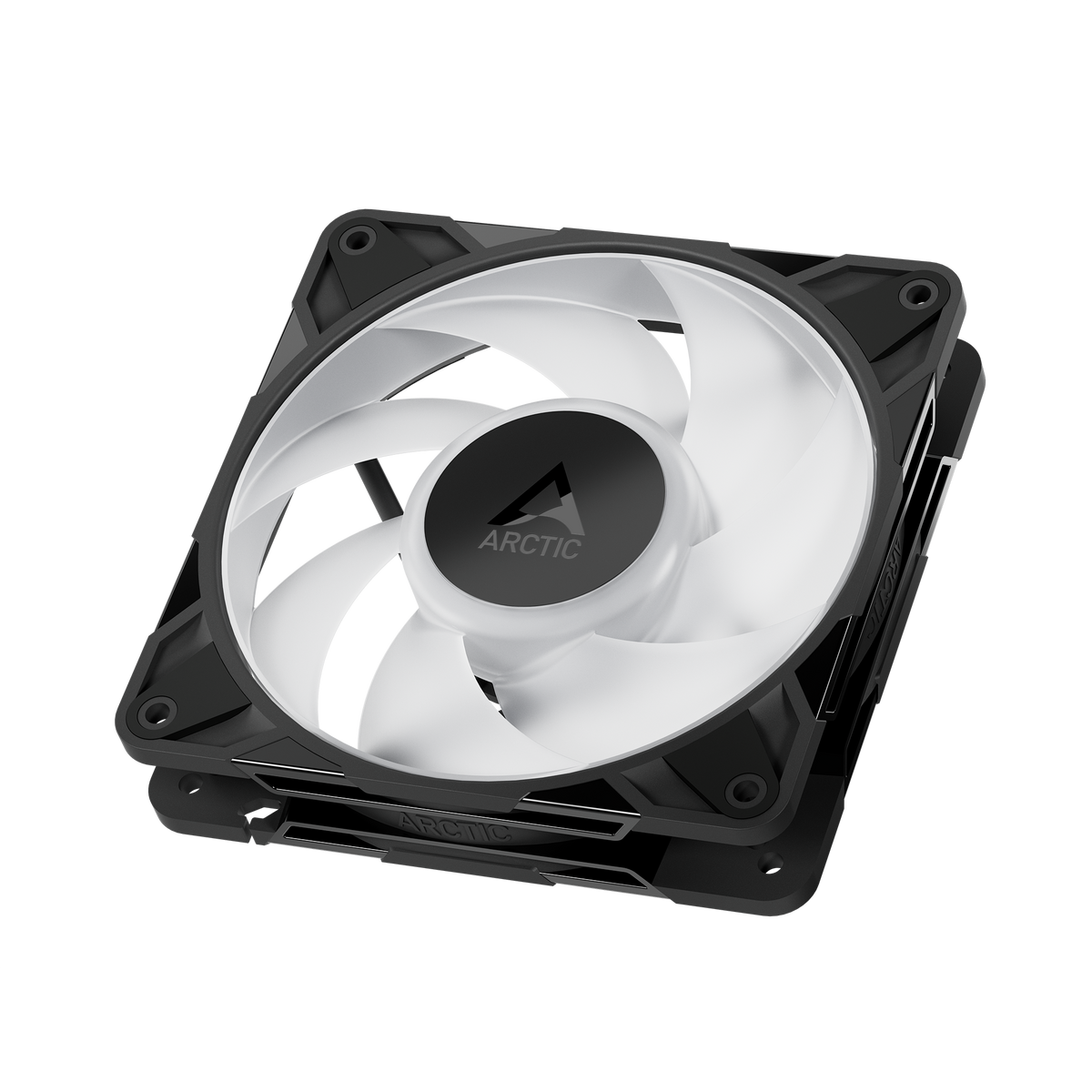

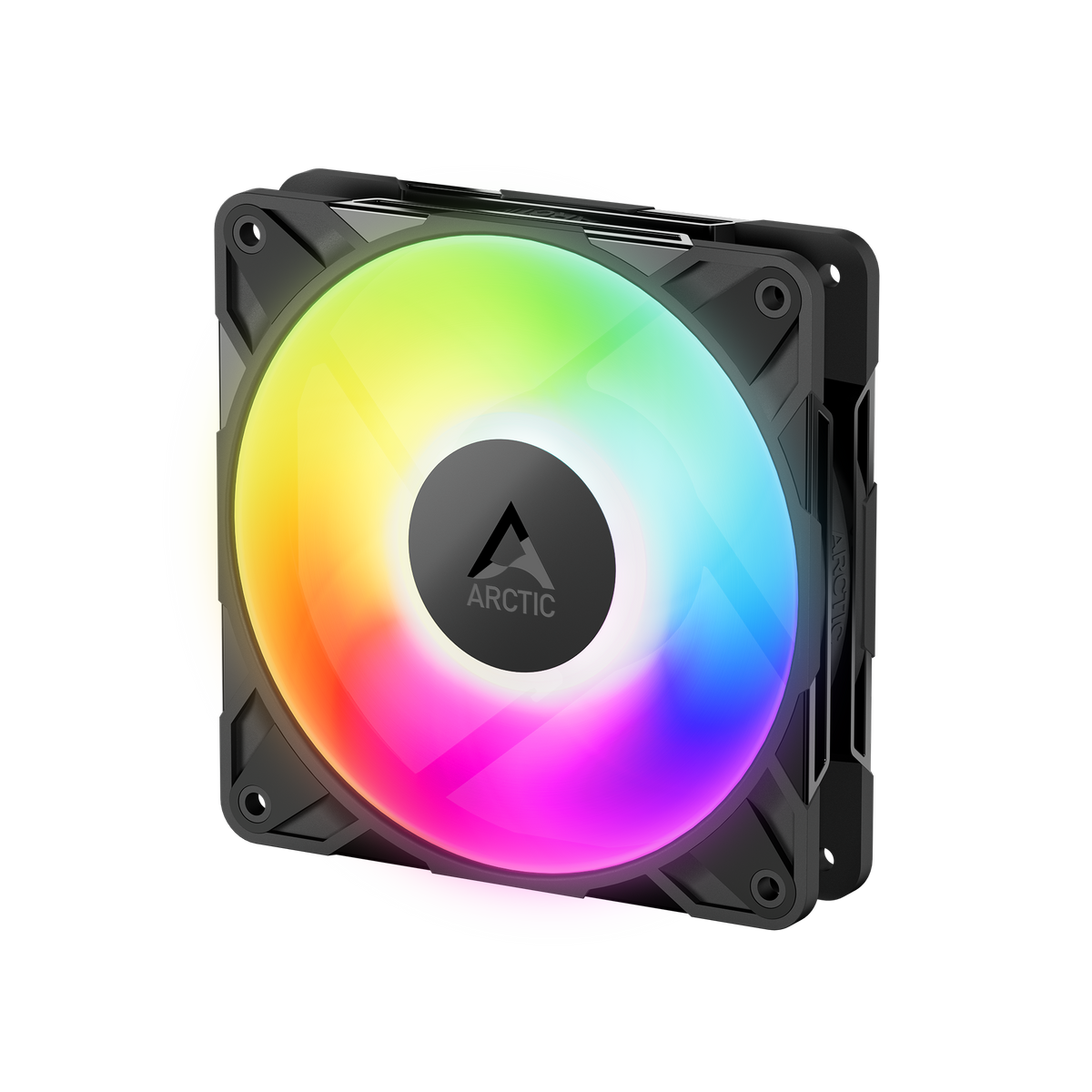

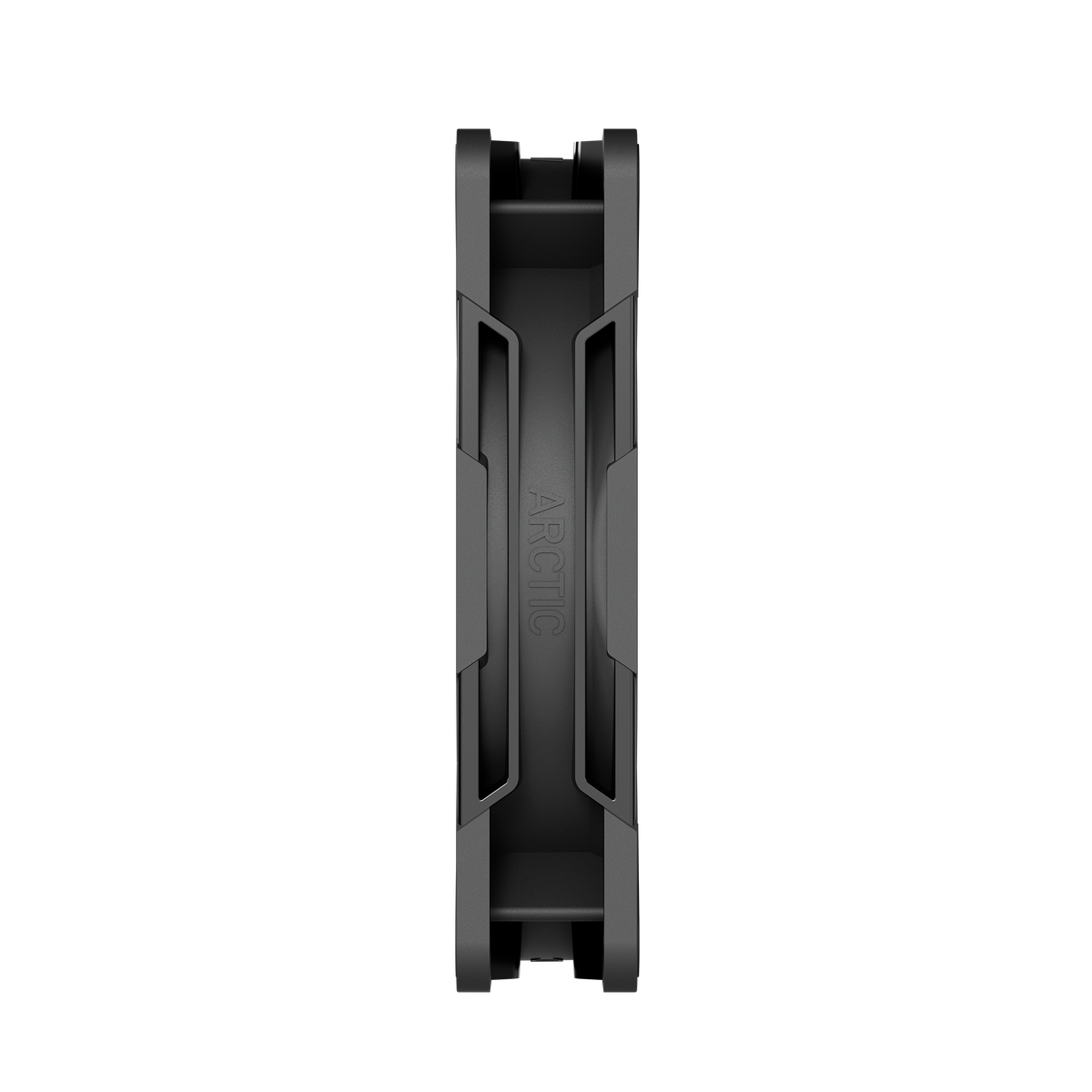

ARCTIC P12 Pro A-RGB LN 120mm PWM Fan - FDB, 450-2000 RPM
ARCTIC

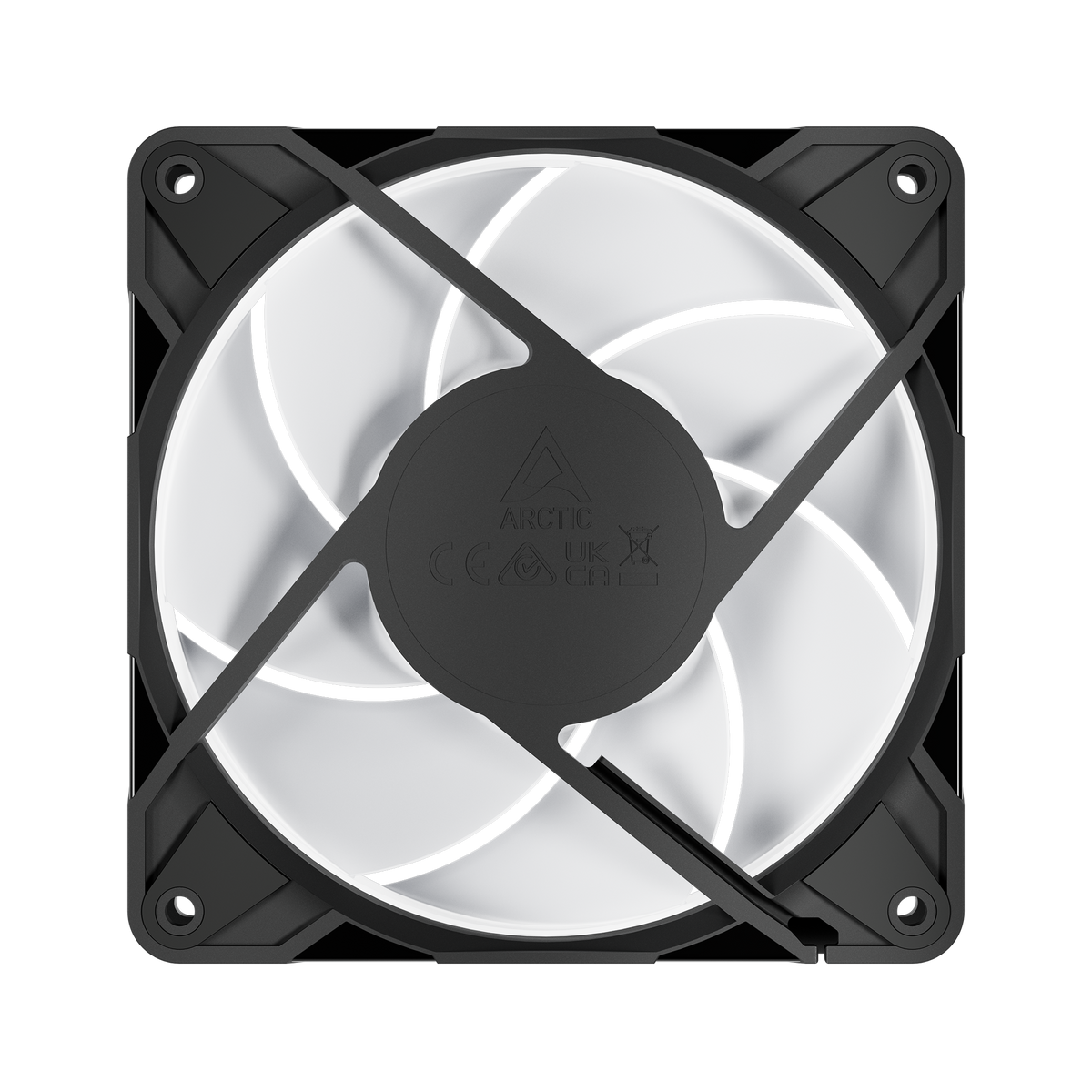

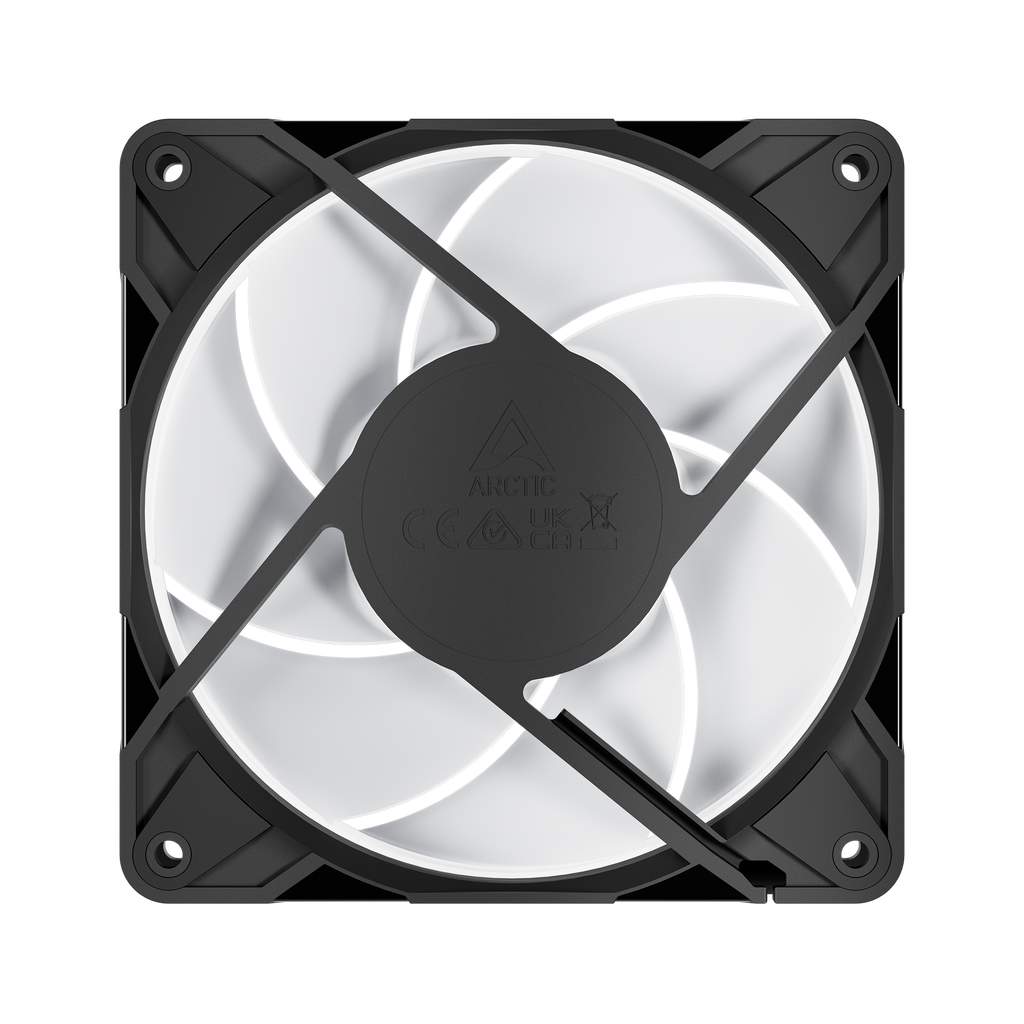

ARCTIC P12 Pro A-RGB LN 120mm PWM Fan - FDB, 450-2000 RPM
The ARCTIC P12 Pro A-RGB LN 120mm PWM Fan is built for enthusiasts who want capable case cooling without intrusive noise. Its LN (Low Noise) tuning prioritises a balanced ratio of airflow and quiet operation rather than chasing peak speed figures. With 12 addressable RGB LEDs and a fluid dynamic bearing, it suits builders who want both lighting and long-term acoustic comfort.
Why this product
Wide PWM range with zero-RPM stop
Speed adjusts progressively from 450 to 2000 RPM via a 4-pin PWM connection, and the fan stops completely when PWM drops below 5% — useful for passive cooling phases.
Fluid Dynamic Bearing for quiet longevity
The self-lubricating FDB reduces operational noise and vibration, and an extended shaft improves pressure distribution for smoother, longer-lasting performance.
Automated balancing for reduced vibration
An automated measuring and balancing process applies balancing compound with pinpoint accuracy, noticeably reducing vibrations across the speed range.
83 m³/h airflow at 25 dB(A)
The redesigned rotor blades deliver higher airflow and static pressure at low speeds, achieving useful performance while keeping noise to 25 dB(A).

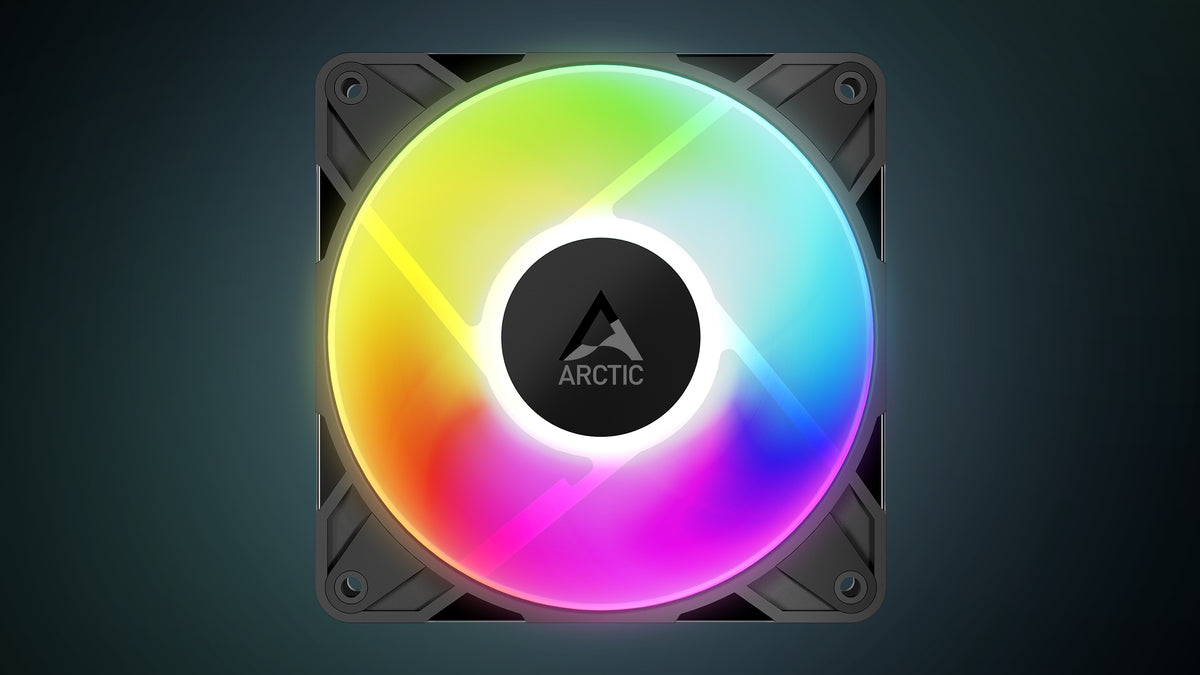

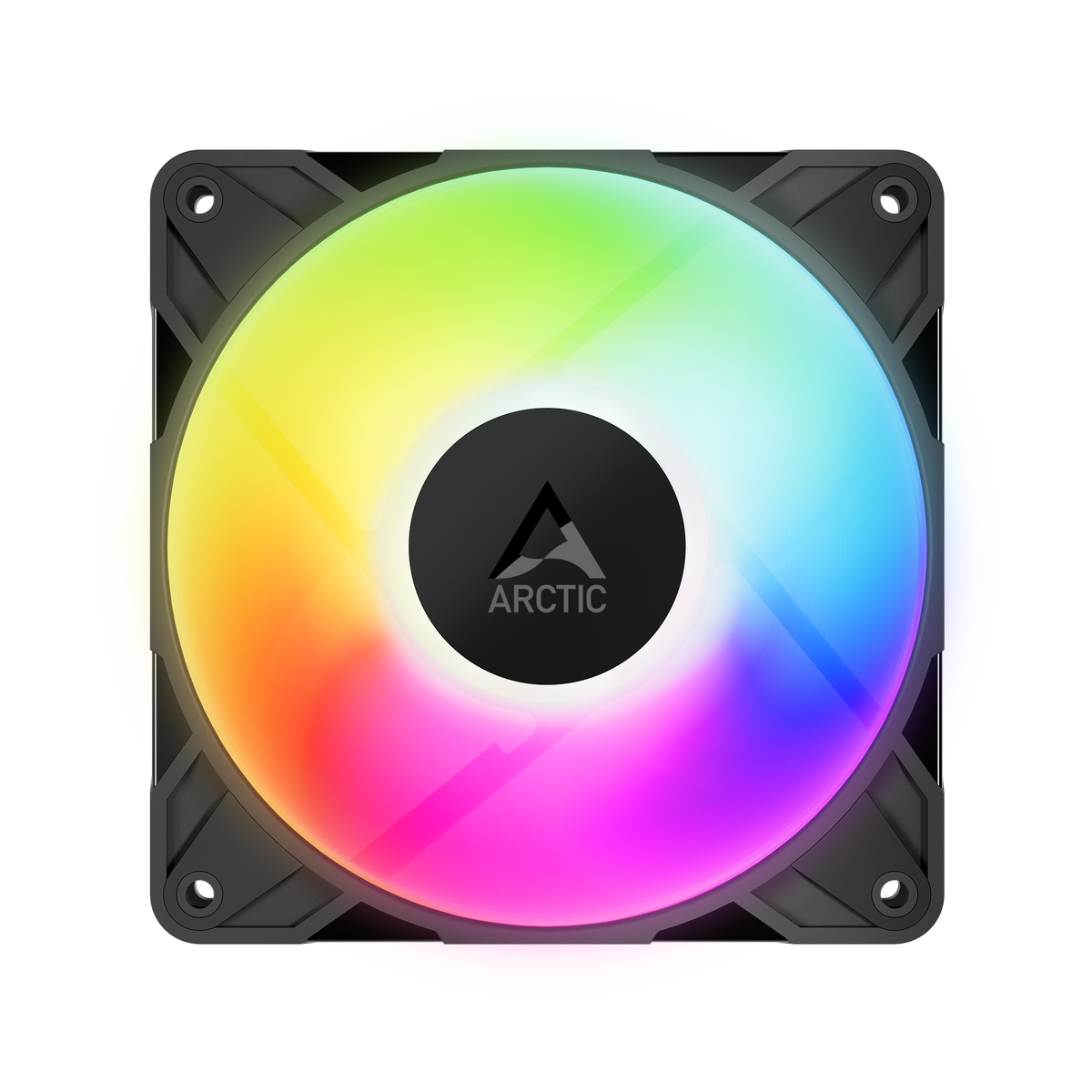

A-RGB Gen2 lighting with daisy-chain support

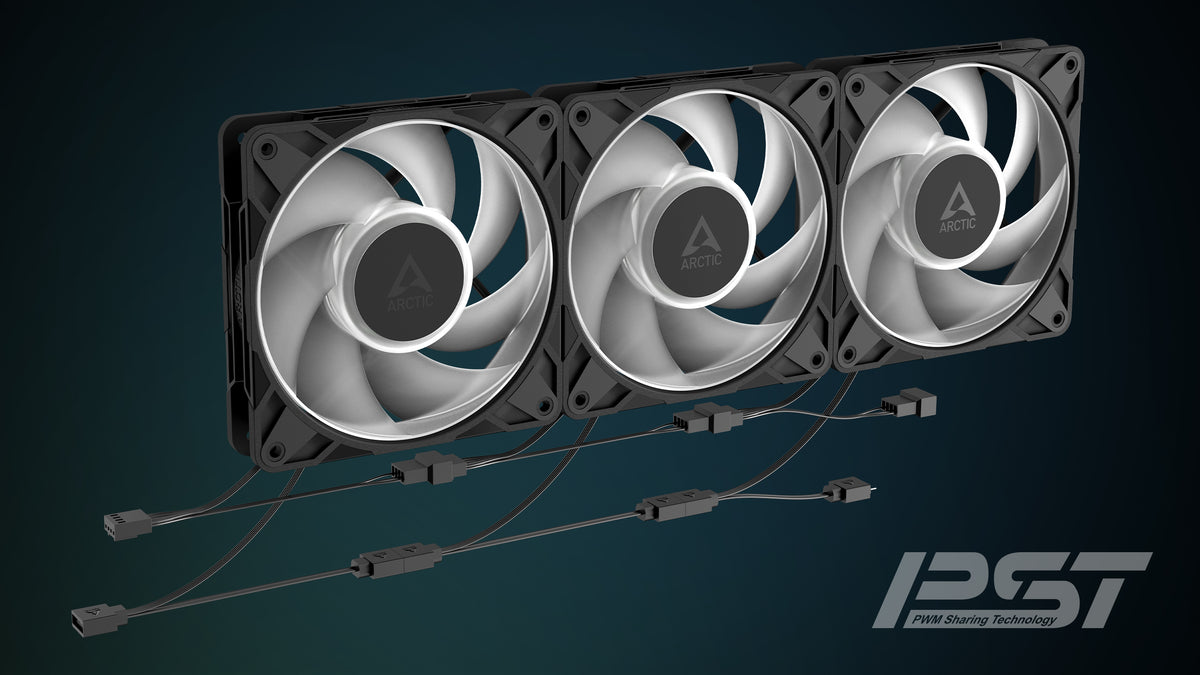

Twelve A-RGB Gen2 LEDs illuminate the frame, and the 3-pin A-RGB plug plus socket lets multiple fans be chained without extra adapters.
Six-year warranty
ARCTIC backs this fan with a 6-year warranty, reflecting confidence in its bearing and motor design for long-term continuous use.
- Fan Size120 mm
- Speed Range450–2000 RPM (PWM), 0 RPM below 5% PWM
- Airflow83 m³/h | 49 cfm
- Static Pressure3.5 mmH2O
- BearingFluid Dynamic Bearing (FDB)
- Noise Level25 dB(A)
- LEDs12× A-RGB Gen2
- Warranty6 Years
- SKUARC-3522
- EAN4895265001130
- Standard 120 mm fan mounting positions (120 × 120 × 25 mm)
- Motherboards and controllers with a 4-pin PWM fan header
- A-RGB ecosystems using a 3-pin 5 V addressable RGB header
- Zero-RPM stop requires a PWM signal below 5% — not all fan controllers support this threshold
- 3-pin DC (non-PWM) headers will not provide full speed control
Best for
- Quiet build enthusiasts who prioritise low noise over maximum airflow, benefiting from the LN tuning and 25 dB(A) operation.
- A-RGB builds where per-fan lighting and daisy-chaining reduce cable clutter.
- Long-term reliability seekers who value a fluid dynamic bearing and a 6-year warranty.
- PWM-controlled systems that can use the full 450–2000 RPM range and benefit from the zero-RPM stop feature.
Trade-offs
- Maximum airflow builds: the LN series intentionally avoids extreme peak RPM values in favour of quiet operation, so high-static-pressure radiator duty at maximum performance may suit a different fan line.
- Non-PWM systems: full speed control requires a 4-pin PWM header; 3-pin DC headers will not deliver the same range.
- Non-A-RGB lighting ecosystems: the 3-pin 5 V A-RGB connector is not compatible with 12 V RGB headers.
Premium fan with a speed range optimised for silent enthusiasts. Instead of extreme peak values, the LN series focuses on a balanced ratio of performance and quiet operation.

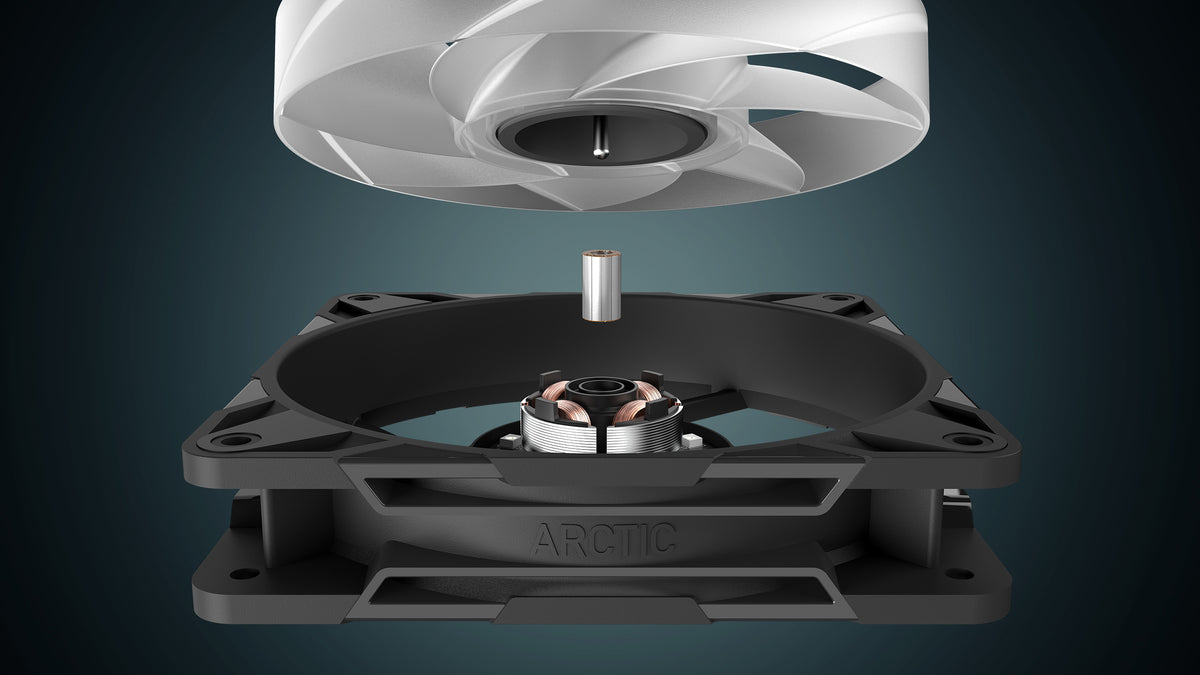

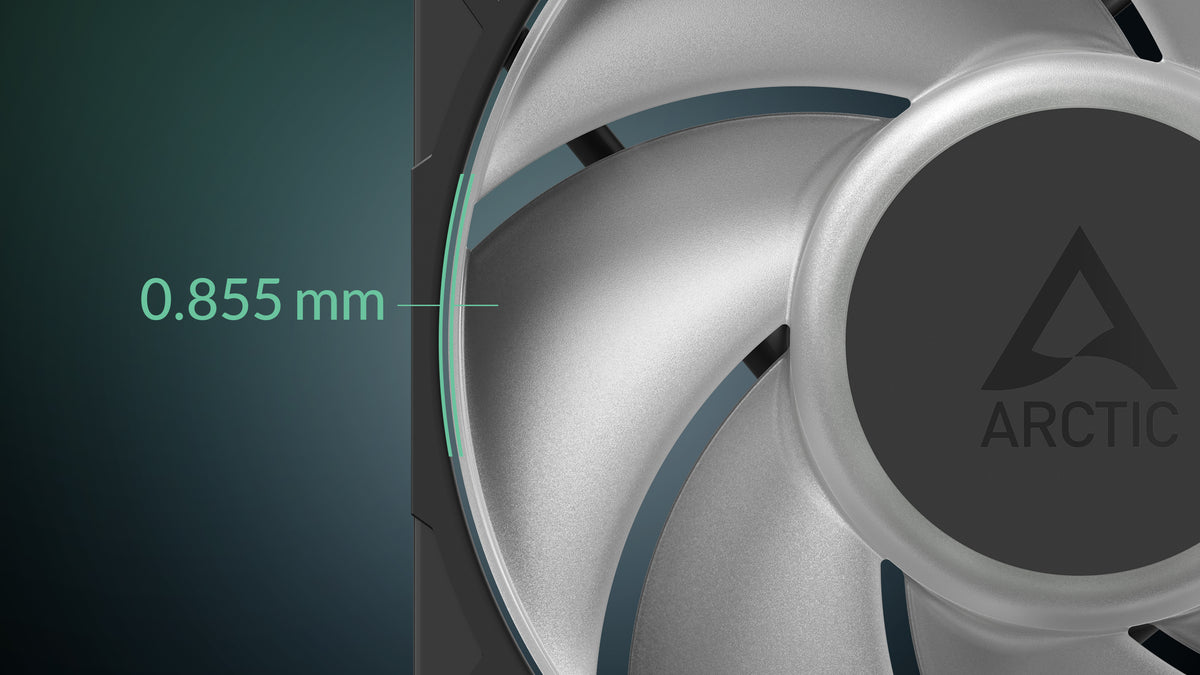

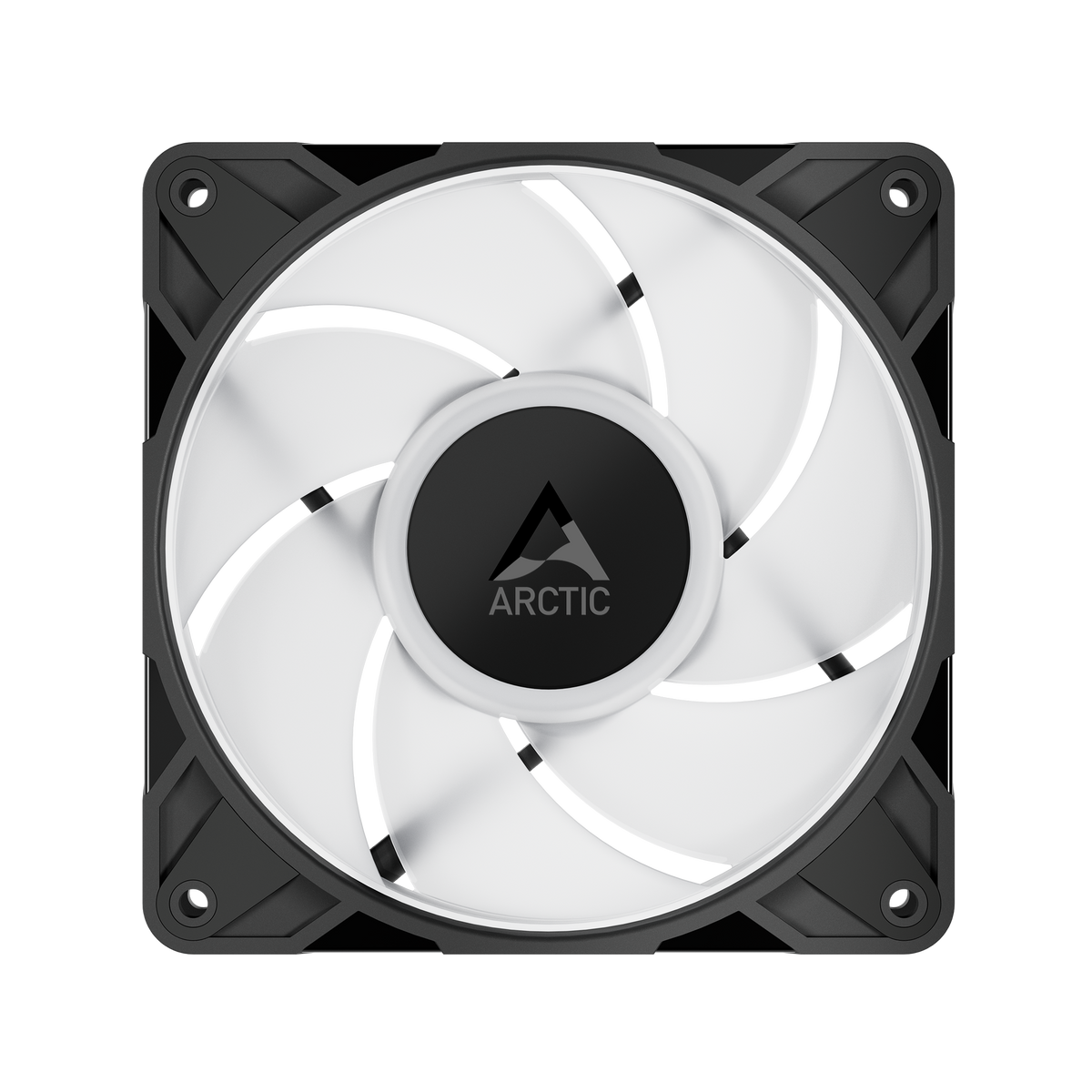

Revised fan blade design for an optimal balance of performance and smooth operation. A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

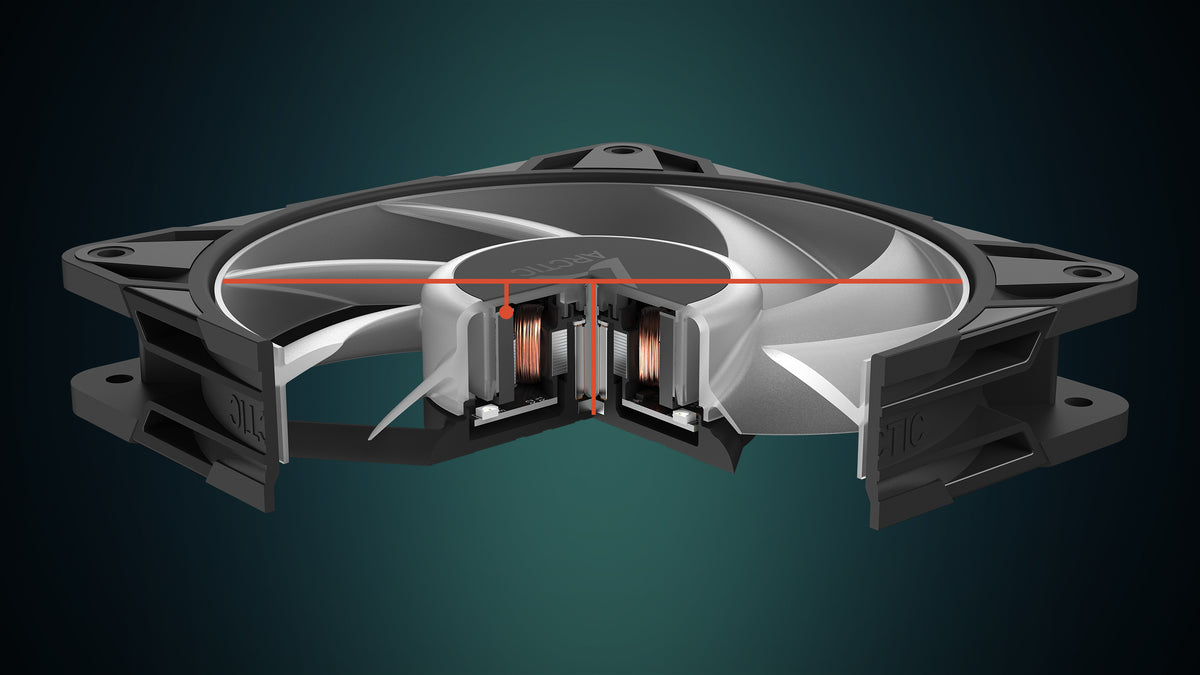

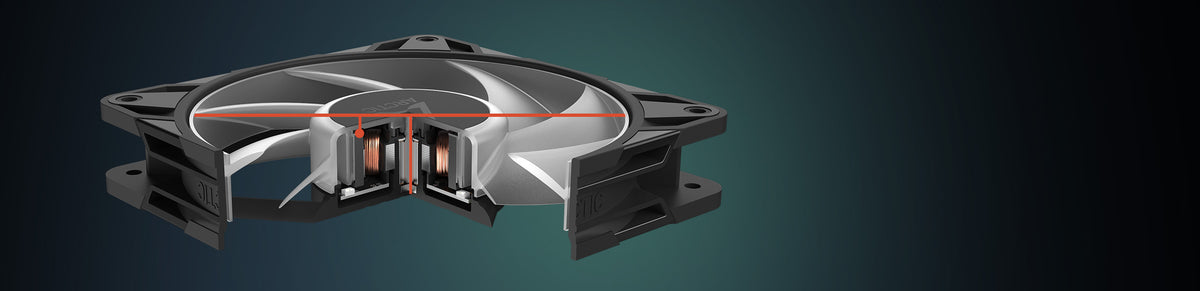

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

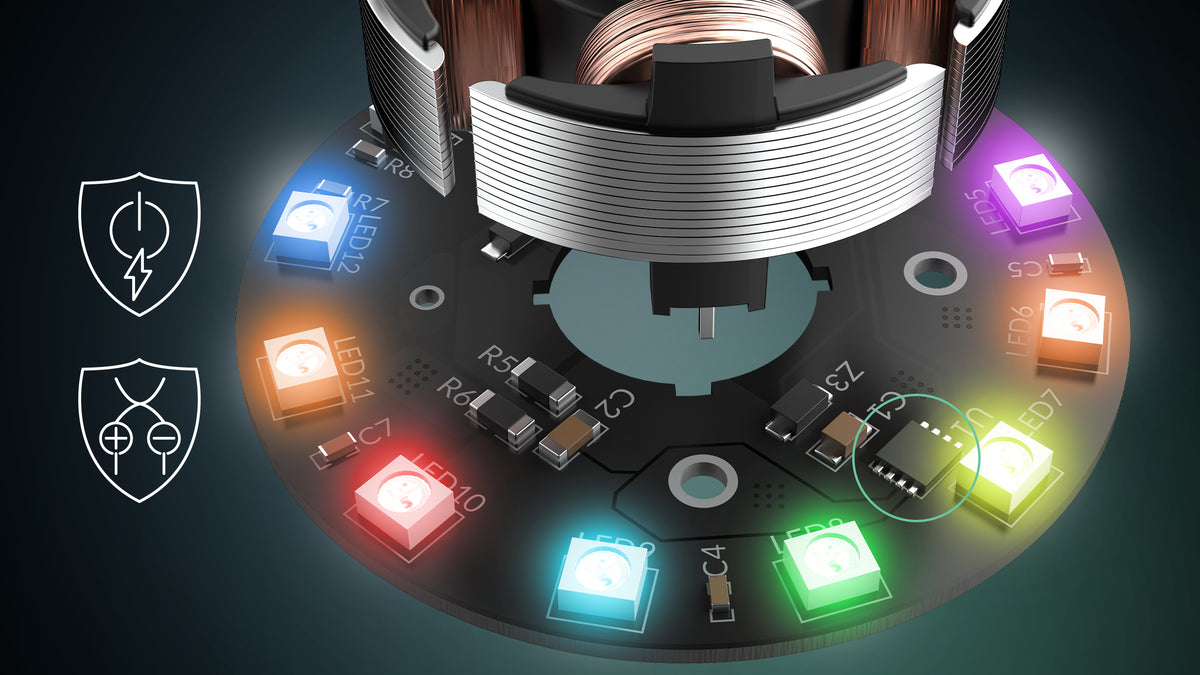

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

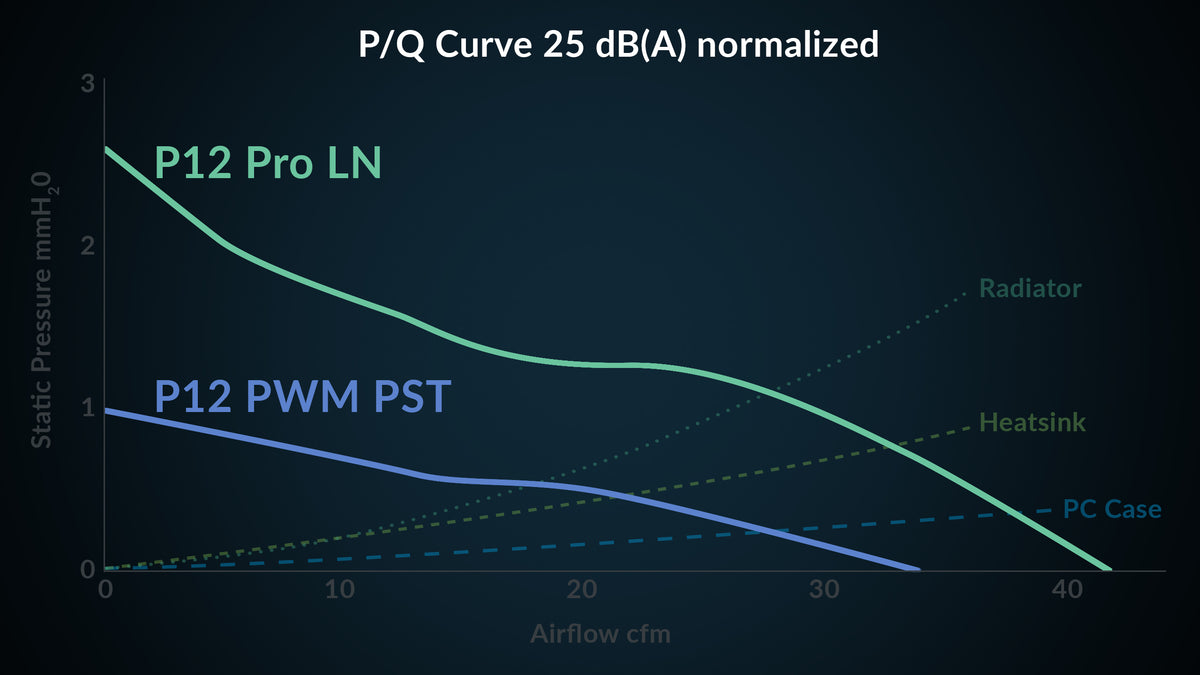

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Fan
| Brand | ARCTIC |
|---|---|
| Model / Part Number | ACFAN00344A |
| Size | 120 × 120 × 25 mm |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12× A-RGB Gen2 |
| RGB Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
| Cable Length | 400 mm + 80 mm Y-Splitter Cable |
Performance
| Speed Range | 450–2000 RPM (PWM controlled), 0 RPM below 5% PWM |
|---|---|
| Airflow | 83 m³/h | 49 cfm |
| Static Pressure | 3.5 mmH2O |
| Noise Level | 25 dB(A) |
Acoustics & power
| Typical Voltage | 12 V DC |
|---|---|
| Start Up Voltage | 3.3 V DC |
| Current (Fan) | 0.11 A |
| RGB Voltage | 5 V DC |
| RGB Current | 0.40 A |
| Operating Ambient Temperature | 0–40 °C |
Reliability
| Warranty | 6 Years |
|---|---|
| Net Weight | 184 g |
