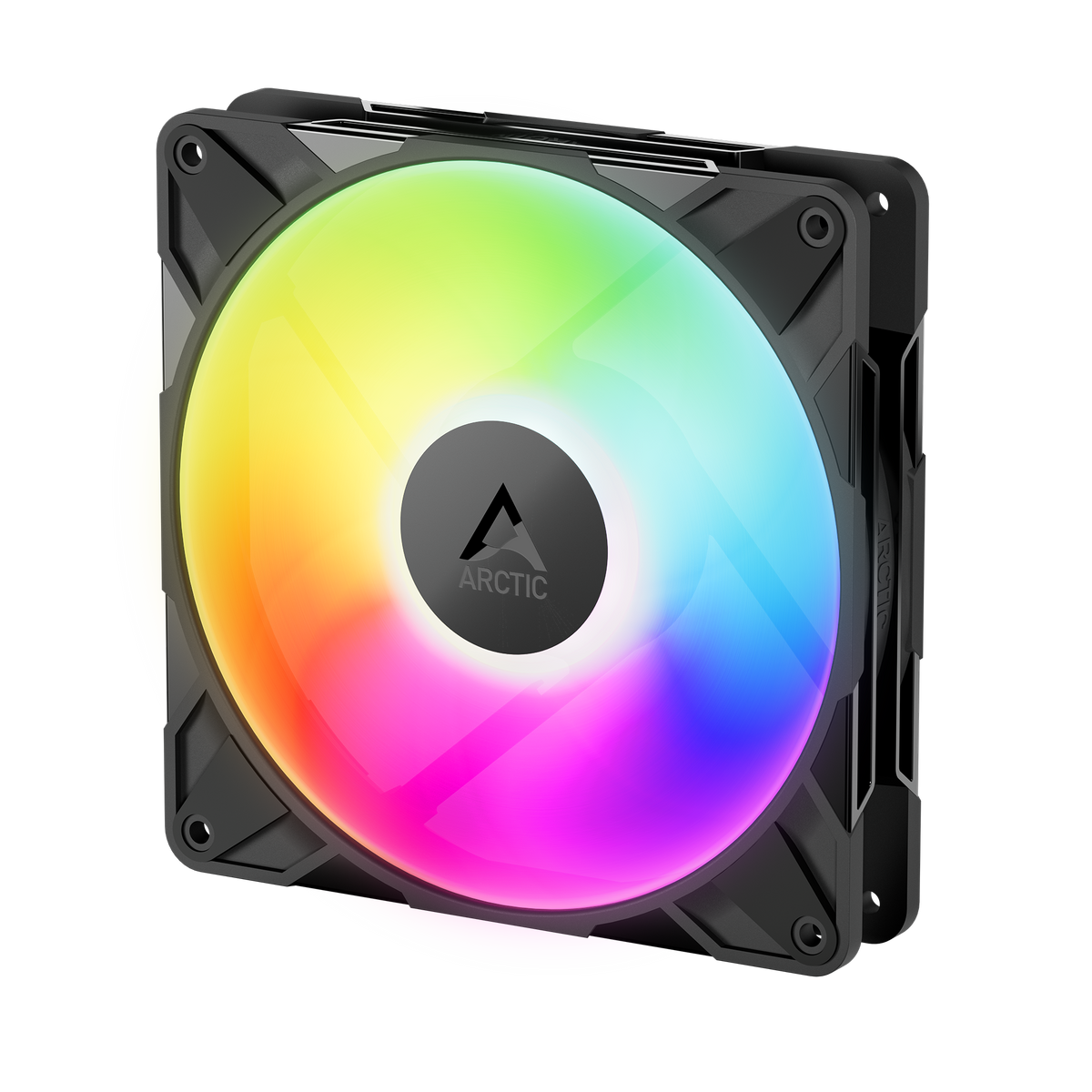

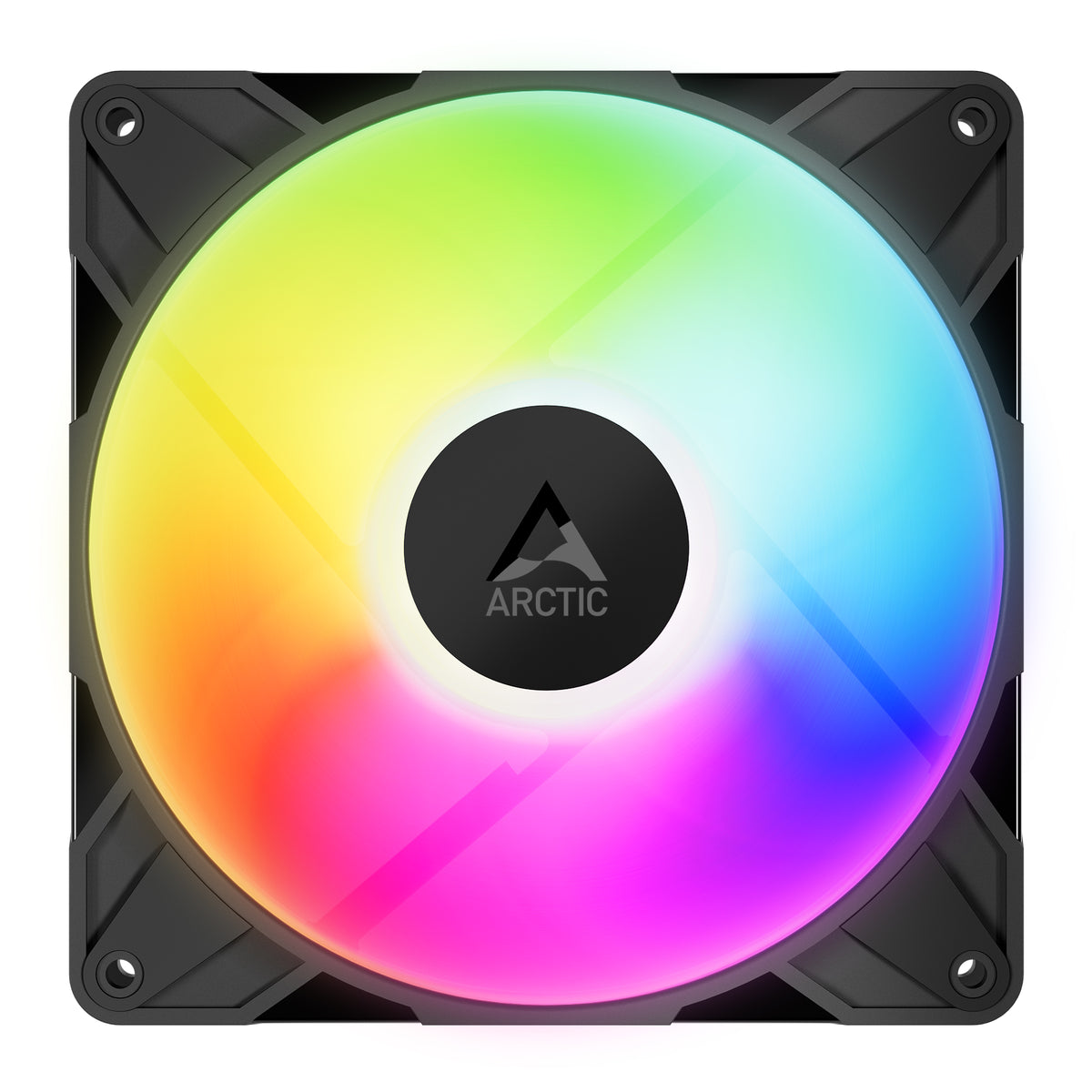

ARCTIC P14 Pro A-RGB 140mm PWM Fan - ACFAN00315A
The ARCTIC P14 Pro A-RGB 140mm PWM Fan suits PC builders and system integrators who need quiet, high-pressure cooling for radiators, perforated panels, and mesh filters. Its revised blade design and hydrodynamic bearing deliver strong performance at low speeds without excess noise, making it ideal for balancing thermal performance with silent operation.
Why this product
High static pressure for tight spaces
Moves air effectively through radiators, perforated panels, and mesh filters where standard fans struggle. Designed specifically to handle restricted airflow scenarios.
25 dB(A) at full speed
Delivers 110 cfm of airflow with minimal noise, enabled by hydrodynamic bearing and extended shaft that reduce vibrations and motor noise.
PWM cable splitter for series control
Synchronize multiple fans using a single motherboard header. Simplifies wiring in multi-fan builds without additional adapters.
6-year warranty
ARCTIC backs this fan with a six-year guarantee, reflecting confidence in its durability under sustained use.
- Size140 mm
- Speed range400–2500 rpm
- Airflow110 cfm (186 m³/h)
- Static pressure5.2 mmH₂O
- Noise level25 dB(A)
- Bearing typeFluid Dynamic
- Warranty6 years
- SKUARC-3544
- EAN4895265000423
- Works with any case or radiator using 140 mm mounting holes on a 125 mm square pattern.
- Compatible with standard PWM fan headers on all modern motherboards via 4-pin connector.

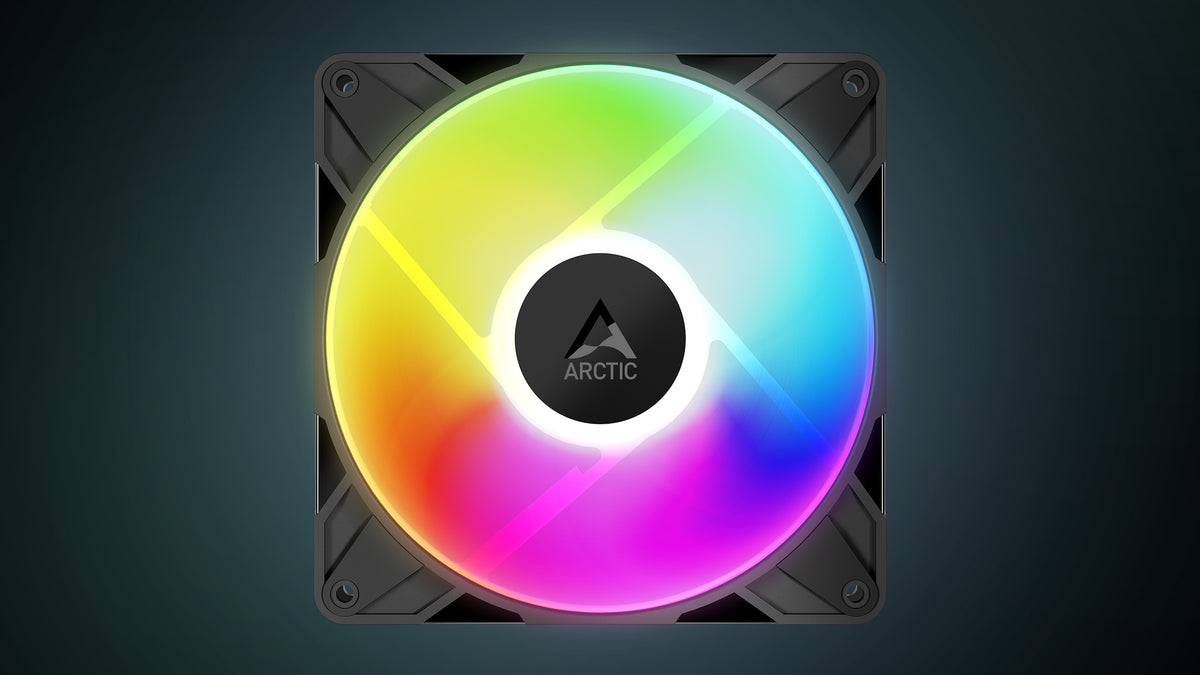

- A-RGB lighting integrates with any 5V RGB header using the included 3-pin connector.
- Requires 5 V DC minimum to start; will not spin below 5% PWM input, so very low-speed configurations may not activate the fan.
Best for
- CPU and GPU cooler top-ups
- Quiet, high-performance radiator builds
- Multi-fan systems via single header
- Cases with restricted mesh or perforated panels
Trade-offs
- High-volume airflow applications — at 110 cfm, this fan is optimized for pressure over raw volume.
- Budget cooling builds — 6-year warranty and high static pressure command a premium price.
- Systems requiring instant startup below 5% PWM — the fan will not spin until PWM reaches 5%, limiting low-speed flexibility.

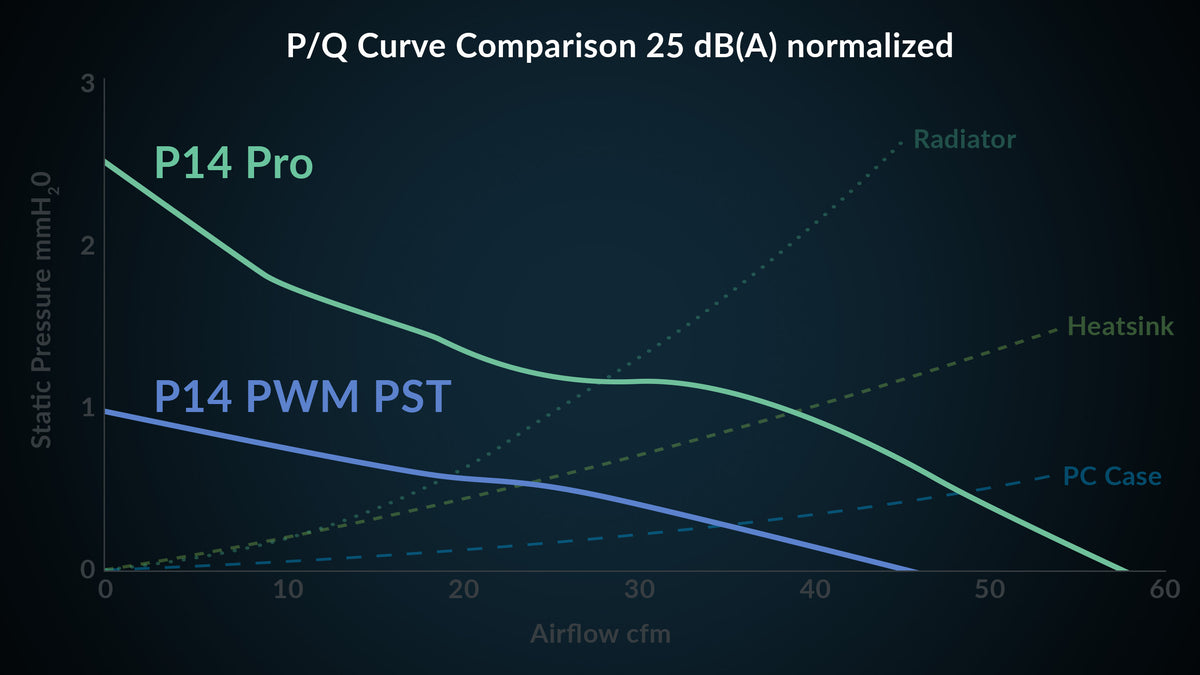

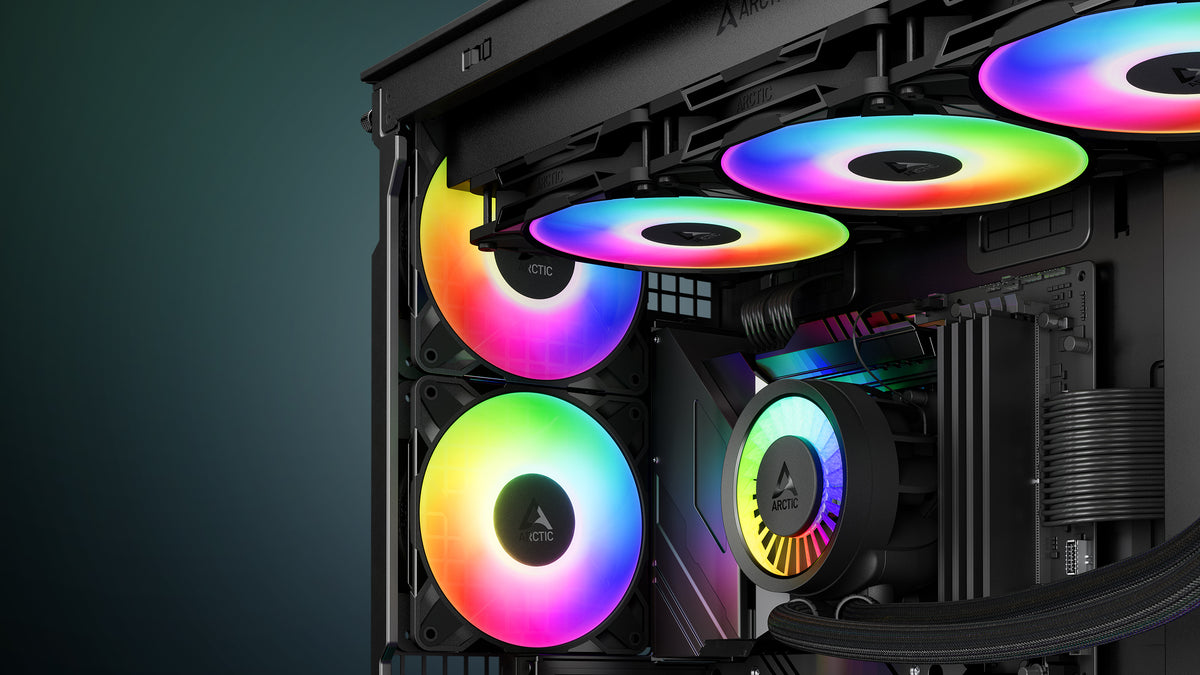

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

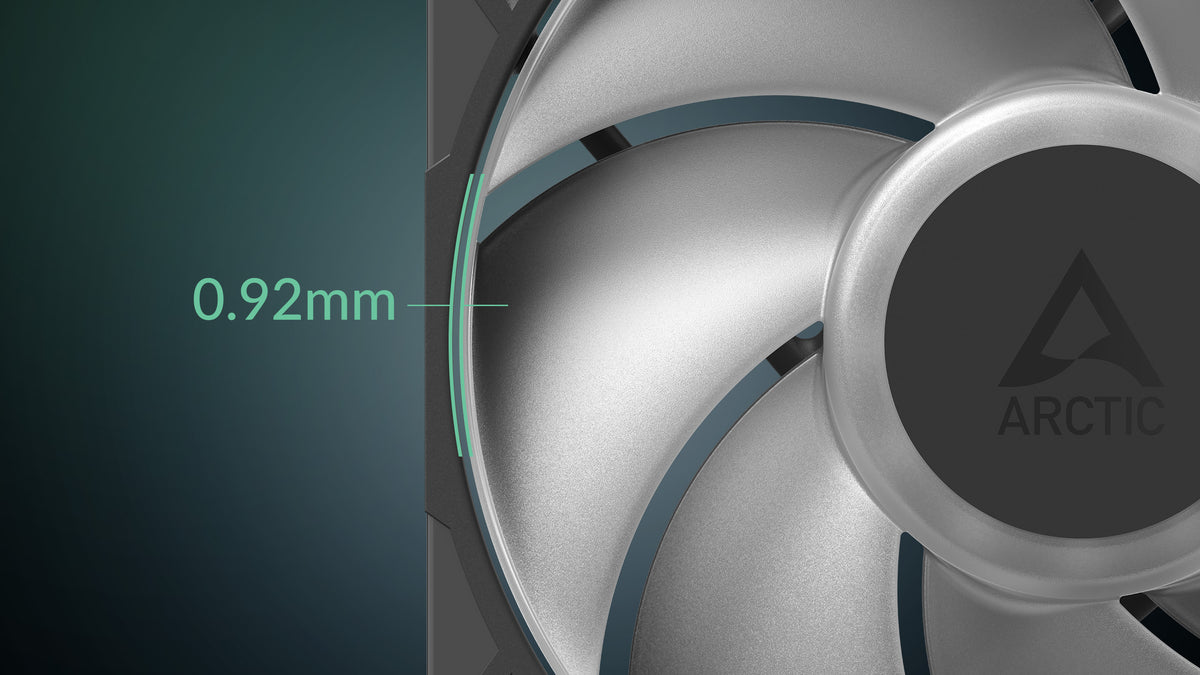

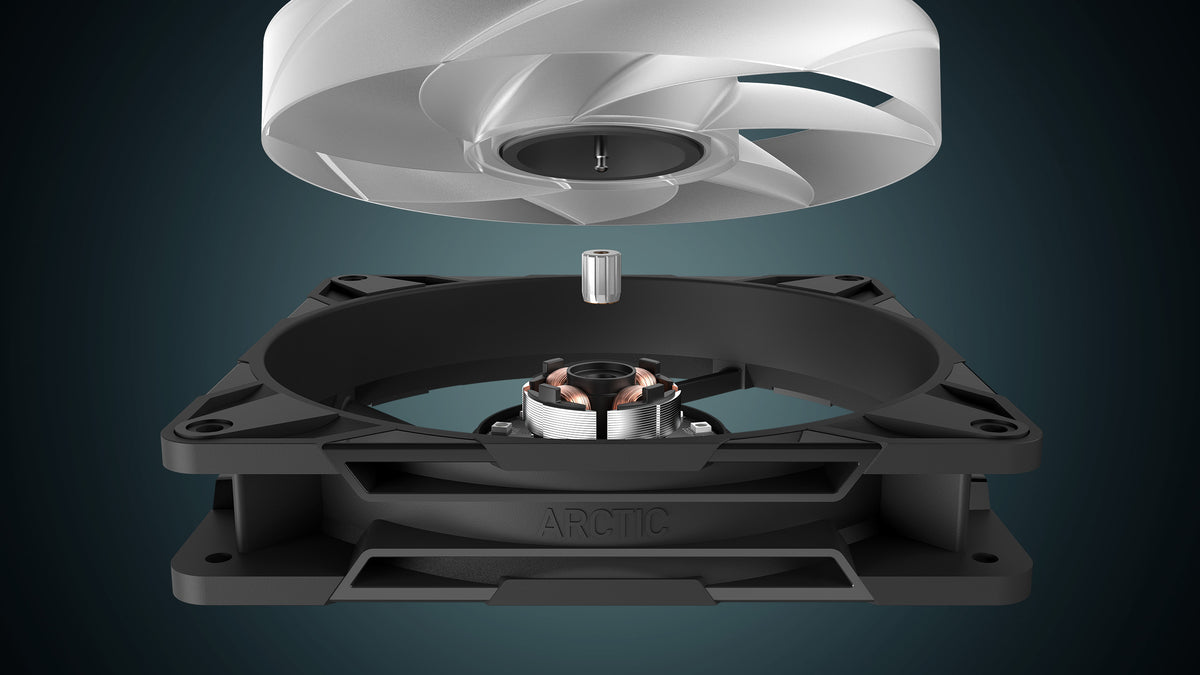

Revised fan blade design for an optimal balance of performance and smooth operation. A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

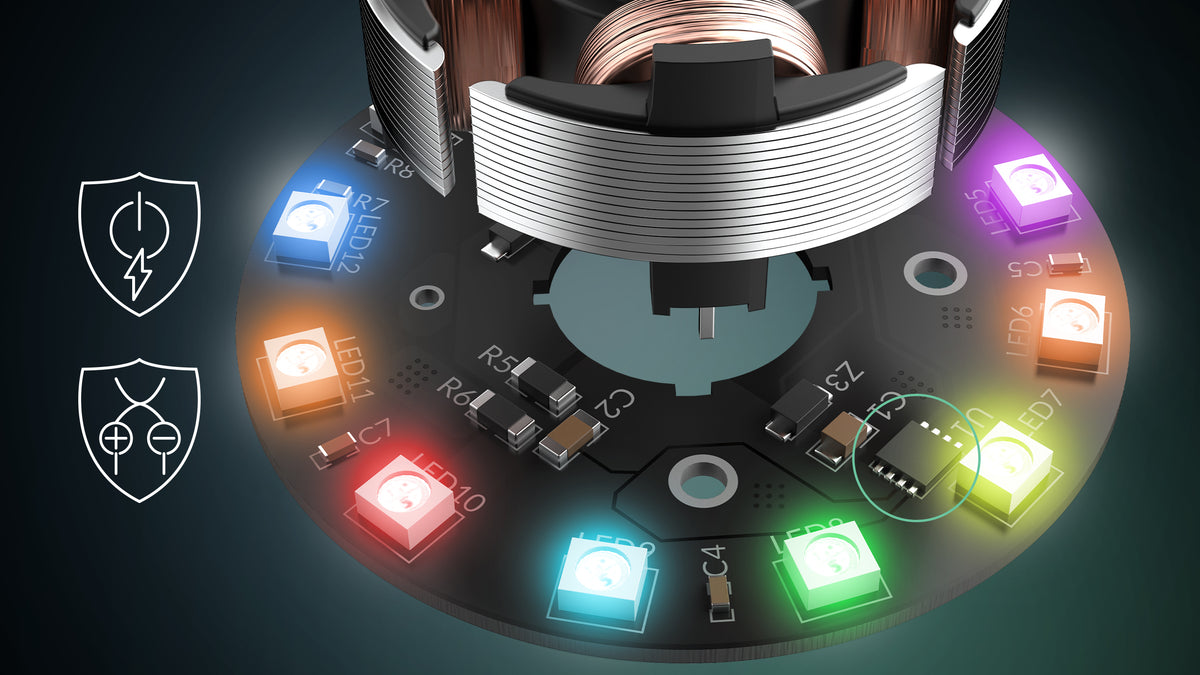

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

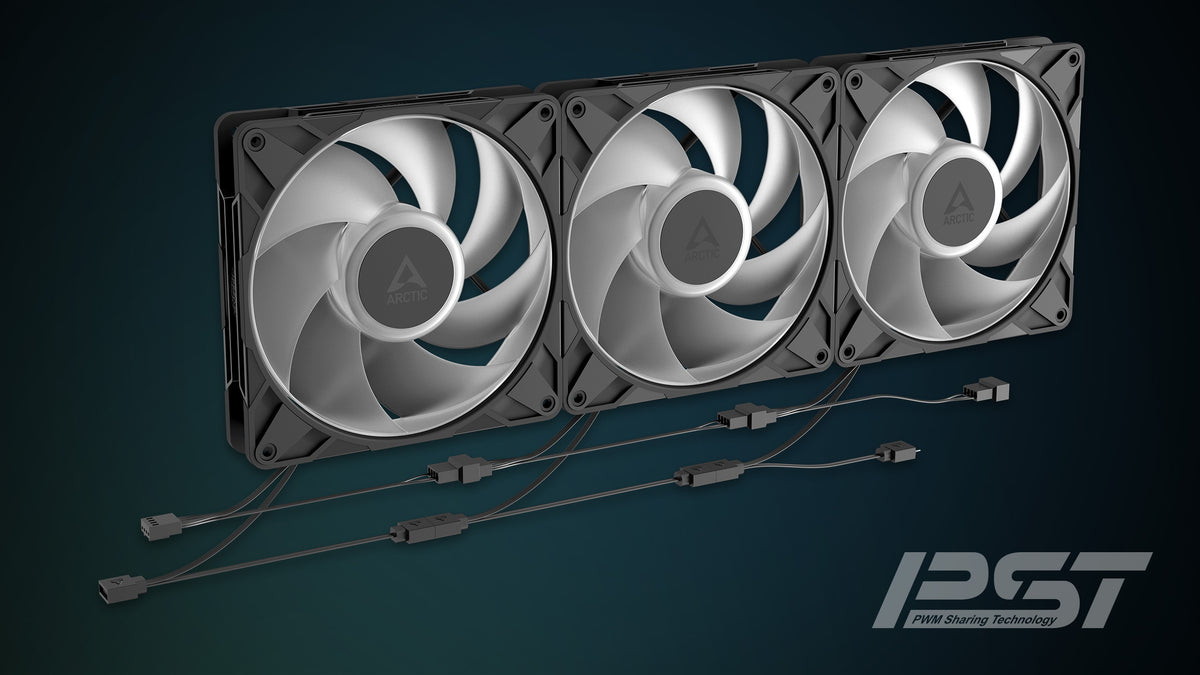

Enables higher static pressure and maximum airflow efficiency. An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Our products are tested under extreme conditions. The 6-year warranty isn't just a promise – it's a testament to our confidence in their durability.
Fan
| Brand | ARCTIC |
|---|---|
| Size | 140 mm |

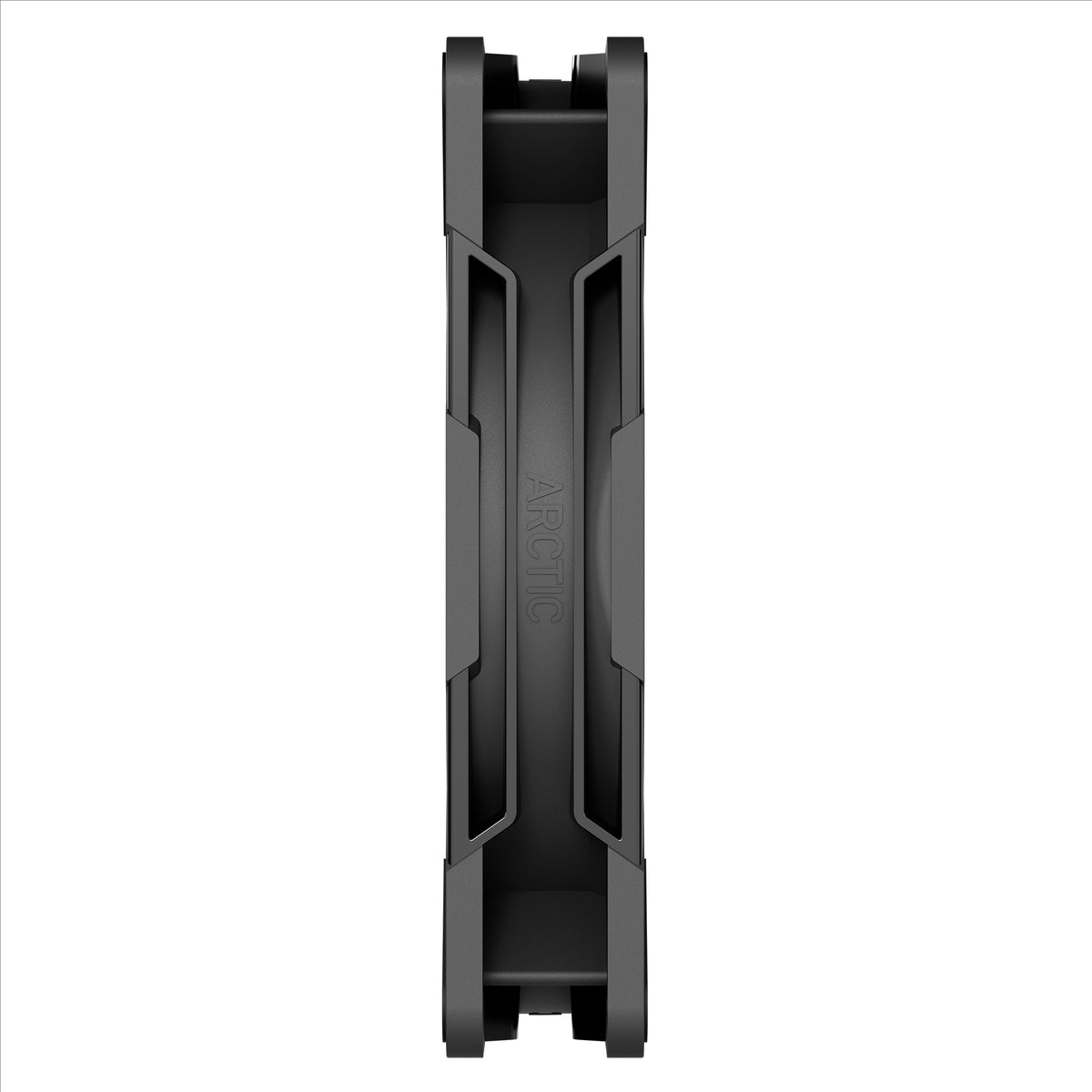

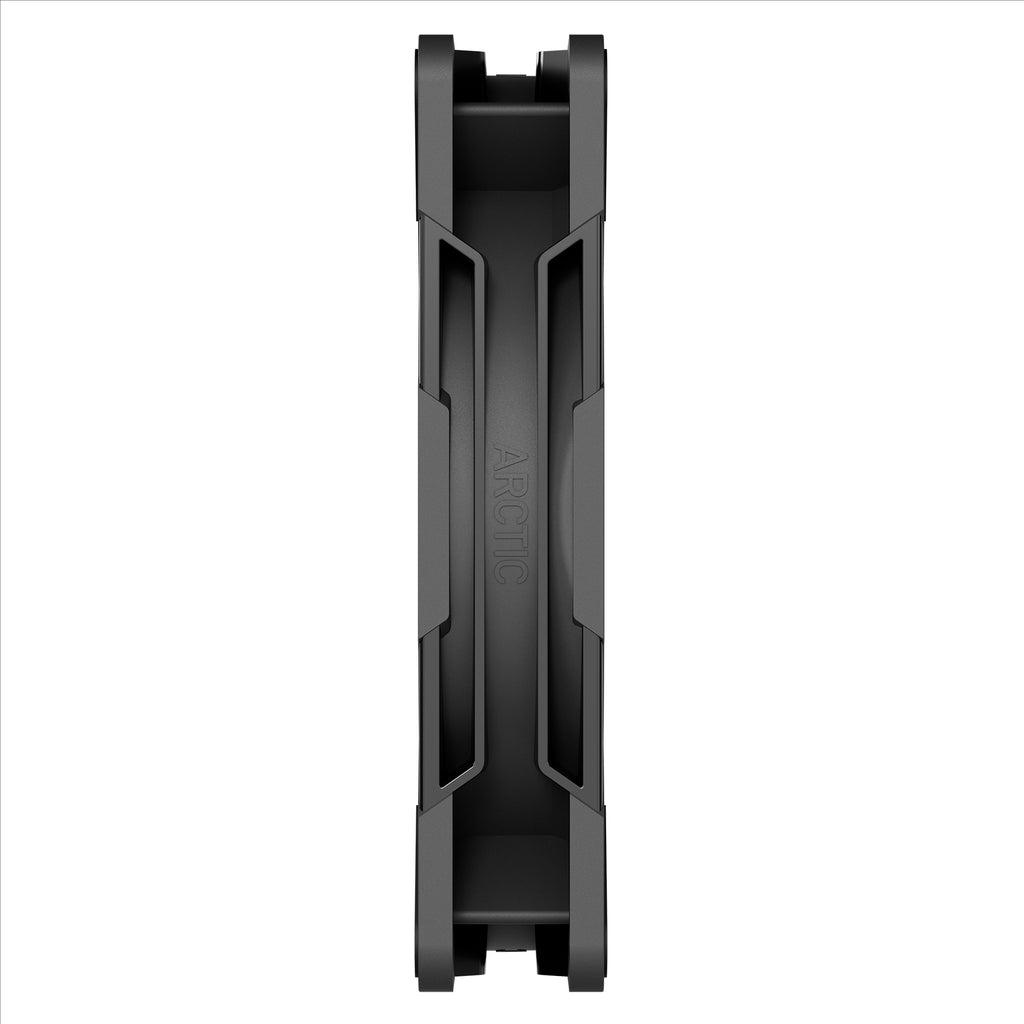

| Dimensions | 140 (L) × 140 (W) × 27 (H) mm |
| Weight | 240 g |
| Bearing type | Fluid Dynamic Bearing |
| Mounting pattern | 125 mm square |
Performance
| Speed range | 400–2500 rpm (PWM controlled) |
|---|---|
| Airflow | 110 cfm (186 m³/h) |
| Static pressure | 5.2 mmH₂O |
| Noise level | 25 dB(A) |
Acoustics & power
| Typical voltage | 12 V DC |
|---|---|
| Start-up voltage | 5 V DC |
| Current | 0.35 A |
| Fan connector | 4-pin PWM |
| LED connector | 3-pin A-RGB (5V) |
| Cable length | 400 mm |
Reliability
| Warranty | 6 years |
|---|
