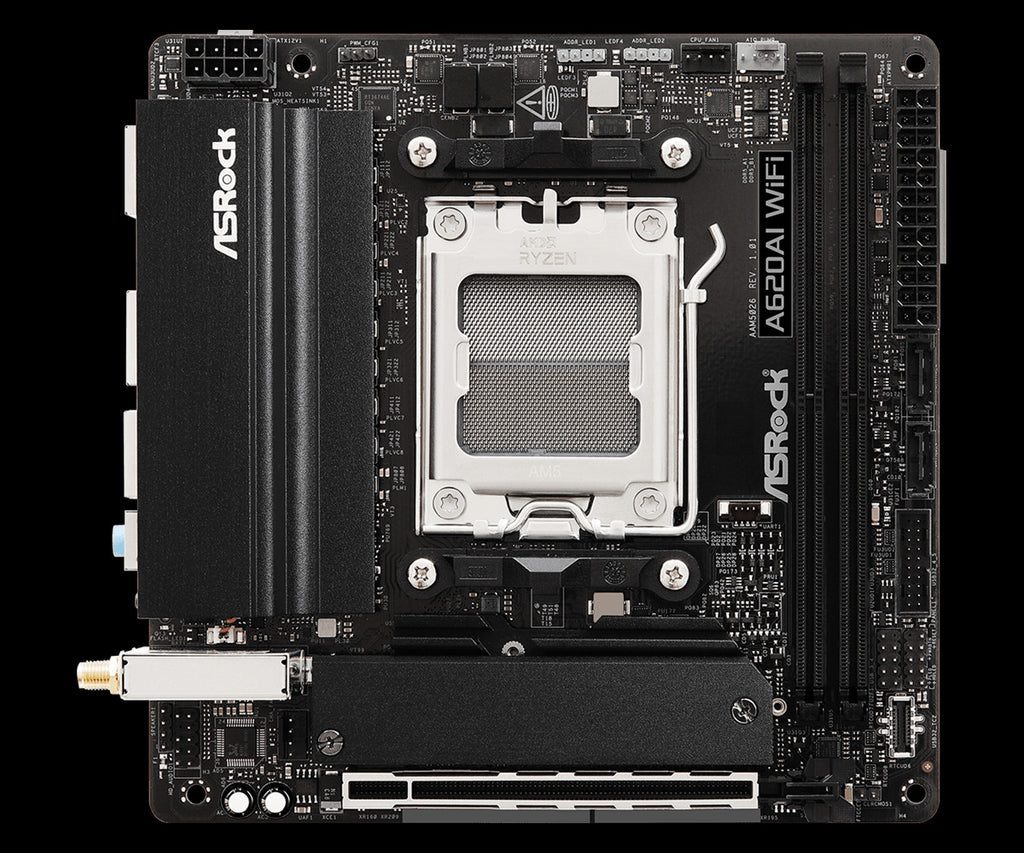

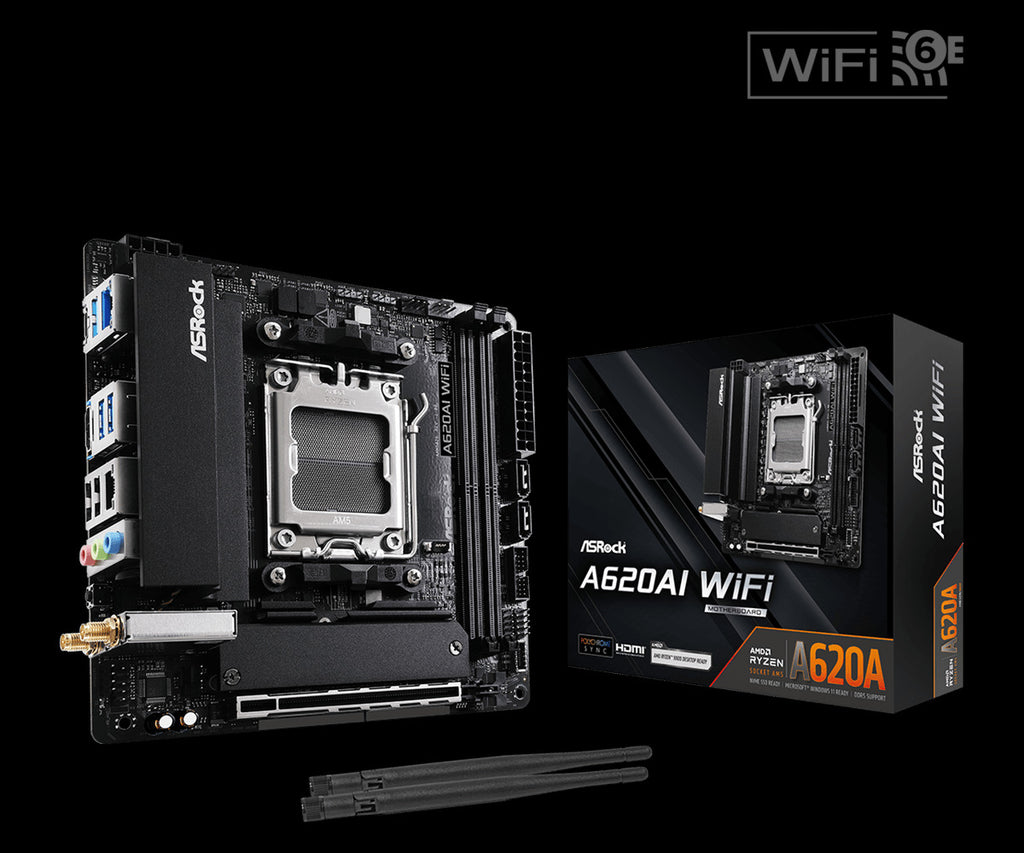

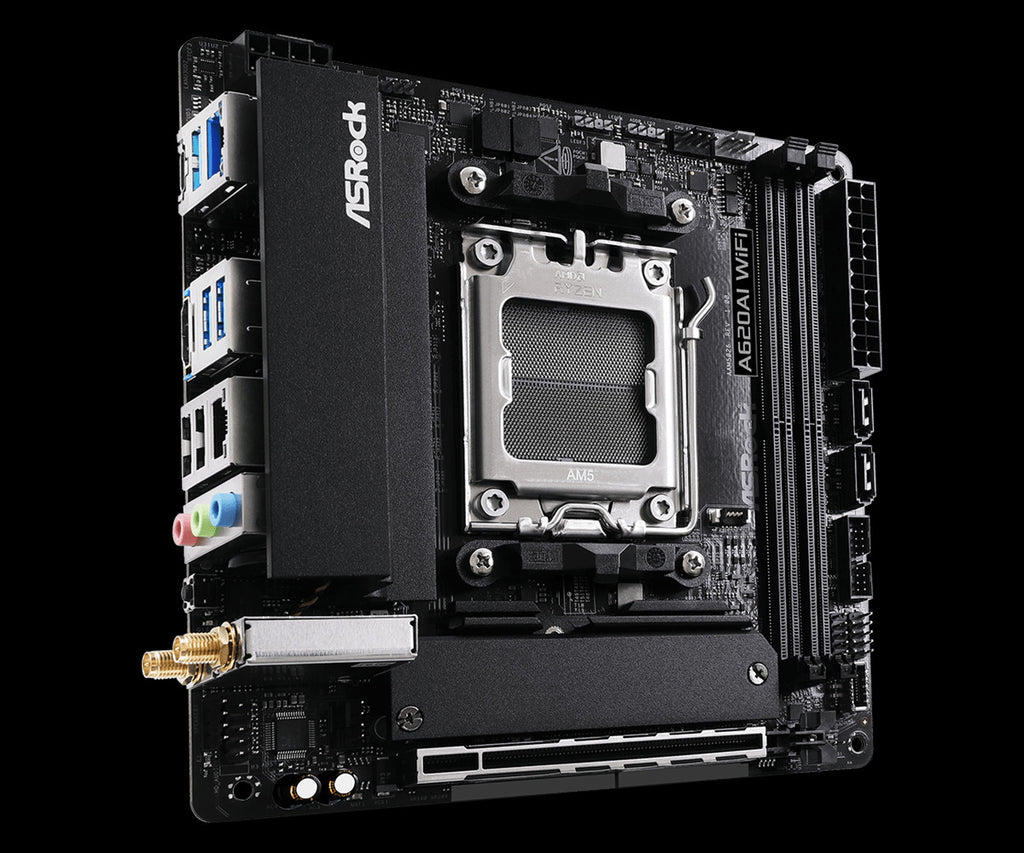

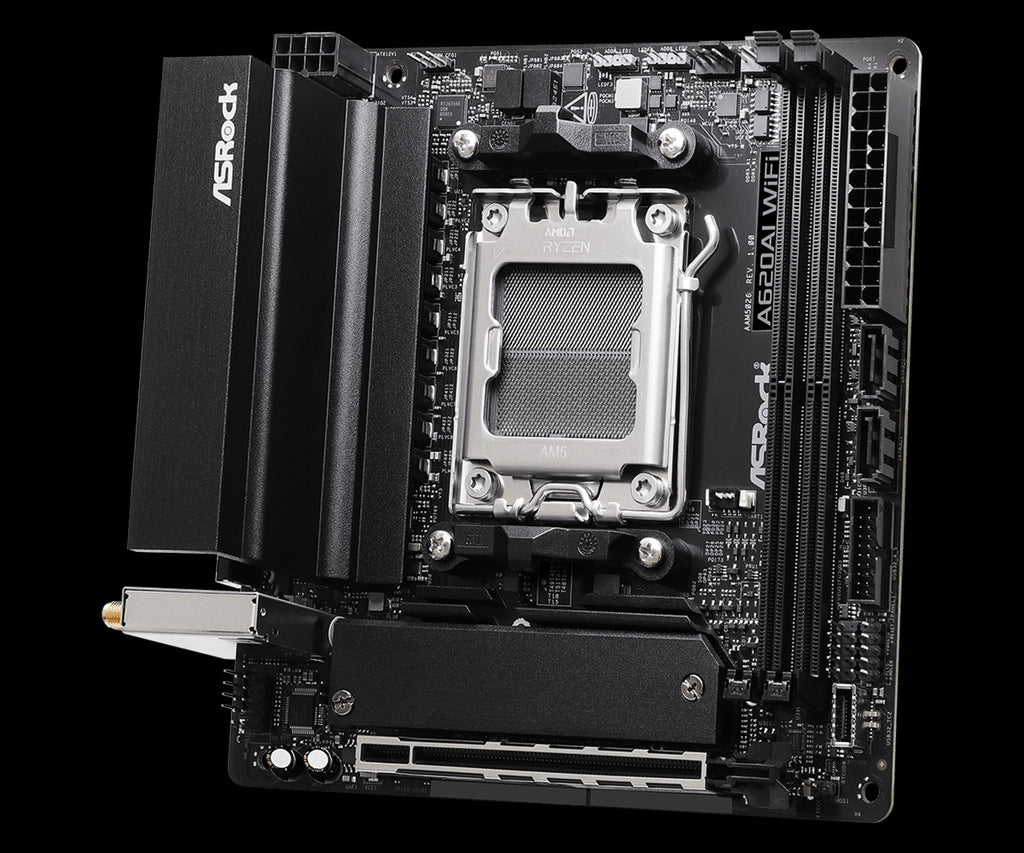

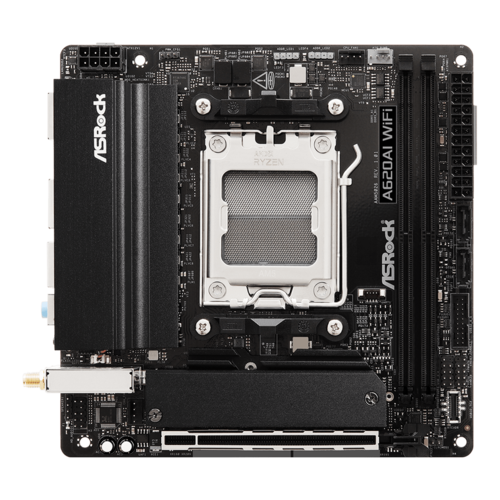

ASRock A620AI WiFi AM5 Mini-ITX Motherboard DDR5 Wi-Fi 6E
ASRock
ASRock A620AI WiFi AM5 Mini-ITX Motherboard DDR5 Wi-Fi 6E
The ASRock A620AI WiFi AM5 Mini-ITX Motherboard DDR5 Wi-Fi 6E is a compact Mini-ITX platform built for system builders who need AMD AM5 compatibility in a small-footprint build. It supports Ryzen 9000, 8000, and 7000 series processors and combines Wi-Fi 6E, dual LAN, and DDR5 memory support in a 6.7-inch square board.
Why this product
Supports Ryzen 9000, 8000 and 7000 Series
The AM5 socket is compatible with three generations of AMD Ryzen processors, giving builders flexibility when choosing or upgrading a CPU.
Wi-Fi 6E extends into the 6 GHz band
802.11axe Wi-Fi 6E accesses the 6 GHz spectrum alongside 2.4 GHz and 5 GHz, reducing congestion and supporting lower-latency wireless connections compared to Wi-Fi 5.
Dual LAN: 2.5 Gbps and Gigabit
Two separate Realtek LAN controllers provide 2.5G and 1G wired connections, enabling failover protection, VLAN segmentation, or simply two simultaneous wired links.
DDR5 dual channel up to 8200+ MHz (OC)
Two DDR5 DIMM slots support dual-channel configurations and overclocked speeds up to 8200+ MHz, with a maximum capacity of 128 GB.
8+2+1 phase power with 80A Dr.MOS
The VCore power stage uses 80A Dr.MOS components across an 8+2+1 phase design, providing stable power delivery for high-core-count Ryzen processors in a Mini-ITX footprint.
BIOS Flashback for easy firmware updates
BIOS Flashback allows firmware updates without a CPU or RAM installed, useful when preparing a board for a newly released processor.
- SocketAMD AM5 (LGA 1718)
- Form FactorMini-ITX, 6.7 in x 6.7 in
- Memory2 x DDR5, up to 128 GB, up to 8200+ MHz (OC)
- WirelessWi-Fi 6E (802.11axe) + Bluetooth
- LAN2.5 Gbps + Gigabit (Dual LAN)
- Storage Slots1 x PCIe Gen4 x4 M.2, 1 x PCIe Gen3 x4 M.2, 2 x SATA3
- ChipsetAMD A620A
- SKUASR-2002
- EAN4710483942747
- Compatible with AMD Ryzen 9000, 8000 and 7000 series processors via Socket AM5 (LGA 1718).
- Fits Mini-ITX cases — the board measures 6.7 in x 6.7 in (17.0 cm x 17.0 cm).
- Accepts standard DDR5 DIMMs; does not use DDR4 memory.
- Single PCIe 4.0 x16 slot accommodates a full-size discrete GPU.
- The HDMI 2.1 output requires a Ryzen processor with integrated graphics (or an AMD APU); a discrete GPU is needed for display output on CPU-only Ryzen models without integrated graphics.
- Not compatible with AM4, AM3 or any Intel socket processors.
Best for
- Compact desktop builders who need a full-featured AM5 platform in a Mini-ITX footprint without sacrificing Wi-Fi or wired LAN.
- Home and small-office network users who benefit from dual LAN (2.5G + 1G) and Wi-Fi 6E in a single board.
- DDR5 early adopters building with current-generation memory who want headroom up to 128 GB across two slots.
- Builders using multiple storage devices, with two M.2 slots (one PCIe Gen4 x4, one PCIe Gen3 x4) and two SATA3 ports available simultaneously.
Trade-offs
- High-end overclocking enthusiasts — the A620A chipset and single PCIe 4.0 x16 slot are not aimed at extreme CPU or GPU tuning scenarios that require more lanes or a higher-tier chipset.
- Builders needing multiple GPU or PCIe expansion slots — only one PCIe 4.0 x16 slot is provided, with no additional x1 or x4 slots.
- Users who need more than two M.2 drives — only two M.2 sockets are available alongside two SATA3 ports; larger storage arrays require a different platform.
- Builds requiring DDR4 memory — this board uses DDR5 only and is not compatible with DDR4 modules.
AMD Socket AM5 mini-ITX motherboard supporting Ryzen 9000, 8000, and 7000 series processors. 8+2+1 phase power design with 80A Dr.MOS. DDR5 dual channel up to 8200+ (OC).
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Elevate your network's performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more.
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
General
| Brand | ASRock |
|---|---|
| Model | A620AI WiFi |
| Chipset | AMD A620A |
| CPU Socket | AMD Socket AM5 (LGA 1718) |
| CPU Compatibility | AMD Ryzen 9000, 8000 and 7000 Series Processors |
| Form Factor | Mini-ITX, 6.7 in x 6.7 in (17.0 cm x 17.0 cm) |
| PCB Layers | 8 Layer PCB |
Networking
| Standard | 802.11axe Wi-Fi 6E + Bluetooth |
|---|---|
| Throughput | 2.5 Gbps (Realtek 2.5G LAN) + Gigabit LAN |
| Ports | Dual LAN — Realtek 2.5G LAN and Gigabit LAN |
| WiFi Bands | 2.4 GHz, 5 GHz, 6 GHz (Wi-Fi 6E) |
| Antennas Included | 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
Performance
| Memory Slots | 2 x DDR5 DIMMs, Dual Channel |
|---|---|
| Maximum Memory | 128 GB |
| Memory Speed | Up to 8200+ MHz (OC) |
| Power Design | 8+2+1 Phase, 80A Dr.MOS (VCore + SOC + MISC) |
| Expansion Slot | 1 x PCIe 4.0 x16 |
| Graphics Output | 1 x HDMI 2.1 (supports HDR, HDCP 2.3, up to 4K 120Hz) |
| Audio | Realtek ALC897 7.1 CH HD Audio, Nahimic Audio |
Ports & Physical
| Storage | 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 2 x SATA3 |
|---|---|

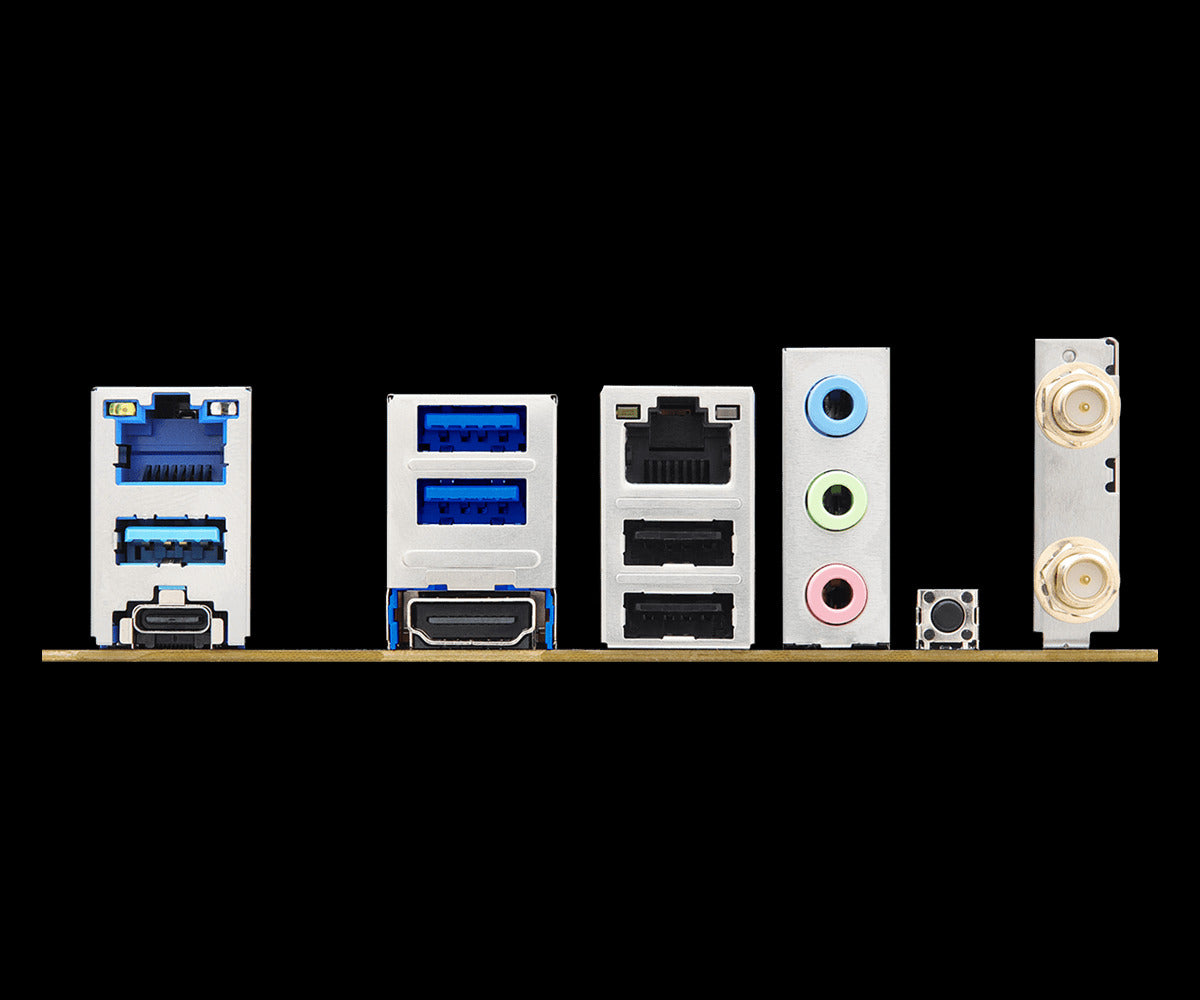

| USB Rear | 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 2 x USB 2.0 |
| USB Front Headers | 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, 2 x USB 2.0 |
| RGB Headers | Onboard RGB and Addressable RGB headers (Polychrome RGB Sync) |
| Accessories | 1 x I/O Shield, 2 x SATA Data Cables, 2 x WiFi Antennas, 2 x M.2 Screws |
