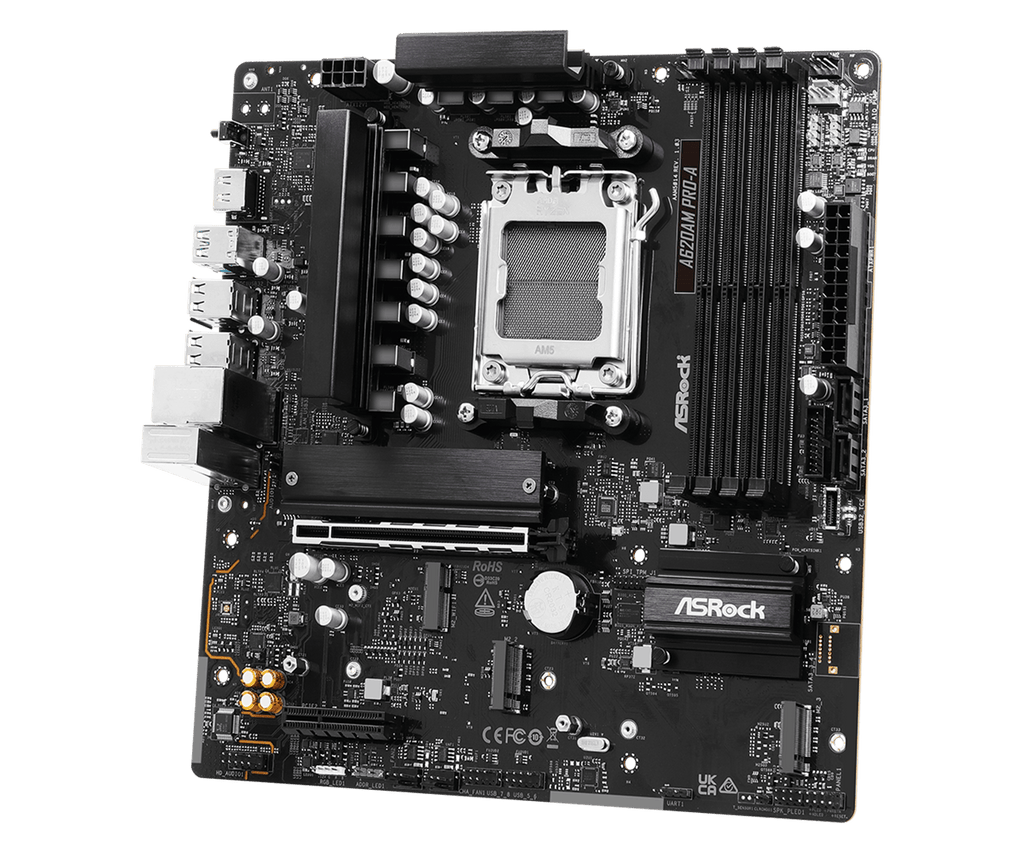

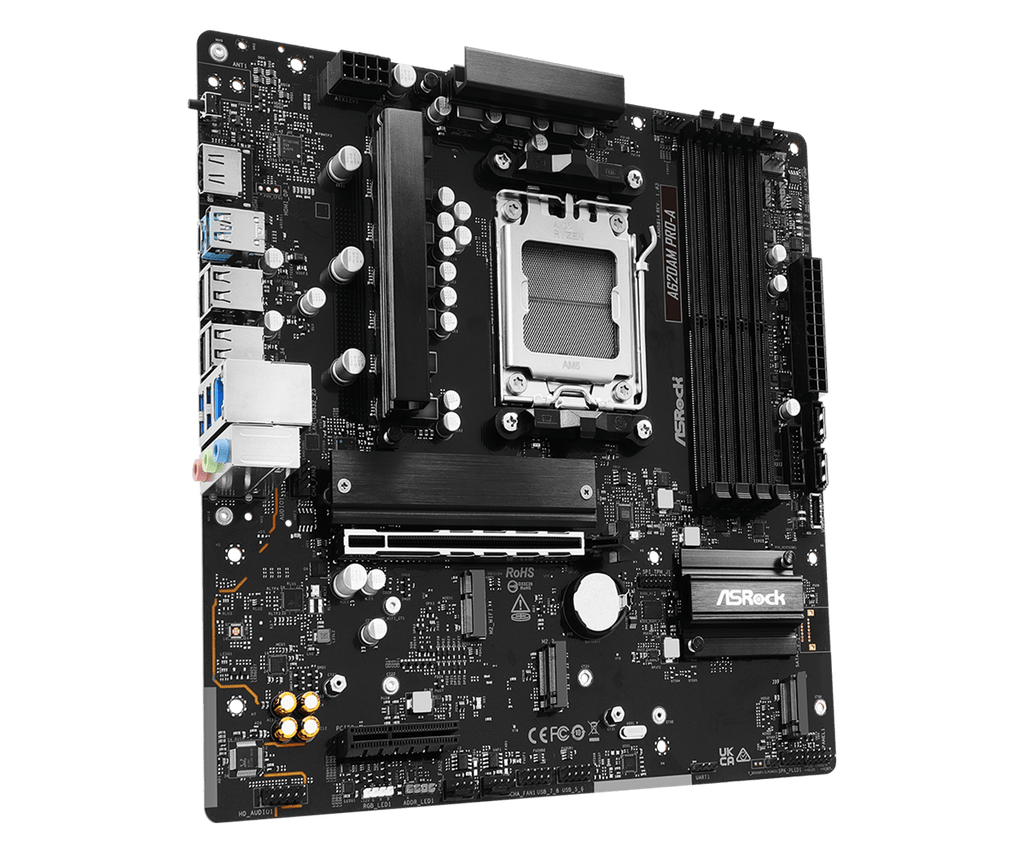

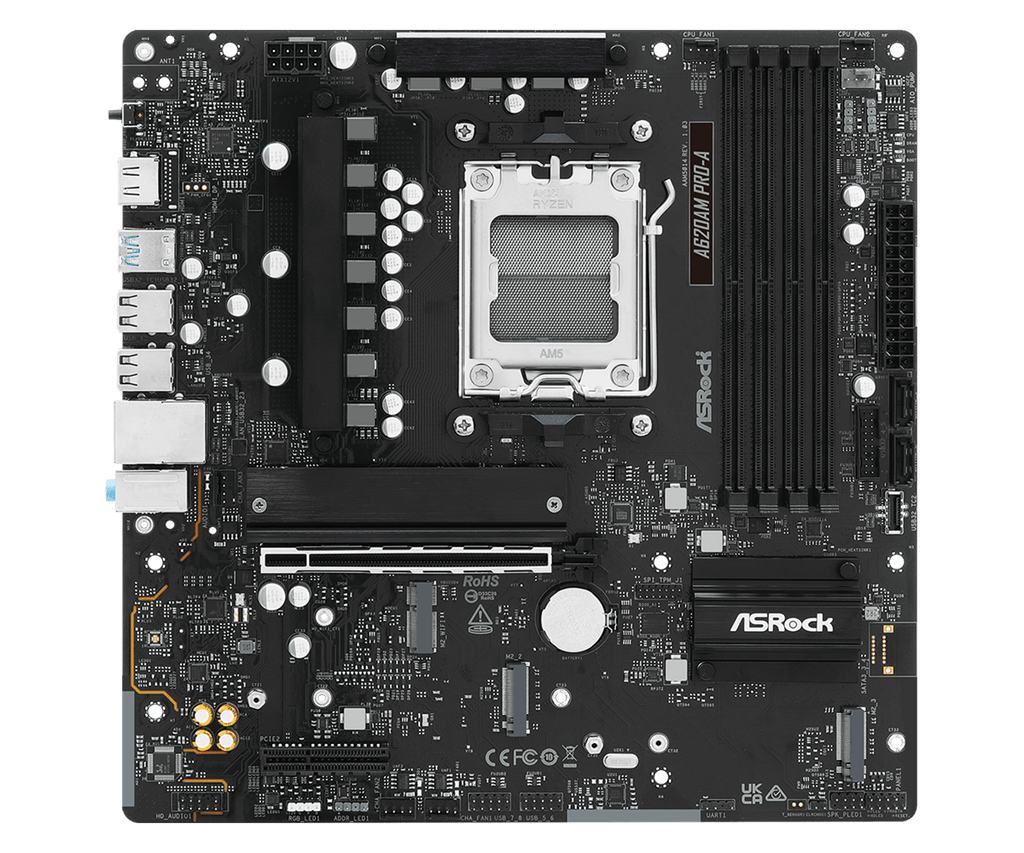

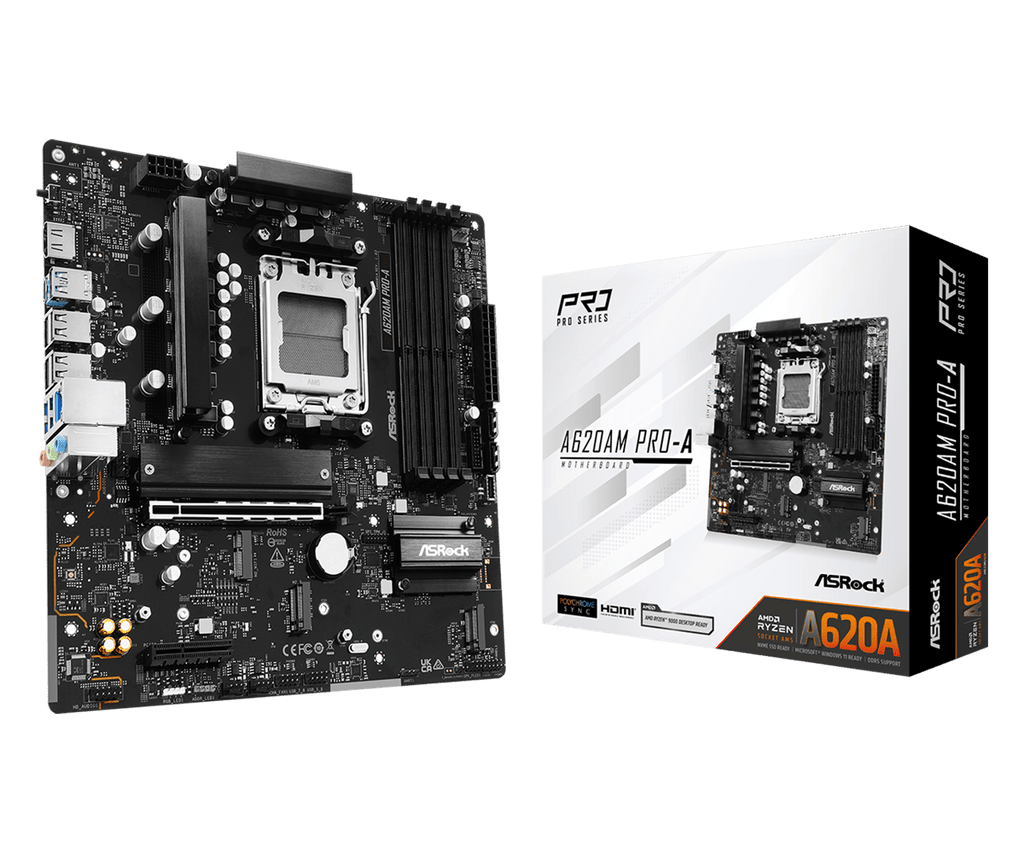

ASRock A620AM Pro-A AM5 Micro-ATX Motherboard - DDR5, 3x M.2
ASRock
ASRock A620AM Pro-A AM5 Micro-ATX Motherboard - DDR5, 3x M.2
The ASRock A620AM Pro-A AM5 Micro-ATX Motherboard is built for home and office users who want a stable, efficient foundation for AMD Ryzen-based systems without overcomplicating the build process. Its 6-layer PCB, Dr.MOS power design, and DDR5 support with XMP/EXPO profile compatibility make it a practical choice for daily computing and memory overclocking on a budget. The BIOS Flashback Button and Auto Driver Installer further reduce setup friction for less experienced builders.
Why this product
AMD AM5 support across three Ryzen generations
It is compatible with AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, giving buyers flexibility to use current or previous-generation chips.
6-layer PCB for signal stability and efficiency
The 6-layer PCB delivers stable signal traces and more efficient power routing, helping keep temperatures lower during memory overclocking.
DDR5 with XMP and AMD EXPO support
Four DDR5 DIMM slots support dual-channel operation up to 8000+ MHz (OC), with pre-tested XMP and EXPO profiles that make memory overclocking straightforward.
Three M.2 sockets for fast storage expansion
Three M.2 sockets alongside two SATA3 connectors give plenty of storage options, with RAID 0, 1, and 10 support for both NVMe and SATA configurations.
2.5GbE LAN with wireless expansion option
Onboard 2.5GbE LAN handles wired connectivity, while an M.2 Key E slot allows an optional wireless card to be added without occupying a PCIe slot.
BIOS Flashback and Auto Driver Installer
The BIOS Flashback Button allows firmware updates without a CPU installed, and the Auto Driver Installer pops up on first boot to handle all drivers in one click.
- SocketAM5
- Form FactorMicro ATX
- Memory4x DDR5 DIMM, Dual Channel, up to 8000+ MHz (OC)
- ChipsetAMD A620
- Storage3x M.2 + 2x SATA3 6.0 Gb/s
- LAN2.5GbE
- PCIe Slots1x PCIe 4.0 x16, 1x PCIe 3.0 x4
- Power Design6+2+1 Phase Dr.MOS
- SKUASR-1884
- EAN4711581490963
- Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors using the AM5 socket.
- Accepts DDR5 DIMMs only — four slots in dual-channel configuration.
- Fits Micro-ATX and full ATX cases (standard Micro-ATX footprint).
- Wireless networking requires a separately purchased M.2 Key E Wi-Fi module; it is not included.
- The single HDMI video output requires a processor with integrated graphics; a discrete GPU is needed if the chosen Ryzen chip lacks an iGPU.
- Does not support DDR4 memory modules; DDR4 kits are not compatible with AM5 boards.
Best for
- Budget AM5 desktop builds — the A620 chipset keeps costs down while still supporting current Ryzen processors and DDR5 memory.
- Daily computing and light productivity — the Pro-A series is explicitly designed for stability and efficiency in everyday workloads rather than extreme overclocking.
- Storage-intensive setups — three M.2 sockets plus two SATA3 ports with RAID support suit users who need multiple drives without a separate storage card.
- First-time builders — the Post Status Checker LEDs, BIOS Flashback Button, and one-click Auto Driver Installer reduce the risk of a frustrating first boot.
- Compact system builds — the Micro-ATX form factor fits smaller cases while still providing four RAM slots and meaningful expansion slots.
Trade-offs
- Multi-GPU or high-bandwidth GPU workloads — only one PCIe 4.0 x16 slot is available; the second slot runs at PCIe 3.0 x4.
- Users needing USB4 or Thunderbolt — rear USB tops out at USB 3.2 Gen1 speeds; no USB4 or Thunderbolt ports are present.
- Builders expecting built-in Wi-Fi — wireless connectivity requires an additional M.2 Key E module not included in the box.
- High-end audio enthusiasts — onboard audio is handled by a Realtek ALC897 codec with basic HD Audio jacks; a discrete sound card or DAC would be needed for studio-quality output.
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear. Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.
Get the most convenient BIOS flashing with just a simple click.
General
| Brand | ASRock |
|---|---|
| Form Factor | Micro ATX |
| Socket | AM5 |
| Chipset | AMD A620 |
| CPU Support | AMD Ryzen 9000, 8000 and 7000 Series |
Memory & Storage
| Memory Slots | 4x DDR5 DIMM |
|---|---|
| Memory Channels | Dual Channel |
| Max Memory Speed | Up to 8000+ MHz (OC) |
| Memory Profiles | Intel XMP / AMD EXPO |
| M.2 Sockets | 3x M.2 |
| SATA Ports | 2x SATA3 6.0 Gb/s |
| RAID (SATA) | RAID 0, RAID 1 |
| RAID (M.2 NVMe) | RAID 0, RAID 1, RAID 10 |
Connectivity
| LAN | 2.5GbE |
|---|---|
| Wireless | Via optional M.2 Key E module (not included) |

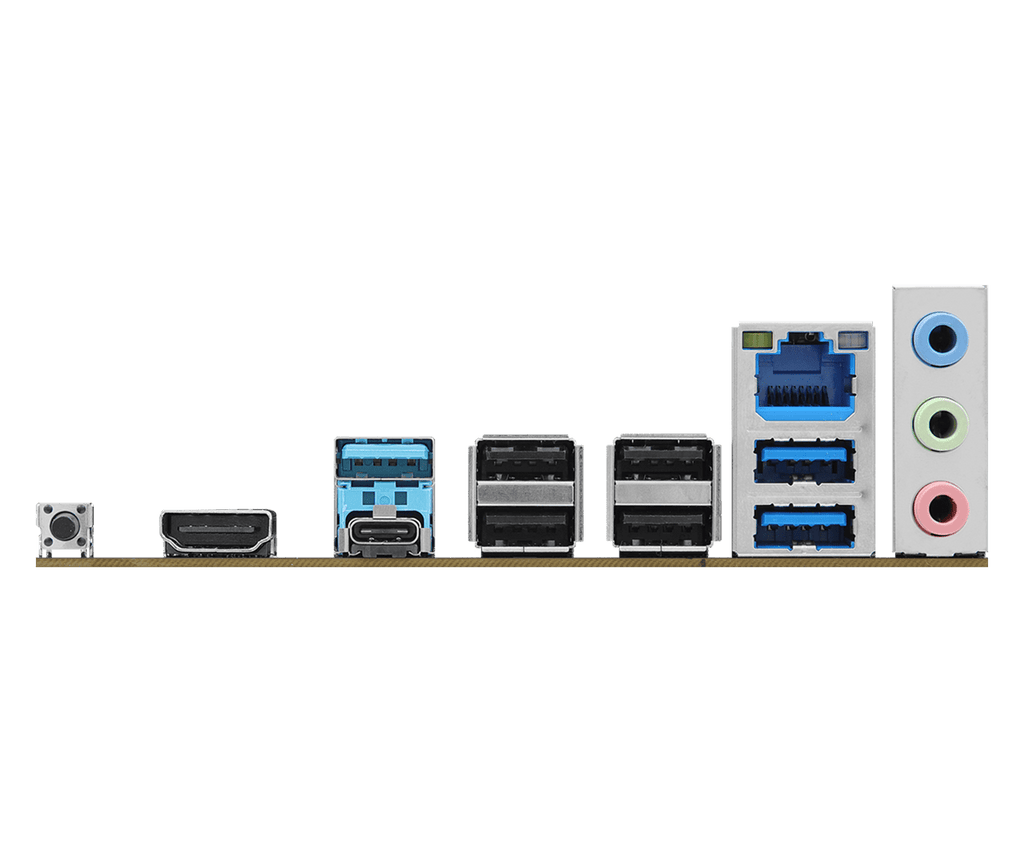

| USB Rear | 1x USB 3.2 Gen1 Type-C, 3x USB 3.2 Gen1 Type-A, 4x USB 2.0 |
| USB Front Headers | 1x USB 3.2 Gen1 Type-C Header, 1x USB 3.2 Gen1 Header (2 ports), 2x USB 2.0 Headers (4 ports) |
| Video Output | 1x HDMI |
| Audio | Realtek ALC897, HD Audio (Line In / Front Speaker / Microphone) |
Expansion & Power
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4 |
|---|---|
| Power Design | 6+2+1 Phase Dr.MOS |
| PCB Layers | 6-Layer |
| ATX Power | 1x 24-pin ATX, 1x 8-pin 12V (Hi-Density) |
| Fan Connectors | 2x CPU Fan (4-pin), 3x Chassis Fan (4-pin), 1x AIO Pump Fan (4-pin) |
| RGB Headers | 1x RGB LED Header, 3x Addressable LED Headers |
| Post Status Checker | Colored LEDs for CPU, DRAM, VGA, and BOOT |
| BIOS Features | Full HD UEFI, Instant Flash, BIOS Flashback Button |
