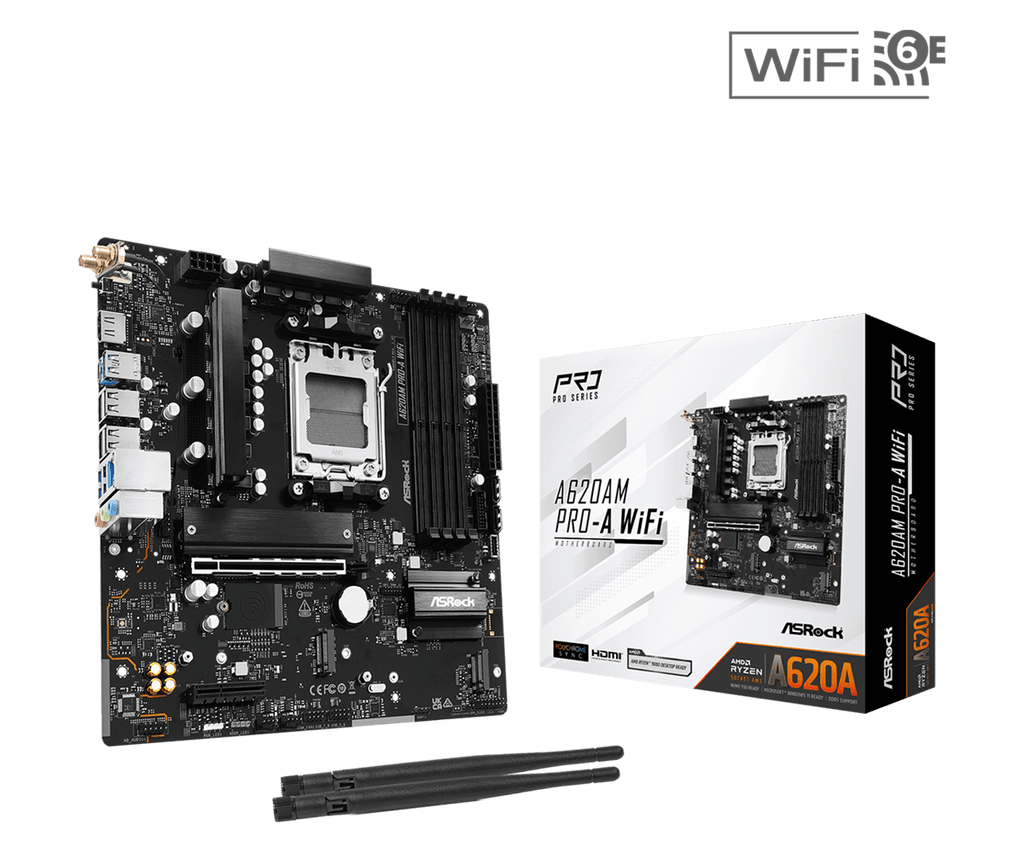

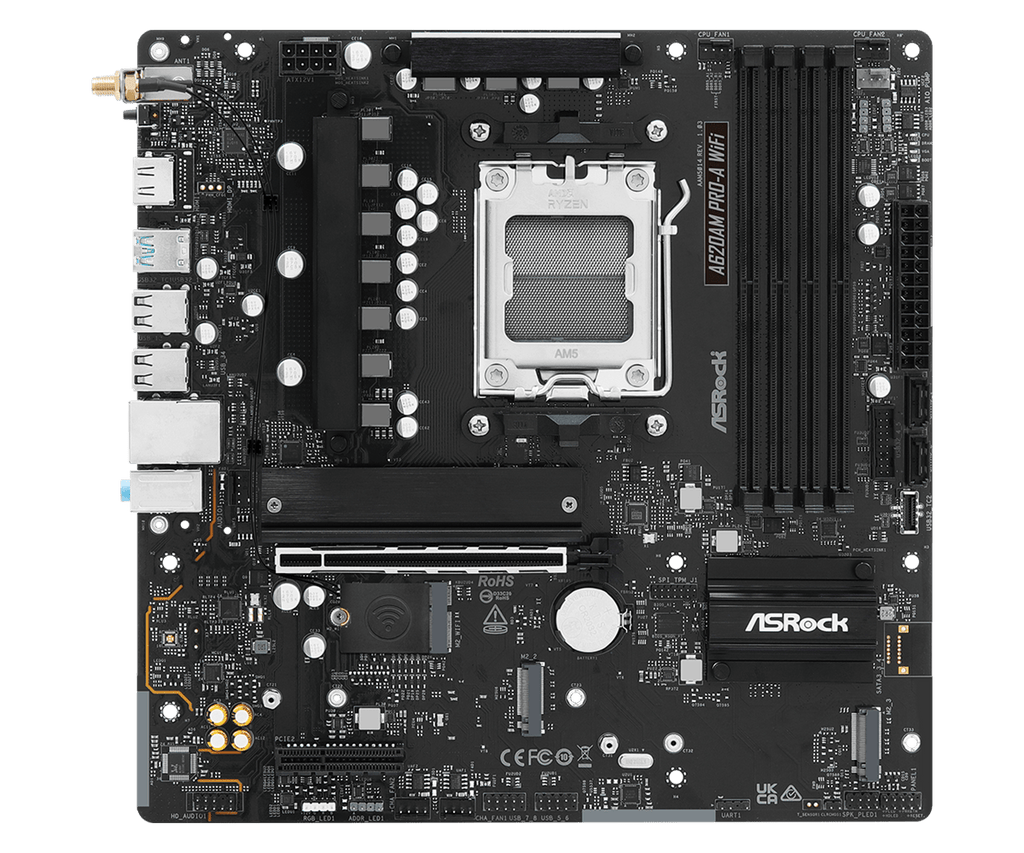

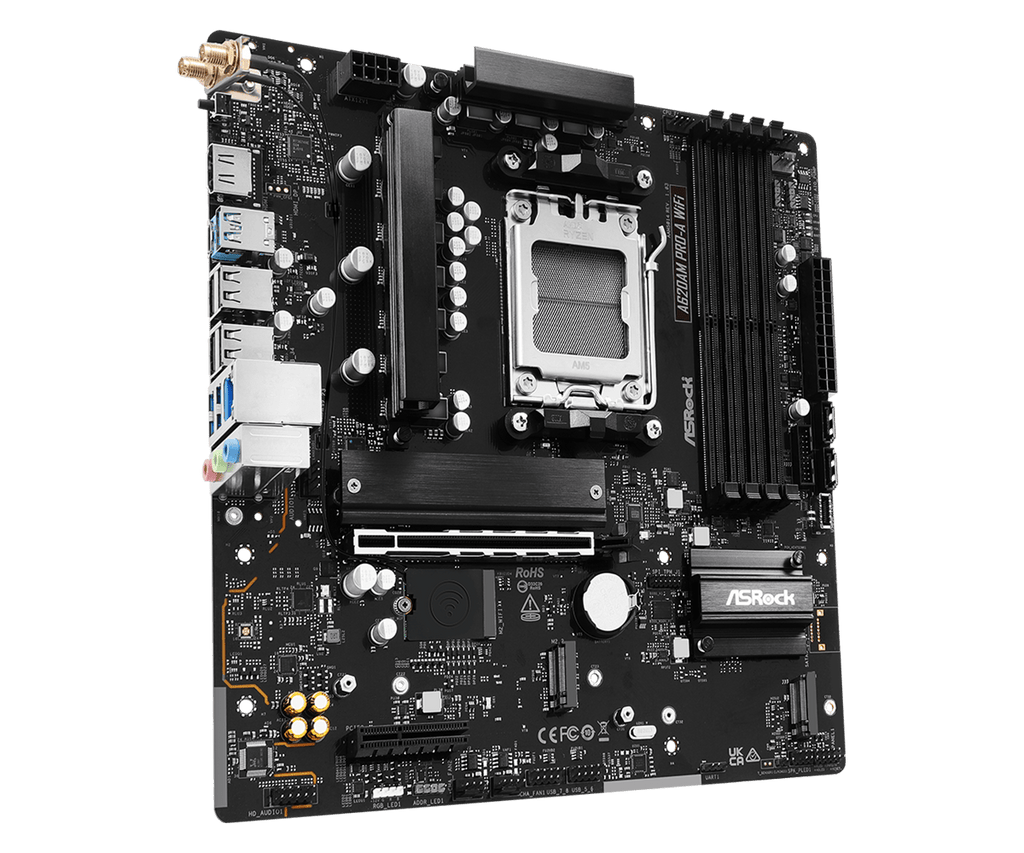

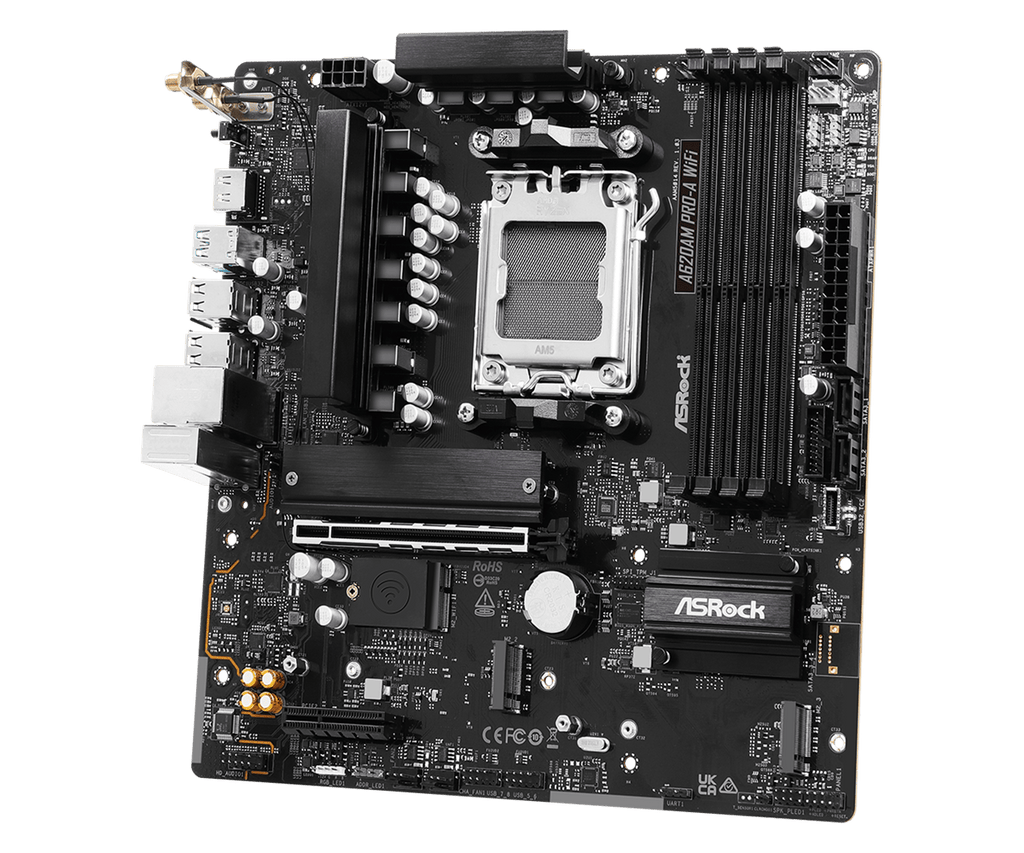

ASRock A620AM Pro-A WiFi AM5 Micro-ATX DDR5 Motherboard
ASRock
ASRock A620AM Pro-A WiFi AM5 Micro-ATX DDR5 Motherboard
The ASRock A620AM Pro-A WiFi is a Micro-ATX AM5 motherboard built for home and office users who want a stable, efficient DDR5 platform without unnecessary complexity. It supports AMD Ryzen 7000, 8000, and 9000 series processors and pairs that foundation with built-in Wi-Fi 6E, 2.5G LAN, and three M.2 slots for flexible storage. The six-layer PCB and Dr.MOS power design prioritise thermal efficiency and signal integrity for everyday and light enthusiast workloads.
Why this product
Broad AMD AM5 CPU compatibility
It supports AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, giving buyers a clear upgrade path as newer generations arrive.
Wi-Fi 6E and 2.5G LAN built in
802.11axe Wi-Fi 6E and Realtek 2.5G wired LAN are included on-board, so no add-in card is needed for fast wired or wireless connectivity.
Three M.2 slots for fast storage
Two Hyper M.2 slots run at PCIe Gen4x4 (64 Gb/s) and a third Ultra M.2 slot runs at PCIe Gen3x4 (32 Gb/s), alongside two SATA3 connectors.
DDR5 overclocking with XMP and EXPO
Four DDR5 DIMM slots support dual-channel operation up to 8000+ (OC) and accept both Intel XMP and AMD EXPO profiles for straightforward memory tuning.
6-layer PCB with Dr.MOS power design
The six-layer PCB and 6+2+1 phase Dr.MOS power design help keep temperatures lower and improve energy efficiency under sustained loads.
BIOS Flashback for tool-free updates
BIOS Flashback lets users update firmware without a CPU or memory installed, which simplifies setup when using a new processor not yet supported by the shipping BIOS.
- SocketAMD AM5
- Form FactorMicro-ATX (9.6-in × 9.6-in)
- Memory4 × DDR5, up to 256 GB, up to 8000+ (OC)
- Primary PCIe SlotPCIe 4.0 x16
- M.2 Slots3 (2 × Gen4x4, 1 × Gen3x4)
- Networking2.5G LAN + Wi-Fi 6E + Bluetooth
- AudioRealtek ALC897 7.1 CH HD
- BIOS FlashbackYes
- SKUASR-1911
- EAN4711581490970
- Fits AMD AM5 socket processors: Ryzen 9000, 8000, and 7000 series.
- Accepts standard DDR5 un-buffered ECC and non-ECC DIMMs up to a maximum of 256 GB across four slots.
- Micro-ATX form factor (9.6-in × 9.6-in / 24.4 cm × 24.4 cm) fits any case that supports Micro-ATX or ATX.
- The primary PCIe x16 slot (PCIE1) runs at Gen4x16 with Ryzen 9000 and 7000 series, Gen4x8 with Ryzen 8000 Phoenix 1, and Gen4x4 with Ryzen 8000 Phoenix 2 processors.
- Integrated graphics output requires a Ryzen processor with an integrated AMD RDNA GPU; discrete GPU is needed if using a CPU-only (no iGPU) processor.
- Does not support DDR4 memory — DDR5 modules only.
Best for
- Daily computing and home office builds — the board is explicitly designed for stability and efficiency in everyday workloads rather than extreme overclocking.
- Users who want wireless without an add-in card — Wi-Fi 6E and Bluetooth are included on-board with bundled antennas.
- Storage-heavy workstations — three M.2 slots plus two SATA3 ports allow up to five storage devices simultaneously.
- Builders planning a CPU upgrade later — AM5 socket support spans three Ryzen generations and BIOS Flashback enables updates without a working CPU.
- Compact system builders — the Micro-ATX footprint keeps the build small while retaining full-size DDR5 and PCIe 4.0 support.
Trade-offs
- High-end discrete GPU workloads on Ryzen 8000 (Phoenix 2) — the primary PCIe slot is limited to Gen4x4 bandwidth with those processors.
- Users needing more than two SATA ports — only two SATA3 connectors are provided; a higher-tier board is required for more SATA devices.
- Builders who need a second full-bandwidth PCIe slot — the secondary PCIe slot (PCIE2) is PCIe 3.0 and electrically limited to x2 mode.
- Systems requiring DDR4 memory — this board accepts DDR5 only; existing DDR4 kits cannot be reused.
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Just make sure the memory modules are Intel® XMP / AMD EXPO™ capable and the overclocking could be as affordable, satisfying, and absolutely effortless as possible.
General
| Brand | ASRock |
|---|---|
| Model | A620AM Pro-A WiFi |
| Chipset | AMD A620A |
| Form Factor | Micro-ATX |
| Dimensions | 9.6-in × 9.6-in (24.4 cm × 24.4 cm) |
Performance
| CPU Support | AMD AM5 Ryzen 9000, 8000, and 7000 Series |
|---|---|
| Power Design | 6+2+1 Phase, Dr.MOS |
| PCB Layers | 6 |
| Memory Slots | 4 × DDR5 DIMM |
| Memory Type | DDR5 ECC/non-ECC, un-buffered, Dual Channel |
| Max Memory Speed | 8000+ (OC) |
| Max Memory Capacity | 256 GB |
| XMP / EXPO Support | Yes |
Networking
| Standard | 802.11axe Wi-Fi 6E + Bluetooth |
|---|---|
| Wired LAN | Realtek 2.5G LAN |
| Included Antennas | 2 × ASRock WiFi 2.4/5/6 GHz Antennas |
Ports & Connectivity
| PCIe Slots | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x4 (x2 mode) |
|---|---|
| M.2 Slots | 2 × Hyper M.2 PCIe Gen4x4 (64 Gb/s), 1 × Ultra M.2 PCIe Gen3x4 (32 Gb/s) |
| SATA3 Connectors | 2 × SATA3 6.0 Gb/s |

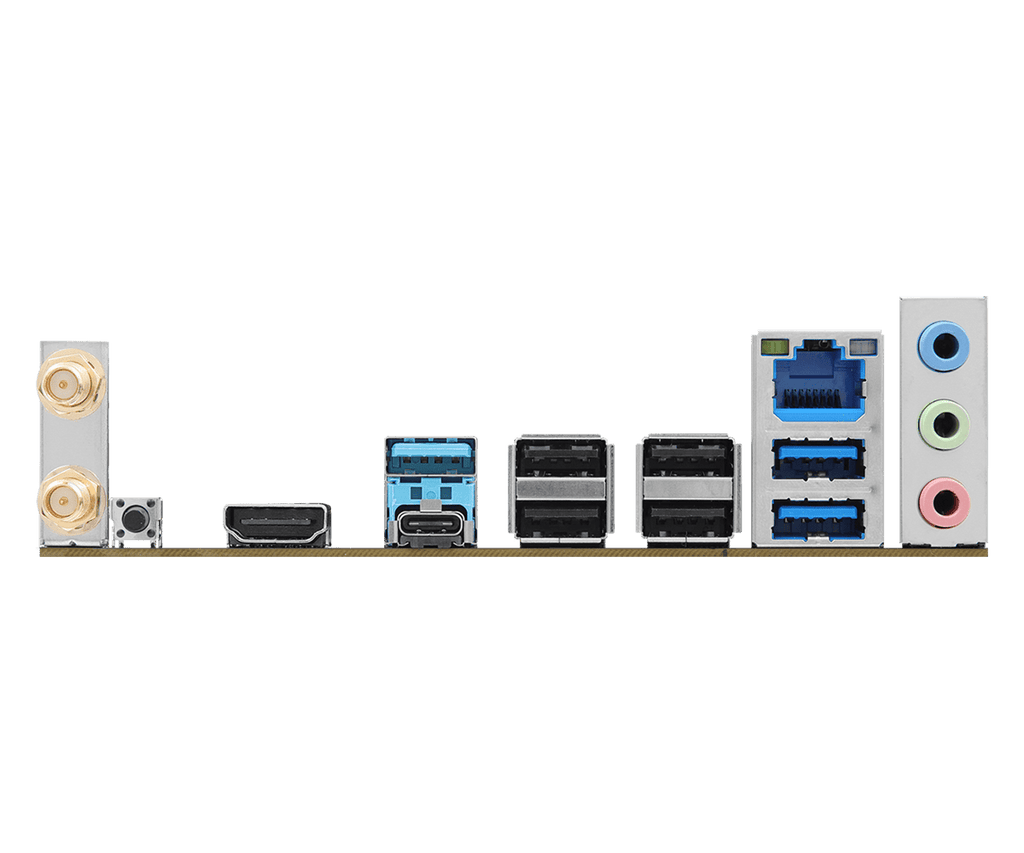

| USB (Rear) | 1 × USB 3.2 Gen1 Type-C, 3 × USB 3.2 Gen1, 4 × USB 2.0 |
| USB (Front Header) | 1 × USB 3.2 Gen1 Type-C, 2 × USB 3.2 Gen1, 4 × USB 2.0 |
| Video Output | 1 × HDMI 2.1, supports 4K 120Hz, HDR, HDCP 2.3 |
| Audio | Realtek ALC897 7.1 CH HD Audio Codec |
| BIOS Flashback | Supported |
