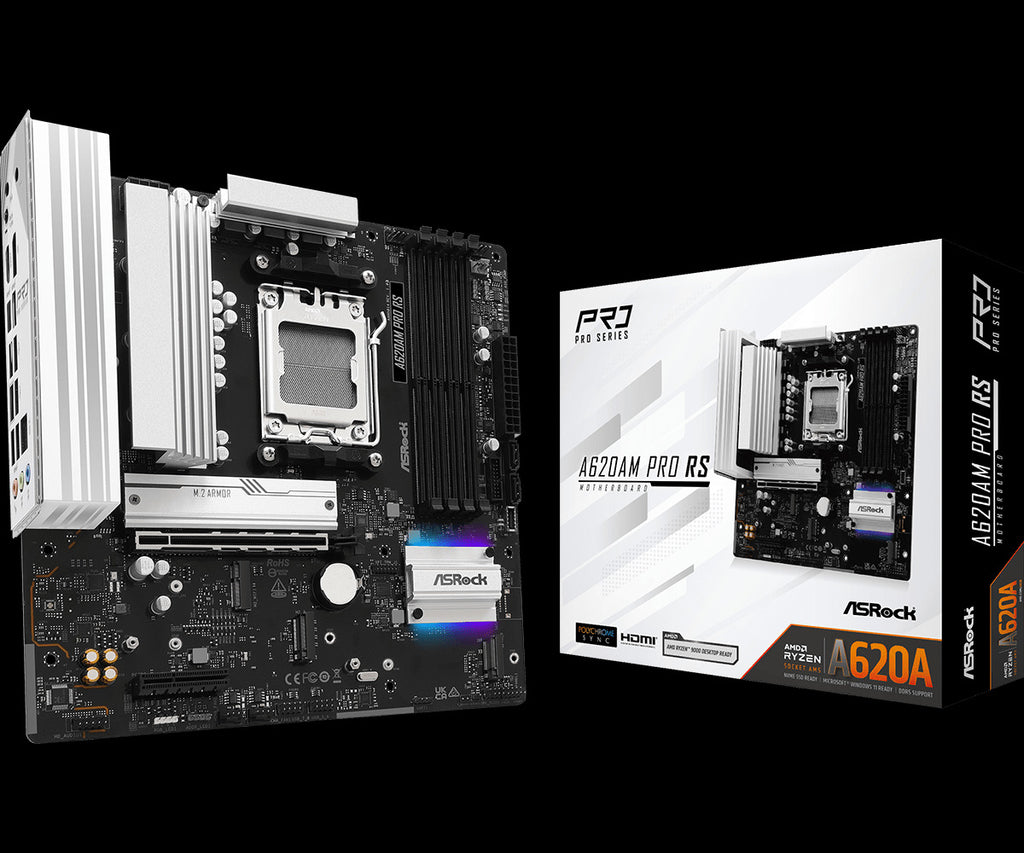

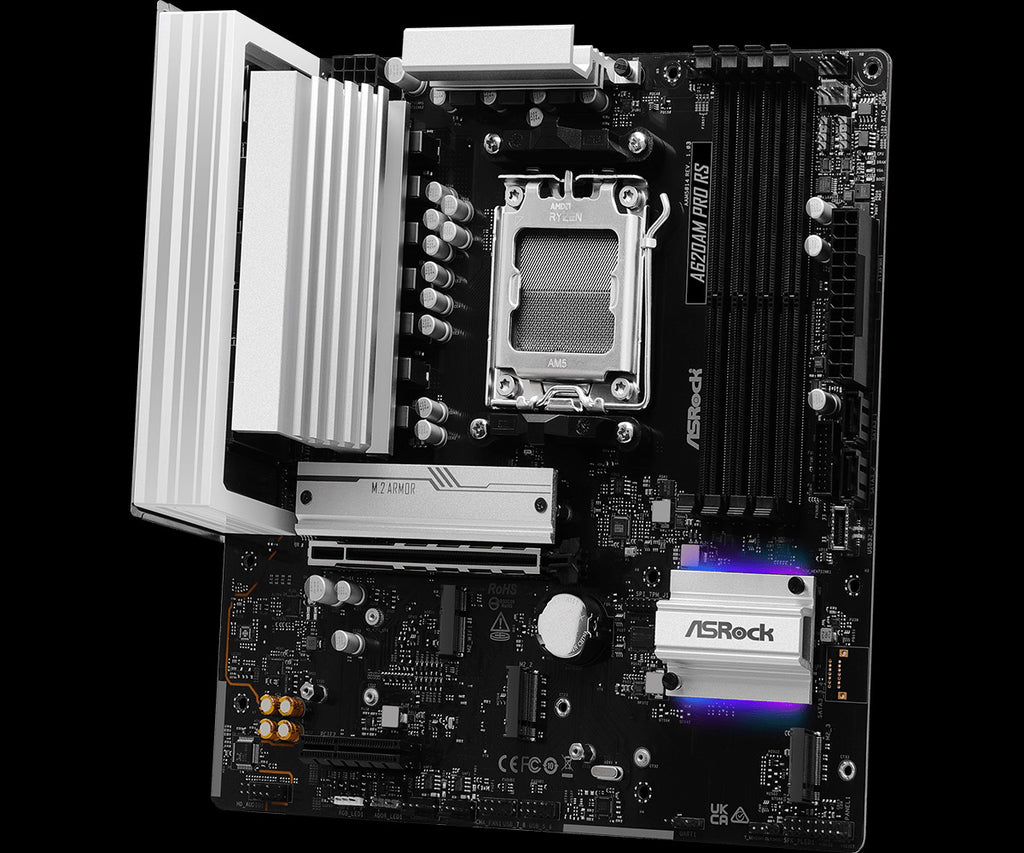

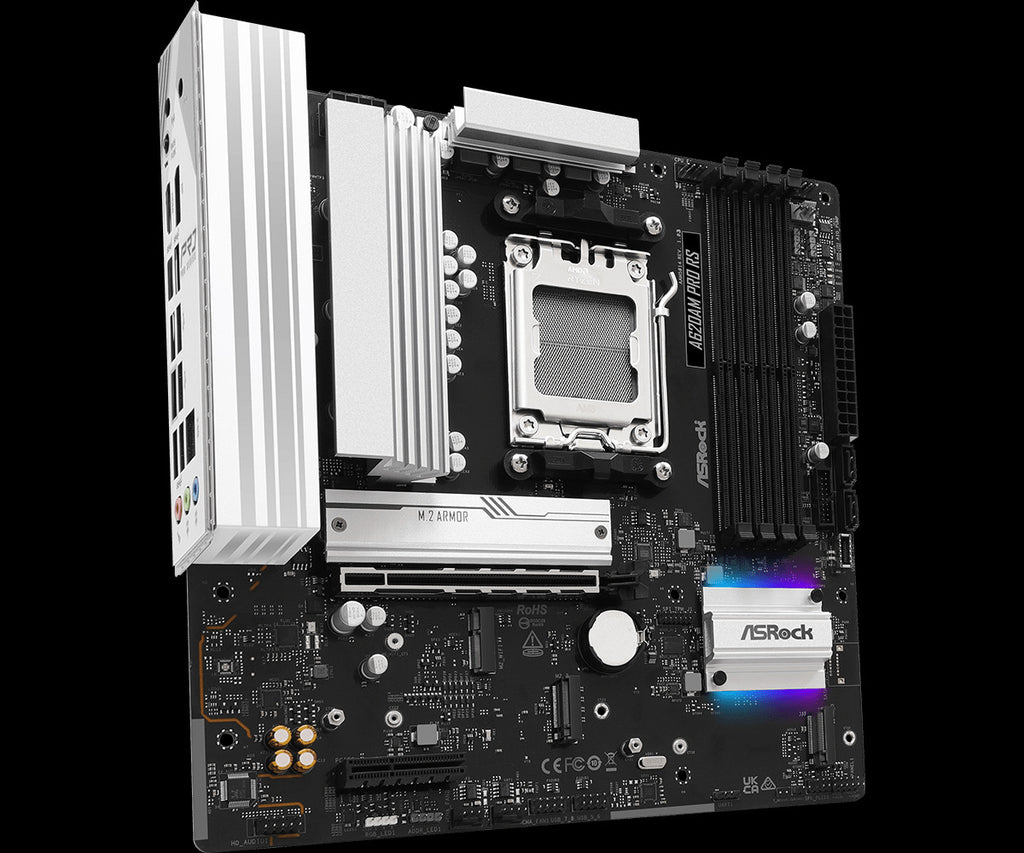

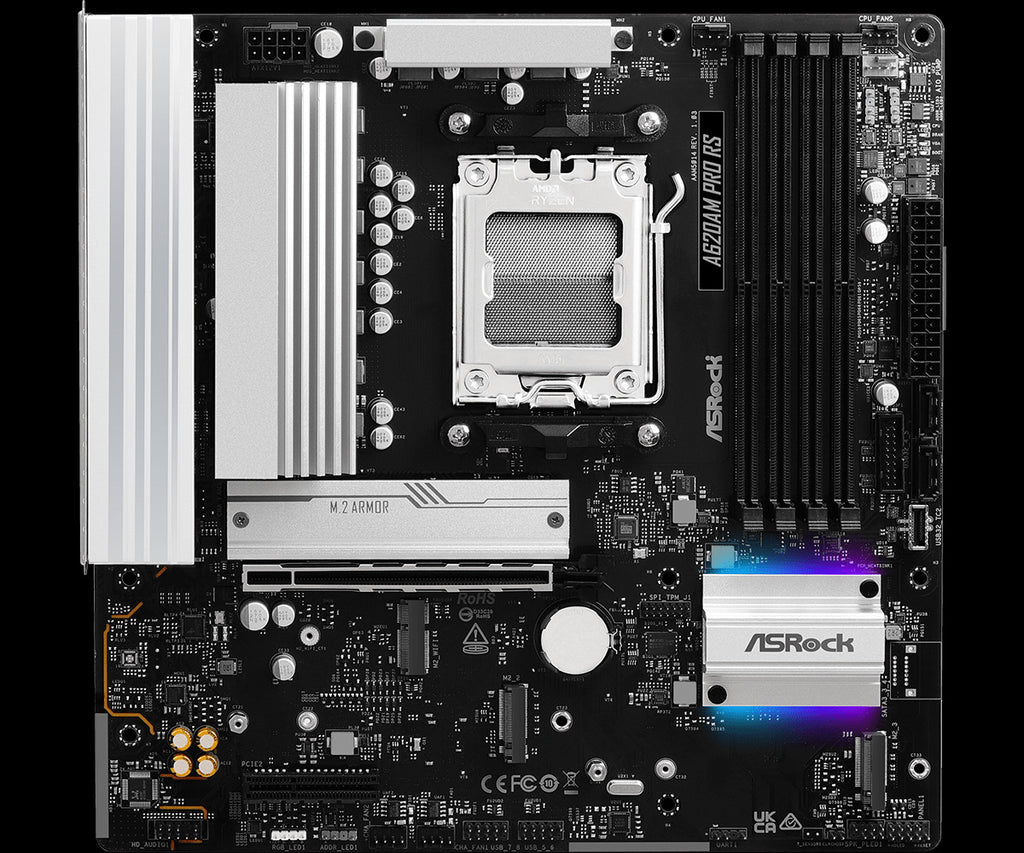

ASRock A620AM Pro RS AM5 Micro-ATX DDR5 Motherboard
ASRock
ASRock A620AM Pro RS AM5 Micro-ATX DDR5 Motherboard
The ASRock A620AM Pro RS AM5 Micro-ATX DDR5 Motherboard is built for home and office users who want a stable, efficient AM5 platform without overcomplicating their build. It brings DDR5 memory support with XMP and EXPO overclocking profiles, dual Gen4 M.2 slots, and 2.5G LAN into a compact Micro-ATX footprint, making it a practical foundation for AMD Ryzen 7000, 8000, and 9000 series systems.
Why this product
AMD AM5 Socket, Three Ryzen Generations
Compatible with Ryzen 7000, 8000, and 9000 series processors, giving builders flexibility when choosing or upgrading their CPU.
DDR5 with XMP and EXPO Support
Four DDR5 DIMM slots support up to 256 GB and speeds beyond 7200 MT/s via pre-tested XMP and EXPO profiles, making memory overclocking straightforward.
Two PCIe Gen4 M.2 Slots
A pair of Hyper M.2 Gen4 slots (up to 64 Gb/s each) plus a third Ultra M.2 Gen3 slot give plenty of room for fast NVMe storage.
2.5G Wired LAN Onboard
The integrated 2.5G LAN port delivers faster network throughput than standard Gigabit without requiring an add-in card.
6-Layer PCB for Signal Stability
The 6-layer PCB design helps maintain clean signal traces and power delivery, supporting stable memory overclocking and lower operating temperatures.
BIOS Flashback for Hassle-Free Updates
The BIOS Flashback button lets users update firmware without a CPU or memory installed, and the Auto Driver Installer handles software setup on first boot.
- SocketAMD AM5
- Form FactorMicro-ATX
- ChipsetAMD A620
- Memory Slots4 x DDR5 DIMM, up to 256 GB
- M.2 Slots2 x Gen4, 1 x Gen3
- LAN2.5G
- Graphics Output1 x HDMI 2.1, 1 x DisplayPort 1.4
- Power Phases6+2+1 Dr.MOS
- SKUASR-3339
- EAN4711581490949
- Compatible with AMD Socket AM5 processors: Ryzen 9000, 8000, and 7000 series.
- Accepts standard DDR5 un-buffered ECC and non-ECC modules across four DIMM slots, up to 256 GB total.
- Fits cases that support Micro-ATX (mATX) form factor motherboards.
- Wi-Fi and Bluetooth require an optional M.2 Key E PCIe Wi-Fi module (type 2230); no wireless is included out of the box.
- Integrated graphics output (HDMI 2.1 and DisplayPort 1.4) is available only when using a Ryzen processor with integrated AMD RDNA graphics; a discrete GPU is needed otherwise.
- Not compatible with AMD AM4 or Intel processors — AM5 socket only.
Best for
- Everyday and productivity builds that benefit from DDR5 bandwidth and a stable 6+2+1 Dr.MOS power stage without the cost of a high-end chipset.
- Storage-heavy setups that need multiple fast NVMe drives, thanks to two Gen4 and one Gen3 M.2 slots alongside two SATA3 ports.
- Network-dependent workloads where 2.5G onboard LAN provides a meaningful speed advantage over standard Gigabit without extra hardware.
- Memory overclocking on a budget, with EXPO and XMP profile support allowing straightforward speed boosts using compatible DDR5 kits.
- Compact builds in Micro-ATX cases where space is a priority but a full range of connectivity is still required.
Trade-offs
- Multi-GPU or high-bandwidth GPU setups: the second PCIe slot operates at x2 mode (PCIe 3.0), which limits throughput for a second graphics card or high-speed PCIe add-in card.
- Builders needing built-in Wi-Fi: wireless connectivity requires purchasing and installing a separate M.2 Key E module.
- Large SATA storage arrays: only two SATA3 ports are available, which restricts the number of traditional hard drives or SSDs that can be connected directly.
- Full-ATX or E-ATX case builds: the Micro-ATX form factor will not fill a full-size ATX case tray and may not align with all mounting points.
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear.
General
| Brand | ASRock |
|---|---|
| Form Factor | Micro-ATX |
| Chipset | AMD A620 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000, 8000 and 7000 Series |
| PCB Layers | 6 |
| Power Design | 6+2+1 Phase Dr.MOS |
Memory
| Memory Type | DDR5 (ECC and non-ECC, un-buffered) |
|---|---|
| DIMM Slots | 4 |
| Max Capacity | 256 GB |
| Max Speed (OC) | 7200+ MT/s |
| Overclocking Profiles | XMP, AMD EXPO |
Storage & Expansion
| M.2 Slots | 2 x Hyper M.2 Gen4 (64 Gb/s), 1 x Ultra M.2 Gen3 (32 Gb/s) |
|---|---|
| SATA3 Ports | 2 x 6.0 Gb/s |
| RAID Support | RAID 0, 1, 10 (SATA and M.2 NVMe) |
| PCIe x16 Slot 1 | PCIe 4.0 x16 (CPU, x16 mode) |
| PCIe x16 Slot 2 | PCIe 3.0 x16 (Chipset, x2 mode) |
| M.2 Key E | Type 2230, PCIe WiFi module (optional) |
Connectivity & I/O
| LAN | 2.5G |
|---|---|
| Wireless | Via optional M.2 Key E WiFi/BT module |
| Audio | 7.1 CH HD Audio |

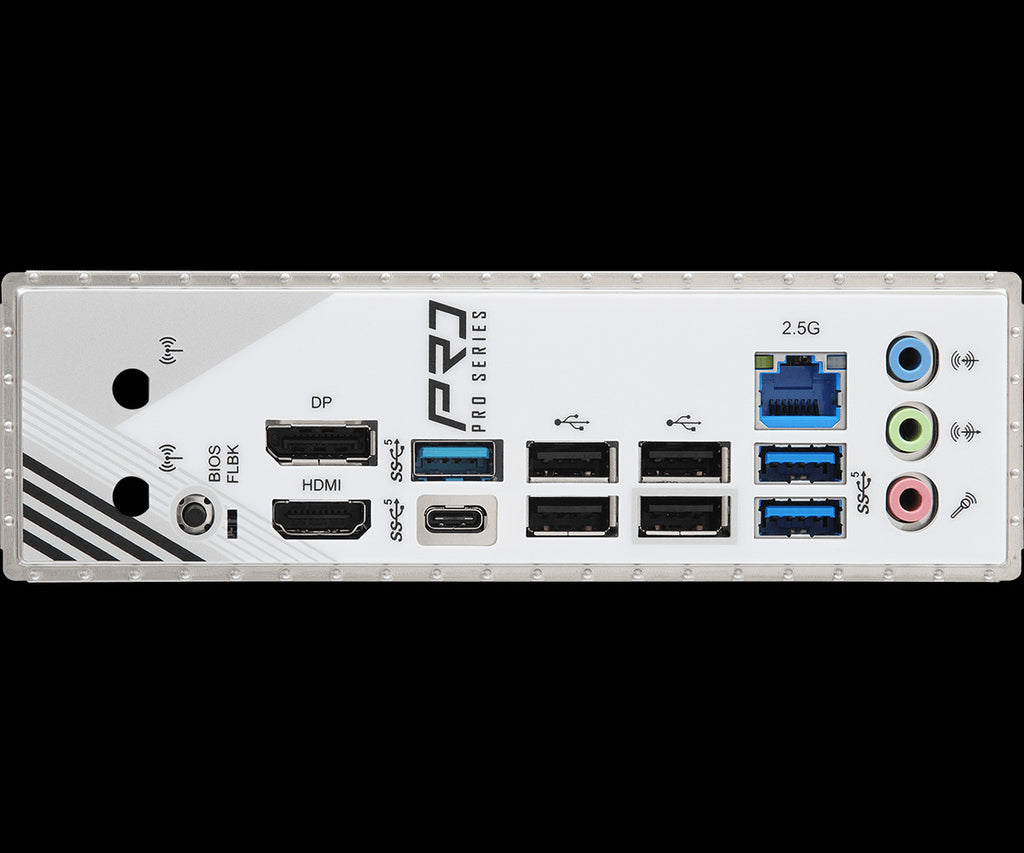

| USB Rear (Type-C) | 1 x USB 3.2 Gen1 Type-C |
| USB Rear (Type-A) | 3 x USB 3.2 Gen1, 4 x USB 2.0 |
| USB Front Headers | 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Display Outputs | 1 x HDMI 2.1 (4K 120Hz), 1 x DisplayPort 1.4 (4K 120Hz, DSC) |
| BIOS | BIOS Flashback Button, Auto Driver Installer, Post Status Checker |
