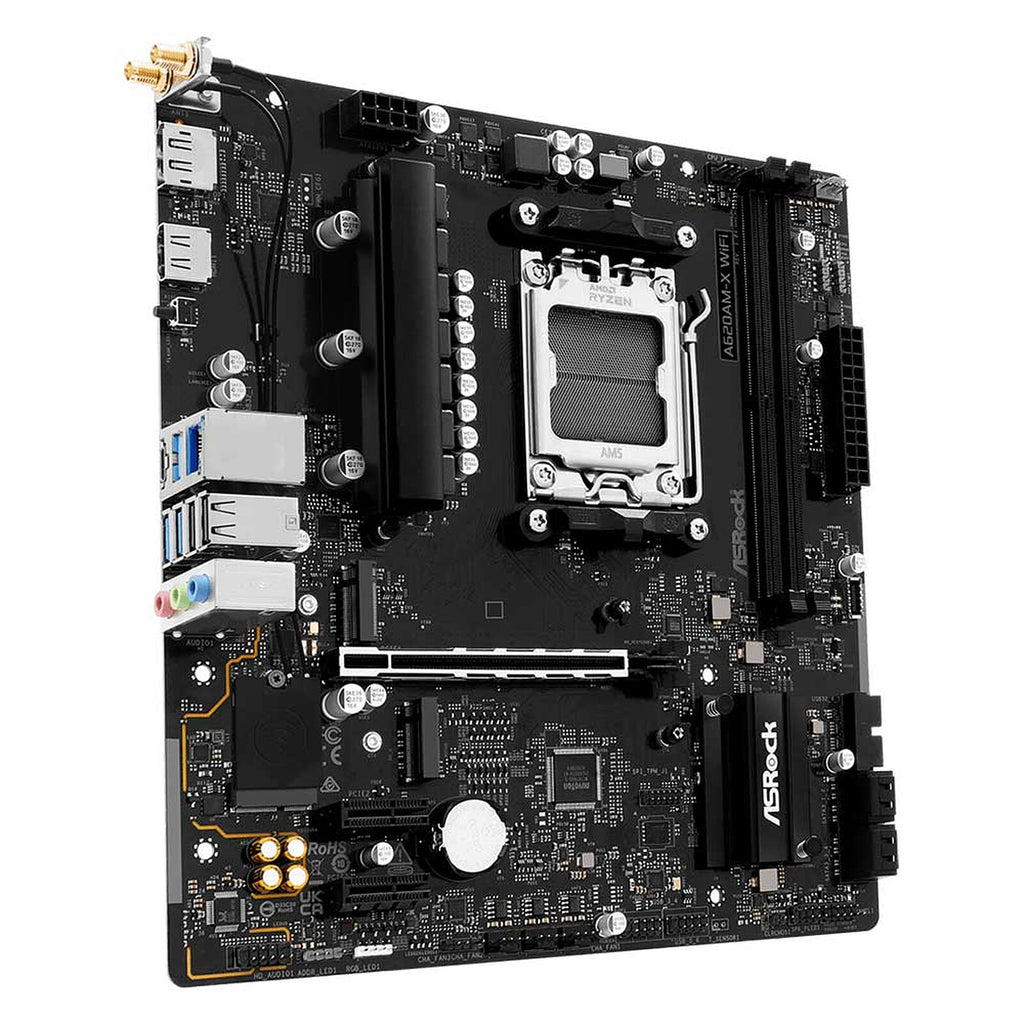

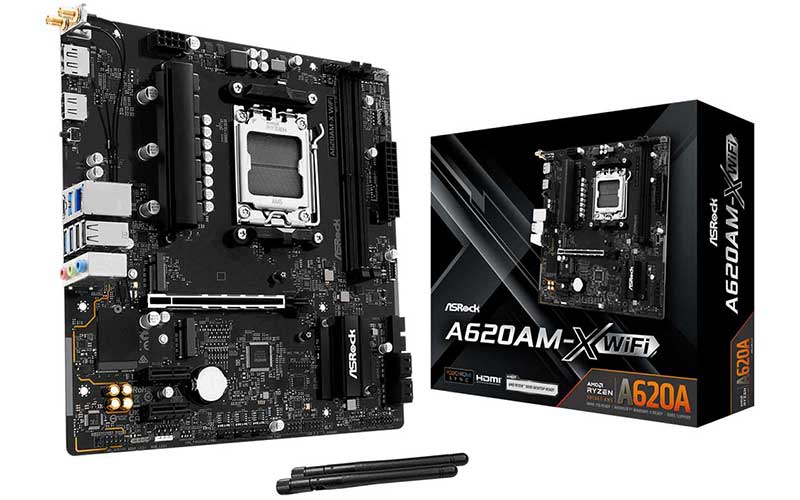

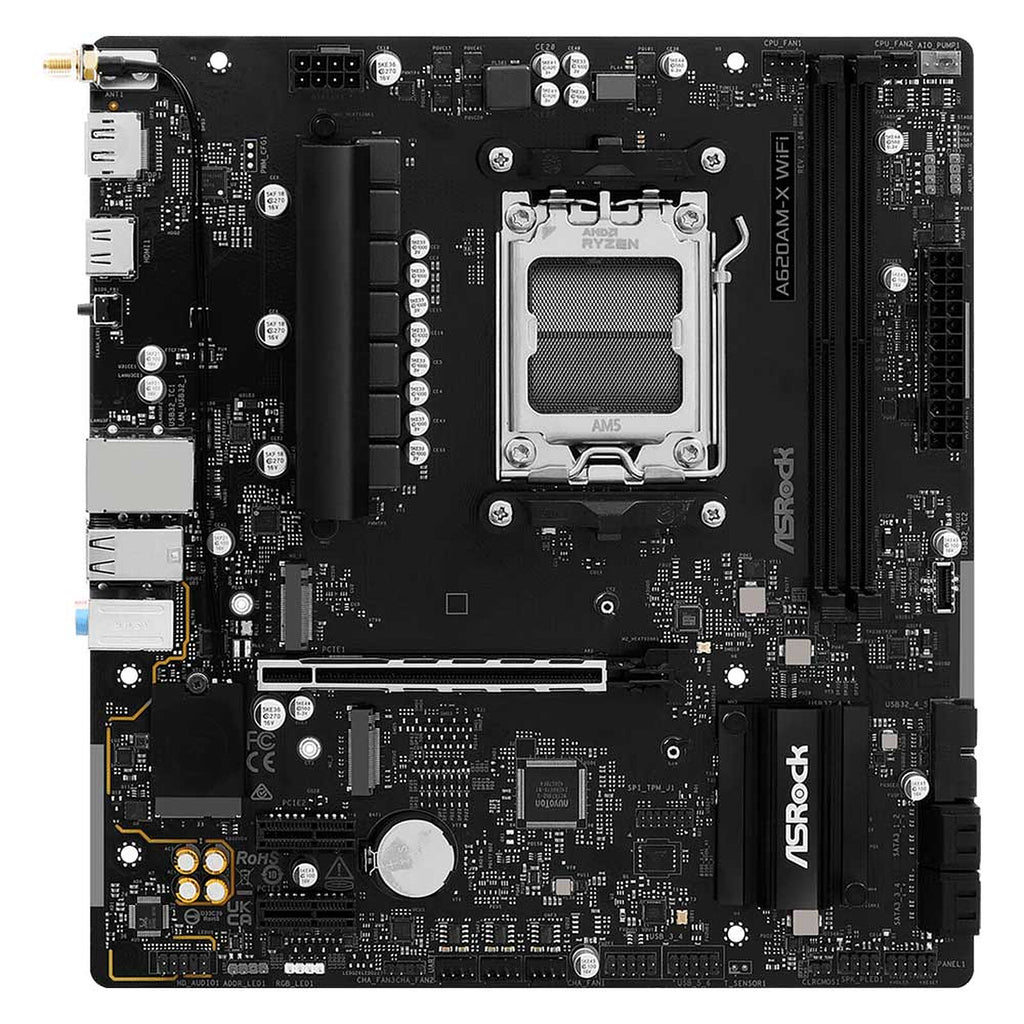

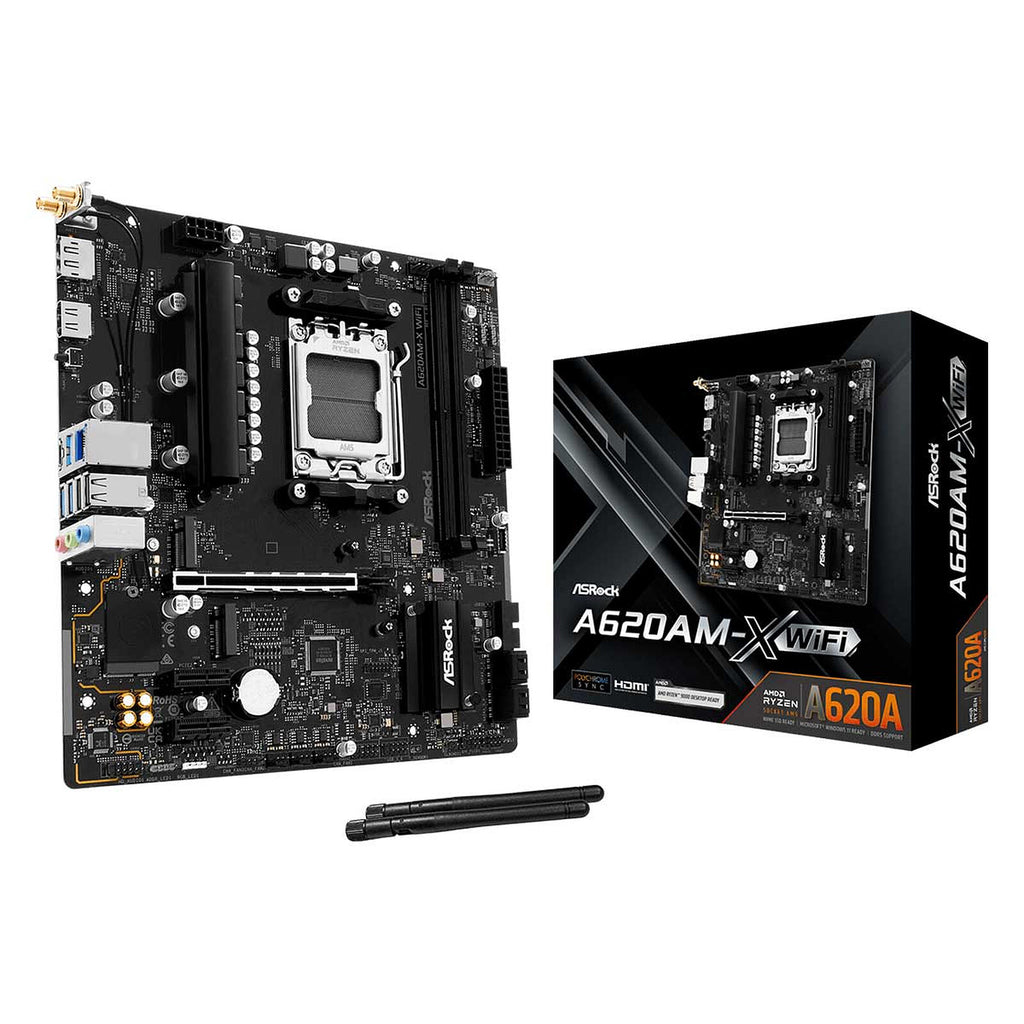

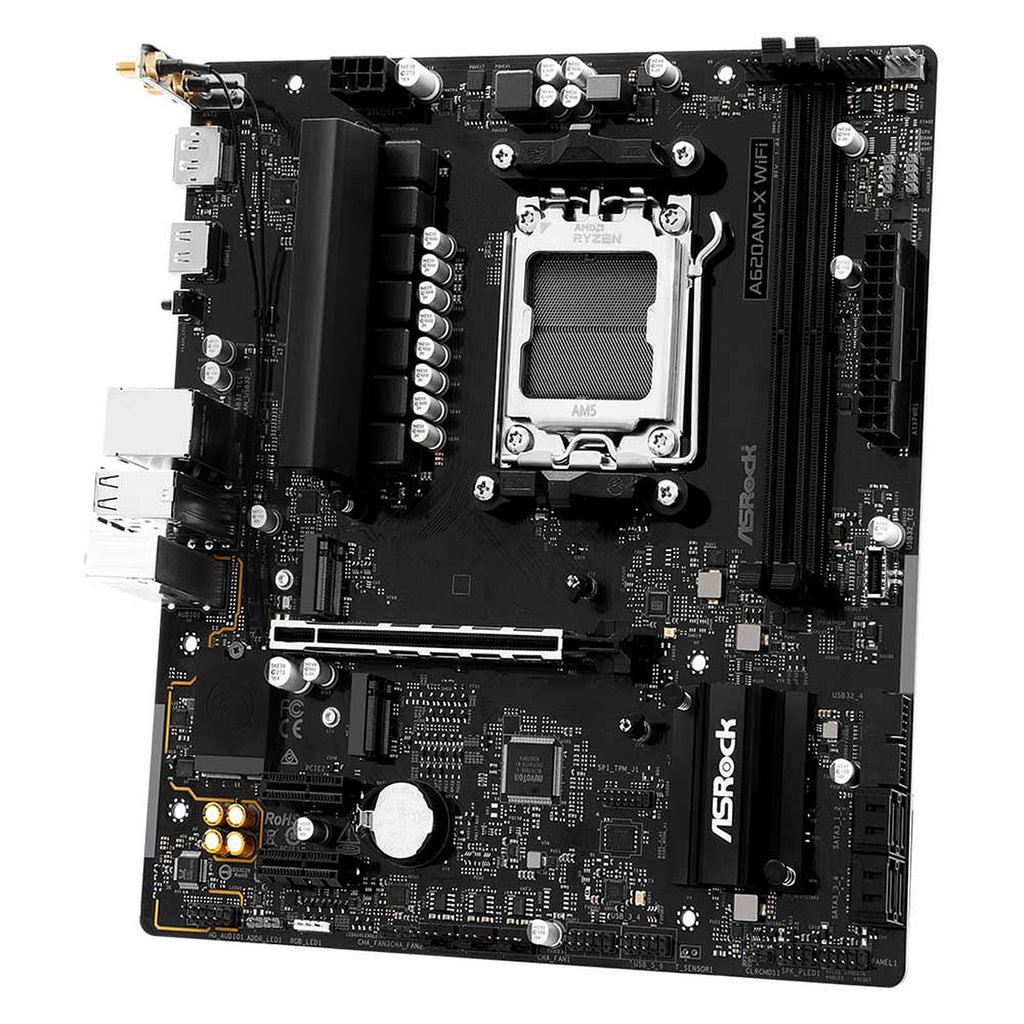

ASRock A620AM-X WiFi AM5 Micro-ATX Motherboard - DDR5, Wi-Fi 5
The ASRock A620AM-X WiFi AM5 Micro-ATX Motherboard is designed for system builders who want a compact, full-featured platform for AMD Ryzen 7000, 8000, and 9000 series processors. It balances wired and wireless connectivity, dual M.2 NVMe storage, and onboard RGB control in a Micro-ATX footprint. This board suits both everyday desktop builds and workloads that benefit from 2.5G LAN and Wi-Fi 5 networking.
Why this product
Supports AMD AM5 Ryzen 7000, 8000 and 9000
It is compatible with AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket, giving builders a path for CPU upgrades without changing the board.
Dual PCIe Gen4 M.2 slots for fast storage
Two Hyper M.2 slots running at PCIe Gen4x4 (64 Gb/s each) sit alongside four SATA3 ports, providing flexible options for NVMe SSDs and traditional storage devices.
2.5G LAN plus Wi-Fi 5 and Bluetooth
A Realtek Dragon 2.5G LAN controller and 802.11ac Wi-Fi 5 with Bluetooth cover both wired and wireless networking needs without requiring add-in cards.
4K 120Hz output on both HDMI and DisplayPort

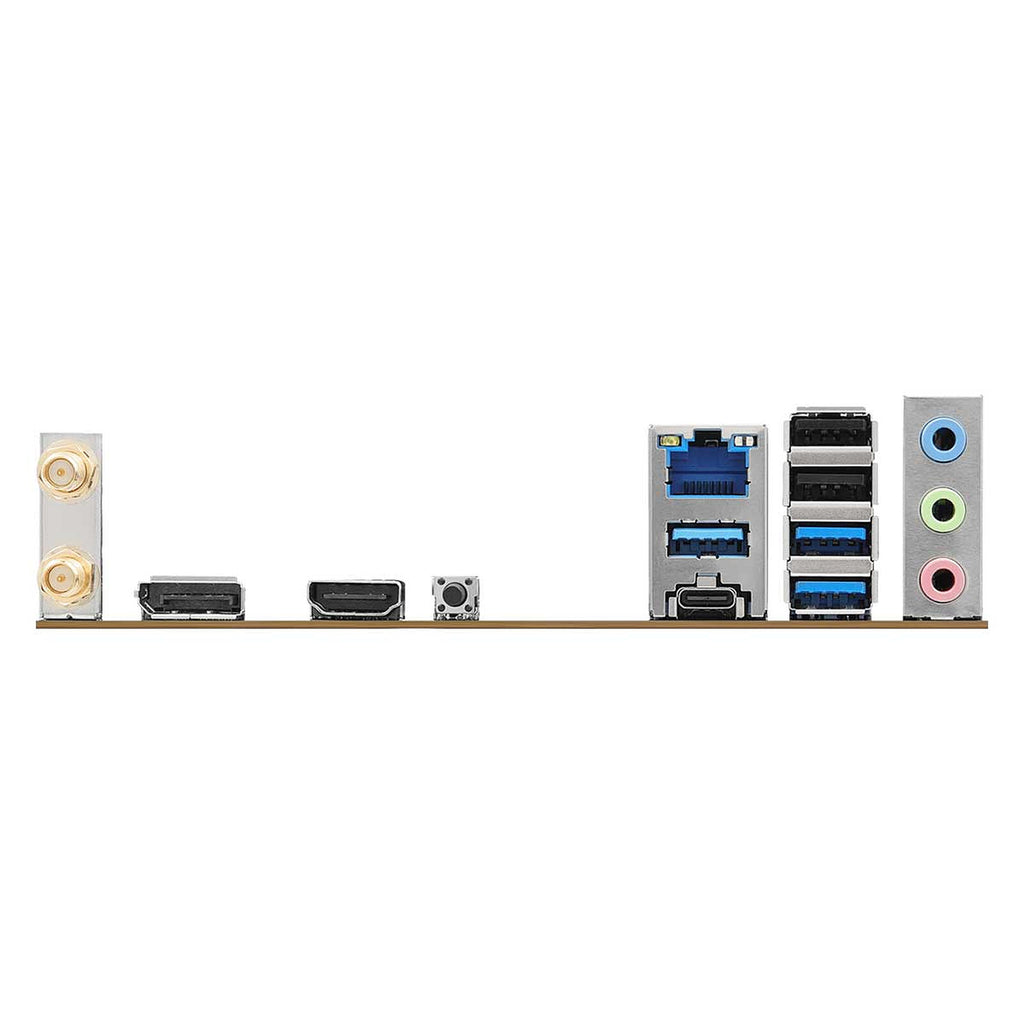

The rear panel includes HDMI 2.1 and DisplayPort 1.4 outputs, each capable of driving a display at up to 4K 120Hz when using a CPU with integrated AMD RDNA graphics.
BIOS Flashback for easy firmware updates
A dedicated BIOS Flashback button on the rear panel lets users update firmware using a USB drive without installing a CPU or memory, simplifying initial setup and recovery.
Polychrome RGB and Signal RGB support
Onboard RGB and addressable RGB headers allow connection to compatible LED devices, with synchronisation managed through ASRock Polychrome SYNC or Signal RGB software.
- SocketAM5
- ChipsetAMD A620
- Form FactorMicro ATX
- Memory2 x DDR5 DIMM, up to 128 GB, up to 8000+ MHz (OC)
- M.2 Slots2 x PCIe Gen4x4
- LAN2.5 Gigabit (Realtek Dragon RTL8125BG)
- Wireless802.11ac Wi-Fi 5 + Bluetooth
- Display OutputHDMI 2.1 + DisplayPort 1.4, up to 4K 120Hz
- SKUASR-1874
- EAN4711581490826
- Compatible with AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket.
- Supports DDR5 ECC and non-ECC un-buffered memory up to 128 GB across two DIMM slots.
- Works with XMP and EXPO memory profiles for overclocked DDR5 modules up to 8000+ MHz (OC).
- Accepts M.2 drives in Key M format; M2_1 supports type 2280, M2_2 supports type 2260 and 2280.
- Integrated graphics output requires a CPU with AMD RDNA integrated graphics; actual support may vary by CPU.
- Does not support AM4 or earlier AMD processors — AM5 socket only.
Best for
- Compact desktop builds: The Micro-ATX form factor fits smaller mid-tower and compact cases while retaining dual M.2 slots, four SATA ports, and a full-length PCIe 4.0 x16 slot.
- Builders wanting built-in networking: Onboard 2.5G LAN and Wi-Fi 5 with Bluetooth eliminate the need for separate network adapters in most home and office environments.
- AMD Ryzen platform upgraders: AM5 socket support across Ryzen 7000, 8000, and 9000 series gives builders headroom to upgrade the processor later without replacing the board.
- Multi-drive storage setups: Two PCIe Gen4x4 M.2 slots plus four SATA3 ports with RAID 0, 1, and 10 support suit users who need fast primary storage alongside high-capacity secondary drives.
- RGB-focused builds: One RGB LED header and three addressable RGB headers, managed via Polychrome SYNC or Signal RGB, provide broad compatibility with LED strips, fans, and coolers.
Trade-offs
- High-end overclocking: The A620 chipset does not natively support CPU overclocking; while EXPO and XMP memory profiles are supported, CPU frequency overclocking is limited by the chipset.
- Users needing more than one full-length PCIe slot: Only one PCIe 4.0 x16 slot is available; multi-GPU or dual high-bandwidth card configurations are not supported.
- Wi-Fi 6 or Wi-Fi 6E requirements: The onboard wireless is 802.11ac Wi-Fi 5; users who need Wi-Fi 6 or Wi-Fi 6E speeds will require a separate adapter.
- Large ATX or E-ATX chassis builds: The Micro-ATX form factor will not fill or align correctly in cases designed exclusively for full ATX or extended ATX boards.
X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.
Optimized VRM Design
Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
Power Connector
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Signal RGB
Signal RGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
General
| Brand | ASRock |
|---|---|
| Socket | AM5 |
| CPU Compatibility | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Chipset | AMD A620 |
| Form Factor | Micro ATX |
Networking
| Standard | 802.11ac Wi-Fi 5 + Bluetooth |
|---|---|
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Realtek Dragon RTL8125BG |
| Antenna Ports | 2 x Rear antenna ports |
Performance
| Memory Slots | 2 x DDR5 DIMM |
|---|---|
| Memory Technology | Dual Channel DDR5, ECC/non-ECC un-buffered, up to 8000+ MHz (OC) |
| Max Memory Capacity | 128 GB |
| Memory Profiles | XMP and EXPO |
| Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| M.2 Slots | 2 x Hyper M.2 PCIe Gen4x4 (64 Gb/s each) |
| SATA Ports | 4 x SATA3 6.0 Gb/s |
| RAID | RAID 0, 1, 10 for SATA and M.2 NVMe storage |
| Audio | 7.1 CH HD Audio, Realtek ALC897 |
Ports & Power
| Display Output | 1 x HDMI 2.1 (up to 4K 120Hz, HDR, HDCP 2.3); 1 x DisplayPort 1.4 with DSC (up to 4K 120Hz, HDCP 2.3) |
|---|---|
| USB (Rear) | 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| USB (Total) | 2 x USB 3.2 Gen1 Type-C (1 rear, 1 front); 5 x USB 3.2 Gen1 Type-A (3 rear, 2 front); 6 x USB 2.0 (2 rear, 4 front) |
| ATX Power Connector | 24-pin ATX |
| CPU Power Connector | 8-pin 12V Hi-Density Power Connector |
| Fan Headers | 2 x CPU fan (4-pin), 3 x chassis fan (4-pin), 1 x AIO pump (4-pin) |
| RGB Headers | 1 x RGB LED header, 3 x Addressable LED headers |
| BIOS | BIOS Flashback supported |
