ASRock B650 PG Lightning AM5 ATX Motherboard - DDR5, PCIe 5.0
ASRock
ASRock B650 PG Lightning AM5 ATX Motherboard - DDR5, PCIe 5.0

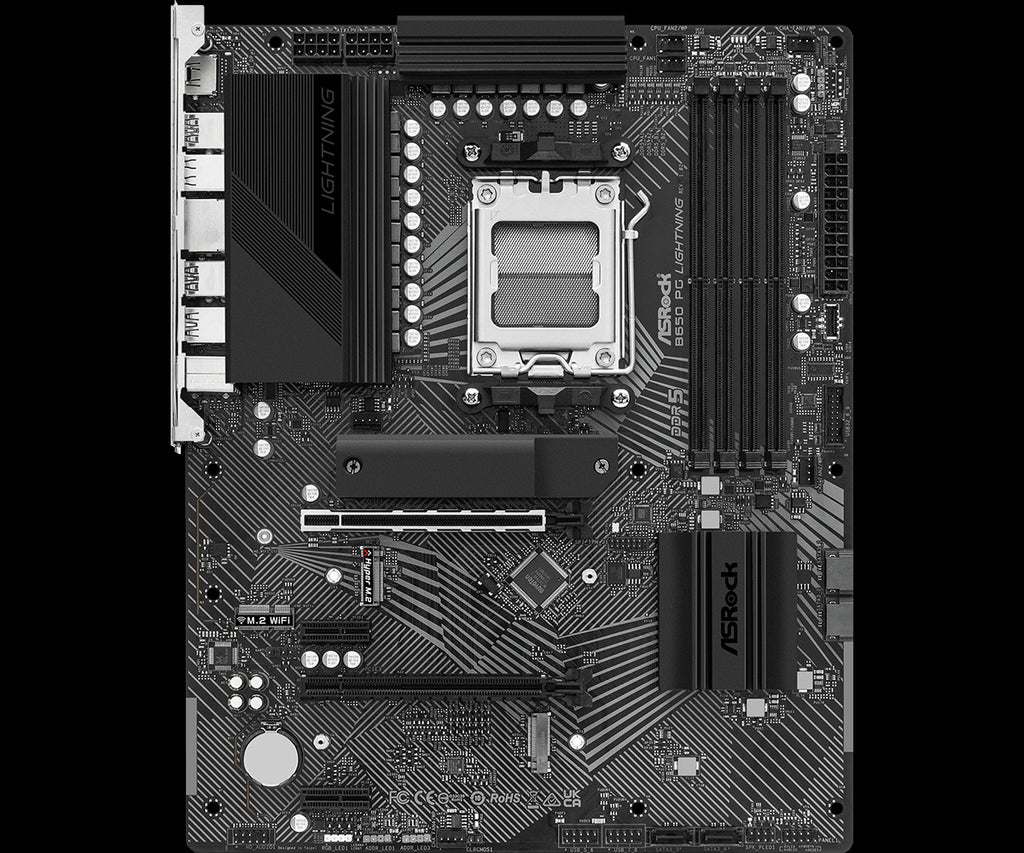

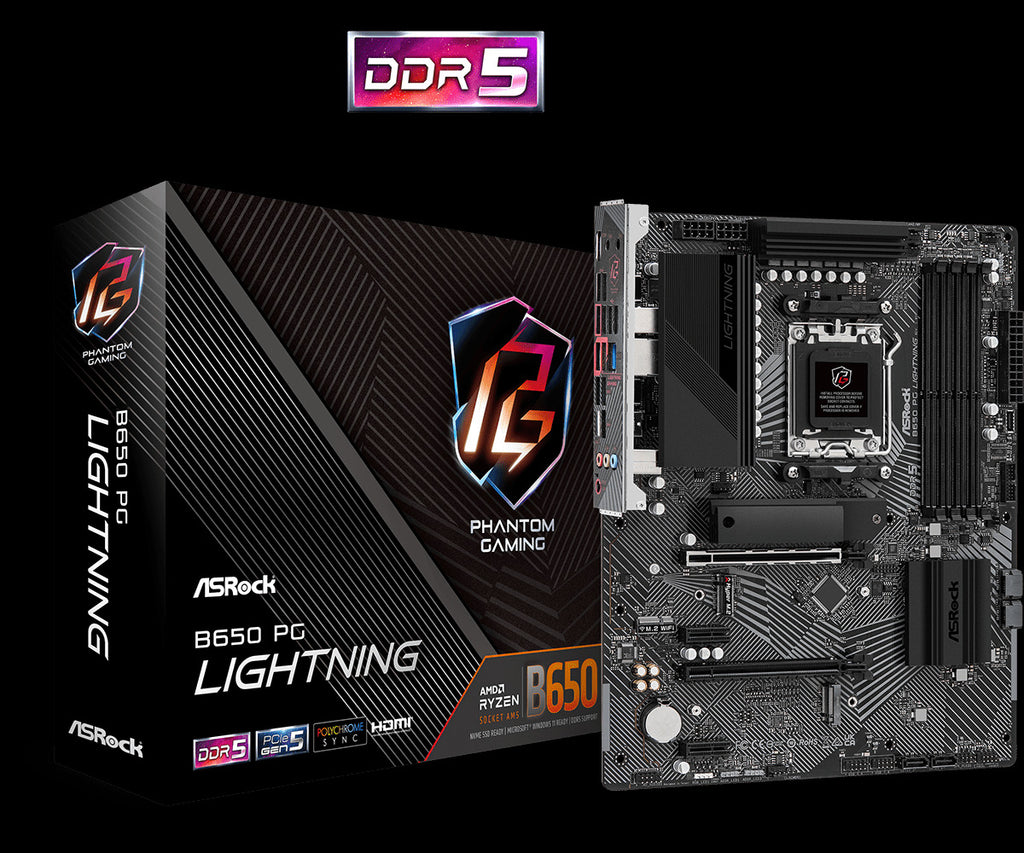

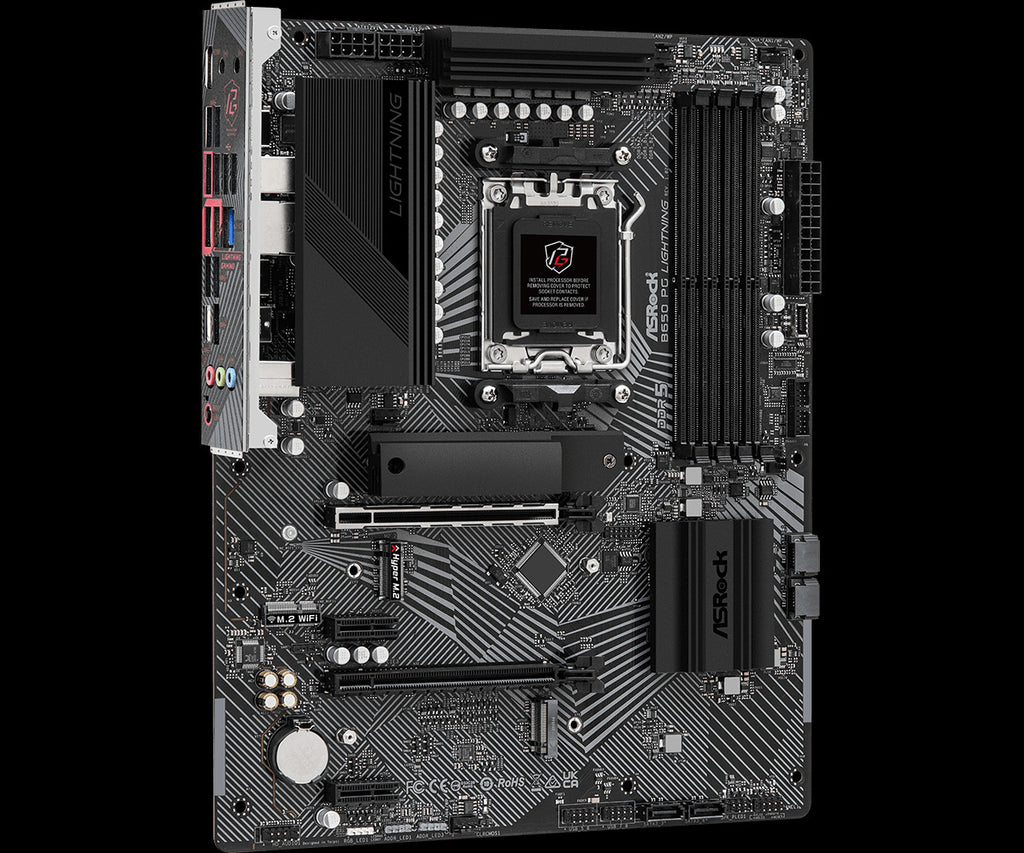

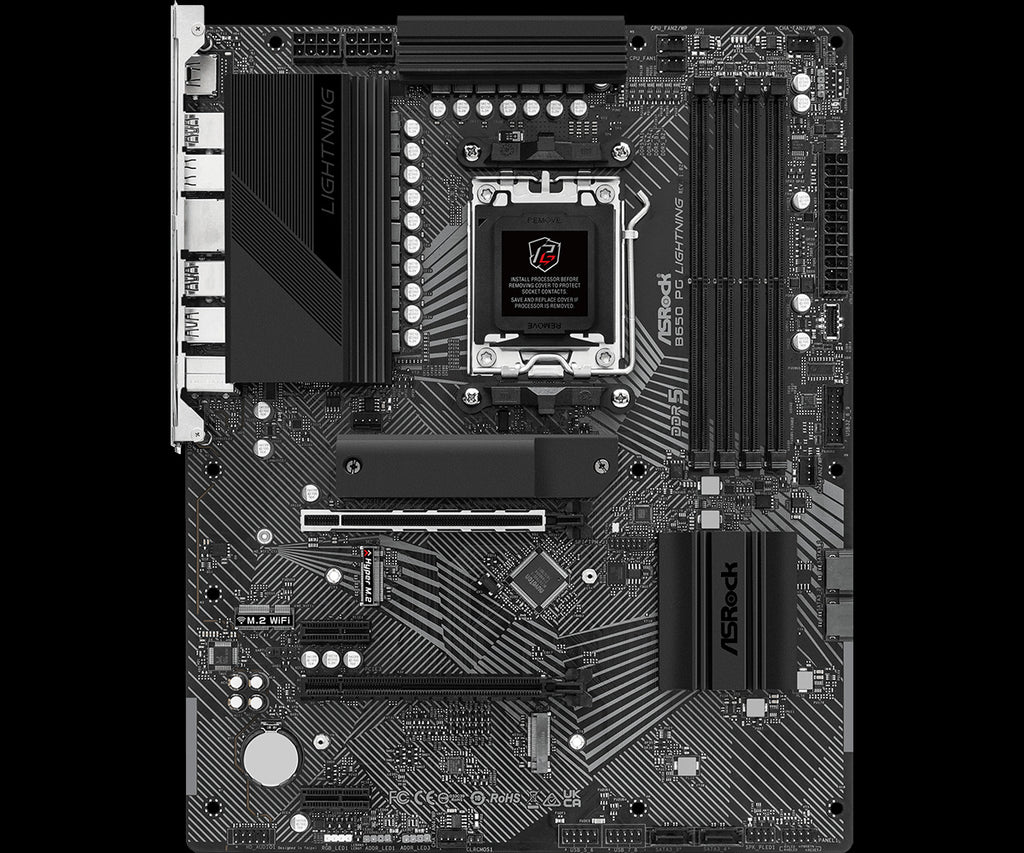

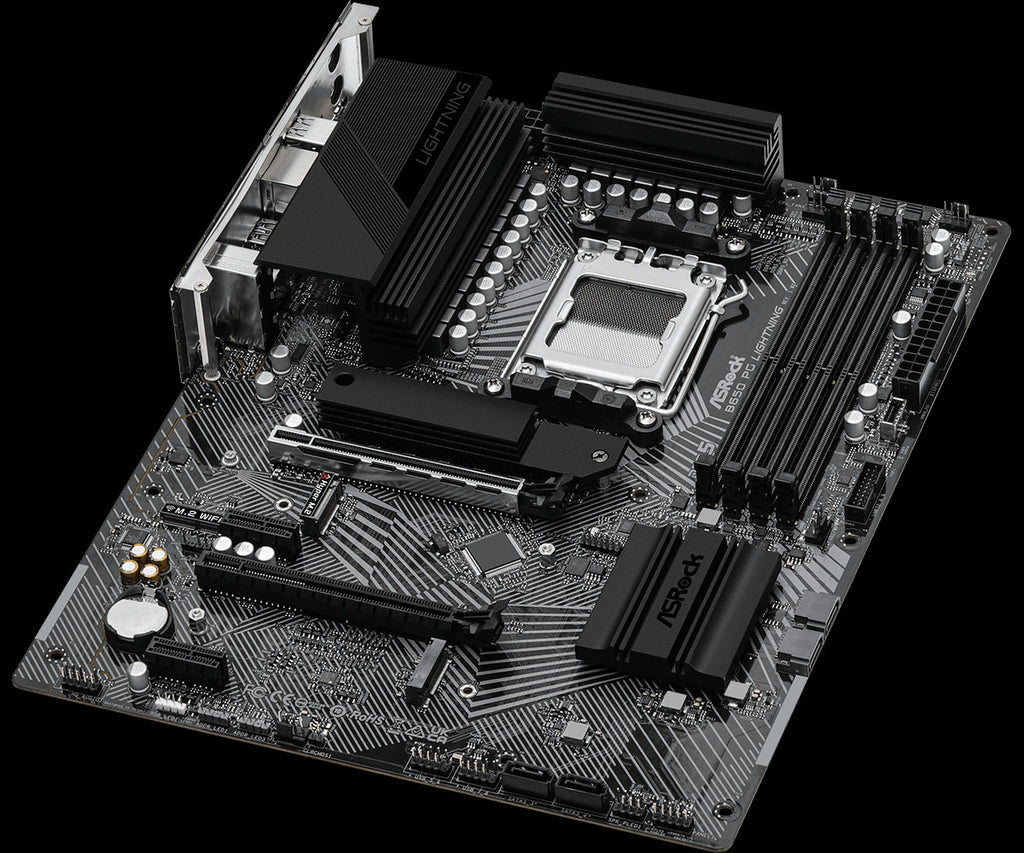

The ASRock B650 PG Lightning is an ATX motherboard for builders running AMD Ryzen 9000, 8000 or 7000 series CPUs who want fast storage, memory overclocking headroom and wired networking without paying for features they won't use. It balances core platform capabilities—PCIe 5.0 M.2, DDR5 dual channel, 2.5G LAN—with a lean feature set, making it a practical choice for productivity and gaming builds that don't require WiFi.
Why this product
PCIe 5.0 M.2 for next-gen NVMe
One Blazing M.2 slot runs at PCIe Gen5x4 speeds, paired with two additional Gen4 M.2 slots and 4 SATA ports for mixed storage.
DDR5 dual channel up to 7200+ MHz
Four DIMM slots support overclocked DDR5 via AMD EXPO and Intel XMP profiles, with a maximum capacity of 256GB.
14+2+1 power phase for stable overclocking
60A SPS ensures clean delivery to the CPU, helping sustained OC efforts stay within thermal and electrical margins.
2.5G wired LAN, no WiFi
Realtek Dragon RTL8125BG LAN provides reliable network connectivity at 2.5 Gbps. For WiFi, add a separate card via the M.2 Key-E slot or PCIe x1.
8-layer PCB and pre-installed I/O shield
Solid construction foundation with integrated rear I/O shield, reducing build friction and improving EMI shielding.
- SocketAMD AM5
- ChipsetAMD B650
- Form FactorATX
- Memory Slots4 x DDR5 DIMM
- M.2 Slots3 (1x PCIe 5.0, 2x PCIe 4.0)
- Max Memory256GB
- Networking2.5G Ethernet
- Overclocking SupportDDR5 up to 7200+ MHz (OC)
- SKUASR-2054
- EAN4710483940910
- Supports AMD Ryzen 9000, 8000 and 7000 series processors in AM5 socket.
- Accepts DDR5 ECC and non-ECC memory modules up to 7200+ MHz when overclocked.
- Compatible with AMD EXPO and Intel XMP memory profiles for plug-and-play overclocking.
- PCIe and M.2 slot availability varies by CPU; refer to the PCIe/M.2 Bandwidth Table for your specific processor.
- Does not include built-in WiFi; requires a separate WiFi card or dongle.
Best for
- Builders who want PCIe 5.0 NVMe support without paying for integrated WiFi.
- Productivity and gaming builds that prioritize stable power delivery and memory overclocking.
- Systems needing wired 2.5G networking and SATA storage alongside modern M.2 slots.
- Overclocking enthusiasts who value a 14+2+1 power phase and 8-layer PCB foundation.
Trade-offs
- Users requiring built-in WiFi; this board omits it entirely and requires an add-on card.
- Builders with limited case space; ATX form factor demands a full-size enclosure.
- Those seeking the highest PCIe lane counts; two x16 and two x1 slots are modest compared to higher-tier AM5 boards.
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details.
All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles.
Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system's stability. Please realize that overclocking should be done at your own risk and expense.
EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold.
Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5
Rock-Solid Durability - 14+2+1 Power Phase, 60A SPS - Pre-Installed I/O Shield

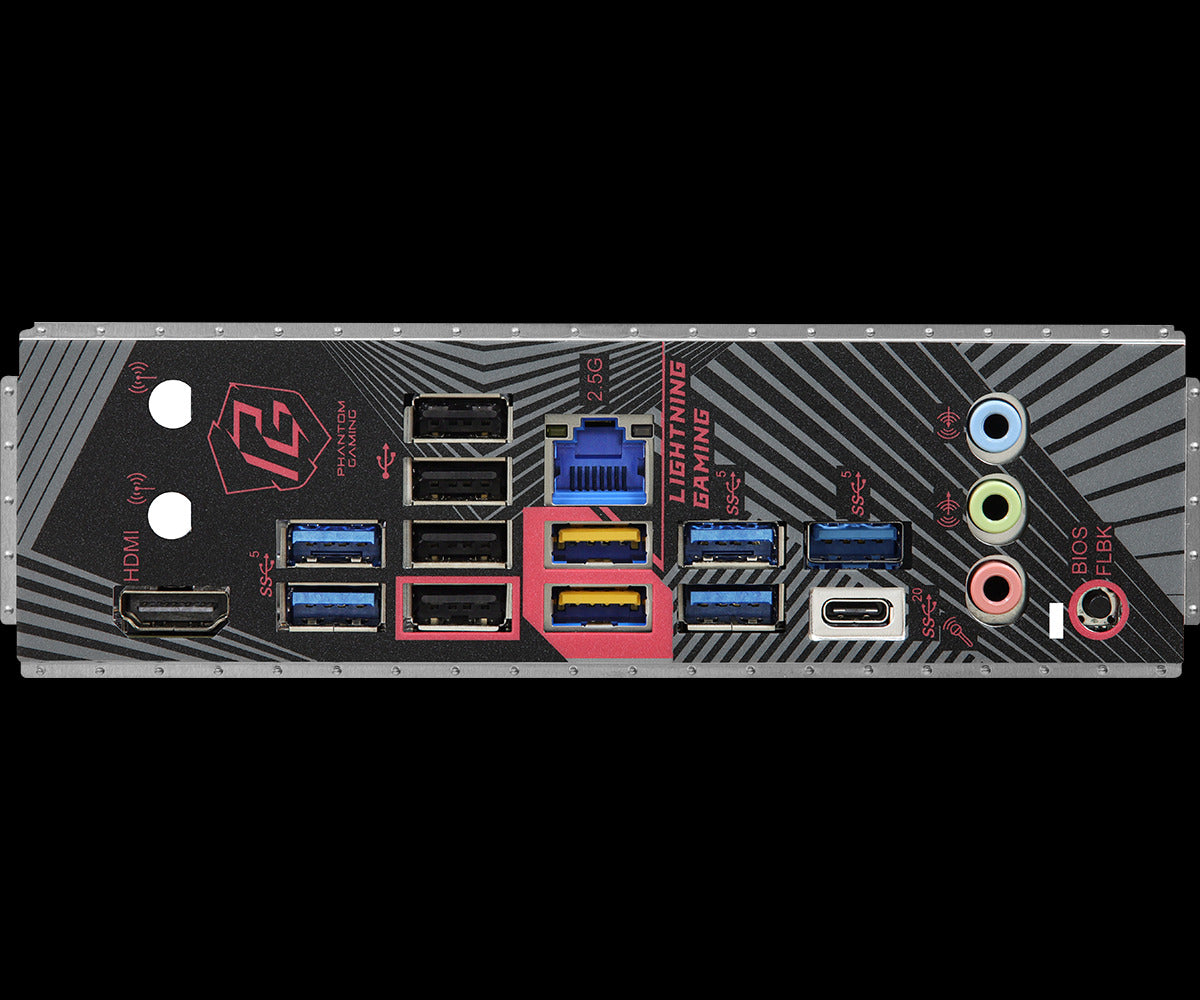

Ultrafast Connectivity - 2.5G LAN - ASRock Lightning Gaming Ports
EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
EZ Troubleshooter - ASRock Post Status Checker
*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 256GB*
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
General
| Brand | ASRock |
|---|---|
| Form Factor | ATX |
| PCB Layers | 8-Layer |
CPU & Chipset
| Socket | AMD AM5 |
|---|---|
| Supported CPUs | AMD Ryzen 9000, 8000, 7000 series |
| Chipset | AMD B650 |
Memory
| Memory Type | Dual Channel DDR5 |
|---|---|
| DIMM Slots | 4 |
| Max Speed (OC) | 7200+ MHz |
| Max Capacity | 256GB |
| Profiles | AMD EXPO, Intel XMP |
Storage & Expansion
| M.2 Slots | 3 total |
|---|---|
| M.2 Slot 1 (Blazing) | PCIe Gen5x4 |
| M.2 Slot 2 (Hyper) | PCIe Gen4x4 |
| M.2 Slot 3 | PCIe Gen4x2 |
| SATA Ports | 4x SATA3 6.0 Gb/s |
| RAID Support | RAID 0, 1, 10 |
| PCIe Slots | 2x PCIe 4.0 x16, 2x PCIe 4.0 x1 |
| WiFi M.2 Key-E | Supported |
Connectivity
| LAN | Realtek 2.5G (10/100/1000/2500 Mbps) |
|---|---|
| USB 3.2 Gen2x2 Type-C | 1 (Rear) |
| USB 3.2 Gen2 Type-C | 1 (Front) |
| USB 3.2 Gen1 | 9 (7 Rear, 2 Front) |
| USB 2.0 | 8 (4 Rear, 4 Front) |
Audio & Video
| Audio | 7.1 CH HD (Realtek ALC897, Nahimic) |
|---|---|
| Video Output | 1x HDMI 2.1 (4K 120Hz) |
Power & BIOS
| Power Phases | 14+2+1, 60A SPS |
|---|---|
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| BIOS Flashback | Supported |
