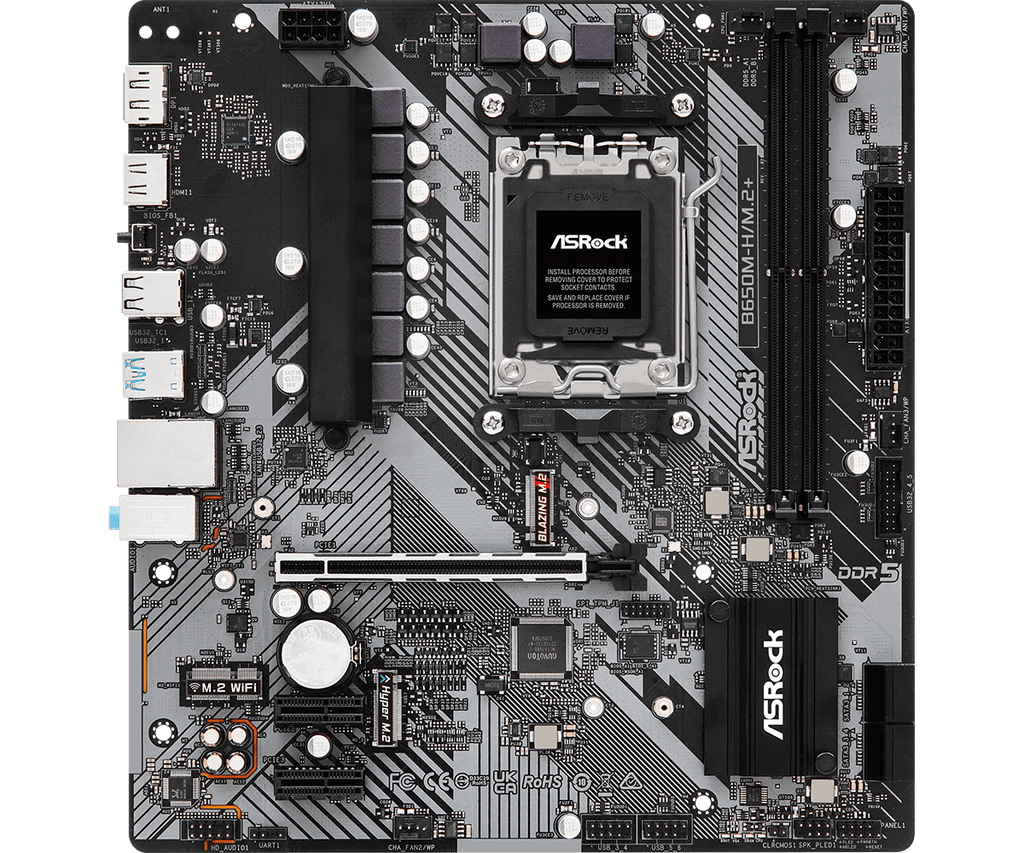

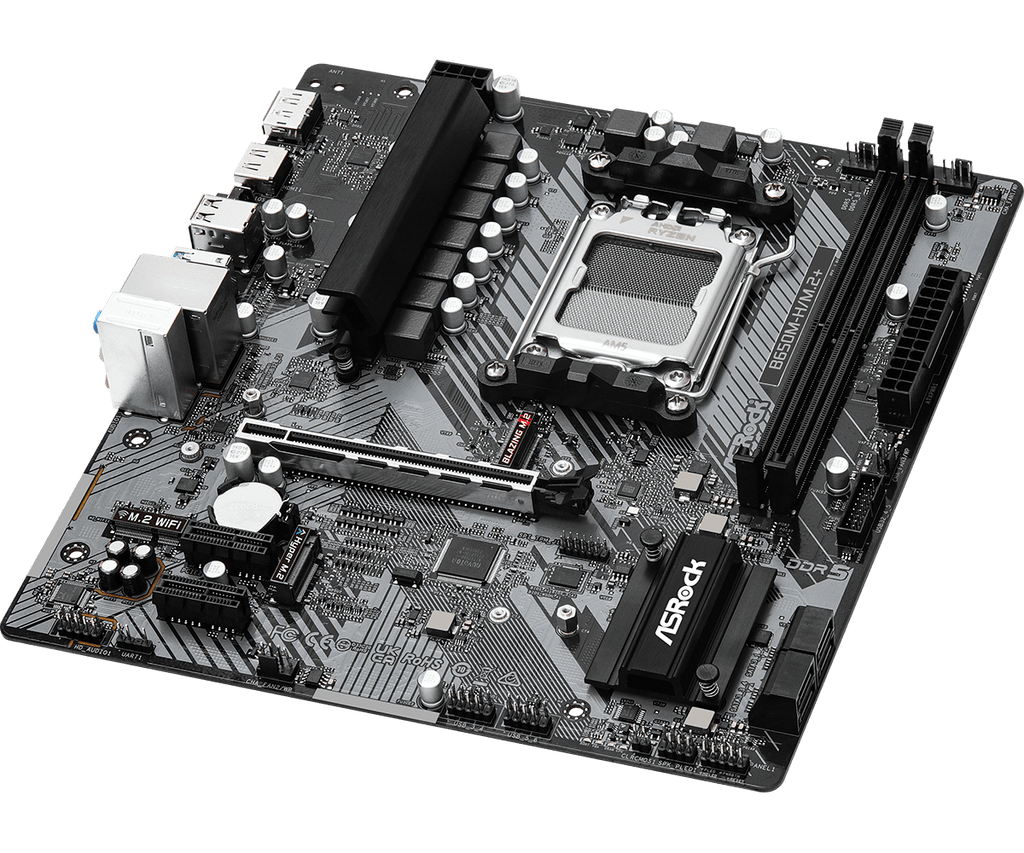

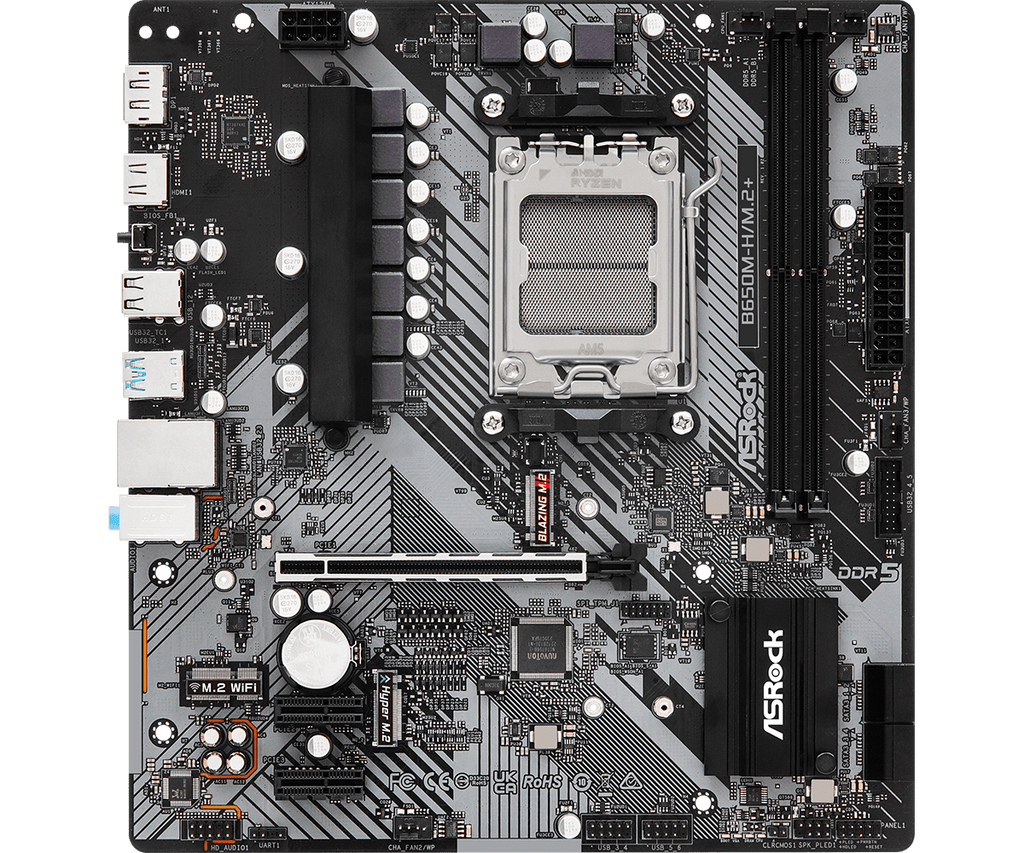

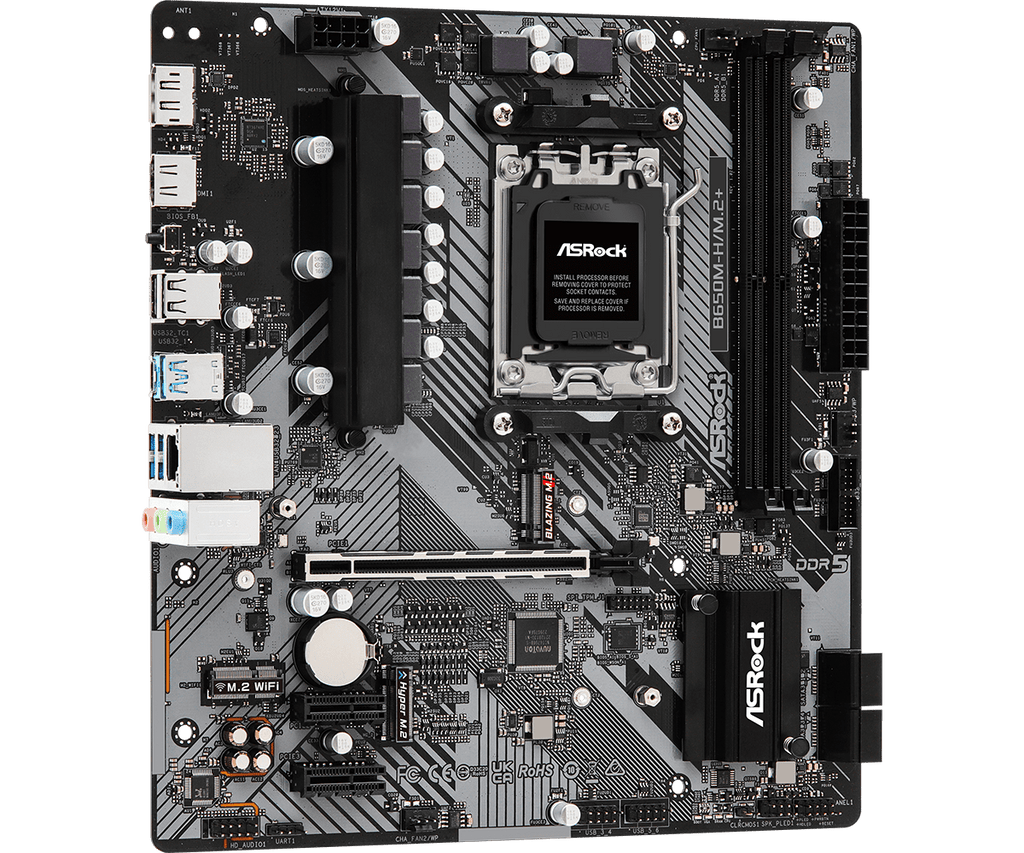

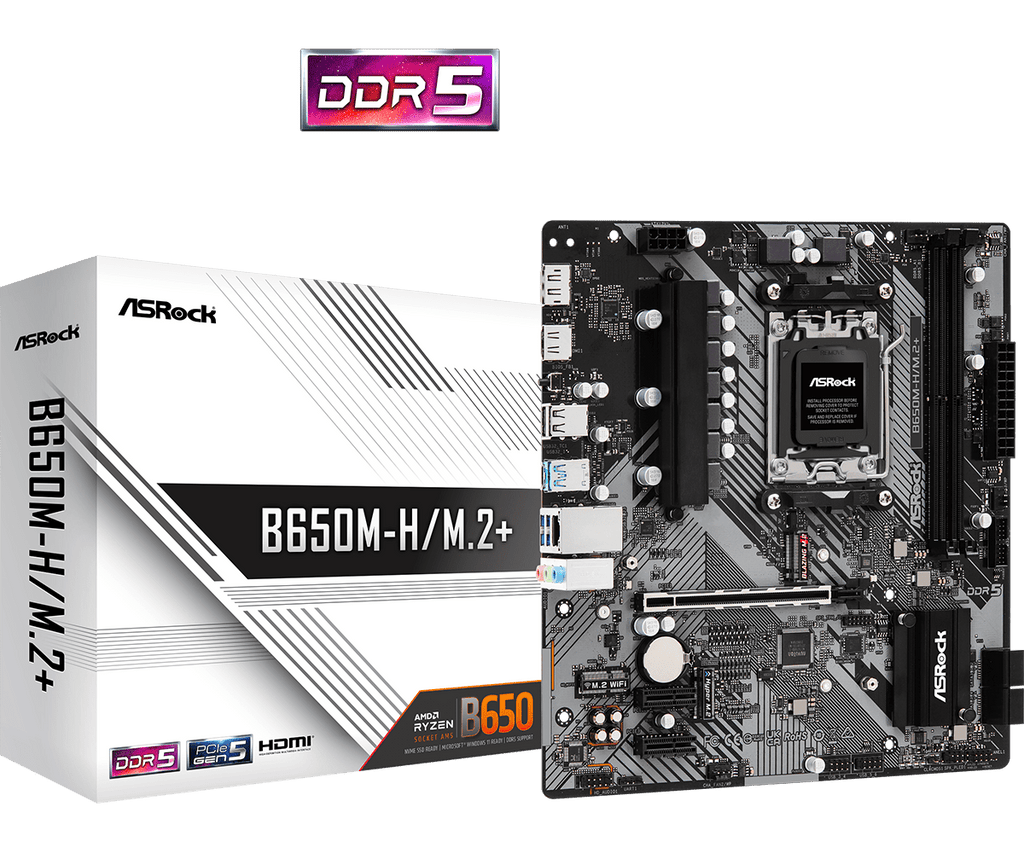

ASRock B650M-H/M.2+ AM5 Micro-ATX Motherboard DDR5
ASRock
ASRock B650M-H/M.2+ AM5 Micro-ATX Motherboard DDR5
The ASRock B650M-H/M.2+ is a micro-ATX motherboard for AMD Ryzen 9000, 8000 and 7000 series processors, built for builders who need PCIe 5.0 storage speed, DDR5 support and compact build-friendly dimensions without sacrificing expansion options. It integrates graphics output and Gigabit networking, making it suitable for both gaming and productivity builds that don't require multiple GPU slots.
Why this product
PCIe 5.0 M.2 socket for next-gen NVMe drives
The Blazing M.2 slot supports the latest PCIe Gen5 x4 standard at 128 Gb/s, doubling bandwidth over Gen4 and future-proofing against the fastest SSDs.
DDR5 dual-channel memory up to 6400+ MT/s overclocked
Two DIMM slots support DDR5 with XMP and EXPO profiles, scaling to 128 GB total and delivering higher bandwidth than DDR4 for multithreaded workloads.
Integrated AMD RDNA 2 graphics with dual output
HDMI 2.1 and DisplayPort 1.4 connectors let you build without a discrete GPU or enable secondary displays without PCIe slot sacrifice.
Compact micro-ATX form factor
Smaller footprint fits tighter cases and smaller builds while retaining full-size slot count—1 PCIe x16, 2 PCIe x1, and dual M.2 sockets.
Nahimic audio processing and noise suppression
Built-in static noise suppression, echo cancellation and voice stabilization for clearer voice calls and better audio clarity across headsets, speakers and HDMI outputs.
- ChipsetAMD B650
- SocketAM5
- Form FactorMicro-ATX
- Memory Slots2 x DDR5 DIMM
- Max Memory128 GB
- M.2 Sockets2 (1× PCIe 5.0, 1× PCIe 4.0)
- SATA Ports4
- Graphics OutputHDMI 2.1, DisplayPort 1.4
- SKUASR-1898
- EAN4710483943768
- AMD Ryzen 9000, 8000 and 7000 series processors in Socket AM5.
- DDR5 ECC and non-ECC memory in standard dual-channel configuration up to 128 GB.
- PCIe Gen5 x4 NVMe drives in the M2_1 slot and PCIe Gen4 x4 drives in the M2_2 slot.
- SATA SSDs and HDDs on four SATA3 connectors with RAID 0, 1 and 10 support.
- Graphics output requires a Ryzen CPU with integrated graphics; some APU variants may have limited or no iGPU support.
- Intel processors or older AMD socket standards—this board is AM5 only.
Best for
- Compact gaming and streaming builds that need fast NVMe storage and integrated graphics as a fallback.
- Productivity workstations (content creation, coding) running on AMD Ryzen, benefiting from DDR5 bandwidth and PCIe 5.0 speeds.
- Budget-conscious builders who want modern socket AM5 with DDR5 in a smaller case footprint.
- Esports and voice-focused setups using Nahimic audio for echo cancellation and noise suppression during competitive play or streaming.
Trade-offs
- Multi-GPU rigs: only one PCIe x16 slot and two x1 slots leave no room for a second discrete graphics card at full bandwidth.
- Heavy storage arrays: four SATA ports and two M.2 sockets limit builds requiring eight or more drives.
- Intel-based systems: AMD B650 chipset exclusively supports Socket AM5.
- Builders requiring PCIe 5.0 on expansion cards: only the M.2_1 socket is Gen5; expansion slots are PCIe 4.0 x1.
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
6+1+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs, Supports Dual Channel, up to 6400+ (OC)
1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA™ 2 Graphics
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)

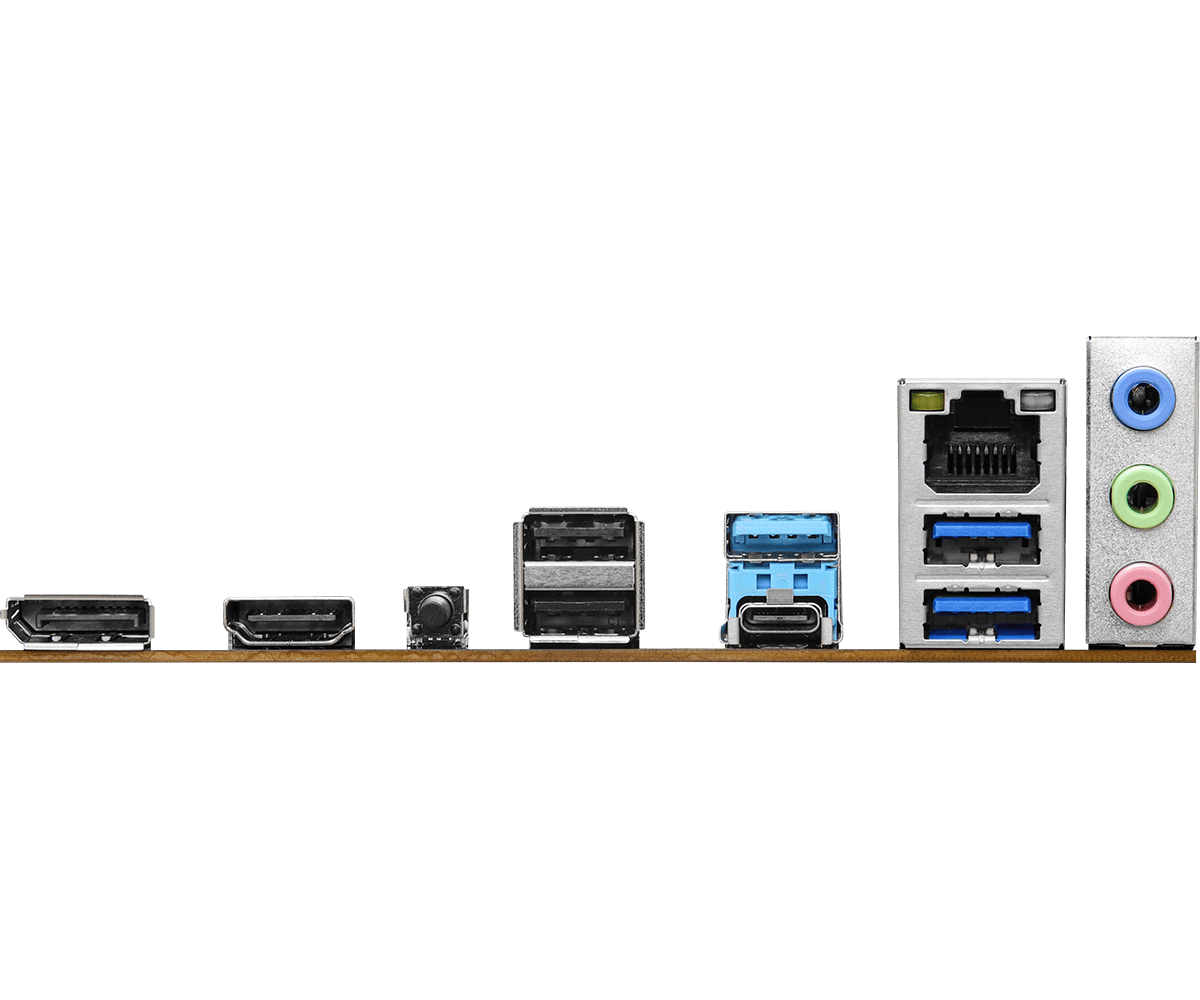

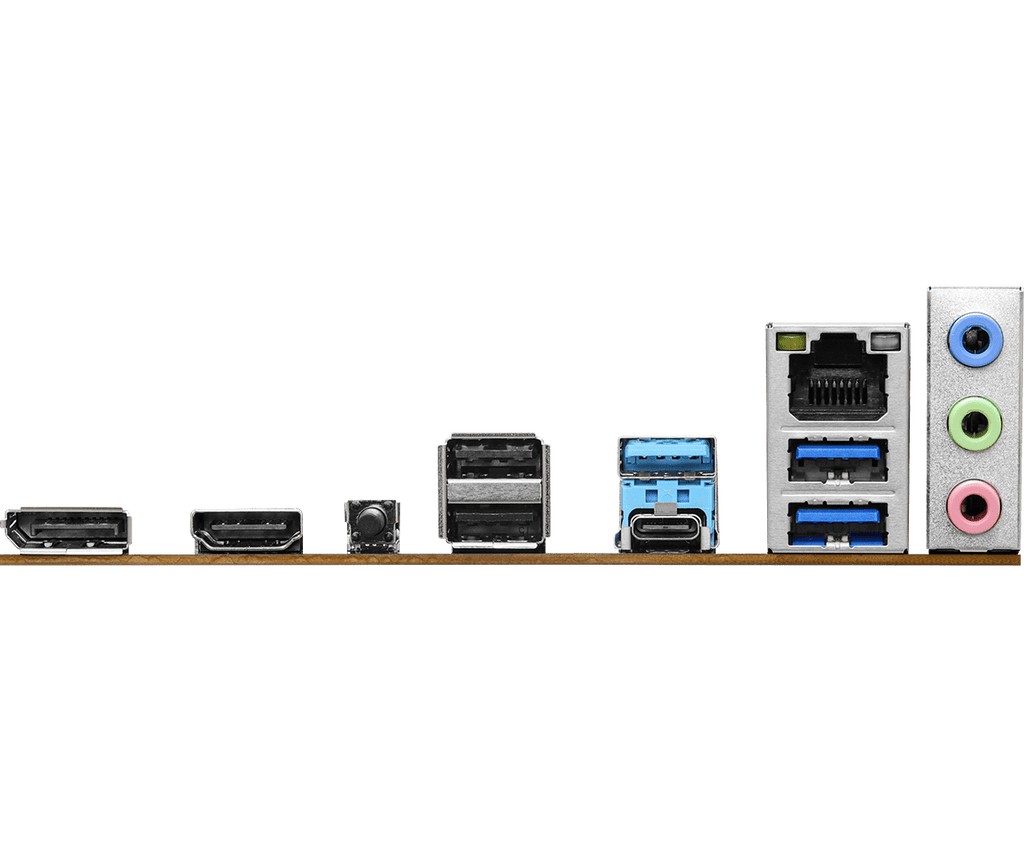

6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer, BIOS Flashback
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic.
The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
- Sound Tracker – The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
General
| Brand | ASRock |
|---|
CPU & Memory
| CPU Support | AMD Ryzen 9000, 8000, 7000 series (Socket AM5) |
|---|---|
| Memory Type | DDR5 ECC/non-ECC, un-buffered |
| Memory Speed | Up to 6400+ MT/s (OC); supports XMP and EXPO |
| Power Delivery | 6+1+1 Power Phase, Dr.MOS |
Storage & Expansion
| PCIe Expansion Slots | 1× PCIe 4.0 x16, 2× PCIe 4.0 x1 |
|---|---|
| M.2_1 Socket (Blazing) | Type 2280, PCIe Gen5 x4 (128 Gb/s) |
| M.2_2 Socket (Hyper) | Type 2260/2280, PCIe Gen4 x4 (64 Gb/s) |
| SATA Connectors | 4× SATA3 6.0 Gb/s; supports RAID 0, 1, 10 |
| WiFi/Bluetooth Header | M.2 Key E, type 2230 module |
Connectivity & Audio
| Graphics Output | 1× HDMI 2.1 (4K 120Hz), 1× DisplayPort 1.4 (4K 120Hz) |
|---|---|
| Integrated Graphics | AMD RDNA 2 (CPU-dependent) |
| USB 3.2 Gen1 | 1× Type-C (rear), 5× Type-A (3 rear, 2 front) |
| USB 2.0 | 6× ports (2 rear, 4 front) |
| Ethernet | Gigabit LAN (Realtek RTL8111H, 10/100/1000 Mb/s) |
| Audio Codec | Realtek ALC897, 7.1 CH HD |
| Audio Features | Nahimic: static noise suppression, echo cancellation, voice stabilization, sound tracker |
BIOS & Software
| BIOS | 256 MB AMI UEFI with GUI |
|---|---|
| BIOS Features | ASRock Auto Driver Installer, BIOS Flashback, Instant Flash |
| OS Support | Windows 10, Windows 11 |
