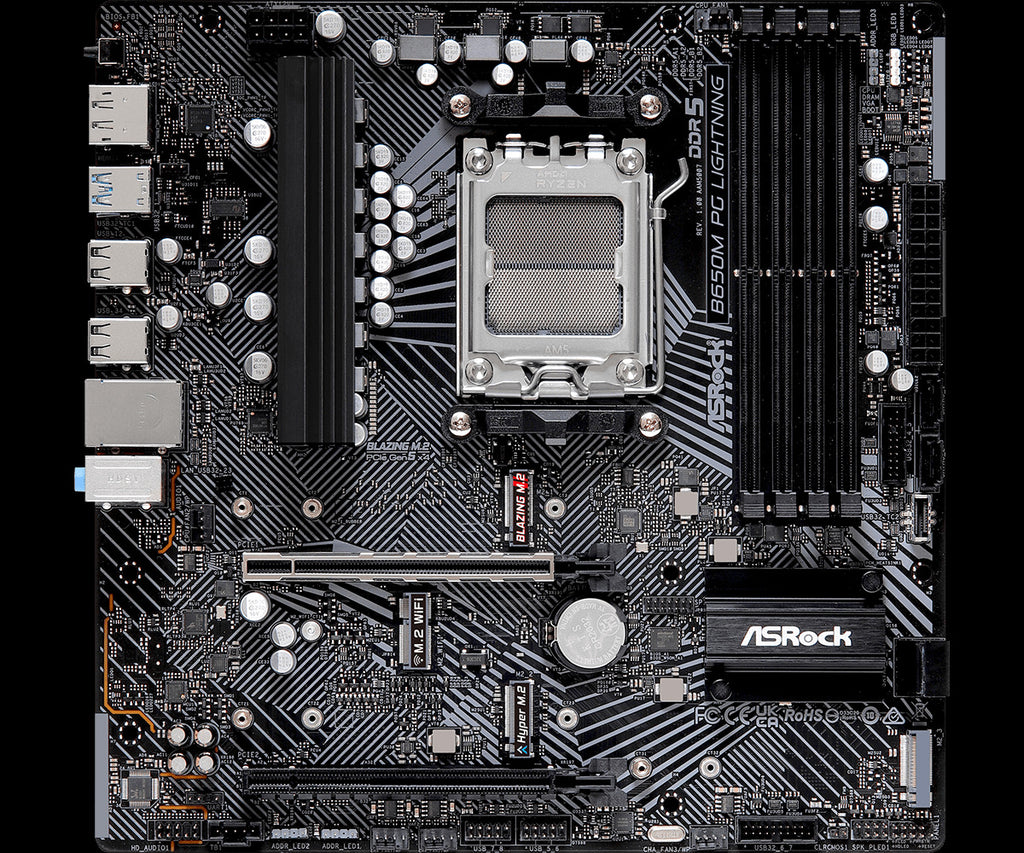

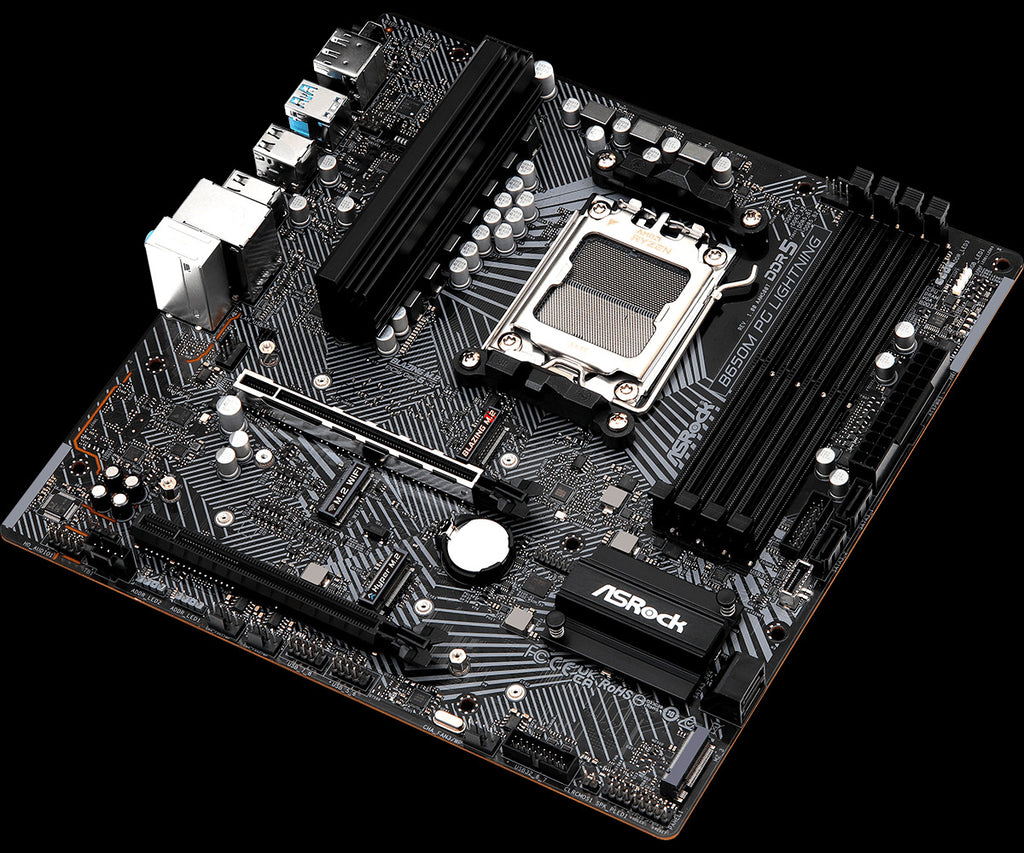

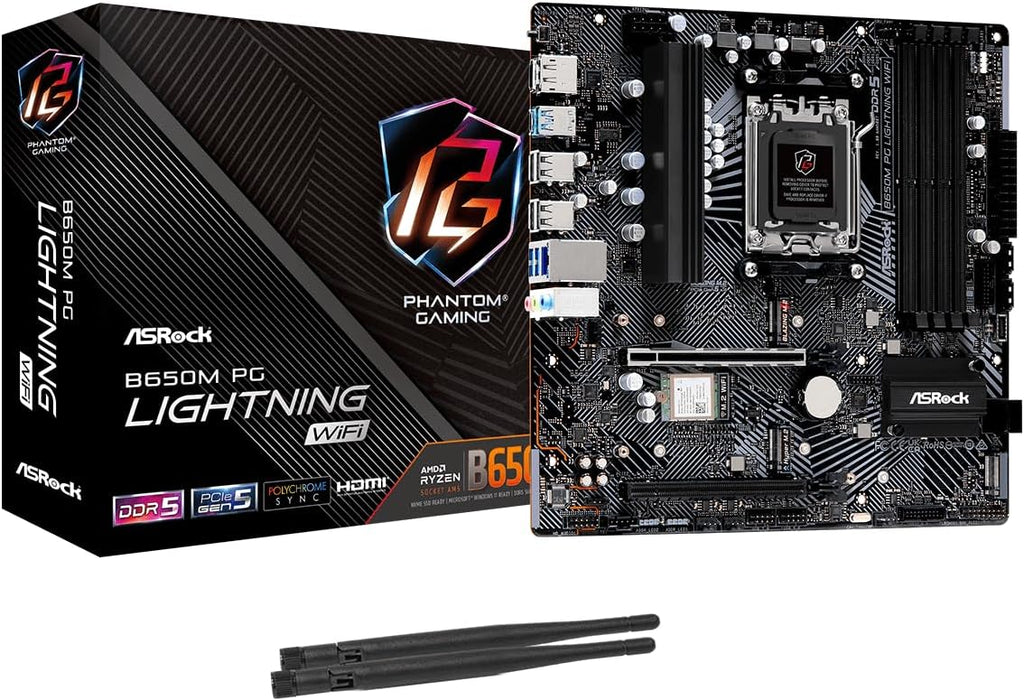

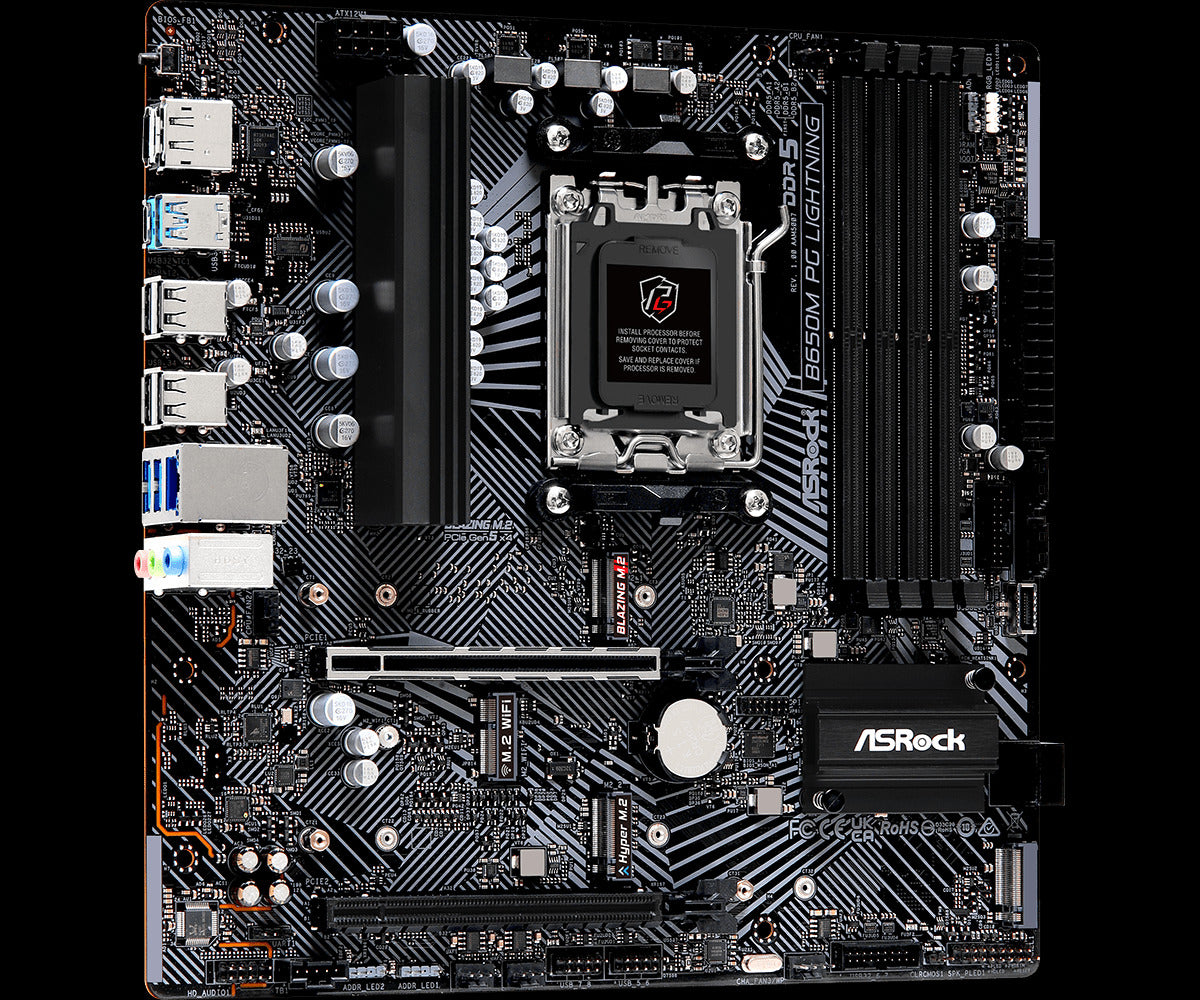

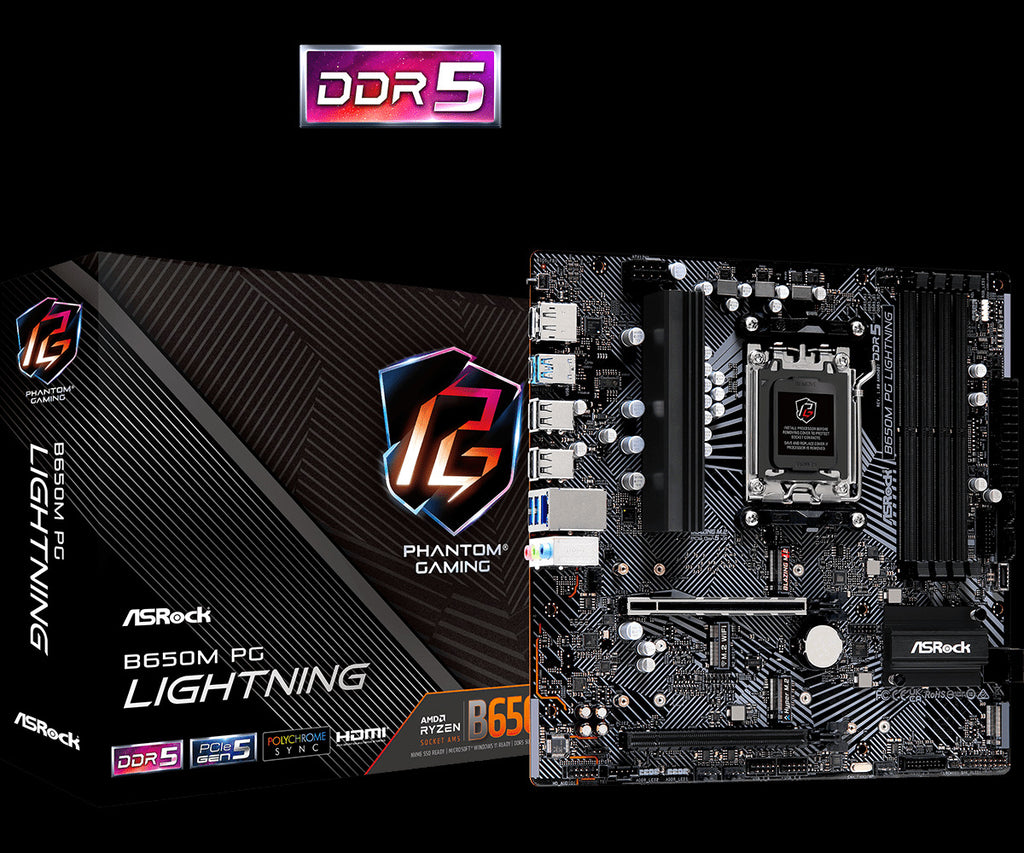

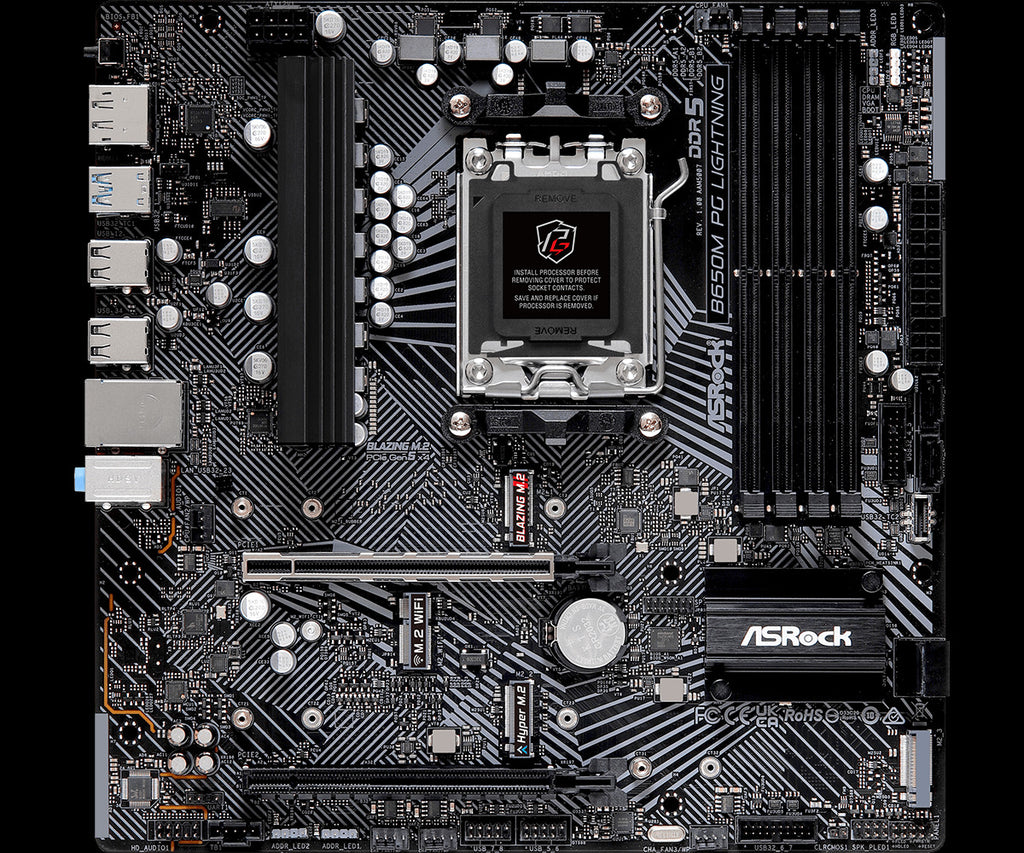

ASRock B650M PG Lightning AM5 Micro-ATX DDR5 Motherboard
ASRock
ASRock B650M PG Lightning AM5 Micro-ATX DDR5 Motherboard
The ASRock B650M PG Lightning is a Micro-ATX motherboard built for Ryzen 7000, 8000, and 9000 series processors, designed for stable, reliable operation without compromise on detail. It combines DDR5 overclocking support up to 7200+ MHz, PCIe 5.0 storage connectivity, and gaming-focused features like 2.5G networking and Nahimic audio in a compact form factor.
Why this product
PCIe 5.0 M.2 slot for next-gen SSDs
The Blazing M.2 socket supports the latest PCI Express 5.0 standard with 128 Gb/s transfer speed, doubling the bandwidth of previous-generation drives and preparing for ultrafast future storage.
DDR5 overclocking up to 7200+ MHz
Dual-channel support for four DDR5 DIMMs with pre-tested AMD EXPO and Intel XMP profiles lets you push memory performance without extensive manual tuning.
2.5G gaming-class LAN
The Phantom Gaming 2.5Gb/s network adapter delivers consistent throughput for competitive gaming, streaming and content creation without the complexity of 10G infrastructure.
Compact Micro-ATX layout
Fits into smaller cases and tighter builds while retaining dual PCIe x16 slots and three M.2 sockets for expansion without sacrifice.
- Form FactorMicro-ATX
- SocketAMD AM5
- Memory TypeDDR5 (up to 7200+ MHz OC)
- Storage Slots3 × M.2 + 4 × SATA3
- PCIe Slots2 × x16
- Network2.5G Ethernet
- AudioRealtek ALC897 7.1 CH
- SKUASR-2020
- EAN4710483943829
- Supports AMD Ryzen 9000, 8000 and 7000 series processors in Socket AM5.
- Accepts unbuffered DDR5 ECC and non-ECC memory in all four DIMM slots.
- Provides both HDMI and DisplayPort outputs for integrated graphics on supported processors.
- Memory overclocking via EXPO and XMP profiles varies by memory module and system configuration; refer to the Memory QVL for verified support.
- Does not support older AM4 Ryzen processors or DDR4 memory.
Best for
- Compact builds needing DDR5 and PCIe 5.0 support
- Ryzen owners wanting memory overclocking without manual voltage tweaking
- Gamers and streamers leveraging 2.5G LAN and Nahimic surround sound
- System builders planning future ultra-fast NVMe storage upgrades
Trade-offs
- Budget builders seeking DDR4 support; this board requires DDR5 memory.
- Users needing WiFi connectivity; onboard M.2 Key-E is for WiFi modules only, not included.
- Builders prioritizing maximum expansion; only two PCIe x16 slots and limited M.2 sockets versus full-size ATX boards.
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6000MHz and beyond by enabling the pre-tested profiles.
Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system's stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC's performance by raising clock speeds based on the conditions inside your PC.

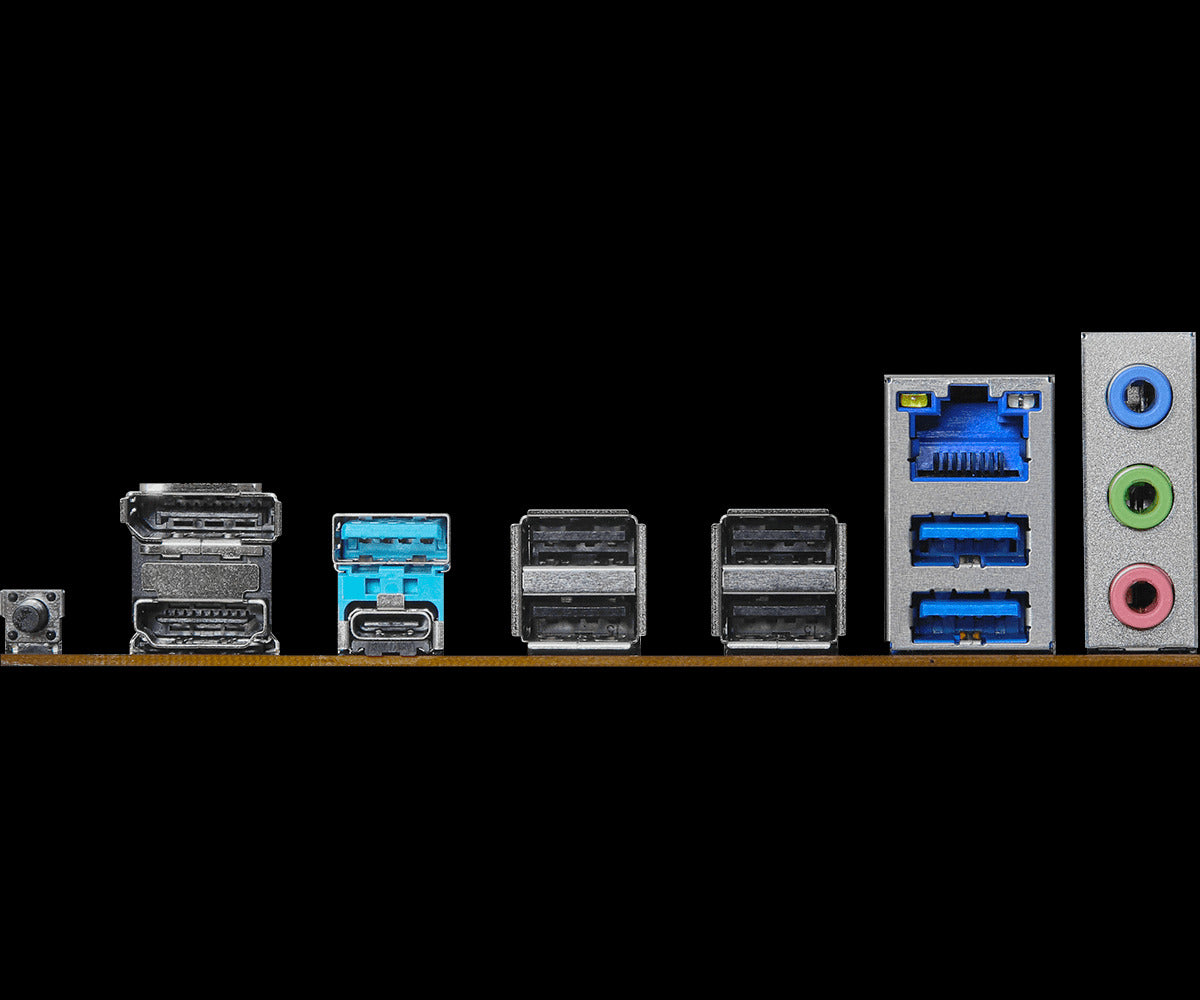

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media.
Sound Tracker — The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
General
| Brand | ASRock |
|---|---|
| Model | B650M PG Lightning |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX |
| PCB Layers | 6-Layer |
CPU & Memory
| CPU Socket | AMD Socket AM5 |
|---|---|
| Supported Processors | Ryzen 9000, 8000 and 7000 Series |
| Memory Type | DDR5 ECC/non-ECC, unbuffered |
| Memory Slots | 4 × DIMM |
| Memory Speed | Up to 7200+ MHz (OC) |
| Power Phases | 6+2+1, Dr.MOS |
Storage & Expansion
| PCIe x16 Slots | 1 × Gen 4.0 + 1 × Gen 3.0 |
|---|---|
| M.2 Blazing Slot | 1 × PCIe Gen 5.0 x4 |
| M.2 Hyper Slot | 1 × PCIe Gen 4.0 x4 |
| M.2 Standard Slot | 1 × PCIe Gen 4.0 x2 |
| SATA Ports | 4 × SATA3 |
| WiFi Module Slot | 1 × M.2 Key-E |
Connectivity & Audio
| LAN | 2.5 Gigabit Phantom Gaming |
|---|---|
| USB 3.2 Gen2 (Rear) | 1 × Type-A + 1 × Type-C |
| USB 3.2 Gen1 (Rear) | 2 × Type-A |
| USB 3.2 Gen1 (Front Header) | 1 × Type-C + 4 × Type-A |
| USB 2.0 Ports | 8 total (4 rear, 4 front) |
| Video Outputs | HDMI + DisplayPort |
| Audio Codec | Realtek ALC897 7.1 CH HD |
| Audio Enhancement | Nahimic with Sound Tracker |
