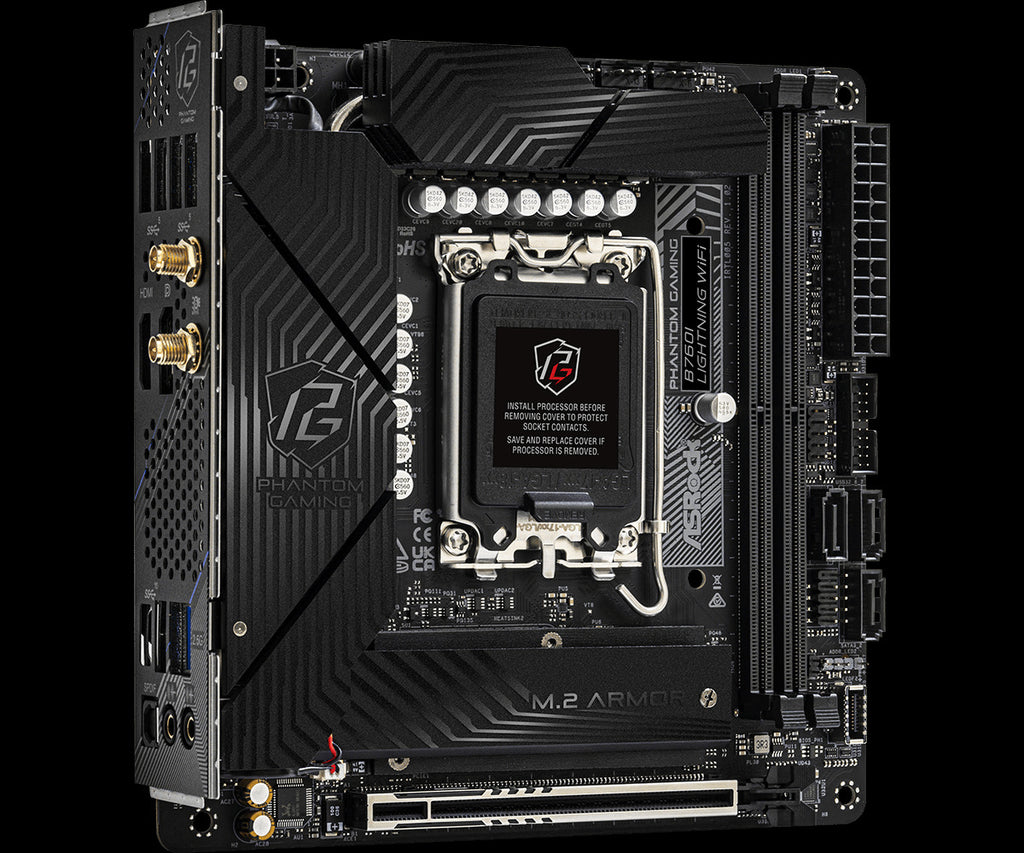

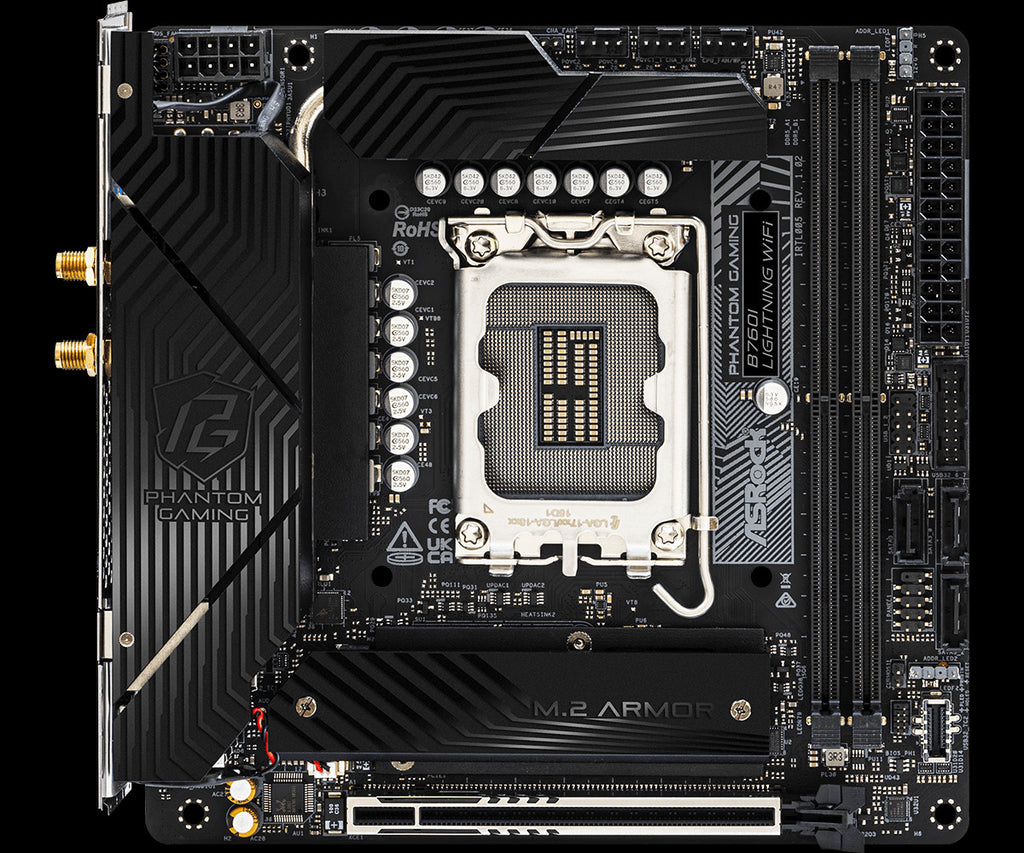

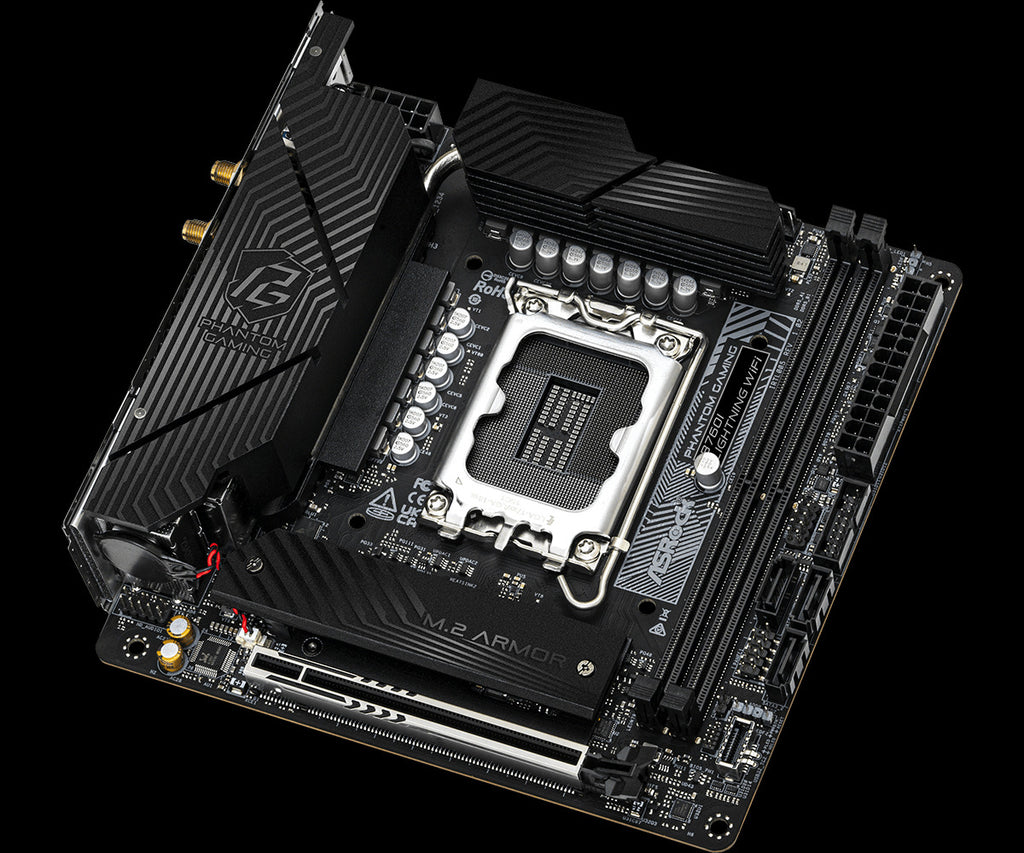

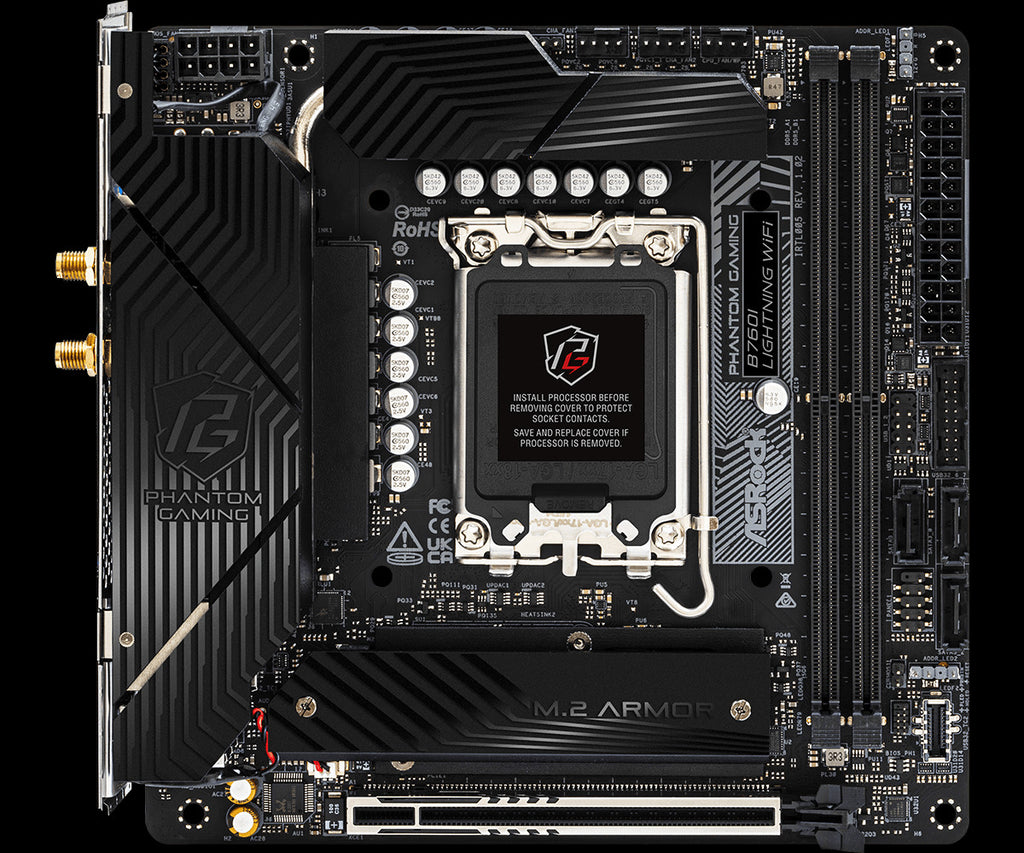

ASRock B760I Lightning WiFi Mini-ITX DDR5 Motherboard
ASRock
ASRock B760I Lightning WiFi Mini-ITX DDR5 Motherboard
The ASRock B760I Lightning WiFi is a compact Mini-ITX motherboard for gamers and enthusiasts building high-performance systems with 12th, 13th or 14th gen Intel processors. It combines DDR5 memory support, PCIe 5.0 connectivity, and WiFi 6E networking in a small form factor designed for stable operation and overclocking capability.
Why this product
WiFi 6E with 6GHz spectrum
Extended WiFi capability reduces latency and matches 5G service levels for gaming and streaming.
2.5G Phantom Gaming LAN
Intelligent Ethernet platform detects and prioritises game traffic, delivering 2.5× standard bandwidth for competitive gaming and file transfers.
PCIe 5.0 M.2 with Gen4 support
Two M.2 Gen4 slots (CPU and chipset) with enhanced heatsinks and anti-drop screws. Twice the speed of previous generation drives.
DDR5 overclocking ready
2 DIMM slots support up to 96GB and pre-tested XMP 3.0 profiles for stable overclocking to 8600+ MHz.
Robust VRM cooling
14+1+1 phase power design with composite heatsink, cooling fan and heat pipe for stable power delivery under load.
- Form FactorMini-ITX, 6.7 in × 6.7 in (17.0 cm × 17.0 cm)
- SocketIntel LGA1700
- ChipsetIntel B760
- Memory2× DDR5 DIMM, up to 96GB at 8600+ MHz (OC)
- M.2 Slots2× PCIe Gen4 (2280)
- NetworkingWiFi 6E + 2.5G Phantom Gaming LAN
- PCIe1× PCIe 5.0 x16
- SKUASR-3338
- EAN4710483946677
- Intel 12th, 13th and 14th gen Core processors in LGA1700 socket.
- DDR5 DIMMs in native 5200–5600 MHz or overclocked to 8600+ MHz via XMP 3.0.
- PCIe Gen4 and Gen5 M.2 NVMe drives (2280 form factor) in both M.2 slots.
- Standard ATX power supply (24-pin main, 8-pin 12V CPU). Small form factor requires Mini-ITX case.
- SATA storage works alongside M.2 drives, but filling both M.2 slots may reduce SATA port bandwidth on some configurations.
- AMD processors and DDR4 memory. This is an Intel B760 chipset board only.
Best for
- SFF gaming builds where space is tight but power and cooling matter.
- Competitive gamers who rely on low-latency networking and game-aware Ethernet traffic prioritisation.
- Enthusiasts planning DDR5 or NVMe overclocking with pre-tested profiles and robust power delivery.
- Content creators who need fast WiFi 6E and 2.5G LAN for streaming, file transfers and backups.
Trade-offs
- Builds requiring more than 2 RAM DIMMs or 6+ SATA drives; this board supports only 2 DDR5 slots and 3 SATA connectors.
- Users limited to standard DDR4 memory or older 11th gen Intel CPUs; it requires DDR5 and supports only 12th gen and newer.
- Budget builds where the cost of DDR5 memory and WiFi 6E features is not justified by the workload.
- Buyers needing integrated graphics for non-gaming workloads; iGPU support depends on processor model.
Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles.
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
General
| Brand | ASRock |
|---|---|
| Form Factor | Mini-ITX |
| PCB | 8 Layer, 2oz Copper |
CPU & Memory
| CPU Socket | Intel LGA1700 |
|---|---|
| CPU Support | 14th, 13th & 12th Gen Intel Core Processors |
| Chipset | Intel B760 |
| Memory Slots | 2× DDR5 DIMM |
| Memory Type | Dual Channel DDR5, non-ECC, un-buffered |
| Max Memory | 96GB |
| Memory Speed | 5600 MHz native; up to 8600+ MHz (OC) |
| Memory Profile | Intel Extreme Memory Profile (XMP) 3.0 |
Networking
| LAN Standard | Phantom Gaming 2.5G (Realtek RTL8125BG) |
|---|---|
| Wireless Standard | 802.11axe WiFi 6E + Bluetooth 5.3 |
Ports & Storage
| PCIe Expansion | 1× PCIe 5.0 x16 Slot |
|---|---|
| M.2 Slots | 2× Hyper M.2 (2280 PCIe Gen4x4, CPU & Chipset), 1× M.2 Key E (WiFi/BT) |
| SATA Connectors | 3× SATA3 6.0 Gb/s |

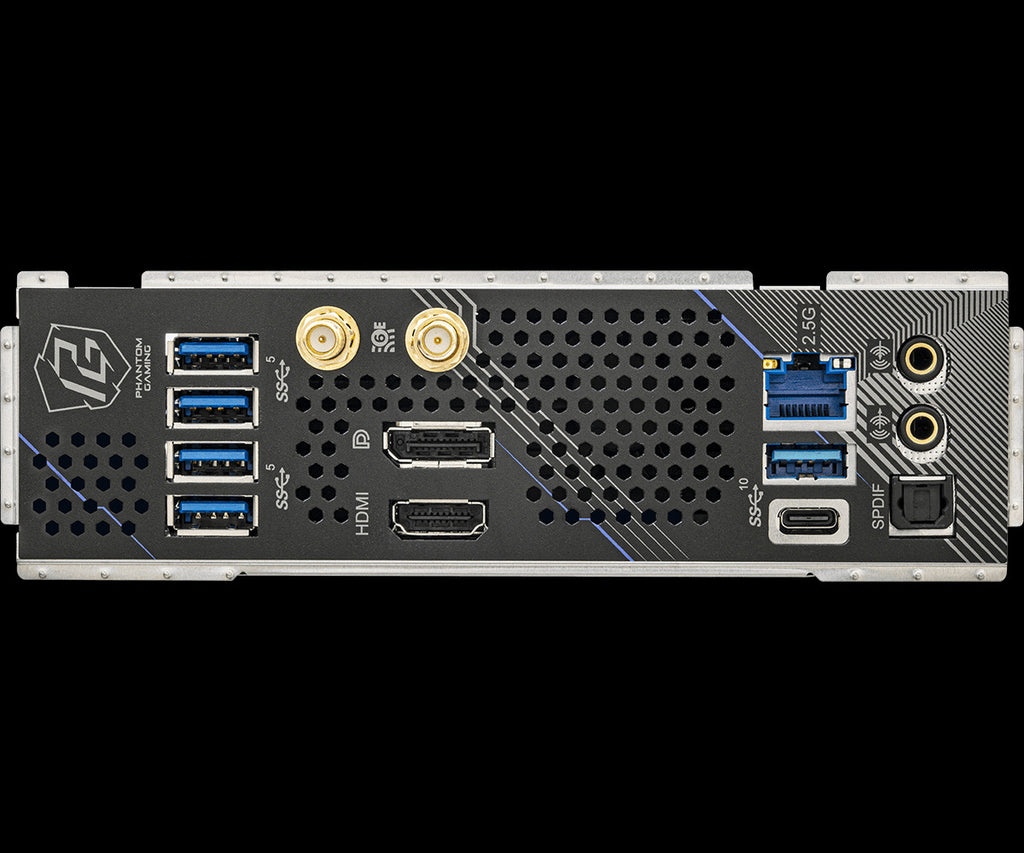

| USB (Rear) | 1× USB 3.2 Gen2 Type-A, 1× USB 3.2 Gen2 Type-C, 4× USB 3.2 Gen1 Type-A |
| USB (Front Headers) | 2× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen1 Type-C, 1× USB 2.0 |
| Video Output | 1× HDMI 2.1, 1× DisplayPort 1.4 |
Power & Audio
| VRM | 14+1+1 Phase, 110A SPS Dr.MOS |
|---|---|
| Audio | 7.1 CH HD (Realtek ALC897 Codec, Nahimic Audio) |
