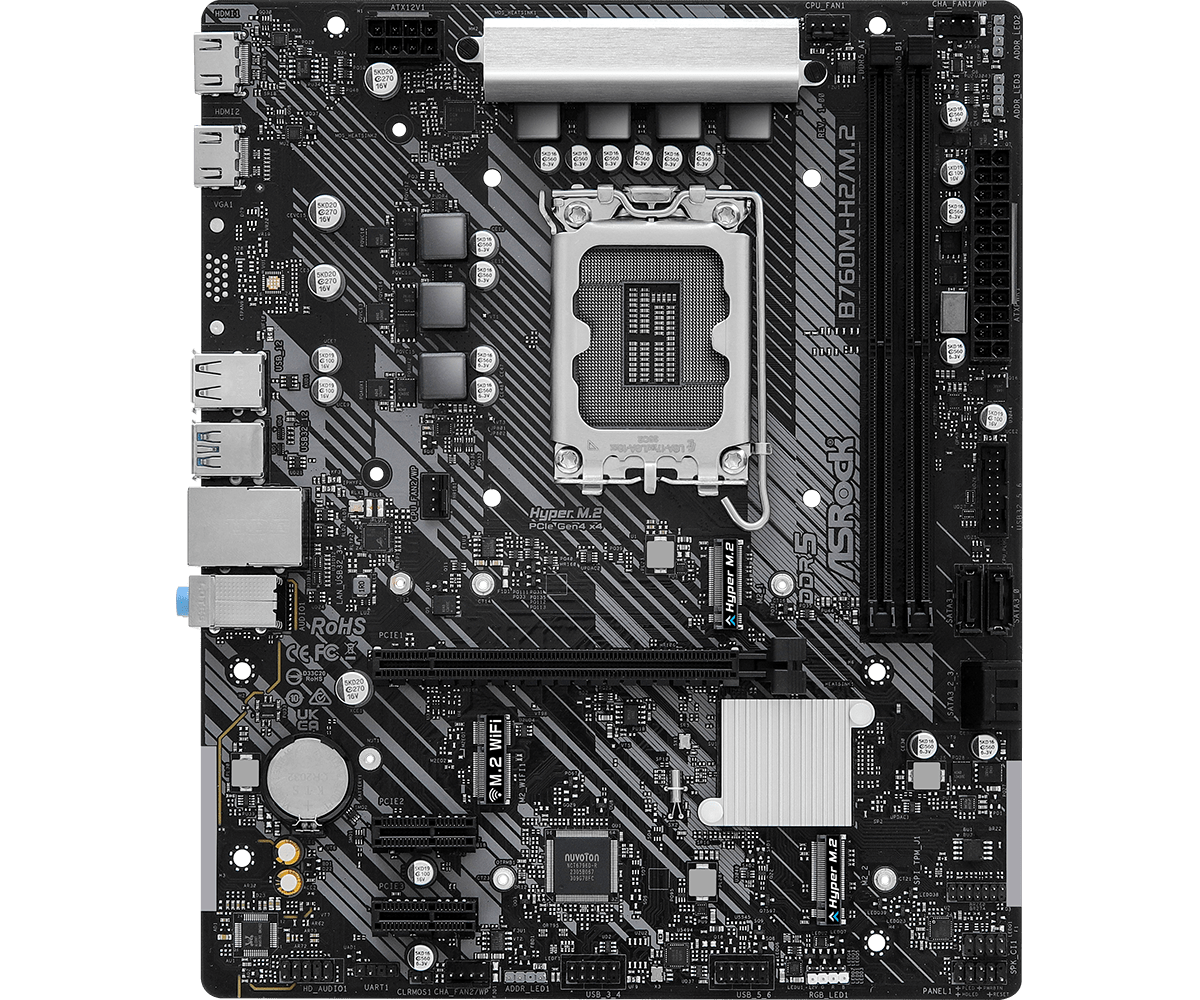

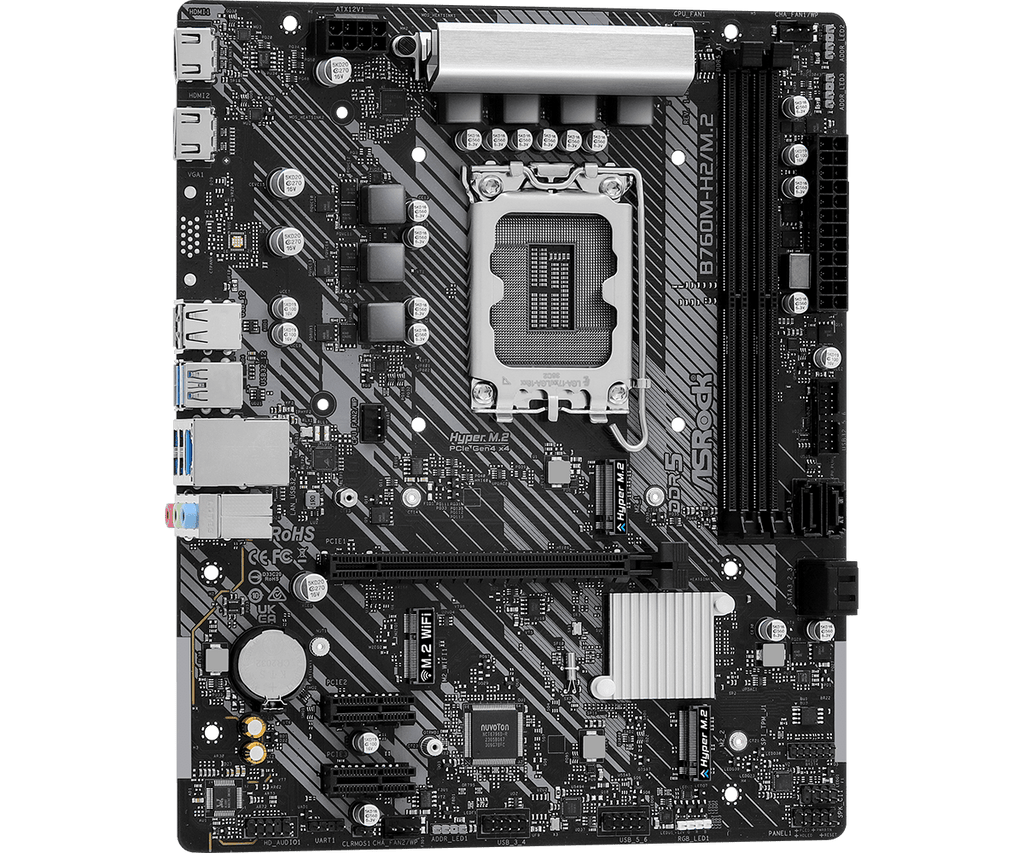

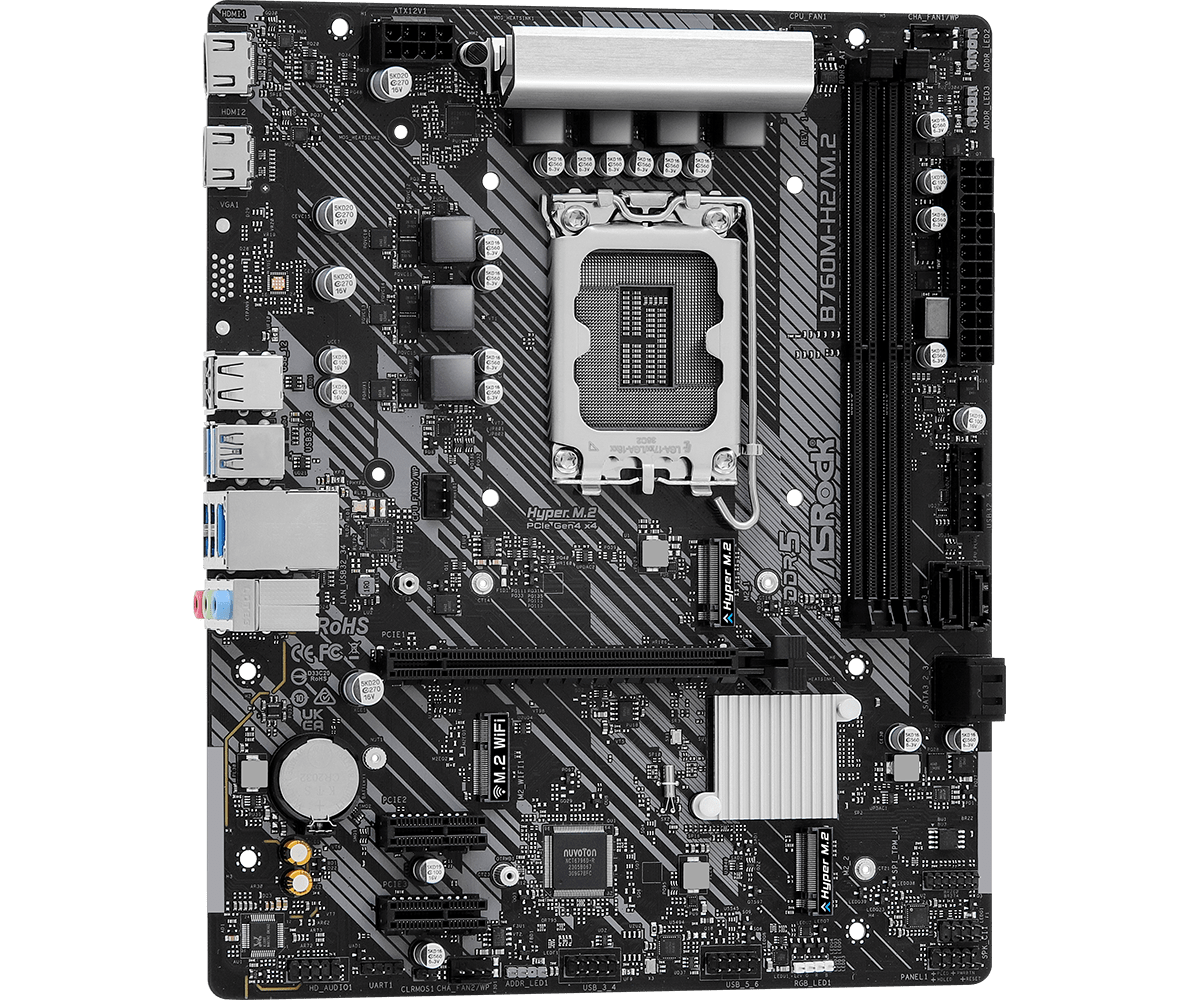

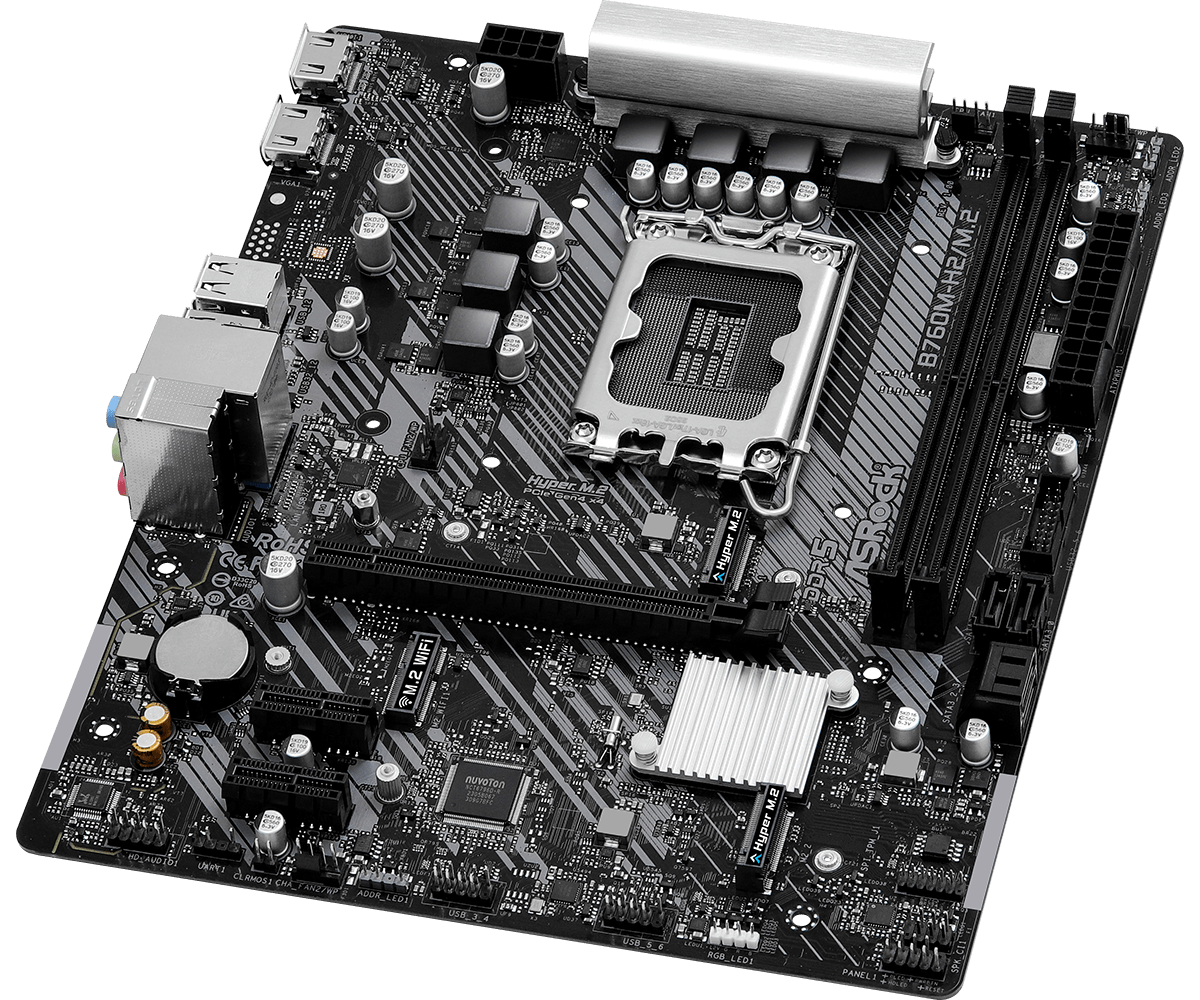

ASRock B760M-H2/M.2 Intel LGA1700 Micro ATX DDR5 Motherboard
ASRock
ASRock B760M-H2/M.2 Intel LGA1700 Micro ATX DDR5 Motherboard
The ASRock B760M-H2/M.2 is a Micro ATX motherboard for builders upgrading to or building around 12th, 13th, or 14th Gen Intel Core processors. It pairs dual DDR5 memory slots with dual PCIe 4.0 M.2 storage, 2.5G networking, and extensive RGB customization in a compact footprint.
Why this product
Supports latest Intel Core processors
Compatible with 14th, 13th, and 12th Gen Intel Core CPUs on the LGA1700 socket, with support for Intel Turbo Boost Max 3.0 and Thermal Velocity Boost technologies.
Dual PCIe 4.0 M.2 storage
Two M.2 slots both run at PCIe 4.0 x4 speeds for fast NVMe SSDs. One slot accepts 2260 or 2280 drives; the other takes 2280 exclusively.
DDR5 memory with XMP 3.0
Two DDR5 DIMM slots support up to 128 GB total and speeds up to 7200+ MHz with Intel XMP 3.0 profiles.
Fast 2.5G Ethernet
Dragon 2.5G LAN provides faster wired network speeds than standard 1G connections, useful for file transfers and streaming.
RGB lighting control
Onboard and addressable RGB headers allow connection to compatible LED strips, fans, and coolers with Polychrome SYNC synchronization across certified accessories.
Compact Micro ATX layout
Smaller than ATX but larger than Mini-ITX, it fits standard cases while offering a full complement of I/O and expansion slots.
- Form FactorMicro ATX
- SocketIntel LGA1700
- ChipsetIntel B760
- CPU Support12th, 13th, 14th Gen Intel Core
- Memory TypeDDR5
- Max Memory128 GB
- M.2 Slots2 × PCIe 4.0 x4
- LAN2.5G Ethernet
- SKUASR-1891
- EAN4710483944215
- Fits Intel LGA1700 socket CPUs: 14th, 13th, and 12th Gen Intel Core processors (Raptor Lake Refresh, Raptor Lake, and Alder Lake).
- Accepts standard DDR5 non-ECC, un-buffered memory modules up to 128 GB total across two DIMM slots.
- Supports two NVMe SSDs via PCIe 4.0 M.2 slots and up to four SATA storage devices.
- Integrated graphics require a processor with Intel Xe Gen 12 graphics (built into most 12th+ Gen Core CPUs); F-series processors lack iGPU.
- WiFi card is not included; the M.2 Key E slot requires a separate wireless module if needed.
Best for
- Builders upgrading from older Intel platforms to 12th Gen or newer CPUs.
- Users who need fast NVMe storage and plan to use dual M.2 drives for gaming, content creation, or file-intensive work.
- Budget-conscious builders who want DDR5 memory support and PCIe 4.0 without paying for high-end features.
- Case builders with space constraints, since Micro ATX is smaller than full ATX but still feature-rich.
- RGB enthusiasts who want to synchronize lighting across multiple devices and headers.
Trade-offs
- High-end overclocking. The 5+1+1 power phase is adequate for standard use but less robust than higher-tier boards with 12+ phases.
- Users needing WiFi out of the box. The WiFi slot requires a separate M.2 wireless module.
- AMD CPU builders. This board is Intel LGA1700 only and does not support AMD Ryzen processors.
- Workloads requiring many SATA drives. Only four SATA ports are available; storage is limited unless using M.2 SSDs.
- Users wanting integrated WiFi or Bluetooth. Neither is built in; both require add-on modules.
Supports 14th, 13th, and 12th Gen Intel Core processors on LGA1700 socket.
Features 5+1+1 power phase, two DDR5 DIMM slots up to 7200+ MHz, PCIe 4.0 x16, dual M.2 Gen4 storage, dual HDMI output, Realtek ALC897 audio, four SATA3 ports, Dragon 2.5G LAN, and ASRock Auto Driver Installer.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
- *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
- *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
General
| Brand | ASRock |
|---|
Processor & Memory
| Socket | Intel LGA1700 |
|---|---|
| Supported CPUs | 12th, 13th, 14th Gen Intel Core |
| Memory Slots | 2 × DDR5 DIMM |
| Memory Speed | Up to 7200+ MHz (OC); 5600 MHz native (1DPC 1R) |
| Max Memory | 128 GB |
| Memory Tech | DDR5, non-ECC, un-buffered, Intel XMP 3.0 |
Storage & Connectivity
| M.2 Slots | 2 × PCIe 4.0 x4 (one 2260/2280, one 2280) |
|---|---|
| SATA Ports | 4 × SATA III |
| PCI Express | 1 × PCIe 4.0 x16, 2 × PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 5, 10 for SATA |
| Ethernet | Dragon 2.5G LAN |
| WiFi | M.2 Key E slot (module not included) |
Ports & Expansion

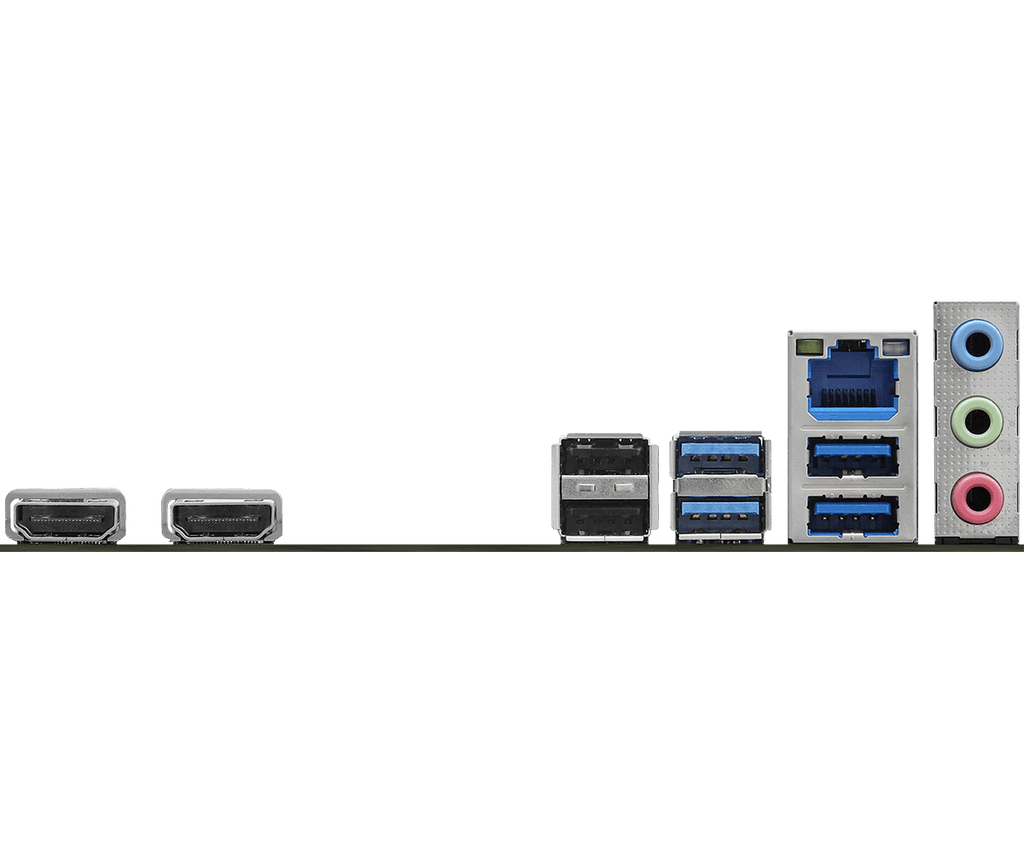

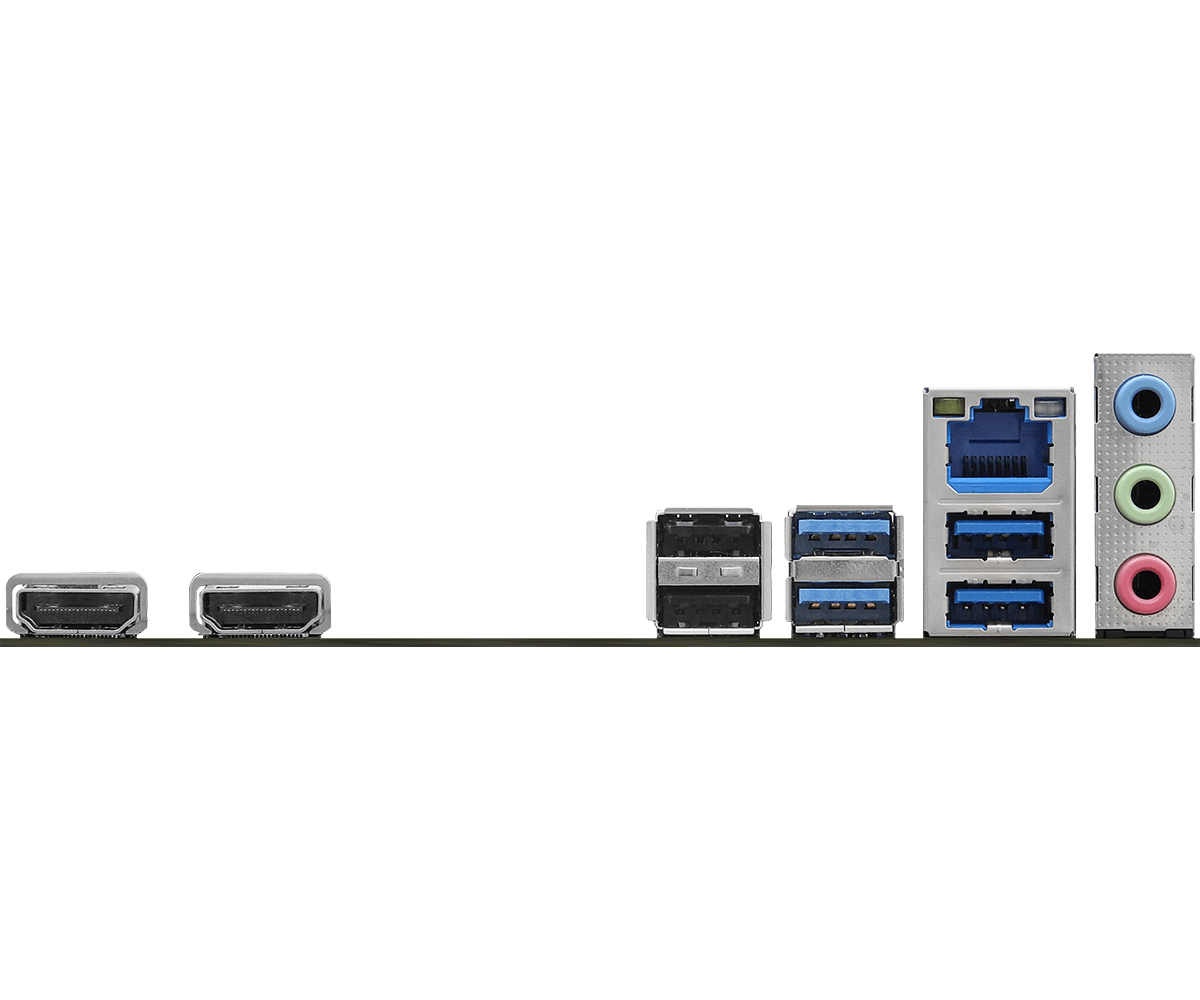

| HDMI Outputs | 2 × HDMI 2.1 (up to 4K 60Hz) |
|---|---|
| USB 3.2 Gen1 (Rear) | 4 × Type-A |
| USB 3.2 Gen1 (Front) | 2 × Type-A |
| USB 2.0 (Rear) | 2 × USB 2.0 |
| USB 2.0 (Front) | 4 × USB 2.0 |
| Audio | Realtek ALC897 (7.1 CH) |
| RGB Headers | Polychrome RGB with onboard and addressable headers |
Power & Graphics
| Power Phase | 5+1+1 |
|---|---|
| Integrated Graphics | Intel Xe Gen 12 (with compatible CPU) |
