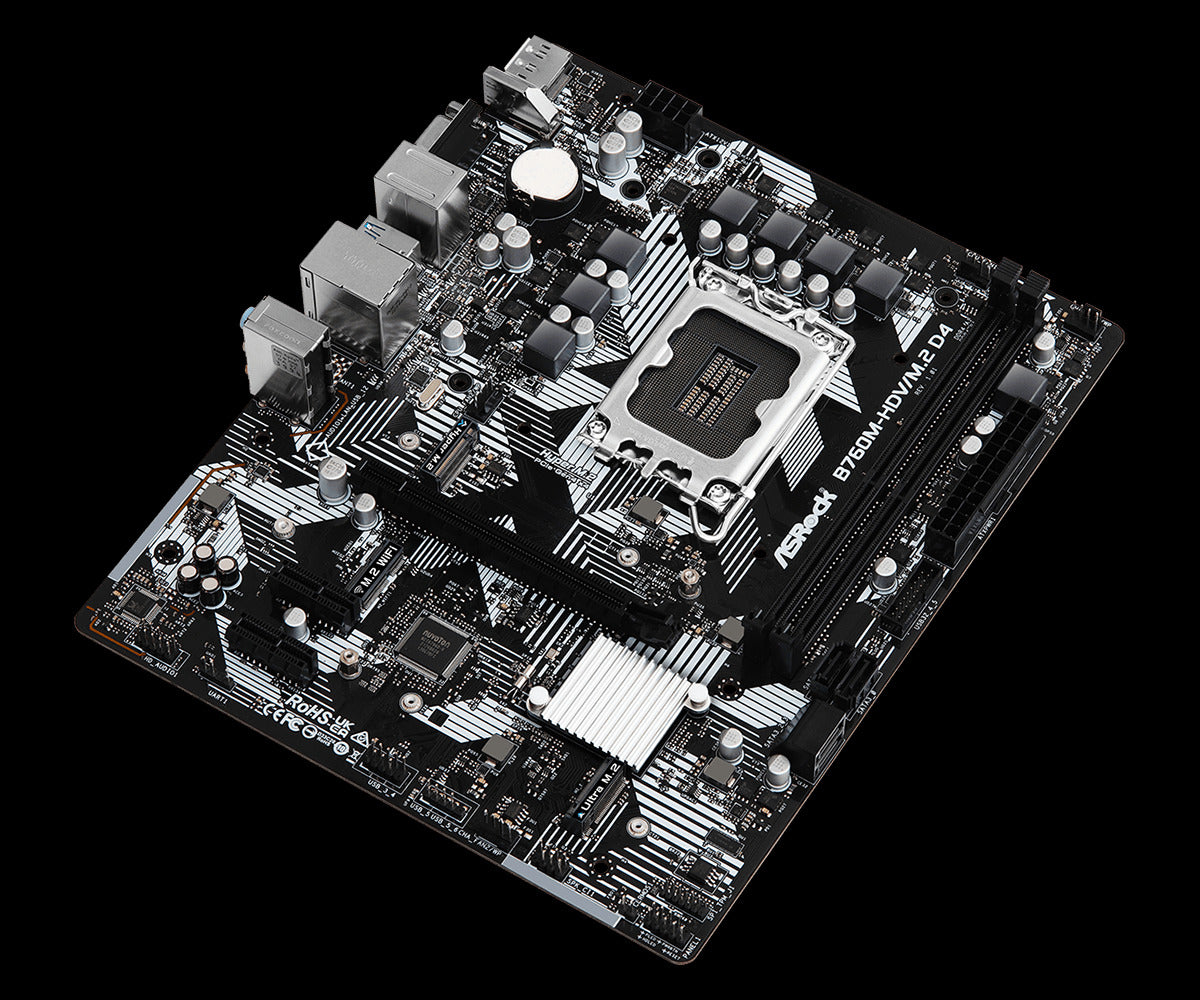

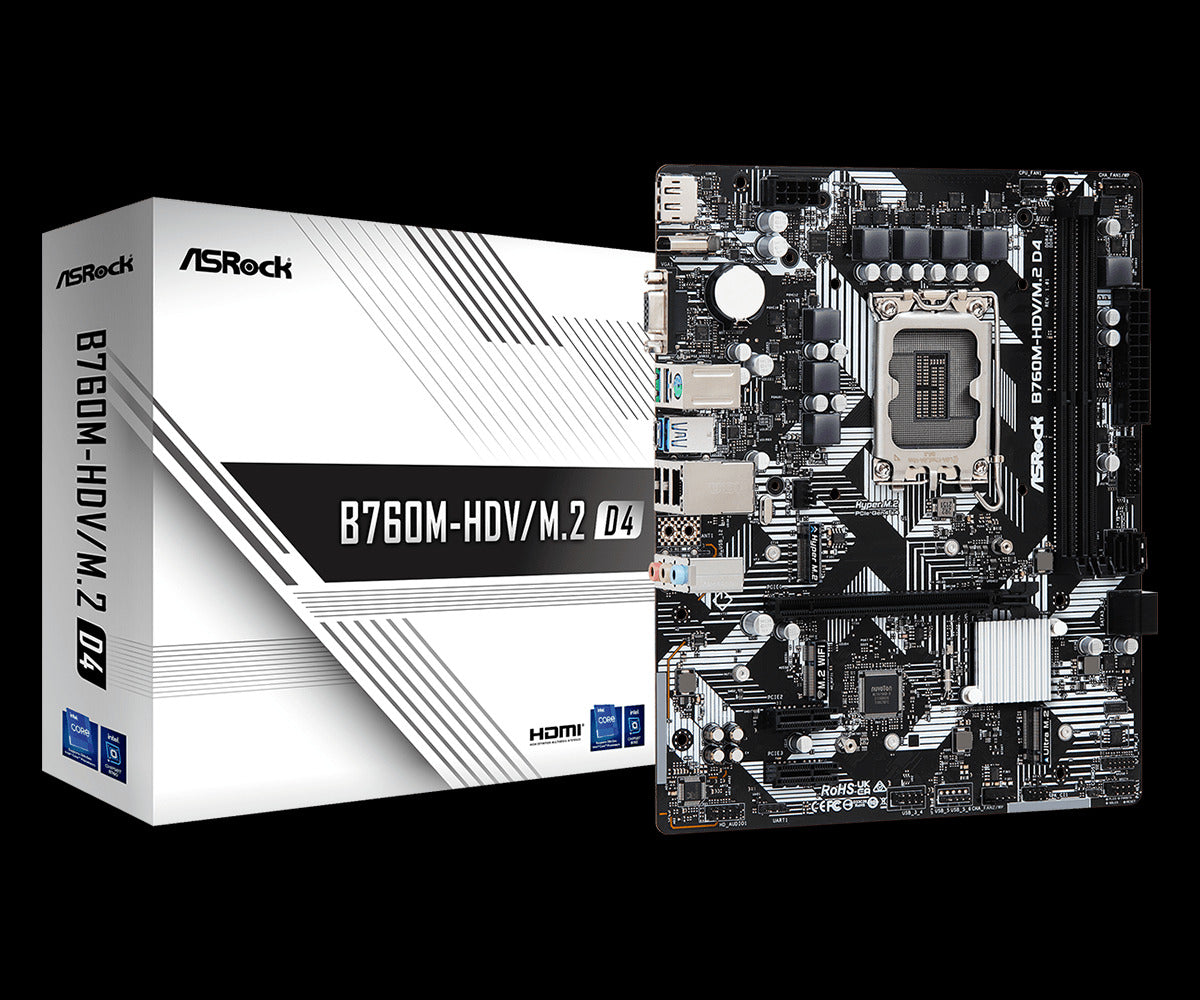

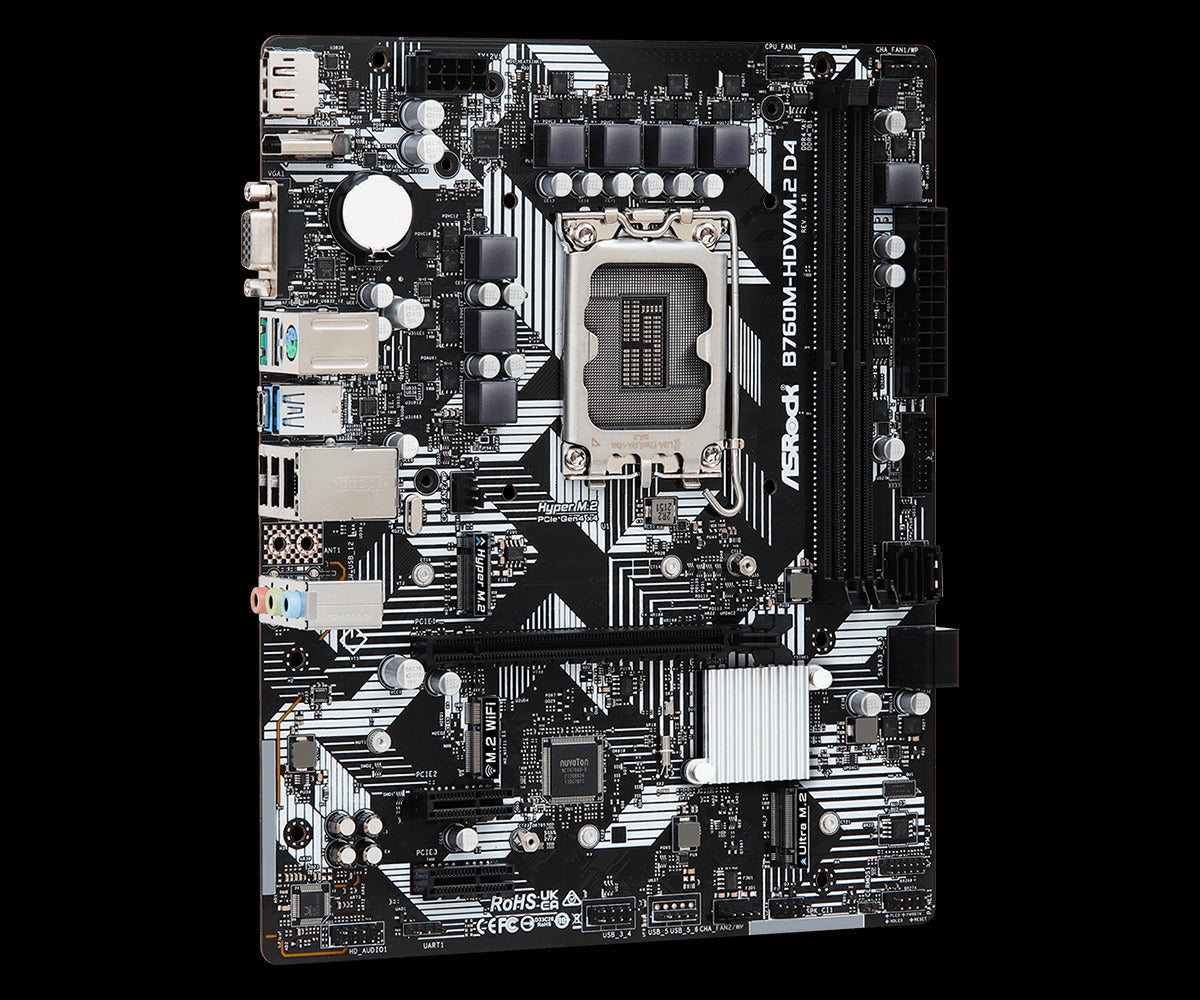

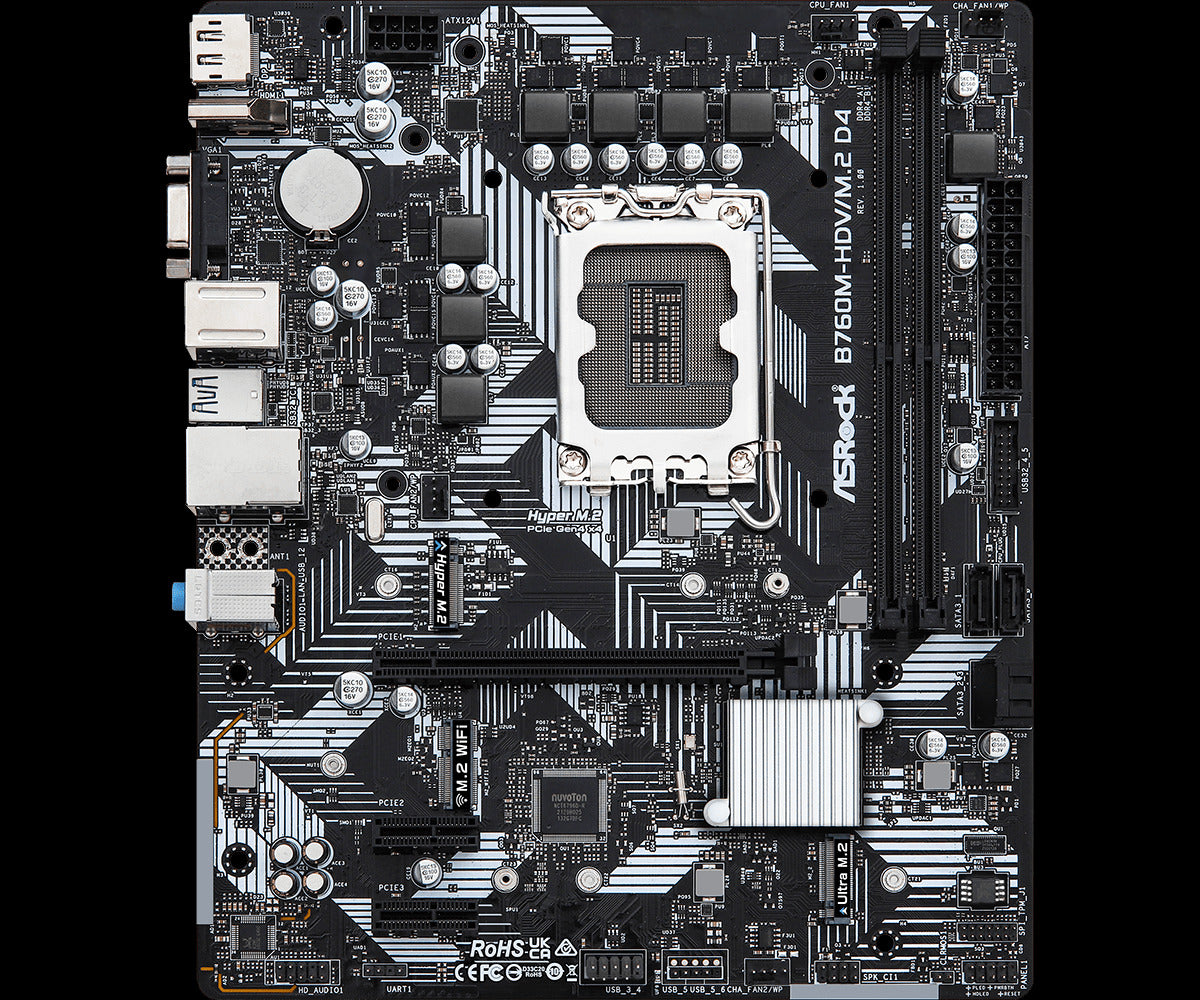

ASRock B760M-HDV/M.2 D4 LGA1700 Micro-ATX DDR4 Motherboard
ASRock
ASRock B760M-HDV/M.2 D4 LGA1700 Micro-ATX DDR4 Motherboard
The ASRock B760M-HDV/M.2 D4 is a Micro-ATX motherboard for Intel's 12th, 13th and 14th generation processors. It suits budget-conscious builders and everyday users who need solid core features without premium extras, offering dual M.2 slots, DDR4 memory support, and PCIe 4.0 connectivity in a compact footprint.
Why this product
PCIe 4.0 M.2 support for fast storage
One Hyper M.2 slot runs at PCIe Gen4 speeds, enabling modern NVMe SSDs to reach their full potential. The second Ultra M.2 slot accepts Gen3 drives or SATA drives, giving flexibility in storage choice.
Dual video outputs for multi-monitor setups

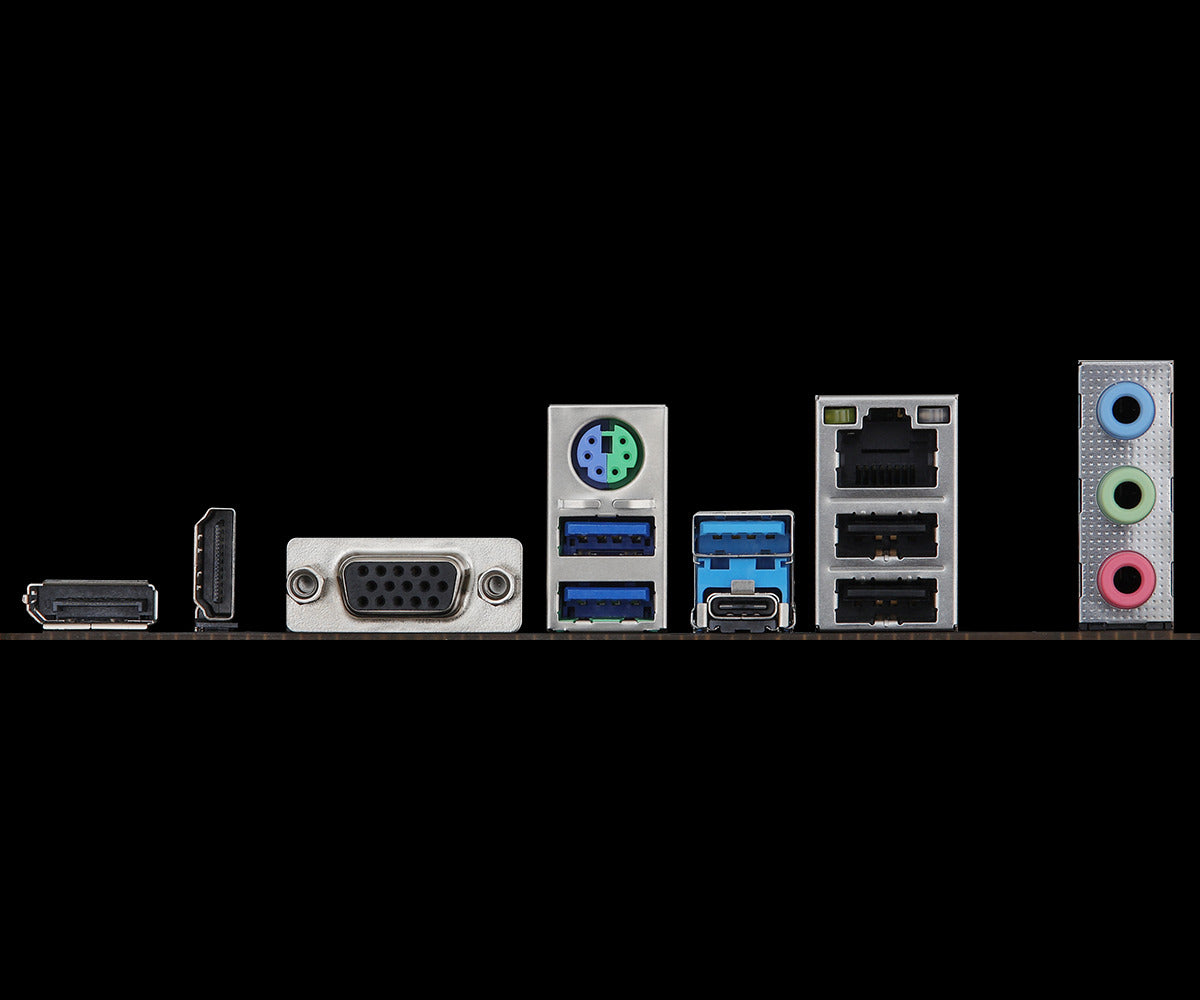

HDMI 2.1, DisplayPort 1.4 and D-Sub connectors let you connect multiple displays without adapters, useful for productivity work or mixed setups.
5+1+1 power delivery for stable CPU power
Dedicated power phases keep the CPU fed cleanly, supporting stable overclocking and sustained load performance without thermal compromise.
Compact Micro-ATX form factor
Fits smaller cases and tighter builds while retaining all core connectivity — SATA, M.2, USB and display outputs are all present.
DDR4 memory up to 5333 MHz (OC)
Supports overclocked DDR4 for users who want to push performance, though runs at native DDR4-3200 without tweaking.
- ChipsetIntel B760
- SocketLGA1700
- Form FactorMicro-ATX
- Memory SupportDDR4-3200 native; up to DDR4-5333 (OC)
- M.2 Slots2 (1 x PCIe Gen4x4, 1 x PCIe Gen3x4/SATA)
- SATA Ports4
- Video OutputsHDMI 2.1, DisplayPort 1.4, D-Sub
- SKUASR-1950
- EAN4710483942020
- Supports 12th, 13th and 14th generation Intel Core processors in LGA1700 socket only.
- Accepts DDR4 DIMM modules in both slots; DDR5 is not supported.
- Fits standard Micro-ATX and smaller cases; incompatible with ATX or E-ATX cases.
- WiFi requires a separate M.2 WiFi card installed in the dedicated M.2 Key E slot; onboard WiFi is not included.
- Does not fit AMD Ryzen, Intel Xeon W, or any non-LGA1700 socket CPU.
Best for
- Office and productivity builds where multi-monitor output and stable power matter more than bleeding-edge features.
- Space-constrained builds in Micro-ATX cases that still need full connectivity.
- Users wanting PCIe 4.0 M.2 storage without paying for high-end boards.
- DDR4-based systems where you already own compatible memory and want to avoid DDR5 costs.
Trade-offs
- WiFi or Bluetooth users: wireless connectivity requires a separate M.2 module; neither is built in.
- Multi-GPU setups: only one PCIe 4.0 x16 slot; second and third slots run at PCIe 3.0 x1 speed, limiting dual-GPU performance.
- DDR5 adopters: limited to DDR4 memory only, so you cannot upgrade to the newer standard.
- High-end overclocking: basic VRM and power delivery suit daily use and light overclocking, not extreme tuning.
Supports 14th, 13th, and 12th Gen Intel Core processors on LGA1700 socket. Features 5+1+1 power phase, two DDR4 DIMM slots up to 5333+ MHz, PCIe 4.0 x16, dual M.2 storage, HDMI/DisplayPort/D-Sub output, Realtek ALC887/897 audio, four SATA3 ports, Gigabit LAN, and ASRock Auto Driver Installer.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear. Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.
General
| Brand | ASRock |
|---|
CPU & Socket
| Socket | LGA1700 |
|---|---|
| Supported Processors | Intel 14th, 13th, 12th Gen Core (LGA1700) |
| Power Phase | 5+1+1 |
Memory
| Memory Type | DDR4 DIMM |
|---|---|
| Memory Slots | 2 |
| Maximum Memory | 64 GB |
| Memory Speed | DDR4-3200 (native); DDR4-5333+ (OC) |
| Memory Channels | Dual Channel |
Storage & Expansion
| SATA Ports | 4 x SATA3 |
|---|---|
| M.2 Hyper Slot | 1 x PCIe Gen4x4 (NVMe) |
| M.2 Ultra Slot | 1 x PCIe Gen3x4 & SATA (NVMe/SATA M.2) |
| M.2 WiFi Slot | 1 x M.2 Key E (WiFi module) |
| PCIe Expansion | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
Audio & Connectivity
| Audio Codec | Realtek ALC887/897 7.1 CH HD |
|---|---|
| LAN | Gigabit Ethernet 10/100/1000 Mb/s (Realtek RTL8111H) |
| USB 3.2 Gen1 Type-C | 1 (Rear) |
| USB 3.2 Gen1 Type-A | 5 (3 Rear, 2 Front) |
| USB 2.0 | 5 (2 Rear, 3 Front) |
Video Output
| HDMI | 1 x HDMI 2.1 (up to 4K 60Hz) |
|---|---|
| DisplayPort | 1 x DisplayPort 1.4 with DSC (up to 8K 60Hz / 5K 120Hz) |
| D-Sub | 1 x D-Sub (up to 1920×1080 60Hz) |
BIOS & Additional
| BIOS | 128 Mb AMI UEFI |
|---|---|
| Driver Installation | ASRock Auto Driver Installer (ADI) |
