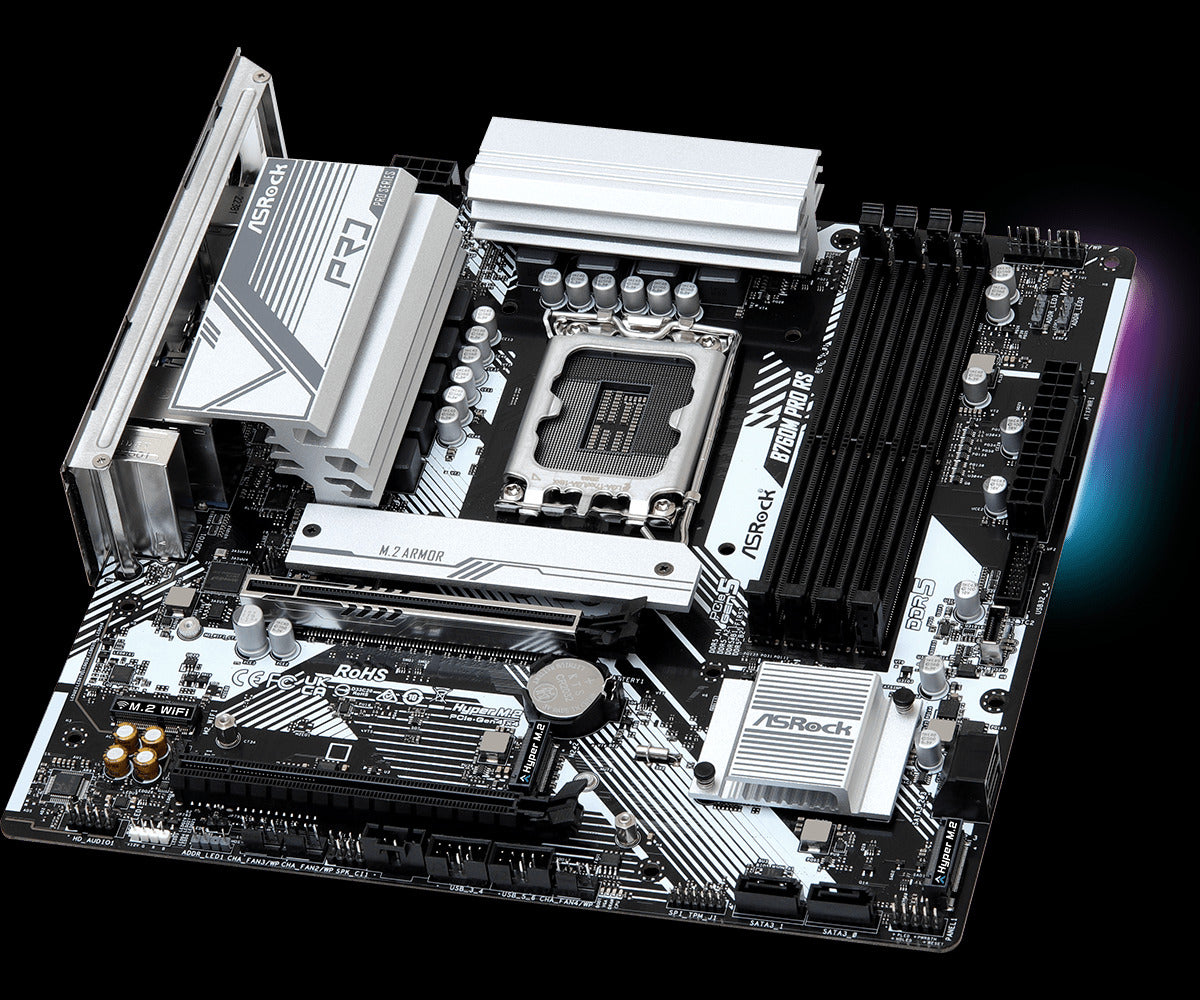

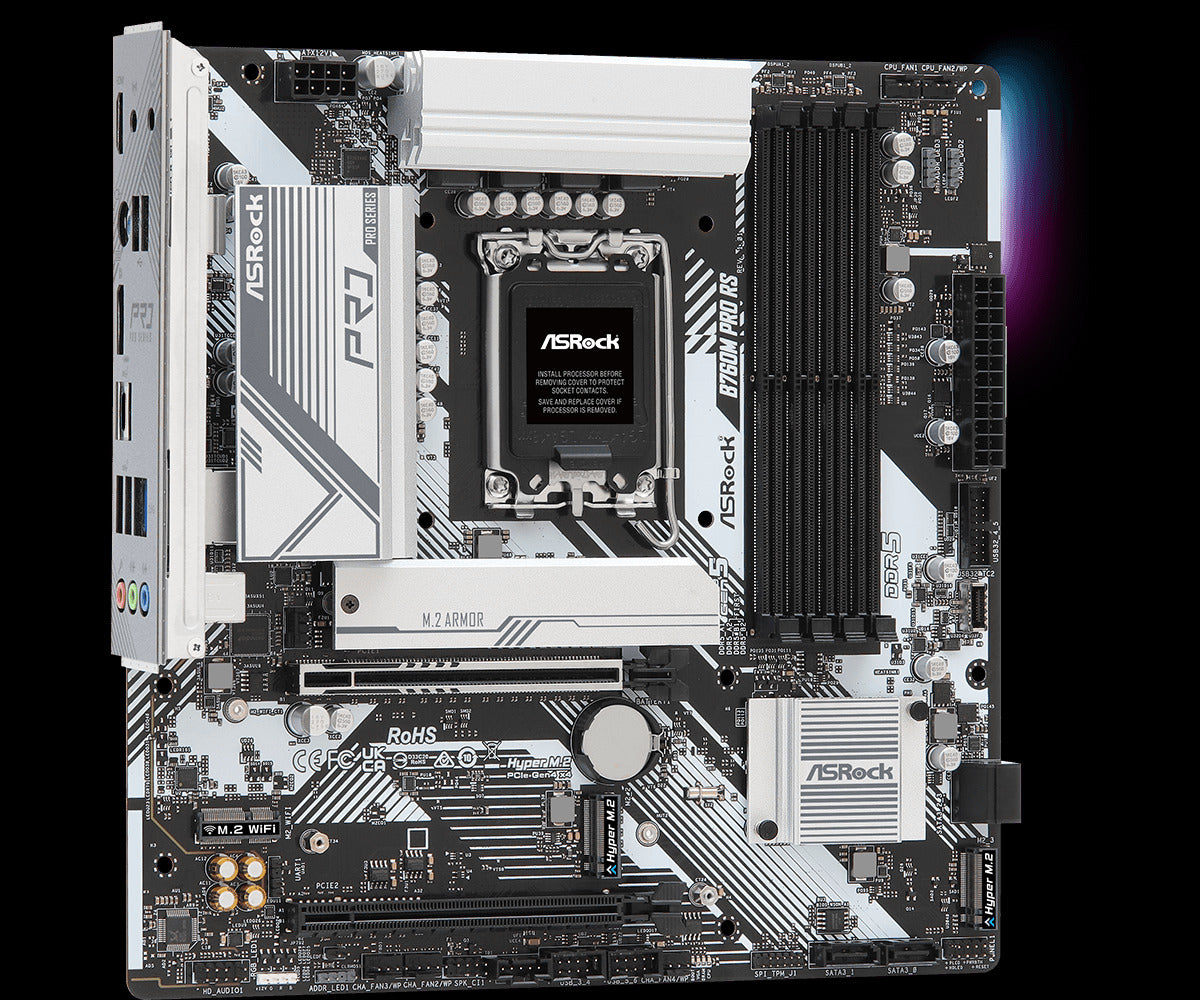

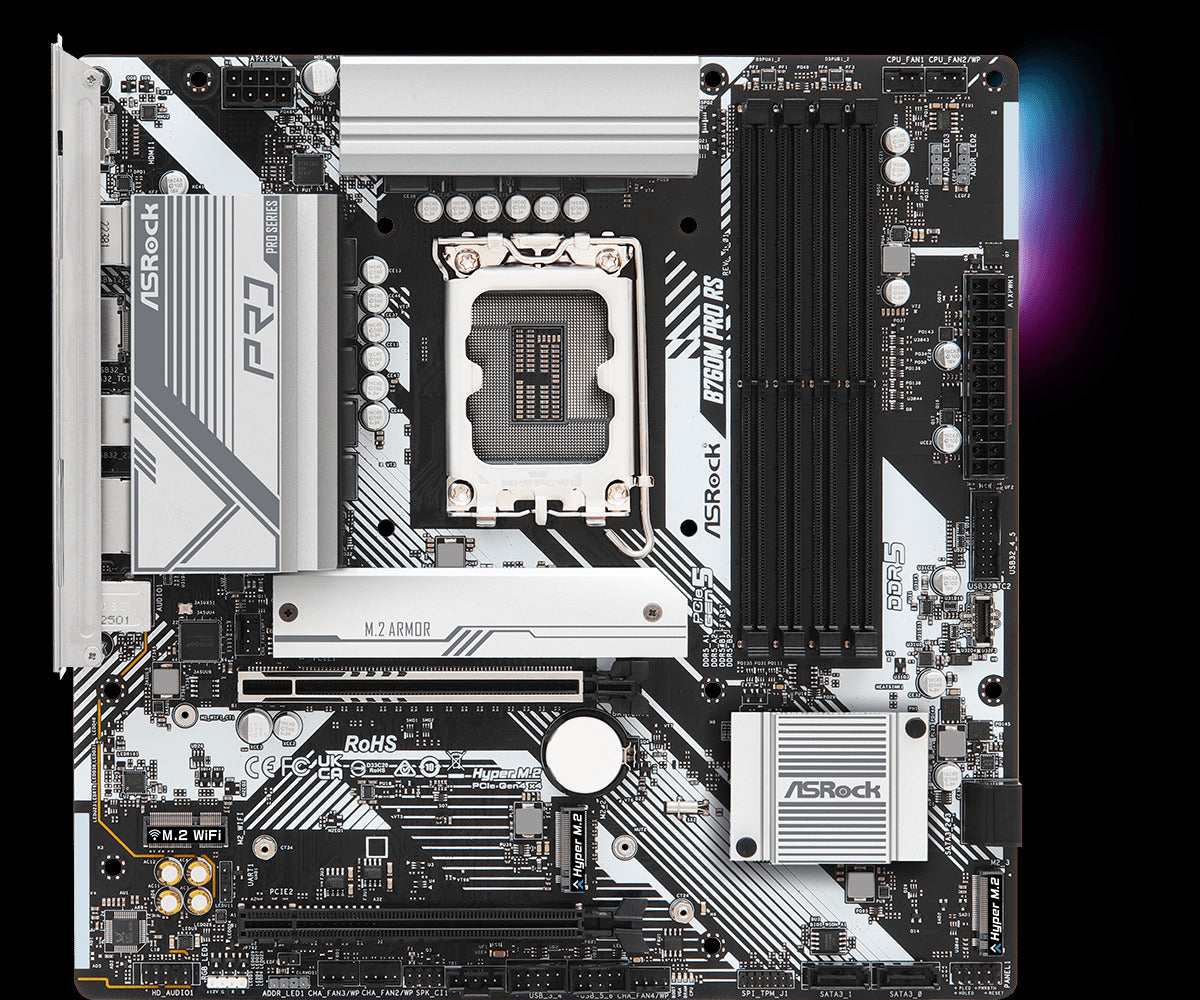

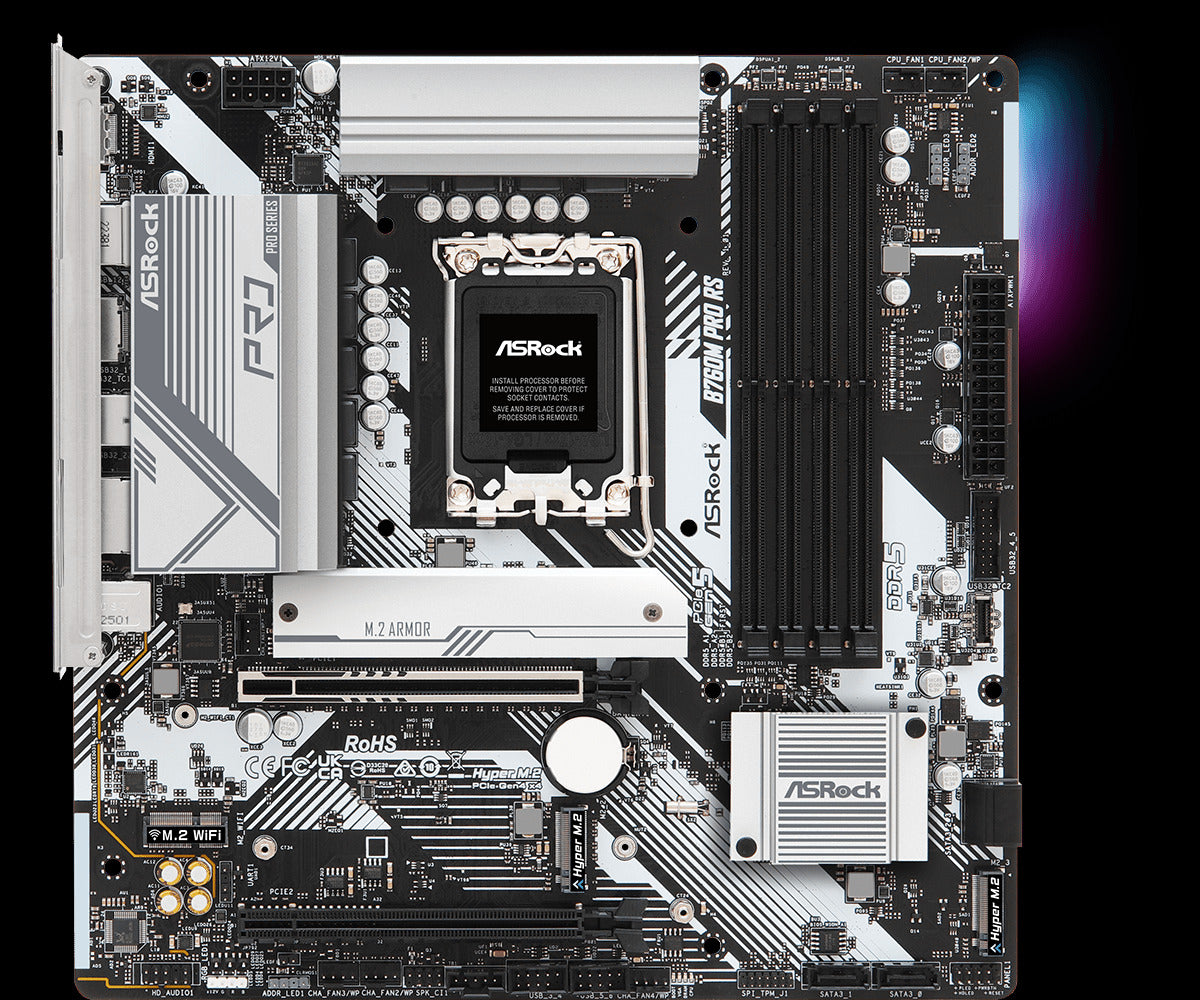

ASRock B760M Pro RS LGA1700 Micro-ATX DDR5 Motherboard
ASRock
ASRock B760M Pro RS LGA1700 Micro-ATX DDR5 Motherboard
The ASRock B760M Pro RS is a micro-ATX motherboard designed for Intel 12th, 13th and 14th Gen processors, offering mainstream builders a balanced platform for gaming and productivity without premium pricing. It combines DDR5 memory support, PCIe 5.0 graphics connectivity, and robust power delivery in a compact form factor.
Why this product
PCIe 5.0 graphics slot for next-gen cards
The single PCIe 5.0 x16 slot supports current and future graphics cards with full bandwidth, while a secondary PCIe 3.0 x16 (x4 mode) slot adds expansion flexibility.
DDR5 memory up to 7200+ MHz with XMP
Four DIMM slots accept DDR5 modules with Intel XMP 3.0 profiles for quick overclocking without manual tuning, up to 256GB total capacity.
Three M.2 NVMe slots for fast storage
Three PCIe Gen4x4 M.2 slots support high-speed SSDs, plus four SATA ports for older drives or expansion.
7+1+1 power delivery with 50A Dr.MOS
Integrated power stages provide stable voltage to CPU and GPU, designed for memory overclocking and sustained gaming loads.
2.5G Ethernet and solid audio codec
Dragon RTL8125BG controller delivers gigabit connectivity, while the Realtek ALC897 codec and Nahimic audio enhancement handle sound.
- CPU SocketLGA1700 (Intel 12th–14th Gen)
- Form FactorMicro-ATX (244 × 244 mm)
- Memory Slots4 × DDR5 DIMM (up to 256GB, 7200+ MHz OC)
- M.2 NVMe Slots3 × PCIe Gen4x4
- SATA Ports4 × SATA3
- PCIe Graphics Slots1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16 (x4)
- USB 3.2 Gen12 × Type-C (1 rear, 1 front header), 5 × Type-A (3 rear, 2 front header)
- Video OutputHDMI, DisplayPort
- SKUASR-2023
- EAN4710483942723
- Fits Intel 12th, 13th and 14th Gen Core processors in LGA1700 socket, including Pentium and Celeron variants.
- Accepts DDR5 memory only; DDR4 modules are not compatible.
- Micro-ATX form factor (244 × 244 mm) fits standard and mid-tower cases but not full-size ATX enclosures.
- Supports graphics output via HDMI or DisplayPort; no VGA or legacy video connectors.
- WiFi requires a separate M.2 Key E module in the dedicated 2230 slot; no onboard WiFi is included.
Best for
- DDR5 gaming builds on a budget
- Compact ITX-class builds that need micro-ATX features
- Memory overclocking with pre-tested XMP profiles
- Small-form-factor productivity and streaming setups
Trade-offs
- Full-size tower builders — micro-ATX leaves less internal space and fewer expansion slots than ATX.
- AMD CPU owners — this board is Intel LGA1700 only; no AMD socket support.
- Wireless-first setups — WiFi is optional via a separate M.2 module, not built-in.
- Large multi-GPU systems — only one full-bandwidth PCIe 5.0 slot; the second slot runs at x4 mode.
- Users requiring Thunderbolt — no native Thunderbolt ports; only a header for add-in cards.
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system's stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models.
General
| Brand | ASRock |
|---|---|
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Dimensions | 244 × 244 mm |
CPU & Memory
| CPU Socket | LGA1700 |
|---|---|
| Supported CPUs | Intel 14th, 13th & 12th Gen Core, Pentium, Celeron |
| Hybrid Technology Support | Yes |
| Turbo Boost Max 3.0 | Supported |
| Thermal Velocity Boost | Supported |
| Adaptive Boost Technology | Supported |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Max Memory Capacity | 256GB |
| Memory Speed (OC) | Up to 7200+ MHz |
| XMP Support | Intel XMP 3.0 |
Storage & Expansion
| M.2 NVMe Slots (Gen4) | 3 × (all PCIe Gen4x4) |
|---|---|
| M.2 Slot Compatibility | M2_1: 2242/2260/2280; M2_2, M2_3: 2280 |
| SATA Ports | 4 × SATA3 (6.0 Gb/s) |
| PCIe Slot 1 (PCIE1) | PCIe 5.0 x16 (from CPU) |
| PCIe Slot 2 (PCIE3) | PCIe 3.0 x16 (x4 mode, from Chipset) |
| M.2 Key E (WiFi) | Yes (2230, supports CNVio/CNVio2) |
Power & Cooling
| Power Phases | 7+1+1 for VCore+GT |
|---|---|
| VCore MOSFETs | 50A Dr.MOS |
| ATX Power Connector | 24-pin |
| CPU Power Connector | 8-pin 12V (Hi-Density) |
| CPU Fan Headers | 1 × 4-pin (CPU), 1 × 4-pin (CPU/Water Pump) |
| Chassis Fan Headers | 4 × 4-pin (Chassis/Water Pump) |
Connectivity
| LAN | 2.5G (Dragon RTL8125BG) |
|---|---|
| LAN Speed | 10/100/1000/2500 Mb/s |

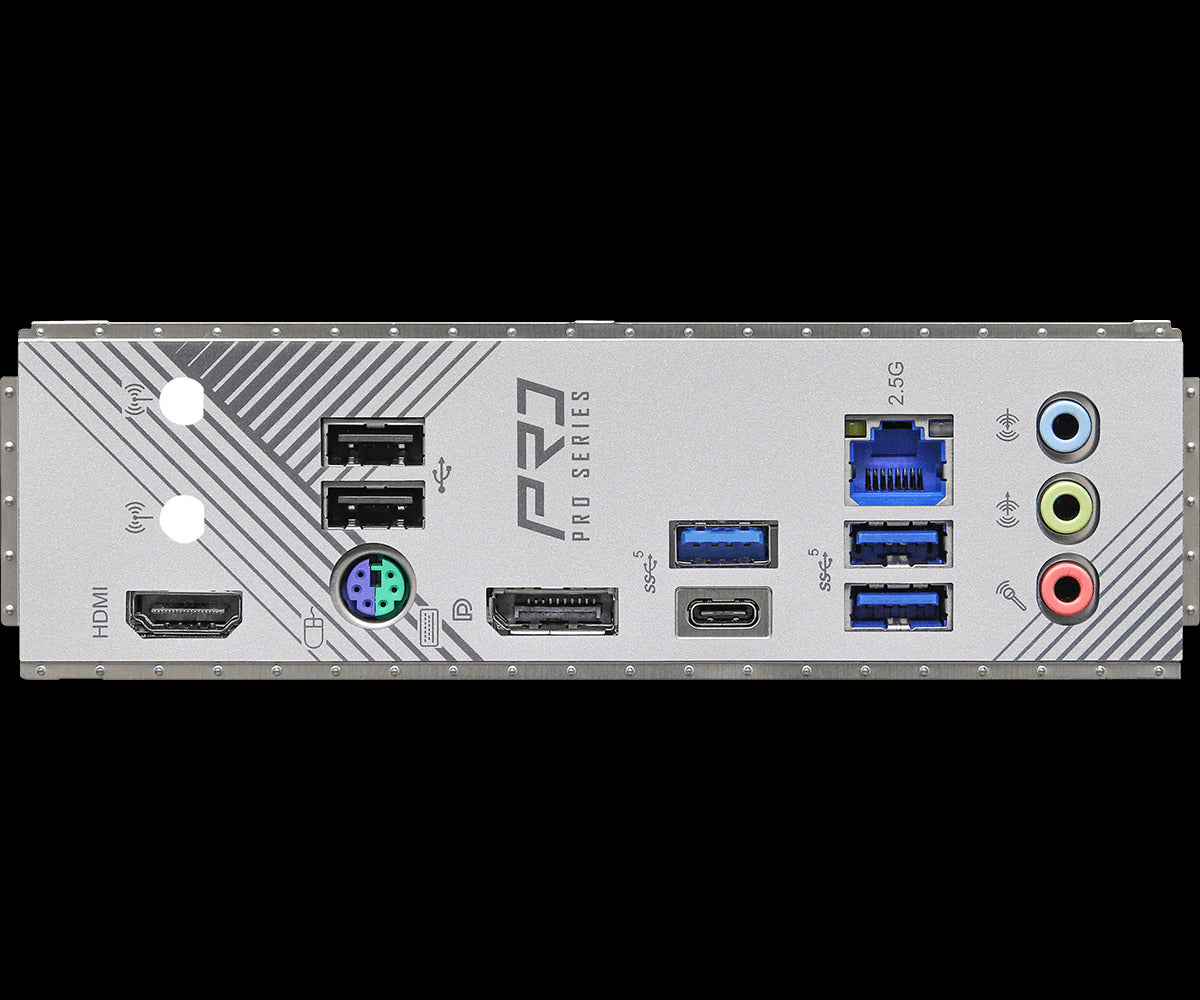

| Video Output (Rear) | 1 × HDMI, 1 × DisplayPort |
| USB 3.2 Gen1 Type-C (Rear) | 1 port |
| USB 3.2 Gen1 Type-A (Rear) | 3 ports |
| USB 2.0 (Rear) | 2 ports |
| USB 3.2 Gen1 Type-C Header | 1 (supports 1 front port) |
| USB 3.2 Gen1 Header | 1 (supports 2 front ports) |
| USB 2.0 Headers | 2 (support 4 front ports) |
Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| Channels | 7.1 CH HD |
| Audio Enhancement | Nahimic Audio |
| Front Audio Header | Yes (19-pin) |
Additional Headers & Features
| RGB LED Header | 1 |
|---|---|
| Addressable LED Headers | 3 |
| SPI TPM Header | Yes |
| Chassis Intrusion Header | Yes |
| Thunderbolt AIC Connector | 5-pin |
| Pre-Installed I/O Shield | Yes |
| PCB Layers | 6 Layer |
Software & Utilities
| BIOS | ASRock Full HD UEFI with EZ Mode and My Favorites |
|---|---|
| Tuning Software | A-Tuning Motherboard Utility |
| RGB Control | Polychrome SYNC |
| LAN Software | Dragon 2.5G LAN Software |
| Driver Installer | ASRock Auto Driver Installer |
| BIOS Flash Tool | ASRock Instant Flash |
| RAID Support | Easy RAID Installer |
| Post Checker | ASRock Post Status Checker |
Included Accessories
| SATA Cables | 2 |
|---|---|
| M.2 Screws | 3 |
| M.2 Standoff | 1 |
| User Manual | Yes |
