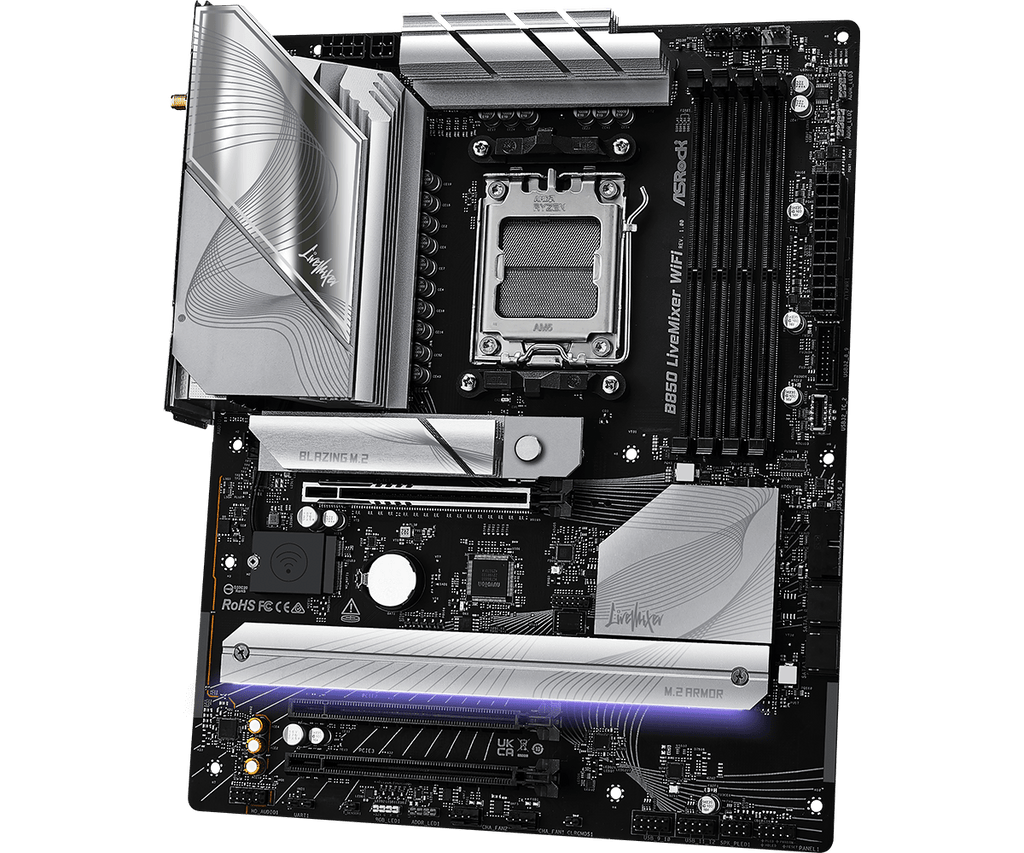

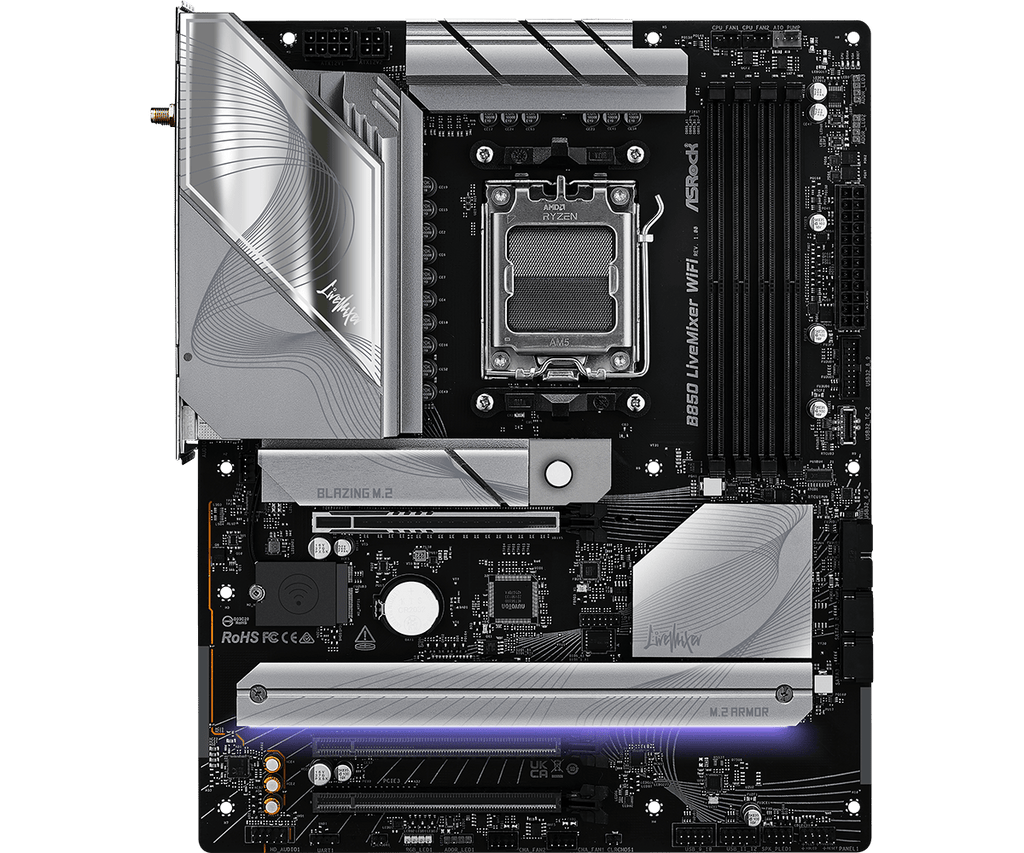

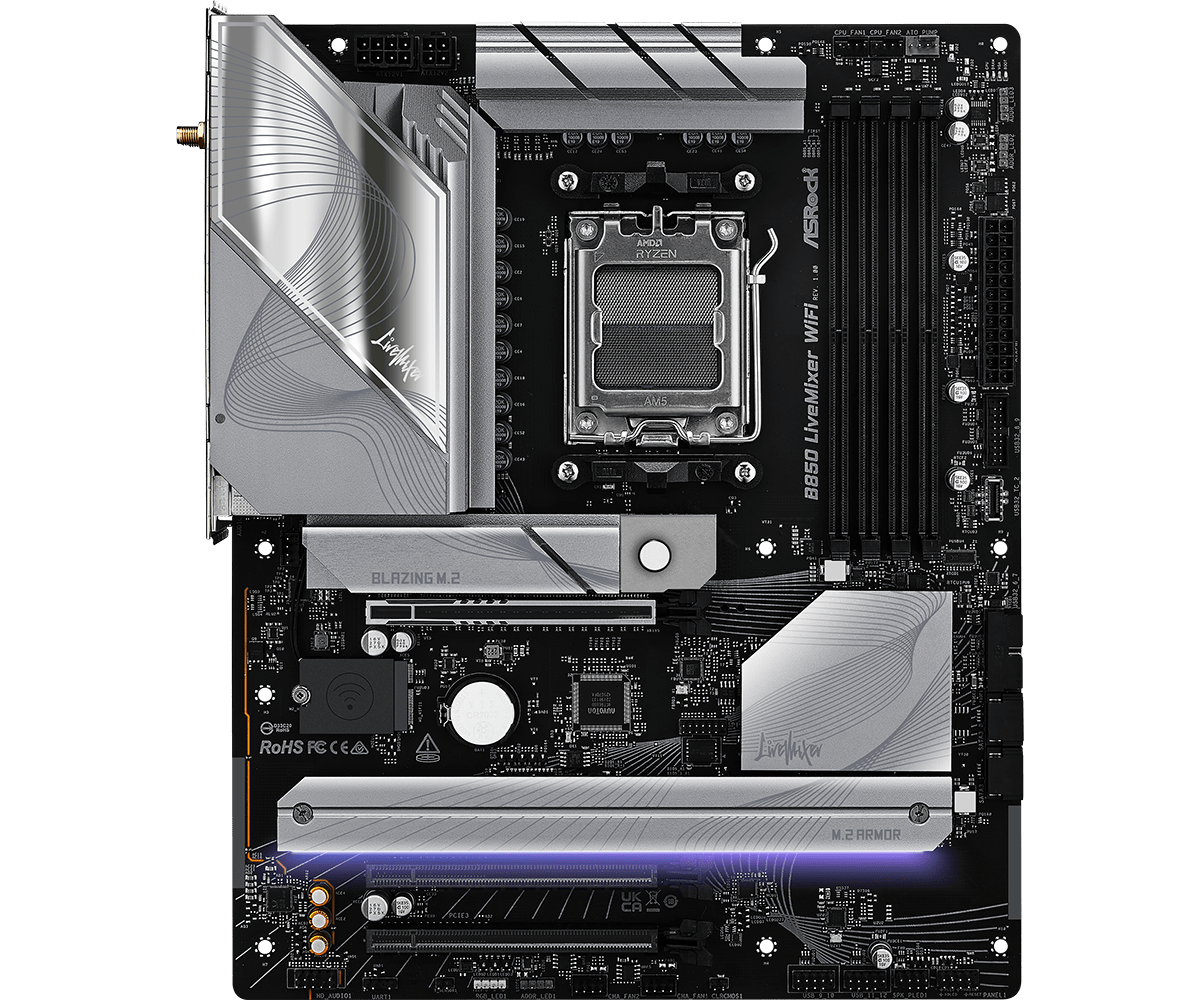

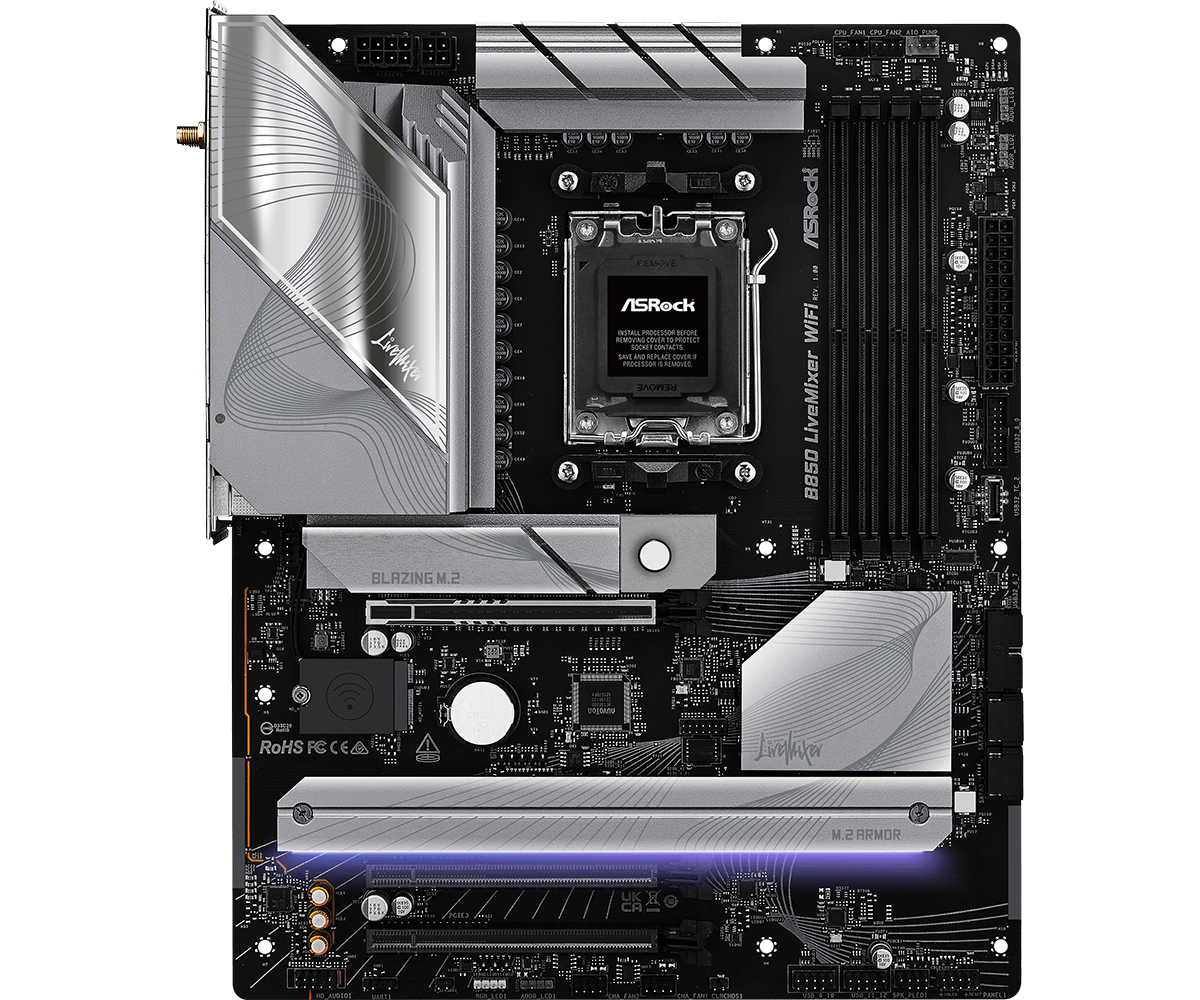

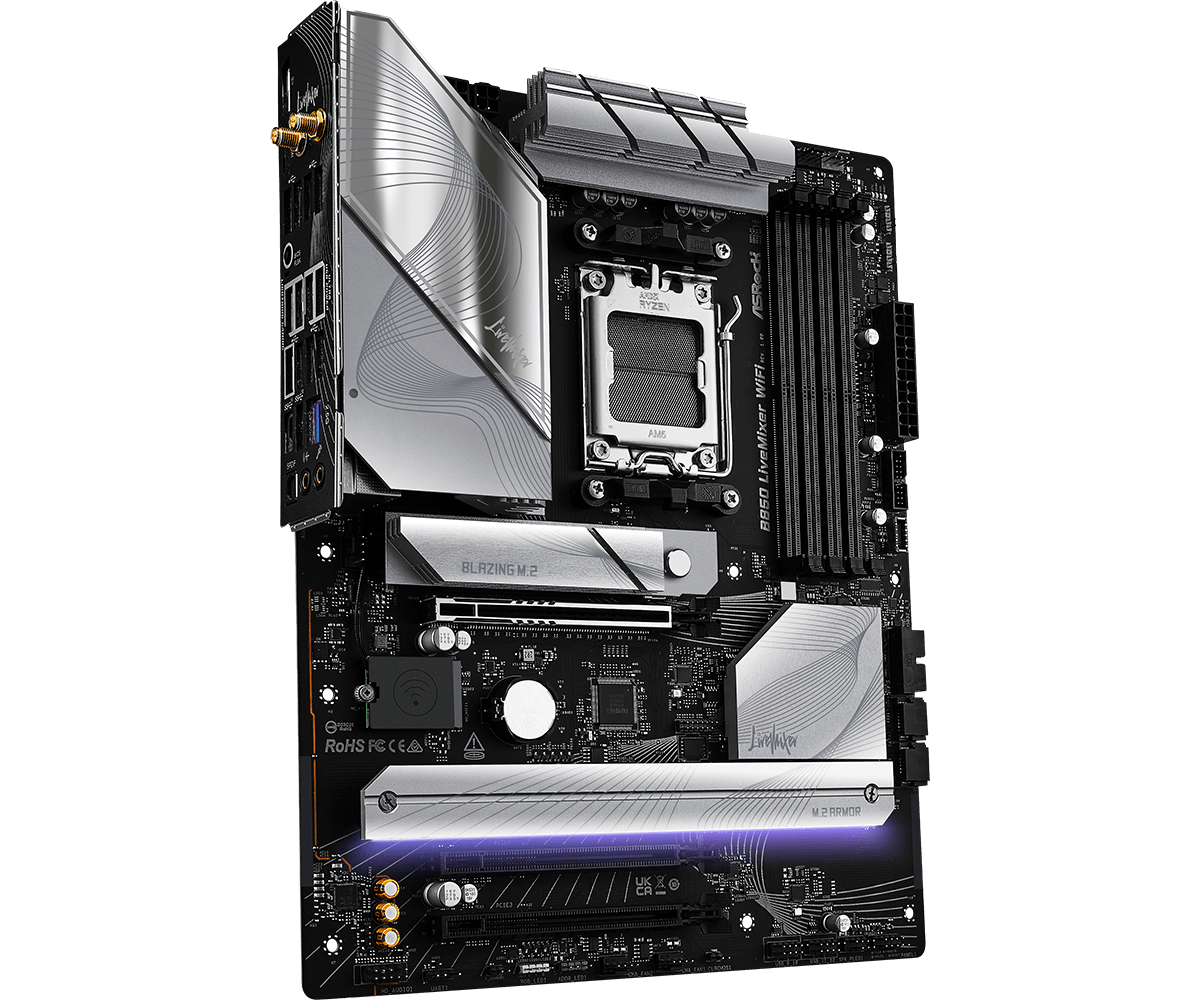

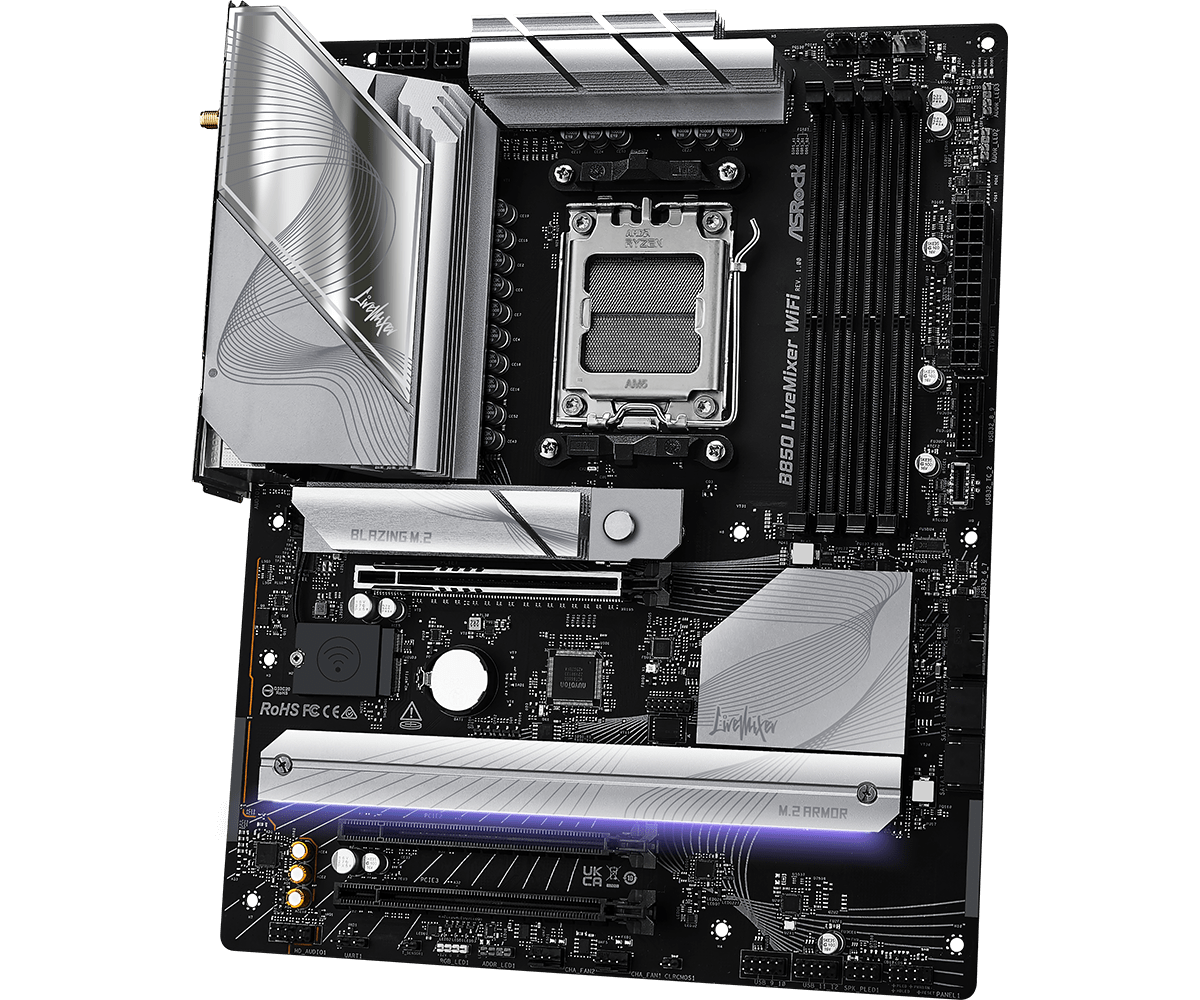

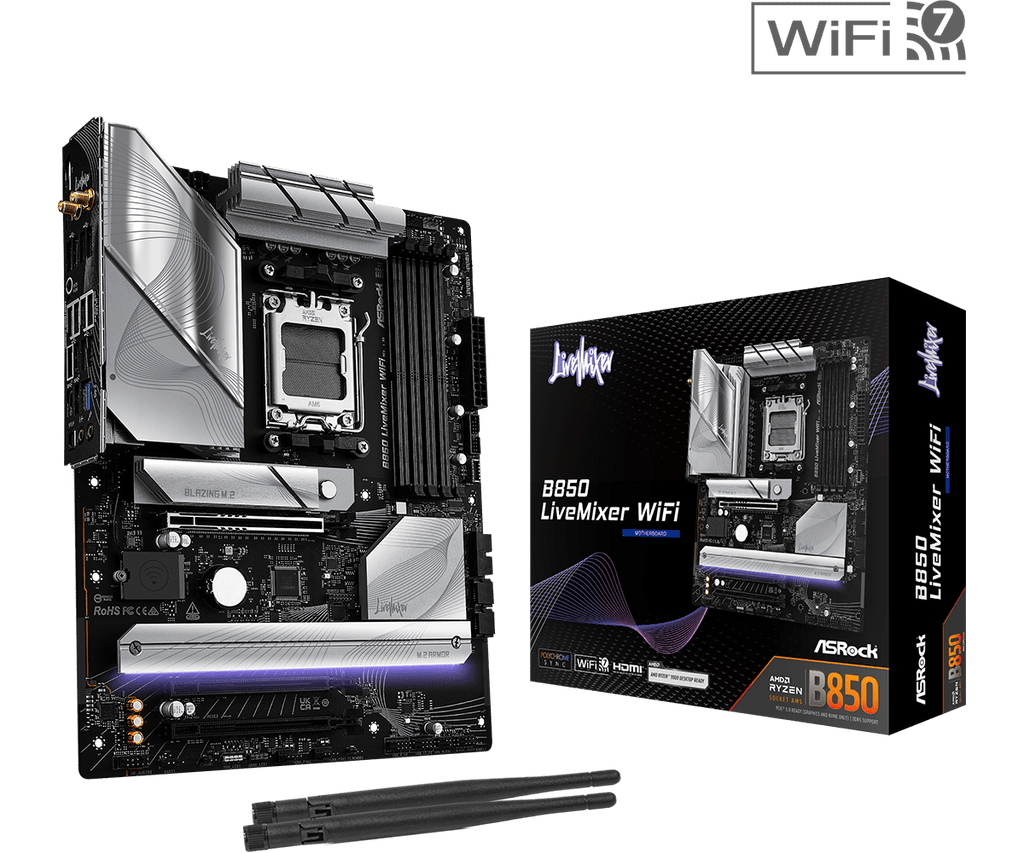

ASRock B850 LiveMixer WiFi AM5 ATX Motherboard - Wi-Fi 7
ASRock

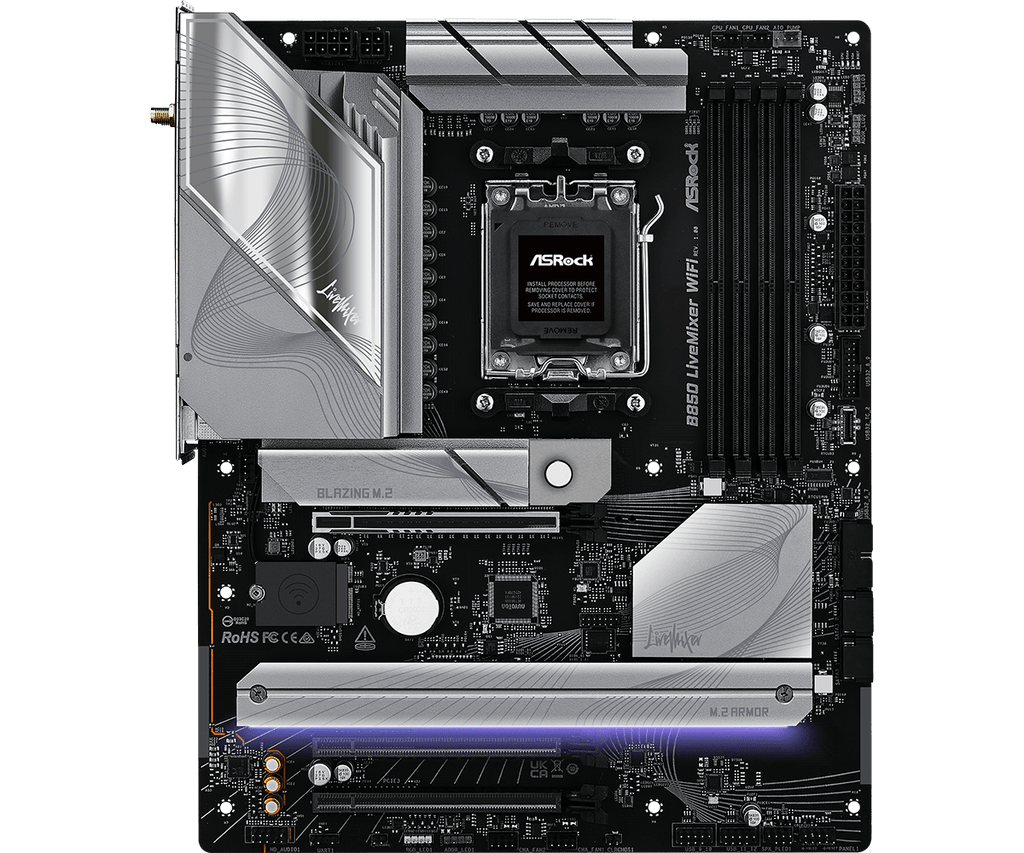

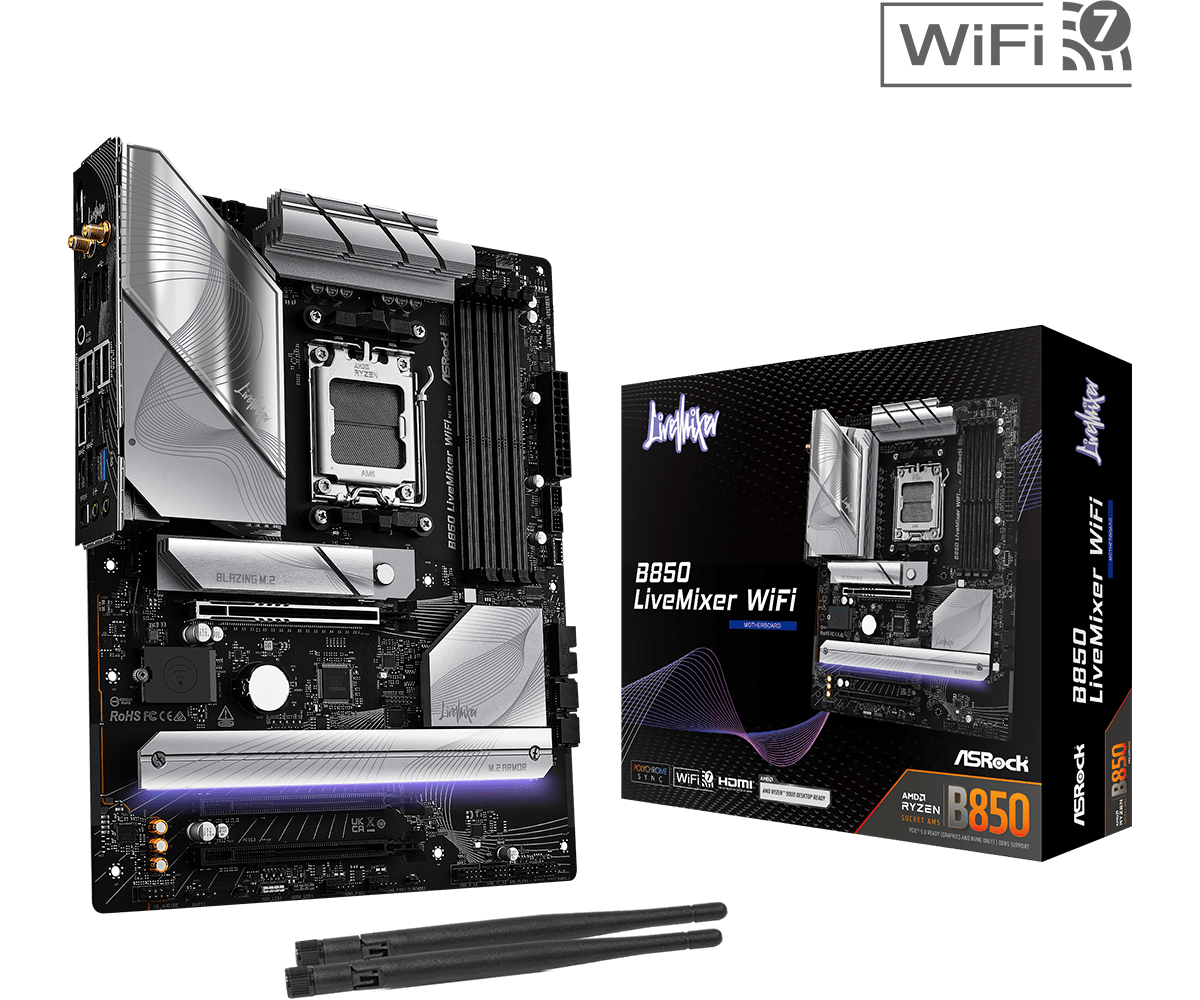

ASRock B850 LiveMixer WiFi AM5 ATX Motherboard - Wi-Fi 7
The ASRock B850 LiveMixer WiFi AM5 ATX Motherboard is built for content creators who need dense connectivity and reliable performance across multiple simultaneous devices. It pairs Wi-Fi 7 wireless networking with 23 USB ports and a full complement of M.2, PCIe, and SATA storage options, reducing dependence on external hubs. This board suits streamers, video editors, and creators running capture cards, audio interfaces, and other peripherals from a single platform.
Why this product
23 USB ports across rear and front headers
With 14 rear-panel and 9 front-header USB connections spanning USB 2.0 through USB 3.2 Gen2x2 Type-C, this board accommodates a wide array of peripherals without requiring an external hub.
Wi-Fi 7 (802.11be) for high-throughput wireless
The included Wi-Fi 7 module supports Multi-Link Operation, higher data throughput, and lower latency — suited to 8K video streaming, cloud gaming, and video conferencing.
Dual PCIe x4 slots for capture cards and more
Two PCIe x4-capable slots expand the board's compatibility with a broad range of PCIe expansion cards, useful for adding capture devices or other peripherals.
Five M.2 and SATA storage interfaces
One PCIe Gen5 M.2 slot, two PCIe Gen4 M.2 slots, and two SATA3 ports give content creators fast primary storage and ample room for project archives.
DDR5 support up to 8000+ MHz OC
Four DDR5 DIMM slots support up to 256 GB and memory overclocking beyond 8000 MHz, keeping up with memory-intensive video editing and rendering workloads.
BIOS Flashback for hassle-free firmware updates
The BIOS Flashback Button lets you update firmware without a CPU or memory installed, which simplifies preparation when adopting a new processor generation.
- SocketAMD AM5
- ChipsetAMD B850
- Form FactorATX (9.6" × 12")
- Memory4× DDR5 DIMM, up to 256 GB, up to 8000+ MHz OC
- USB Ports Total23
- WirelessWi-Fi 7 (802.11be)
- Wired LAN2.5 Gigabit (Dragon RTL8125BG)
- Storage Interfaces1× PCIe Gen5 M.2, 2× PCIe Gen4 M.2, 2× SATA3
- SKUASR-1829
- EAN4711581490154
- Compatible with AMD Ryzen 9000, 8000, and 7000 series processors via the AM5 socket.
- Supports DDR5 memory modules in standard 288-pin DIMM format; up to four sticks and a total of 256 GB.
- ATX form factor (9.6" × 12") fits any standard ATX mid-tower or full-tower case.
- Rear display outputs (HDMI 2.1 and DisplayPort 1.4) are active only when using a Ryzen processor with integrated graphics.
- M-ATX or Mini-ITX cases will not accommodate this board; verify case compatibility before purchase.
- Not compatible with AMD AM4, AM3, or Intel LGA processors — AM5 socket only.
Best for
- Streamers and video creators who run multiple capture cards, audio interfaces, and USB peripherals simultaneously — 23 USB ports reduce hub clutter.
- Wireless-first setups benefiting from Wi-Fi 7's Multi-Link Operation and lower latency for real-time streaming or video conferencing.
- Storage-heavy workflows — five storage interfaces (one Gen5 M.2, two Gen4 M.2, two SATA3) provide room for fast project drives alongside bulk archive storage.
- Builders on the AMD AM5 platform wanting headroom for future Ryzen 9000, 8000, or 7000 series upgrades without changing boards.
- RGB-conscious builds with Polychrome SYNC and SignalRGB support for coordinated lighting across compatible components.
Trade-offs
- Intel platform users — this board requires an AM5 processor and is incompatible with any Intel socket.
- DDR4 memory owners — the board accepts DDR5 only; existing DDR4 kits cannot be reused.
- Compact or small-form-factor builds — the ATX (9.6" × 12") footprint does not fit Micro-ATX or Mini-ITX cases.
- Users needing 10 GbE or higher wired speeds — onboard LAN tops out at 2.5 Gigabit; a separate 10 GbE card would be required.
- Buyers needing extensive PCIe 5.0 slots — only one PCIe 5.0 x16 slot is provided; additional expansion slots are PCIe 4.0.
LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time. We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.
Featuring 23 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs.
Featuring two PCIe x4 slots that support compatibility with a wide range of PCIe expansion cards, this design enhances functionality and boosts connectivity, making it an ideal companion for both work and entertainment.
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
General
| Brand | ASRock |
|---|---|
| Form Factor | ATX (9.6" × 12") |
| Chipset | AMD B850 |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 9000, 8000, 7000 Series |
| PCB Layers | 8 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, BIOS Flashback Button |
Networking
| Standard | 802.11be Wi-Fi 7 |
|---|---|
| Wired LAN | 2.5 Gigabit (10/100/1000/2500 Mb/s), Dragon RTL8125BG |
| Throughput | Up to 2500 Mb/s (wired) |
Performance
| Memory Slots | 4× 288-pin DDR5 DIMM |
|---|---|
| Max Memory | 256 GB |
| Memory Speed | Up to 8000+ MHz (OC) |
| Power Phases | 14+2+1, 80A Dr.MOS |
| Expansion Slots | 1× PCIe 5.0 x16, 2× PCIe 4.0 x16 |
| Storage | 1× PCIe Gen5 M.2, 2× PCIe Gen4 M.2, 2× SATA3 6.0 Gb/s |
| RAID | RAID 0, RAID 1 (SATA); RAID 0, RAID 1, RAID 10 (M.2 NVMe) |
| Audio | 7.1 CH HD Audio, Realtek ALC1220, Nahimic Audio |
Ports & Physical

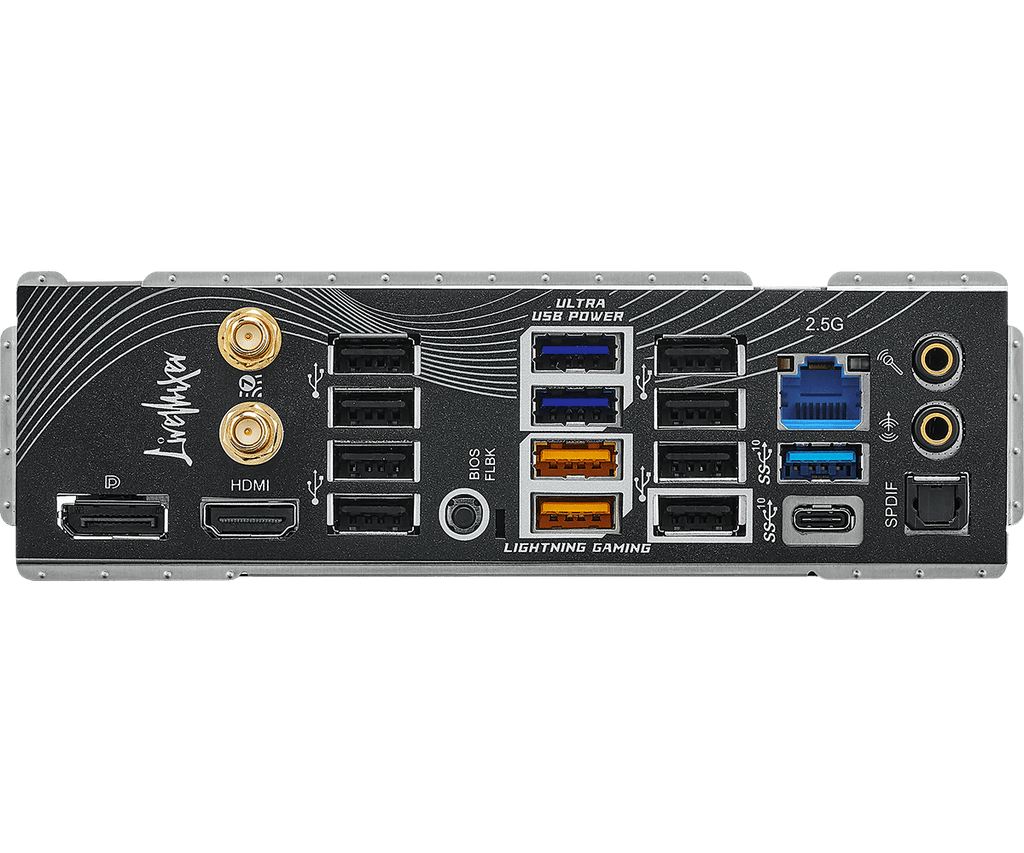

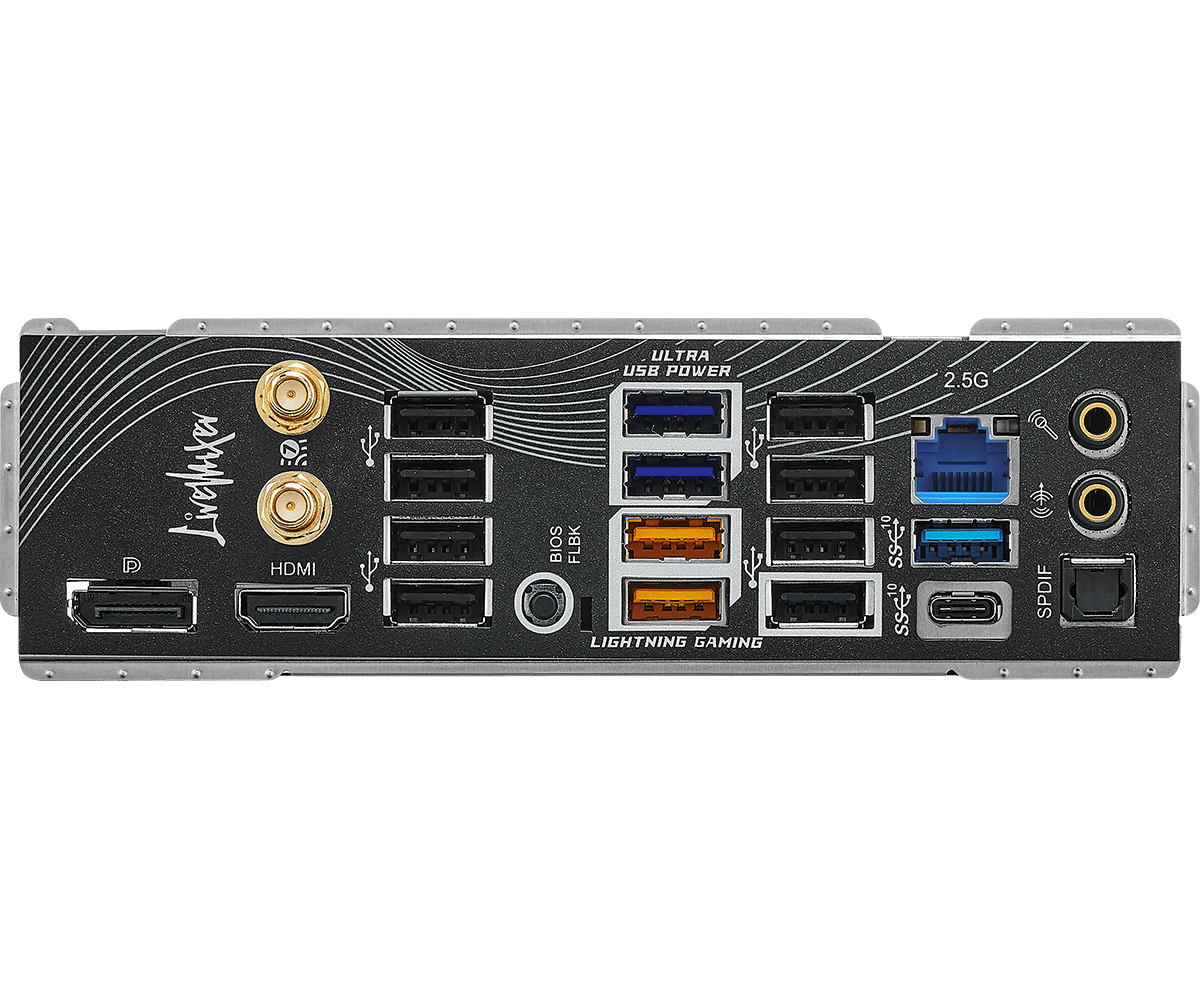

| USB (Rear) | 1× USB 3.2 Gen2×2 Type-C, 1× USB 3.2 Gen2 Type-A, 4× USB 3.2 Gen1, 8× USB 2.0 |
|---|---|
| USB (Front Headers) | 1× USB 3.2 Gen2 Type-C, 4× USB 3.2 Gen1, 4× USB 2.0 |
| Total USB Ports | 23 |
| Graphics Output | 1× HDMI 2.1 (HDR, HDCP 2.3, max 4K 120Hz), 1× DisplayPort 1.4 with DSC (HDCP 2.3, max 4K 120Hz) |
| RGB | Polychrome SYNC / SignalRGB |
