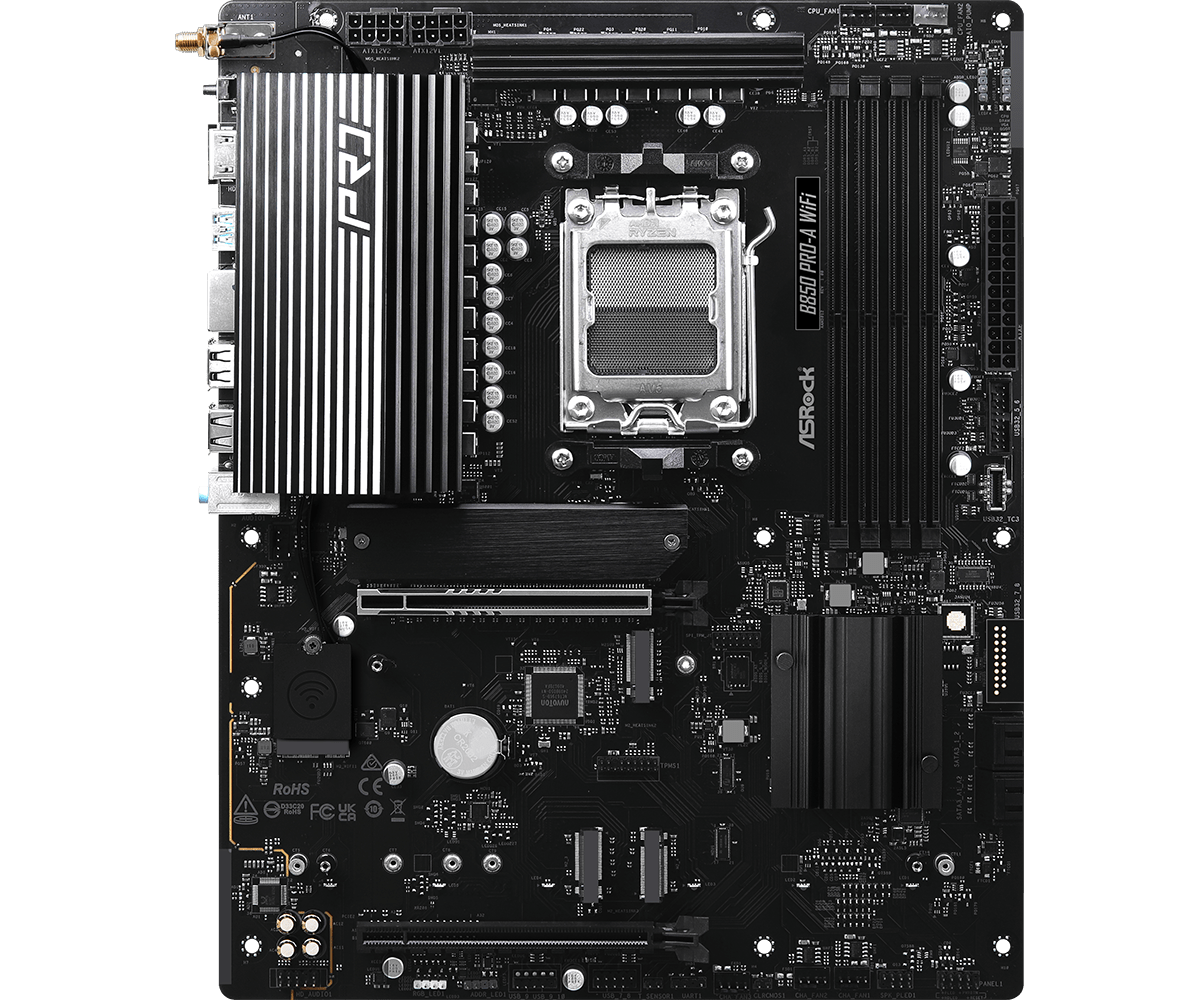

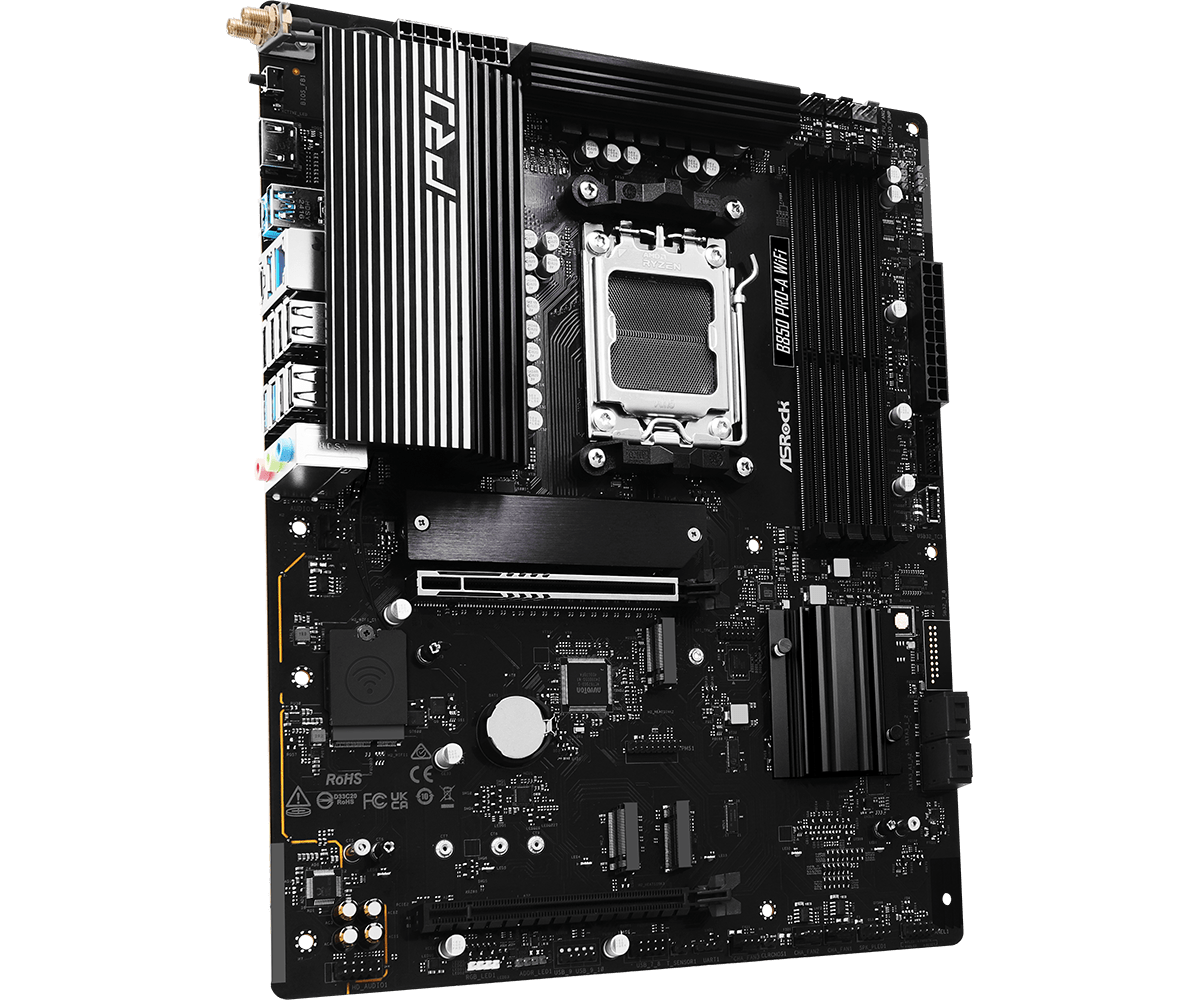

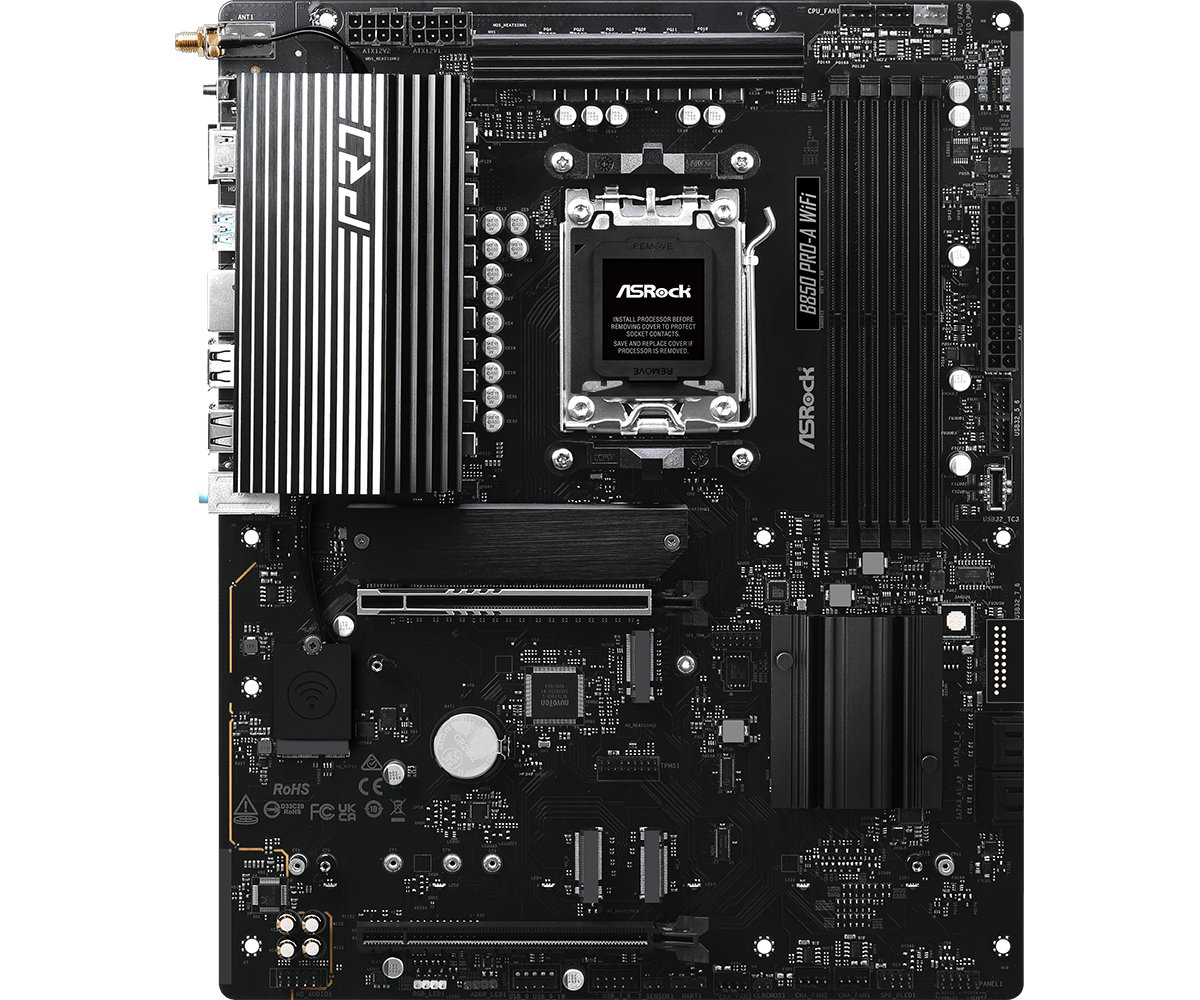

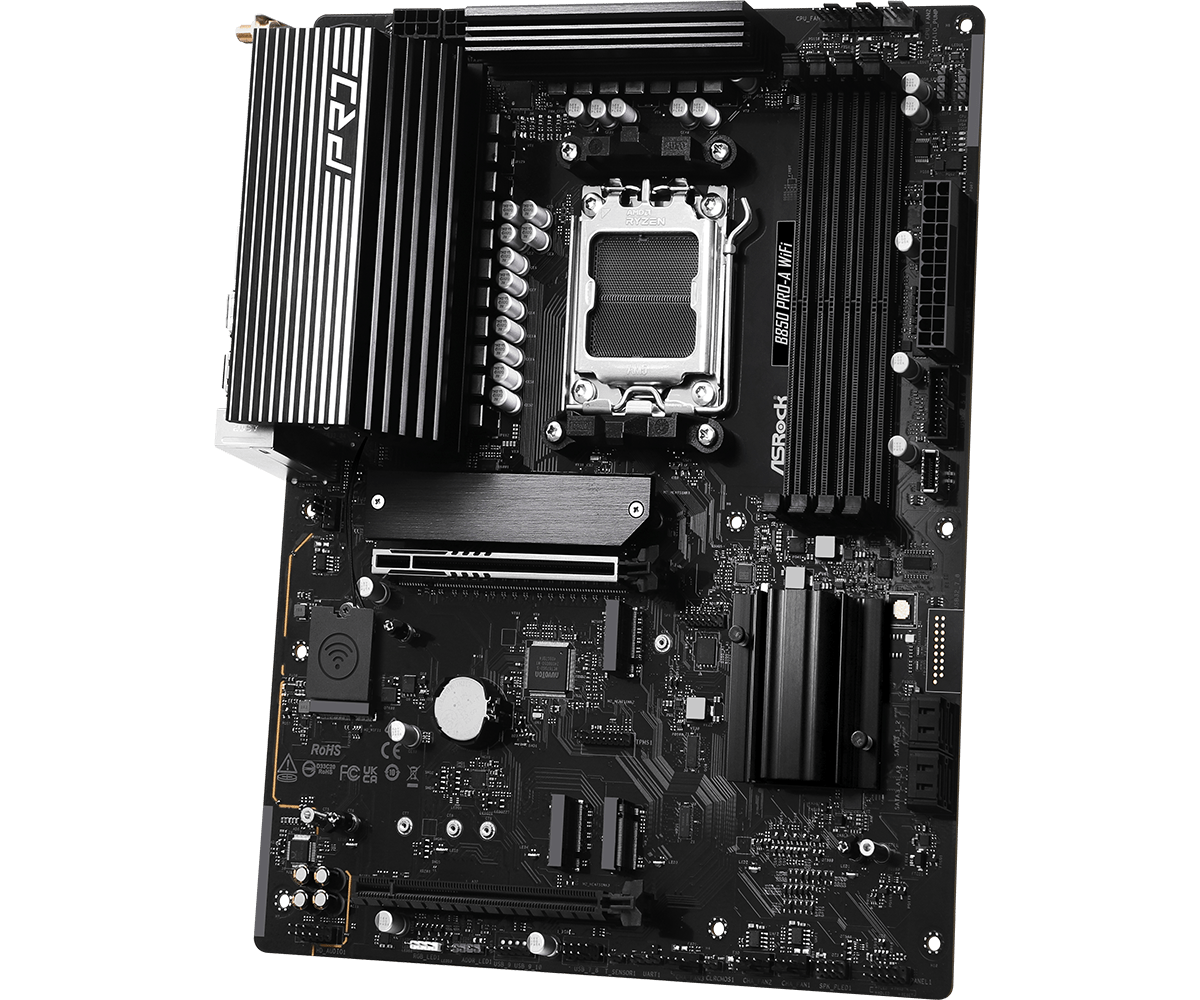

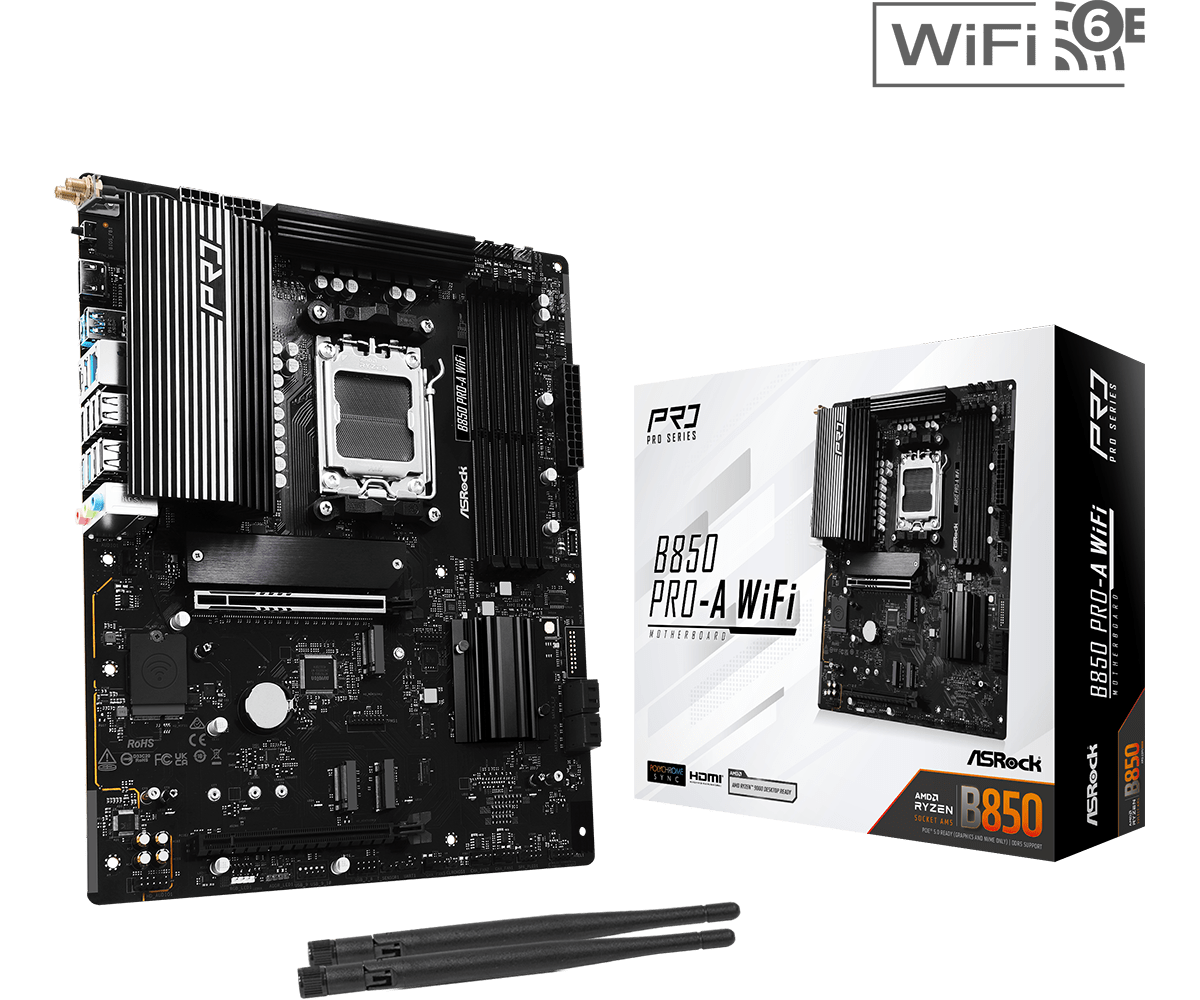

ASRock B850 Pro-A WiFi AM5 ATX Motherboard DDR5 Wi-Fi 6E
ASRock
ASRock B850 Pro-A WiFi AM5 ATX Motherboard DDR5 Wi-Fi 6E
The ASRock B850 Pro-A WiFi is an AM5 ATX motherboard for Ryzen 9000, 8000 and 7000 series CPUs. It combines PCIe 5.0 expansion, DDR5 memory support, and Wi-Fi 6E connectivity for builders who need high-speed storage, fast networking, and stable power delivery for demanding workloads.
Why this product
PCIe 5.0 and DDR5 support
One PCIe 5.0 x16 slot for graphics and one M.2 PCIe 5.0 x4 socket for NVMe drives. Four DDR5 DIMM slots support memory up to 8000+ MHz (OC).
Wi-Fi 6E and 2.5G LAN
802.11axe Wi-Fi 6E adds a 6GHz band for more capacity and less congestion. Realtek 2.5 Gigabit Ethernet for wired speeds up to 2500 Mb/s.
Robust power delivery
14+2+1 phase power design with 80A Dr.MOS for stable CPU, SoC and miscellaneous power rails.
Multiple M.2 sockets for storage
One PCIe 5.0 x4, two PCIe 4.0 x4, and one PCIe 3.0 x4 M.2 socket, plus four SATA ports for SSDs and mechanical drives.
BIOS Flashback and easy setup
Update BIOS with just a USB drive and power supply—no CPU or RAM required. Pre-installed LAN drivers simplify first-boot setup.
- SocketAM5
- ChipsetAMD B850
- Form FactorATX
- Memory4 x DDR5 DIMM, up to 8000+ MHz (OC)
- Storage1 x PCIe 5.0 x4 M.2, 2 x PCIe 4.0 x4 M.2, 1 x PCIe 3.0 x4 M.2, 4 x SATA3
- Wireless802.11axe Wi-Fi 6E + Bluetooth 5.2
- LAN2.5 Gigabit Ethernet
- SKUASR-1892
- EAN4711581490192
- Fits all AM5 Ryzen 9000, 8000 and 7000 series CPUs with integrated graphics.
- Accepts standard ATX power supplies with 24-pin and dual 8-pin 12V connectors.
- Works with DDR5 ECC and non-ECC memory modules supporting XMP and EXPO profiles.
- Integrated graphics output via HDMI 2.1 and USB Type-C DP-alt (DP1.4a) requires a CPU with graphics—not available in all Ryzen models.
- PCIe 5.0 bandwidth on M2_1 socket requires a CPU that supports PCIe 5.0; some older AM5 CPUs do not.
Best for
- Builders pairing high-end graphics cards with NVMe Gen 5 drives
- Users who need Wi-Fi 6E and wired Gigabit connectivity on the same board
- Overclocking enthusiasts using DDR5 memory and multiple storage devices
- Content creators and workstation builders requiring stable multi-phase power
Trade-offs
- Builders using older AM5 CPUs that do not support PCIe 5.0 or Wi-Fi 6E features.
- Budget builds where DDR5 memory and PCIe 5.0 SSDs are not yet cost-effective.
- Compact or SFF builds—ATX form factor requires full-size cases with adequate cooling space.
- Users who need more than four SATA connectors; this board offers only four total.
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors · 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC · 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 · Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt) Realtek ALC897 7.1 CH HD Audio Codec · 1 Blazing M.2 (PCIe Gen5x4) 2 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4) 4 SATA3 · 1 USB 3.2 Gen2x2 Type-C (Front) 1 USB 3.2 Gen2 Type-C (Rear) 1 USB 3.2 Gen1 Type-C (Rear) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 9 USB 2.0 (6 Rear, 3 Front) Realtek 2.5G LAN · 802.11axe WiFi 6E +Bluetooth · Supports BIOS Flashback · This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear. Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
General
| Brand | ASRock |
|---|---|
| Platform | ATX; 8 Layer PCB |
| Chipset | AMD B850 |
Performance
| CPU Support | AMD Ryzen 9000, 8000, 7000 series (AM5) |
|---|---|
| Memory Technology | Dual Channel DDR5, ECC/non-ECC, up to 8000+ MHz (OC) |
| Maximum Memory | 256GB (4 x 64GB) |
| Power Delivery | 14+2+1 phase; 80A Dr.MOS for VCore, SoC, MISC |
Networking
| LAN Standard | 2.5 Gigabit Ethernet (Realtek) |
|---|---|
| LAN Throughput | 10/100/1000/2500 Mb/s |
| Wireless Standard | 802.11axe Wi-Fi 6E |
| Wireless Bands | Dual-Band 2x2 with extended 6GHz; IEEE 802.11a/b/g/n/ac/ax/axe |
| Bluetooth | Bluetooth 5.2 |
Ports & power
| PCIe Expansion | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (Chipset, x4 mode) |
|---|---|
| M.2 Storage | 1 x PCIe Gen5x4 (M2_1), 1 x PCIe Gen4x4 (M2_2), 1 x PCIe Gen4x4 (M2_3), 1 x PCIe Gen3x4 (M2_4) |
| SATA Ports | 4 x SATA3 6.0 Gb/s |

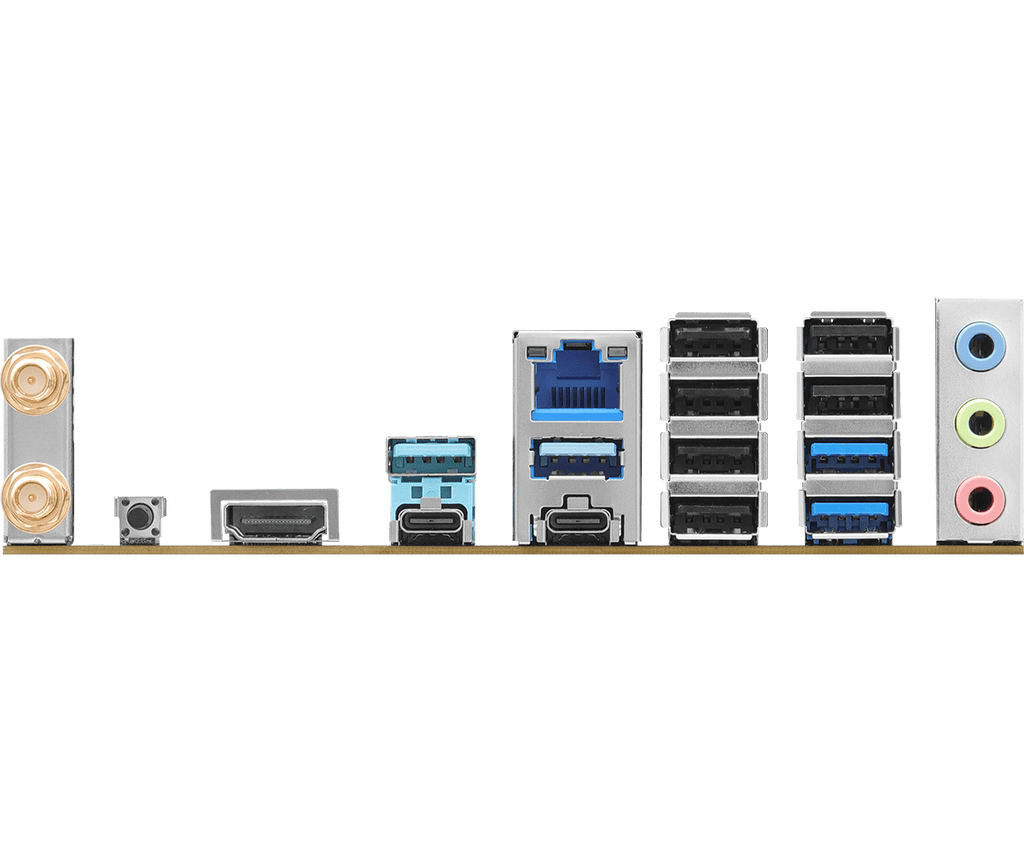

| USB (Rear) | 2 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 6 x USB 2.0 |
| USB (Front Headers) | 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen1 Type-A, 3 x USB 2.0 |
| Graphics Outputs | 1 x HDMI 2.1 (TMDS/FRL 8G), 1 x USB 3.2 Gen1 Type-C (DP-alt DP1.4a) |
| Audio | Realtek ALC897 7.1 CH HD Audio; rear jacks for Line In, Front Speaker, Microphone |
| ATX Power | 1 x 24-pin ATX, 2 x 8-pin 12V (Hi-Density) |
| Fan Connectors | 2 x CPU Fan (4-pin), 4 x Chassis Fan (4-pin), 1 x AIO Pump (4-pin) |
Physical
| Form Factor | ATX |
|---|---|
| PCB Layers | 8 Layer |
| BIOS | 256Mb AMI UEFI with GUI |
