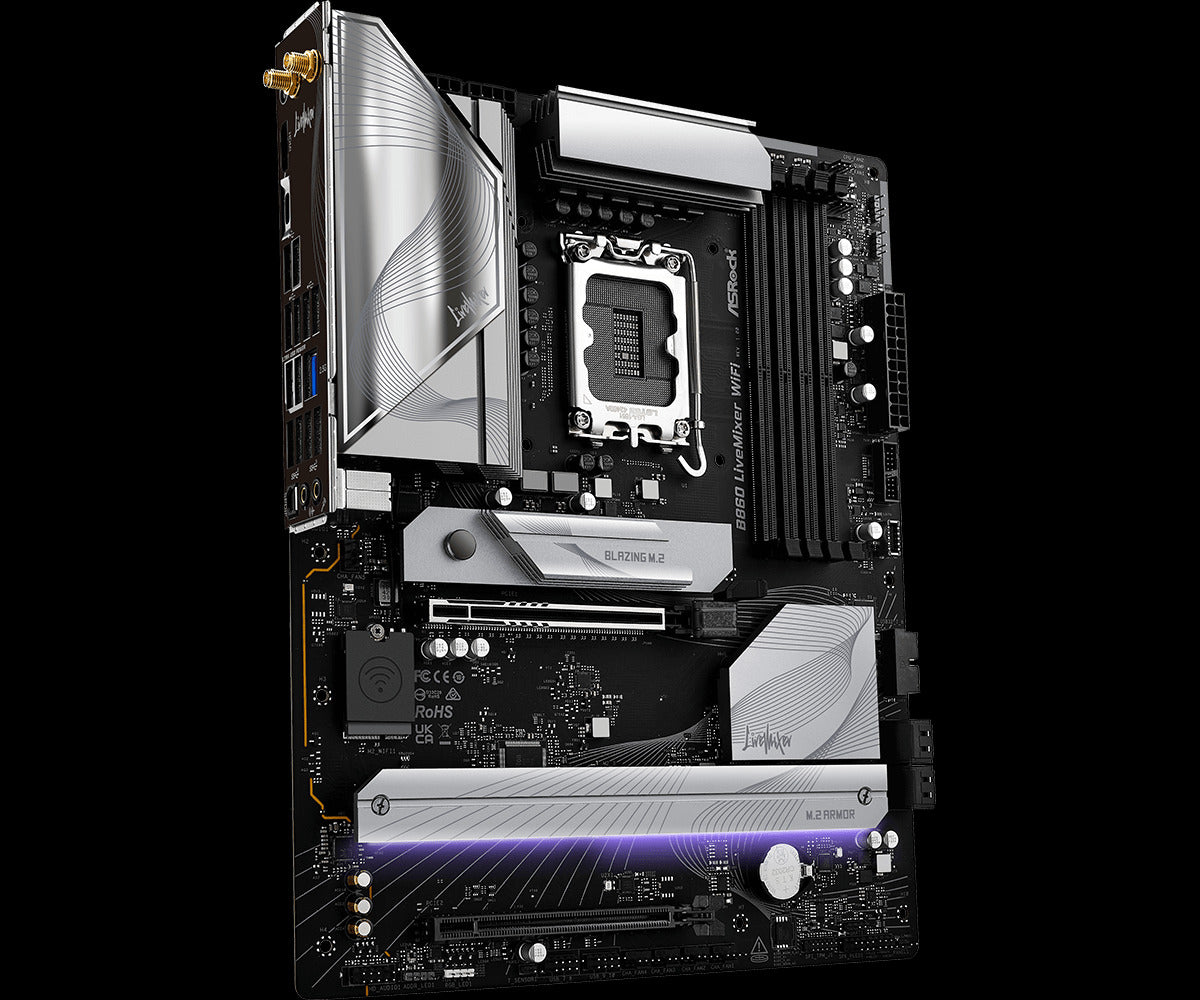

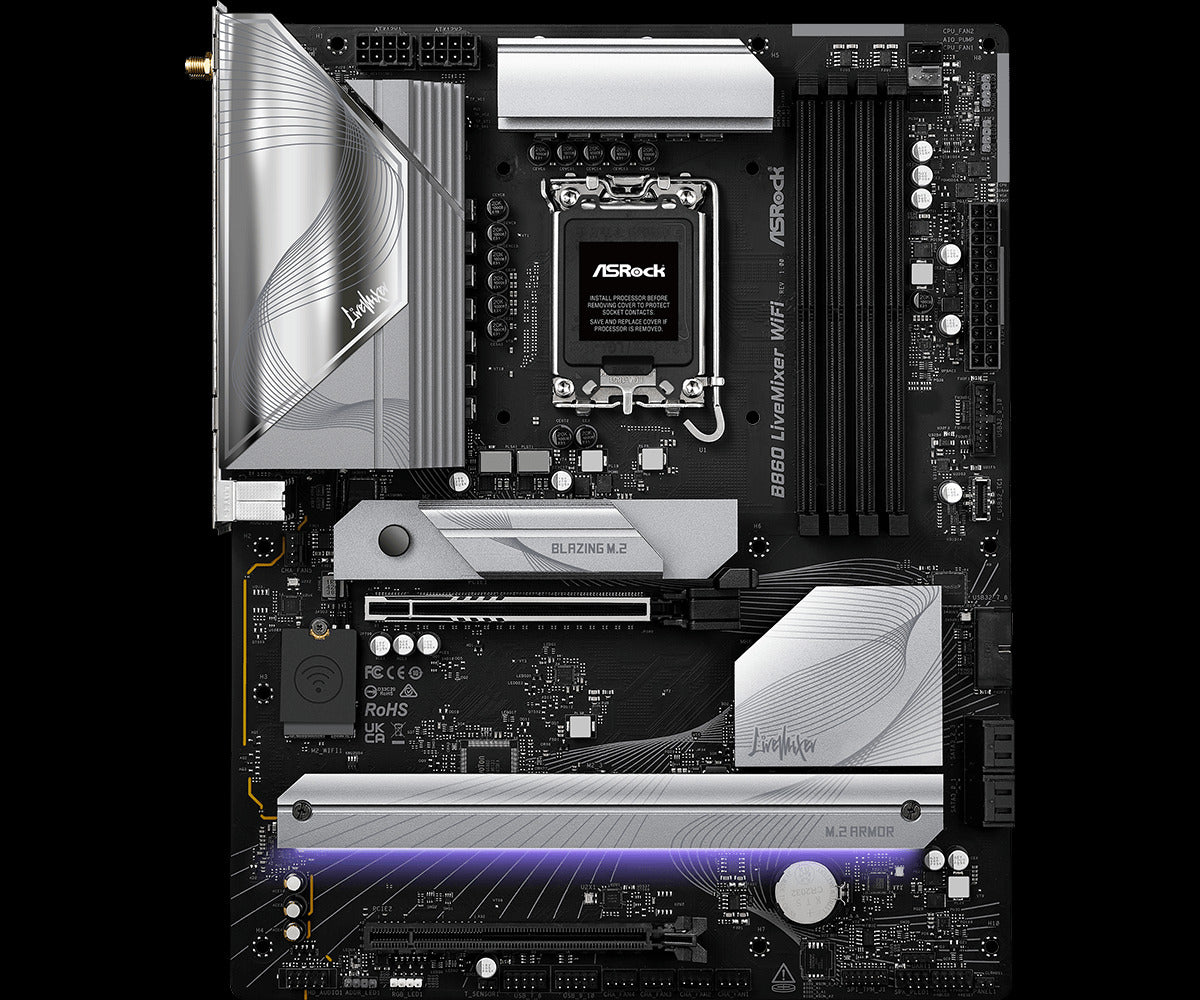

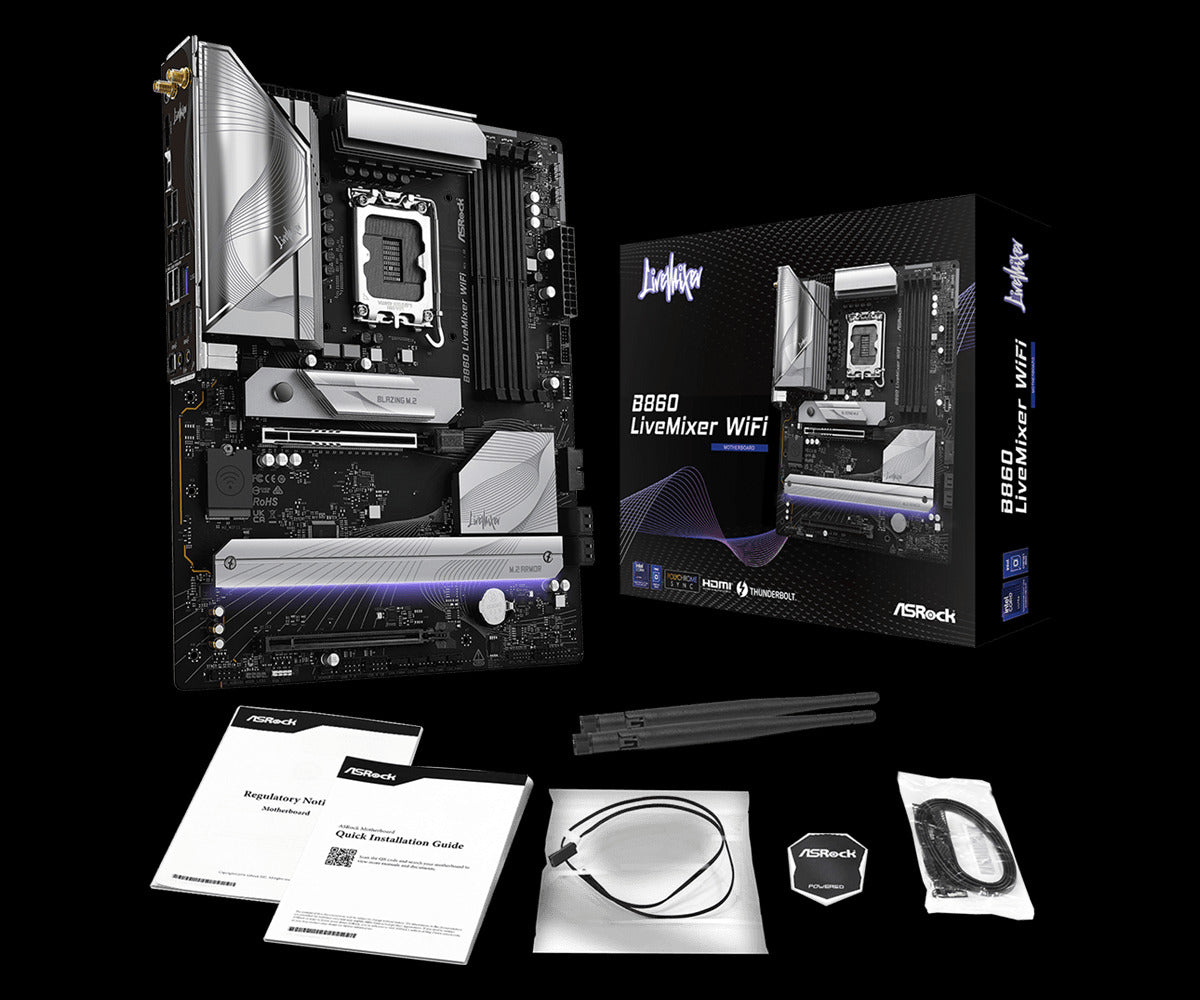

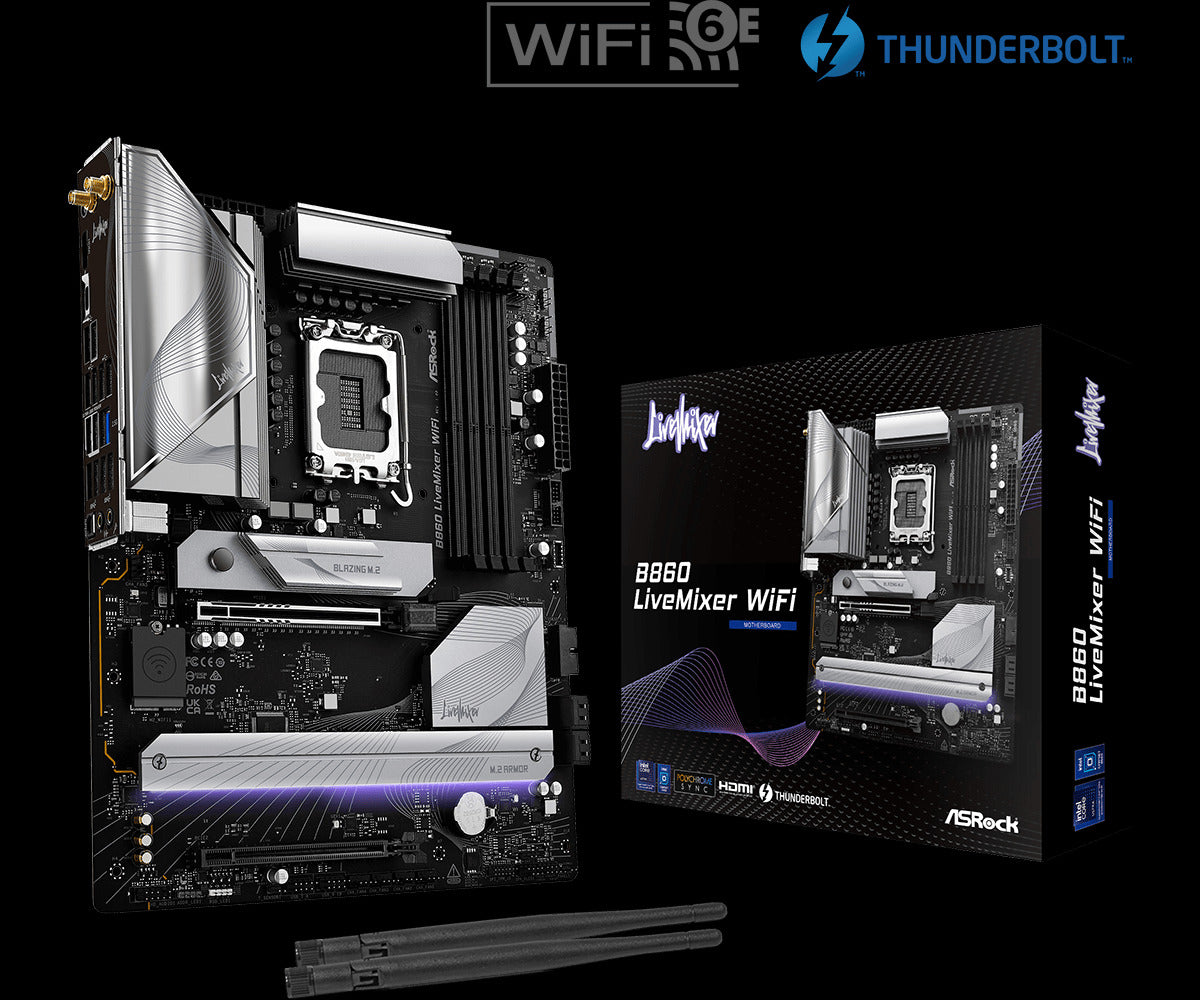

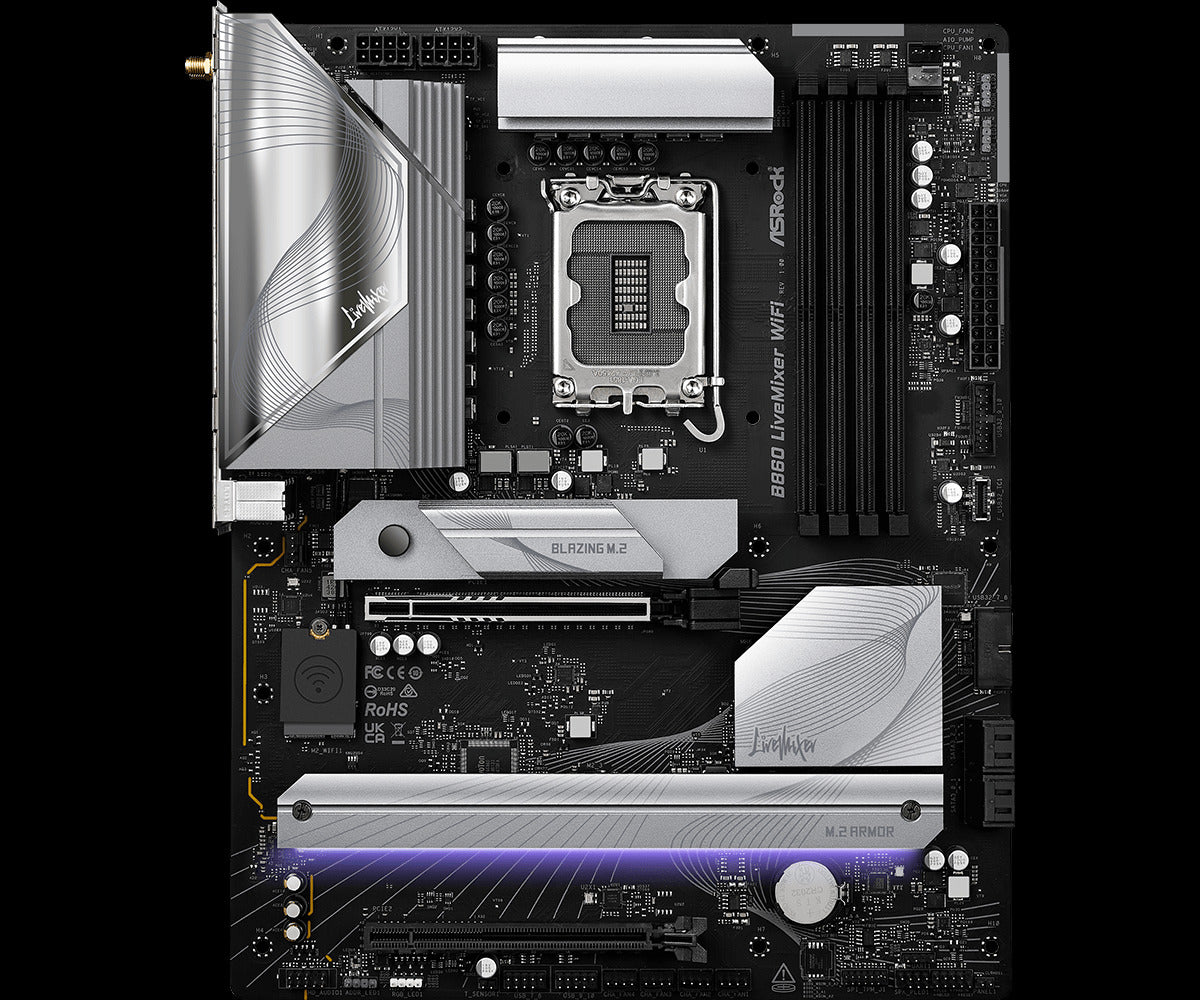

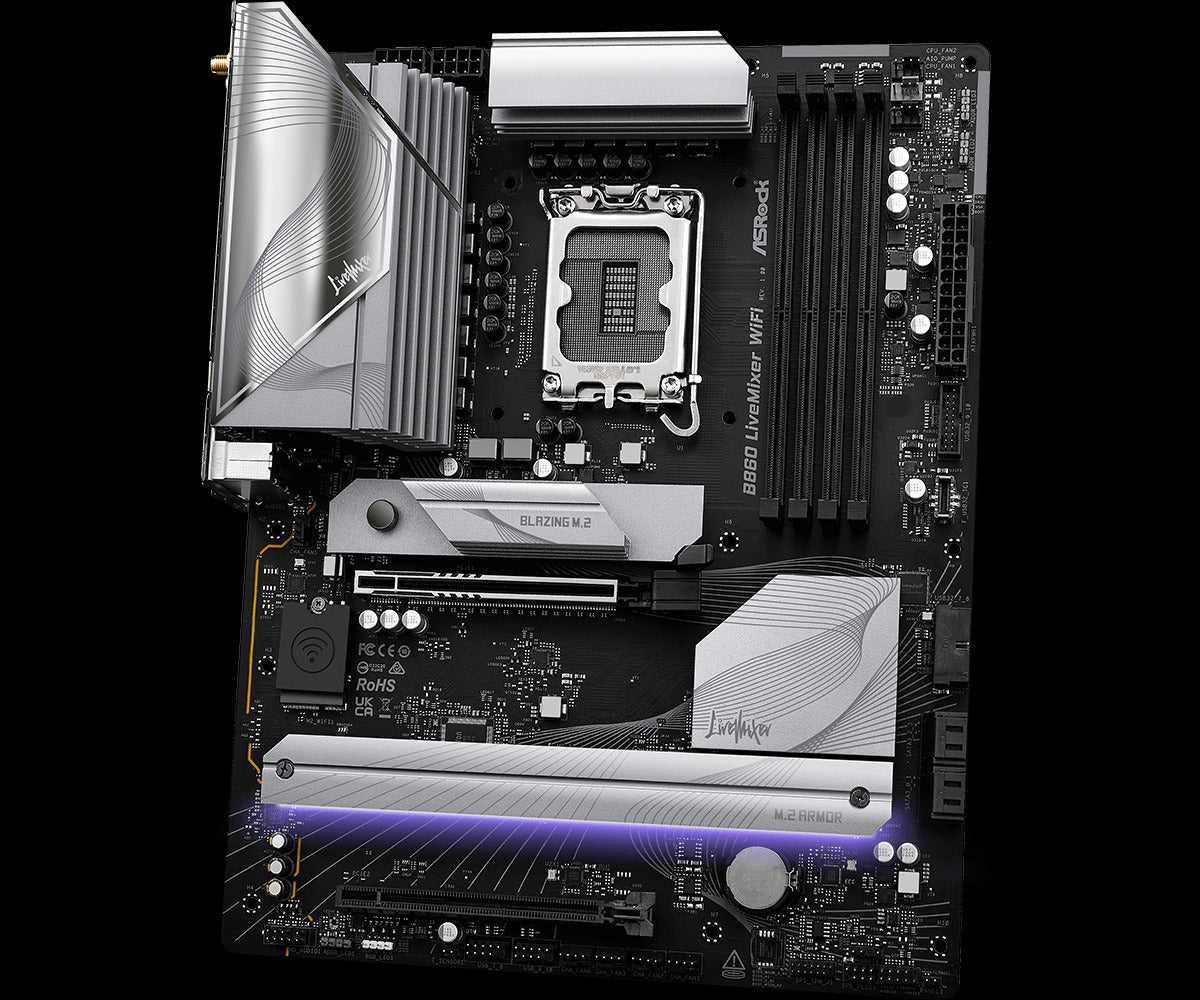

ASRock B860 LiveMixer WiFi ATX LGA1851 DDR5 Motherboard
ASRock
ASRock B860 LiveMixer WiFi ATX LGA1851 DDR5 Motherboard
The ASRock B860 LiveMixer WiFi is an ATX motherboard for Intel Core Ultra Processors (Series 2) designed around the needs of content creators who stream and work with multiple external devices. It combines reliable performance with extensive connectivity options including Thunderbolt 4, multiple USB ports, and Wi-Fi 6E.
Why this product
Thunderbolt 4 and USB4 connectivity
One rear Thunderbolt 4/USB4 Type-C port supports high-speed data transfer and video output up to 8K 60Hz, alongside ten USB 3.2 Gen1 ports for simultaneous peripherals.
PCIe 5.0 and Gen4 storage
One Blazing M.2 slot runs PCIe Gen5x4 for maximum NVMe speed, with two additional Hyper M.2 slots on Gen4x4 and four SATA ports for flexible drive configuration.
Wi-Fi 6E and 2.5G Ethernet
Dual network options cover wired and wireless: Intel Wi-Fi 6E with Bluetooth and a 2.5 Gigabit LAN port ensure stable streaming and file transfer.
12+1+1+1+1 power delivery
Dr.MOS power phases deliver stable voltage to CPU and GPU, supporting overclocking and sustained workloads on demanding processors.
7.1 surround audio with Nahimic
Realtek ALC1220 codec with Nahimic processing and impedance sensing on rear outputs ensures clean audio for content production and streaming.
- SocketLGA1851
- ChipsetIntel B860
- Form FactorATX
- Memory slots4 x DDR5 DIMM
- Max memory256GB
- Storage connections1 × PCIe Gen5x4 M.2, 2 × PCIe Gen4x4 M.2, 4 × SATA3
- WirelessWi-Fi 6E + Bluetooth
- Network2.5G Ethernet
- SKUASR-3335
- EAN4711581490147
- Fits Intel Core Ultra Processors Series 2 in LGA1851 socket only; not compatible with older Intel generations or AMD processors.
- Accepts standard DDR5 DIMMs (CUDIMM supported) in four slots; maximum capacity 256GB.
- ATX form factor fits standard mid-tower and full-tower cases; verify case supports at least one rear I/O shield opening for Thunderbolt 4 port.
- PCIe slot 2 runs at x4 mode via chipset, not x16; graphics cards and high-bandwidth devices perform better in slot 1.
Best for
- Content creators and streamers who need multiple simultaneous connections for cameras, capture devices, and external storage.
- Users who rely on wireless and wired network flexibility, with Wi-Fi 6E and 2.5G LAN for redundant or concurrent connectivity.
- Builders planning PCIe 5.0 NVMe expansion and requiring three M.2 slots plus four SATA connections.
- Systems requiring professional audio output with 7.1-channel codec and impedance sensing.
Trade-offs
- Compact builds: ATX form factor is larger than micro-ATX or mini-ITX and requires a full-size case.
- AMD-based systems: LGA1851 socket supports only Intel Core Ultra Processors Series 2.
- Second GPU workloads: PCIe slot 2 operates at x4 mode via chipset, limiting bandwidth for dual-GPU configurations.
- Budget-constrained builds: ATX B860 boards with integrated Wi-Fi 6E and Thunderbolt 4 carry a higher cost than stripped-down alternatives.
LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time. We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.
General
| Brand | ASRock |
|---|
Networking
| Wireless standard | 802.11axe Wi-Fi 6E + Bluetooth |
|---|---|
| Ethernet | 2.5 Gigabit LAN (Realtek RTL8125BG), supports 10/100/1000/2500 Mb/s |
Performance
| CPU support | Intel Core Ultra Processors (Series 2) LGA1851 |
|---|---|
| Power delivery | 12+1+1+1+1 Power Phase with Dr.MOS (VCore+GT+SA) |
| Memory support | 4 × DDR5 DIMM, dual channel, up to 8666+ MHz (OC), 256GB max; CUDIMM supported |
| Storage (CPU-connected) | 1 × M.2 PCIe Gen5x4 (Blazing, 128 Gb/s) |
| Storage (chipset-connected) | 2 × M.2 PCIe Gen4x4 (Hyper); 4 × SATA3 6.0 Gb/s |
Ports & power
| PCIe slots | 1 × PCIe 5.0 x16 (slot 1, x16 mode); 1 × PCIe 4.0 x16 (slot 2, x4 mode) |
|---|---|

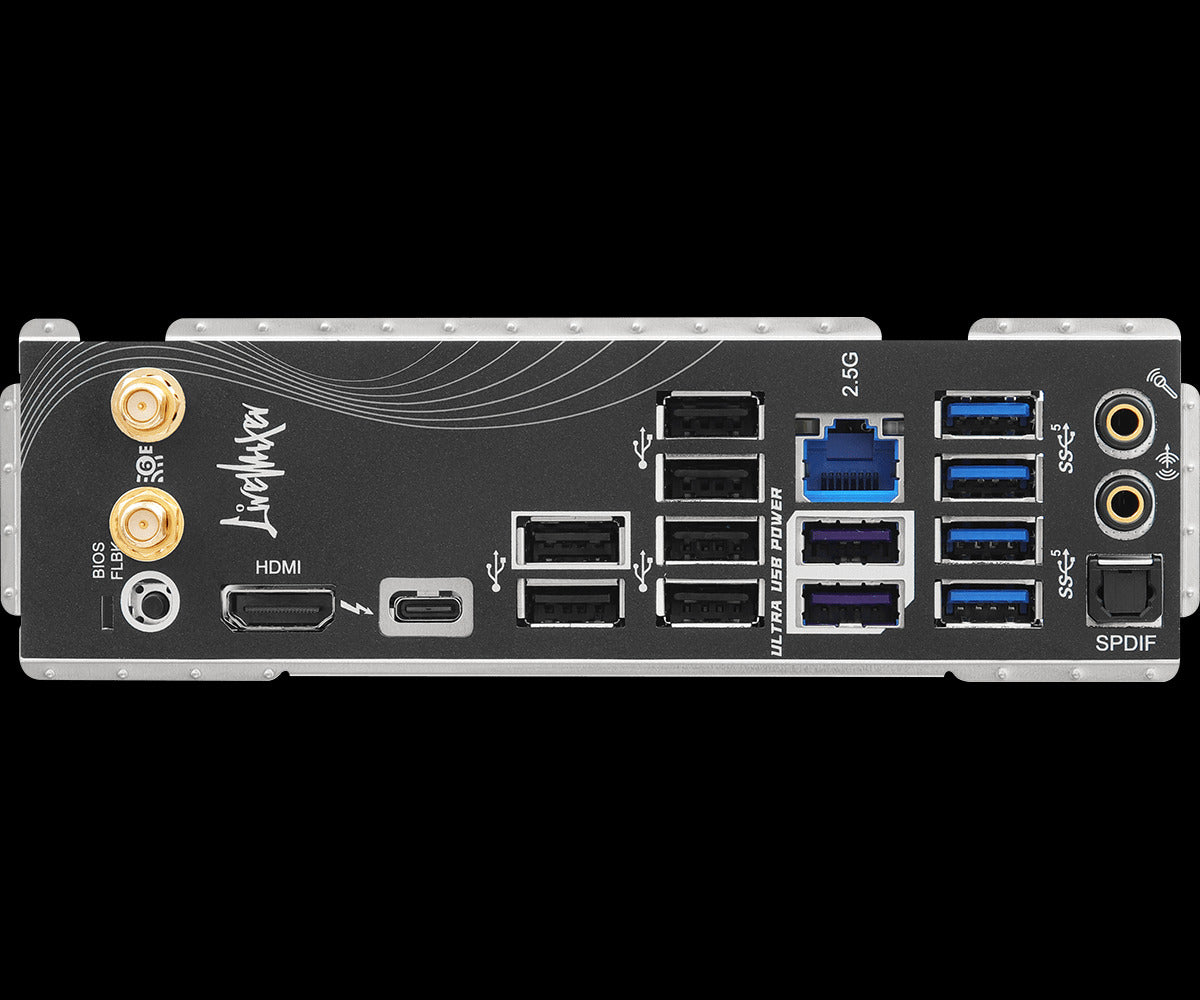

| USB (rear) | 1 × Thunderbolt 4/USB4 Type-C; 6 × USB 3.2 Gen1 Type-A; 6 × USB 2.0 |
| USB (front headers) | 1 × USB 3.2 Gen1 Type-C; 4 × USB 3.2 Gen1 Type-A; 4 × USB 2.0 |
| Video output | 1 × HDMI 2.1 (4K 120Hz, HDR, HDCP 2.3); 1 × Thunderbolt 4/USB4 Type-C (8K 60Hz/5K 120Hz, HDCP 2.3) |
| Audio | 7.1 CH HD (Realtek ALC1220); Nahimic processing; impedance sensing on rear out |
Physical
| Form factor | ATX |
|---|---|
| Special features | BIOS Flashback; 20K Caps with 1000uF capacitance |
