ASRock B860 Steel Legend WiFi - LGA1851 ATX Motherboard

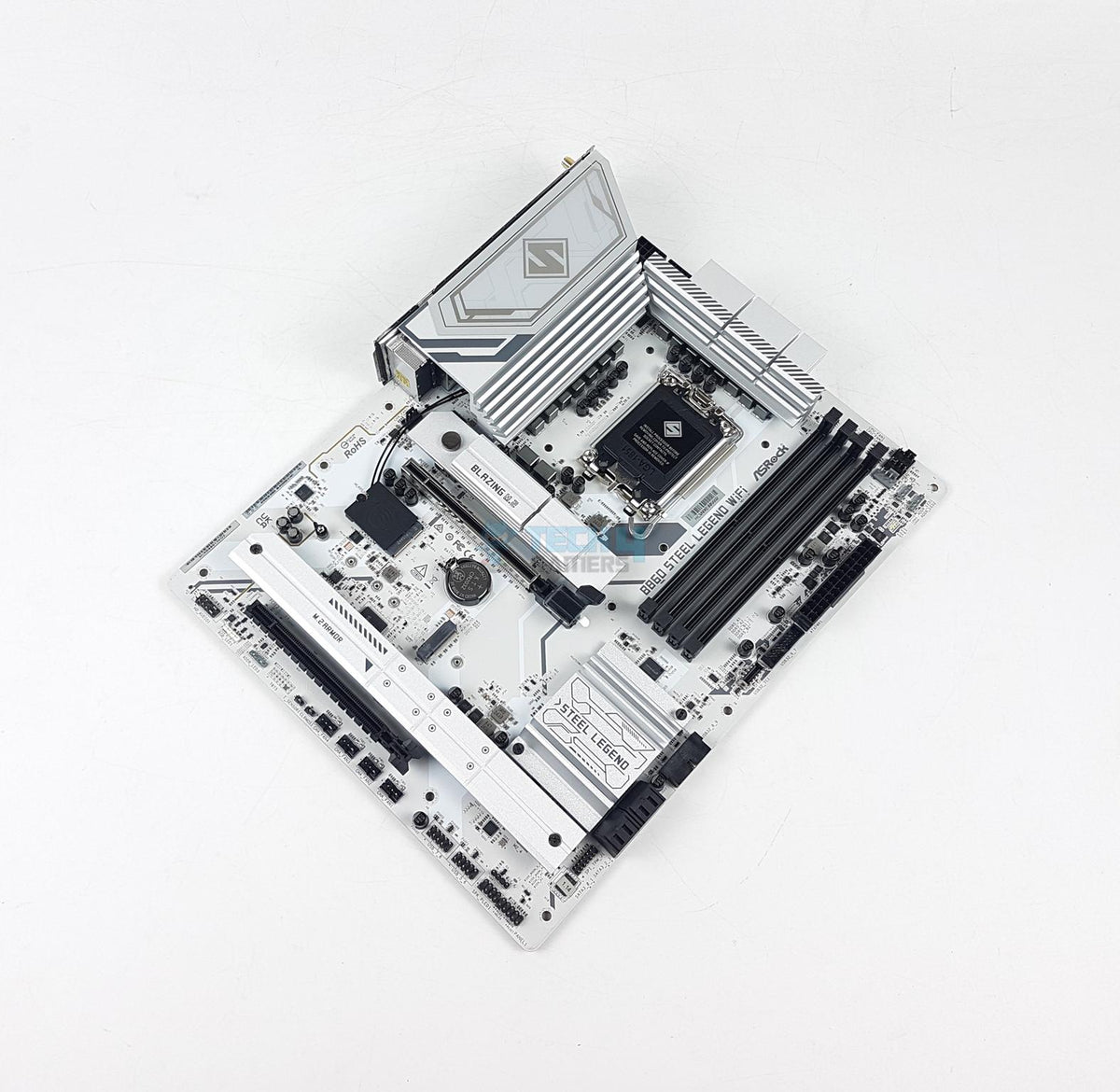

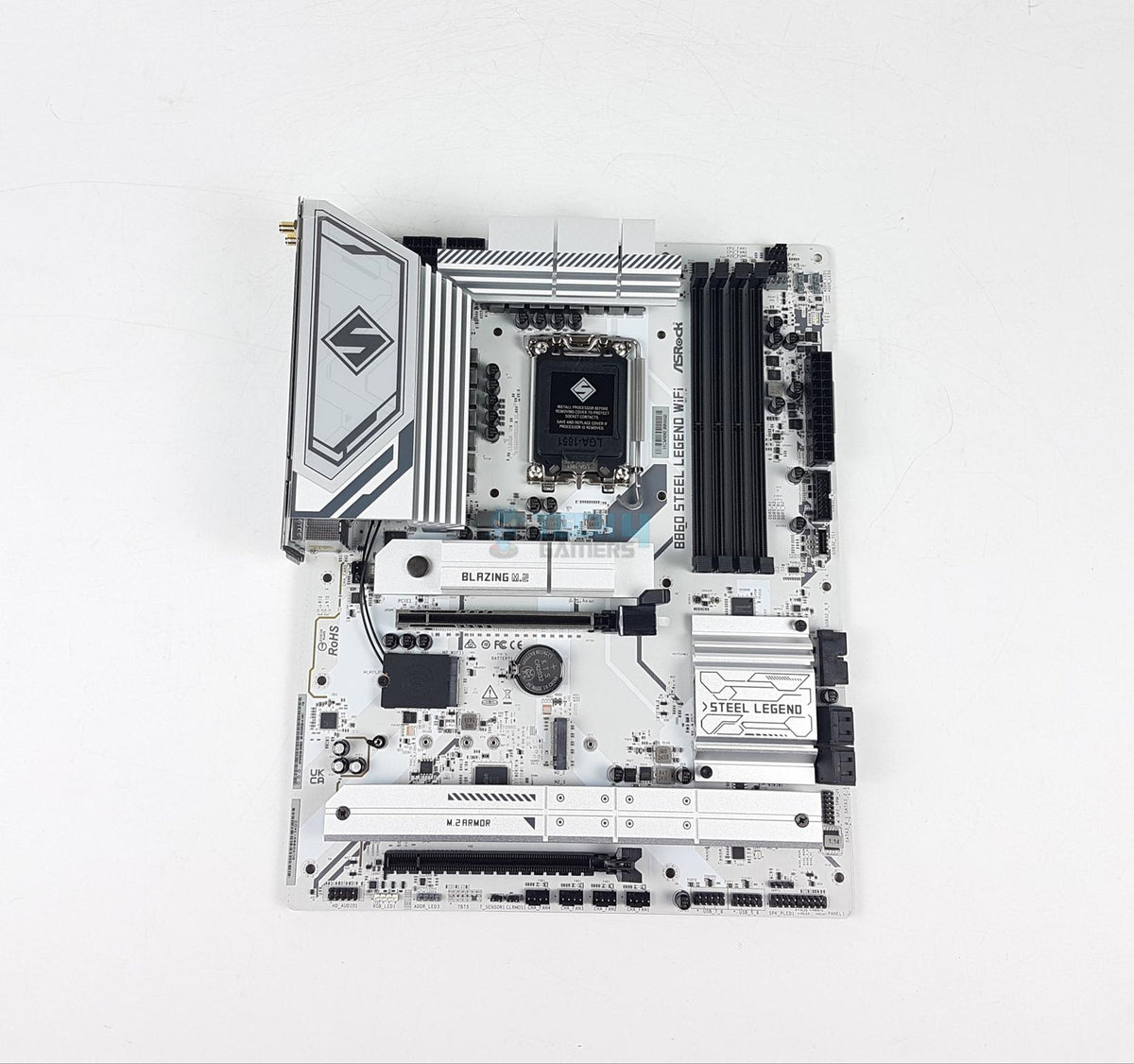

The ASRock B860 Steel Legend WiFi is an LGA1851 ATX motherboard designed for users building Intel Core Ultra Processors Series 2 systems who want solid performance, extensive connectivity, and integrated WiFi 6E without premium-tier pricing. It combines DDR5 support, PCIe 5.0 slots, and multiple M.2 expansion options with built-in networking for straightforward system assembly.
Why this product
DDR5 and PCIe 5.0 ready
Supports up to 8666+ MHz overclocked DDR5 memory and includes one PCIe 5.0 x16 slot for fast expansion cards and next-gen storage.
WiFi 6E and Gigabit LAN
Built-in WiFi 6E 802.11axe and 2.5G LAN provide wired and wireless connectivity options for any network setup.

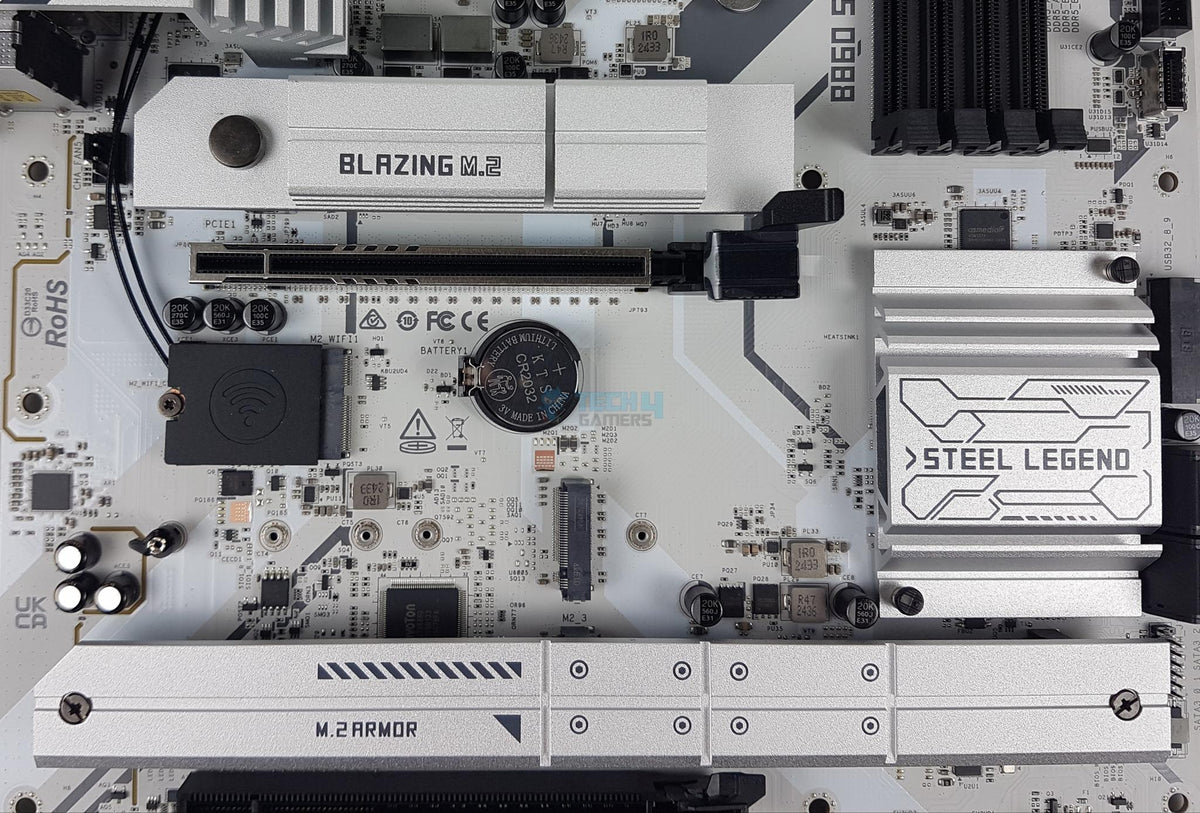

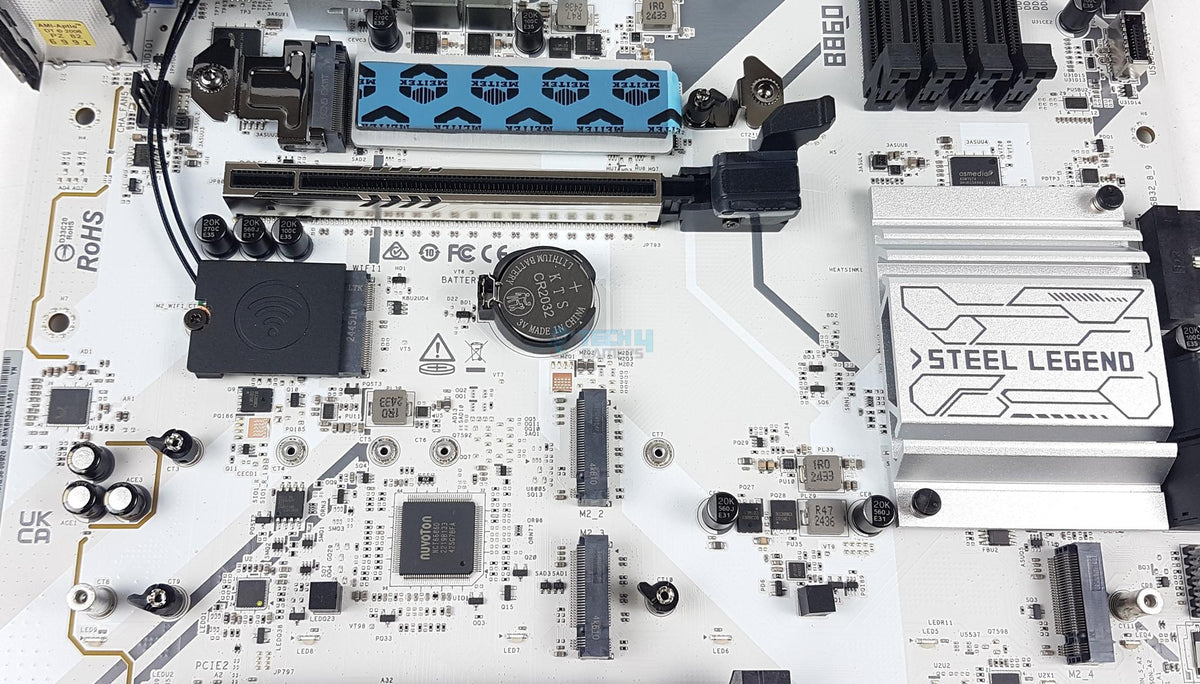

Multiple M.2 slots for storage
One Gen5 and three Gen4 M.2 slots give room for NVMe SSDs without sacrificing upgrade flexibility.

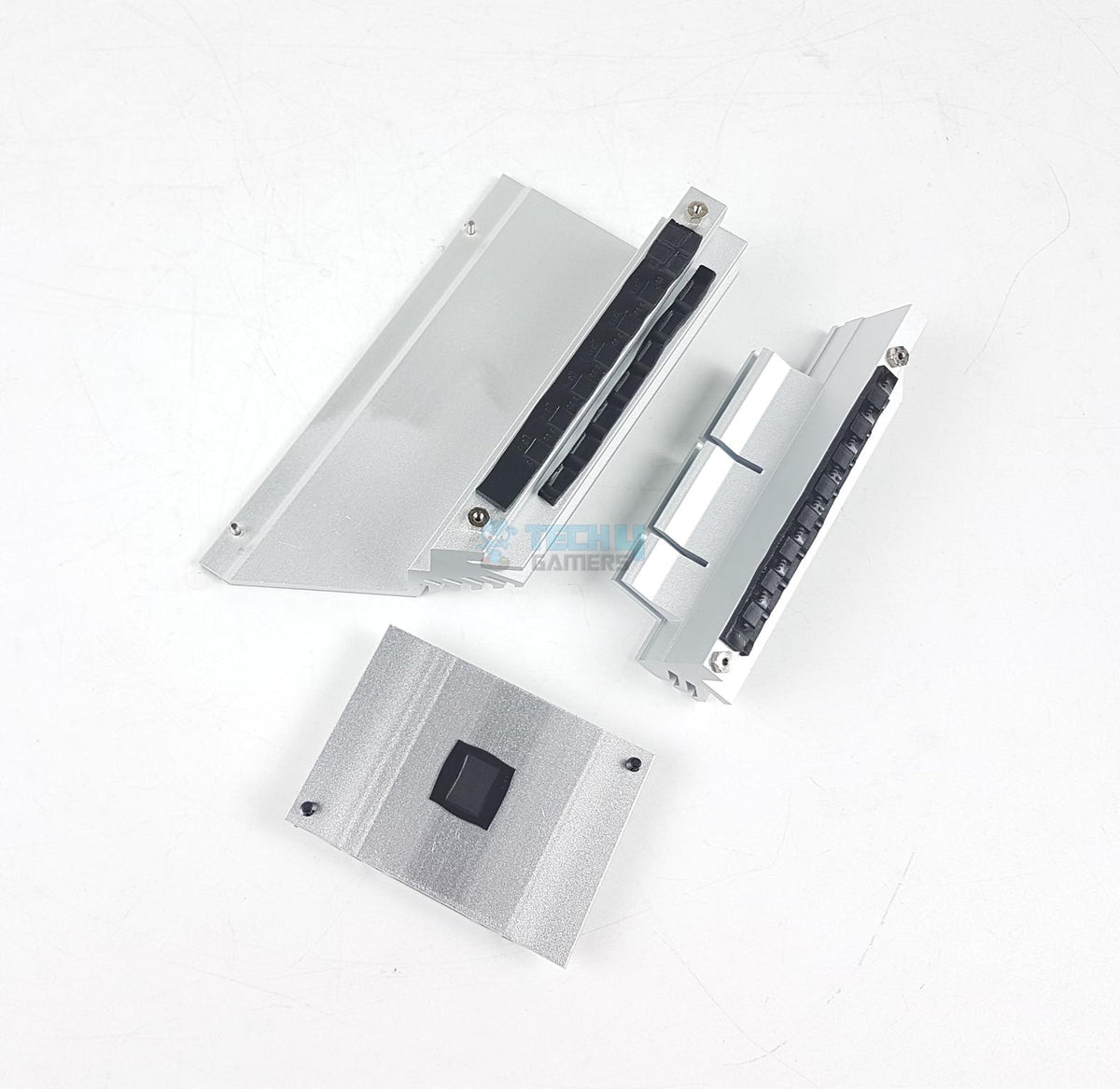

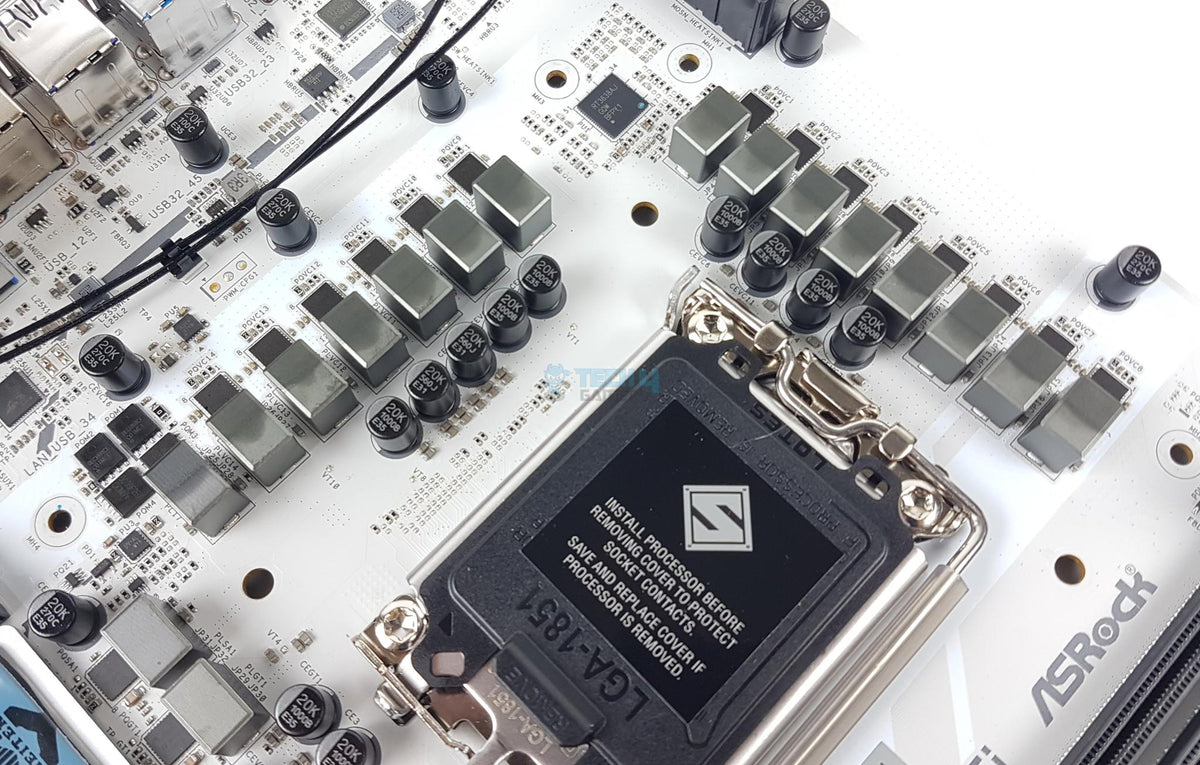

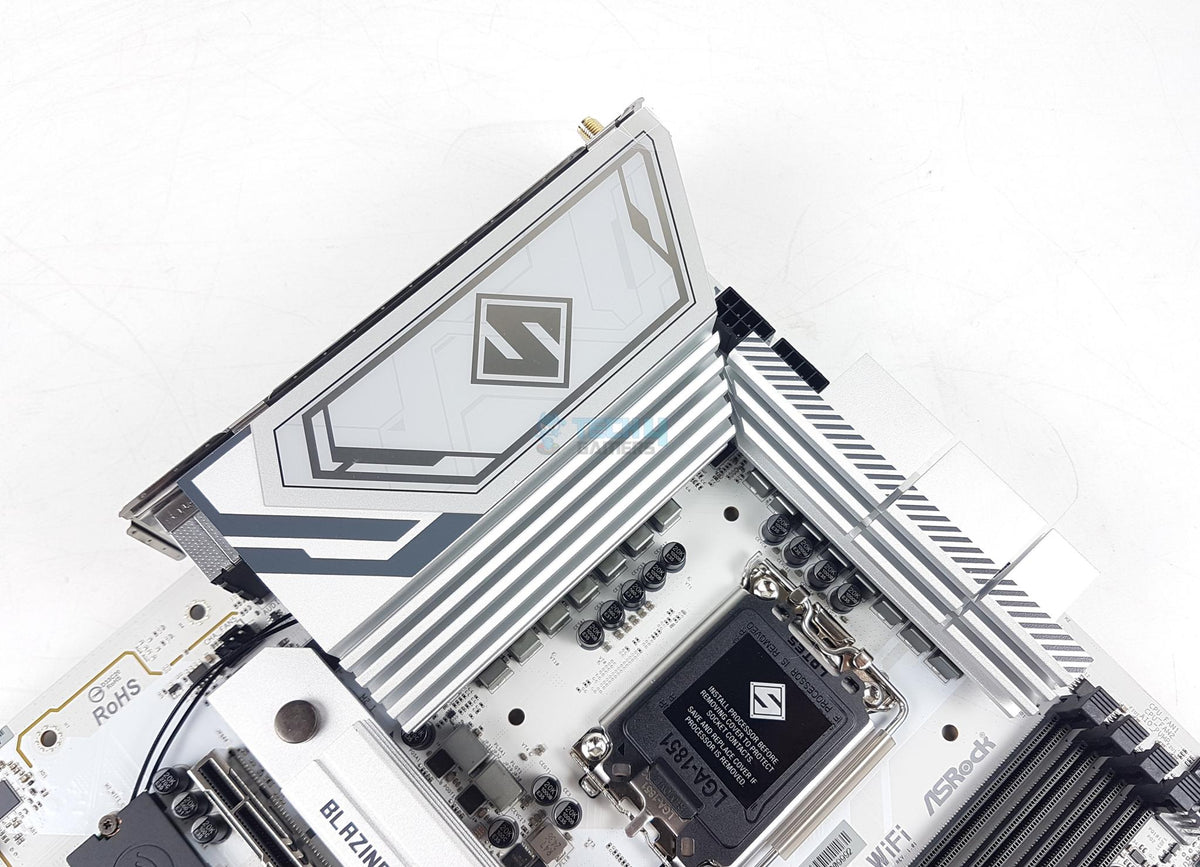

Robust power delivery
14+1+1+1+1 power phases with 80A Dr.MOS stabilise power to the CPU for overclocking and sustained loads.

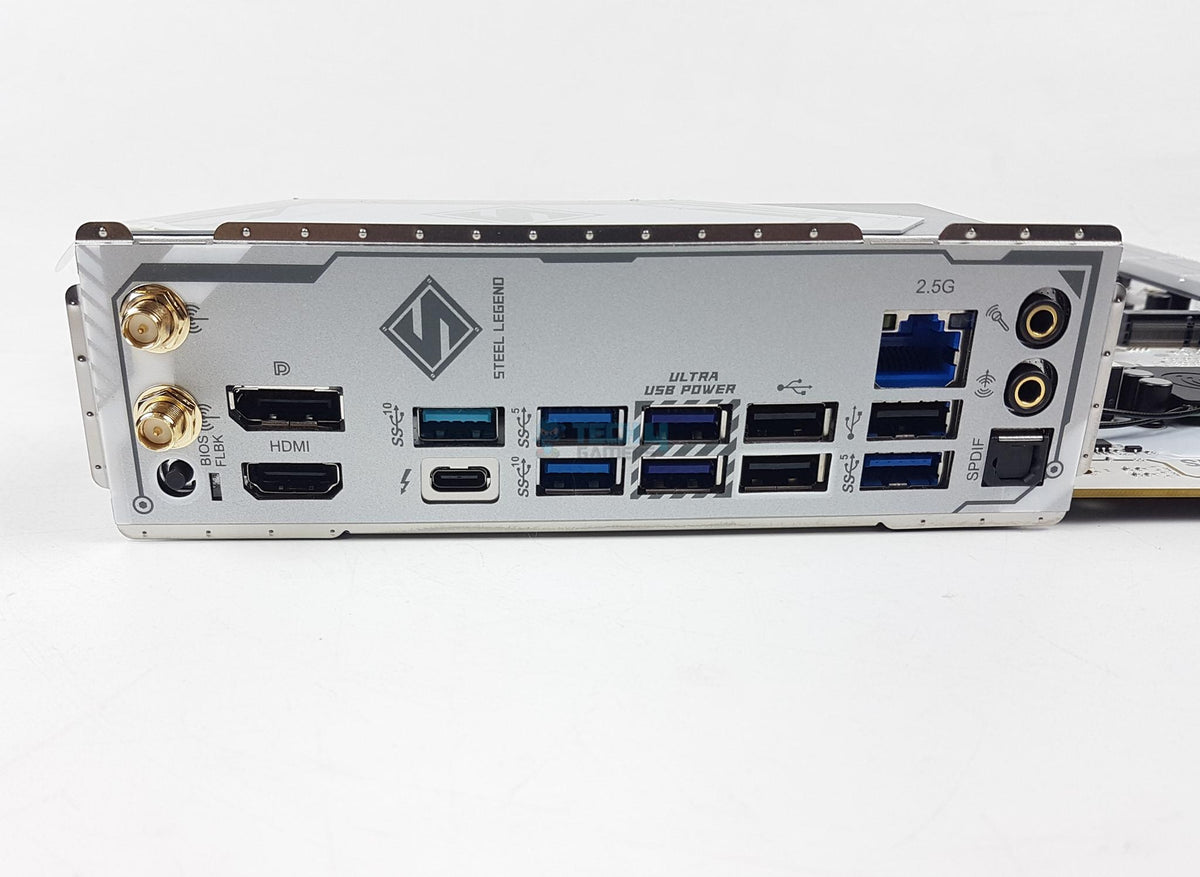

Full display connectivity
HDMI, DisplayPort, and Thunderbolt 4/USB4 Type-C outputs work with integrated graphics or discrete cards.

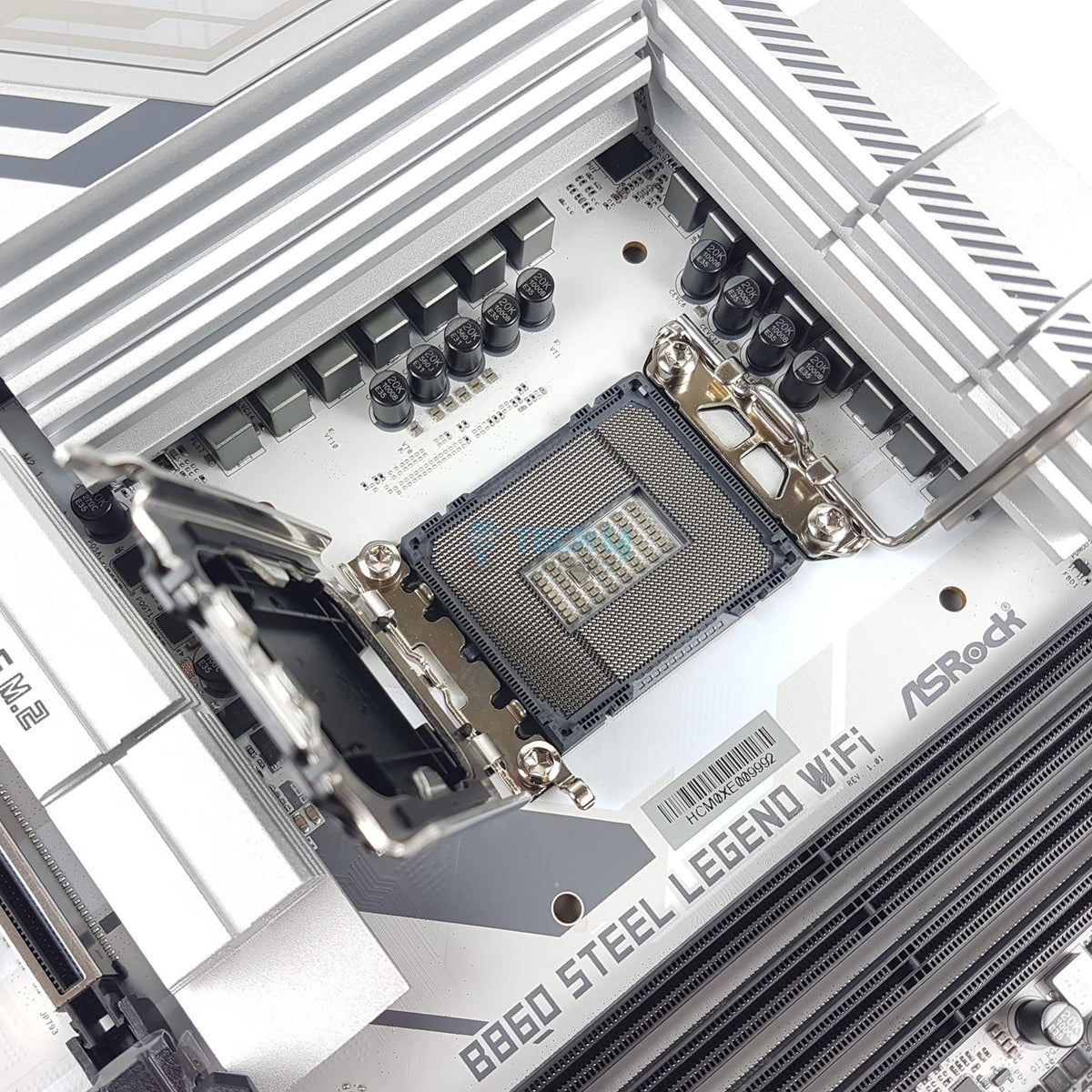

- SocketLGA1851
- Form FactorATX
- Memory Support4x DDR5 up to 8666+ MHz OC
- PCIe 5.01x PCIe 5.0 x16
- M.2 Slots4 (1x Gen5, 3x Gen4)
- WirelessWiFi 6E 802.11axe
- LAN2.5G
- SKUASR-3463
- EAN4711581490123
- Fits Intel Core Ultra Processors Series 2 (LGA1851) only.

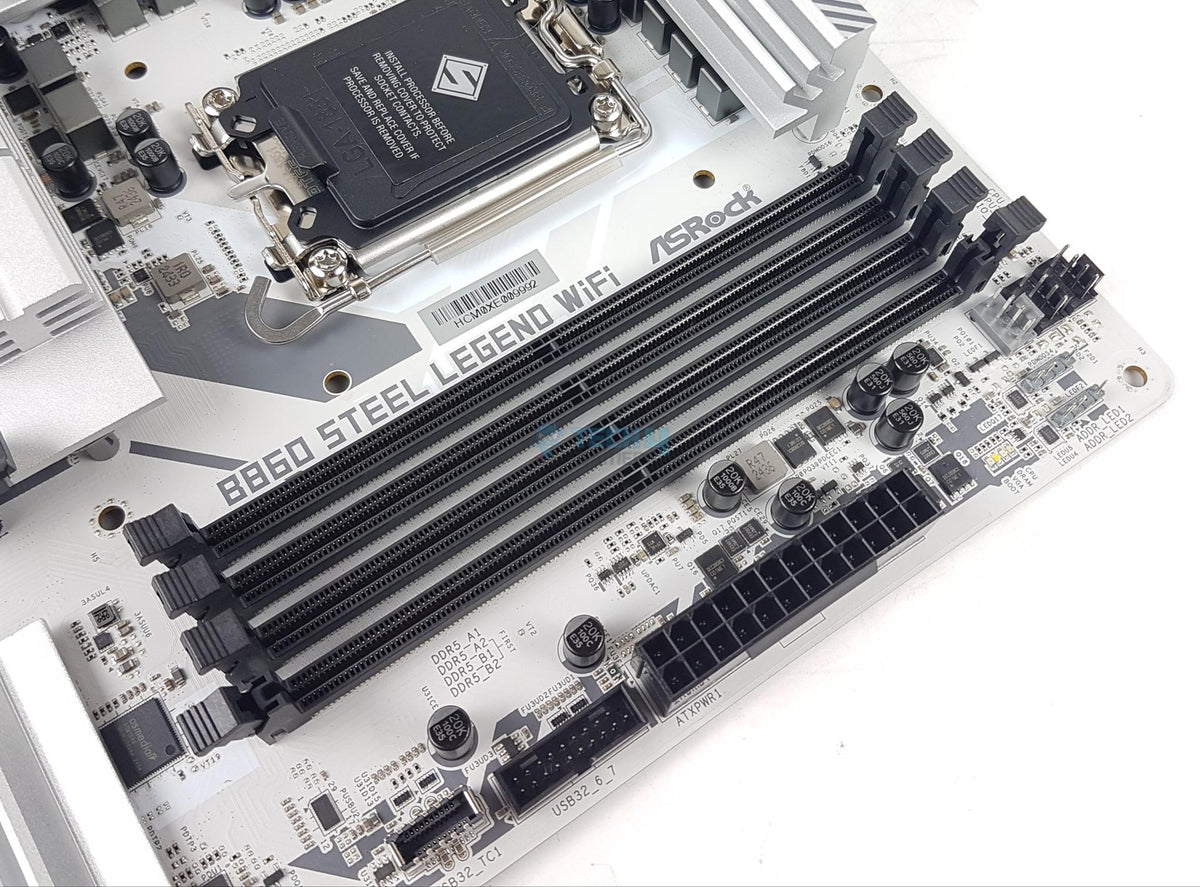

- Accepts four DDR5 memory DIMMs up to 8666+ MHz overclocked.
- Supports NVMe M.2 SSDs in Gen5 and Gen4 form factors across four slots.
- Standard ATX form factor fits most mid-tower and full-tower cases.
- PCIe 4.0 x16 second slot may run at reduced bandwidth if both slots are populated simultaneously; check manual for details.
Best for
- DDR5 system builders on a mainstream budget
- Content creators needing fast NVMe storage and multiple expansion slots
- Users prioritising integrated WiFi 6E and 2.5G LAN over buying separate cards
- Overclockers wanting robust power delivery and headroom for tuning
Trade-offs
- Intel 12th or 13th gen Raptor Lake processors; this motherboard supports only Core Ultra Series 2.
- Builders requiring eight or more SATA drives; only M.2 NVMe expansion is provided.
- Those needing Enterprise-class features such as IPMI, dual LAN, or redundant power.
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts!
Providing a strong array of materials/components to ensure a stable and reliable performance. 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details.
This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory.
General
| Brand | ASRock |
|---|---|
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors Series 2 |
Networking
| LAN Standard | 2.5G LAN |
|---|---|
| Wireless Standard | WiFi 6E 802.11axe |
Performance
| Memory Slots | 4x DDR5 DIMMs |
|---|---|
| Memory Speed | Up to 8666+ MHz OC |
| Power Phases | 14+1+1+1+1, 80A Dr.MOS |
Ports & Expansion

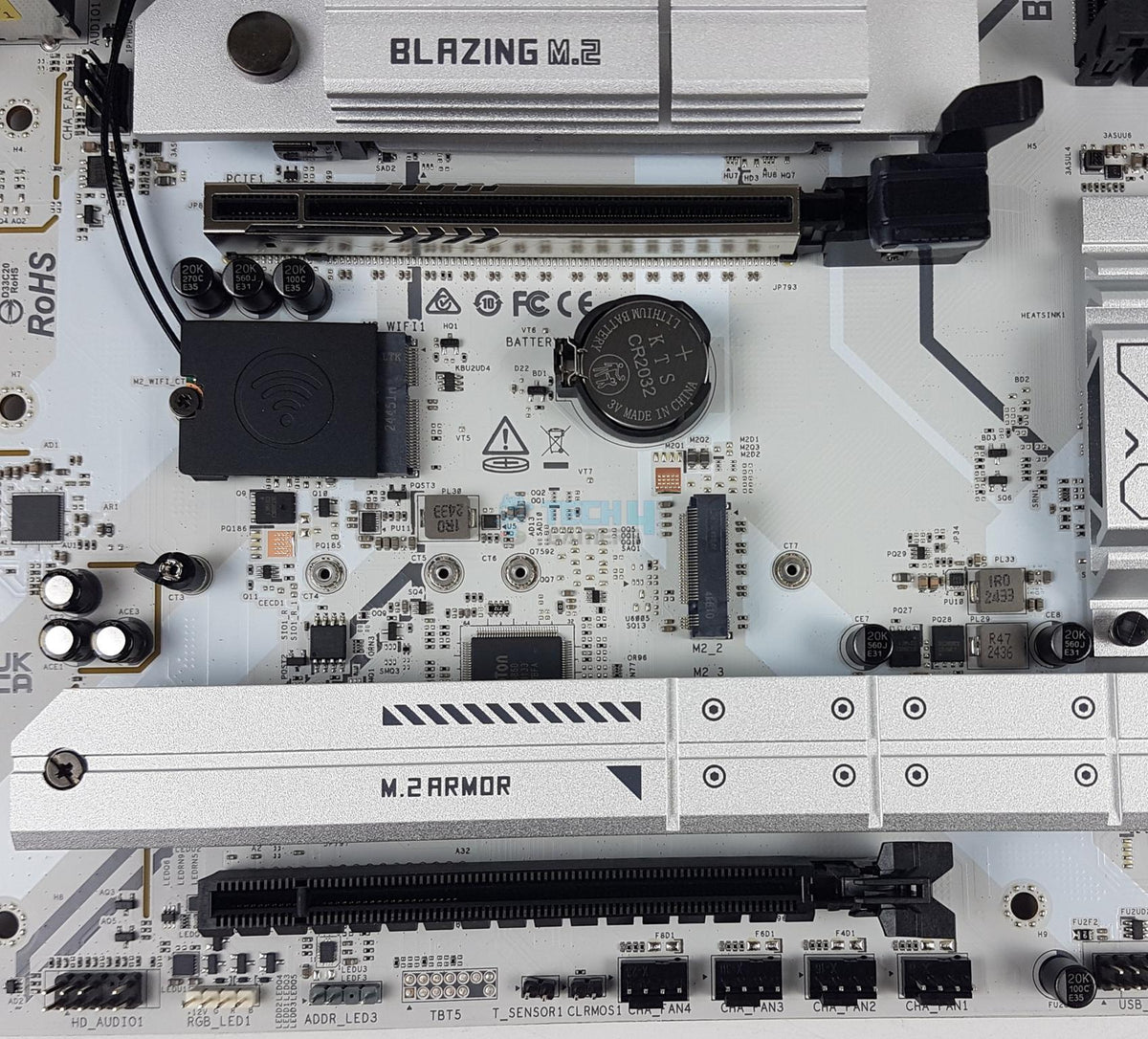

| PCIe Slots | PCIe 5.0 x16, PCIe 4.0 x16 |
|---|---|
| M.2 Slots | 1 Blazing M.2 Gen5, 2 Hyper M.2 Gen4, 1 M.2 Gen4x2 |
| Display Outputs | HDMI, DisplayPort, Thunderbolt 4/USB4 Type-C |
| Audio | Realtek ALC1220 7.1 CH |
Physical
| Form Factor | ATX |
|---|
