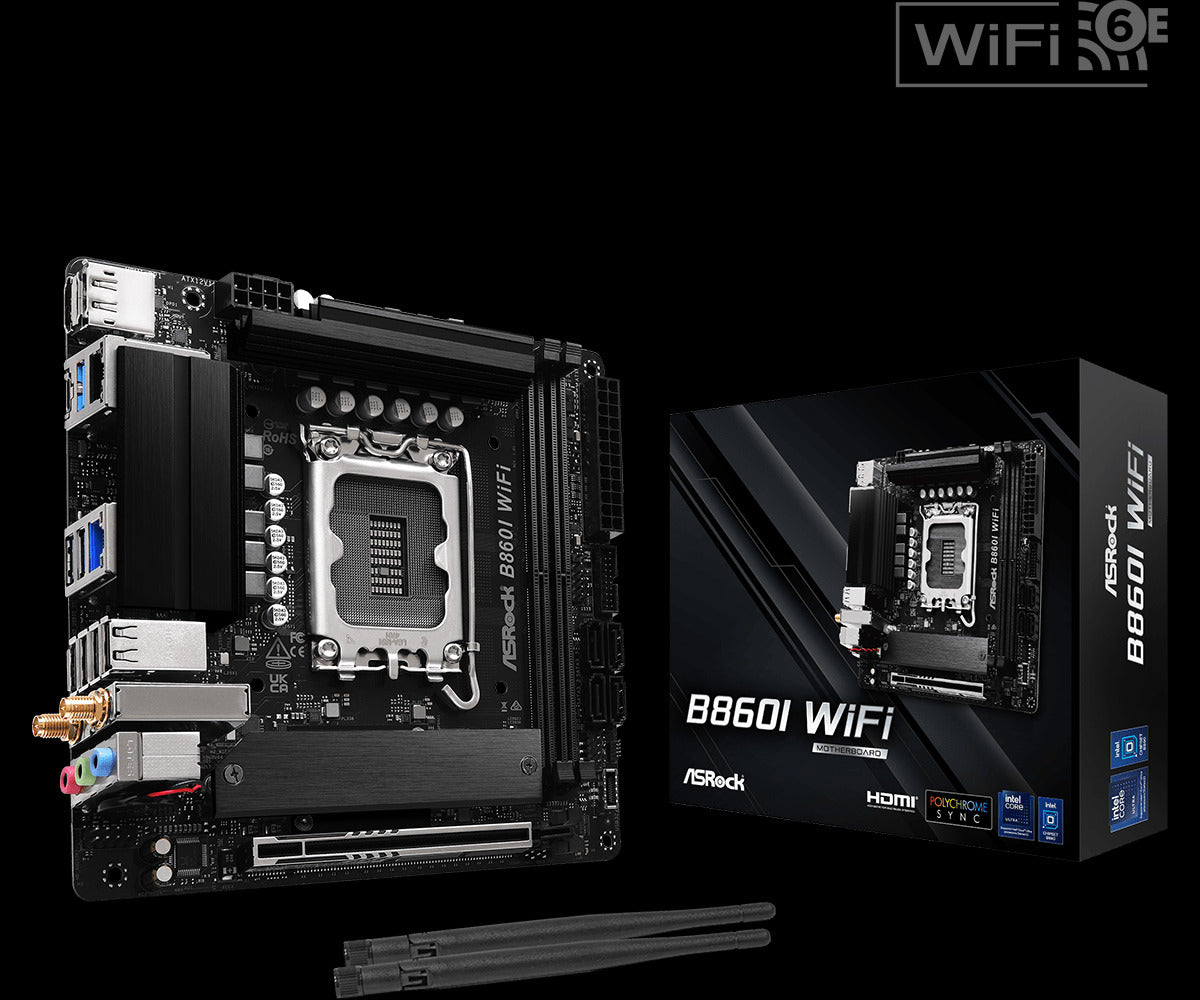

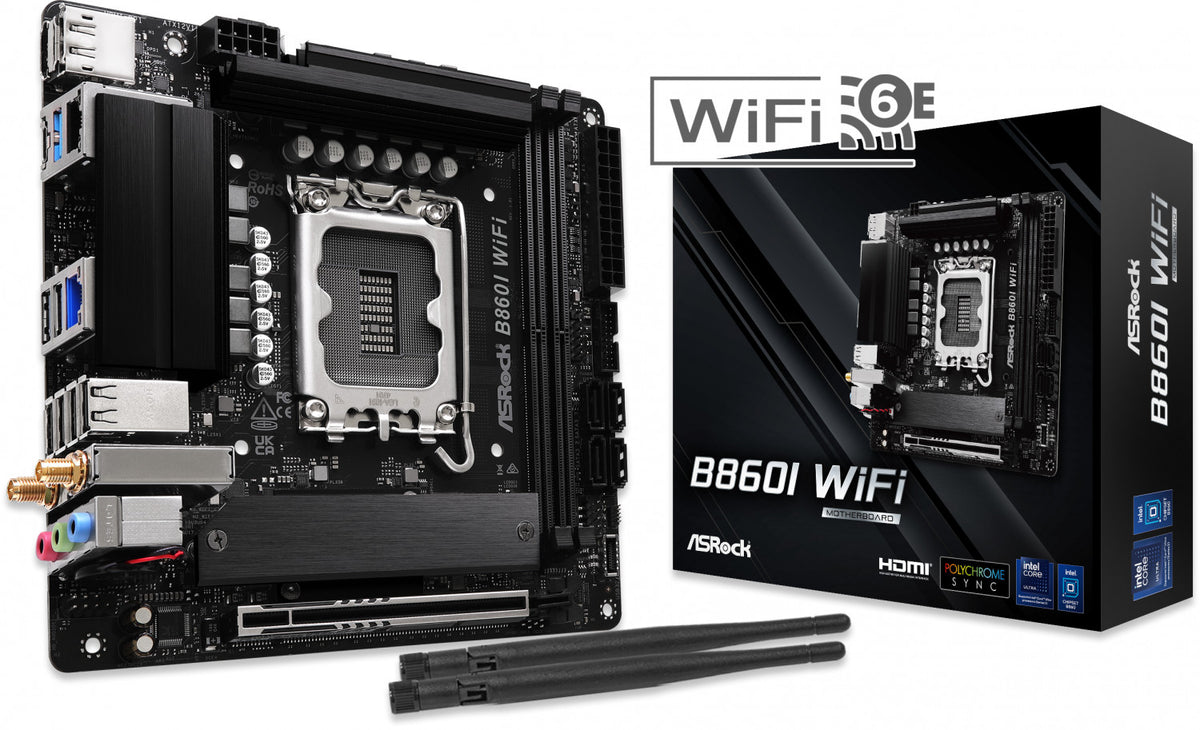

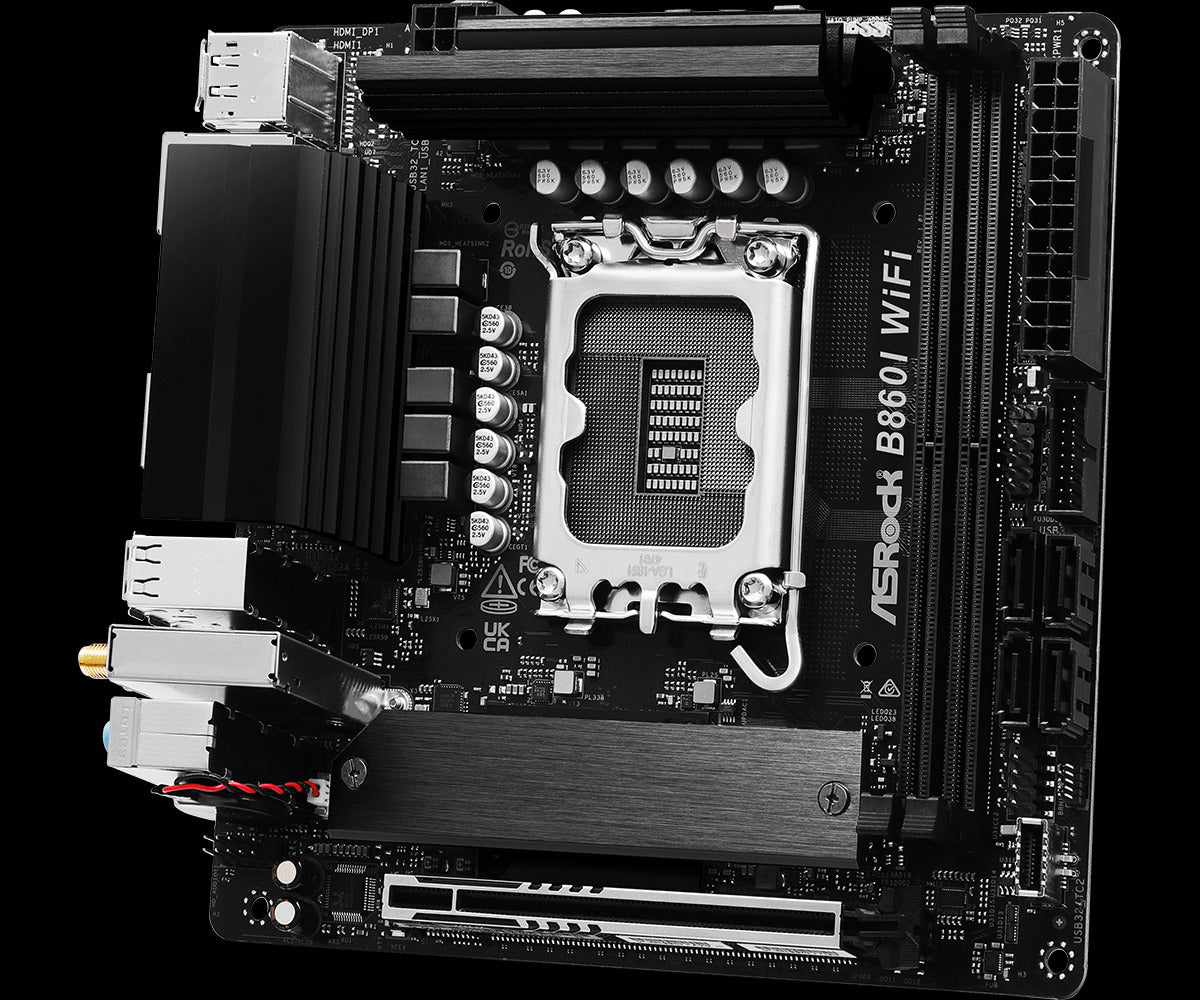

ASRock B860I WiFi Mini-ITX LGA1851 DDR5 Motherboard
ASRock
ASRock B860I WiFi Mini-ITX LGA1851 DDR5 Motherboard
The ASRock B860I WiFi is a Mini-ITX motherboard for Intel Core Ultra Series 2 processors, designed for compact builds that need modern connectivity and expansion without sacrificing performance. It combines DDR5 memory support, PCIe 5.0 storage, and dual networking with Wi-Fi 6E in a small form factor.
Why this product
PCIe 5.0 storage and DDR5 support
One Gen5×4 M.2 slot for the fastest NVMe drives, paired with dual-channel DDR5 memory up to 8933+ MHz overclocked.
Dual LAN with Wi-Fi 6E
2.5 Gigabit and Gigabit Ethernet ports plus 802.11axe Wi-Fi 6E for wired or wireless connectivity with failover protection.
Multiple display outputs
HDMI 2.1 and DisplayPort 1.4 with DSC support, capable of 8K 60Hz or 5K 120Hz.

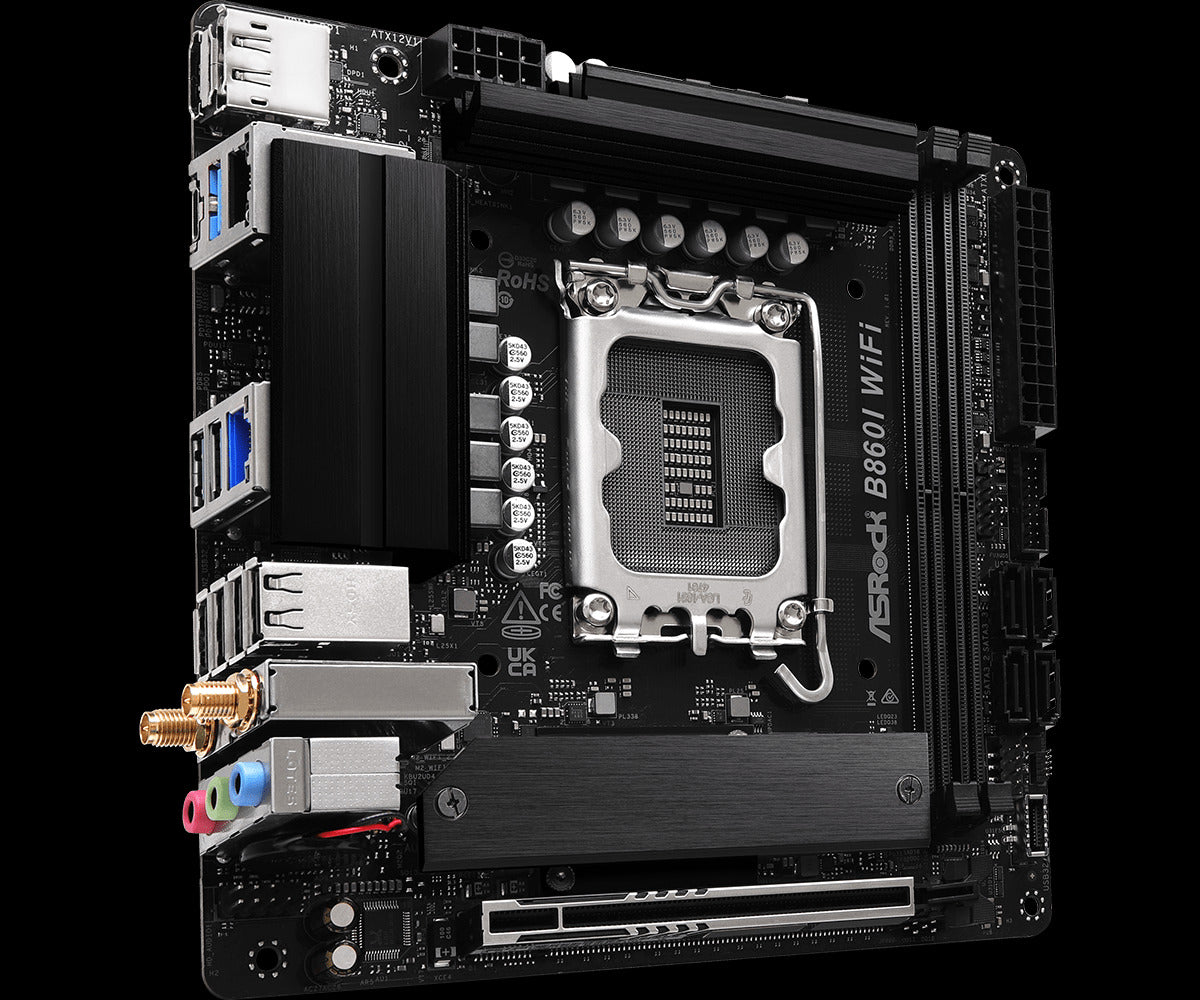

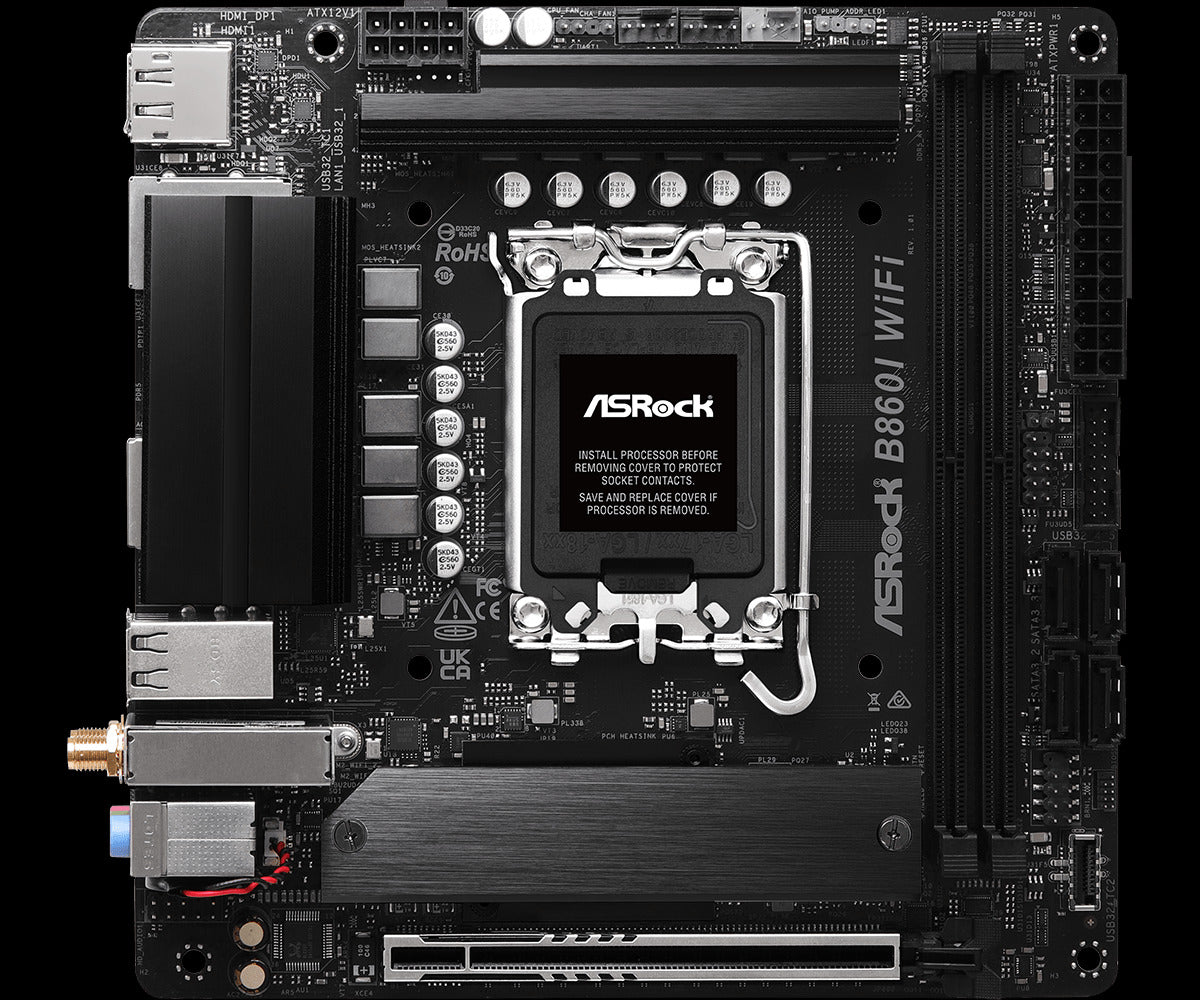

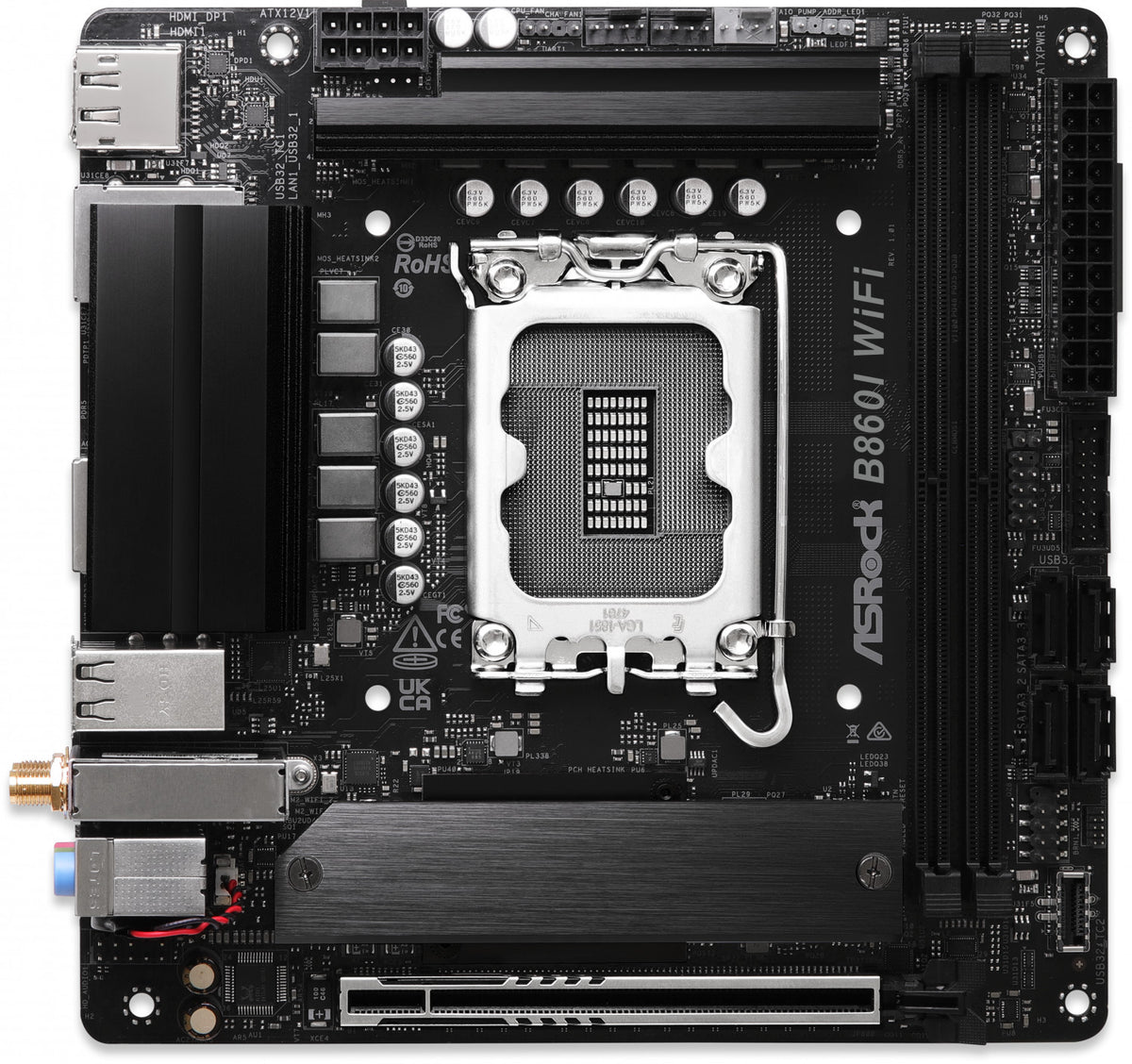

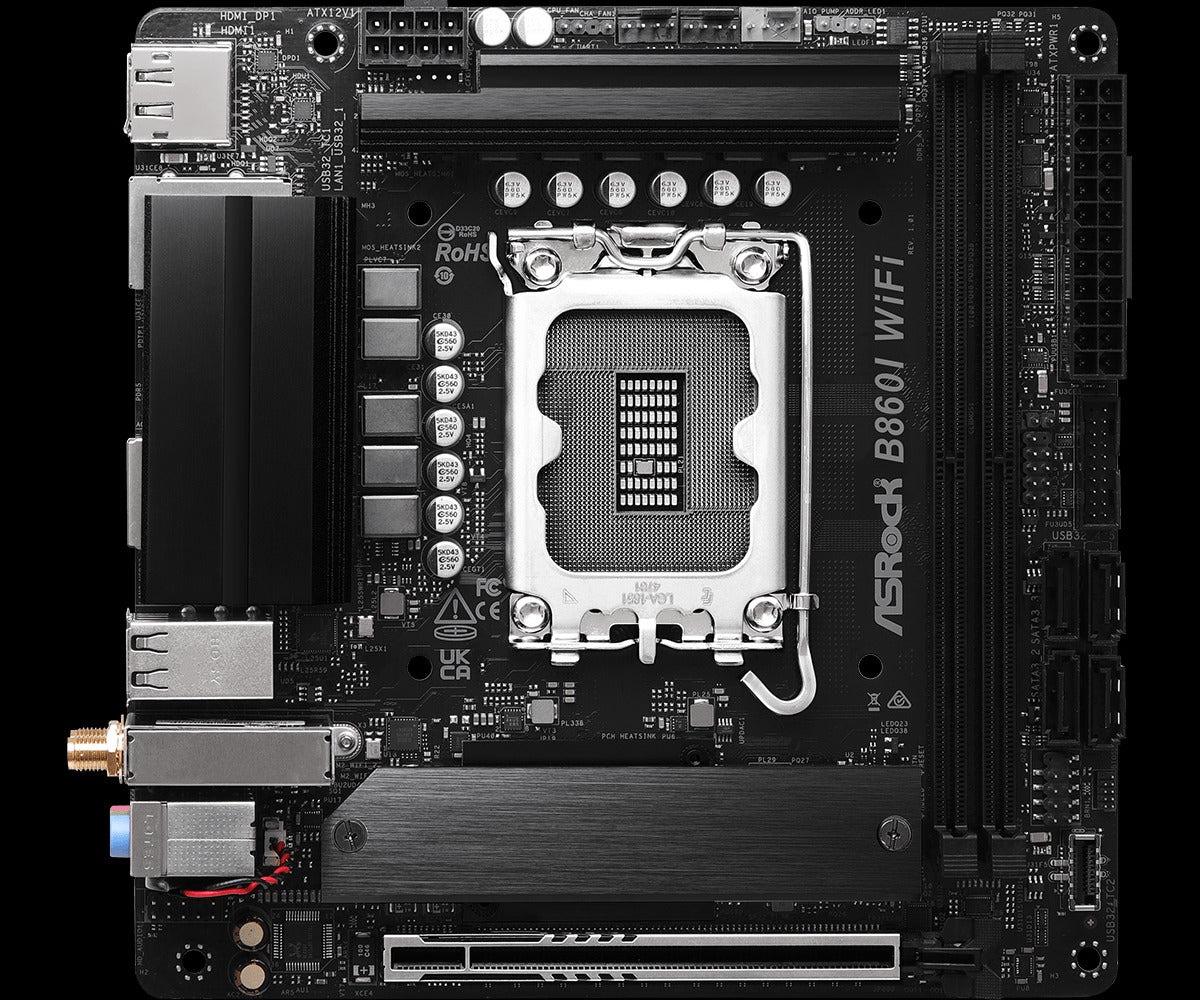

Compact Mini-ITX layout
Fits small cases while retaining four SATA ports, two M.2 slots, and abundant USB connectivity.
- Form FactorMini-ITX
- SocketIntel LGA1851
- ChipsetIntel B860
- Memory Slots2 × DDR5
- M.2 Slots2 (PCIe Gen5×4, Gen4×4)
- Wi-Fi802.11axe Wi-Fi 6E
- SKUASR-1916
- EAN4711581490321
- Requires Intel Core Ultra Series 2 processors with LGA1851 socket.
- Accepts DDR5 DIMM memory, including CUDIMM variants, up to 128 GB total.
- Supports Type 2280 M.2 NVMe drives in both Gen5 and Gen4 slots.
- Runs Windows 11 64-bit; includes ASRock UEFI, A-Tuning, and driver utilities.
Best for
- Small-form-factor builds that need modern I/O and storage speed without compromise.
- Network-heavy setups using the dual Ethernet ports for redundancy or load balancing.
- Builders wanting PCIe 5.0 M.2 performance in a compact footprint.
- Users who require both wired and wireless connectivity with Wi-Fi 6E and Bluetooth 5.3.
Trade-offs
- Builds requiring many expansion cards; only one PCIe x16 slot is available.
- Systems needing more than four SATA drives; expansion is limited to four connectors.
- Builds using AMD processors or Intel 12th-gen and older CPUs; this board supports only LGA1851 Series 2.
- Cases without adequate space for Mini-ITX motherboards.
Supports Intel Core Ultra Processors Series 2 LGA1851 socket with 8+1+1+1+1 power phase.
Dual DDR5 channel up to 8933+ MHz overclocked.
PCIe 5.0 x16 graphics, HDMI and DisplayPort outputs.
Realtek ALC897 audio with Nahimic support.
One PCIe Gen5x4 M.2 and one PCIe Gen4x4 M.2 slot.
Realtek 2.5G LAN plus Intel Gigabit LAN, Wi-Fi 6E and Bluetooth.
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Connect wireless peripherals and accessories with ease. From keyboards and mice to headsets, controllers, speakers, and smartphones, built-in Bluetooth helps reduce cable clutter and makes daily wireless pairing more convenient.
Elevate your network's performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more.
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Networking
| Brand | ASRock |
|---|---|
| Ethernet (1) | 2.5 Gigabit LAN (Dragon RTL8125BG) |
| Ethernet (2) | Gigabit LAN (Intel I219-V) |
| Wireless | 802.11axe Wi-Fi 6E (802.11 a/b/g/n/ac/ax/axe) |
| Bluetooth | 5.3 |
Performance
| CPU Socket | Intel LGA1851 |
|---|---|
| Supported CPUs | Intel Core Ultra Processors (Series 2) |
| Power Phase | 8+1+1+1+1 |
| Memory Type | DDR5 |
| Memory Capacity | Up to 128 GB |
| Memory Speed | Up to 8933+ MHz (OC); 6400 MHz native |
| Memory Standard | Intel XMP 3.0, CUDIMM |
| GPU Slot | PCIe 5.0 ×16 |
| M.2 Slot 1 | PCIe Gen5×4 (2280) |
| M.2 Slot 2 | PCIe Gen4×4 (2280) |
| M.2 Slot 3 | PCIe (2230, Wi-Fi/BT module) |
Ports & Power
| SATA Connectors | 4 × SATA3 6.0 Gb/s |
|---|---|

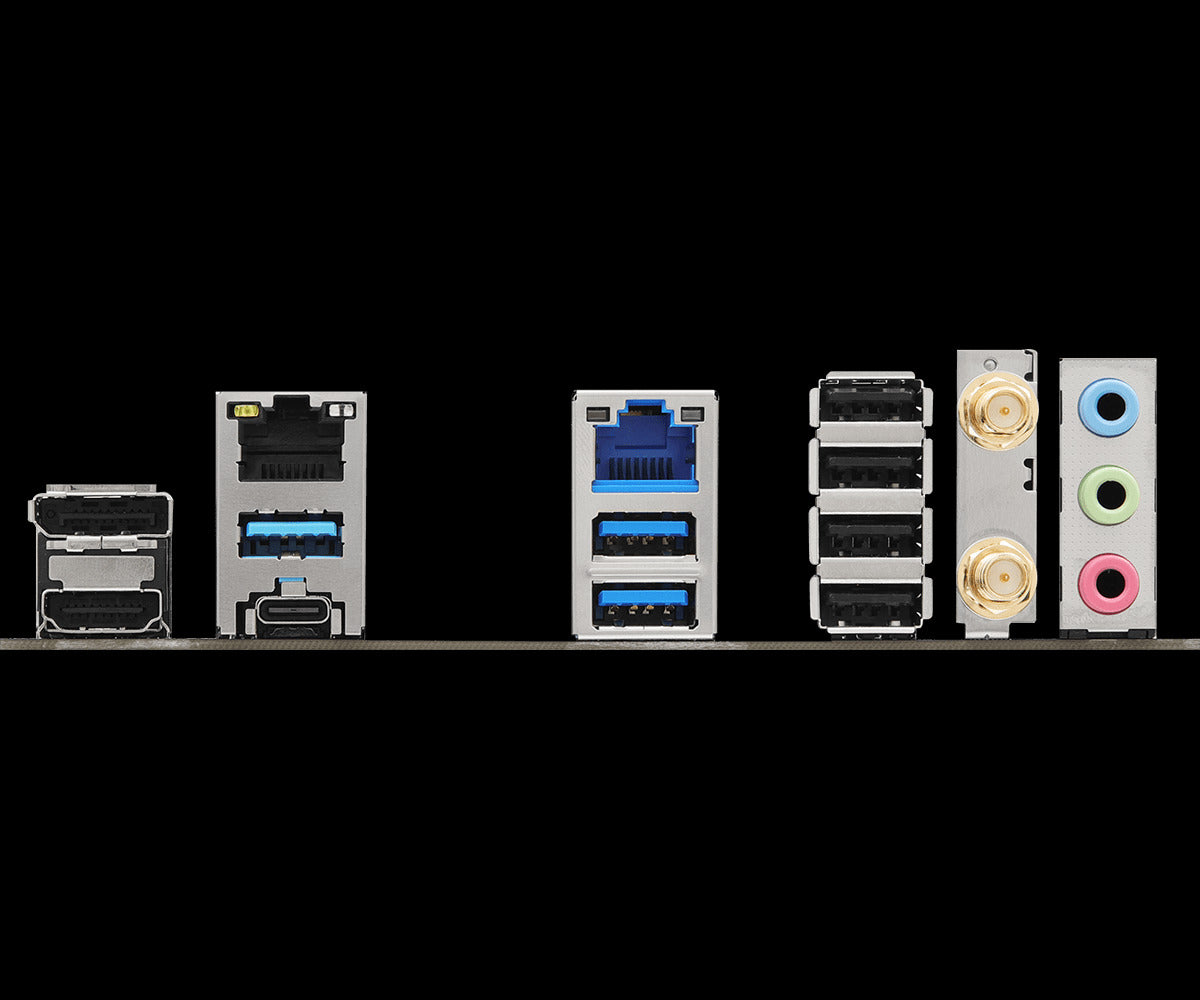

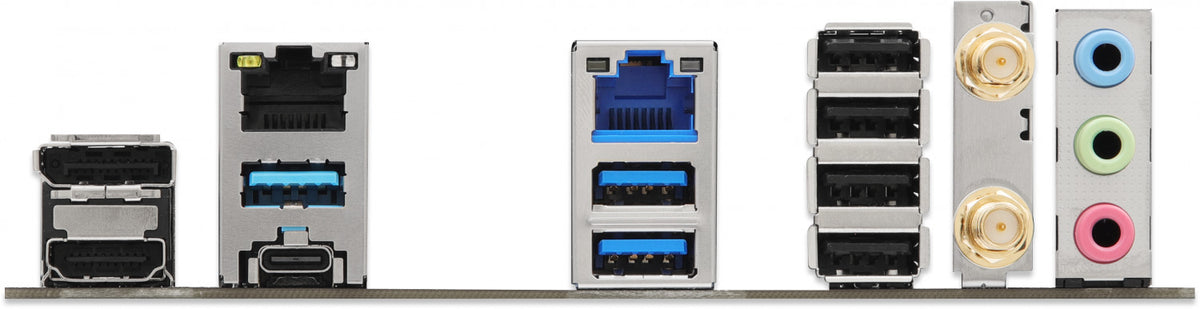

| USB 3.2 Rear | 1 × Gen2×2 Type-C (20 Gb/s), 1 × Gen2 Type-A, 2 × Gen1 |
| USB 3.2 Front Headers | 1 × Gen2 Type-C (10 Gb/s), 1 × Gen1 header |
| USB 2.0 Connectors | 4 × rear, 2 × front via header |
| Display Outputs | 1 × HDMI 2.1, 1 × DisplayPort 1.4 |
| Max Resolution | 8K 60Hz / 5K 120Hz |
| Audio | 7.1 CH HD (Realtek ALC897, Nahimic) |
| ATX Power Connector | 24-pin + 8-pin 12V |
| Fan Headers | 1 × CPU, 1 × Chassis, 1 × AIO Pump |
Physical
| Form Factor | Mini-ITX |
|---|---|
| OS Support | Windows 11 64-bit |
| In the Box | I/O Shield, 2 × SATA cables, 2 × Wi-Fi antennas, 2 × M.2 screws |
