ASRock B860M Pro-A LGA1851 Intel B860 Micro ATX Motherboard

£127.27
Skip to product information
ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - view 1

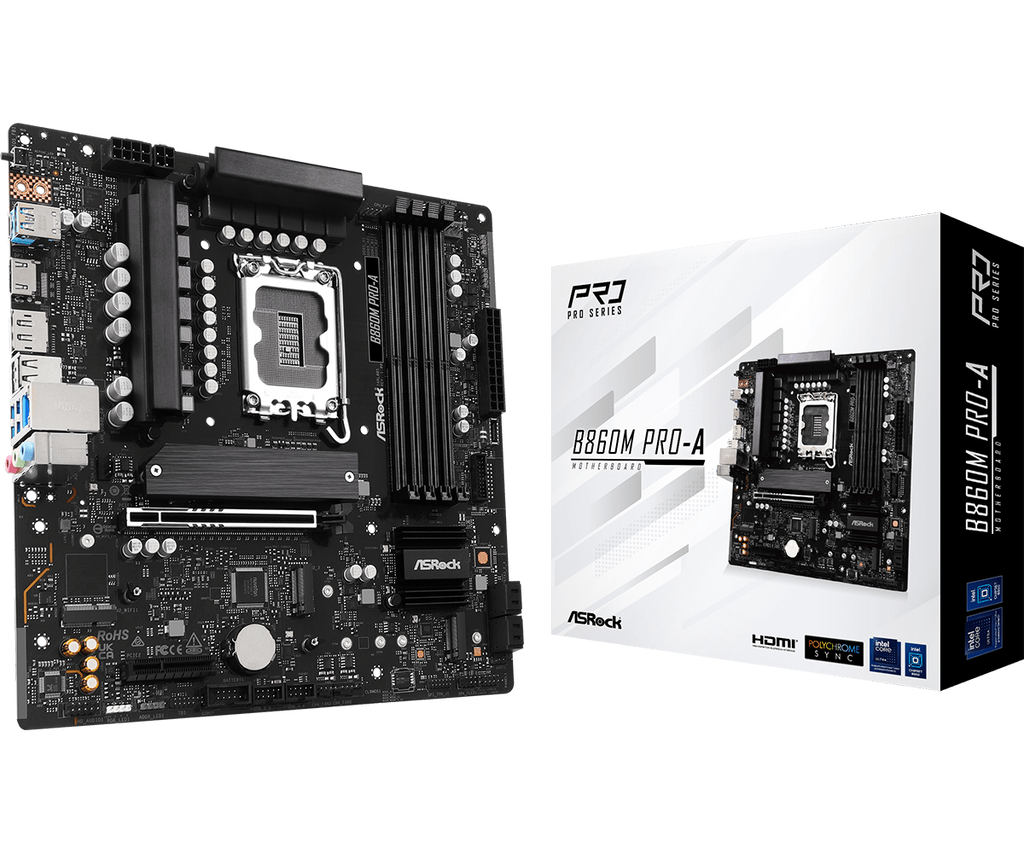

  • ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - view 1

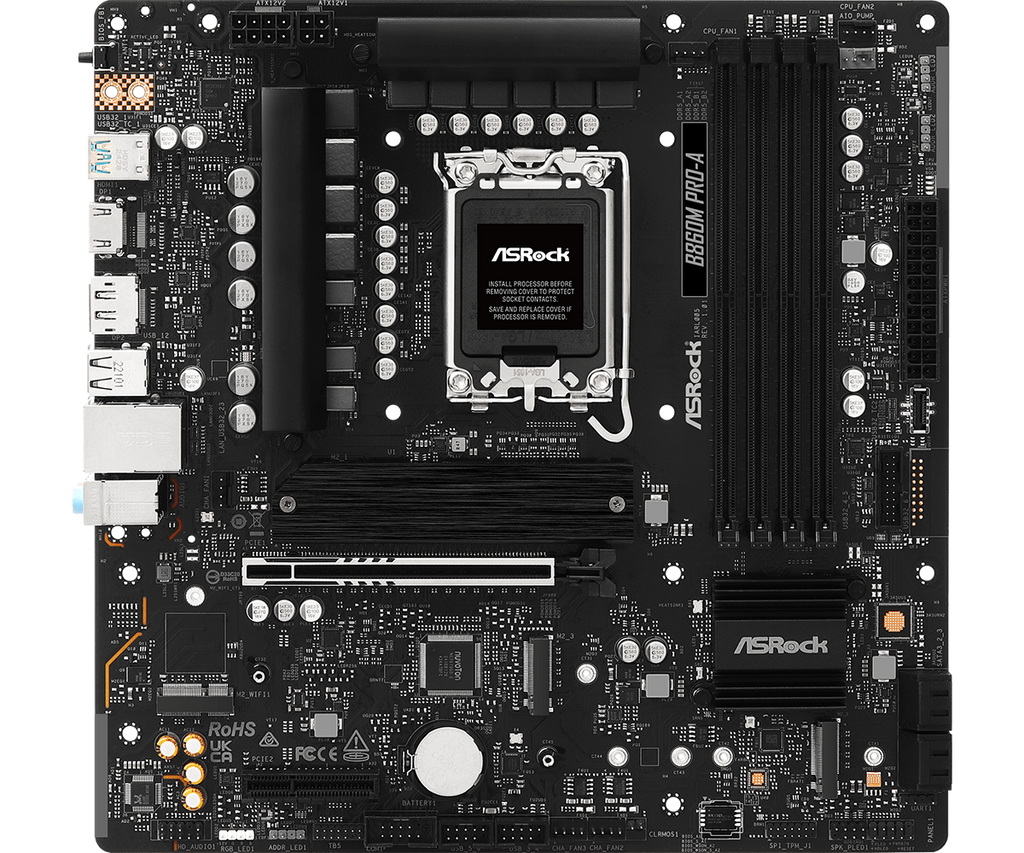

  • ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - view 2

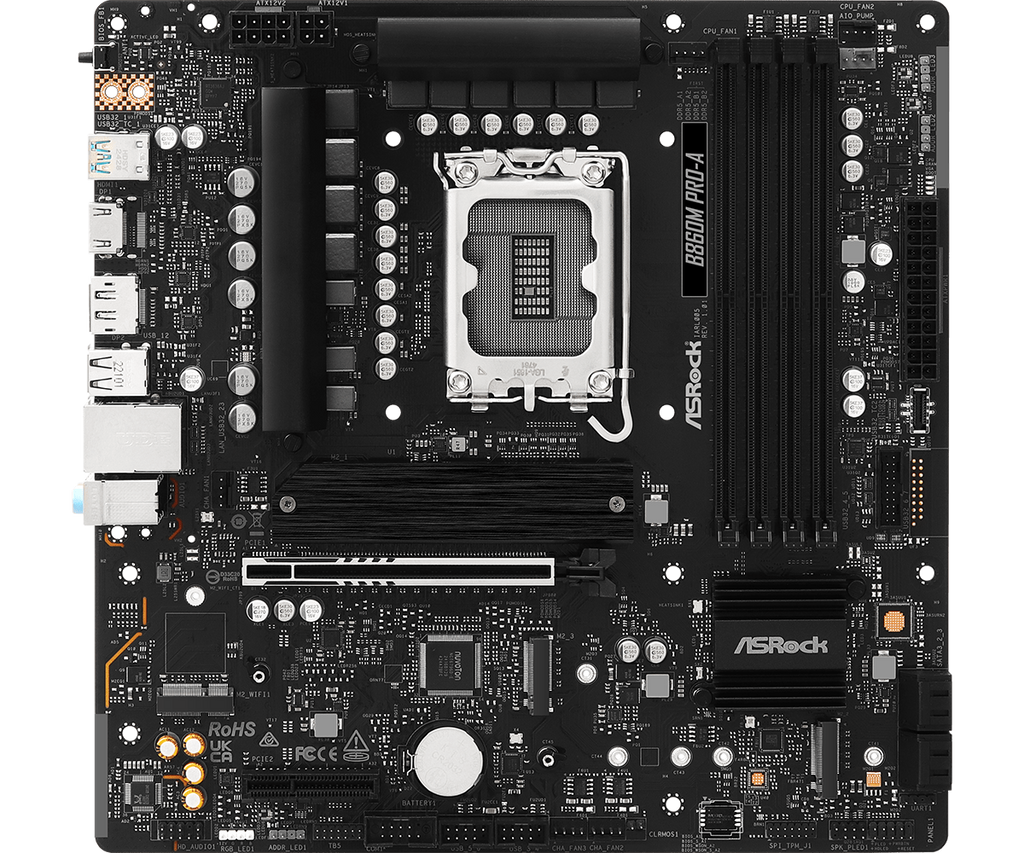

  • ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - view 3

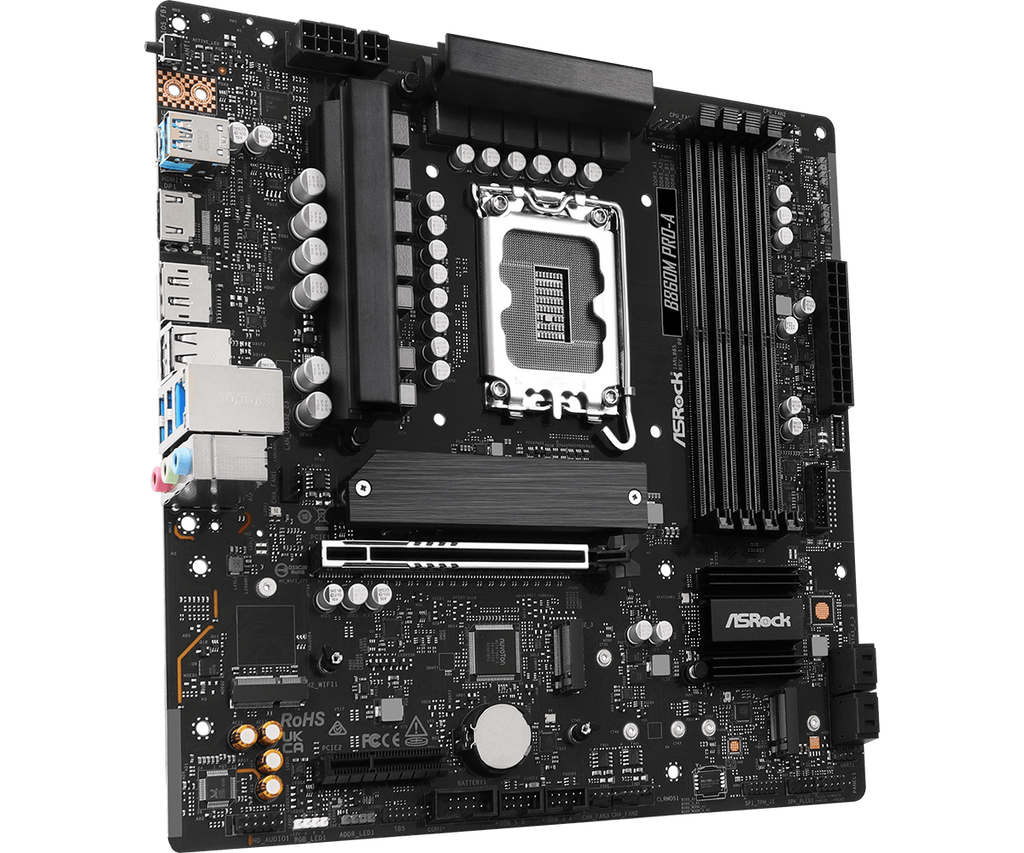

  • ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - view 4

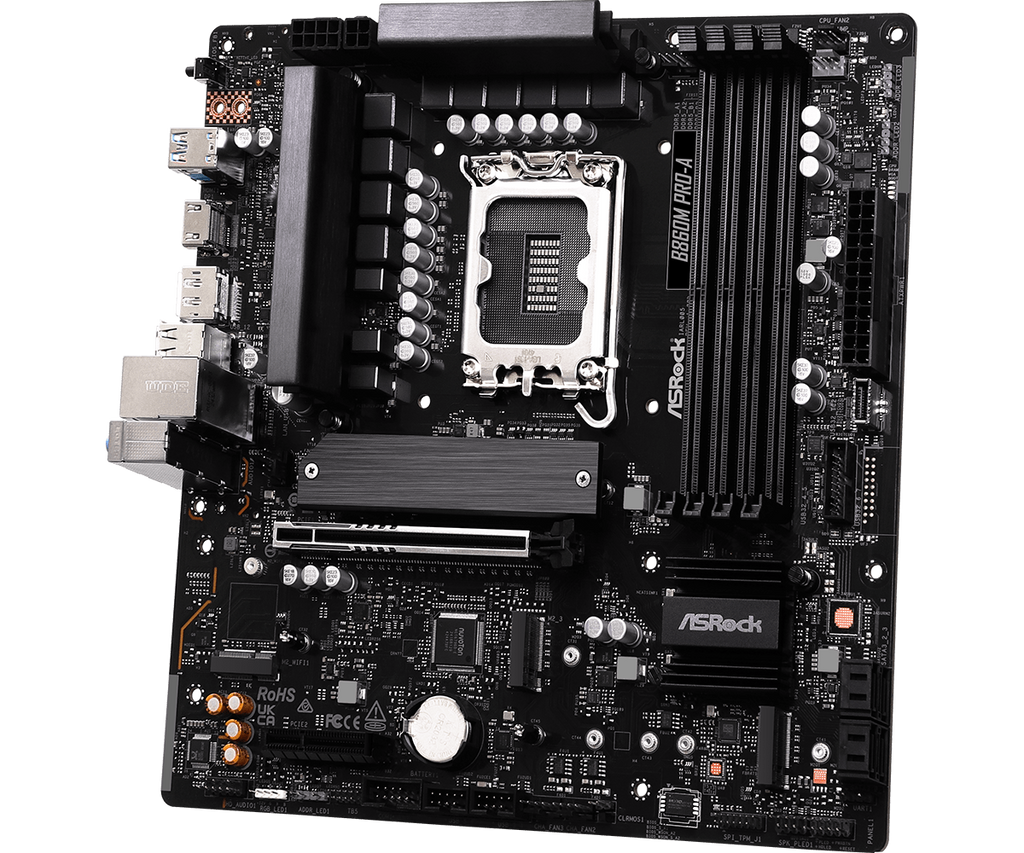

  • ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - view 5

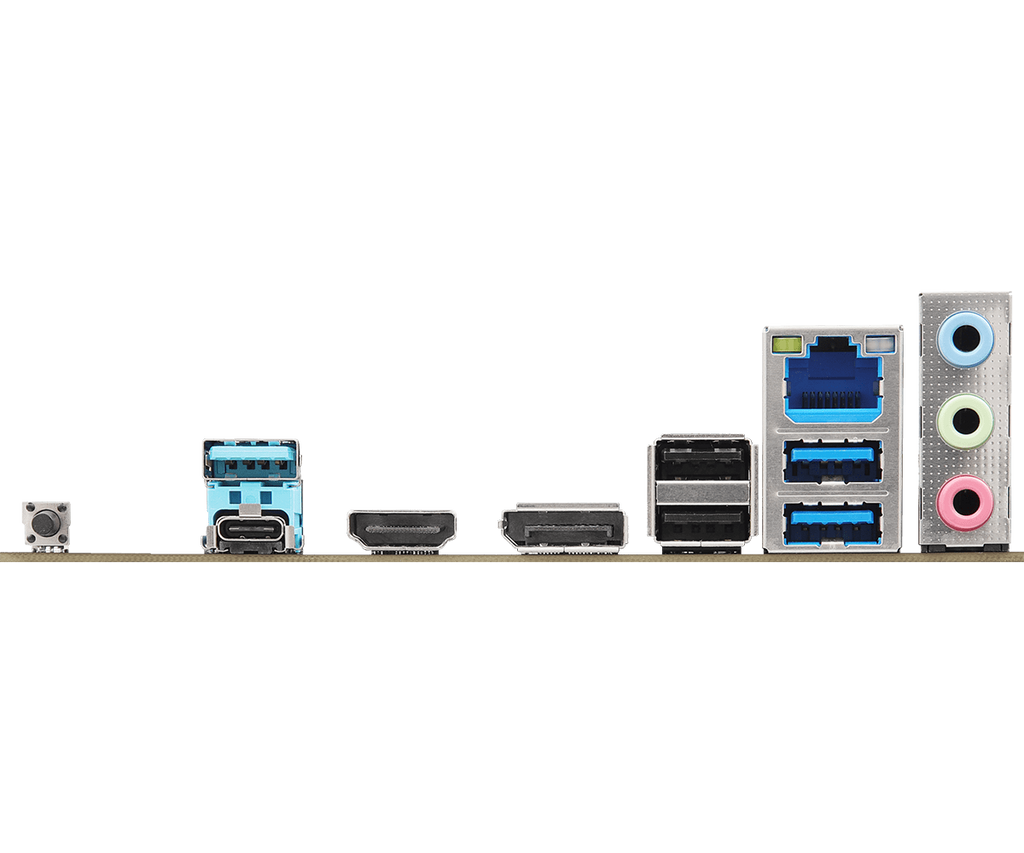

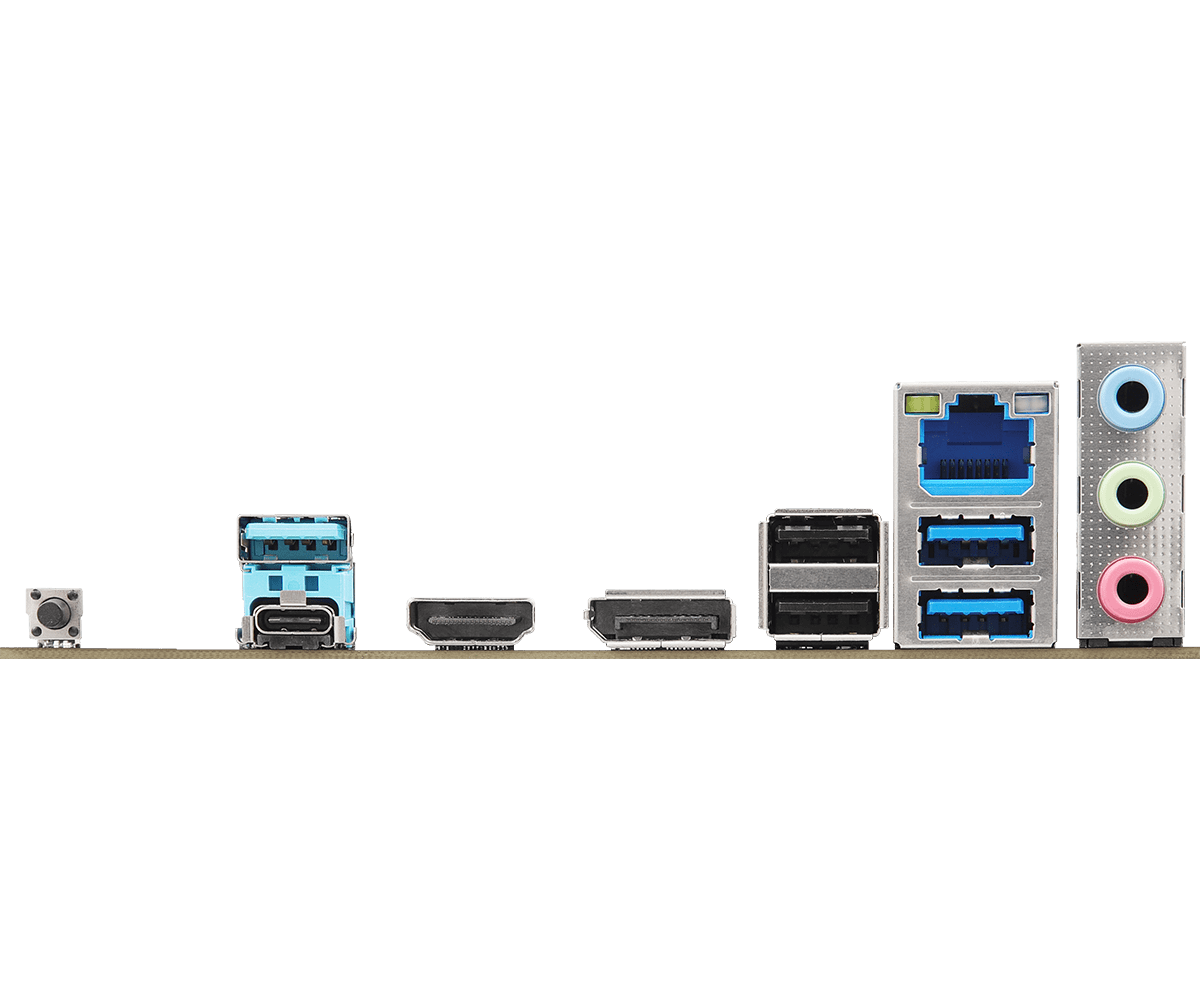

  • ASRock B860M Pro-A LGA1851 Micro ATX Motherboard - rear I/O panel
ASRock B860M Pro-A LGA1851 Intel B860 Micro ATX Motherboard

ASRock

ASRock B860M Pro-A LGA1851 Intel B860 Micro ATX Motherboard

£127.27
Taxes included. Shipping calculated at checkout.
In stock

The ASRock B860M Pro-A is a Micro ATX motherboard built for Intel Core Ultra Processors (Series 2) that prioritises memory overclocking performance and stability. It combines a 6-layer PCB design with DDR5 support up to 8666+ MHz and Intel XMP profile compatibility, making it suited to users who want reliable daily performance with room for memory tuning.

Why this product

6-layer PCB for stable overclocking

Dedicated power and signal layer design reduces temperature and improves energy efficiency when pushing DDR5 memory speeds. Pre-tested XMP/EXPO profiles let you apply performance gains without manual tuning.

DDR5 memory up to 8666+ MHz

Four 288-pin slots support up to 256GB total, with Intel XMP and AMD EXPO profile compatibility built in for plug-and-play overclocking on compatible modules.

PCIe 5.0 x16 slot

Future-ready expansion for next-generation graphics cards and high-speed storage devices.

Dual video outputs

HDMI and DisplayPort 1.4 connectors allow dual-monitor setups without additional adapters.

  • SocketLGA1851
  • ChipsetIntel B860
  • Form FactorMicro ATX
  • Memory SupportDDR5 up to 8666+ MHz
  • PCIe Expansion1 x PCIe 5.0 x16
  • Video OutputsHDMI, DisplayPort 1.4
  • SKUASR-3330
  • EAN4711581490291
  • Intel Core Ultra Processors (Series 2) on LGA1851 socket.
  • DDR5 memory modules with Intel XMP or AMD EXPO profiles for overclocking.
  • Single PCIe 5.0 x16 graphics card or NVMe storage expansion.
  • Memory overclocking carries inherent stability risk; ASRock recommends using pre-tested profiles and Intel XMP or AMD EXPO capable modules to minimise this.
  • Intel 12th or 13th generation processors — this board requires Series 2 Core Ultra only.
  • DDR4 memory — only DDR5 is supported.

Best for

  • Memory overclocking enthusiasts
  • Small-form-factor builds
  • Dual-monitor workstations

Trade-offs

  • Budget builds without memory tuning plans. The Pro-A series focuses on overclocking features; entry-level boards offer the same core socket support at lower cost.
  • Multi-GPU or high-expansion setups. Single PCIe 5.0 x16 slot and Micro ATX layout limit expandability compared to full ATX or E-ATX boards.
  • Users upgrading from DDR4 systems. Only DDR5 is supported; existing DDR4 memory cannot be reused.
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily use. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. * There are certain risks involved with memory overclocking and may affect your system's stability.

General

BrandASRock

Processor & Memory

CPU SocketLGA1851
Supported CPUsIntel Core Ultra Processors (Series 2)
Memory Slots4 x 288-pin DDR5
Maximum Memory256GB
Memory SpeedUp to DDR5 8666+ (OC)
Memory ChannelsDual Channel

Storage & Expansion

PCIe Slot1 x PCIe 5.0 x16
Storage InterfaceSATA 6Gb/s

Connectivity & Audio

LAN2.5Gbps (Realtek Dragon RTL8125BG)
AudioRealtek ALC897, 7.1 Channels
Video Outputs1 x HDMI, 1 x DisplayPort 1.4

Design

Form FactorMicro ATX
PCB Layers6 Layer
