ASRock H610M-H2/M.2 D5 Intel LGA1700 DDR5 mATX Motherboard
ASRock
ASRock H610M-H2/M.2 D5 Intel LGA1700 DDR5 mATX Motherboard

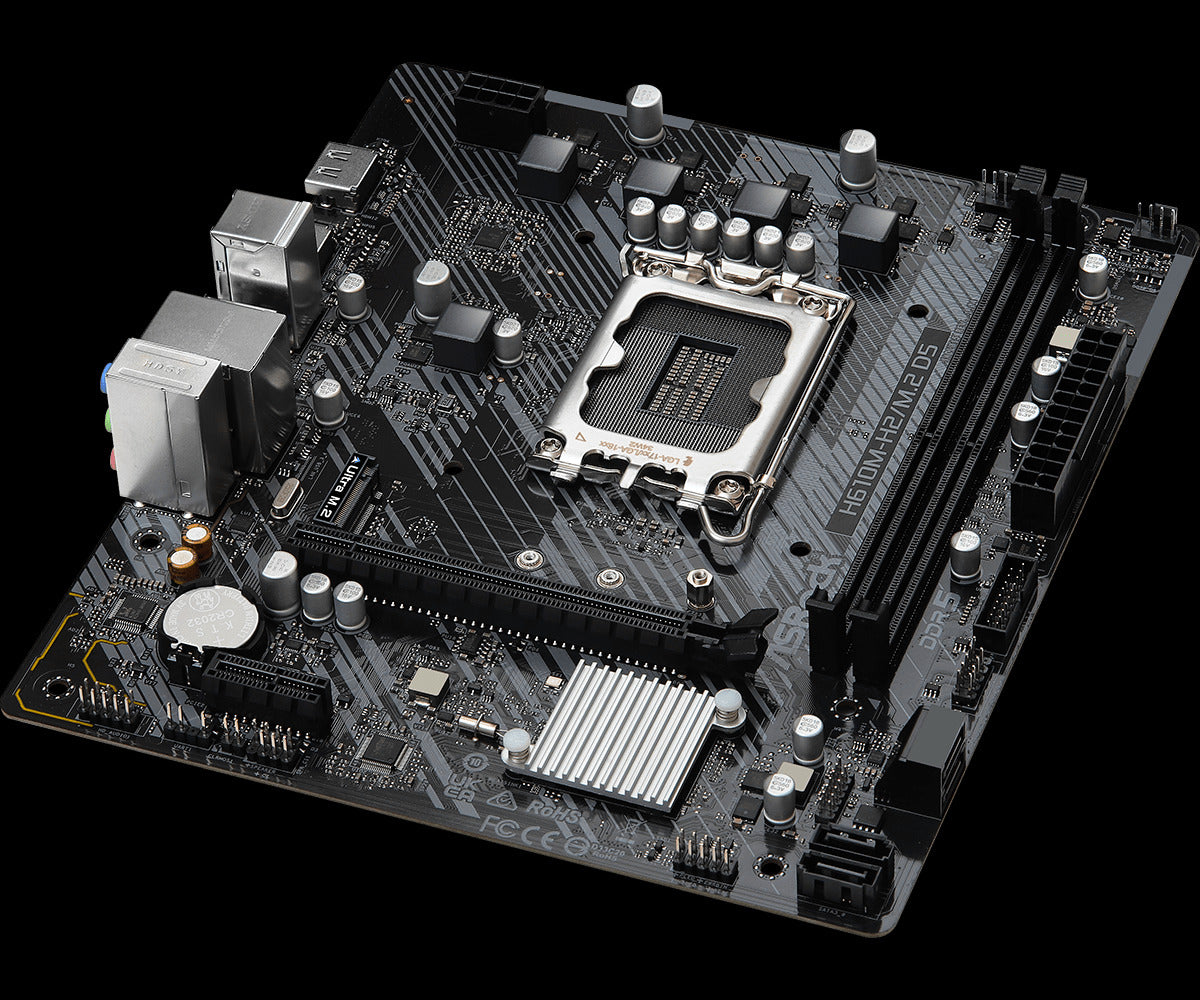

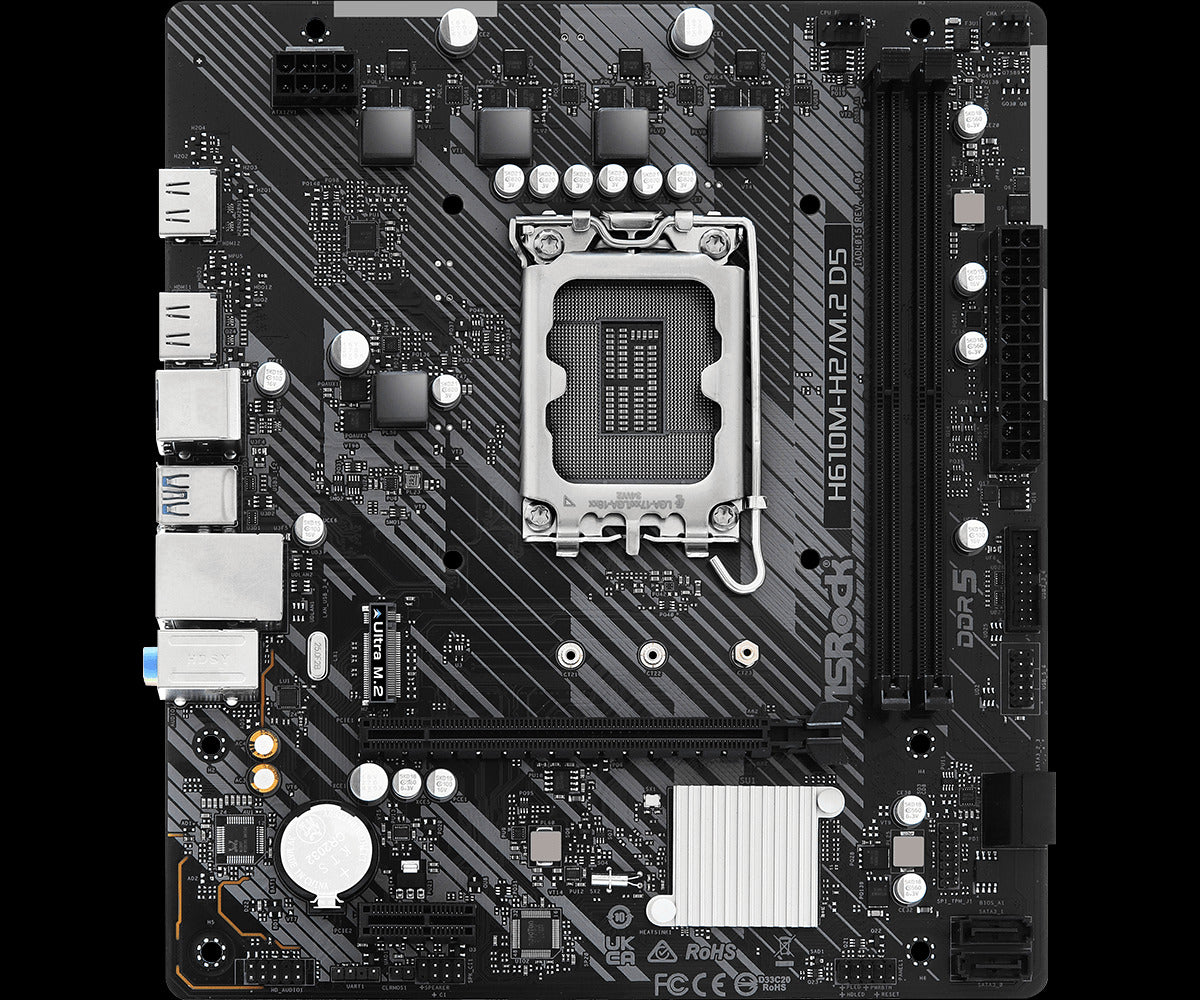

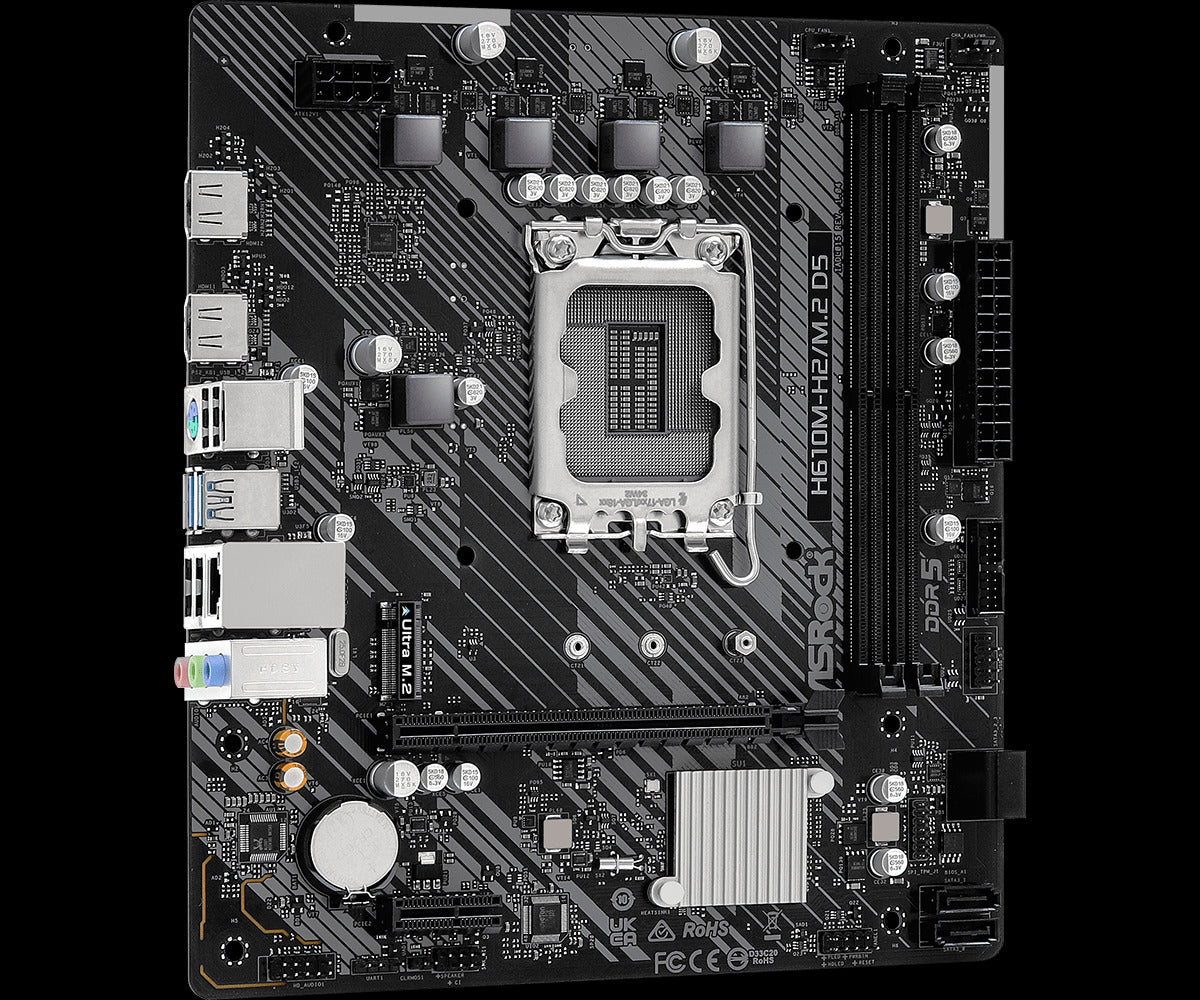

The ASRock H610M-H2/M.2 D5 is a micro-ATX motherboard for 12th, 13th and 14th gen Intel processors, designed for budget-conscious builders who want DDR5 memory support and reliable performance without premium features. It pairs a stable power delivery system with dual-channel memory and PCIe 4.0 storage connectivity.
Why this product
DDR5 memory up to 5600 MHz
Supports dual-channel DDR5 DIMMs with speeds up to 5600 MHz on 13th gen processors and 4800 MHz on 12th gen, with XMP 3.0 profile support for easy tuning.
3+1+1 power phase design
Digital PWM power delivery ensures stable voltage to the CPU, extending motherboard lifespan and improving system stability under load.
PCIe 4.0 M.2 NVMe support
Ultra M.2 socket supports type 2242/2260/2280 drives with PCIe Gen3x4 (32 Gb/s) for fast storage without a separate adapter.
Dual HDMI 2.1 outputs
Two HDMI ports support 4K 60Hz resolution with HDCP 2.3, making it suitable for multi-monitor setups and integrated graphics builds.
Auto driver installation
LAN driver comes pre-installed, so the system can download and install remaining drivers with one click on first internet connection.
- ChipsetIntel H610
- SocketIntel LGA1700
- Form FactorMicro ATX
- Memory Slots2 x DDR5 DIMM
- Max Memory96GB
- PCIe M.21 x Ultra M.2 (Gen3x4, 32 Gb/s)
- Display Outputs2 x HDMI 2.1 (4K 60Hz)
- SKUASR-3326
- EAN4710483943775
- Supports 12th, 13th and 14th gen Intel Core processors (Alder Lake, Raptor Lake and Raptor Lake Refresh) in LGA1700 socket
- Accepts up to 96GB of DDR5 DIMM memory in two slots
- Fits standard micro-ATX cases with full rear I/O access
- PCIe 4.0 x16 slot supports graphics cards, but requires adequate power supply; uses only one M.2 slot so no simultaneous NVMe and SATA expansion
- Does not support Intel 11th gen or older processors, or AMD Ryzen CPUs
Best for
- Budget office and productivity builds
- Integrated graphics systems without discrete GPU
- First-time builders seeking DDR5 entry price
- Home theater or light creative work with dual monitor output
Trade-offs
- Gaming with high-end graphics card. Single PCIe 4.0 x16 slot and H610 chipset lack overclocking and advanced thermal management.
- Heavy multithreaded workloads. H610 chipset and 3+1+1 power phase target mainstream use, not workstation-class sustained performance.
- Large storage expansions. Single M.2 slot and four SATA ports limit drive count; choosing NVMe blocks SATA use on the same bank.
- Extensive USB peripheral setups. Six total USB ports (two 3.2 Gen1, four 2.0) are limited for systems with many connected devices.
H610M-H2/M.2 D5. Supports 12th, 13th and 14th gen Intel Core processors (LGA1700). 3+1+1 power phase with dual DDR5 DIMMs up to 5600 MHz. PCIe 4.0 x16 slot. Dual HDMI outputs and Realtek ALC897 7.1 channel audio.
This motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, providing CPU a smooth and efficient power source which expands the lifespan and stability of the motherboard.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear. Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
General
| Brand | ASRock |
|---|
CPU & Memory
| CPU Socket | Intel LGA1700; supports 12th, 13th, 14th gen Intel Core |
|---|---|
| Memory Type | DDR5 Dual Channel |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 96GB |
| 13th Gen DDR5 Speed | up to 5600 MHz |
| 12th Gen DDR5 Speed | up to 4800 MHz |
| XMP Support | XMP 3.0 |
Storage & Expansion
| M.2 Slots | 1 x Ultra M.2 (Type 2242/2260/2280) |
|---|---|
| M.2 Interface | PCIe Gen3x4 (32 Gb/s) |
| SATA Connectors | 4 x SATA3 (6.0 Gb/s) |
| PCIe Slots | 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x1 |

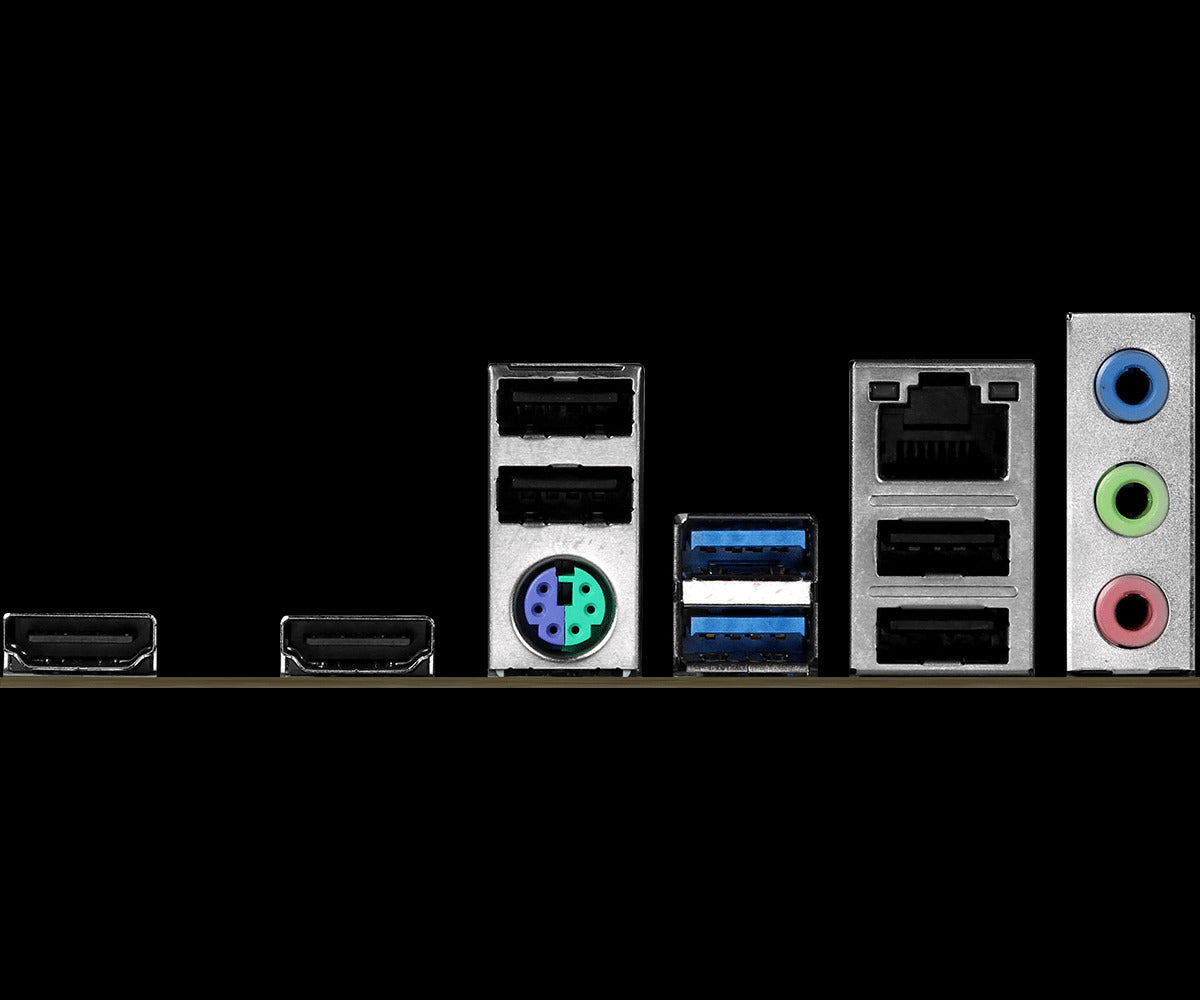

Connectivity & I/O
| Graphics Output | 2 x HDMI 2.1 TMDS (4K 60Hz, HDCP 2.3) |
|---|---|
| Rear USB 3.2 | 2 x Type-A (Gen1) |
| Rear USB 2.0 | 4 x Ports |
| LAN | 1 x Gigabit RJ-45 |
| Audio | Realtek ALC897 7.1 CH HD Audio |
| Internal USB Headers | 1 x USB 3.2 Gen1 Header; 1 x USB 2.0 Header |
Power & Cooling
| Power Phases | 3+1+1 |
|---|---|
| CPU Fan Connector | 1 x 4-pin |
| Chassis Fan Connector | 1 x CHA_FAN1/WP |
