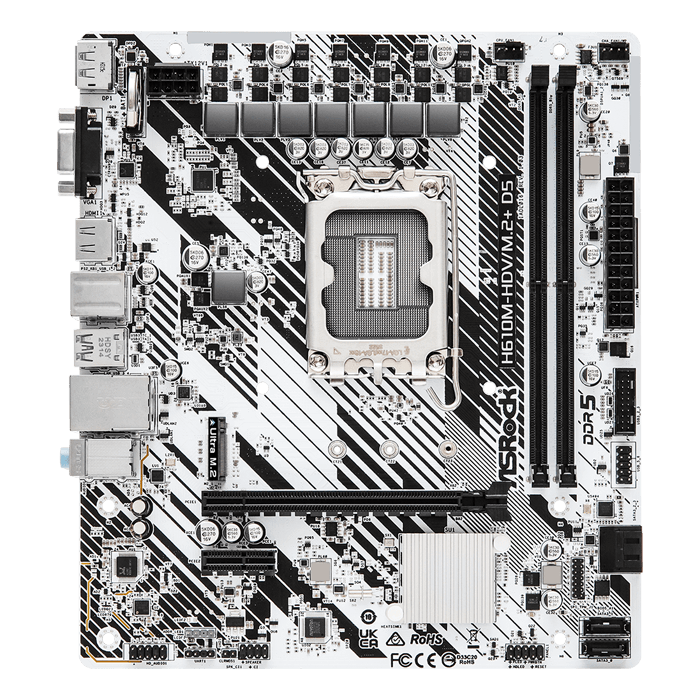

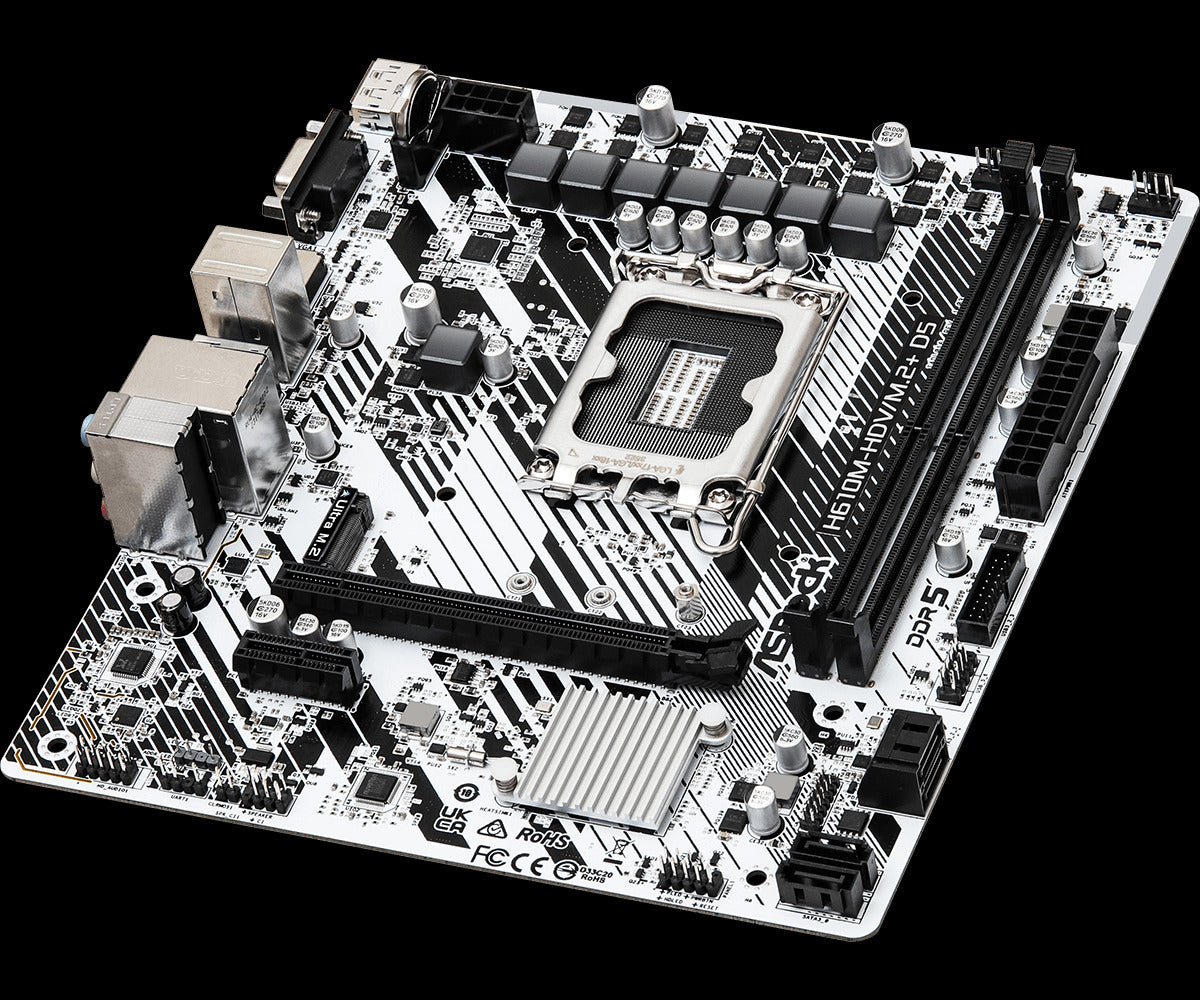

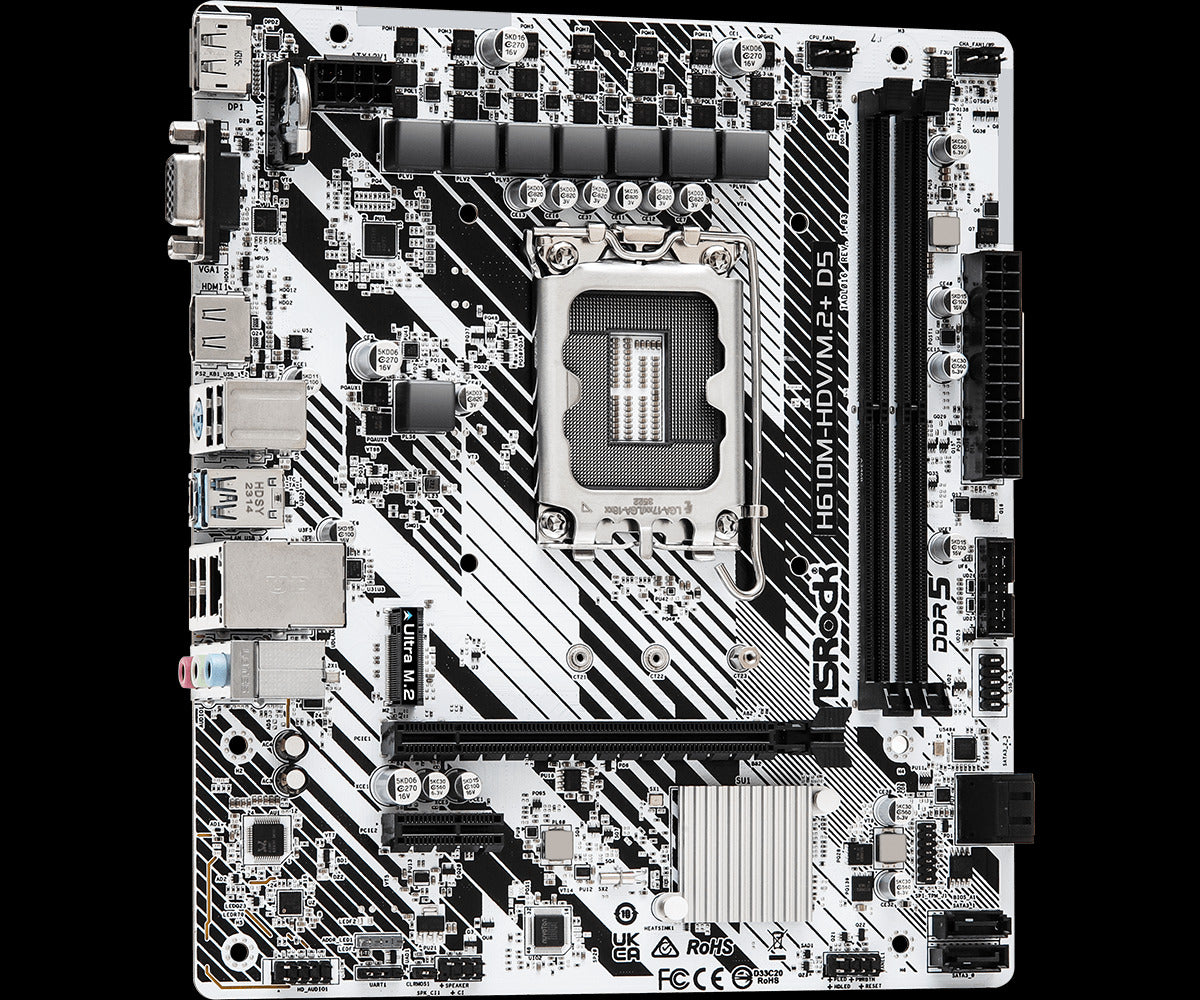

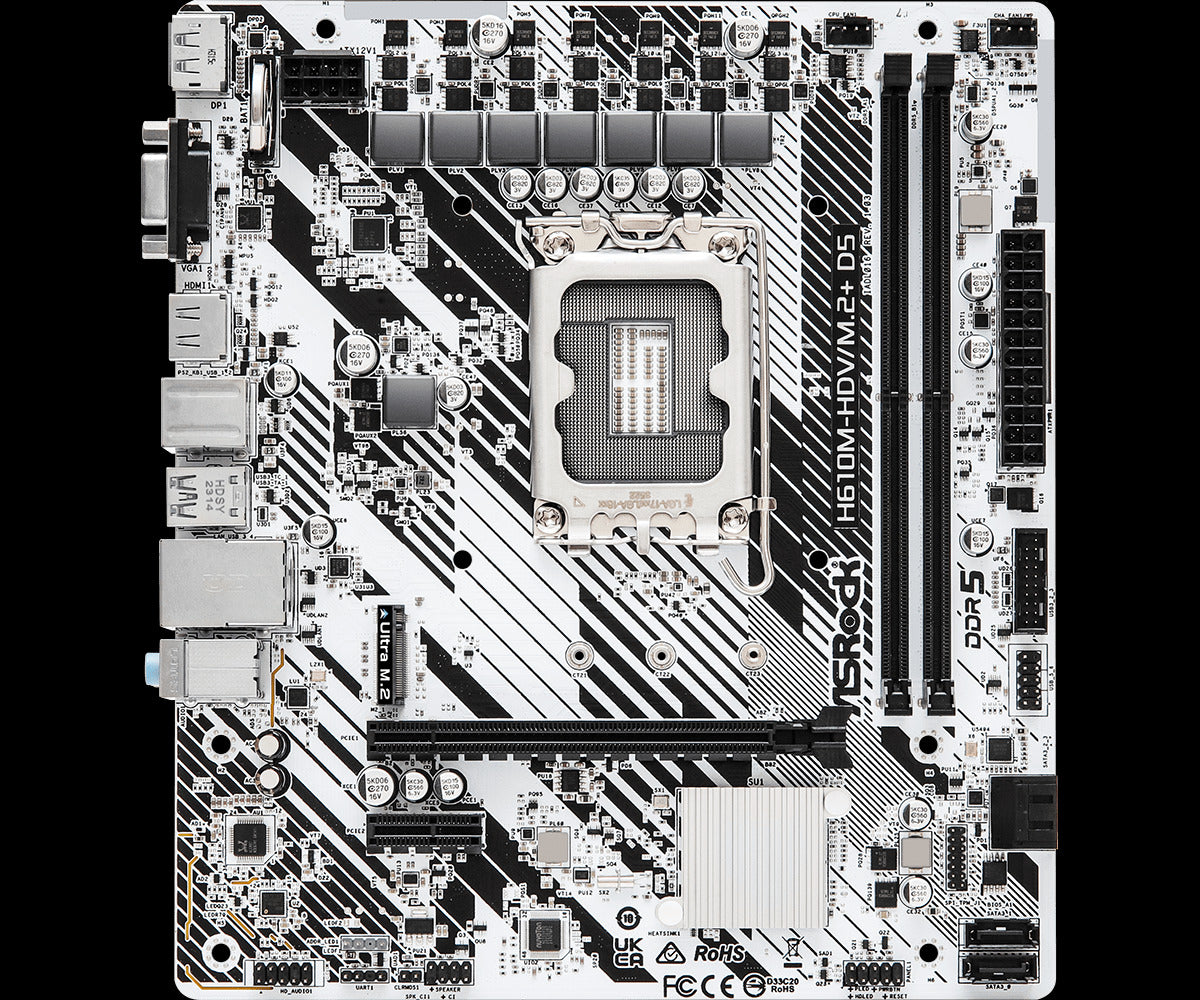

ASRock H610M-HDV/M.2+ D5 DDR5 Intel LGA1700 Micro ATX Motherboard
ASRock
ASRock H610M-HDV/M.2+ D5 DDR5 Intel LGA1700 Micro ATX Motherboard
The ASRock H610M-HDV/M.2+ D5 is a budget-focused micro ATX motherboard for builders stepping up to 12th, 13th or 14th generation Intel processors and DDR5 memory. It handles mainstream gaming, content creation and productivity workloads without the cost of high-end platforms, while delivering dual-monitor support via HDMI and DisplayPort.
Why this product
Supports latest Intel processors
This board works with 12th, 13th and 14th generation Intel Core CPUs in the LGA1700 socket, letting you upgrade within the same generation or build new with current chips.
DDR5 at mainstream speeds
Dual DDR5 slots run at up to 5600 MHz on 13th gen chips and 4800 MHz on 12th gen, supporting up to 96 GB total for multitasking and professional workloads.
PCIe 4.0 NVMe slot
One ultra M.2 socket connects modern SSDs at PCIe Gen3 x4 speeds (32 Gb/s), with the slot also supporting older SATA drives if needed.
Triple graphics output

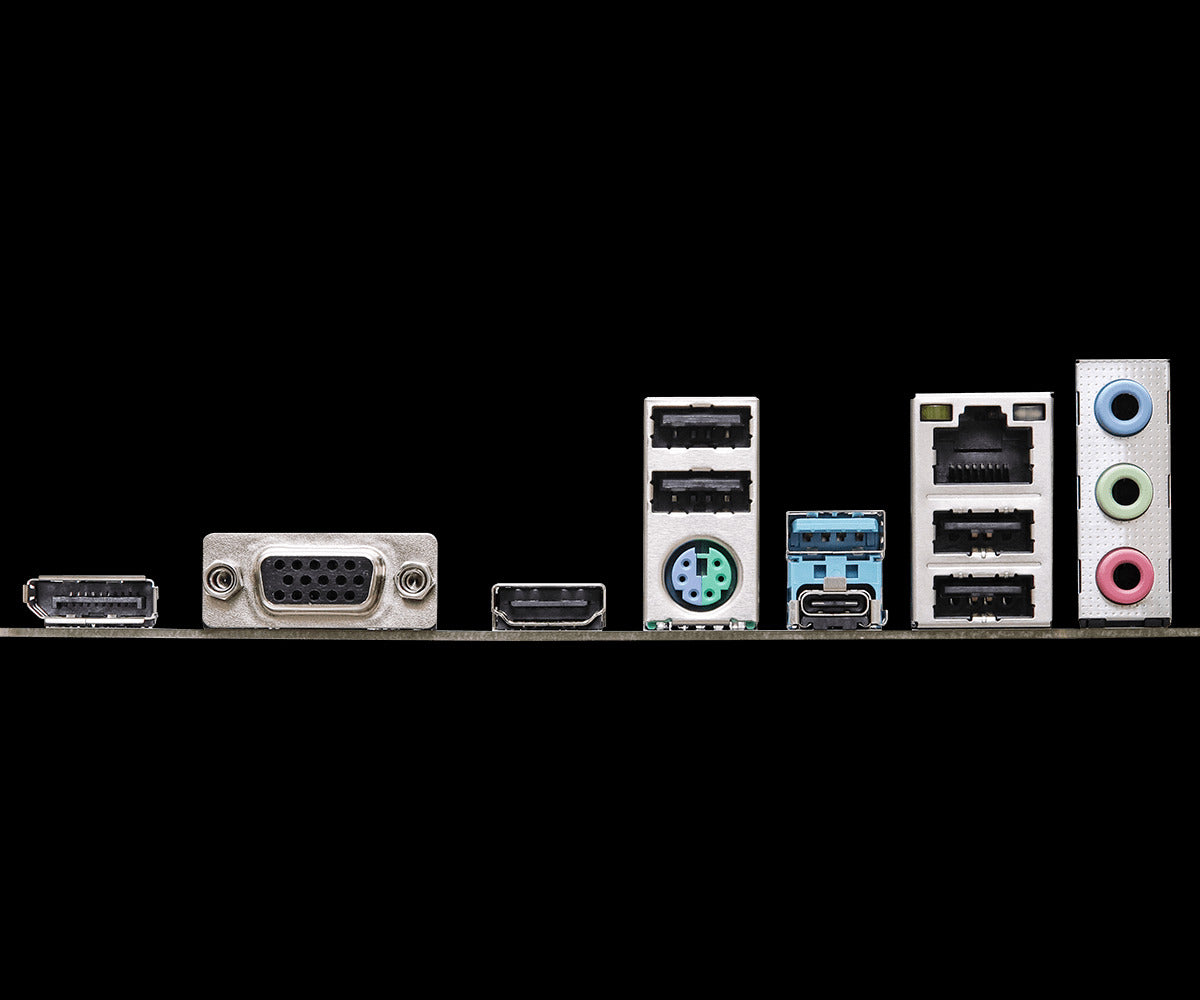

HDMI, DisplayPort and D-Sub connectors let you run two displays simultaneously without a graphics card, or add one later via the PCIe 4.0 x16 slot.
RGB lighting control
An addressable LED header supports WS2812B RGB strips up to 2 metres long with Polychrome SYNC integration for coordinated lighting effects.
- SocketIntel LGA1700
- Form FactorMicro ATX
- ChipsetIntel H610
- Memory2 x DDR5 DIMM (up to 96 GB)
- Storage4 x SATA3, 1 x M.2 PCIe Gen3 x4
- Graphics OutputHDMI, DisplayPort, D-Sub
- Power Phase6+1+1
- SKUASR-1803
- EAN4710483943478
- 12th, 13th and 14th generation Intel Core processors with LGA1700 socket
- DDR5 non-ECC unbuffered memory in dual-channel configuration
- M.2 NVMe drives (2242, 2260, 2280 form factors) and SATA3 SSDs or hard drives
- Integrated graphics on 12th–14th gen Intel chips output via HDMI, DisplayPort or D-Sub; discrete graphics requires a dedicated card in the PCIe x16 slot
- AMD processors or older Intel platforms — this board requires LGA1700
- DDR4 memory — it supports DDR5 only
Best for
- First-time DDR5 builders on a tight budget
- Home office and productivity setups with dual-monitor displays
- Compact builds — the micro ATX form factor fits smaller cases
- Entry-level gaming and streaming on a budget
Trade-offs
- Overclocking: The 6+1+1 power phase is entry-level; serious overclockers need higher phase counts
- Multiple NVMe drives: Only one M.2 socket limits fast storage expansion
- Heavy workstations: H610 chipset lacks overclocking and is not intended for sustained server-grade loads
- Large ATX cases: Micro ATX does not fill full-size chassis, leaving wasted space
H610M-HDV/M.2+ D5. Supports 12th, 13th and 14th gen Intel Core processors (LGA1700). 6+1+1 power phase with DDR5 5600 MHz. PCIe 4.0 x16. HDMI, DisplayPort and D-Sub graphics. Realtek ALC897 7.1 audio with USB 3.2 Gen1 Type-C and Type-A ports.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear.
General
| Brand | ASRock |
|---|---|
| CPU Support | 12th, 13th and 14th gen Intel Core (LGA1700) |
| Form Factor | Micro ATX |
| Chipset | Intel H610 |
Memory & Storage
| Memory Slots | 2 x DDR5 DIMM |
|---|---|
| Max Memory | 96 GB |
| Memory Speed (13th Gen) | DDR5-5600 |
| Memory Speed (12th Gen) | DDR5-4800 |
| SATA Ports | 4 x SATA3 6.0 Gb/s |
| M.2 Slot | 1 x Ultra M.2 (PCIe Gen3 x4, SATA3 support) |
| M.2 Speeds | Up to 32 Gb/s (PCIe Gen3 x4) |
Expansion & Connectivity
| PCIe Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
|---|---|
| Graphics Output | HDMI, DisplayPort, D-Sub |
| USB 3.2 Gen1 Type-C (Rear) | 1 x 5 Gbps |
| USB 3.2 Gen1 Type-A | 1 x Rear, 2 x Front |
| USB 2.0 | 4 x Rear, 2 x Front |
| Audio | Realtek ALC897 7.1 CH |
| LAN | Realtek Gigabit |
| RGB Header | 1 x Addressable LED (supports WS2812B, max 3A/5V, 80 LEDs, 2 metres) |
Power & Features
| Power Phase | 6+1+1 |
|---|---|
| Fan Headers | CPU Fan, Chassis/Water Pump Fan |
| BIOS | ASRock EZ Mode, Full HD UEFI, Instant Flash |
| Software | ASRock A-Tuning, Polychrome SYNC |
