ASRock H610M-HDV/M.2 D5 Gen5 Intel LGA1700 Motherboard
ASRock
ASRock H610M-HDV/M.2 D5 Gen5 Intel LGA1700 Motherboard

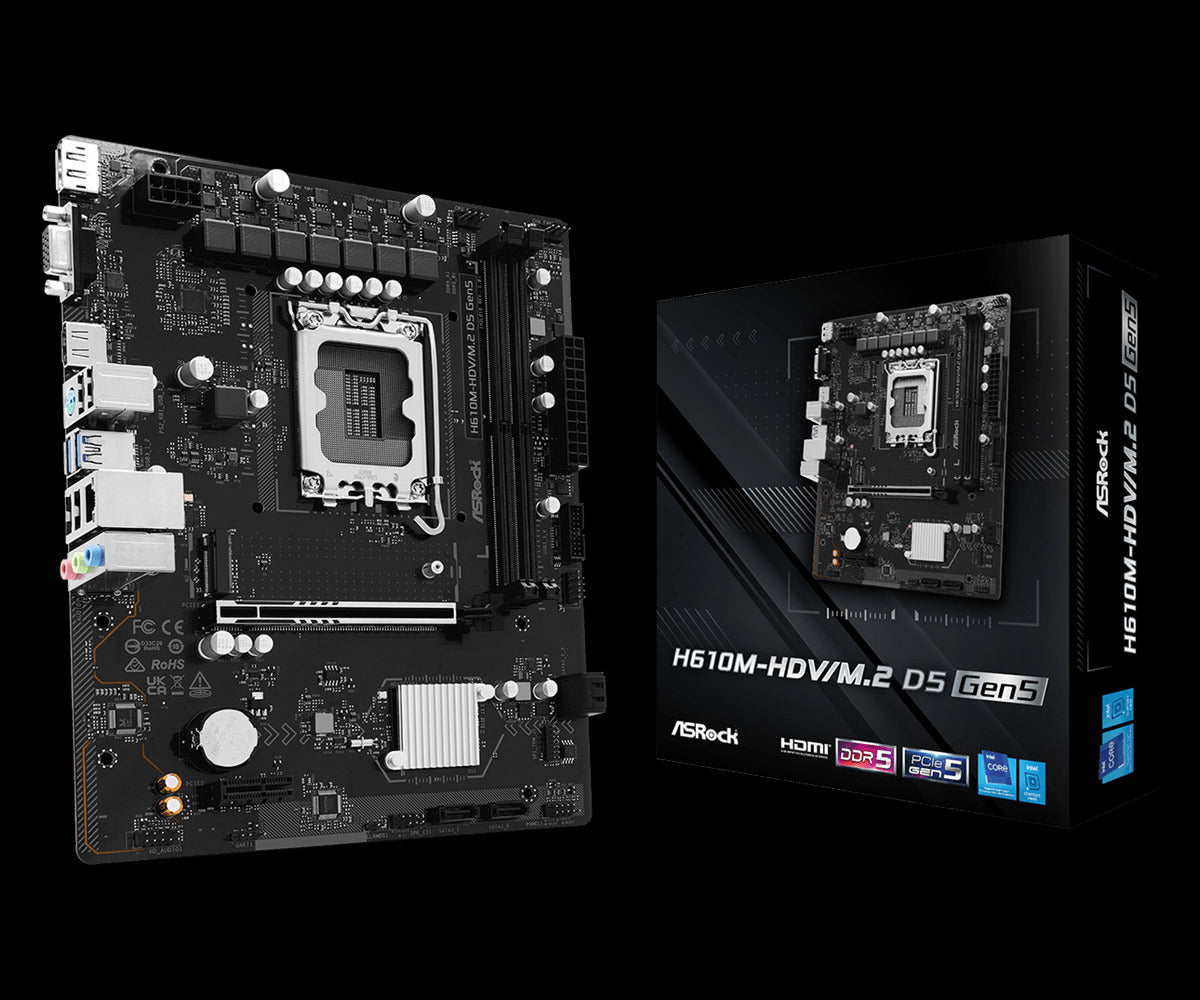

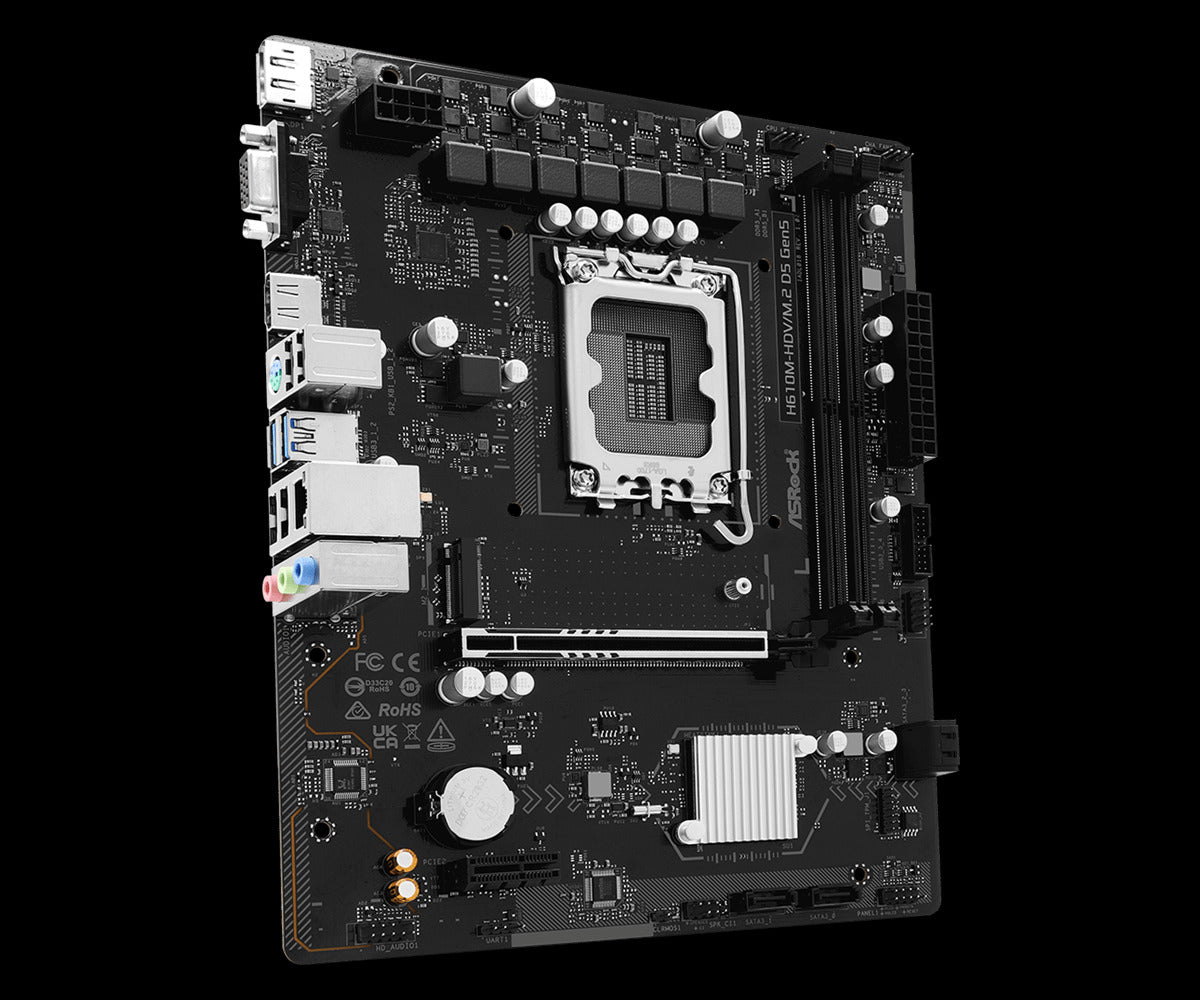

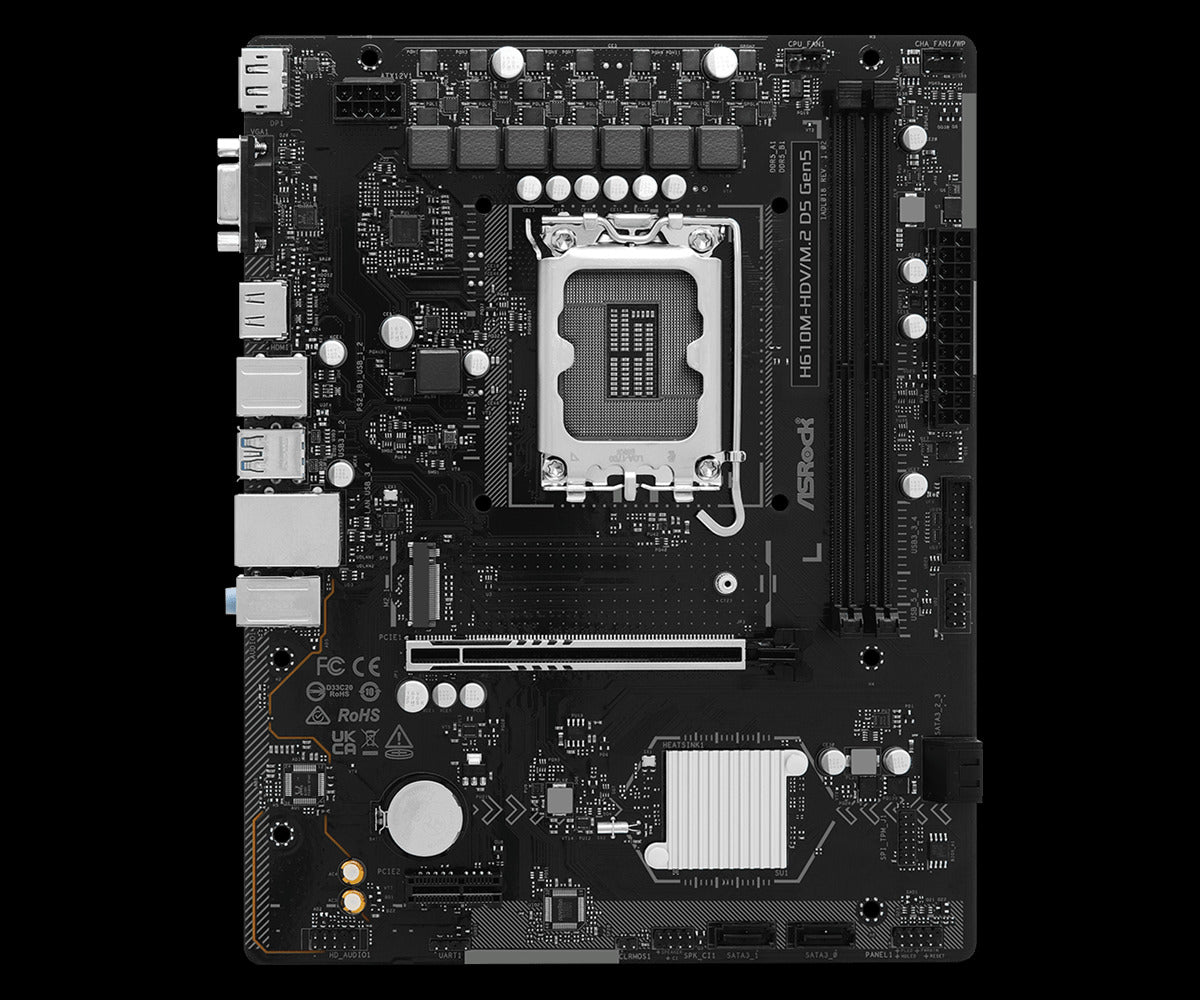

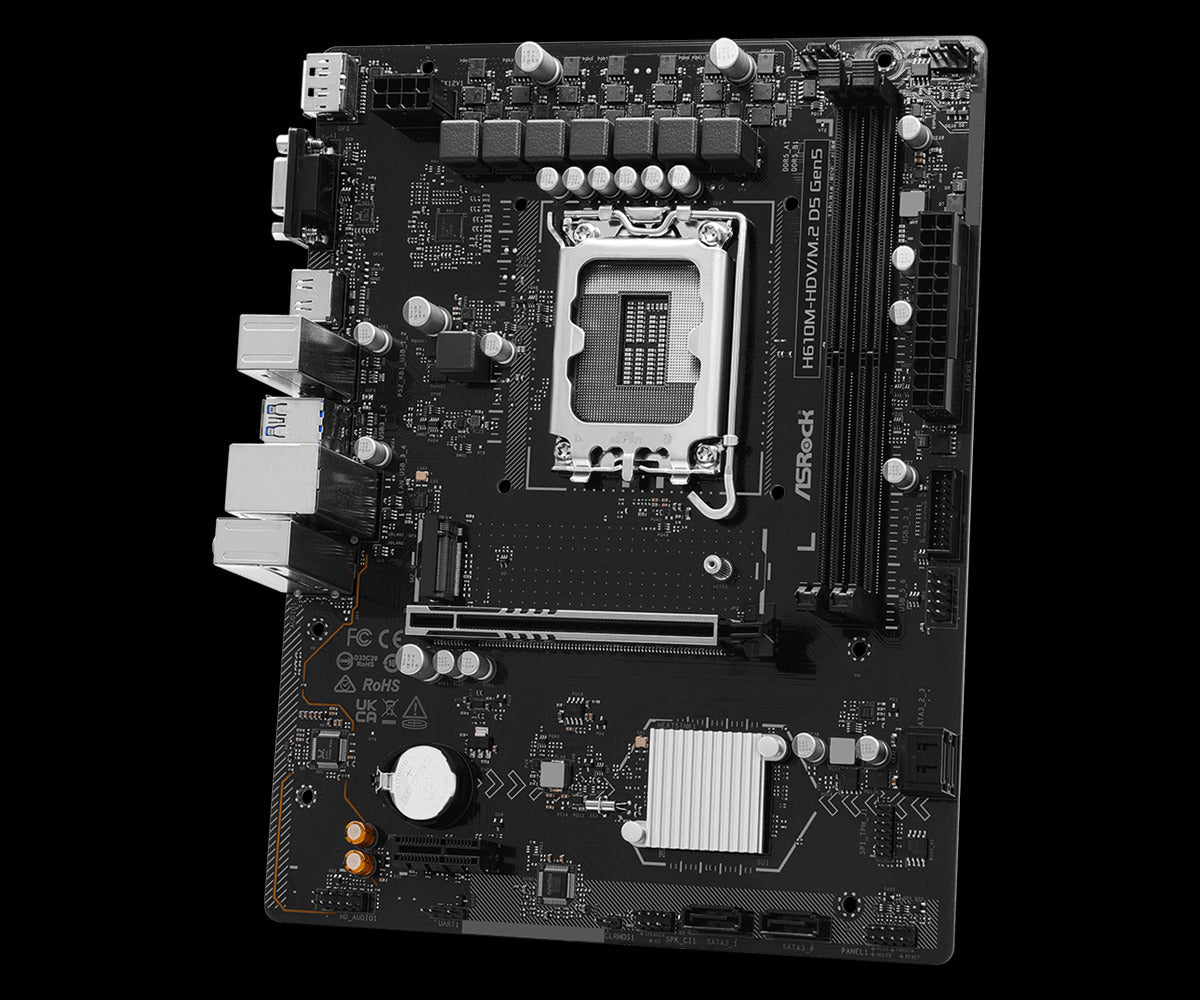

The ASRock H610M-HDV/M.2 D5 Gen5 is a Micro ATX motherboard for 12th, 13th and 14th Gen Intel Core processors, built for everyday computing with DDR5 memory support and PCIe 5.0 graphics capability. It combines a minimal feature set with three video output options and storage flexibility, making it suitable for office work, media consumption and light productivity without unnecessary cost.
Why this product
Three video outputs in one board
D-Sub, HDMI and DisplayPort 1.4 connectors let you connect to almost any monitor type — older or new — without adapters.
DDR5 memory, up to 5600 MHz
Dual channel slots support the latest fast memory on 13th and 14th Gen processors, with Intel XMP 3.0 profile support for easy configuration.
PCIe 5.0 graphics slot
The reinforced x16 slot supports the PCIe 5.0 standard with extra anchor points and a stronger latch, designed to handle modern graphics cards securely.
No driver disc required
LAN driver is pre-installed, so an ADI pop-up appears on first internet connection to download the rest automatically.
- SocketIntel LGA1700
- Form FactorMicro ATX
- ChipsetIntel H610
- Memory TypeDDR5 Dual Channel
- Max Memory128GB
- Storage1 x M.2 NVMe + 4 x SATA
- Video OutputsD-Sub, HDMI, DisplayPort 1.4
- SKUASR-2007
- EAN4711581492431
- Works with 12th, 13th and 14th Gen Intel Core processors in LGA1700 socket.
- Supports DDR5 memory modules in both DIMM slots for dual channel operation.
- Fits standard PC cases with Micro ATX motherboard support.
- Supports one M.2 NVMe SSD (PCIe Gen3x4) and up to four SATA devices.
- Video output requires a processor with integrated graphics; discrete GPUs are not required but can be installed in the PCIe 5.0 x16 slot.
Best for
- Office and everyday computing
- Budget builds using integrated graphics
- Media and streaming without heavy GPU workloads
- Users who need multiple video output options
Trade-offs
- Limited expansion: Only one PCIe 5.0 slot and one PCIe 3.0 x1 slot; does not suit builds with multiple GPUs or many expansion cards.
- Entry-level feature set: No Wi-Fi, no USB-C, and fewer USB headers than higher-tier boards; not for users needing extensive connectivity.
- DDR5 limited on 12th Gen: 12th Gen processors max out at DDR5-4800; only 13th and 14th Gen support DDR5-5600.
- Single M.2 slot: Only one NVMe SSD can be installed; not suitable for multi-drive NVMe setups.
Built to deliver reliable performance with versatile features, perfect for daily tasks.
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. *Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include: ✔ Extra anchor points ✔ Stronger latch ✔ Ensure signal stability ✔ Make sure heavy graphics cards to be well-installed.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear.
Unique Feature
Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5
Rock-Solid Durability - 6+1+1 Power Phase - ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update - ASRock Auto Driver Installer
Software
- ASRock Motherboard Utility (A-Tuning)*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
* This product is still in production, ASRock will provide technical and security-related support throughout the product support period.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
General
| Brand | ASRock |
|---|
CPU & Chipset
| Supported Processors | 14th, 13th & 12th Gen Intel Core (LGA1700) |
|---|---|
| Chipset | Intel H610 |
| Intel Turbo Boost Max 3.0 | Supported |
| Intel Hybrid Technology | Supported |
Memory
| Memory Slots | 2 x DDR5 DIMM |
|---|---|
| Memory Speed (13th/14th Gen) | Up to DDR5-5600 |
| Memory Speed (12th Gen) | Up to DDR5-4800 |
| Max Memory Capacity | 128GB |
| XMP Support | Intel Extreme Memory Profile 3.0 |
Storage & Expansion
| M.2 Socket | 1 x PCIe Gen3x4 (2280) |
|---|---|
| SATA Connectors | 4 x SATA3 6.0 Gb/s |
| PCIe Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x1 |
| PCIe Slot Features | Reinforced with extra anchor points and stronger latch |
Connectivity & Audio
| Video Outputs | 1 x D-Sub, 1 x HDMI, 1 x DisplayPort 1.4 |
|---|---|
| Rear USB 3.2 Gen1 | 2 ports |
| Rear USB 2.0 | 4 ports |
| USB Headers | 1 x USB 3.2 Gen1 (2 ports), 1 x USB 2.0 (2 ports) |
| Network | Realtek Gigabit LAN |
| Audio Codec | Realtek ALC897 7.1 CH HD |
Power & Cooling
| Power Phase | 6+1+1 |
|---|---|
| CPU Fan Connector | 1 x 4-pin with Smart Fan Speed Control |
| Chassis Fan Connector | 1 x 4-pin with Smart Fan Speed Control |
| Power Connectors | 24-pin ATX + 8-pin 12V |
BIOS & Software
| BIOS | 128Mb AMI UEFI |
|---|---|
| BIOS Features | EZ Mode, Full HD UEFI, My Favorites, Instant Flash, Auto Driver Installer |
| Driver Installation | LAN driver pre-installed; ADI pop-up on first internet connection |
| Utility Software | A-Tuning (ASRock Motherboard Utility) |
