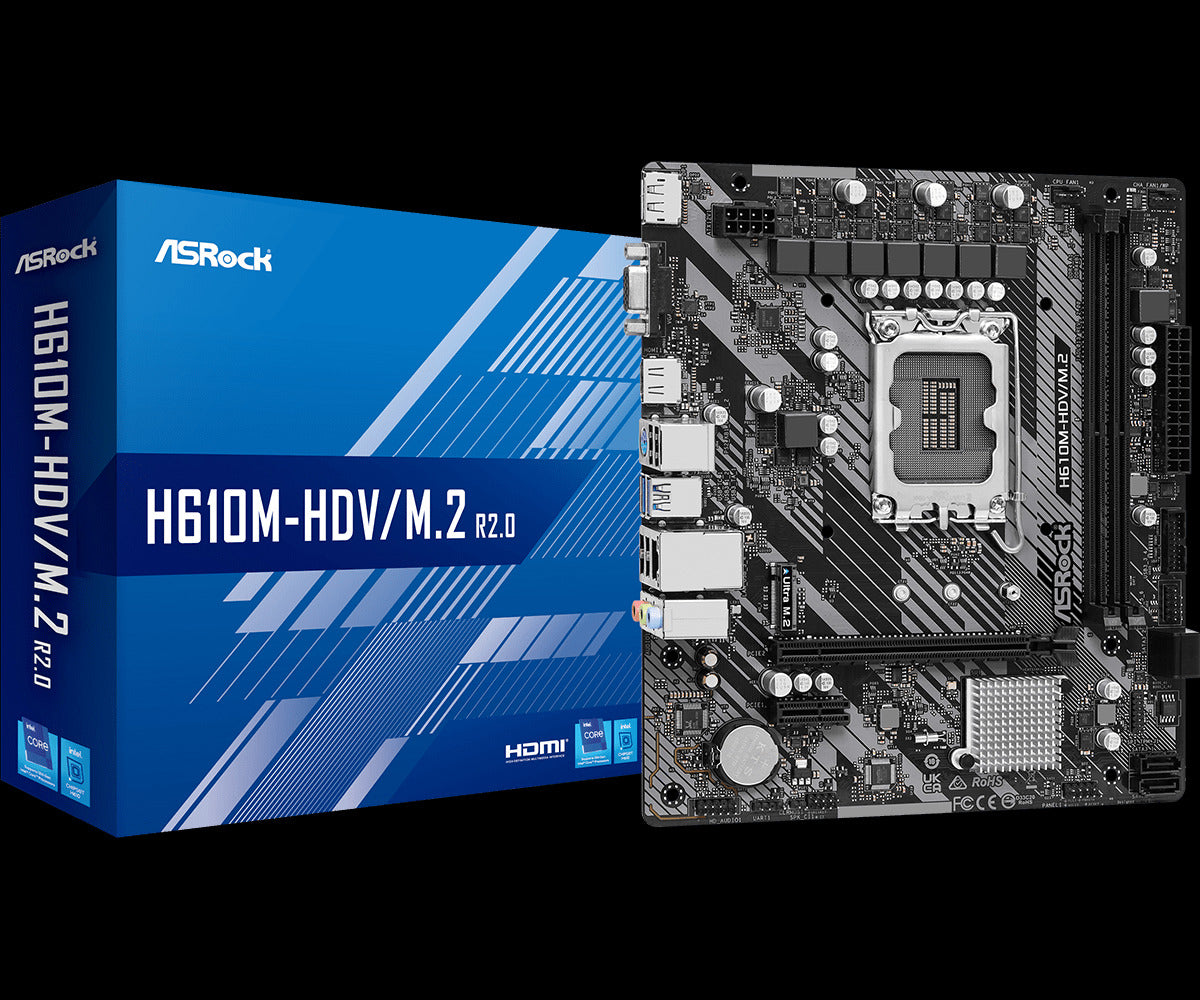

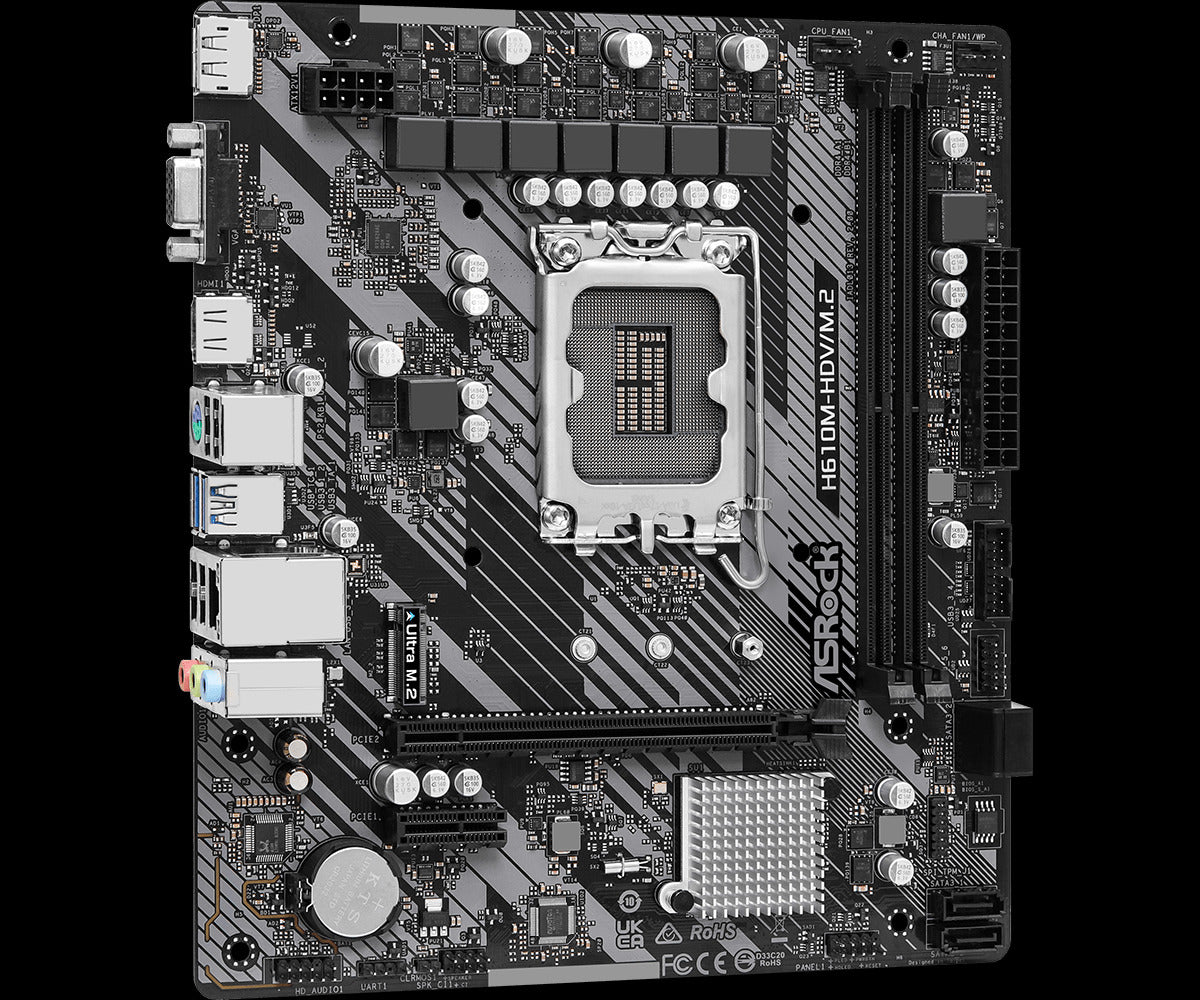

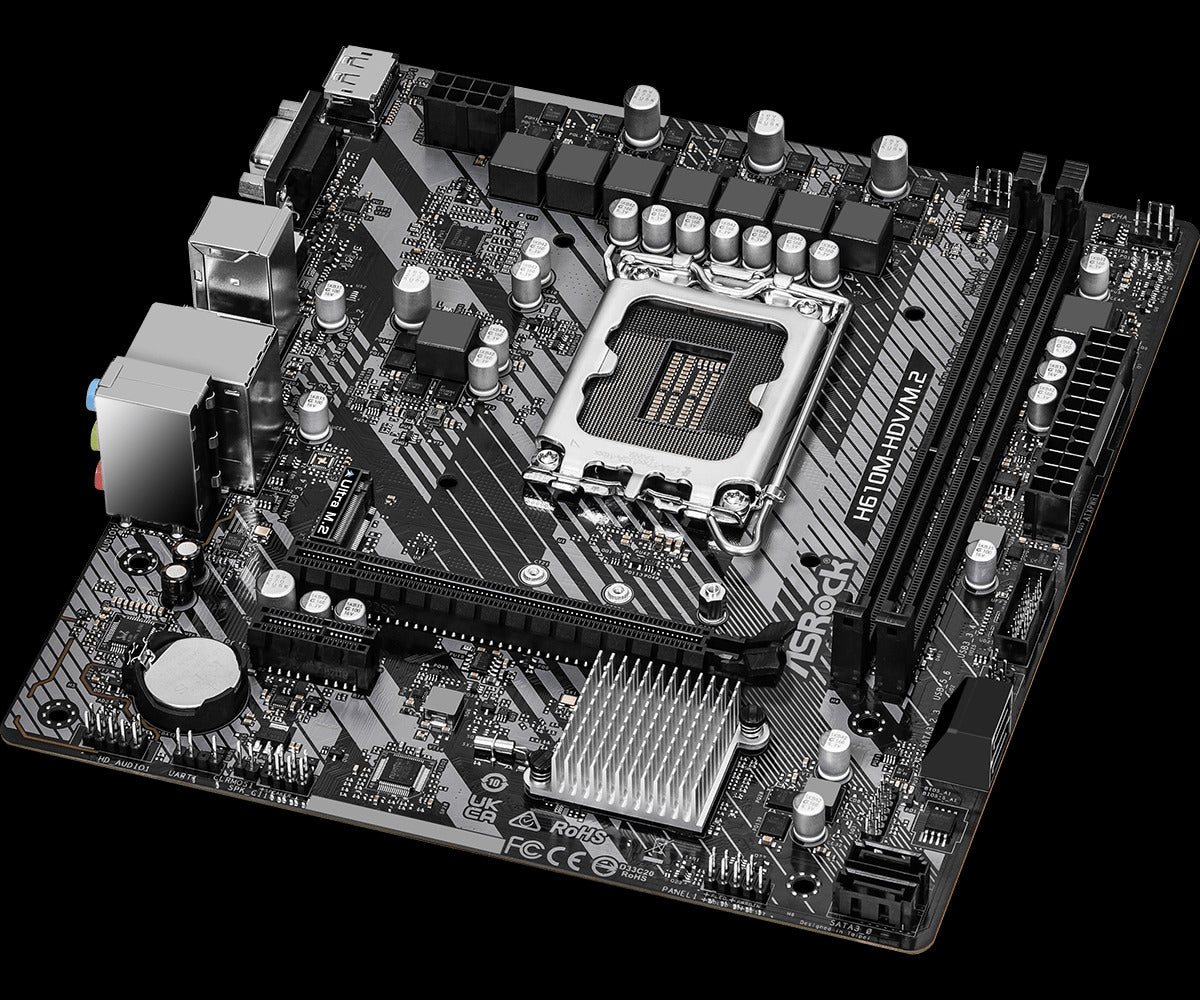

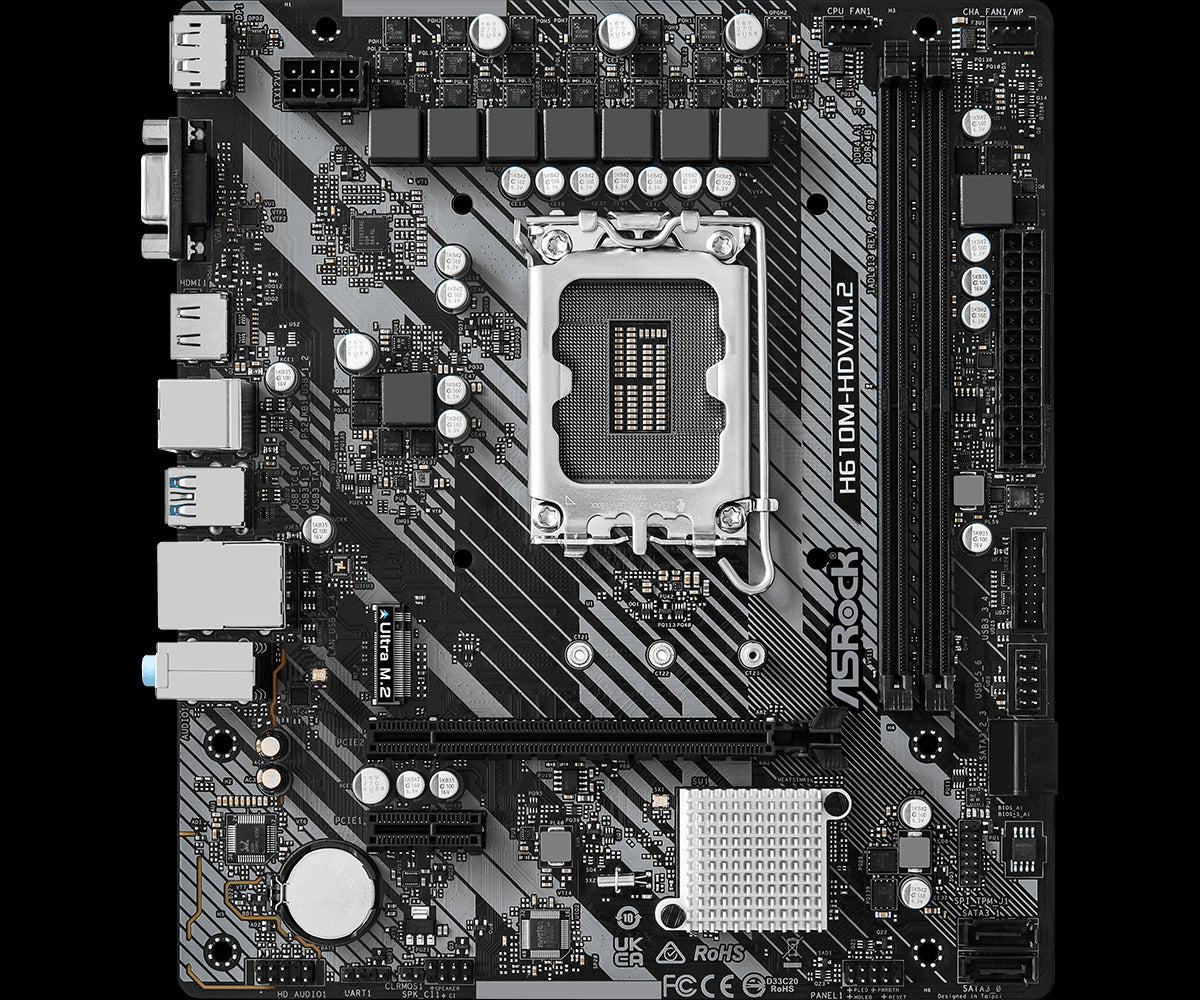

ASRock H610M-HDV/M.2 R2.0 LGA1700 Micro-ATX Motherboard
The ASRock H610M-HDV/M.2 R2.0 is a Micro-ATX motherboard for builders who want a compact, straightforward platform for 12th, 13th, or 14th Gen Intel Core processors without paying for features they won't use. It covers the essentials — DDR4 memory, M.2 NVMe storage, PCIe 4.0 graphics, and three display outputs — making it a practical choice for home, office, or entry-level desktop builds.
Why this product
Three generations of Intel Core support
It accepts 12th, 13th, and 14th Gen Intel Core processors in the LGA1700 socket, giving builders flexibility to choose a CPU at their budget or upgrade later.
Three display outputs on one board
D-Sub, HDMI, and DisplayPort 1.4 outputs are all present on the rear panel, so it works with nearly any monitor without an add-in graphics card — provided the CPU has integrated graphics.
M.2 NVMe slot at up to 32 Gb/s
The Ultra M.2 socket runs PCIe Gen3 x4, supporting 2242, 2260, and 2280 form-factor drives and NVMe boot disks.
DDR4 with XMP 2.0 support
Two DIMM slots support dual-channel DDR4 up to 3200 MHz and up to 64 GB total, with Intel XMP 2.0 profiles for straightforward memory tuning.
Full Spike Protection across all ports
ESD and lightning protection is applied to all USB, audio, and LAN ports, reducing the risk of component damage from unexpected voltage events.
High Density Glass Fabric PCB
Tighter PCB layer spacing reduces the risk of electrical shorts caused by humidity, contributing to long-term board stability.
- SocketLGA1700
- ChipsetIntel H610
- Form FactorMicro-ATX
- Memory SupportDDR4 up to 3200 MHz, 64 GB max
- Primary Expansion SlotPCIe 4.0 x16
- M.2 SlotPCIe Gen3 x4 (32 Gb/s), NVMe
- Display OutputsD-Sub, HDMI, DisplayPort 1.4
- LANGigabit (Realtek RTL8111H)
- SKUASR-2017
- EAN4710483939860
- Compatible with 12th, 13th, and 14th Gen Intel Core processors using the LGA1700 socket.
- Accepts standard DDR4 non-ECC unbuffered DIMMs; also accepts ECC UDIMM modules, which operate in non-ECC mode.
- Fits standard Micro-ATX cases (220 mm × 193 mm board dimensions).
- Compatible with standard ATX power supplies (24-pin main power, 8-pin 12 V CPU connector).
- D-Sub, HDMI, and DisplayPort outputs require a processor with integrated graphics — discrete-only CPUs will not drive these outputs.
- Does not support DDR5 memory — only DDR4 modules are compatible.
Best for
- Home and office desktop builds where a compact, capable platform is needed without discrete graphics.
- Budget-conscious builders who need M.2 NVMe storage and a PCIe 4.0 x16 slot without stepping up to a higher-end chipset.
- Multi-monitor office setups using integrated graphics, thanks to the simultaneous D-Sub, HDMI, and DisplayPort outputs.
- Builders who plan to reuse an existing CPU across generations — LGA1700 support spans three Intel Core generations.
Trade-offs
- Overclocking enthusiasts — the H610 chipset does not support CPU overclocking, unlike Z-series chipsets.
- High-capacity memory builds — only two DIMM slots are provided, limiting memory configuration options compared to boards with four slots.
- Multi-GPU or high-lane-count builds — only one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot are available.
- Builders wanting Wi-Fi or Bluetooth — no wireless networking is included; only wired Gigabit LAN is provided.
Supports 12th, 13th and 14th gen Intel Core processors (LGA1700). 6+1+1 power phase with DDR4 3200 MHz. PCIe 4.0 x16 and PCIe 3.0 x1. HDMI, DisplayPort and D-Sub outputs. Realtek ALC897 7.1 channel audio.
This motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, providing CPU a smooth and efficient power source which expands the lifespan and stability of the motherboard. The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. *Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Claw Quickset is a Windows desktop utility that simplifies the deployment of OpenClaw and local AI models. It automates installation, configuration, and environment setup, allowing users to start using AI with minimal technical knowledge.
General
| Brand | ASRock |
|---|---|
| Form Factor | Micro-ATX |
| Dimensions | 220 mm × 193 mm |
| Chipset | Intel H610 |
| CPU Socket | LGA1700 |
| Supported Processors | 12th, 13th & 14th Gen Intel Core (LGA1700) |
| Power Phase | 6+1+1 |
| OS Support | Windows 10 64-bit / Windows 11 64-bit |
| Certifications | FCC, CE; ErP/EuP Ready |
Memory & Storage
| Memory Slots | 2 × DDR4 DIMM |
|---|---|
| Memory Type | Dual-channel DDR4, non-ECC unbuffered; ECC UDIMM (non-ECC mode) |
| Max Memory Speed | 3200 MHz |
| Max Memory Capacity | 64 GB |
| Memory Profile | Intel XMP 2.0 |
| M.2 Slot | 1 × Key M (M2_2), PCIe Gen3 x4 (32 Gb/s), types 2242/2260/2280; NVMe boot supported |
| SATA Ports | 4 × SATA3 6.0 Gb/s |
Connectivity & I/O
| PCIe Slots | 1 × PCIe 4.0 x16 (CPU); 1 × PCIe 3.0 x1 (Chipset) |
|---|---|
| LAN | Realtek RTL8111H, Gigabit (10/100/1000 Mb/s); Wake-On-LAN; Energy Efficient Ethernet 802.3az; PXE |
| Audio | Realtek ALC897, 7.1-channel HD Audio |
| Rear USB | 2 × USB 3.2 Gen1; 4 × USB 2.0 (all with ESD protection) |
| Display Outputs | D-Sub (max 1920×1200 @ 60Hz); HDMI 2.1 (max 4K 4096×2160 @ 60Hz, HDCP 2.3); DisplayPort 1.4 with DSC (max 8K 7680×4320 @ 60Hz, HDCP 2.3) |

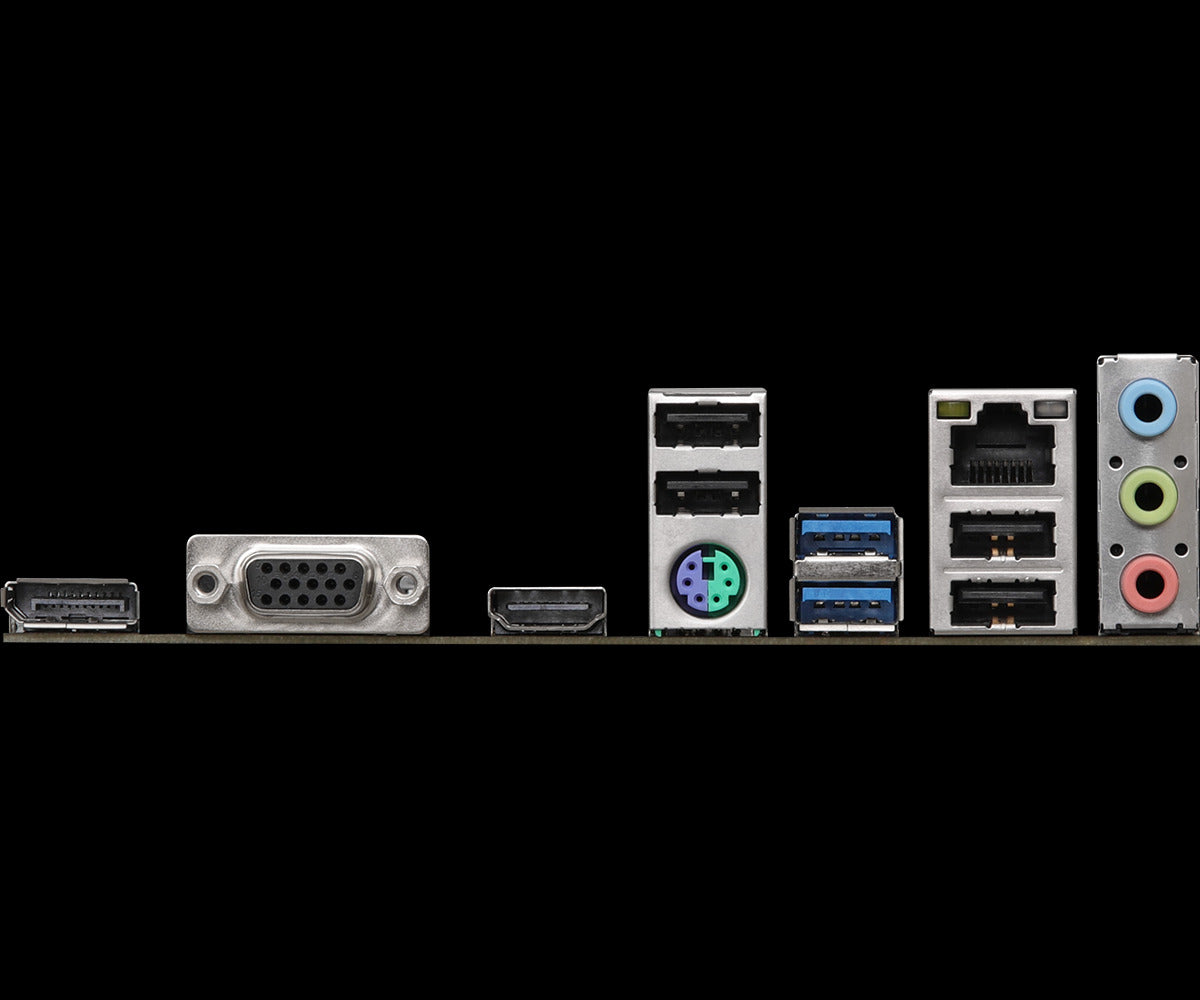

| Other Rear Ports | 1 × PS/2 Mouse/Keyboard; 1 × RJ-45 LAN; HD Audio jacks (Line in / Front Speaker / Microphone) |
Internal Connectors & BIOS
| Fan Connectors | 1 × CPU fan (4-pin); 1 × Chassis/Water Pump fan (4-pin, Smart Fan Speed Control) |
|---|---|
| Power Connectors | 1 × 24-pin ATX; 1 × 8-pin 12 V CPU |
| Internal USB | 1 × USB 2.0 header (2 ports, ESD); 1 × USB 3.2 Gen1 header (2 ports, ESD) |
| Other Headers | 1 × SPI TPM header; 1 × Chassis Intrusion & Speaker header; 1 × Front Panel Audio connector |
| BIOS | 128 Mb AMI UEFI, multilingual GUI, ACPI 6.0, SMBIOS 2.7 |
| Software | A-Tuning; ASRock EZ Mode; ASRock Full HD UEFI; Instant Flash; Live Update & APP Shop; ASRock Claw Quickset |
