ASRock H610M-HVS/M.2 D5 Gen5 Intel LGA1700 mATX Motherboard
ASRock
ASRock H610M-HVS/M.2 D5 Gen5 Intel LGA1700 mATX Motherboard
The ASRock H610M-HVS/M.2 D5 Gen5 is a compact Intel LGA1700 motherboard built for everyday computing with DDR5 memory support and PCIe 5.0 connectivity. It suits budget-conscious builders and office users who need reliable performance without unnecessary frills. The board handles 12th, 13th and 14th Gen Intel processors with straightforward setup thanks to pre-installed drivers.
Why this product
DDR5 and PCIe 5.0 ready
Supports up to DDR5-5600 on newer processors and a reinforced PCIe Gen5 slot rated for heavy graphics cards.
Dual video outputs
HDMI and D-Sub connectors give you more display options without needing an adapter.
Pre-installed drivers
LAN driver ships pre-loaded, so the first internet connection triggers an auto-installer for all remaining drivers and software.
Compact form factor
Micro ATX design fits smaller cases while retaining two DDR5 slots and modern connectivity standards.
- SocketLGA1700
- ChipsetIntel H610
- Form FactorMicro ATX
- Memory Slots2 x DDR5 DIMM
- Max Memory128 GB
- M.2 Sockets1
- PCIe Slots1 x Gen5 x16 (reinforced)
- Video OutputsHDMI, D-Sub
- SKUASR-1800
- EAN4711581492448
- Fits Intel 12th, 13th and 14th Gen Core processors in LGA1700 socket.
- Accepts two DDR5 DIMM modules, up to 128 GB total capacity.
- Supports PCIe Gen5 graphics cards in the reinforced main slot.
- 12th Gen Intel processors max out at DDR5-4800; 13th and 14th Gen reach DDR5-5600.
- Does not fit AMD Ryzen or older Intel socket types.
- DDR4 memory is not supported; only DDR5.
Best for
- Budget office and productivity builds
- First-time builders who want modern standards without complexity
- Compact PCs and small-form-factor cases
- Users stepping up from DDR4 to DDR5 on a tight budget
Trade-offs
- Overclocking enthusiasts — H610 chipset lacks overclocking controls beyond XMP memory profiles.
- High-end gaming or workstation rigs — single PCIe slot and modest power delivery (6+1+1 phase) limit multi-GPU and power-hungry component support.
- Multiple storage drives — only one M.2 socket provided.
- Extensive legacy hardware — limited legacy connector options; D-Sub is included but no parallel or serial ports.
Built to deliver reliable performance with versatile features, perfect for daily tasks.

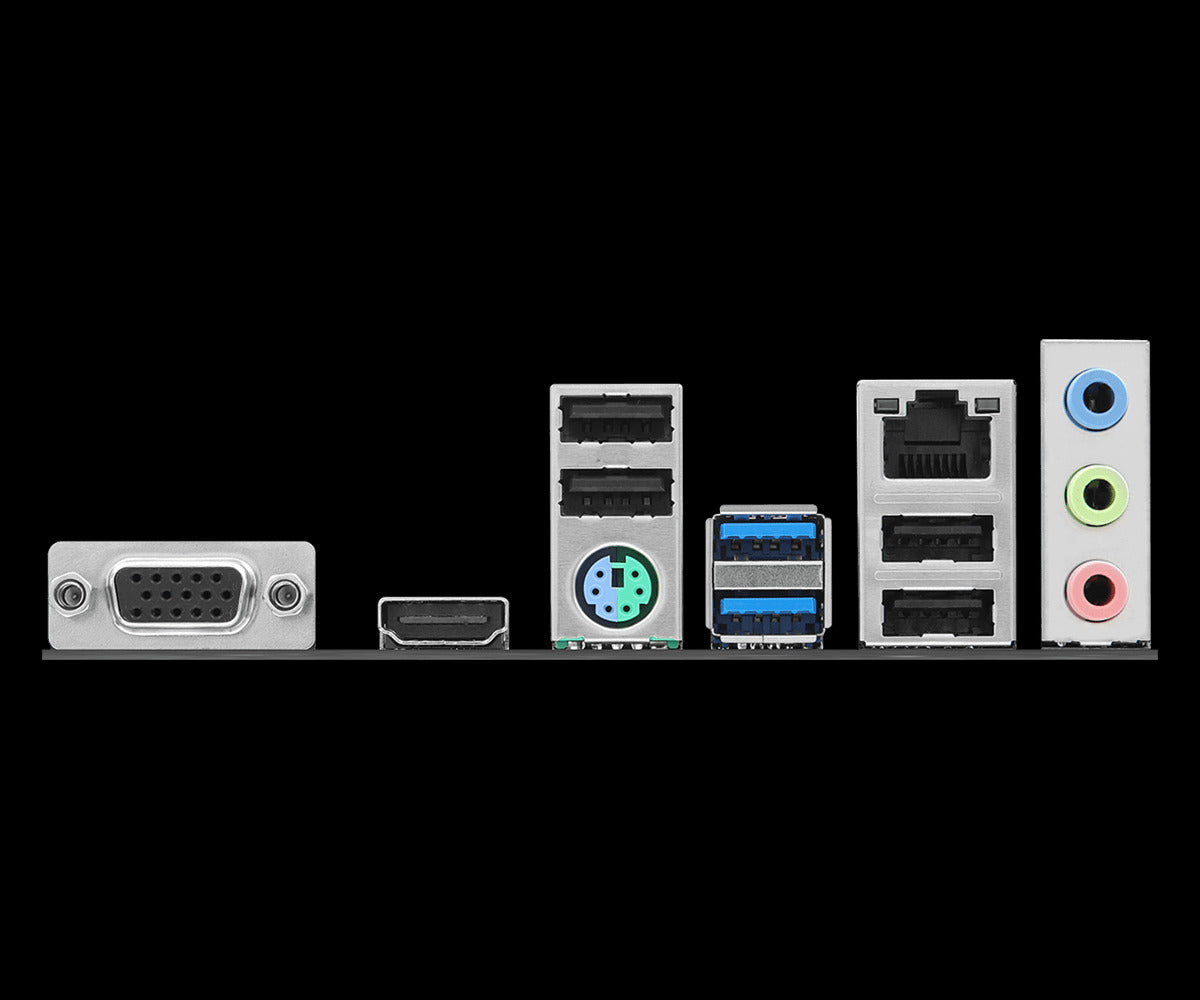

Complete with two types of most used connectors! Packed with a HDMI + D-Sub combo, you have more graphics output options now.
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include: ✔ Extra anchor points ✔ Stronger latch ✔ Ensure signal stability ✔ Make sure heavy graphics cards to be well-installed.
No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear. Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.
General
| Brand | ASRock |
|---|---|
| Socket | LGA1700 |
| Chipset | Intel H610 |
| Form Factor | Micro ATX |
Processors
| Supported | 14th, 13th & 12th Gen Intel Core |
|---|---|
| Hybrid Technology | Supported |
| Turbo Boost Max 3.0 | Supported |
Memory
| DIMM Slots | 2 x DDR5 |
|---|---|
| Max Capacity | 128 GB |
| 14th/13th Gen Max Speed | DDR5-5600 MHz |
| 12th Gen Max Speed | DDR5-4800 MHz |
| XMP 3.0 | Supported |
| Memory POOL Technology | ASRock 4-Layer (Planes on Outer Layers) |
Storage & Expansion
| M.2 Sockets | 1 |
|---|---|
| PCIe Slot | 1 x Gen5 x16 (reinforced steel slot) |
Power & Cooling
| Power Phase | 6+1+1 |
|---|
Audio & Video
| Audio Codec | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 |
| Video Outputs | 1 x HDMI, 1 x D-Sub |
Connectivity
| LAN | Gigabit Ethernet |
|---|
Software & Features
| UEFI | ASRock EZ Mode, Full HD UEFI, My Favorites, Instant Flash |
|---|---|
| Utilities | A-Tuning, Auto Driver Installer |
| Pre-installed | LAN driver |
