ASRock H810M-X WiFi LGA1851 Micro-ATX Motherboard DDR5
ASRock
ASRock H810M-X WiFi LGA1851 Micro-ATX Motherboard DDR5
The ASRock H810M-X WiFi is a micro-ATX motherboard for Intel Core Ultra Series 2 processors, built for home offices and small-form-factor builds that need reliable networking and everyday productivity. It combines dual-channel DDR5 memory support with integrated 2.5G LAN and WiFi connectivity in a compact footprint.
Why this product
DDR5 dual-channel memory up to 6400MHz
Supports two DDR5 DIMM slots with a maximum capacity of 128GB and Intel XMP 3.0 profiles for stable overclocking.
2.5G LAN and 802.11ac WiFi built-in
Realtek Dragon 2.5 Gigabit Ethernet and dual-band WiFi (2.4GHz/5GHz) with Bluetooth reduce the need for separate networking expansion cards.
Six-phase power delivery
6+1+1+1+1 power phases provide stable power distribution for the CPU and memory subsystem across a compact motherboard.
PCIe 4.0 and NVMe storage ready
One PCIe 4.0 x16 slot for graphics and one M.2 socket support fast NVMe SSDs; four SATA connectors for additional drives.
Triple display output options
HDMI, DisplayPort 1.4, and D-Sub connectors allow flexible multi-monitor setups without a dedicated graphics card.
- SocketIntel LGA1851
- Form factorMicro-ATX
- Memory slots2 × DDR5 DIMM
- Max memory128GB DDR5
- Storage1 × M.2 NVMe, 4 × SATA3
- Networking2.5G LAN, 802.11ac WiFi, Bluetooth
- Expansion slots1 × PCIe 4.0 x16, 1 × PCIe 4.0 x1
- SKUASR-1993
- EAN4711581490659
- Supports Intel Core Ultra Series 2 processors (LGA1851) with integrated NPU for AI acceleration.
- Works with DDR5 unbuffered memory modules up to 6400MHz, including CUDIMM types and Intel XMP 3.0 profiles.
- Compatible with M.2 Type 2280 NVMe SSDs in PCIe Gen4 x4 mode and Type 2230 WiFi/Bluetooth modules.
- Includes integrated video outputs (HDMI, DisplayPort 1.4, D-Sub) for processors with integrated graphics.
- Supports both Windows 11 64-bit as the stated operating system; compatibility with other operating systems is not documented.
Best for
- Home office and productivity builds in tight spaces
- Builders prioritizing integrated networking over expansion slots
- Systems that need DDR5 performance without high-end overclocking
- Multi-monitor setups using integrated graphics
Trade-offs
- Limited expansion. Only one PCIe x16 slot and one M.2 socket mean fewer options for adding graphics cards, NVMe drives, or other add-in cards.
- Micro-ATX form factor. Smaller than standard ATX, limiting case options and cooling component choices.
- H810 chipset entry-level feature set. No support for Thunderbolt, limited USB connectivity, and no overclocking-grade power delivery compared to higher-tier chipsets.
The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It's highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth. Connect wireless peripherals and accessories with ease. From keyboards and mice to headsets, controllers, speakers, and smartphones, built-in Bluetooth helps reduce cable clutter and makes daily wireless pairing more convenient.
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media.
General
| Brand | ASRock |
|---|---|
| Chipset | Intel H810 |
| Processor support | Intel Core Ultra Series 2 (LGA1851) with Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, and integrated NPU |
Performance
| Memory type | Dual Channel DDR5, up to 6400MHz |
|---|---|
| Memory slots | 2 × DDR5 DIMM |
| Max memory capacity | 128GB |
| Memory profiles | Intel XMP 3.0 |
| Power phases | 6+1+1+1+1 |
Networking
| Ethernet | Realtek Dragon RTL8125BG, 2.5 Gigabit LAN |
|---|---|
| WiFi | 802.11ac (2.4GHz / 5GHz) |
| Bluetooth | Supported |
Ports & power
| PCIe slots | 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 4.0 x1 (Chipset) |
|---|---|
| M.2 storage | 1 × Type 2280 PCIe Gen4 x4 (64 Gb/s) |
| SATA connectors | 4 × SATA3 6.0 Gb/s |
| USB 3.2 Gen1 ports | 4 × Type-A (2 rear, 2 front) + 1 × Type-C (front) |
| USB 2.0 ports | 6 (4 rear, 2 front) |

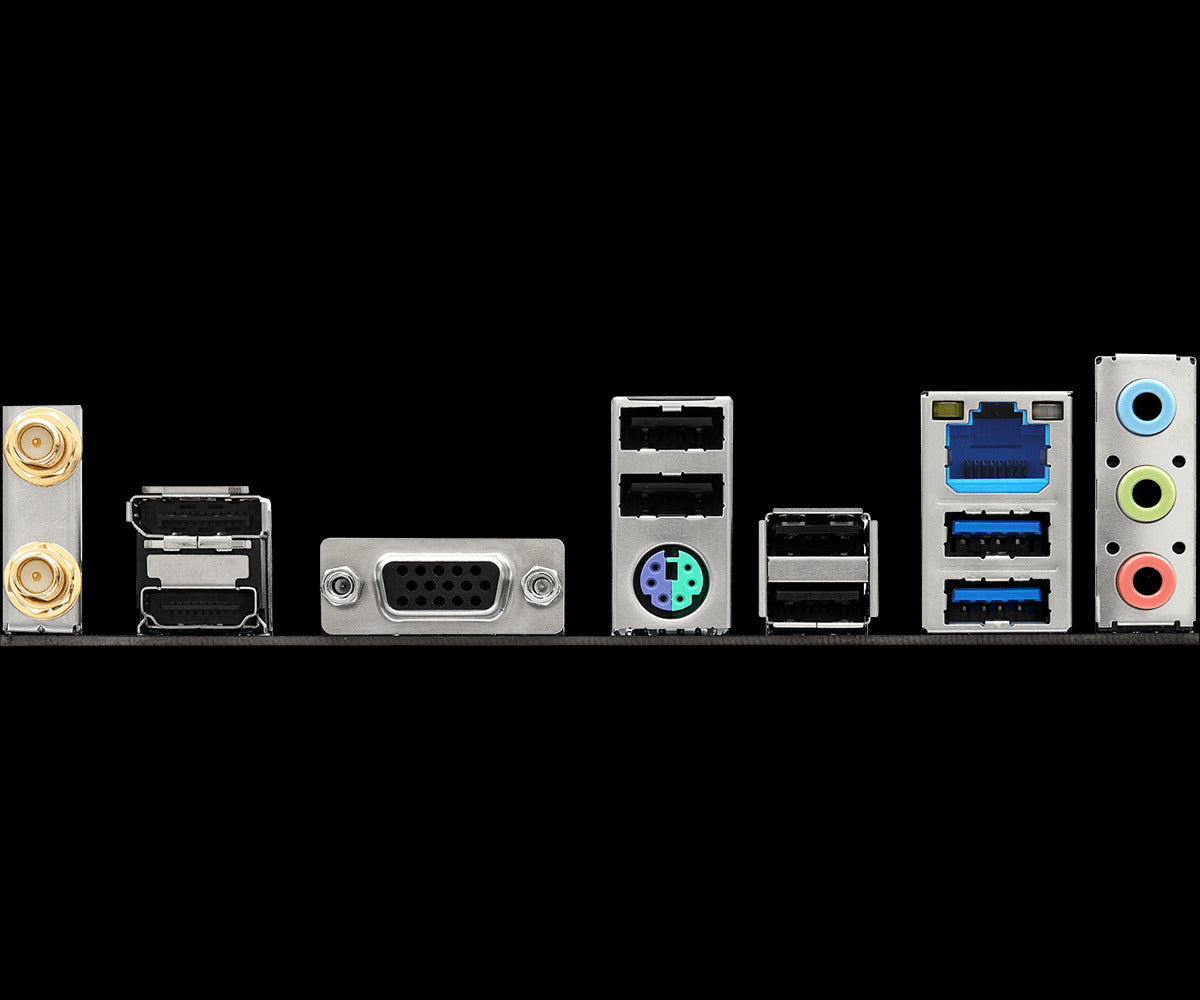

| Video outputs | 1 × HDMI, 1 × DisplayPort 1.4, 1 × D-Sub |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| LAN port | 1 × RJ-45 |
Physical
| Form factor | Micro-ATX |
|---|---|
| BIOS | AMI UEFI with GUI support |
| OS support | Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
