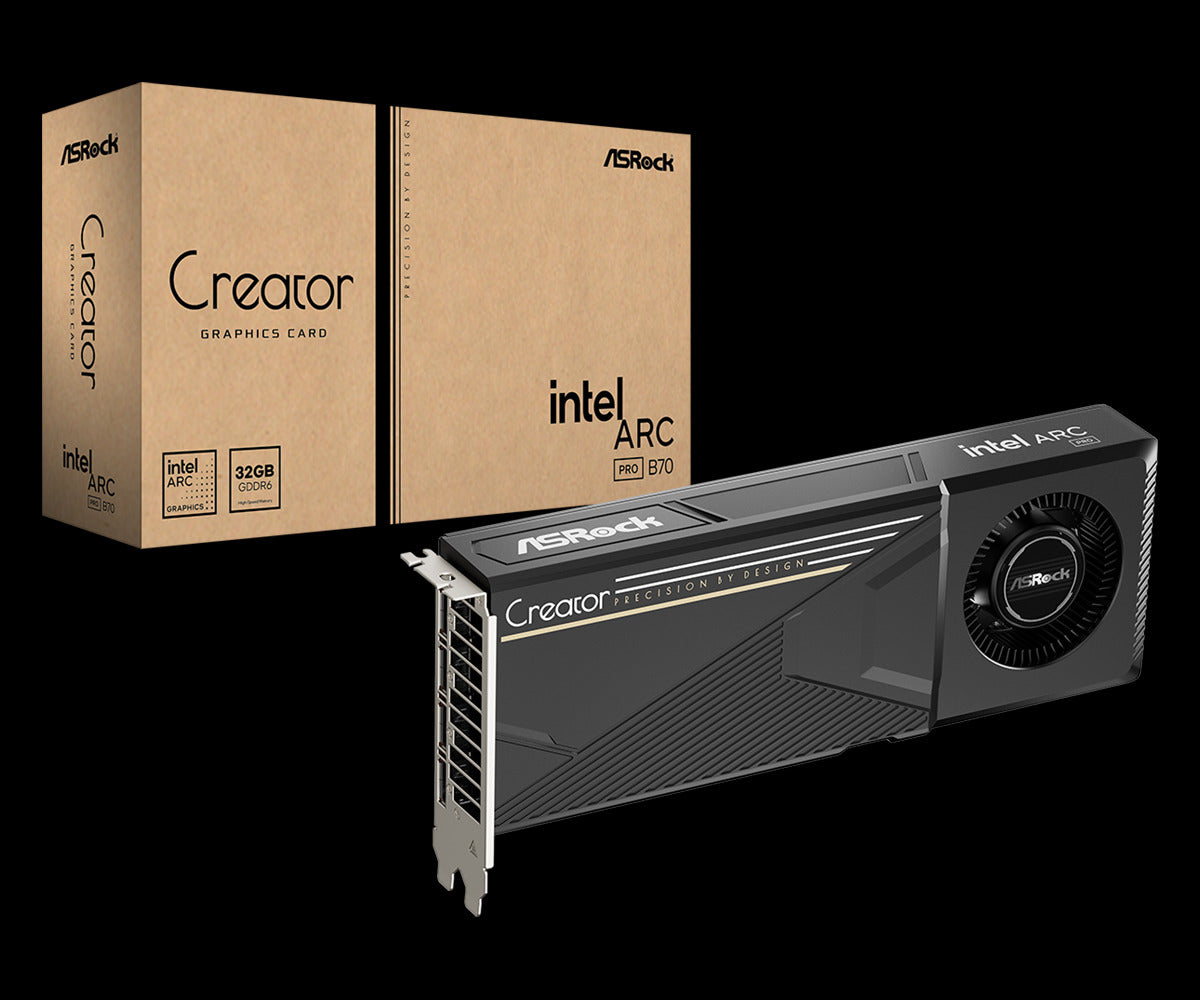

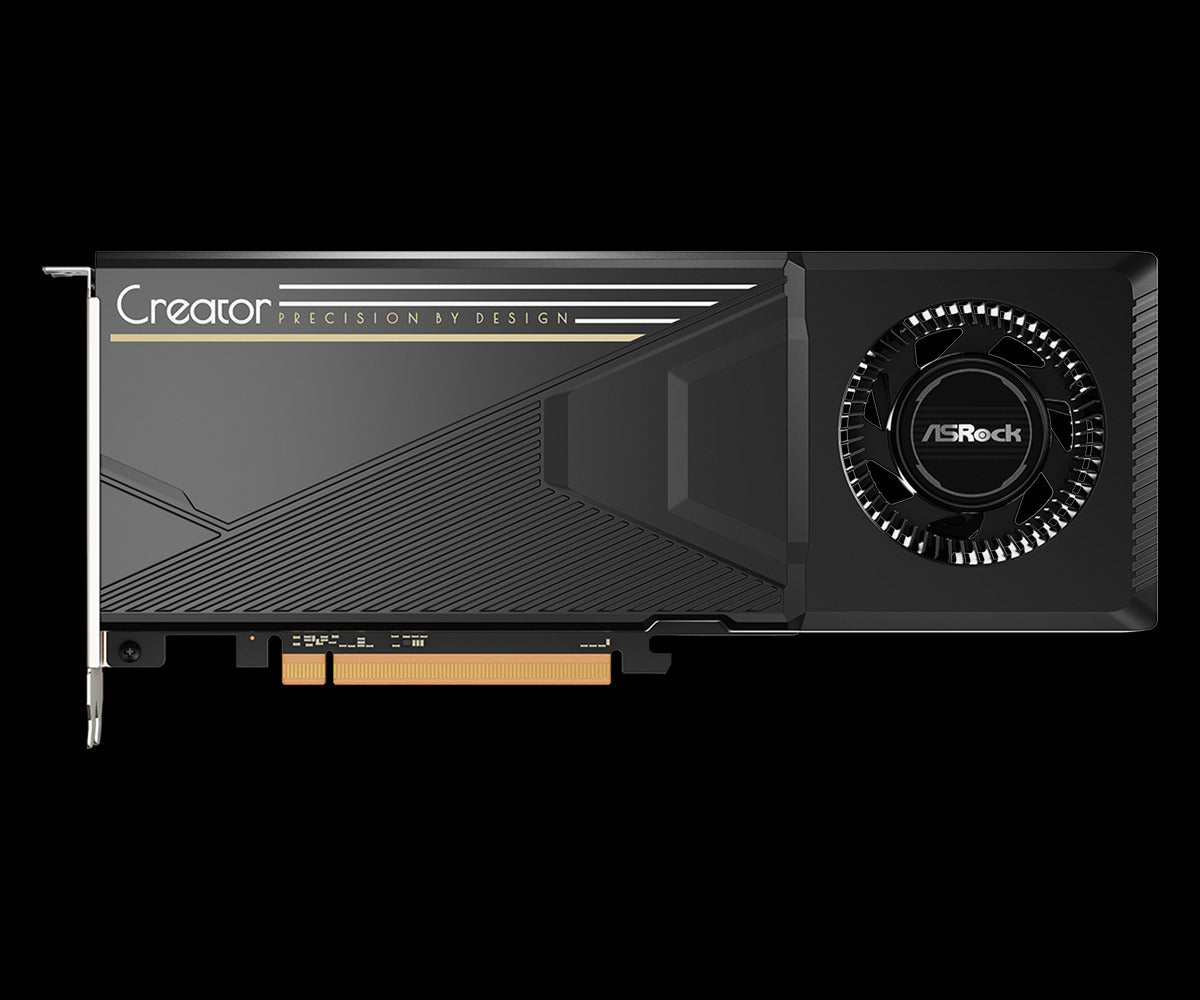

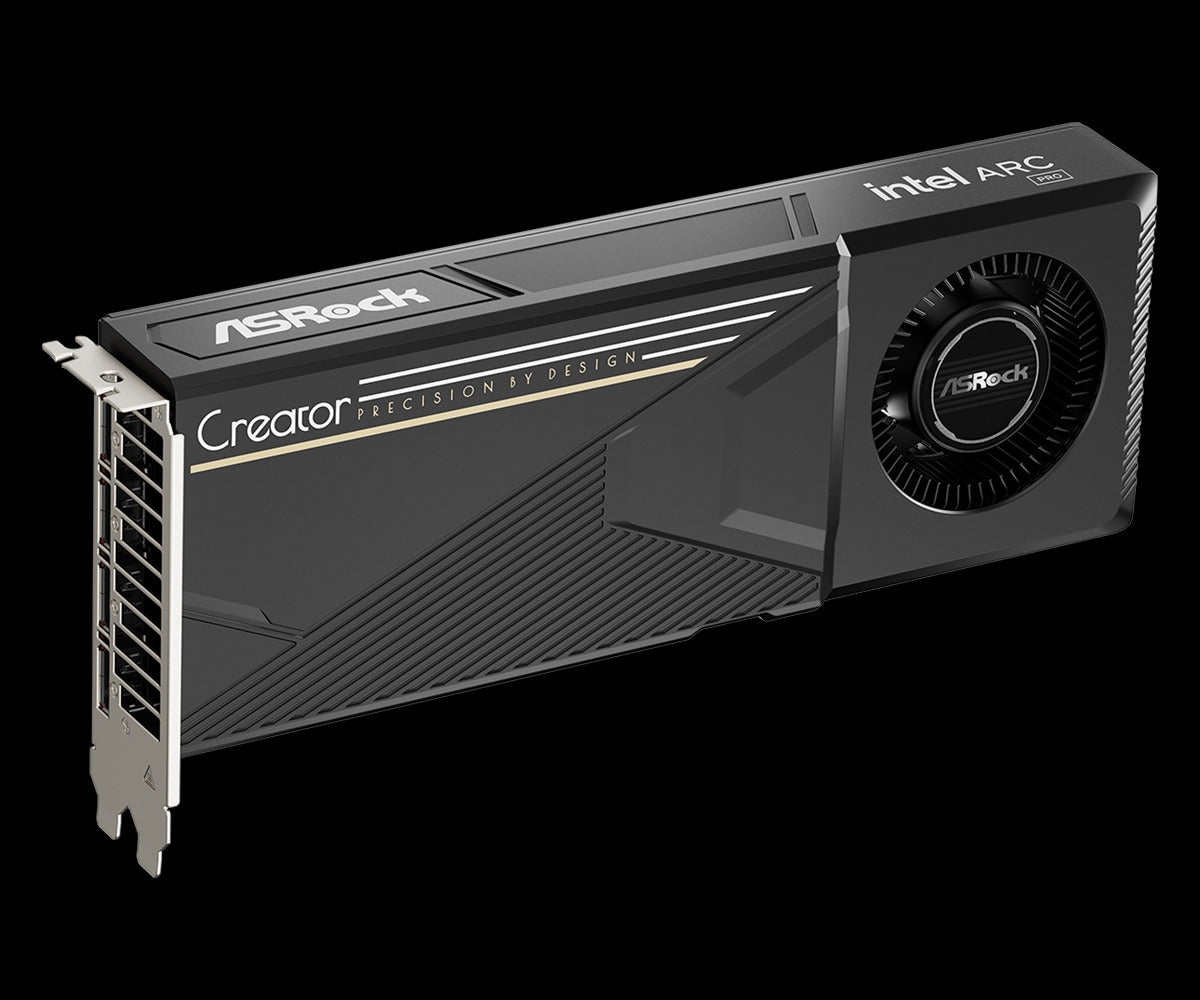

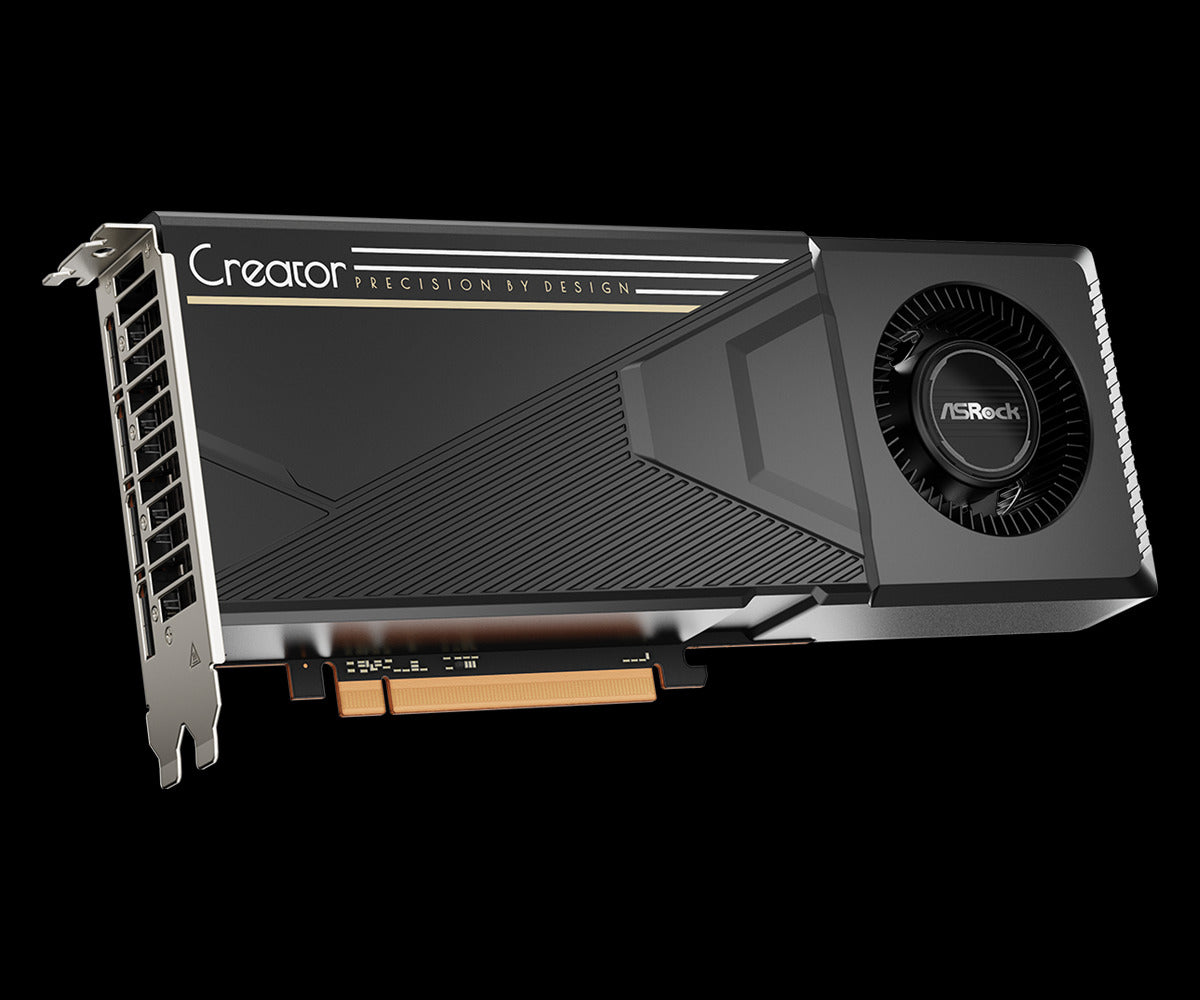

ASRock Intel Arc Pro B70 Creator 32GB Graphics Card
ASRock
ASRock Intel Arc Pro B70 Creator 32GB Graphics Card
The ASRock Intel Arc Pro B70 Creator 32GB Graphics Card is designed for creative professionals and workstation users who need reliable AI-accelerated rendering, 2D/3D workflow support, and large-model iteration without sending data to the cloud. It pairs 32GB of GDDR6 memory with a blower-style cooling design suited to compact or multi-card professional workstation builds.
Why this product
32GB GDDR6 across a 256-bit bus
A large framebuffer and wide memory interface support complex scenes, large textures, and local AI model work without requiring data to leave the workstation.

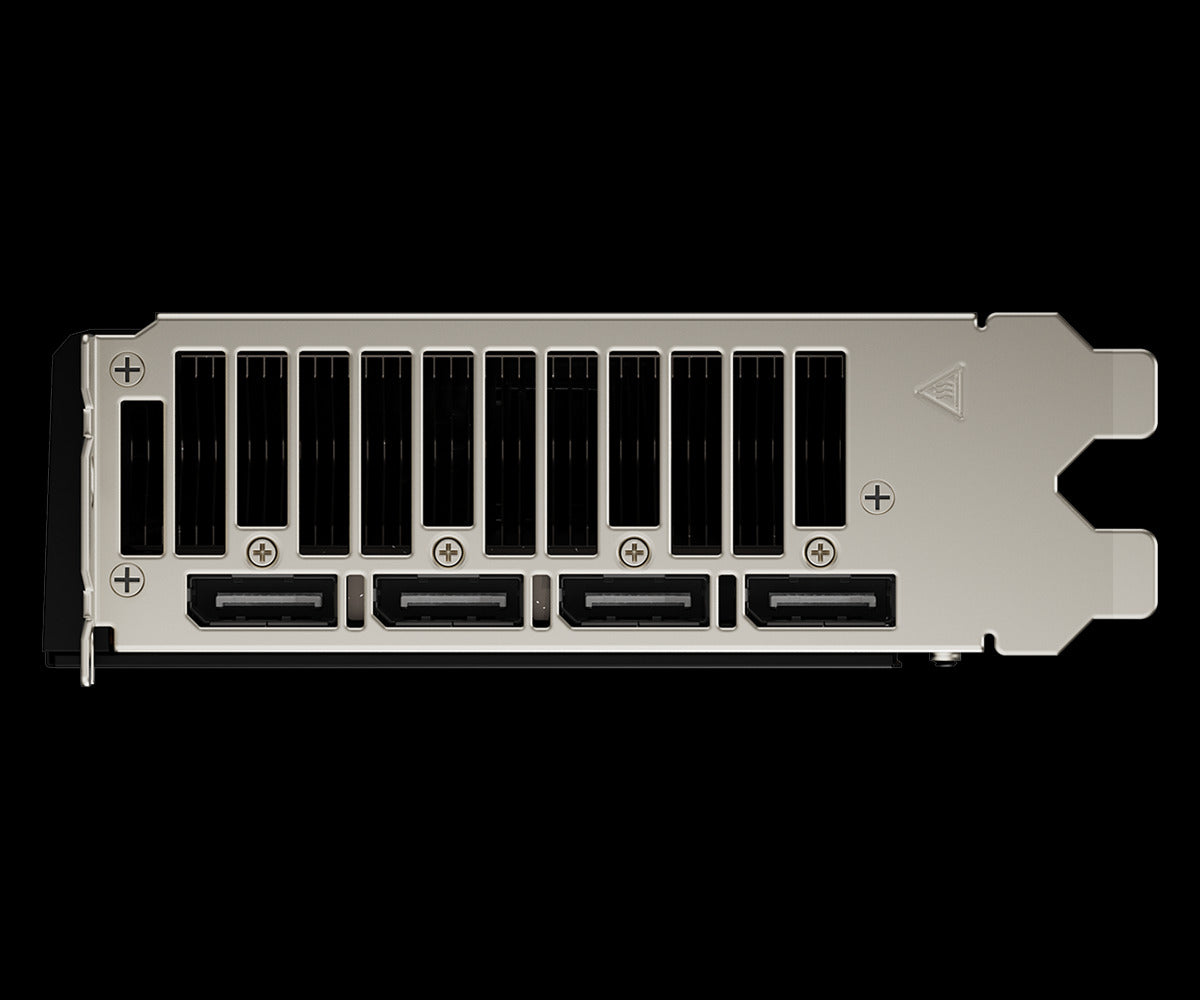

Four DisplayPort 2.1 outputs
One primary port supports up to UHBR13.5 and three additional ports support up to UHBR10, allowing connection of up to four displays at once including 8K resolution.
Blower design for dense workstation builds
The blower-style cooler exhausts heat directly out of the case, making it more compatible with multi-card or space-constrained professional chassis than open-air designs.
Vapor chamber and Honeywell PTM7950
ASRock combines a vapor chamber with Honeywell PTM7950 phase-change thermal material to manage heat across the GPU die efficiently.

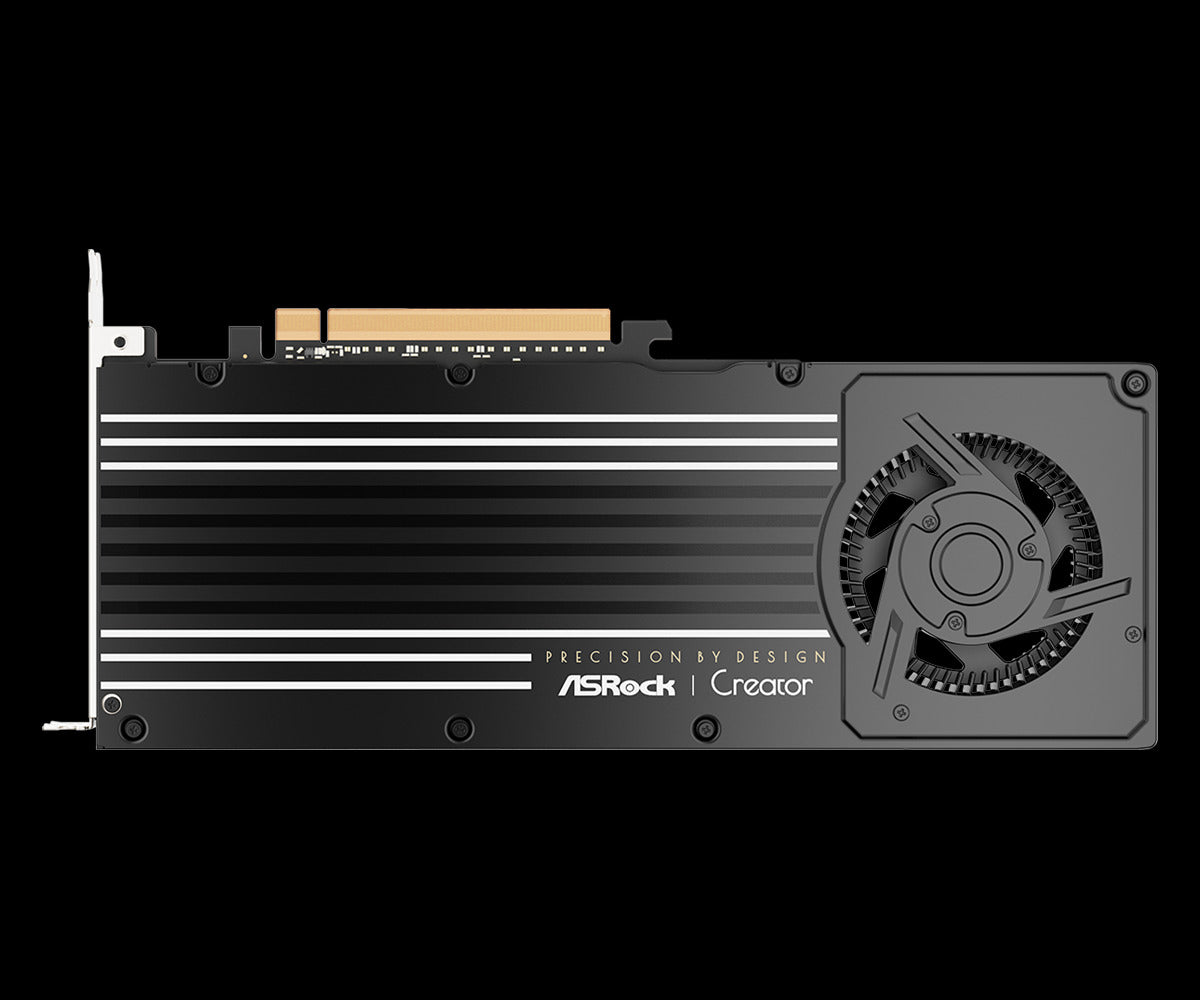

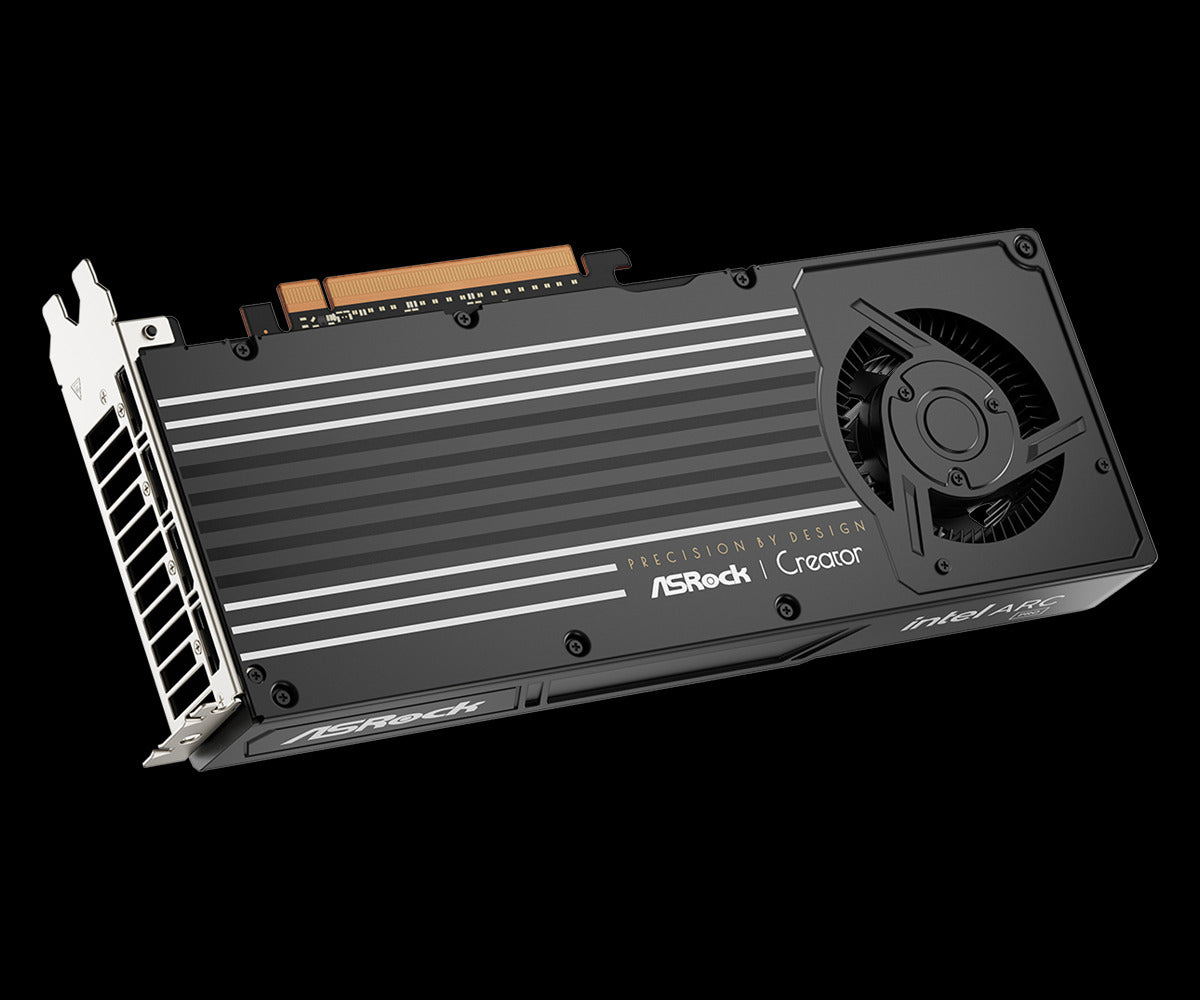

Die-cast metal shroud and metal backplate
The structural shroud and backplate contribute rigidity and help protect the PCB in professional environments where the card may be installed and removed regularly.
AI-accelerated professional workflows
Intel XMX Engines (256 in total) are designed to accelerate AI-powered rendering, effects, and creative tools directly on the workstation.
- GPUIntel® Arc™ Pro B70
- Memory32GB GDDR6
- Memory Interface256-bit
- Memory Clock19 Gbps
- Engine Clock2540 MHz
- Display Outputs4× DisplayPort 2.1
- Max Resolution7680 × 4320
- Card Dimensions271 × 112 × 39 mm, 2-slot
- SKUASR-3569
- EAN4711581492363
- Fits any motherboard with a PCIe 5.0 x16 slot; backwards compatible with earlier PCIe generations.
- Requires a 12V-2x6-pin power connector; a 12V-2x6 to 2×8-pin adapter cable is included in the box.
- Supports up to four simultaneous displays via DisplayPort 2.1.
- Supports HDCP, making it suitable for playback of protected content on compatible displays.
- Physical dimensions are 271 × 112 × 39 mm in a 2-slot configuration — verify case clearance before installing.
- Professional software compatibility depends on ISV certifications for Intel Arc Pro; verify with your application vendor before purchasing.
Best for
- AI and local model development: 32GB of GDDR6 memory allows large models to be built and tested locally without sending data externally.
- Multi-display creative work: Four DisplayPort 2.1 outputs support up to a 7680×4320 digital resolution, covering demanding visualization and color-grading setups.
- Dense workstation chassis: The blower cooling design directs heat out of the rear bracket, reducing interference with adjacent cards or components.
- Architectural and 3D visualization workflows: The Intel Arc Pro B70 GPU is positioned for complex architectural and advanced visualization tools.
- Weight-conscious builds: At 1057g, this is a relatively manageable card for its memory capacity and slot configuration.
Trade-offs
- Consumer gaming: This is an Arc Pro product positioned for professional workloads; consumer gaming driver optimizations and features are not its design focus.
- Systems without a PCIe x16 slot: The card requires a full-length PCIe x16 slot and will not fit smaller form-factor systems lacking one.
- Cases shorter than 271mm: The card's length requires sufficient clearance; compact cases that cannot accommodate this length are incompatible.
- HDMI-only display setups: All four outputs are DisplayPort 2.1; users with HDMI-only monitors will need an active adapter not included in the box.
Intel® Arc™ Pro B-Series enables new classes of professional workloads as AI, data, and advanced visualization reshape workstations.
Deliver high-quality visuals faster with AI-powered rendering and effects.
Accelerate 2D/3D workflows with responsive, AI-simplified creative tools.
Gain seamless responsiveness and performance in complex architectural tools.
Build and test large models locally with private, fast iteration.
General
| Brand | ASRock |
|---|---|
| Graphics Engine | Intel® Arc™ Pro B70 GPU |
| Architecture | Intel® Xe2-HPG Architecture |
| Bus Standard | PCI® Express 5.0 x16 |
| Compute Units | 32 |
| Intel XMX Engines | 256 |
Memory
| Memory | 32GB GDDR6 |
|---|---|
| Memory Interface | 256-bit |
| Memory Clock | 19 Gbps |
| Engine Clock | 2540 MHz |
Display & API
| Digital Max Resolution | 7680 × 4320 |
|---|---|
| Display Interface | 1× DisplayPort 2.1 (Primary, up to UHBR13.5); 3× DisplayPort 2.1 (up to UHBR10) |
| Multi-View | 4 |
| HDCP | Yes |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
Physical
| Power Connector | 1× 12V-2x6-pin |
|---|---|
| Dimensions | 271 × 112 × 39 mm |
| Slot | 2-slot |
| Net Weight | 1057 g |
| Cooling | Blower design, Vapor Chamber, Honeywell PTM7950 |
| Shroud | Die-cast Metal |
| Backplate | Metal |
| Accessories | Quick Installation Guide; 12V-2x6 to 2×8-pin Power Cable |
