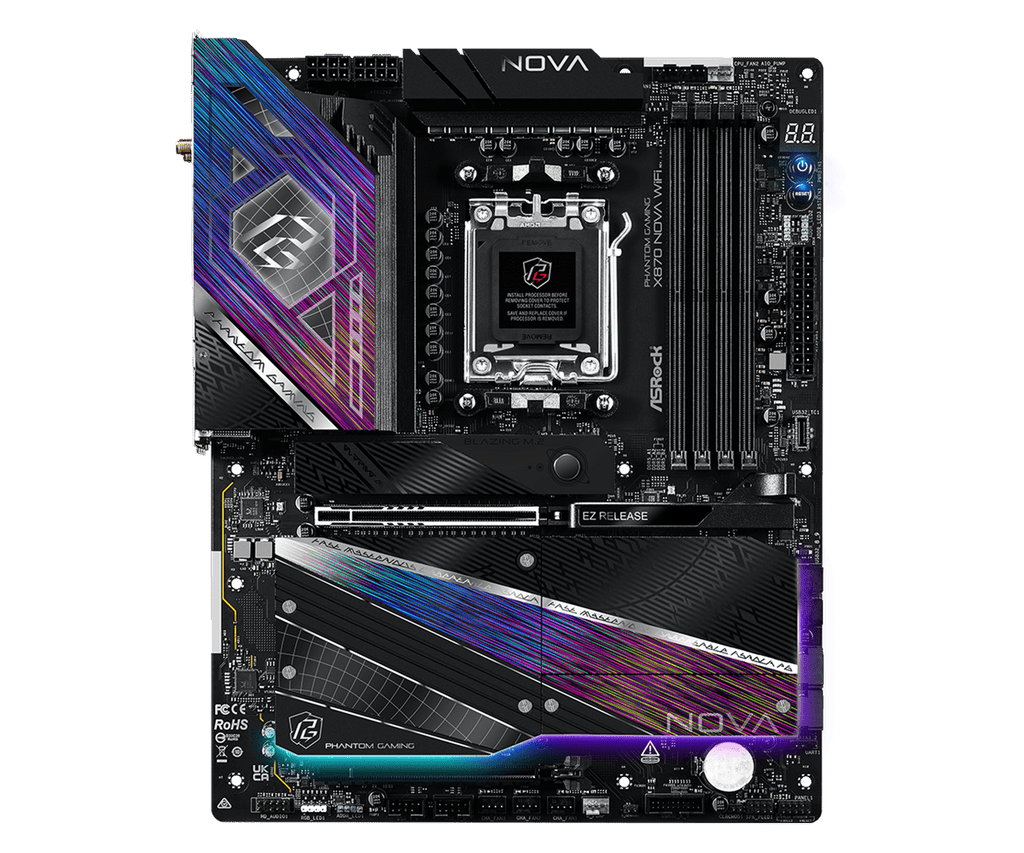

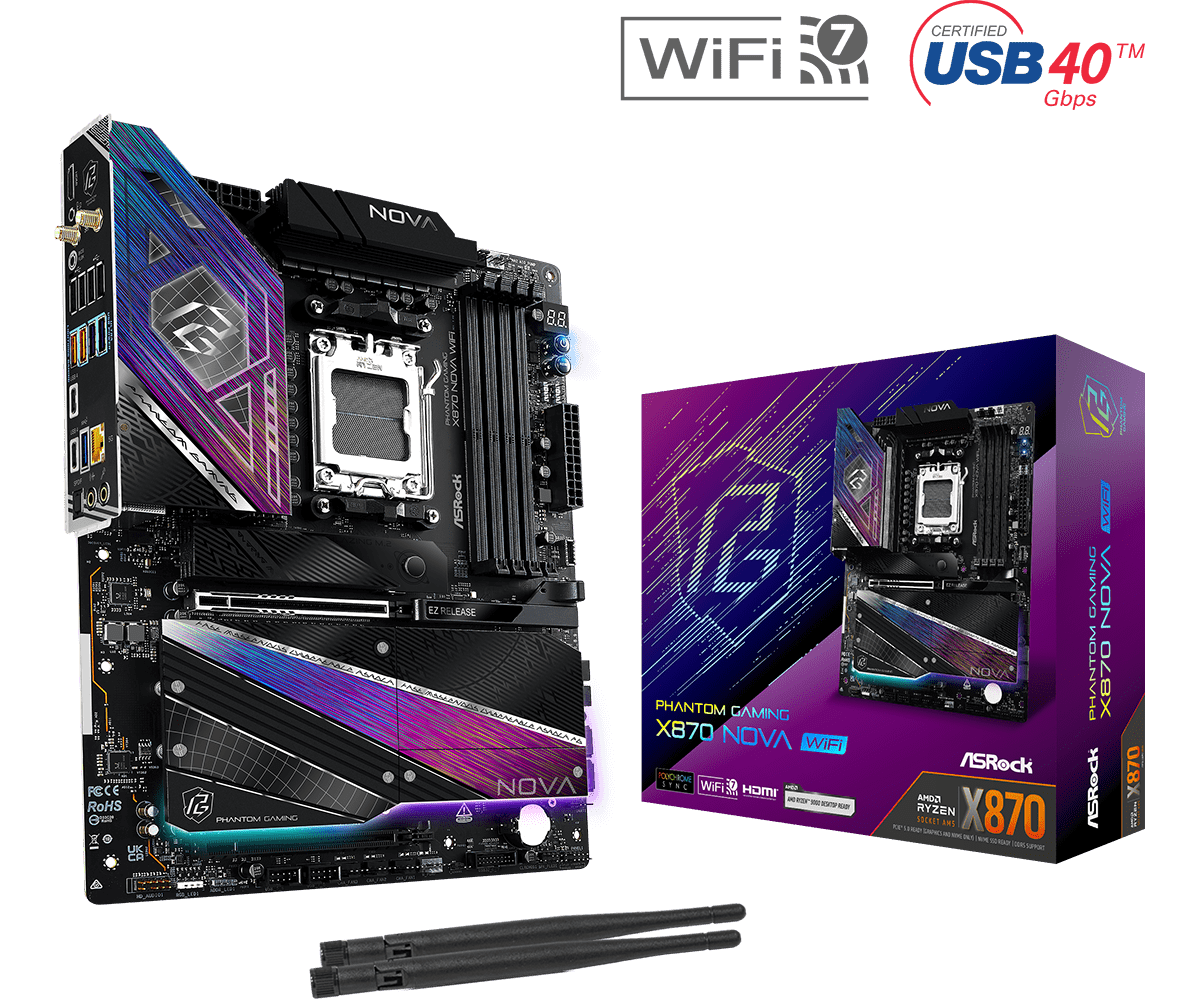

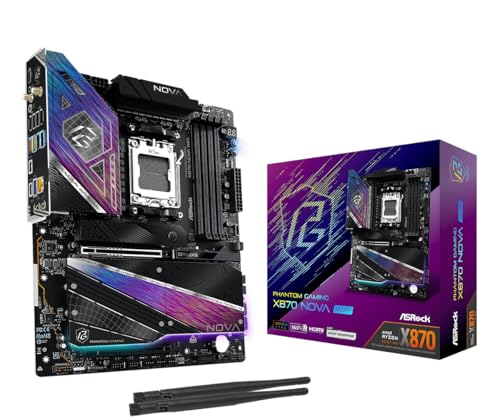

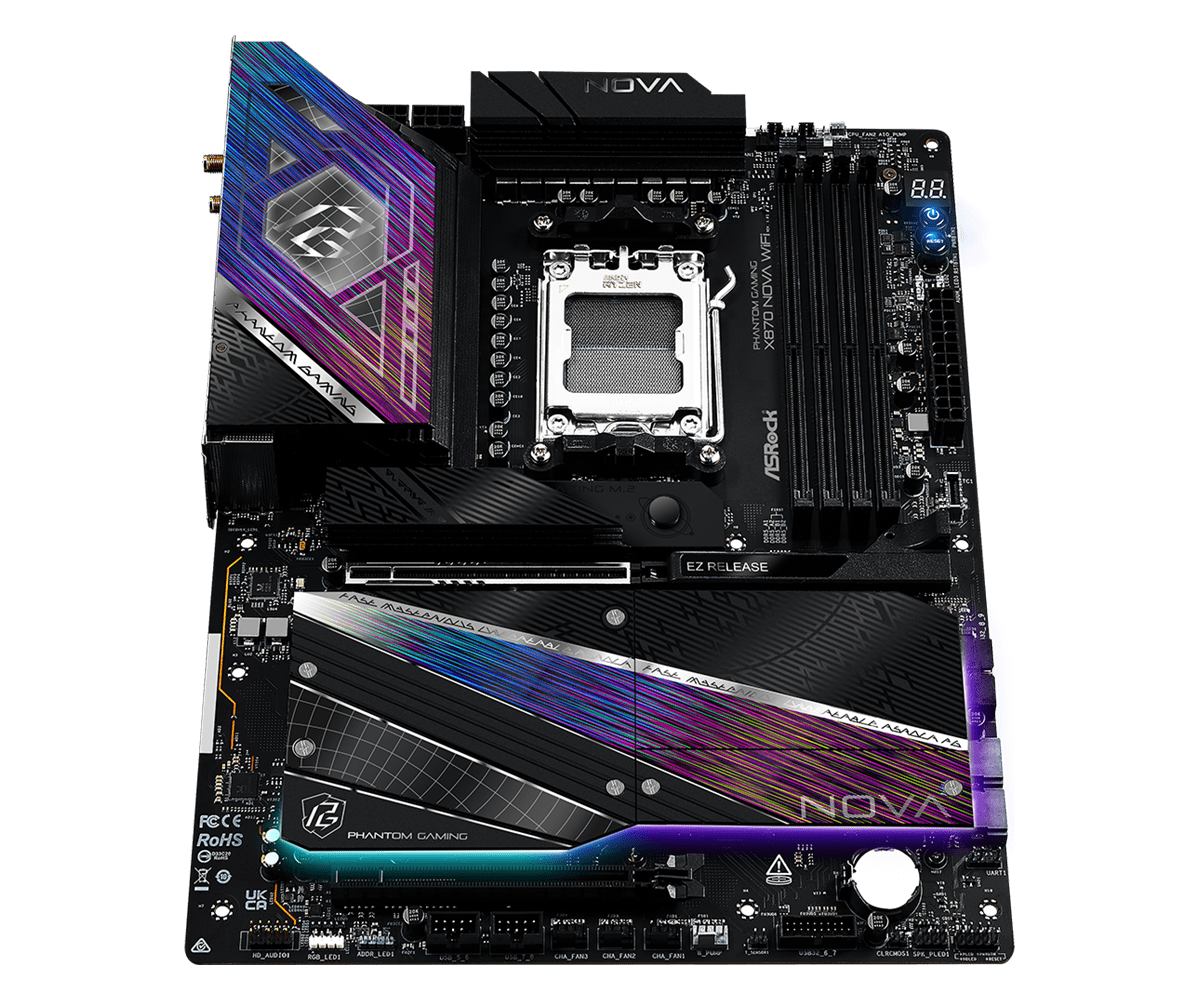

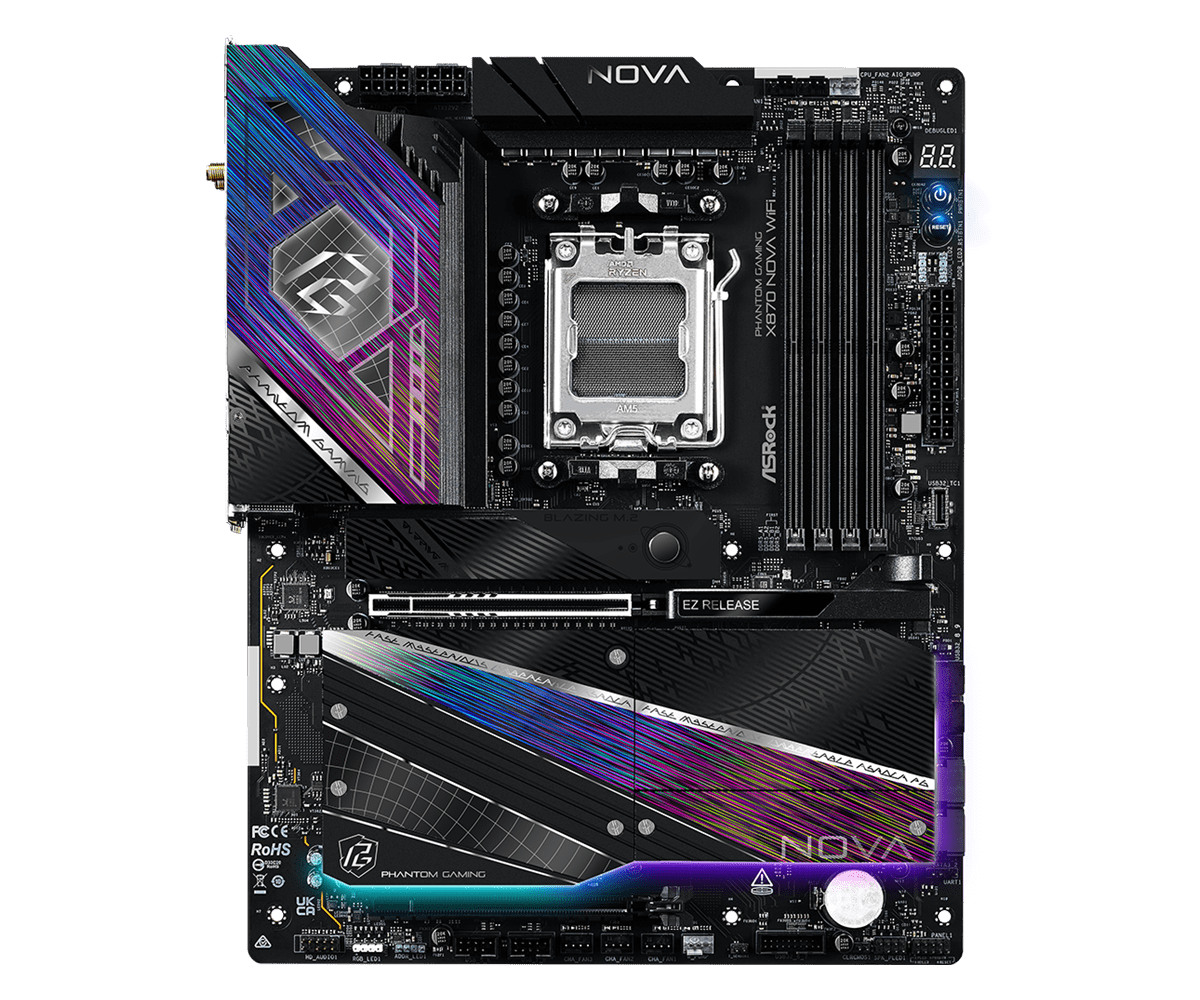

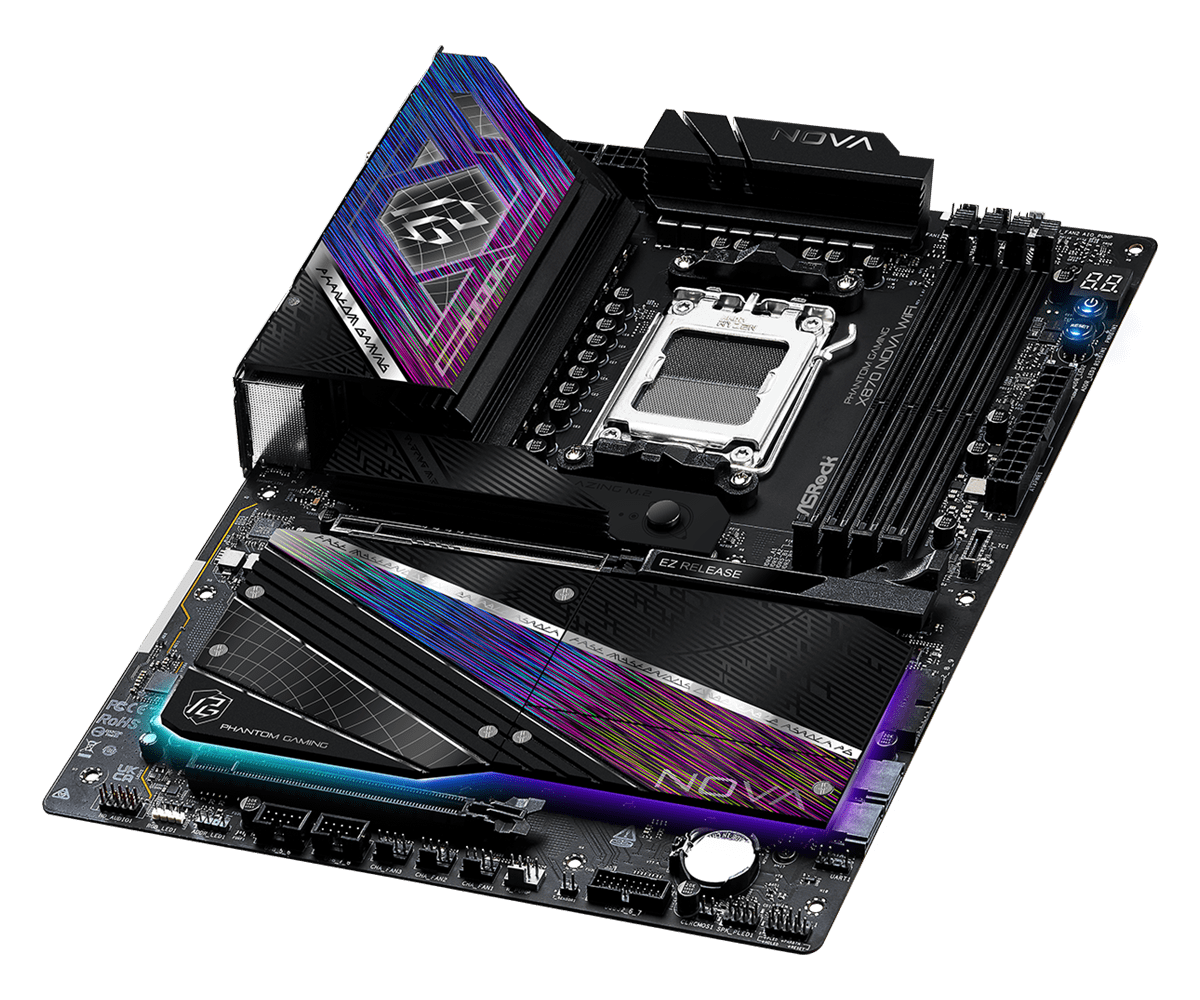

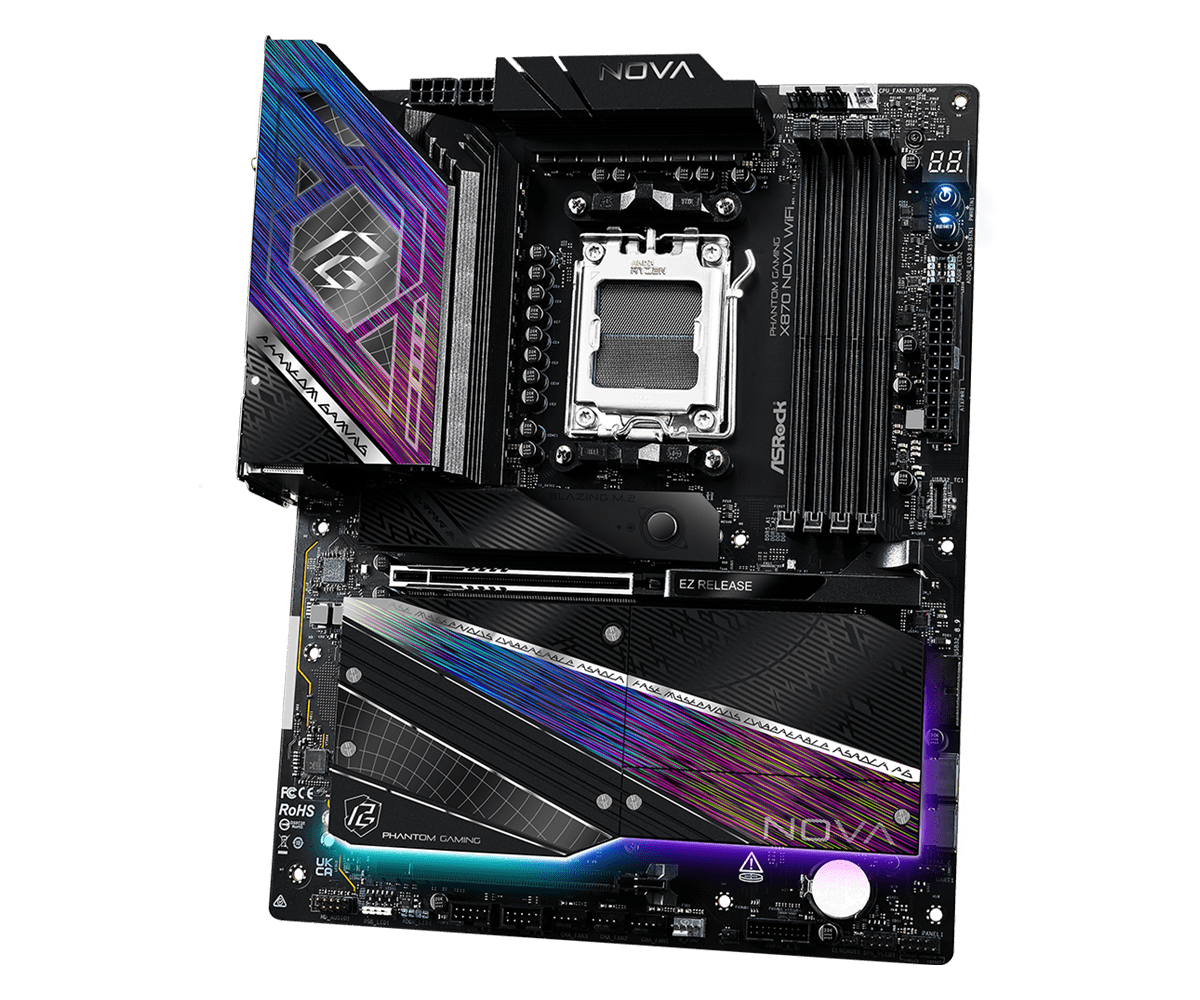

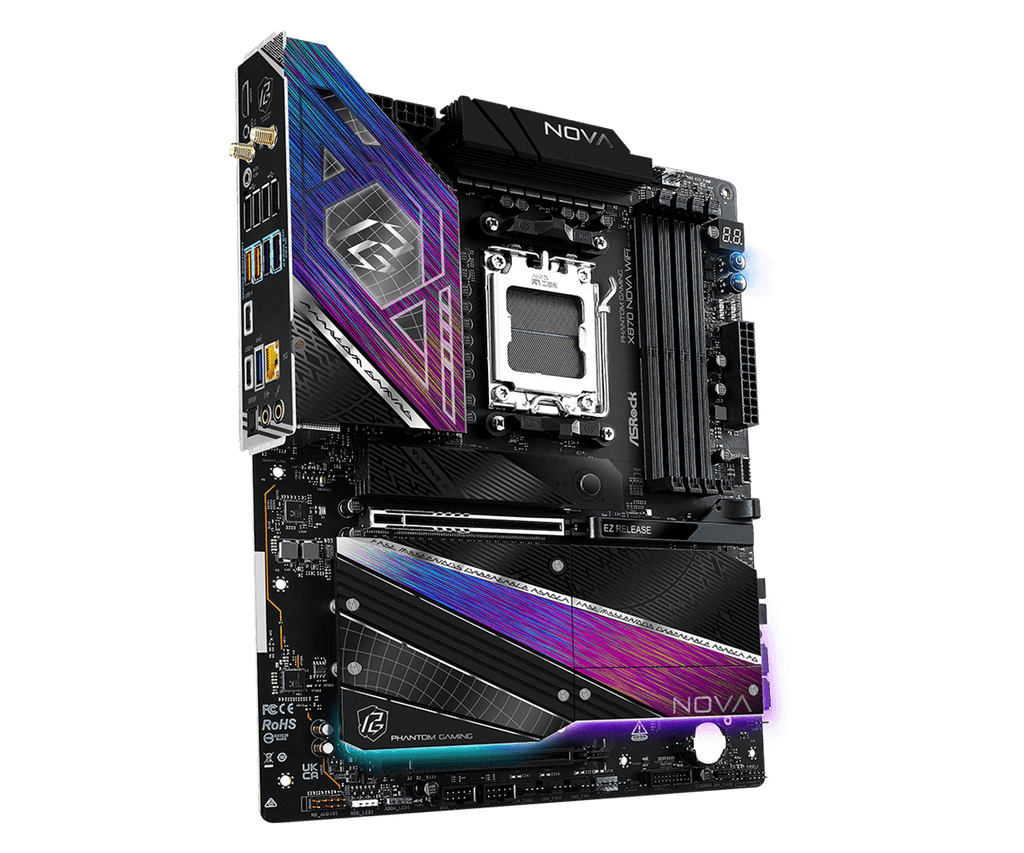

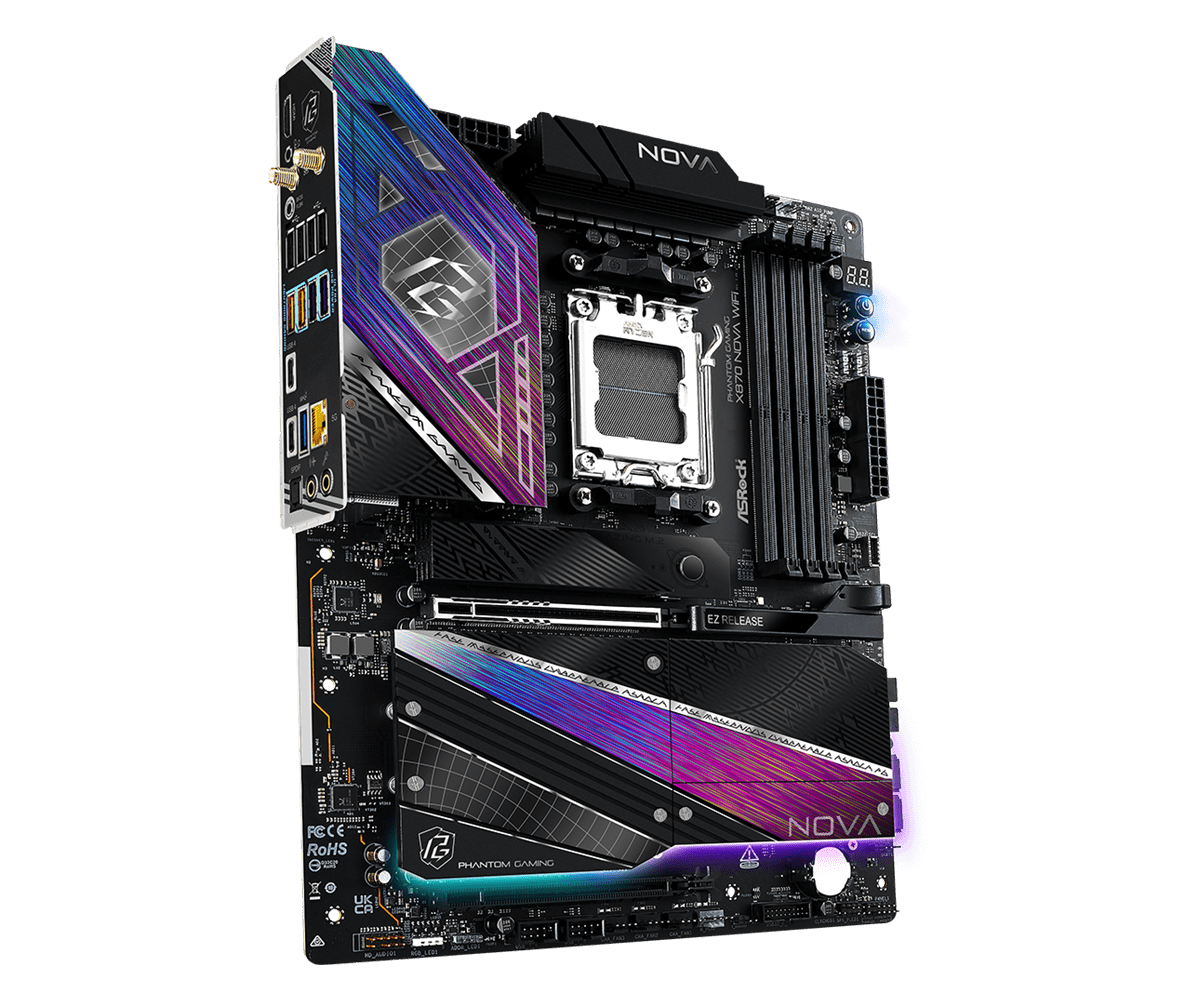

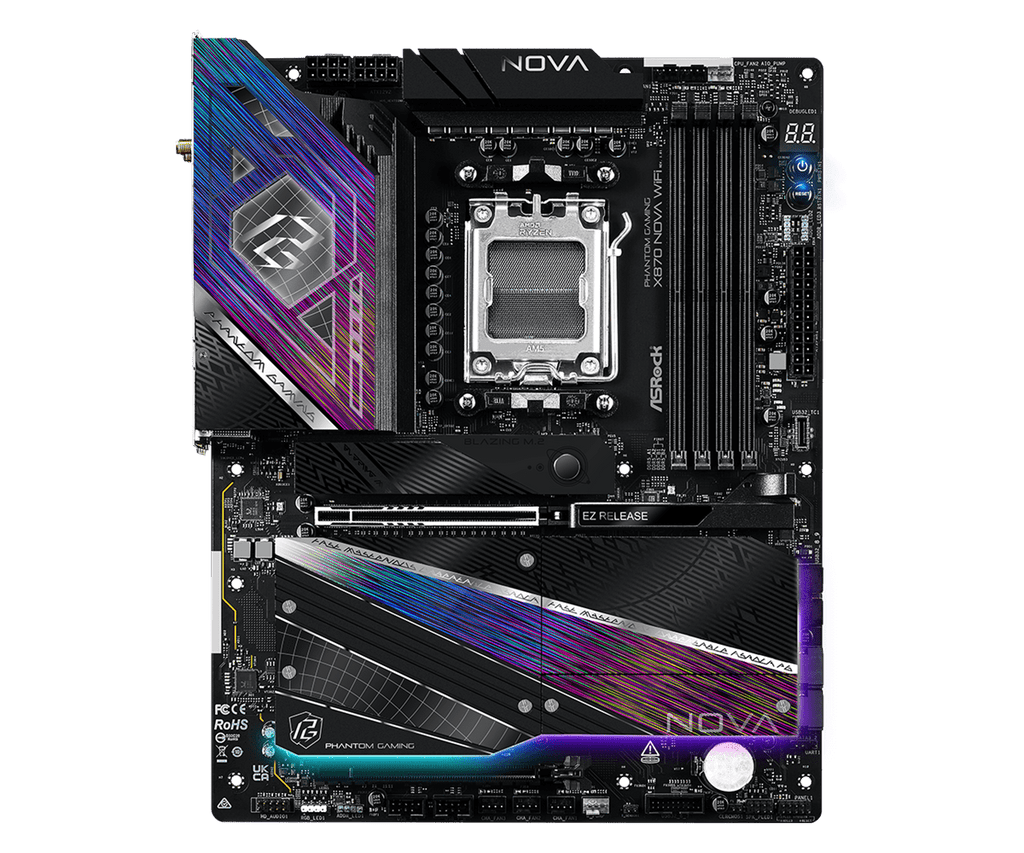

ASRock Phantom Gaming X870 Nova WiFi AM5 ATX Motherboard
ASRock
ASRock Phantom Gaming X870 Nova WiFi AM5 ATX Motherboard
The ASRock Phantom Gaming X870 Nova WiFi is an AM5 ATX motherboard built for gamers who want a high-throughput storage, networking, and overclocking platform on AMD's X870 chipset. It addresses the need for future-ready connectivity by combining PCIe 5.0 storage, Wi-Fi 7, and 5GbE LAN in a single board. Four DDR5 DIMM slots with XMP/EXPO support and up to 8400+ (OC) memory speeds make it a practical choice for enthusiasts pushing their Ryzen system's memory performance.
Why this product
Five M.2 slots including PCIe Gen5
Two Blazing M.2 slots run at PCIe Gen5 x4 and two Hyper M.2 slots run at PCIe Gen4 x4, plus a fifth PCIe Gen4 x4 M.2 slot — giving builders extensive NVMe storage options without sacrificing PCIe lanes for add-in cards.
Wi-Fi 7 and 5GbE wired networking
An 802.11be 2x2 Wi-Fi 7 module covers 2.4GHz, 5GHz, and 6GHz bands alongside Bluetooth, while a Realtek 5GbE LAN port handles high-throughput wired connections.
USB4 Type-C with 8K display output
Two rear USB4 Type-C ports double as display outputs supporting up to 8K at 30Hz with HDCP 2.3, eliminating the need for a separate DisplayPort adapter in many workflows.
DDR5 overclocking up to 8400+ (OC)
Pre-tested XMP and AMD EXPO profiles let compatible memory modules be overclocked through the BIOS with reduced manual tuning effort.
8-layer 2oz copper server-grade PCB
The board uses an 8-layer, 2oz copper, server-grade low-loss PCB design intended to support stable power delivery under sustained loads.
7.1 CH HD audio with Nahimic
A Realtek ALC4082 codec with individual PCB layers for left and right audio channels, paired with Nahimic Audio software, provides separated signal routing for cleaner output.
- SocketAMD AM5
- ChipsetAMD X870
- Form FactorATX
- Memory4 x DDR5 DIMM, up to 256GB, up to 8400+ (OC)
- M.2 Slots5 (2 x PCIe Gen5 x4, 3 x PCIe Gen4 x4)
- LANRealtek 5GbE
- WirelessWi-Fi 7 (802.11be) + Bluetooth
- PCIe Slots1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
- SKUASR-2026
- EAN4710483942754
- Compatible with AMD Socket AM5 Ryzen processors.
- ATX form factor — fits standard ATX and larger mid-tower and full-tower cases.
- Accepts DDR5 DIMMs in four slots, up to 256GB total capacity.
- Memory overclocking via XMP/EXPO requires modules that explicitly support those profiles; standard DDR5 modules will run at base speeds.
- The HDMI 2.1 output (up to 4K 120Hz) and USB4 Type-C display outputs (up to 8K 30Hz) require a Ryzen processor with integrated graphics — a discrete GPU is needed otherwise.
- Not compatible with AM4 or any Intel platform — AM5 socket only.
Best for
- High-density NVMe builds: five M.2 slots including two PCIe Gen5 x4 slots suit builders who want multiple fast NVMe drives without relying on expansion cards.
- Network-intensive gaming and streaming: Wi-Fi 7 and 5GbE LAN together cover both wireless and wired high-throughput scenarios in one board.
- Memory overclocking enthusiasts: pre-tested EXPO and XMP profiles with support up to 8400+ (OC) make DDR5 tuning accessible without manual timing entry.
- Multi-monitor or 8K display setups: two USB4 Type-C ports and one HDMI 2.1 port provide three simultaneous display outputs at high resolutions.
- Builders with large SATA inventories: RAID 0 and RAID 1 are supported for the two SATA 6Gb/s ports, so existing SATA drives can still be used in a redundant or striped array.
Trade-offs
- SATA-heavy storage builds: only two SATA 6Gb/s ports are provided; builders needing six or more SATA connections will require a separate controller.
- Budget AM5 builds: X870 chipset features and five M.2 slots place this board above entry-level price points; the cost is not justified if Gen5 storage and Wi-Fi 7 are unused.
- Intel platform users: the AM5 socket is exclusive to AMD Ryzen — no Intel CPU is compatible.
- DDR4 memory owners: the board accepts DDR5 only; existing DDR4 modules cannot be reused.
- Compact or small-form-factor cases: ATX dimensions mean it will not fit Micro-ATX or Mini-ITX enclosures.
Nova is the most significant energy discharge ever witnessed by mankind, it's super-powerful which represents the performance our motherboard can deliver.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system's stability.
General
| Brand | ASRock |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD X870 |
| Form Factor | ATX |
| PCB | 8-Layer, 2oz Copper, Server Grade Low Loss |
Networking
| Standard | 802.11be (Wi-Fi 7), IEEE 802.11a/b/g/n/ac/ax/be |
|---|---|
| Throughput | 5GbE (wired), 2x2 Wi-Fi 7 (wireless) |
| Wireless Bands | 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Yes (included with Wi-Fi module) |
| LAN Controller | Realtek 5GbE |
Performance
| Memory Slots | 4 x DDR5 DIMM |
|---|---|
| Max Memory | 256GB |
| Memory Speed | Up to 8400+ (OC) |
| XMP / EXPO | Supported |
| M.2 Sockets | 5 total: 2 x Blazing PCIe Gen5 x4, 2 x Hyper PCIe Gen4 x4, 1 x PCIe Gen4 x4 |
| RAID (SATA) | RAID 0, RAID 1 |
| RAID (NVMe) | RAID 0, RAID 1, RAID 10 |
Ports & Power
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 |
|---|---|
| SATA Ports | 2 x SATA 6Gb/s |
| Rear USB | 2 x USB4 Type-C, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-A (CPU); 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 (Chipset) |
| Front USB Header | 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Graphics Output | 1 x HDMI 2.1 (up to 4K 120Hz), 2 x USB4 Type-C (up to 8K 30Hz, HDCP 2.3) |
| Audio | Realtek ALC4082, 7.1 CH HD, Nahimic Audio, Individual PCB Layers for L/R Channel |

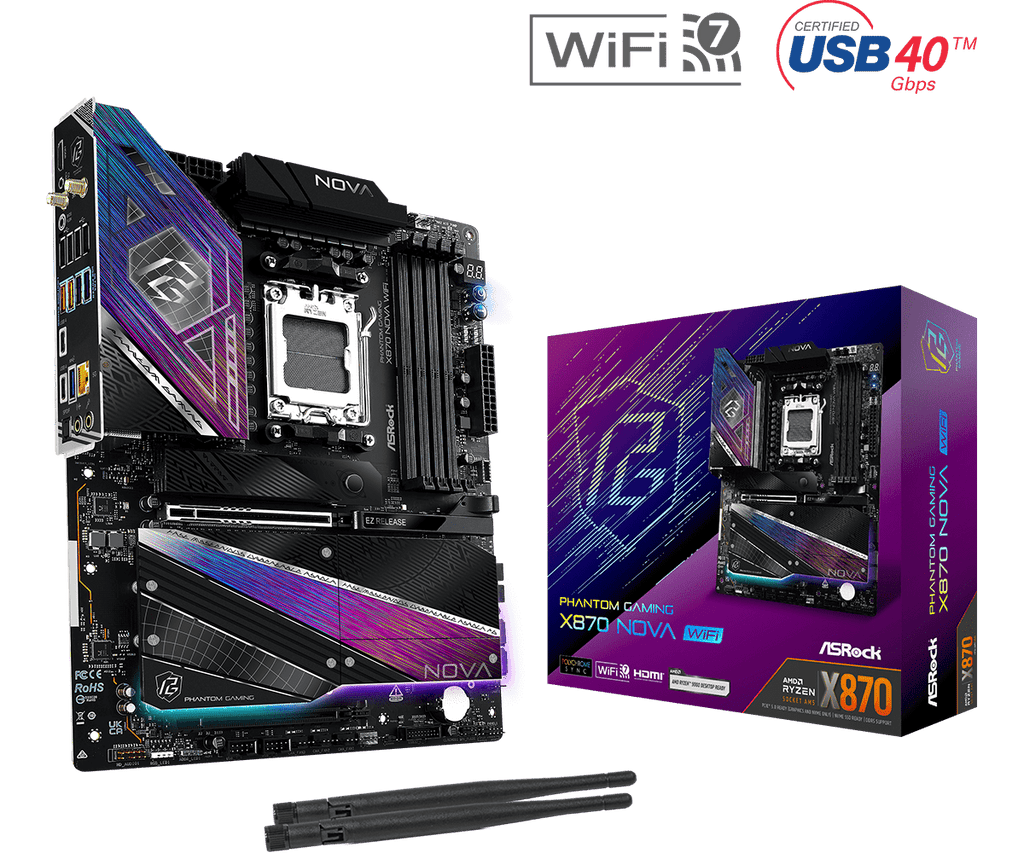

| In the Box | 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6GHz Antennas, 1 x ARGB Splitter Cable, 1 x Thermistor Cable |
