ASRock Radeon RX 9060 XT Steel Legend 16GB OC Graphics Card
ASRock
ASRock Radeon RX 9060 XT Steel Legend 16GB OC Graphics Card
The ASRock Radeon RX 9060 XT Steel Legend 16GB OC is a mid-range graphics card built for 1440p gaming, featuring AMD's latest RDNA 4 architecture with hardware raytracing and AI accelerators. It combines 16GB GDDR6 memory with PCI Express Gen 5 support and a triple-fan cooler designed for quiet operation. Suited for 1440p gamers seeking smooth frame rates with ray-traced visuals and upscaling support.
Why this product
1440p gaming focus
Delivers smooth performance at 1440p resolution with hardware raytracing and FidelityFX Super Resolution 4 upscaling for higher frame rates.
RDNA 4 architecture
Third-generation raytracing accelerators and second-generation AI accelerators built into 32 compute units for modern gaming workloads.

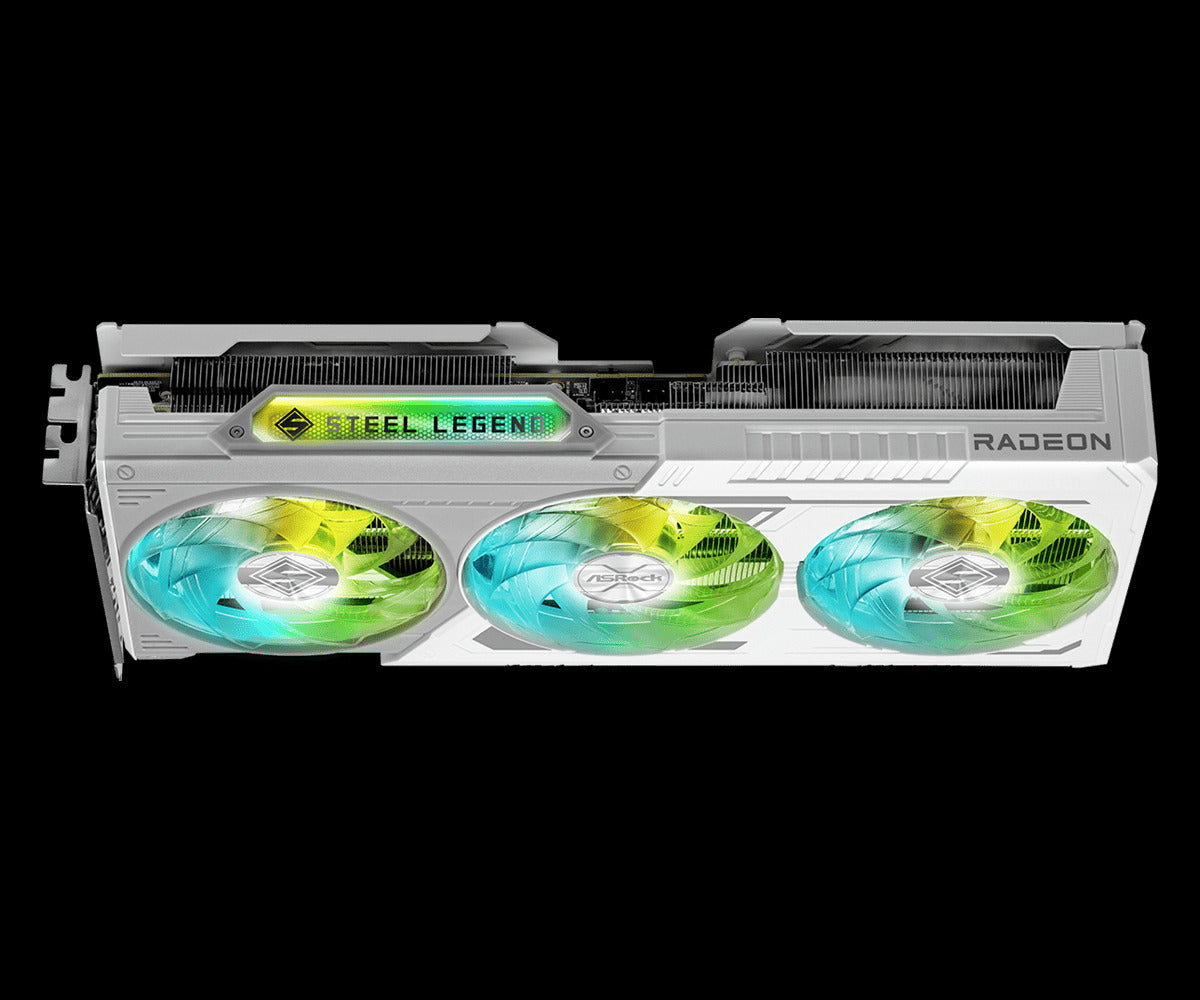

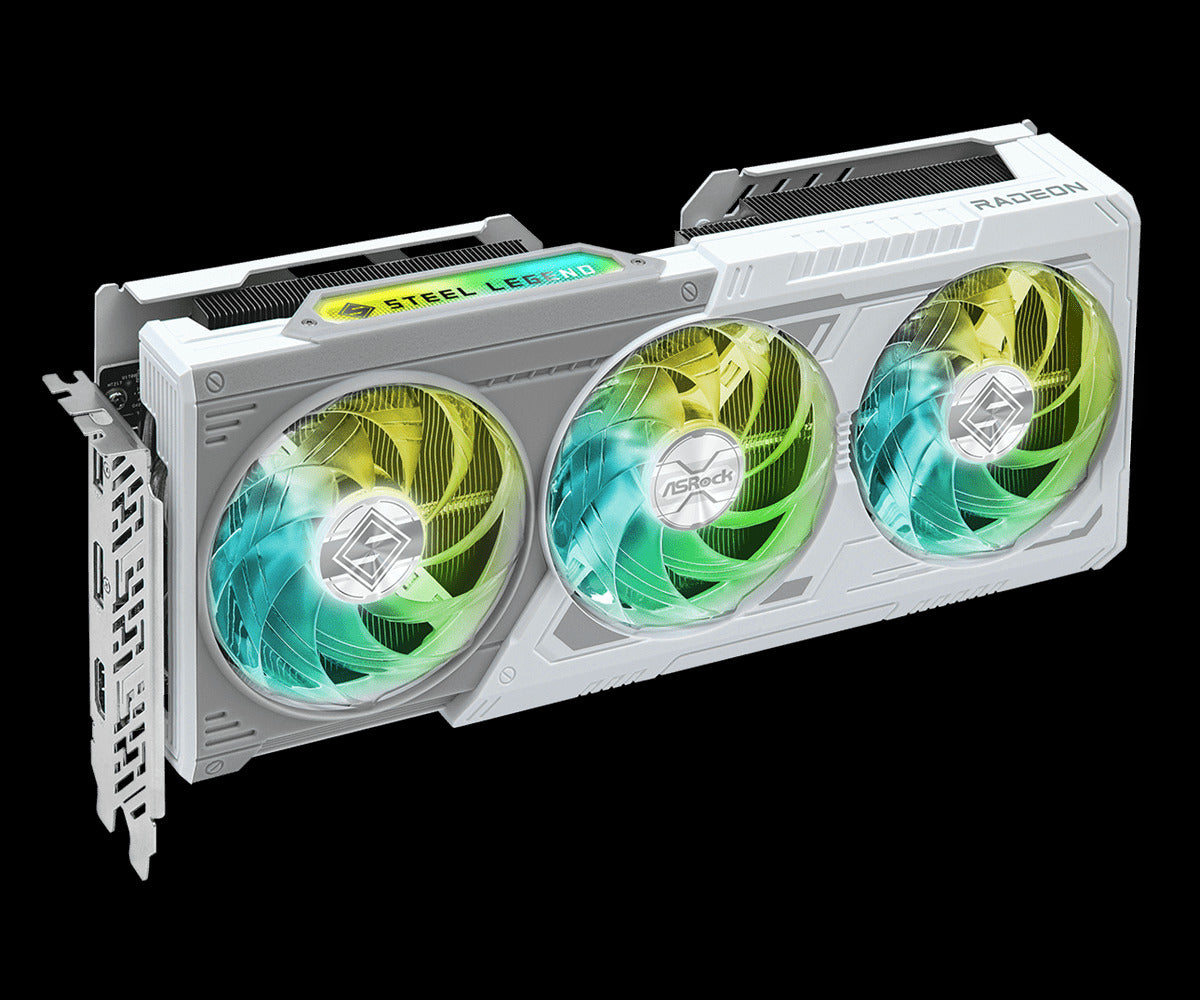

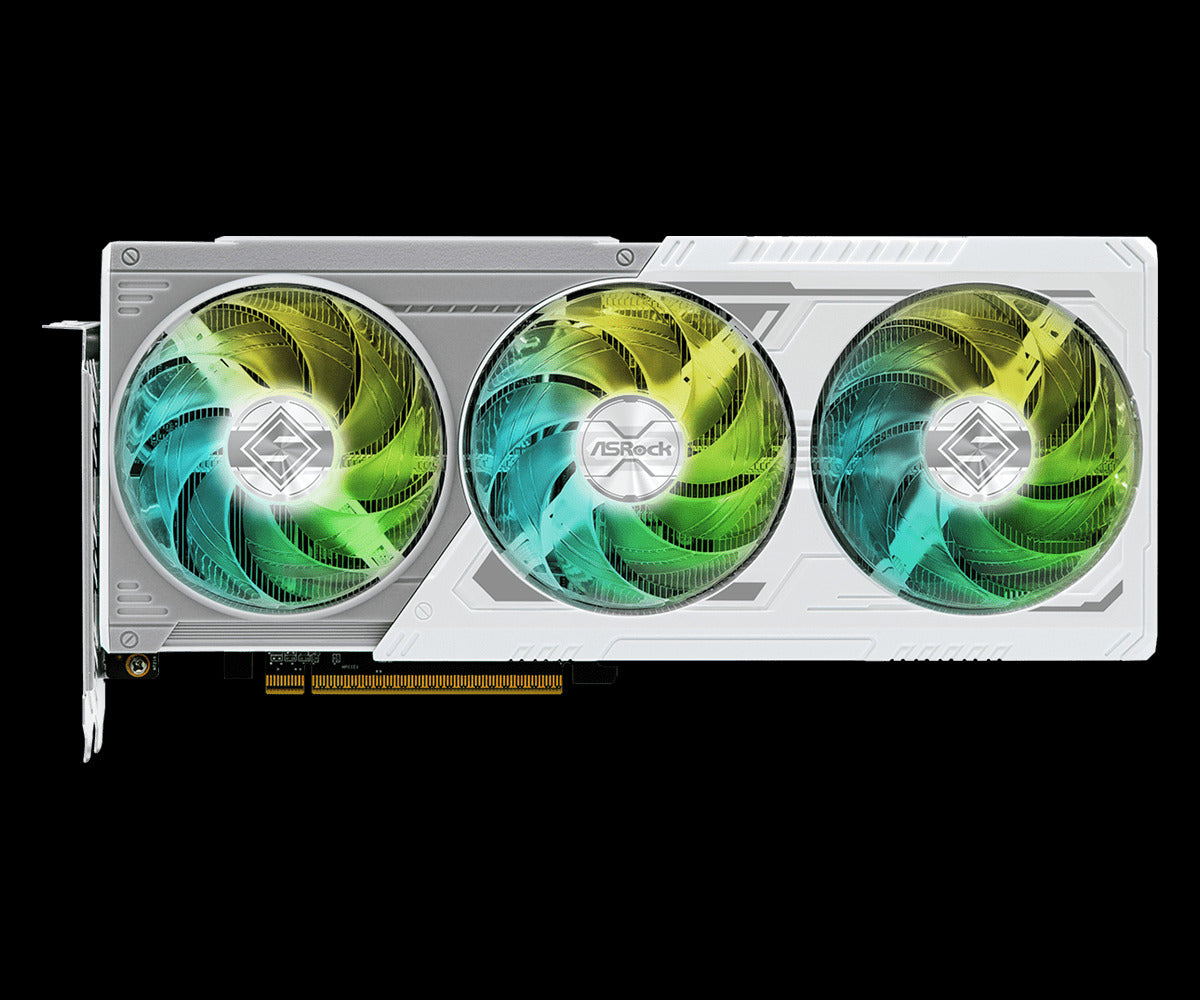

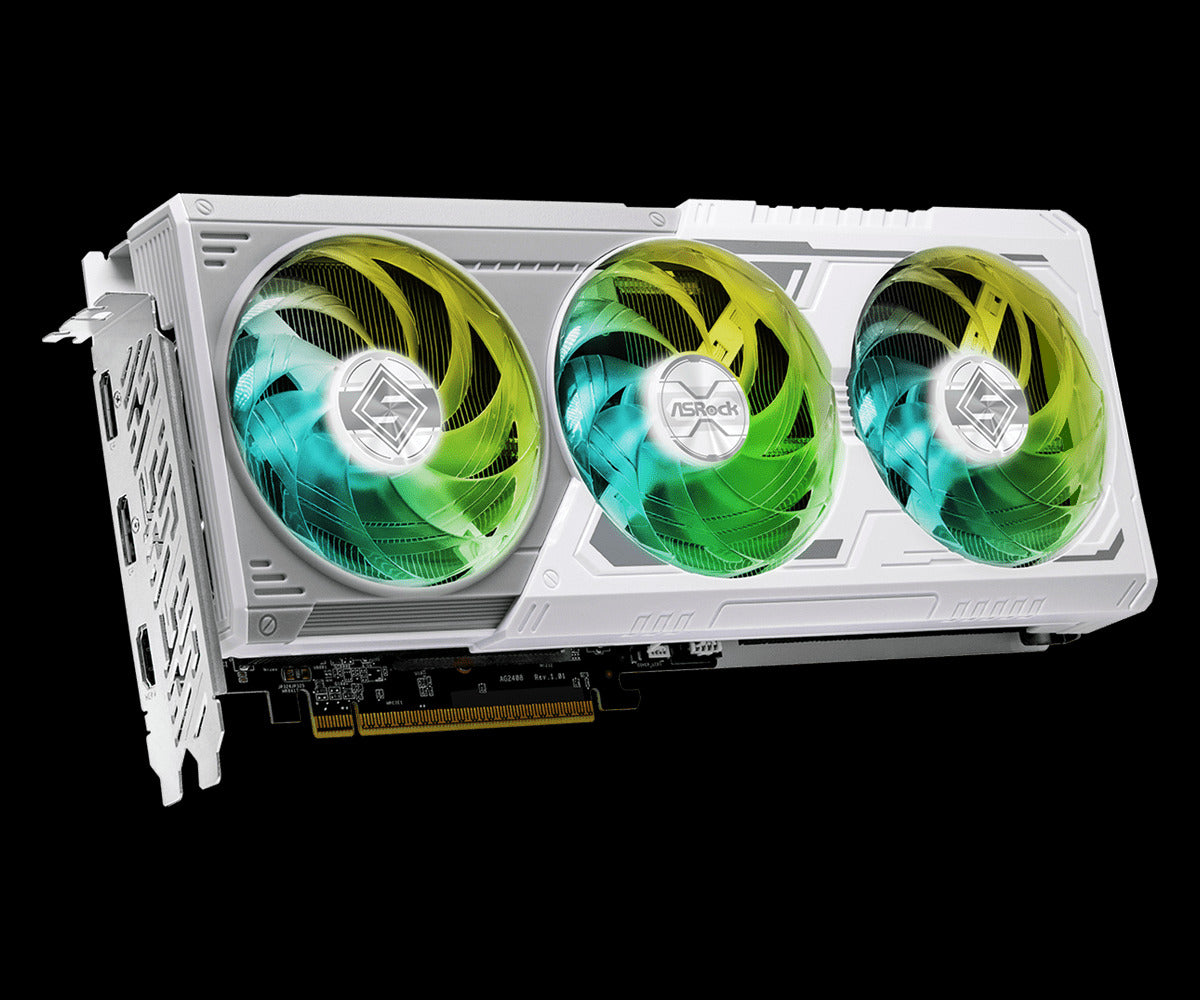

Quiet triple-fan design
Features 0dB silent cooling mode, three striped-ring fans, and an ultra-fit heatpipe system to manage thermals without noise.
Modern display output

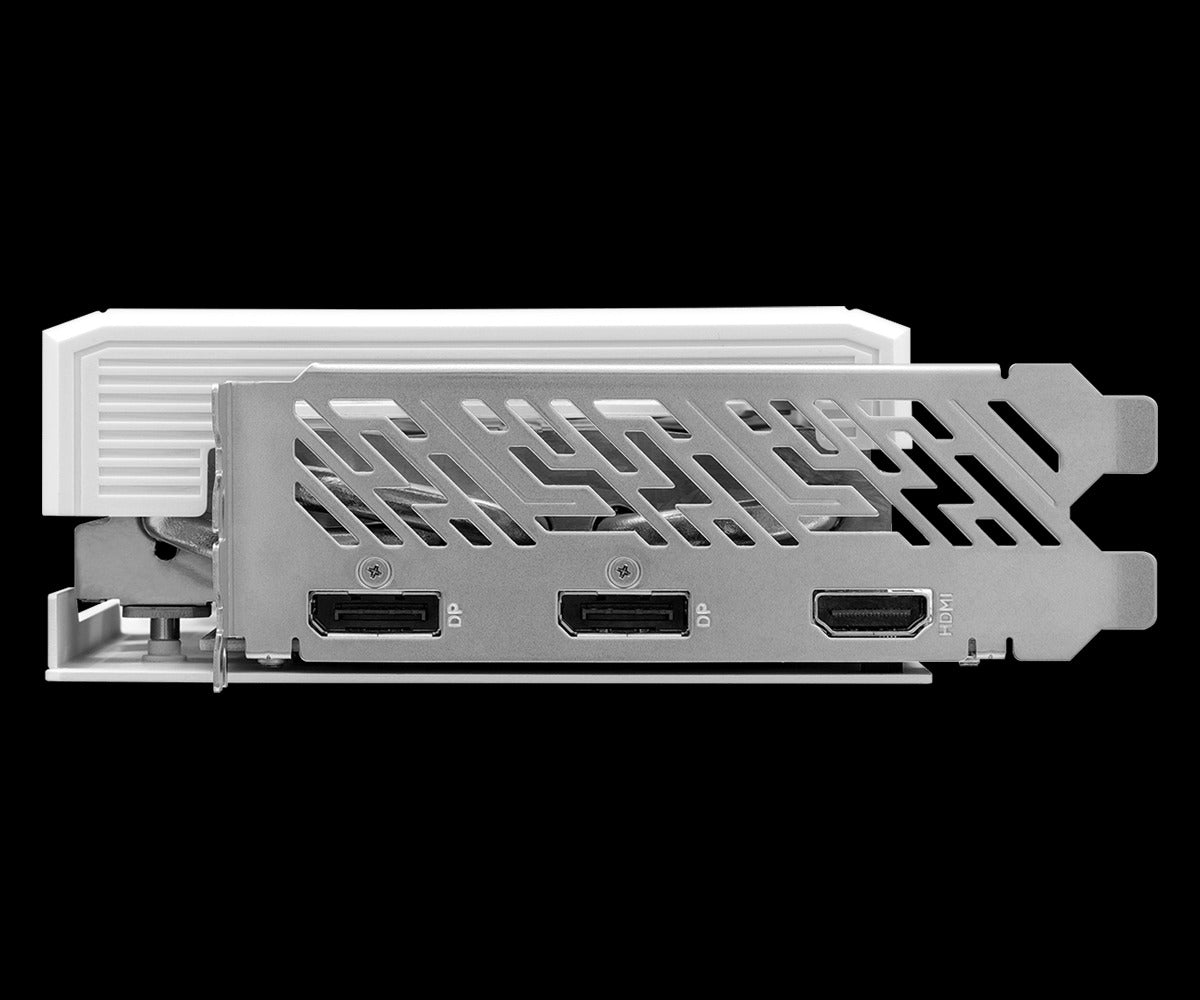

Two DisplayPort 2.1a and one HDMI 2.1b port support ultra-high refresh displays up to 7680×4320.
Low power requirement
160W power draw requires only a 550W PSU, making it compatible with many existing builds without a power supply upgrade.
- Memory16GB GDDR6
- Bus StandardPCI Express Gen 5 x16
- Boost ClockUp to 3320 MHz
- Power Consumption160W
- Card Length298 mm
- ColorWhite / Gray
- SKUASR-3570
- EAN4711581490857
- PCI Express Gen 5 x16 slot: fits any current desktop motherboard with a full-length PCIe slot.
- Single 8-pin PCIe power connector: standard power input on any modern PSU rated 550W or higher.
- AMD Software: Adrenaline Edition included for driver and game profile management across Windows systems.
- AM5 platform pairing: works with all desktop CPUs, but ASRock notes best performance comes when paired with AMD Ryzen 9000 series processors using Smart Access Memory.
Best for
- 1440p gaming at high frame rates
- Ray-traced games with upscaling
- Quiet, cool-running builds
- Compact or mid-tower cases with standard power supplies
Trade-offs
- 4K gaming: Designed for 1440p; higher resolutions demand more capable cards.
- Workstations requiring VRAM capacity: 16GB is sufficient for gaming but less than professional-tier options.
- Systems with minimal PSUs: Requires a dedicated 8-pin connector and 550W minimum supply.
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count. Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition.
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
GPU & Architecture
| Brand | ASRock |
|---|---|
| GPU | AMD Radeon RX 9060 XT |
| Architecture | AMD RDNA 4 |
| Compute Units | 32 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Stream Processors | 2048 |
Performance
| Boost Clock | Up to 3320 MHz |
|---|---|
| Game Clock | 2780 MHz |
| Memory | 16GB GDDR6 |
| Memory Clock | 20 Gbps |
| Memory Interface | 128-bit |
Connectivity & Display
| Bus Standard | PCI Express Gen 5 x16 |
|---|---|
| Display Outputs | 2x DisplayPort 2.1a, 1x HDMI 2.1b |
| Max Resolution | 7680 x 4320 |
| Multi-view | 3 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
Power & Physical
| Power Connector | 1x 8-pin PCIe |
|---|---|
| Power Consumption | 160W |
| Recommended PSU | 550W |
| Card Length | 298 mm |
| Color | White / Gray |
