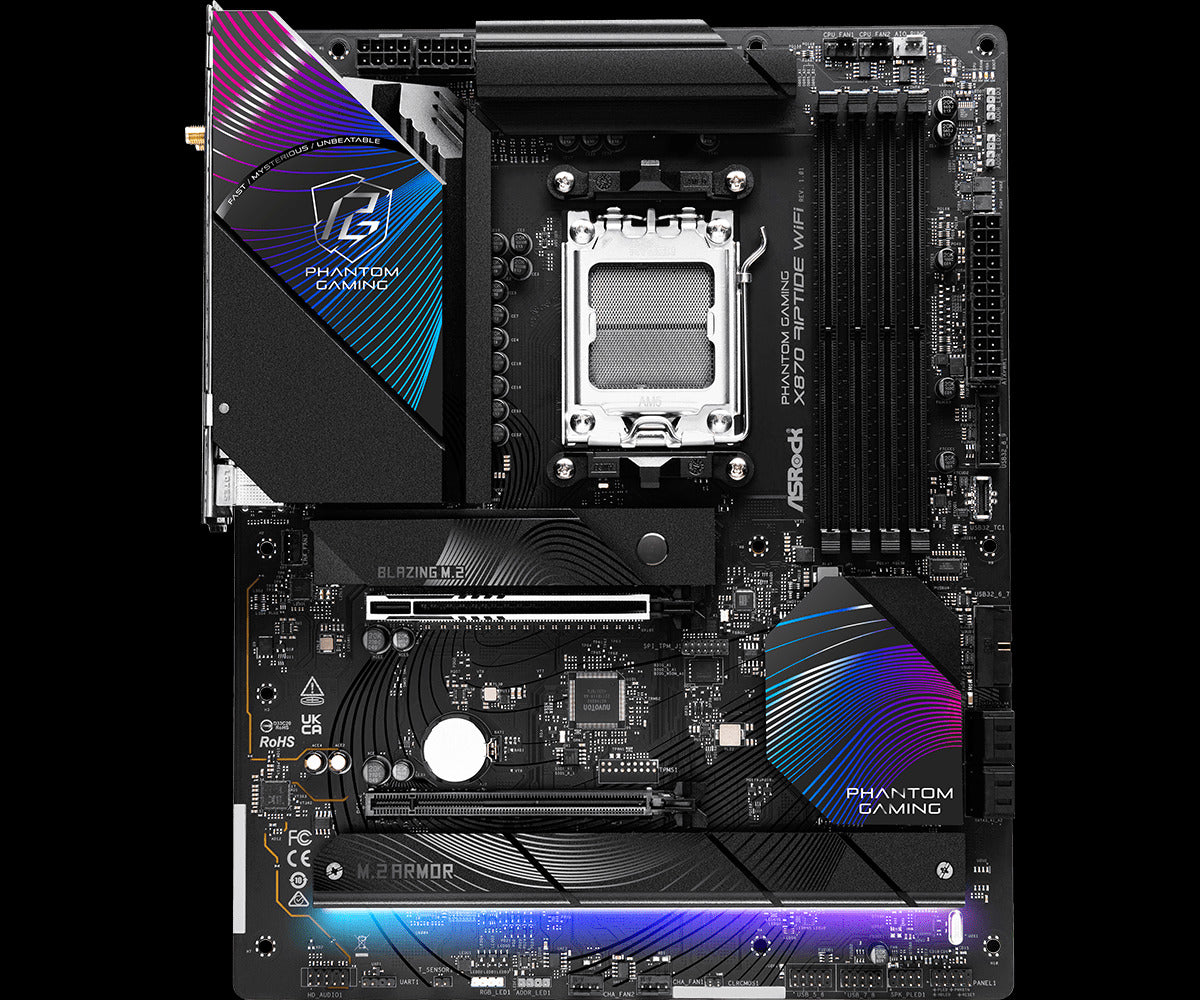

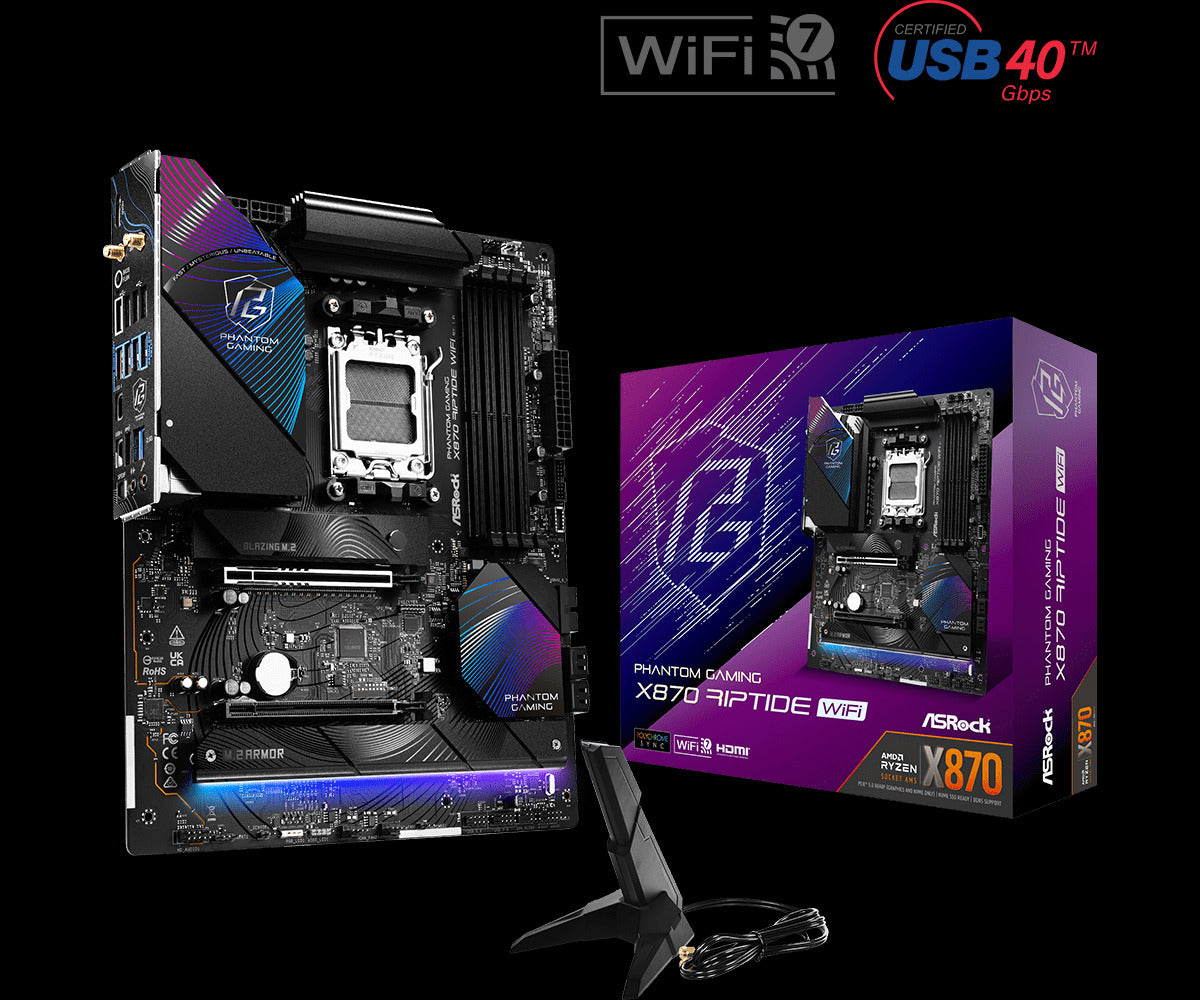

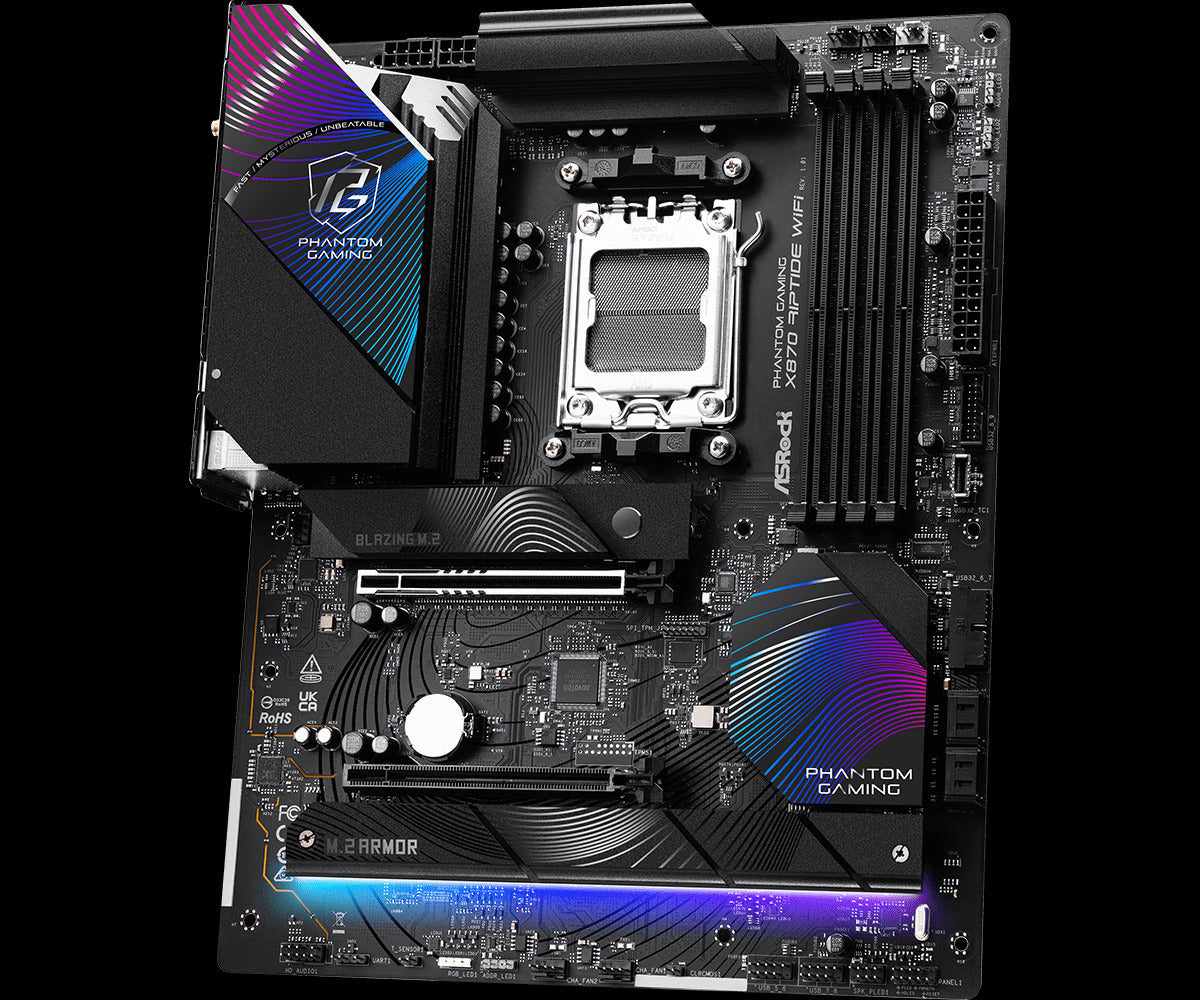

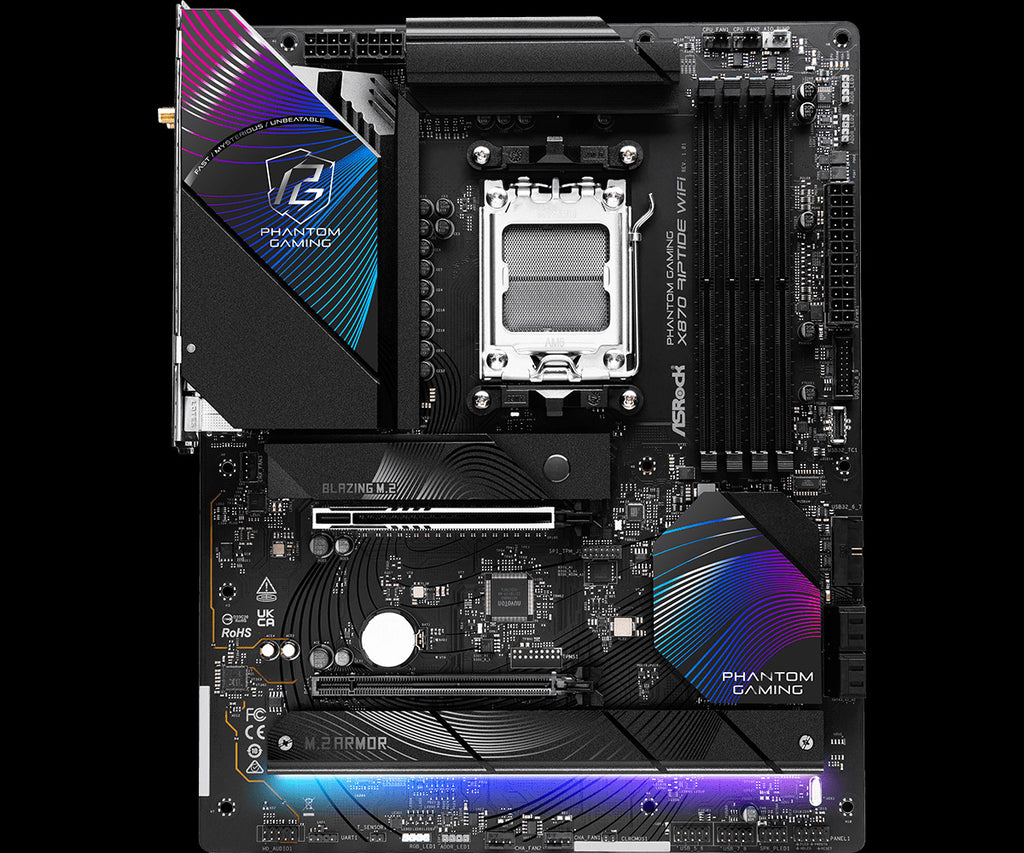

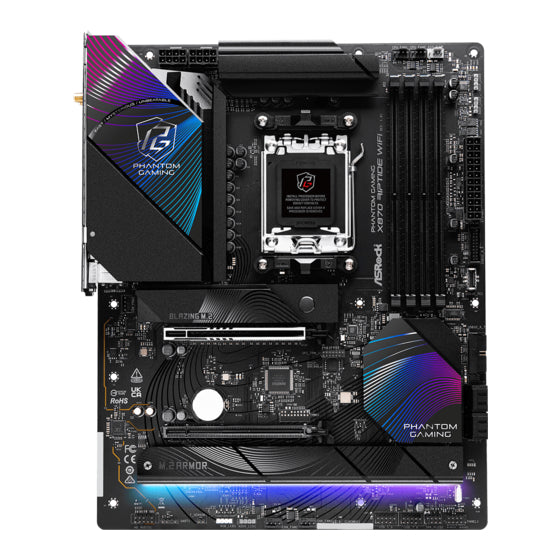

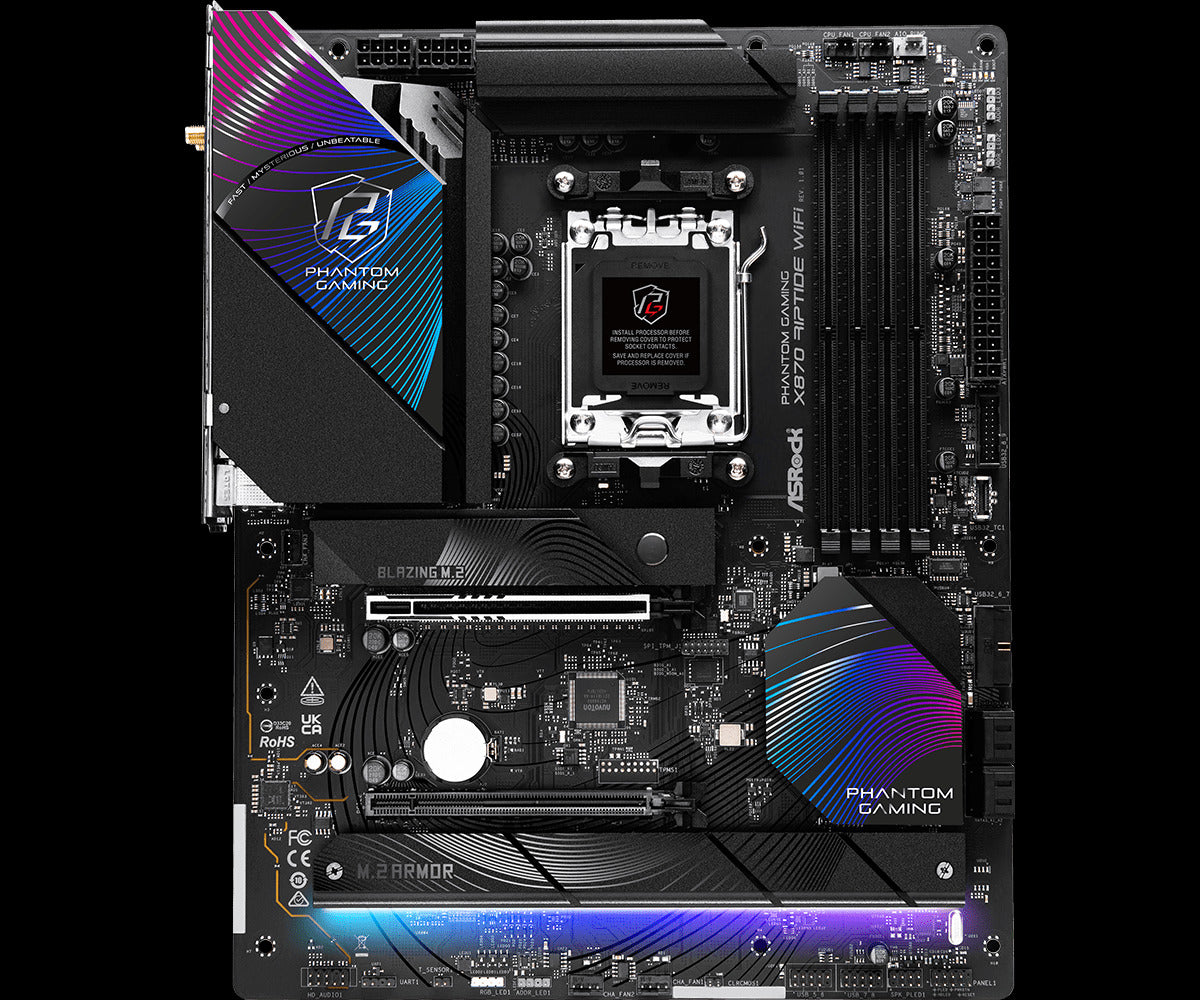

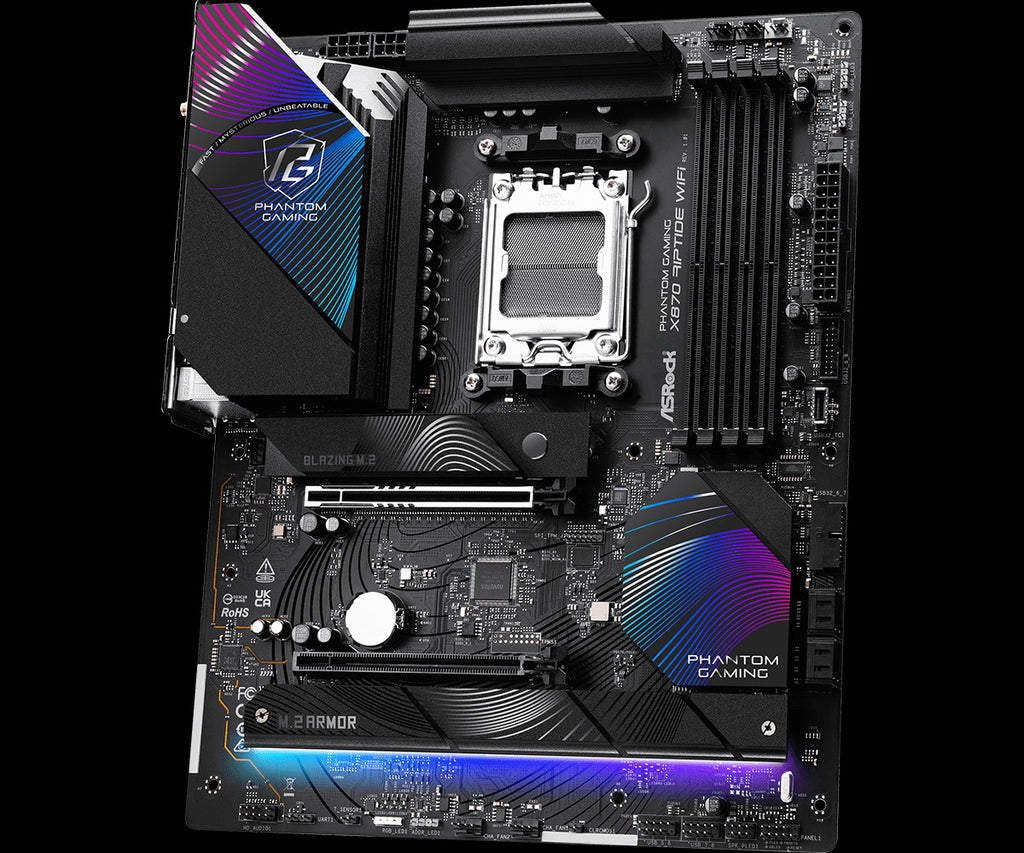

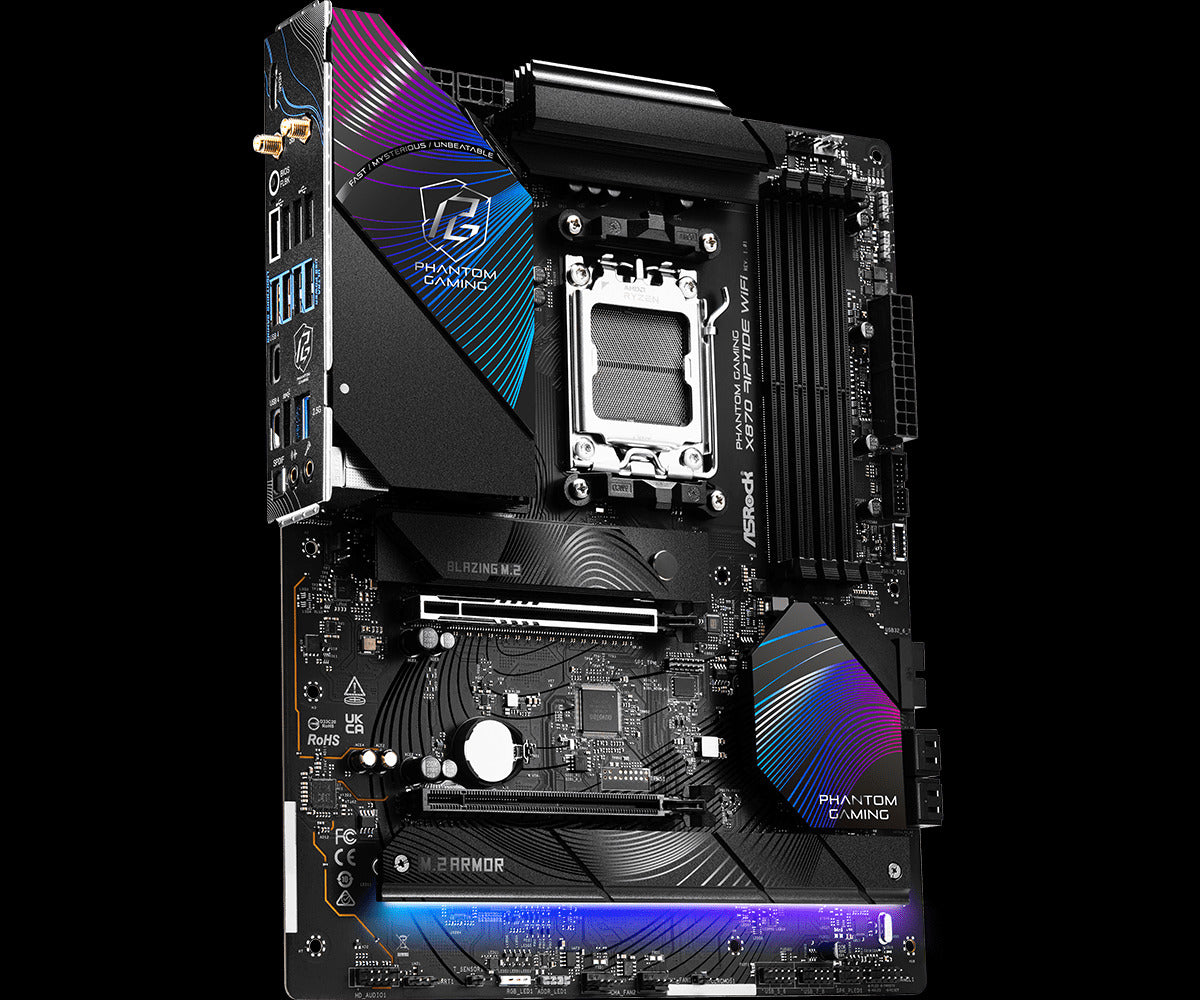

ASRock X870 Riptide WiFi AM5 ATX Motherboard - Wi-Fi 7
ASRock
ASRock X870 Riptide WiFi AM5 ATX Motherboard - Wi-Fi 7
The ASRock X870 Riptide WiFi AM5 ATX Motherboard is built for gamers and enthusiasts running Ryzen 9000, 8000, or 7000 series processors who need fast memory support, modern connectivity, and stable overclocking capability. It combines PCIe 5.0 storage expansion, Wi-Fi 7, and a robust power design to handle memory overclocking and gaming workloads.
Why this product
PCIe 5.0 M.2 slot for next-gen NVMe drives
One M.2 slot runs at PCIe Gen5x4 speed, with two additional Gen4x4 slots for storage expansion. Bottom heatsink design dissipates M.2 heat through the motherboard PCB to maintain performance.
Wi-Fi 7 and 2.5 Gbps Killer LAN
802.11be Wi-Fi 7 plus Killer E3100 Ethernet deliver fast wireless and wired connectivity for competitive gaming and streaming without lag.
14+2+1 phase power with 80A Dr.MOS
Heavy-duty voltage regulation and enlarged heatsink armor stabilize power delivery during memory overclocking and CPU-intensive workloads.
4 DDR5 slots supporting up to 8000+ MHz (OC)
Full dual-channel memory support with pre-tested XMP and EXPO profiles ready for high-speed DDR5 modules. Supports up to 256 GB total.
USB4 ports deliver 40 Gb/s bandwidth
Two rear USB4 Type-C ports support up to 8K video output and ultra-fast data transfer for external storage and displays.
8-layer PCB for signal stability and efficiency
Thicker PCB layout reduces electromagnetic noise and improves power distribution, lowering temperatures during overclocking.
- SocketAMD AM5
- ChipsetAMD X870
- Form FactorATX
- Memory Slots4 x DDR5 DIMM
- M.2 Slots3 (1x PCIe Gen5x4, 2x PCIe Gen4x4)
- WirelessWi-Fi 7 + Bluetooth 5.4
- PCB Layers8 Layer
- SKUASR-1999
- EAN4710483949357
- Supports AMD Ryzen 9000, 8000, and 7000 series processors in AM5 socket.
- Accepts standard ATX case mounting and power supply requirements (24-pin ATX + 2x 8-pin 12V connectors).
- Works with DDR5 memory in dual-channel configuration, including ECC and non-ECC modules.
- BIOS Flashback button enables firmware updates without a CPU installed.
- Addressable RGB headers support WS2812B strips with max 3A (5V), up to 80 LEDs, within 2 meters. Standard RGB headers support 5050 strips with max 3A (12V), within 2 meters.
Best for
- DDR5 memory overclockers seeking stable, high-capacity configurations
- Competitive gamers needing low-latency Killer networking and Wi-Fi 7
- Creators and enthusiasts building high-end AM5 systems with PCIe 5.0 NVMe storage
- RGB enthusiasts with multiple LED devices to synchronize across SignalRGB-certified accessories
Trade-offs
- Budget builds: High phase count and premium components command a higher price than entry-level AM5 boards.
- Micro-ATX or Mini-ITX builds: This is a full-size ATX board and will not fit smaller form factor cases.
- Intel CPU systems: AM5 socket is AMD-exclusive; no support for Intel processors.
- Systems without USB4-capable peripherals: USB4 ports add cost; standard USB 3.2 and USB 2.0 remain available but USB4 features require compatible external devices.
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles.
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
The Killer E3100 2.5 Gbps Ethernet controller is designed specially for competitive gamers and performance-hungry users.
Networking
| Brand | ASRock |
|---|---|
| Standard | 802.11 a/b/g/n/ac/ax/axe/be Wi-Fi 7 + Bluetooth v5.4 |
| Throughput | Killer E3100 2.5 Gbps Ethernet; USB4 40 Gb/s |

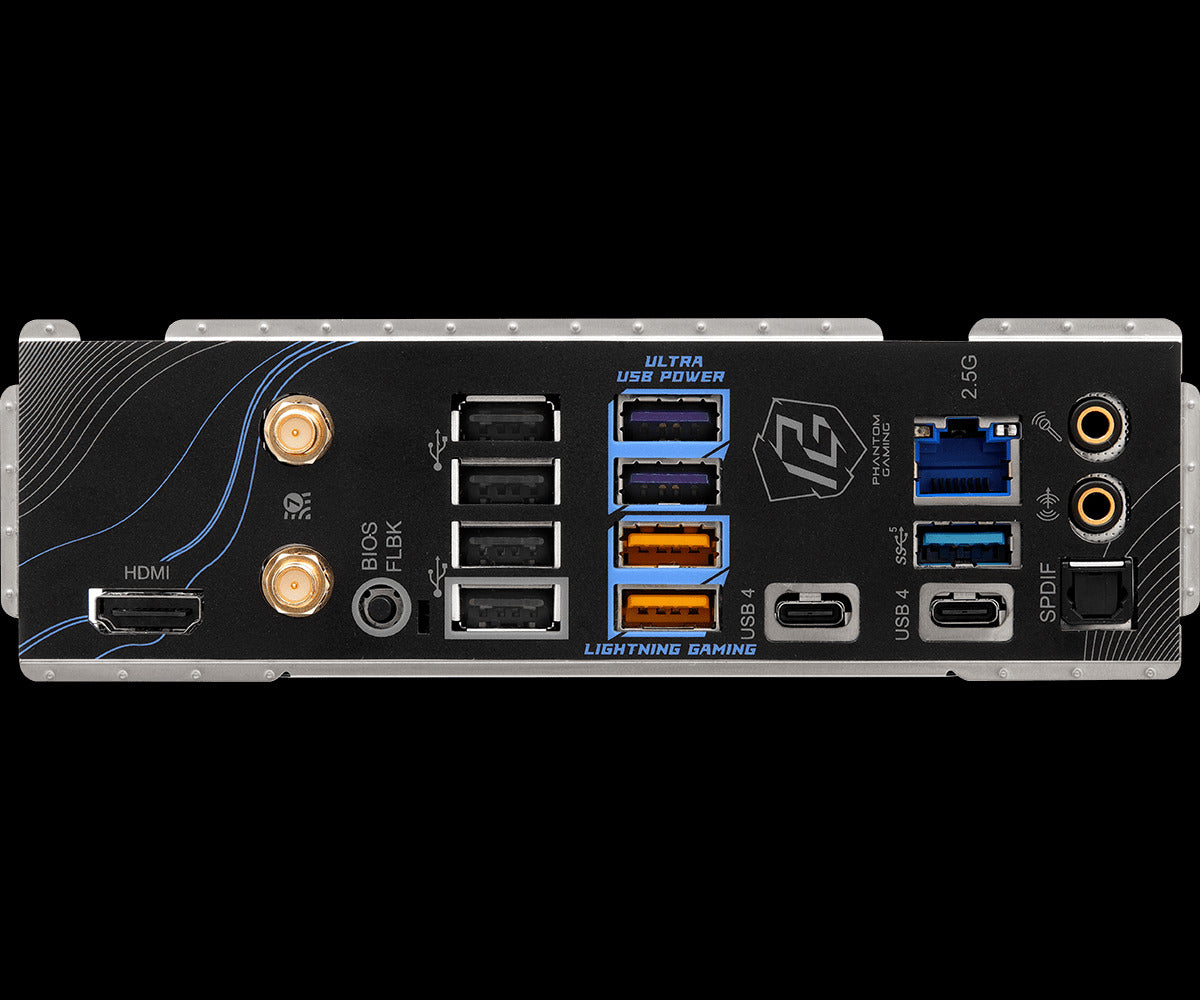

| Ports | 2x USB4 Type-C (rear); 2x USB 3.2 Gen2 Type-A (rear); 3x USB 3.2 Gen1 Type-A (rear); 4x USB 3.2 Gen1 (front headers); 8x USB 2.0 (4 rear, 4 front); 1x HDMI 2.1 |
Performance
| CPU Socket | AMD AM5 |
|---|---|
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series |
| Memory Type | 4x DDR5 DIMM, dual channel |
| Memory Speed | DDR5 8000+ (OC) |
| Max Memory Capacity | 256 GB |
| Memory Profiles | XMP and EXPO |
| Storage Slots | 1x M.2 PCIe Gen5x4, 2x M.2 PCIe Gen4x4, 4x SATA3 |
| Power Phases | 14+2+1 Phase, 80A Dr.MOS for VCore+SOC |
Ports & power
| Power Connectors | 1x 24-pin ATX, 2x 8-pin 12V |
|---|---|
| Fan Headers | 2x CPU Fan (4-pin), 1x AIO Pump (4-pin), 3x Chassis Fan (4-pin) |
| RGB Headers | 1x RGB LED Header (12V), 3x Addressable RGB Headers (5V) |
| Audio | Realtek ALC4082, 7.1 channels |
Physical
| Form Factor | ATX |
|---|---|
| PCB Construction | 8 Layer PCB |
| I/O Shield | Integrated, pre-installed |

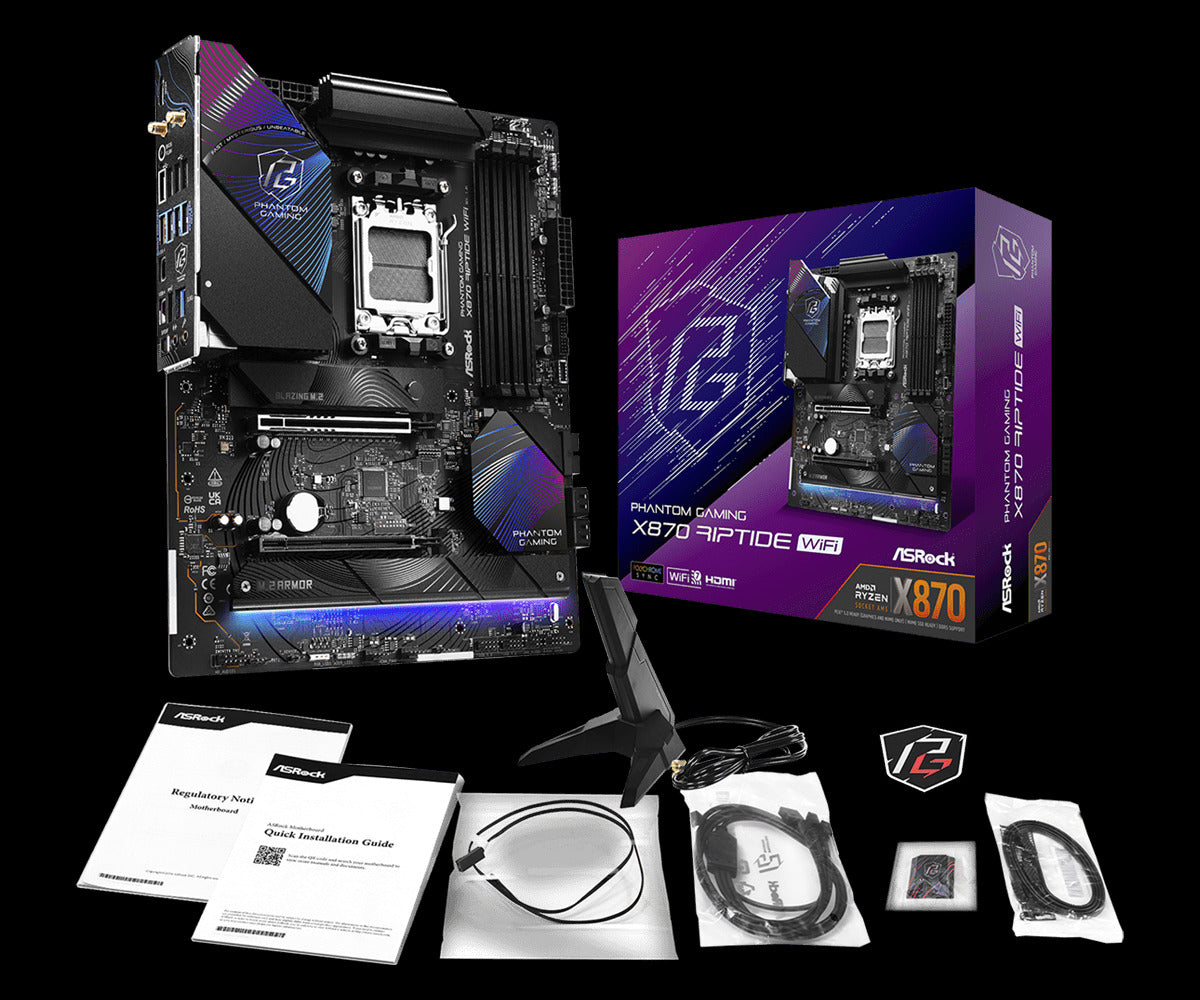

| Box Contents | Motherboard, 2x SATA Data Cables, ASRock WiFi Antenna, ARGB Splitter Cable, Thermistor Cable |
