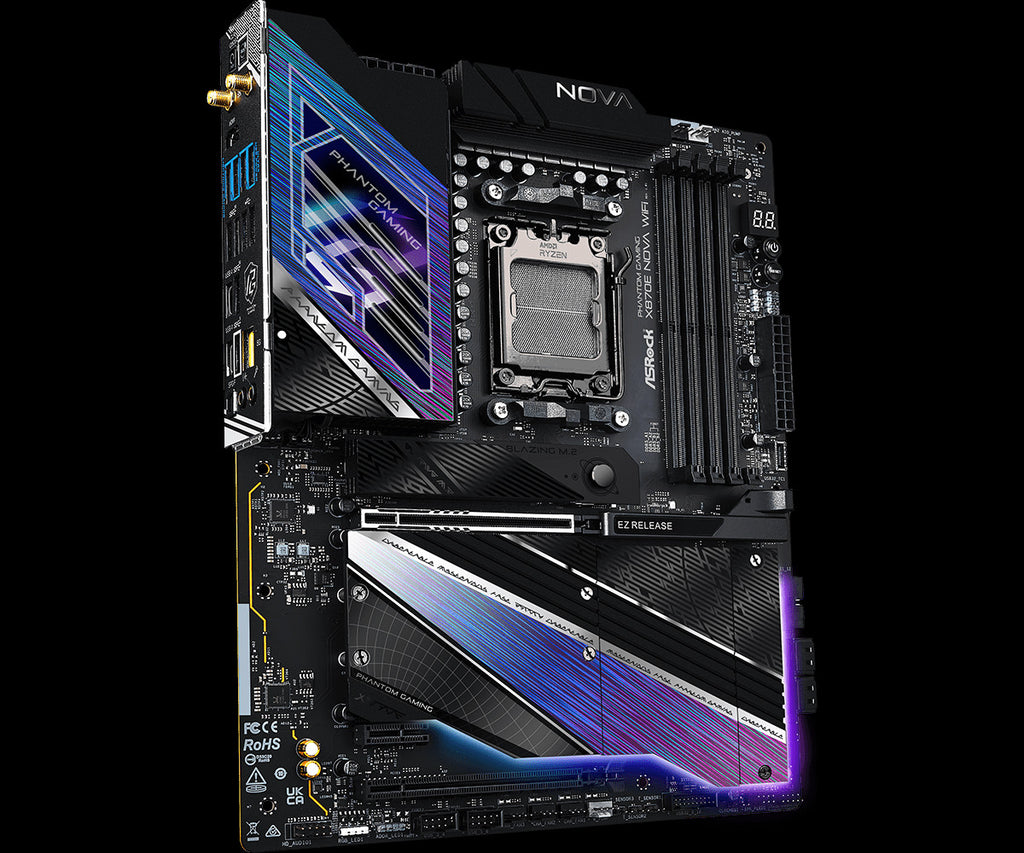

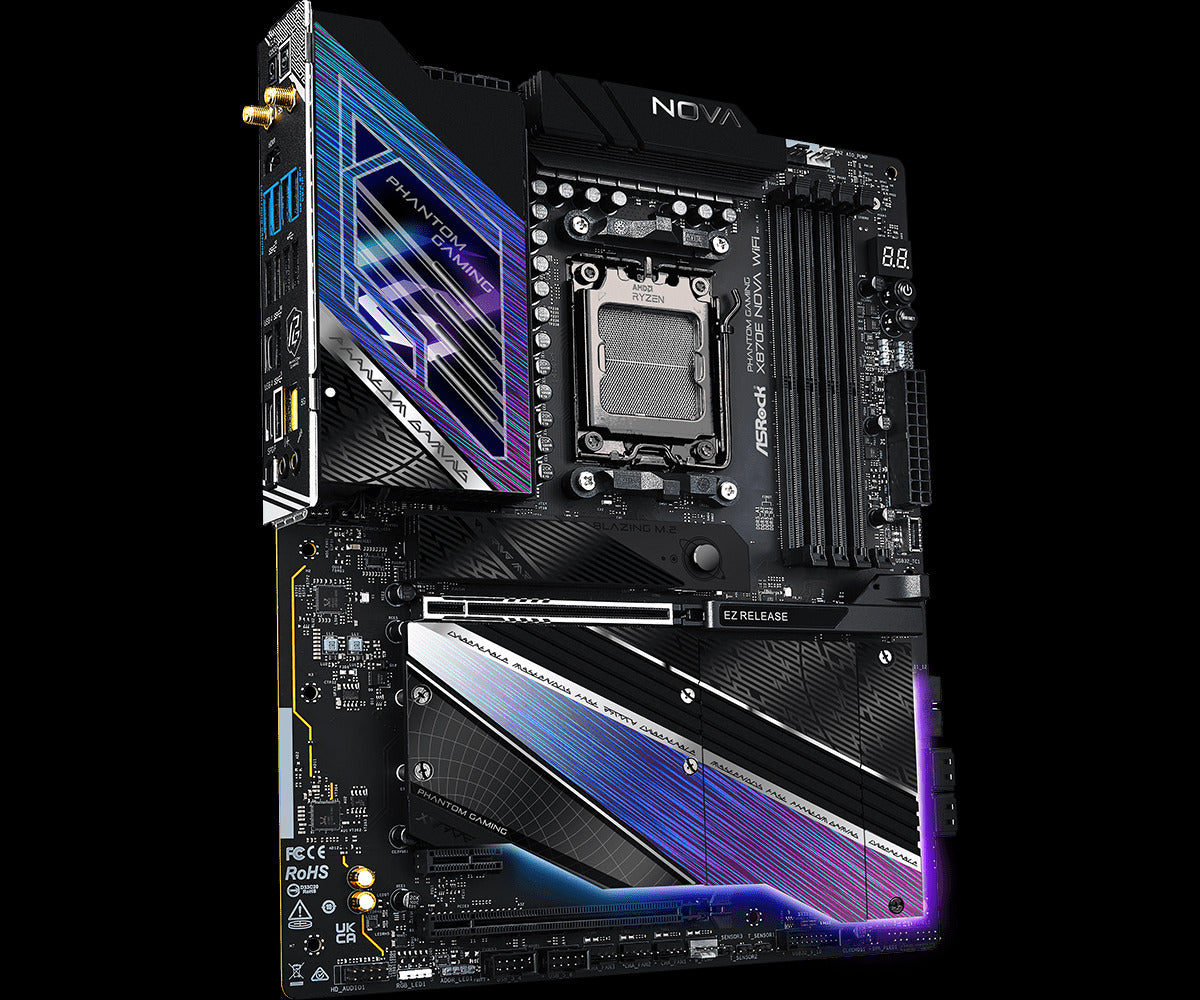

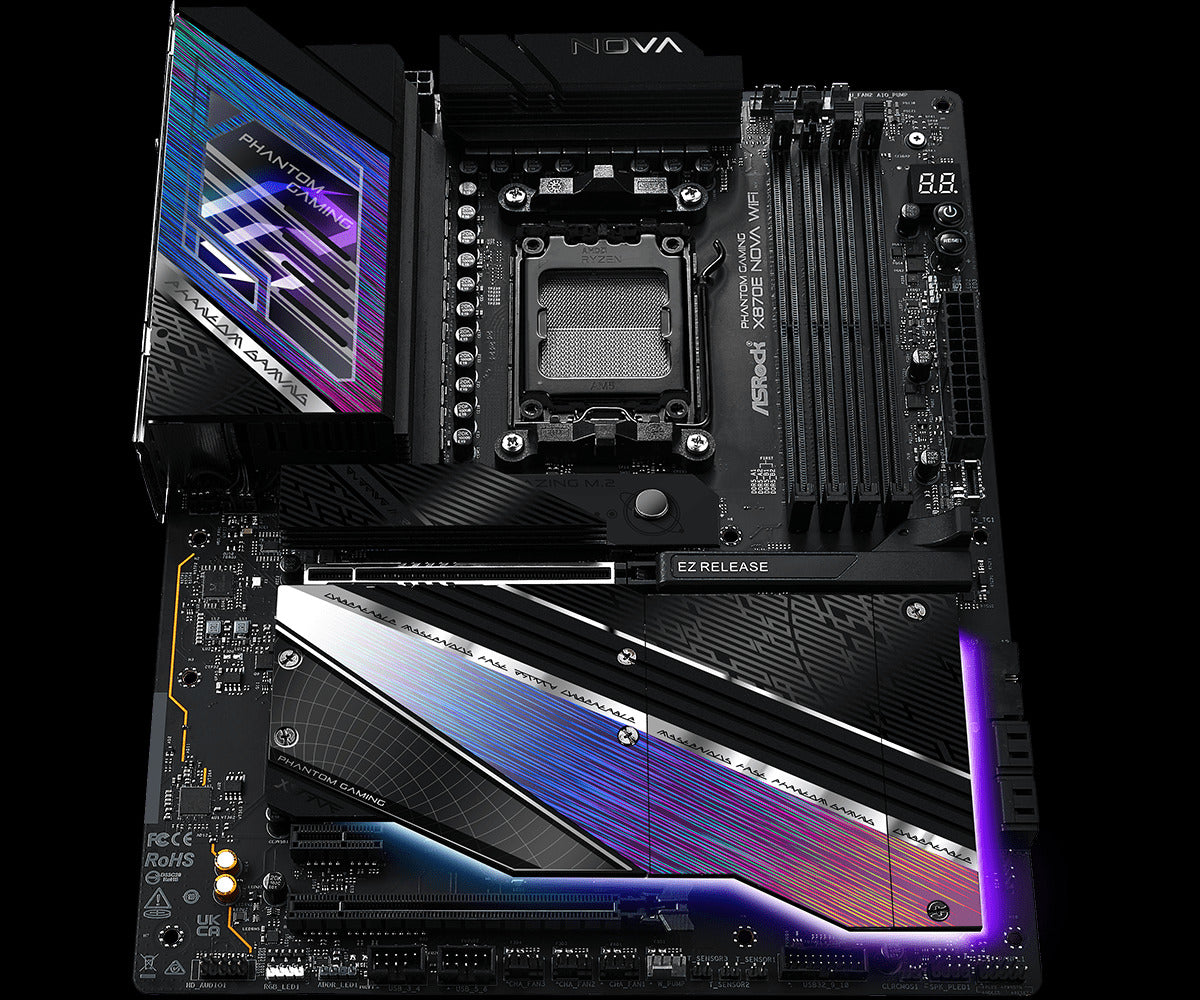

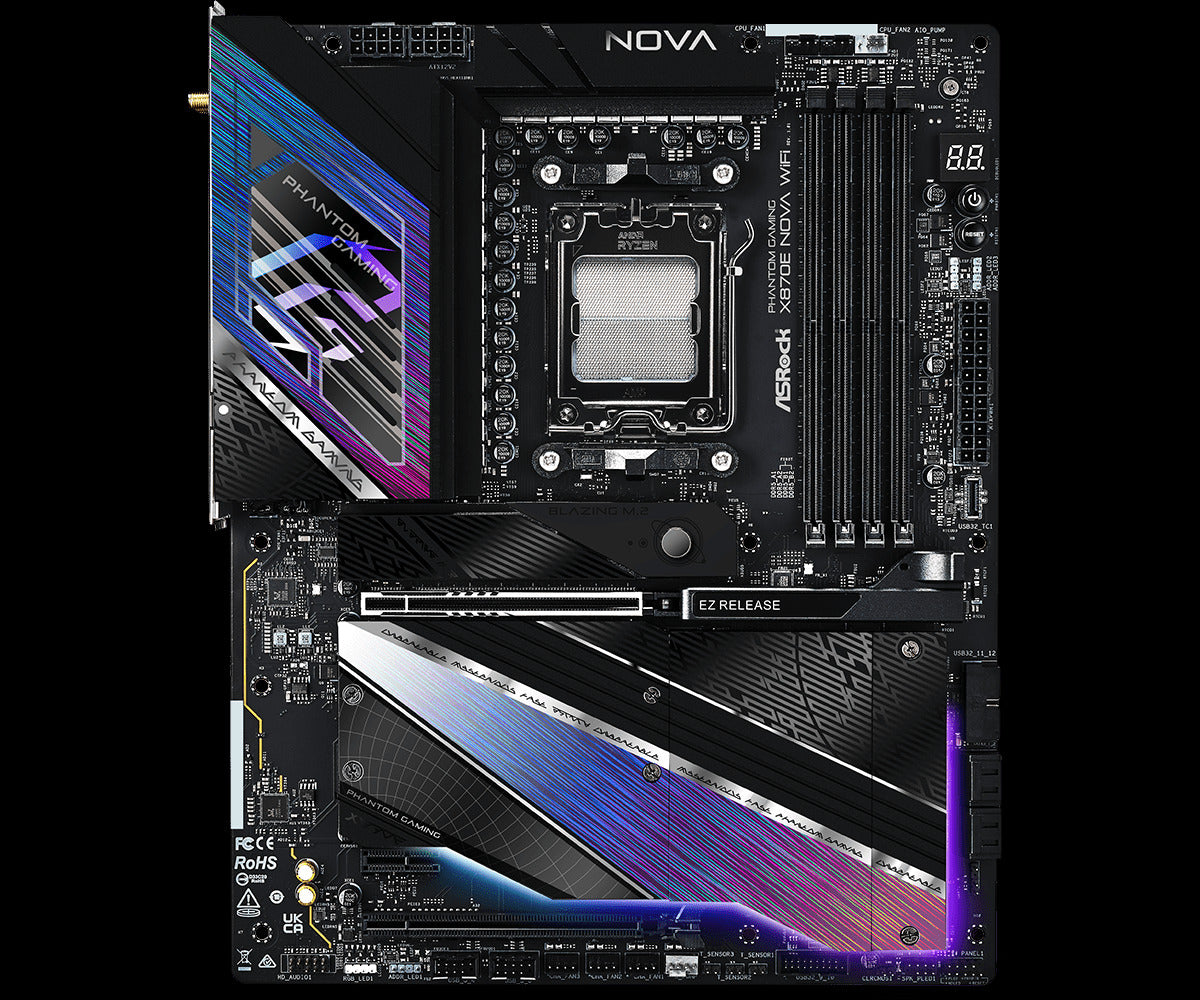

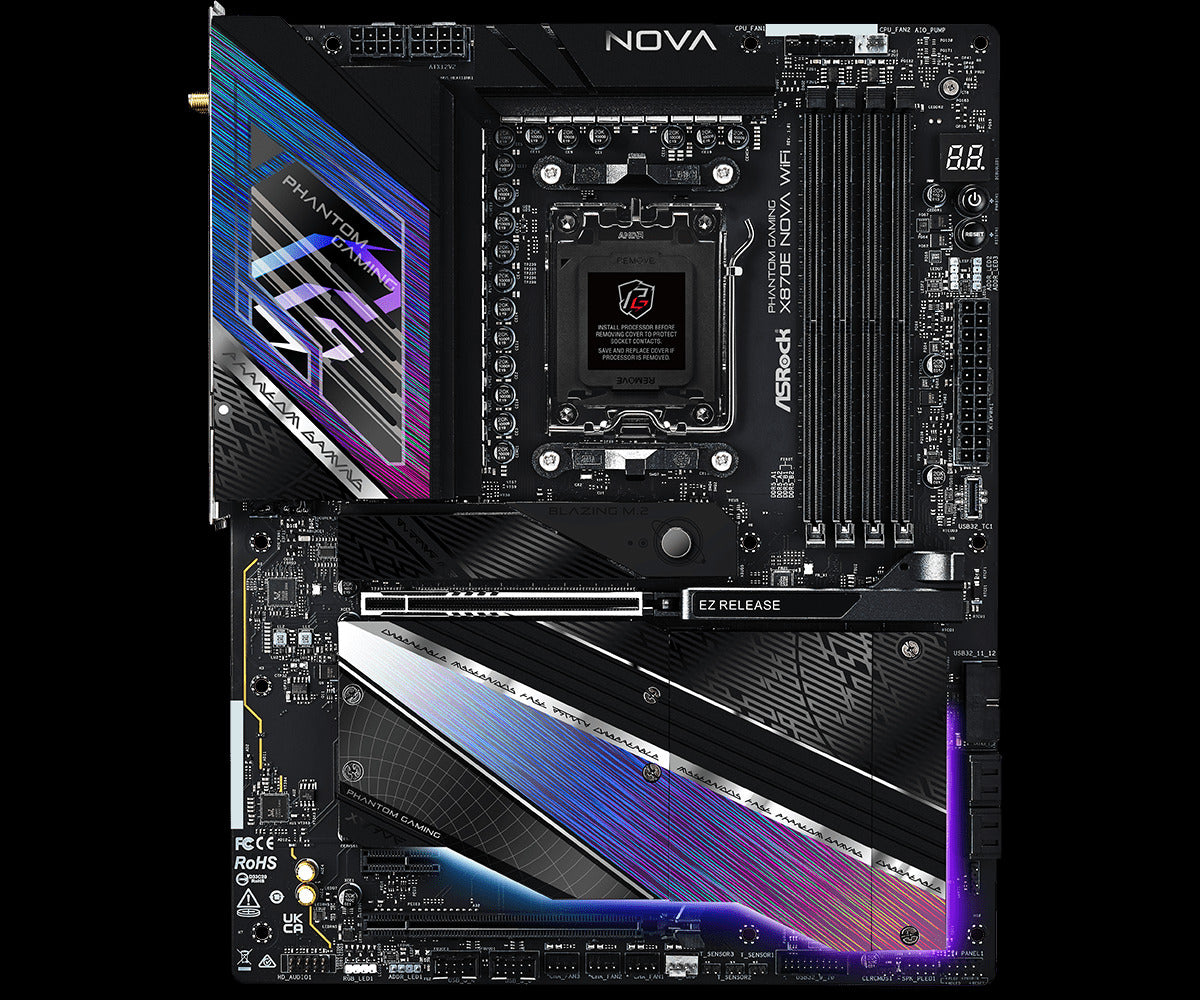

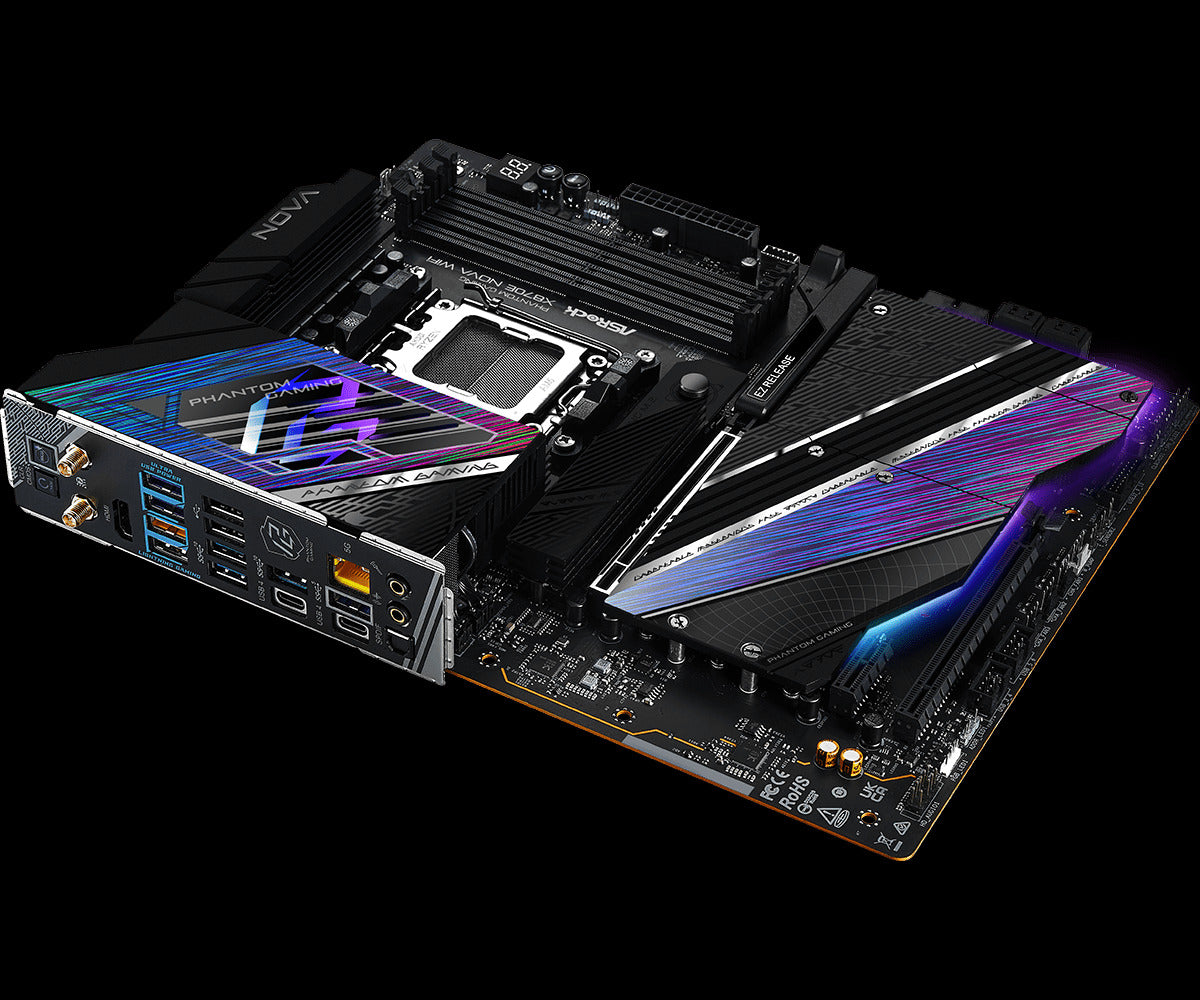

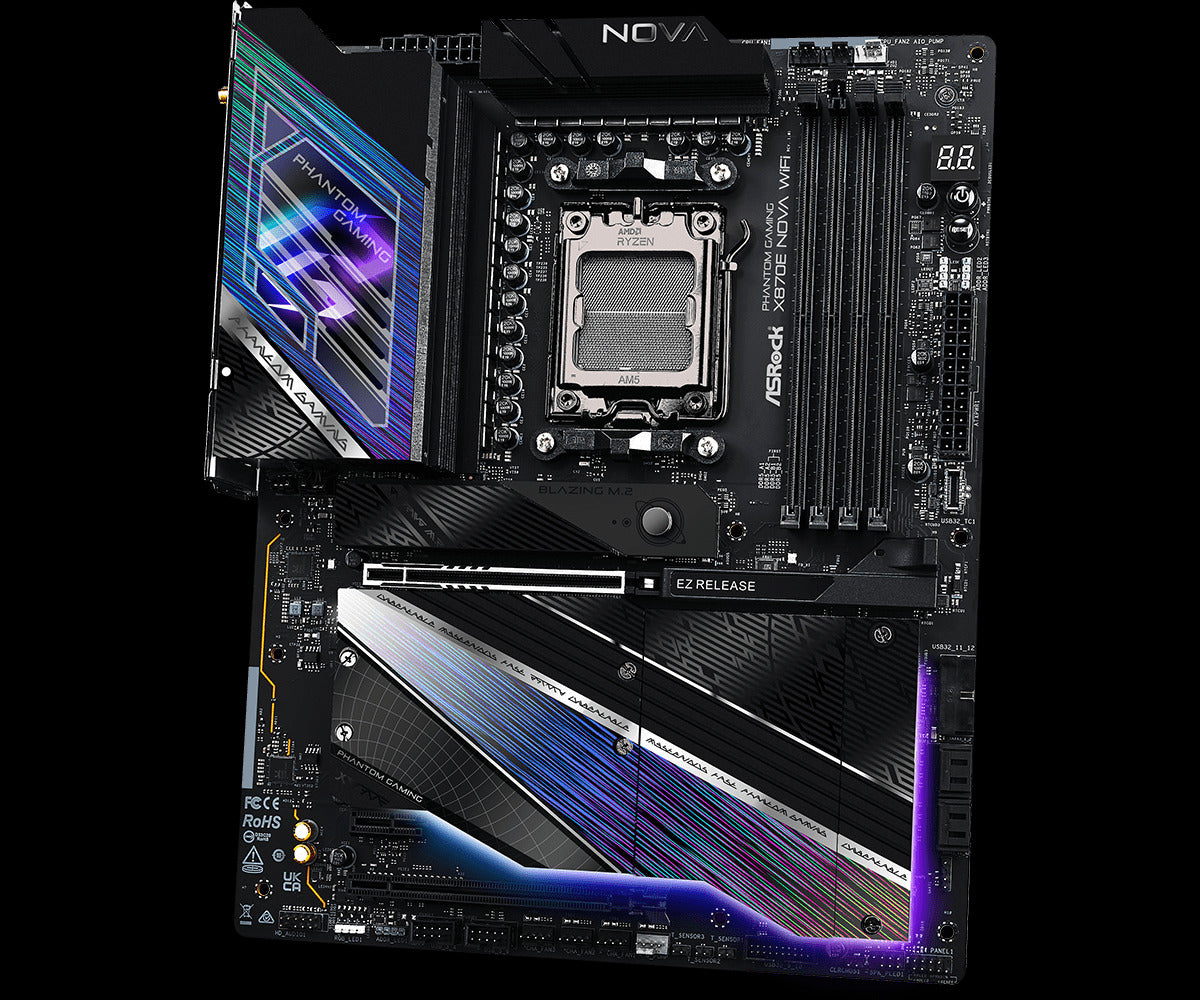

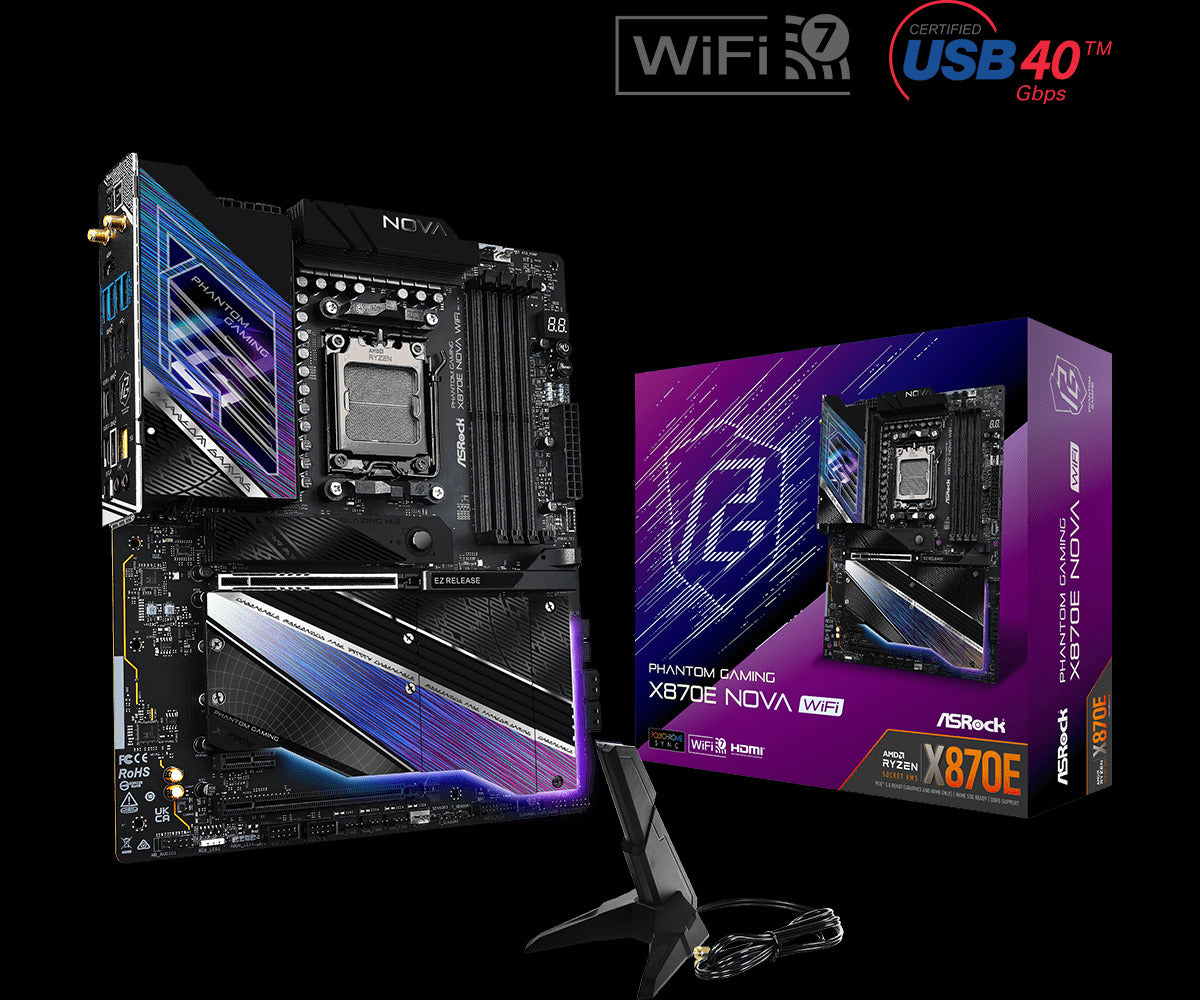

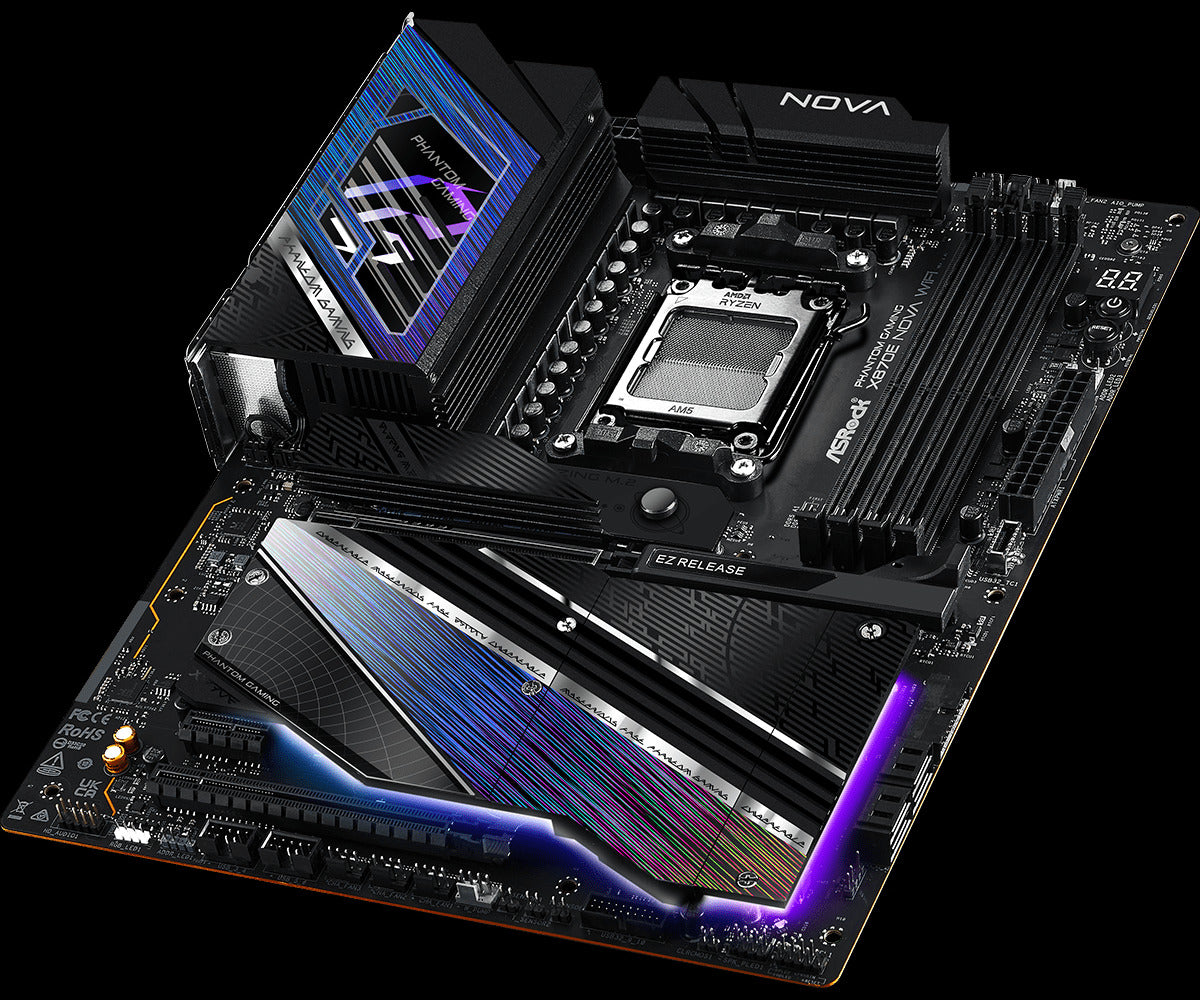

ASRock X870E Nova WiFi Phantom Gaming AM5 ATX Motherboard
ASRock
ASRock X870E Nova WiFi Phantom Gaming AM5 ATX Motherboard
The ASRock X870E Nova WiFi Phantom Gaming is an ATX motherboard for AMD Ryzen 9000, 8000 and 7000 series processors, built for high-performance gaming and overclocking. It combines PCIe 5.0 support, Wi-Fi 7 connectivity, and robust power delivery in a gaming-focused design with extensive cooling.
Why this product
PCIe 5.0 for GPU and NVMe
One PCIe 5.0 x16 slot for graphics cards and one PCIe Gen5 M.2 slot for the fastest SSDs available.
Wi-Fi 7 and 5 Gbit LAN
802.11be Wi-Fi 7 with multi-link operation for lower latency, plus 5 Gigabit Ethernet for wired connections.
Heavy power delivery for overclocking
20+2+1 phase design with 110A SPS and upgraded 20K Black capacitors rated for 20,000 hours, supporting memory speeds up to 8200+ MHz.
XXL aluminum heatsinks
Covers VRM, chipset, and M.2 areas to maintain stable operation under sustained loads.
Four DDR5 slots and four M.2 drives
Supports up to 256 GB of DDR5 memory and five M.2 NVMe drives across three generations of PCIe speed.
- SocketAMD AM5
- Form factorATX
- Dimensions244 × 305mm
- Memory slots4 × DDR5 DIMM
- Max memory256 GB
- M.2 drives supported5 (1 Gen5, 3 Gen4, 1 Gen3)
- WirelessWi-Fi 7 (802.11be)
- SKUASR-1992
- EAN4710483949654
- AMD Ryzen 9000, 8000 and 7000 series processors in AM5 socket only.
- DDR5 memory modules, including XMP and EXPO profiles, up to 8200+ MHz overclocked.
- Graphics output via HDMI 2.1 or two USB4 Type-C ports for displays.
- The second PCIe x16 slot runs at x2 electrical speed and is managed by the chipset; best reserved for secondary storage or non-GPU cards.
Best for
- High-end gaming systems requiring fast GPU and NVMe bandwidth.
- Overclocking enthusiasts using multiple fast DDR5 modules and tuning power delivery.
- Content creators needing four M.2 slots for media storage and fast transfer.
- Users prioritizing wireless connectivity with Wi-Fi 7 and low-latency gaming.
Trade-offs
- Builders using older AM4 processors; this board requires AM5 Ryzen 7000 series or newer.
- Budget builds seeking entry-level performance; the power delivery and feature set target higher-end systems.
- Mini-ITX or micro-ATX case builders; this is full ATX at 244 × 305mm.
Nova is the most significant energy discharge ever witnessed by mankind, it's super-powerful which represents the performance our motherboard can deliver.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance. The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. 2 ounce copper inner layers that provide stable signal traces and power shapes!
The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits: Higher Capacitance: Greater charge storage for better support under high loads.
Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.
ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
General
| Brand | ASRock |
|---|---|
| Chipset | AMD X870E |
| Supported processors | AMD Ryzen 9000, 8000 and 7000 series |
Performance
| Power design | 20+2+1 phase, 110A SPS VCore+SOC |
|---|---|
| Memory type | DDR5 ECC/non-ECC, dual channel |
| Memory speed | Up to 8200+ MHz (overclocked) |
| Memory profiles | XMP and EXPO |
| PCB | 8-layer server grade, 2oz copper, low loss |
Networking
| Ethernet | 5 Gigabit LAN (Realtek RTL8126) |
|---|---|
| Wireless | 802.11be Wi-Fi 7 (2×2, 2.4/5/6 GHz, 160MHz bandwidth) |
| Bluetooth | 5.4 |
Ports & power
| PCIe slots | 1× PCIe 5.0 x16 (GPU), 1× PCIe 3.0 x16 (x2 mode), 1× PCIe 3.0 x1 |
|---|---|
| M.2 slots | 1× Gen5 x4, 3× Gen4 x4, 1× Gen3 x2/SATA |
| SATA ports | 4× SATA3 |
| Graphics output | 1× HDMI 2.1 (4K 120Hz), 2× USB4 Type-C (8K 30Hz) |
| Rear USB | 2× USB4 Type-C, 5× USB 3.2 Gen2 Type-A, 3× USB 3.2 Gen1 Type-A, 2× USB 2.0 |
| Front USB headers | 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen1, 4× USB 2.0 |
| Audio | 7.1 CH (Realtek ALC4082), Nahimic Audio, isolated PCB layers |
Physical
| Form factor | ATX |
|---|---|
| Dimensions | 244 × 305mm |
| BIOS | 256 Mb AMI UEFI with GUI |
| Included | 4× SATA cables, WiFi antenna, ARGB splitter, 3× thermistor cables |
