ASRock Z890 Lightning WiFi LGA1851 ATX Motherboard Wi-Fi 7

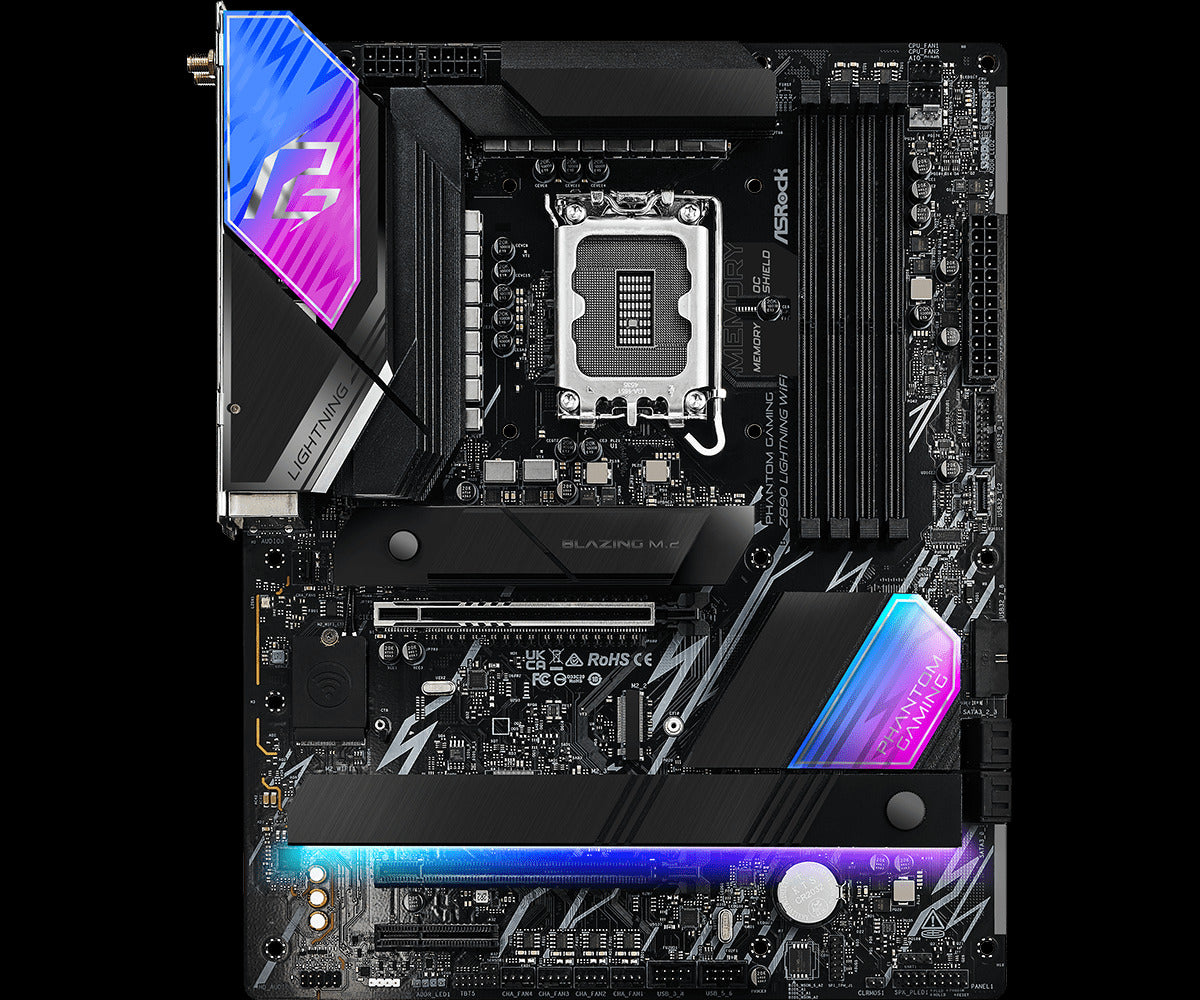

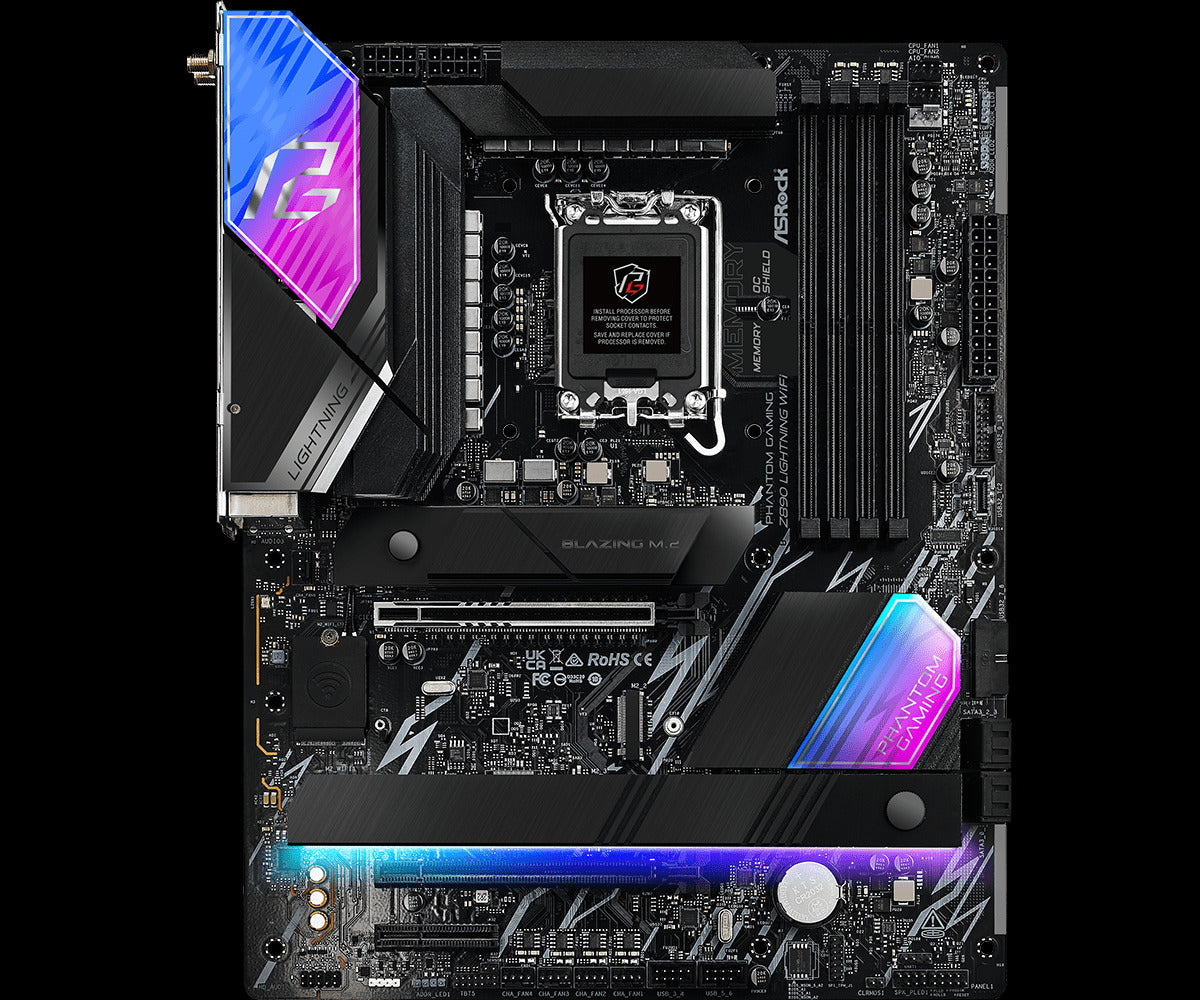

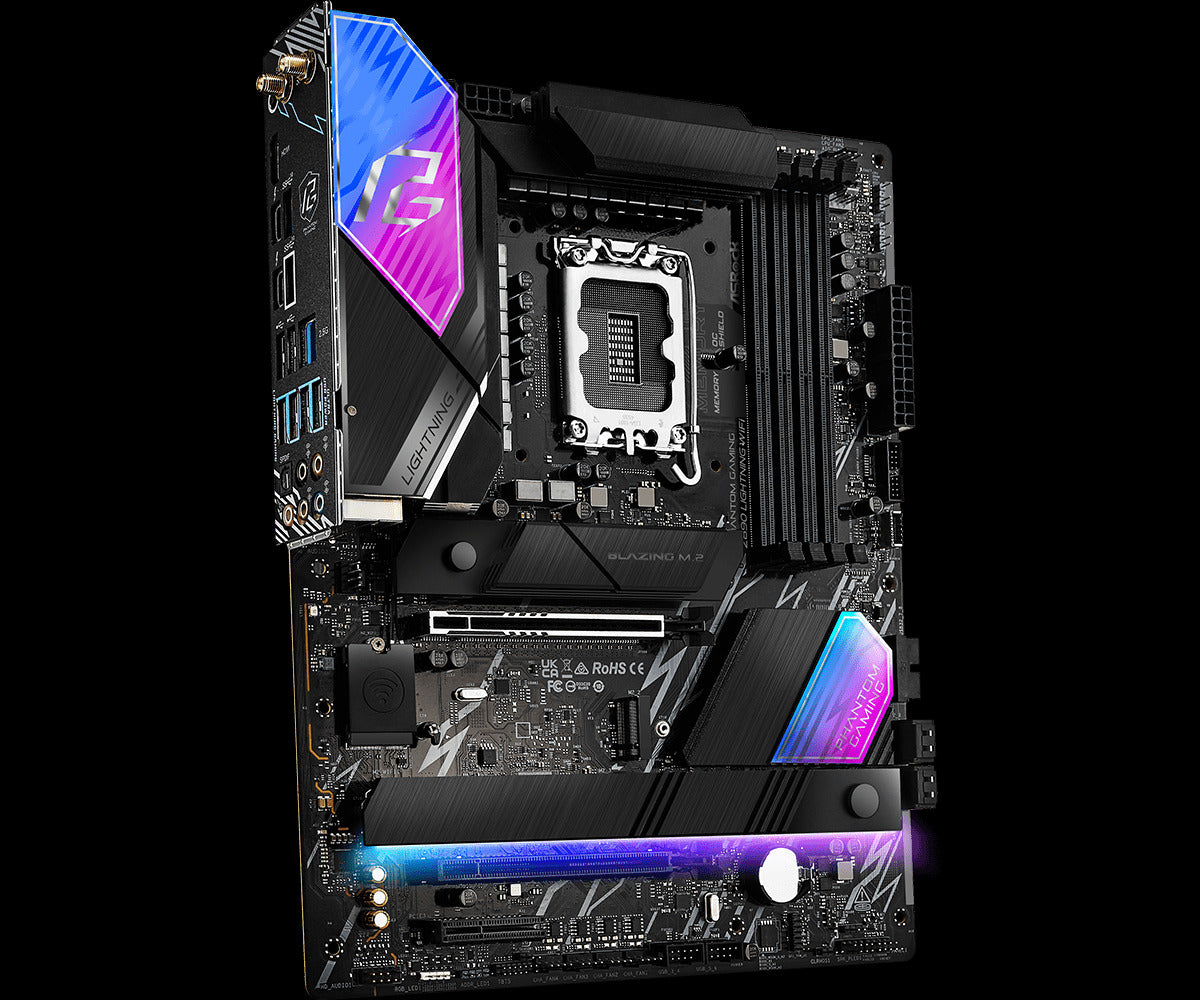

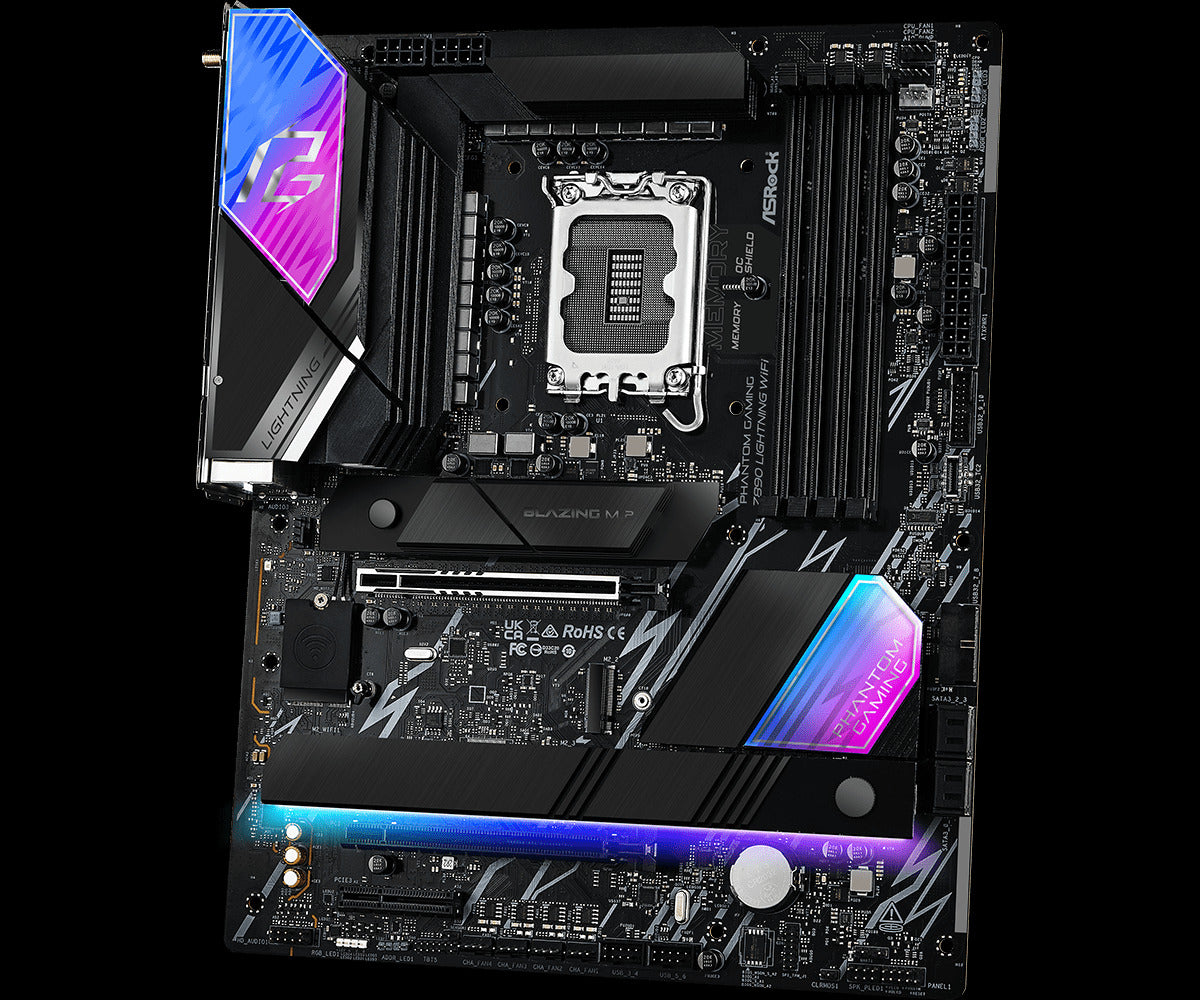

The ASRock Z890 Lightning WiFi is an LGA1851 ATX motherboard built for Intel Core Ultra Series 2 processors, combining high-speed networking, PCIe Gen5 storage support, and robust power delivery for demanding workloads and gaming. It features Wi-Fi 7, Thunderbolt 4 ports, and a server-grade power design with 18+1+1+1+1 power phases.
Why this product
Wi-Fi 7 and 2.5G LAN
Intel 802.11be Wi-Fi 7 and Killer 2.5G Ethernet deliver fast wireless and wired connectivity for gaming and content creation.
PCIe Gen5 storage slot
One M.2 slot runs at full PCIe Gen5x4 speed for the fastest NVMe drives available, plus two additional Gen4 slots for expansion.
18+1+1+1+1 power phases
Server-grade power delivery with 80A SPS and enlarged heatsink armor ensures stable operation under load and overclocking.
Thunderbolt 4 and USB 3.2
Two rear Thunderbolt 4 ports support 40 Gb/s data transfer and 8K video output, plus eight USB 3.2 Gen1 ports for peripherals.
DDR5 memory support
Four DDR5 DIMM slots in dual-channel configuration support speeds up to 9466+ MHz when overclocked.
- SocketLGA1851 (Intel Core Ultra Series 2)
- ChipsetIntel Z890
- Memory slots4 x DDR5 DIMM
- Max memory speed (OC)DDR5-9466+
- Wi-Fi standard802.11be Wi-Fi 7
- Wired LANKiller 2.5G Ethernet
- PCIe Gen5 M.2 slots1
- Thunderbolt 4 ports2 (rear)
- SKUASR-3460
- EAN4710483947513
- Supports Intel Core Ultra Processors Series 2 (LGA1851) and benefits from Intel Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology
- Intel Z890 chipset with support for 200S Boost via BIOS update to gain performance improvements with existing Intel Core Ultra processors
- ATX form factor fits standard PC cases with motherboard mounting holes and I/O shield cutouts
- DDR5 memory only; requires DDR5 DIMMs and is not compatible with DDR4
- Realtek ALC1220 audio codec with Nahimic support for 7.1 channel surround sound and content protection
Best for
- Intel Core Ultra Series 2 system builders
- Gamers and creators needing Wi-Fi 7 and fast Thunderbolt 4 connectivity
- Users planning PCIe Gen5 NVMe storage expansion
- Overclockers and enthusiasts leveraging robust power delivery and memory OC tuning
Trade-offs
- Systems using Intel 12th, 13th or early 14th generation processors—this board requires Series 2 processors only
- DDR4 memory—this motherboard supports DDR5 exclusively
- Micro-ATX or mini-ITX case builders—this is a full-size ATX board
Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability - Server-Grade Low-Loss PCB - 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Gaming - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports
EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
EZ Troubleshooter - ASRock Post Status Checker
ASRock Z890 motherboards now support Intel® 200S Boost through a simple BIOS update. Users can effectively "upgrade" their existing Intel® Core Ultra processors and enjoy a significant performance boost.
Networking
| Wireless | Intel 802.11be Wi-Fi 7 with Bluetooth |
|---|---|
| Ethernet | Killer 2.5G LAN |
Performance
| CPU support | Intel Core Ultra Processors Series 2 (LGA1851) |
|---|---|
| Power delivery | 18+1+1+1+1 Power Phase, 80A SPS (VCore, GT, SA) |
| Memory type | DDR5, 4 DIMMs, Dual Channel |
| Memory speed (OC) | up to DDR5-9466+ |
Ports & power

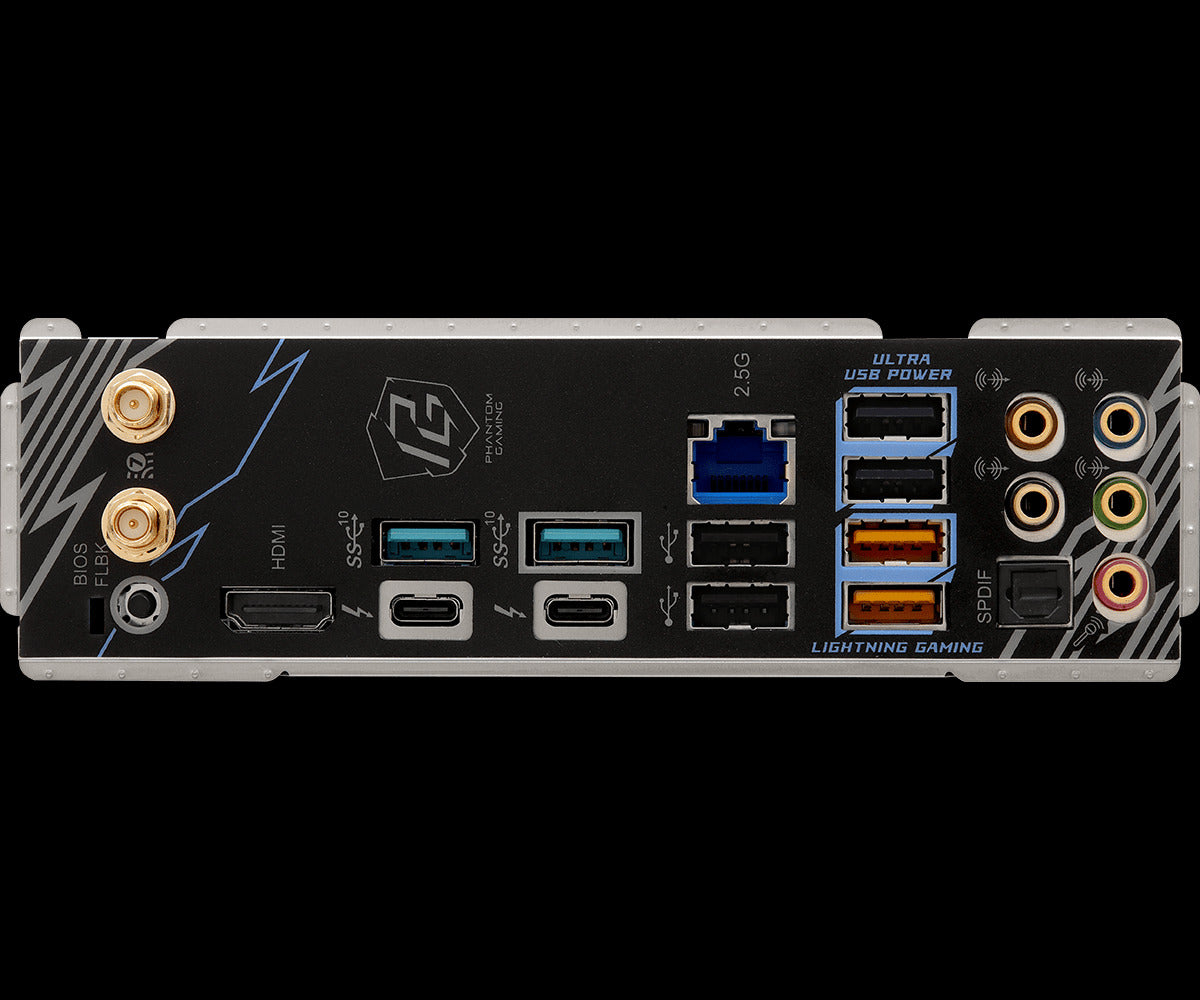

| Video outputs | 1 x HDMI 2.1, 2 x Thunderbolt 4 (8K 60Hz / 5K 120Hz) |
|---|---|
| USB Type-C | 2 x Thunderbolt 4/USB4 (rear, 40 Gb/s), 1 x USB 3.2 Gen2x2 (front) |
| USB Type-A | 2 x USB 3.2 Gen2 (rear), 8 x USB 3.2 Gen1 (4 rear, 4 front) |
| USB 2.0 | 6 ports (2 rear, 4 front) |
| Storage | 4 x SATA3, 1 x M.2 Gen5x4, 2 x M.2 Gen4x4, 1 x M.2 Gen4x4 & SATA3 |
| Audio | Realtek ALC1220 (7.1 CH), Nahimic |
Physical
| Brand | ASRock |
|---|---|
| Form factor | ATX |
| Expansion slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4 |
| Capacitors | 20K Long-lasting Black Caps (1000µF), high-quality conductive polymer |

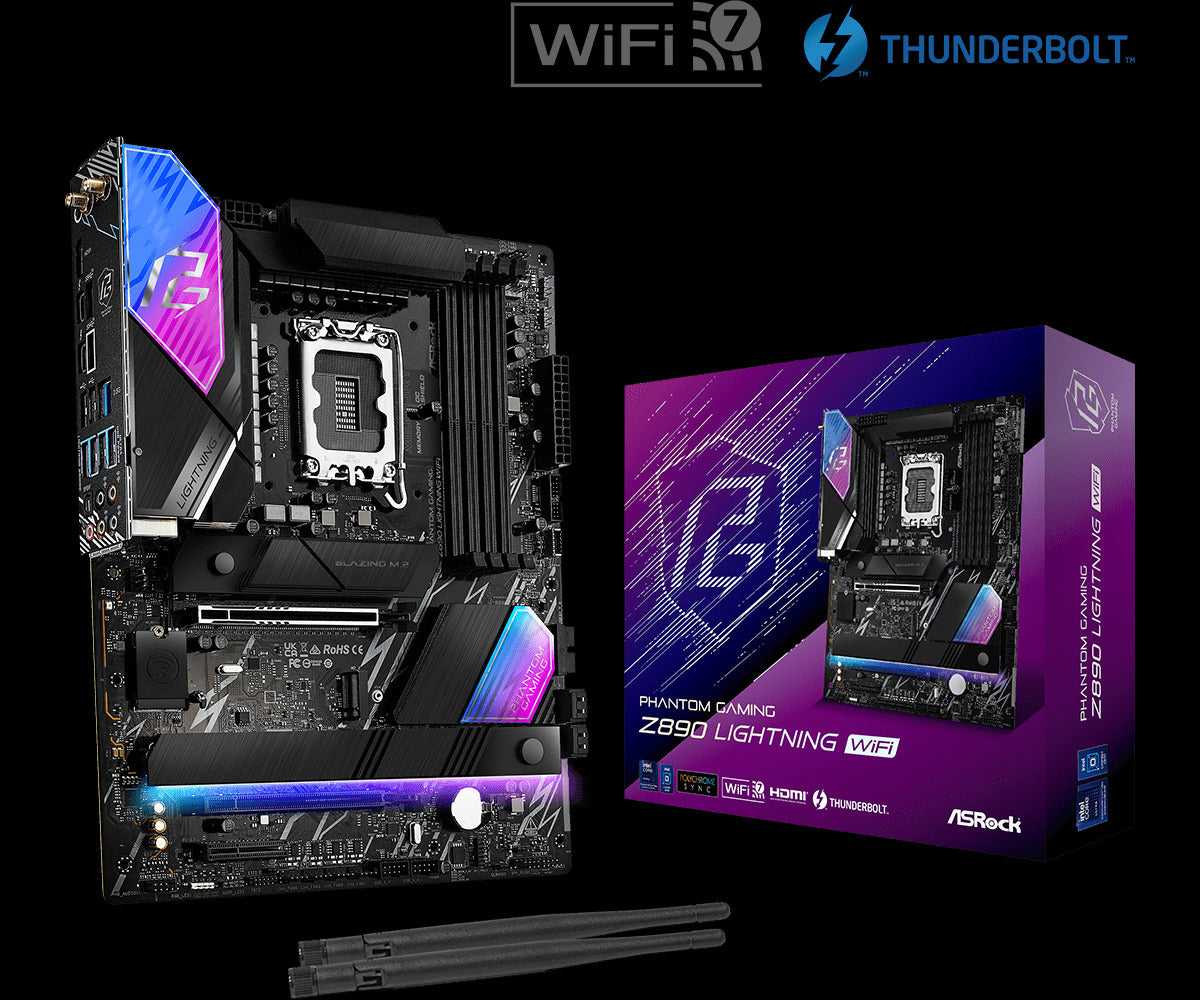

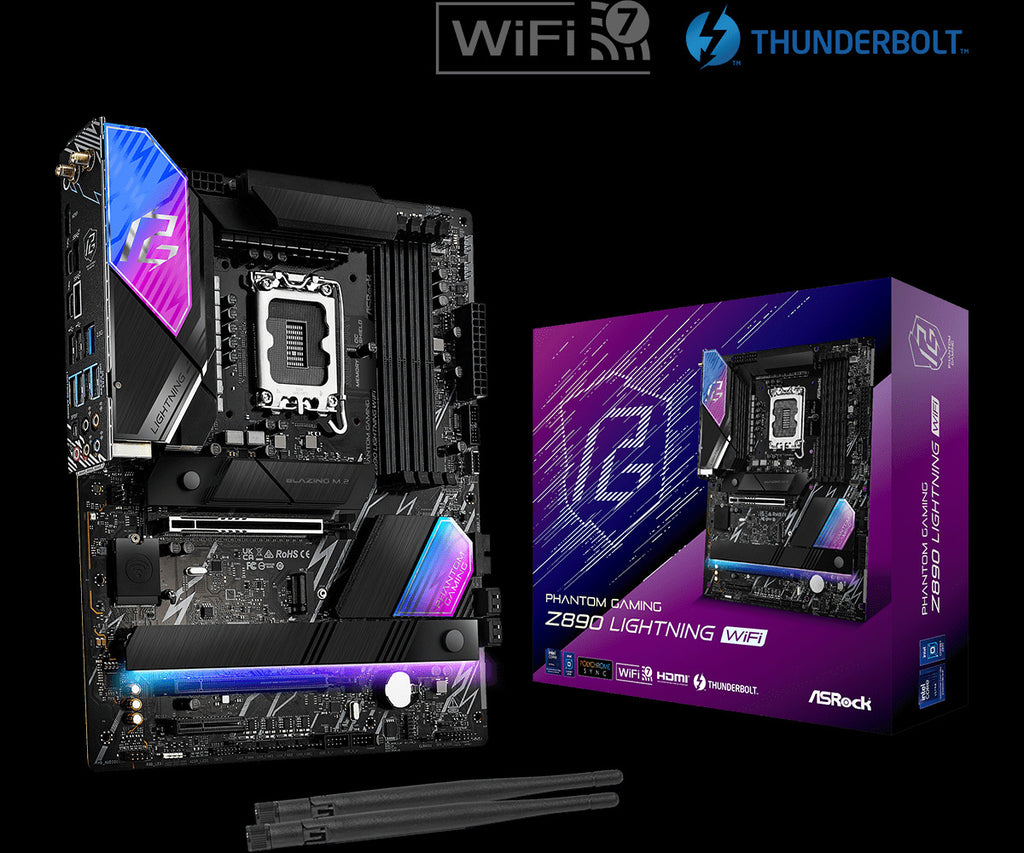

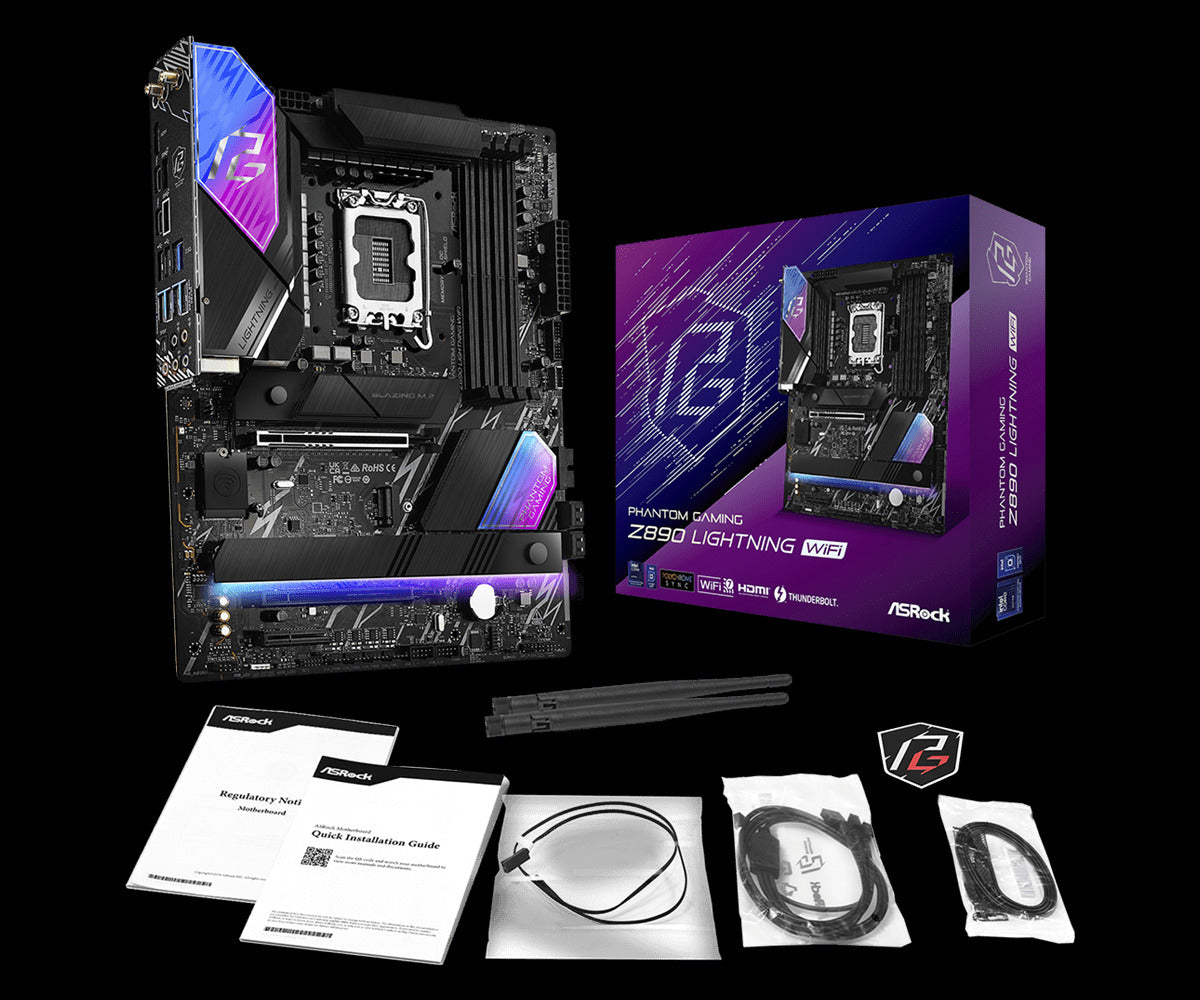

| Box contents | Motherboard, 2 x SATA cables, 2 x WiFi antennas, ARGB splitter, thermistor cable |
