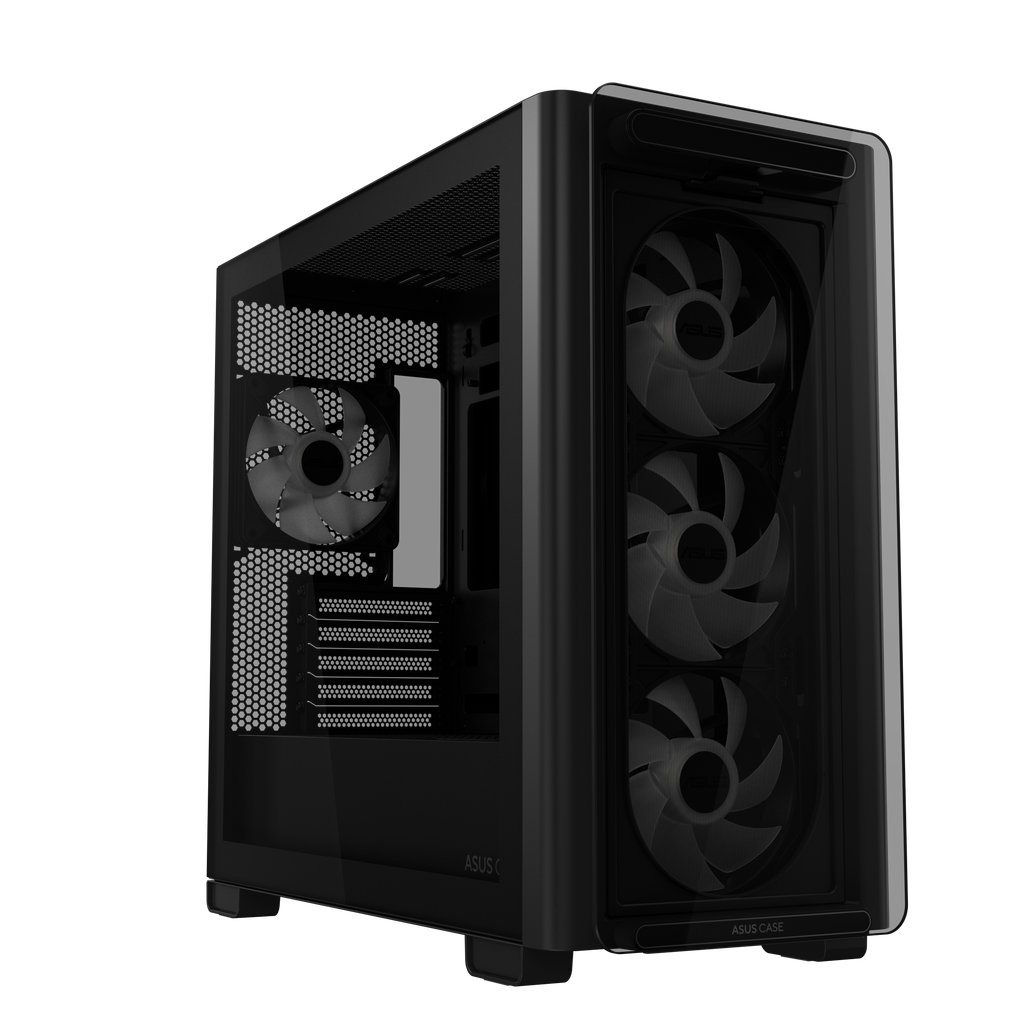

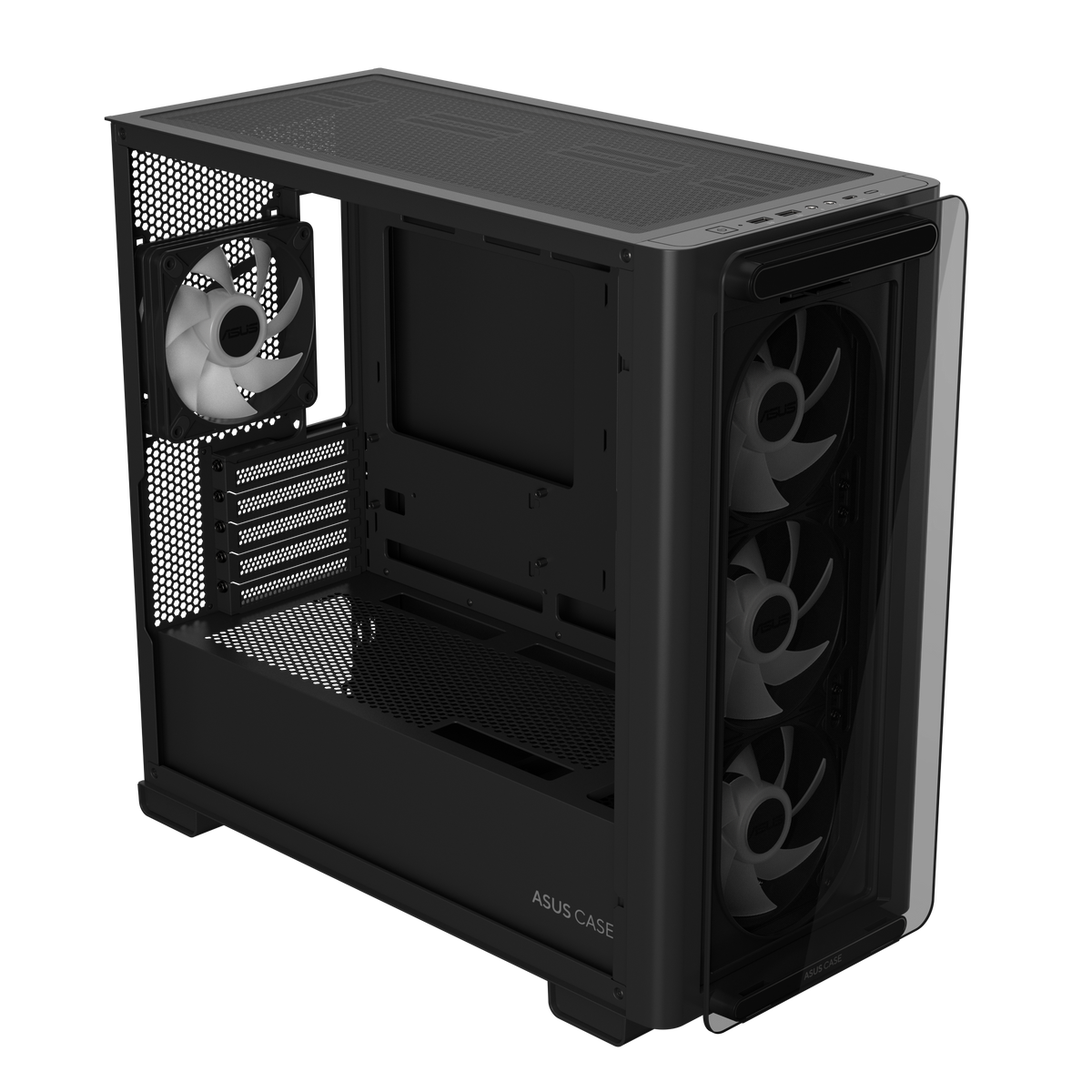

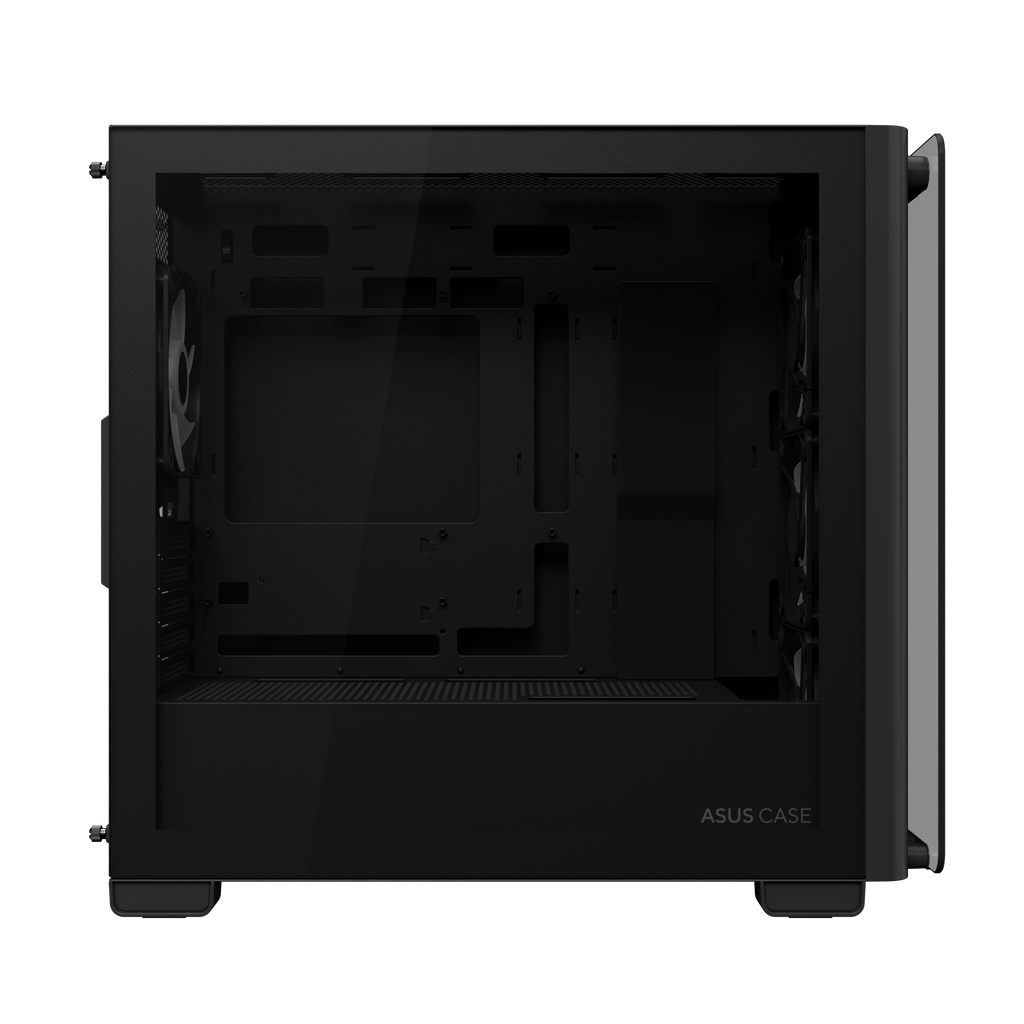

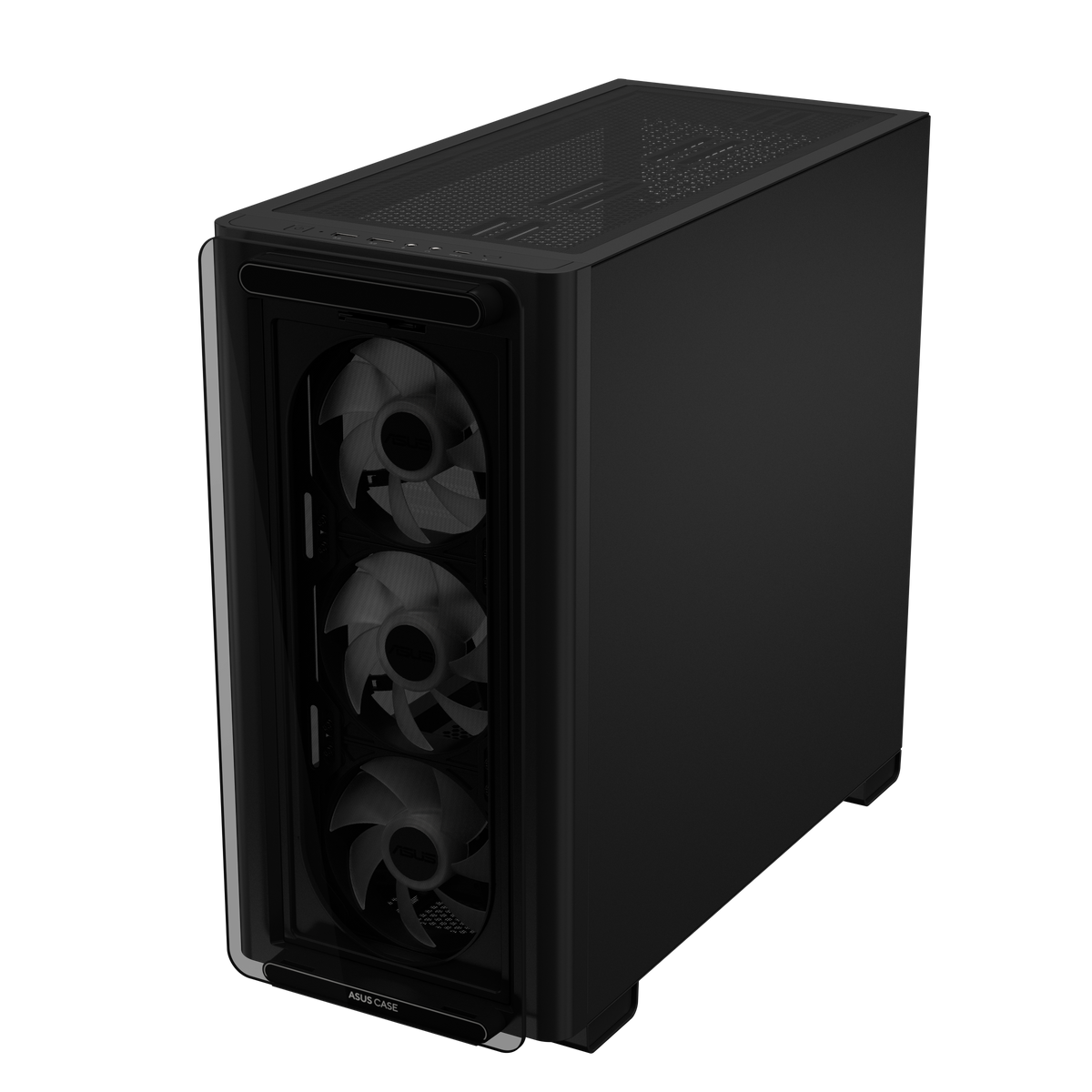

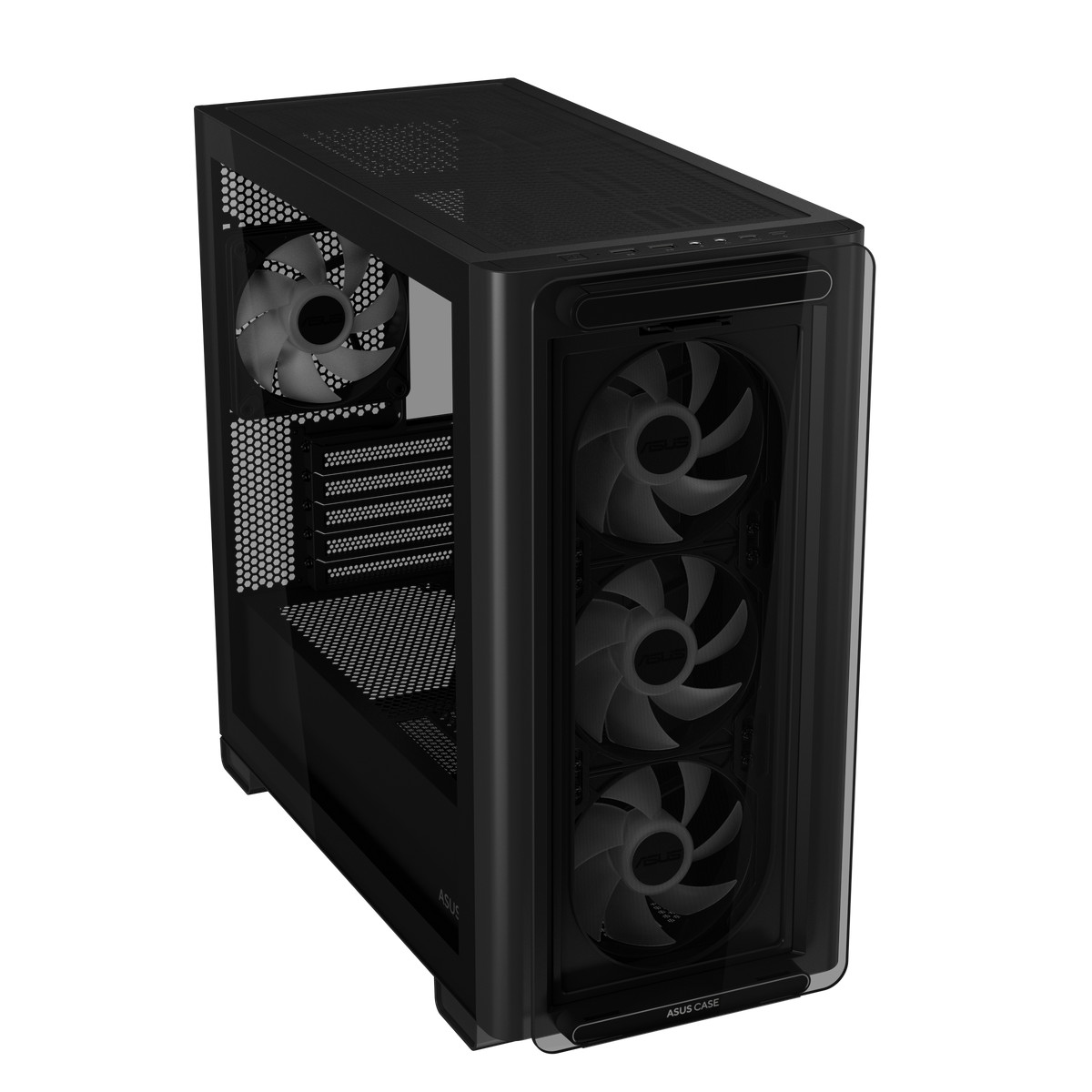

ASUS A23 Plus ARGB Micro-ATX Case – 4 Fans, 360mm Rad
ASUS
ASUS A23 Plus ARGB Micro-ATX Case – 4 Fans, 360mm Rad
The ASUS A23 Plus ARGB Micro-ATX Case suits builders who want clean aesthetics with straightforward cooling support. It accommodates mid-range graphics cards and liquid coolers up to 360 mm, with four pre-installed ARGB fans and cable management designed around hidden-connector motherboards.
Why this product
360 mm radiator support front and top
Fits most standard all-in-one liquid coolers or custom loop radiators in either orientation, with rear 120 mm support for single-fan exhaust.
Four pre-installed ARGB fans
Front fans come wired and ready; all sync via ASUS AURA Sync for unified lighting control across your build.
USB 10 Gbps Type-C on front panel
USB 3.2 Gen2 Type-C port reaches 10 Gbps transfer speeds for fast external storage or peripherals without reaching around the back.
Tempered glass front with standoff mounting
Enlarged window displays the ARGB fans clearly; standoff design keeps the panel safely away from the frame.
33 mm rear cable compartment
Hidden-connector motherboard support and dedicated space behind the motherboard tray keeps wires out of sight and away from airflow.
- Motherboard SupportMicro-ATX, Mini-ITX
- Maximum GPU Length380 mm
- Maximum CPU Cooler Height165 mm
- Radiator Support (Front)120 mm, 140 mm, 240 mm, 280 mm, 360 mm
- Pre-installed Fans4 x ARGB
- Dimensions479 x 220 x 450 mm
- Weight8.9 kg
- SKUASU-2541
- EAN4711387701133
- Micro-ATX and Mini-ITX motherboards. Designed explicitly for hidden-connector layouts.
- Graphics cards up to 380 mm long with standard bracket spacing.
- CPU air coolers up to 165 mm tall, leaving clearance for side-panel fans or radiators.
- Power supplies up to 210 mm long, accommodating most modular units.
- Radiator mounting on top accepts up to 360 mm, but clearance depends on CPU cooler height and motherboard layout.
Best for
- Compact builds with air or liquid cooling
- Builders who value cable tidiness and clean visuals
- Users wanting ARGB lighting out of the box
- Systems with hidden-connector motherboards and modular PSUs
Trade-offs
- High-end graphics cards longer than 380 mm; this case will not physically fit them.
- CPU coolers taller than 165 mm; clearance is tight for larger air-cooled configurations.
- ATX motherboards; only Micro-ATX and Mini-ITX are supported.
- Builders who need more than five expansion slots; this chassis offers exactly five.

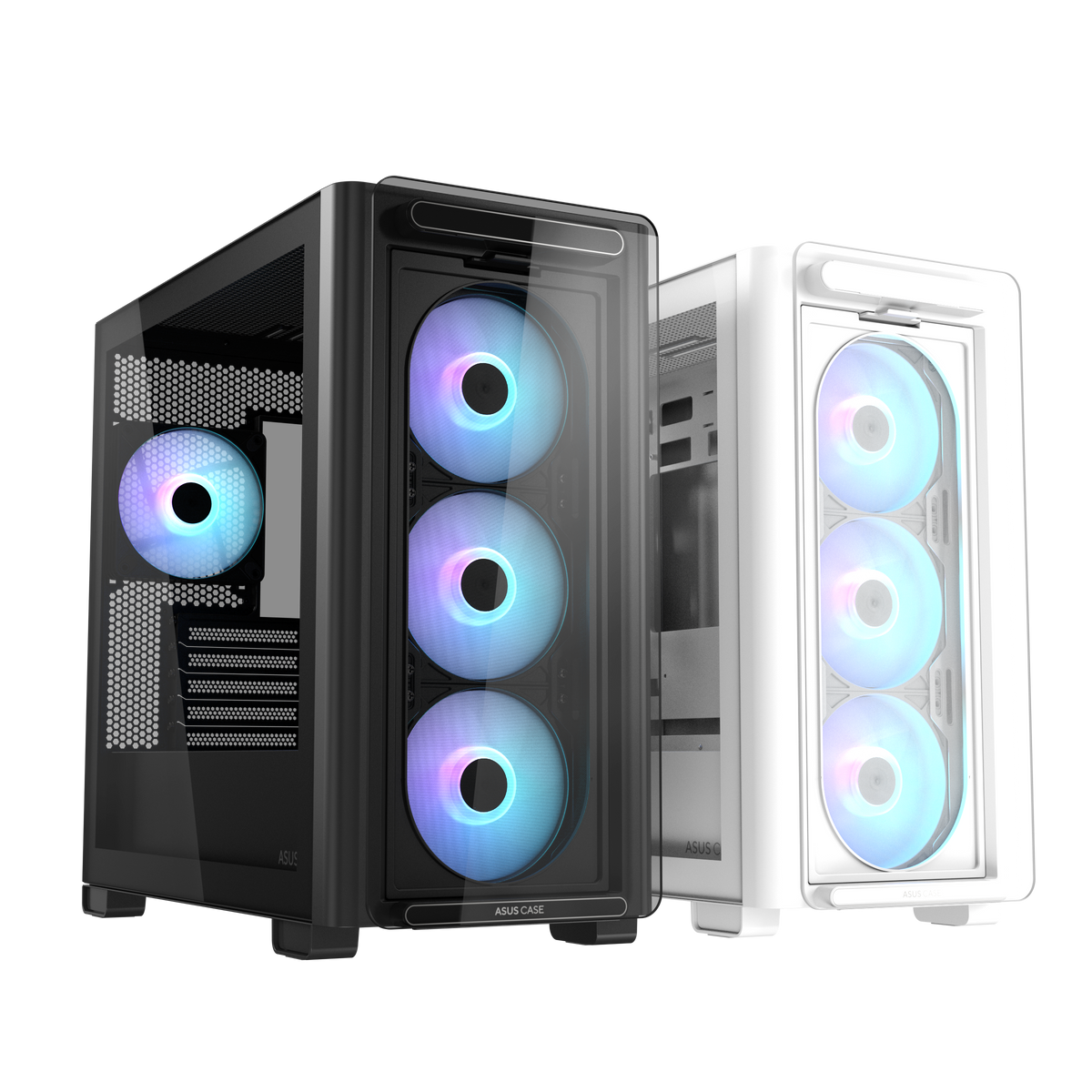

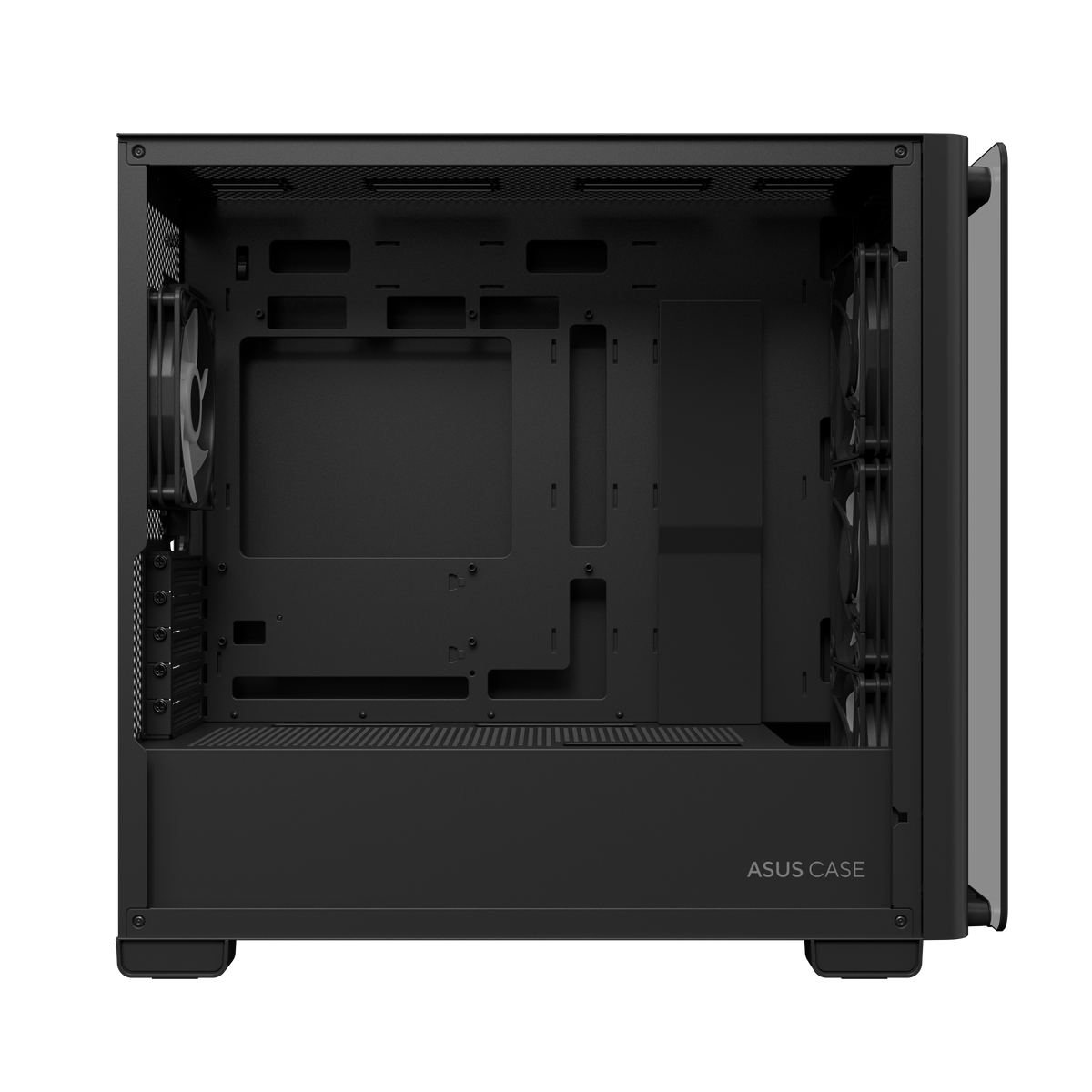

The ASUS A23 PLUS micro-ATX case offers support for hidden-connector motherboards, 360 mm radiators, and 380 mm graphics cards, with black and white color options, four pre-installed ARGB fans and clean cable management.

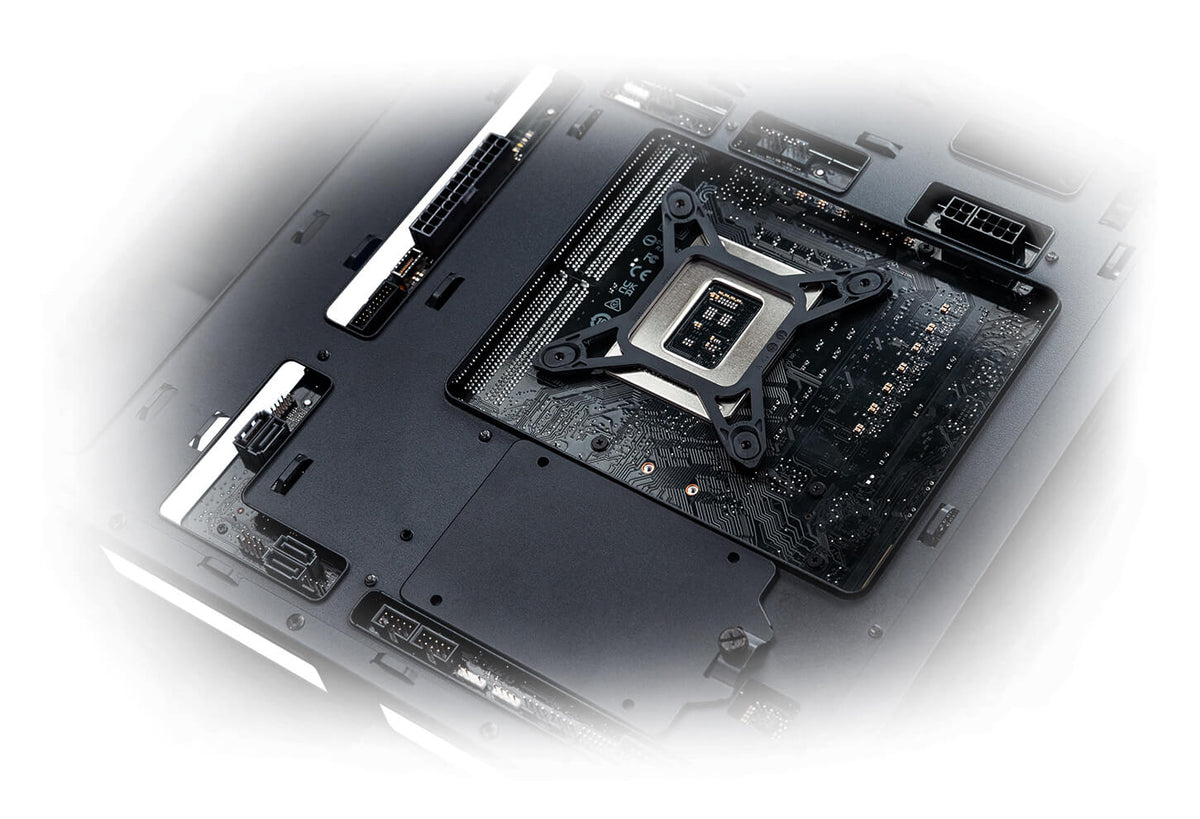

Hidden Connectors: Compatible with motherboards featuring hidden connectors, which maximizes clean cable management for a clutter-free build.
Broad Compatibility: A23 PLUS supports up to 360 mm radiators, graphics cards up to 380 mm long and CPU air coolers up to 165 mm tall.

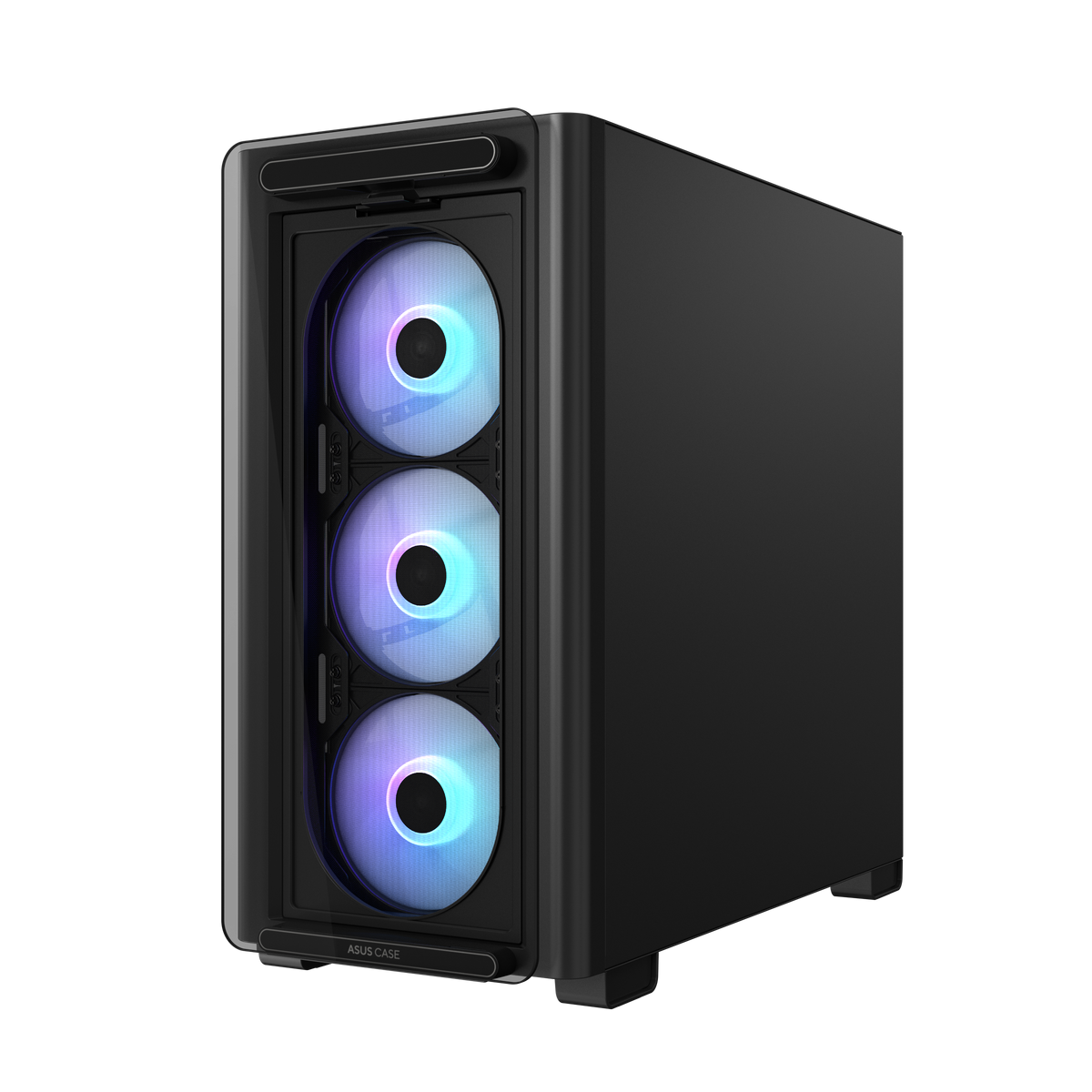

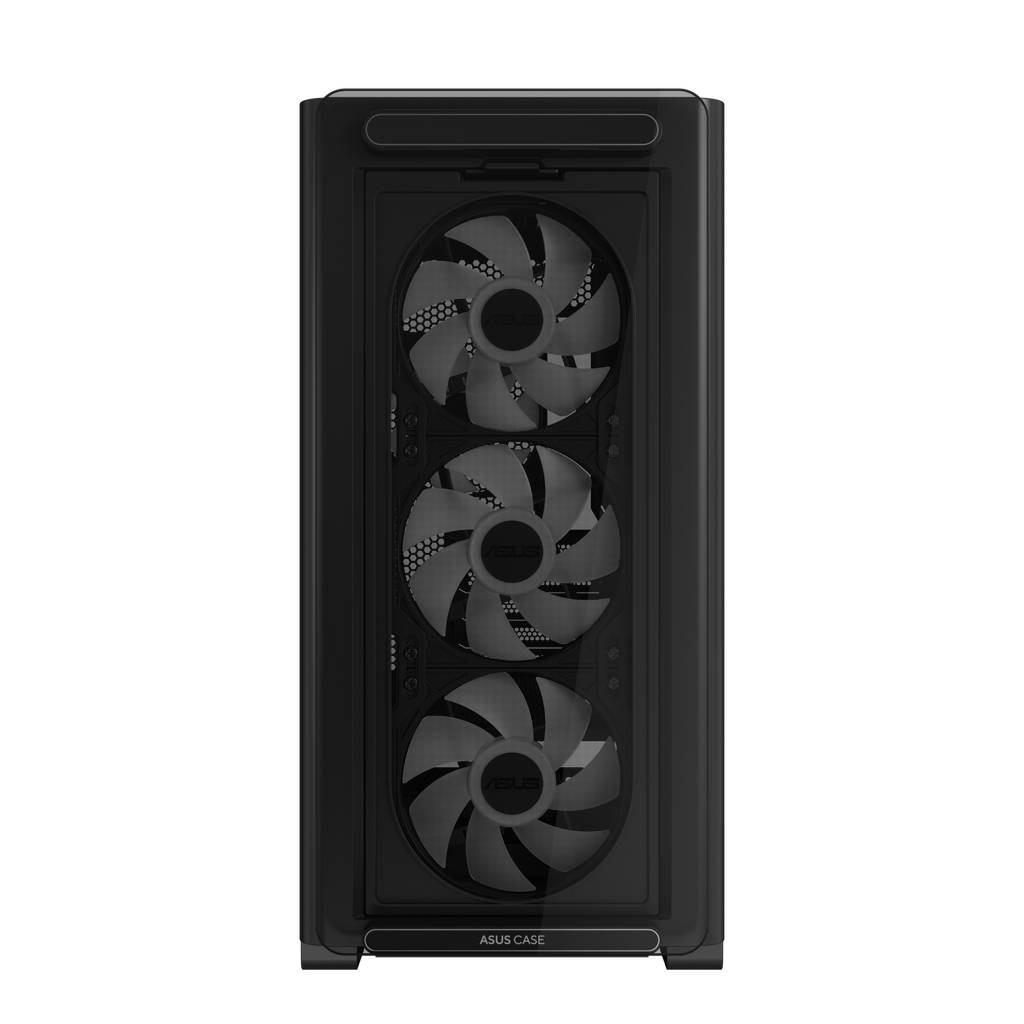

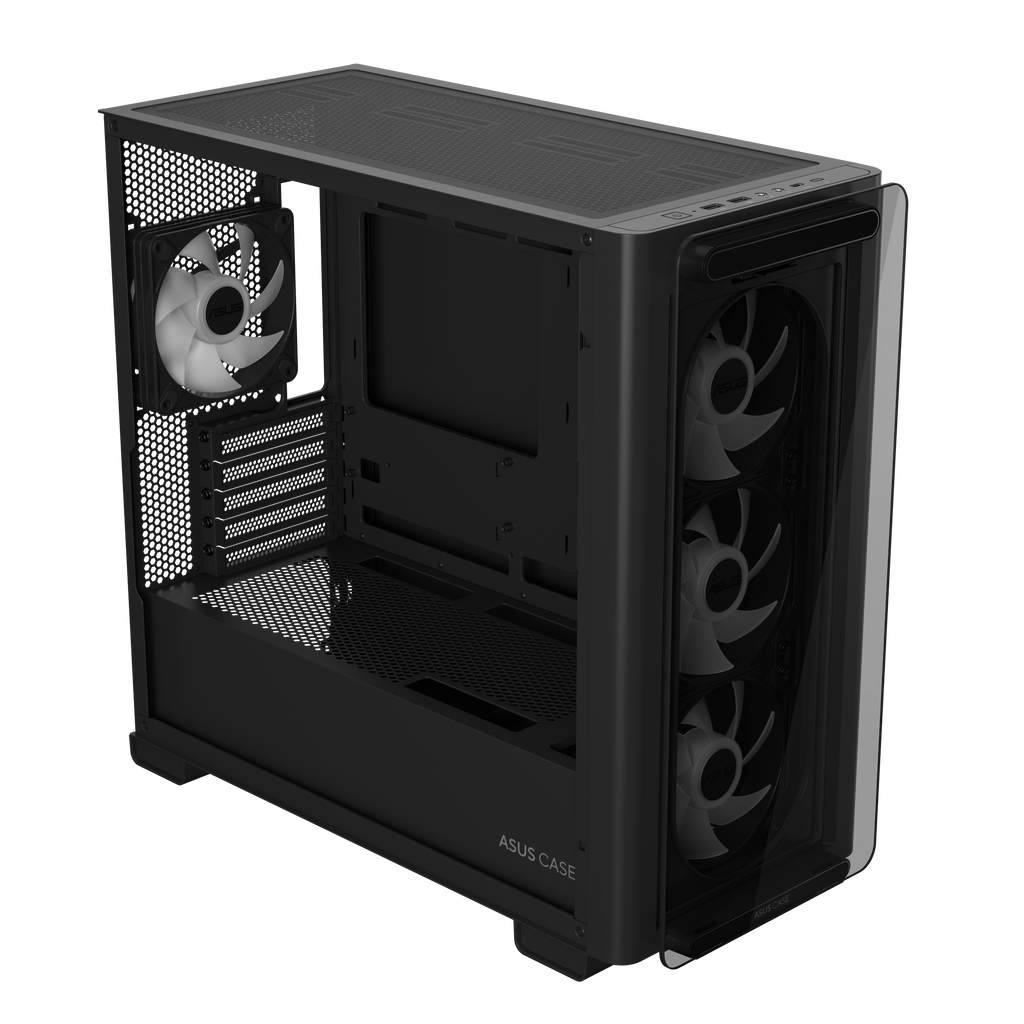

Standoff-mounted tempered-glass front panel: Enlarged window design lets users fully enjoy the captivating visuals of the front ARGB fans.

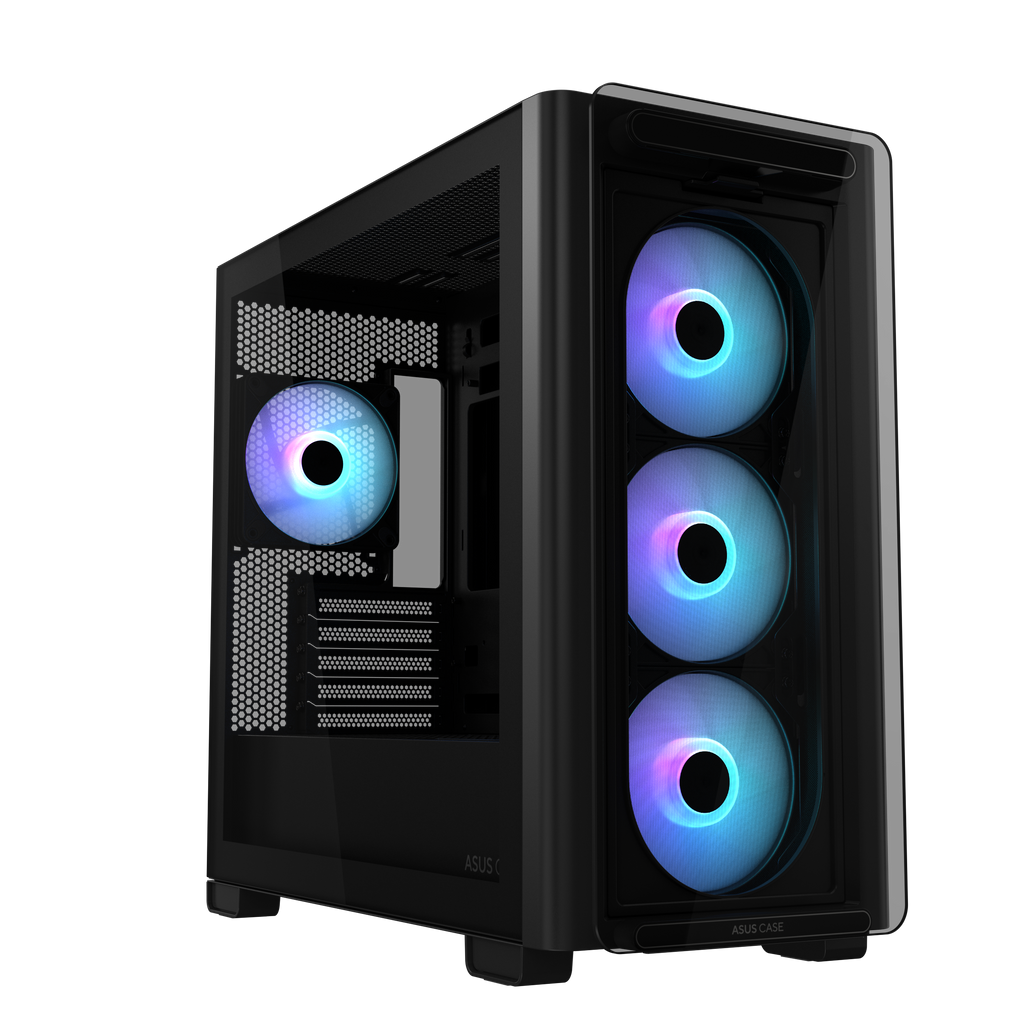

Experience premium cooling and dynamic lighting with four pre-installed ARGB fans. This mesmerizing display of vibrant lighting enhances both functionality and aesthetics.

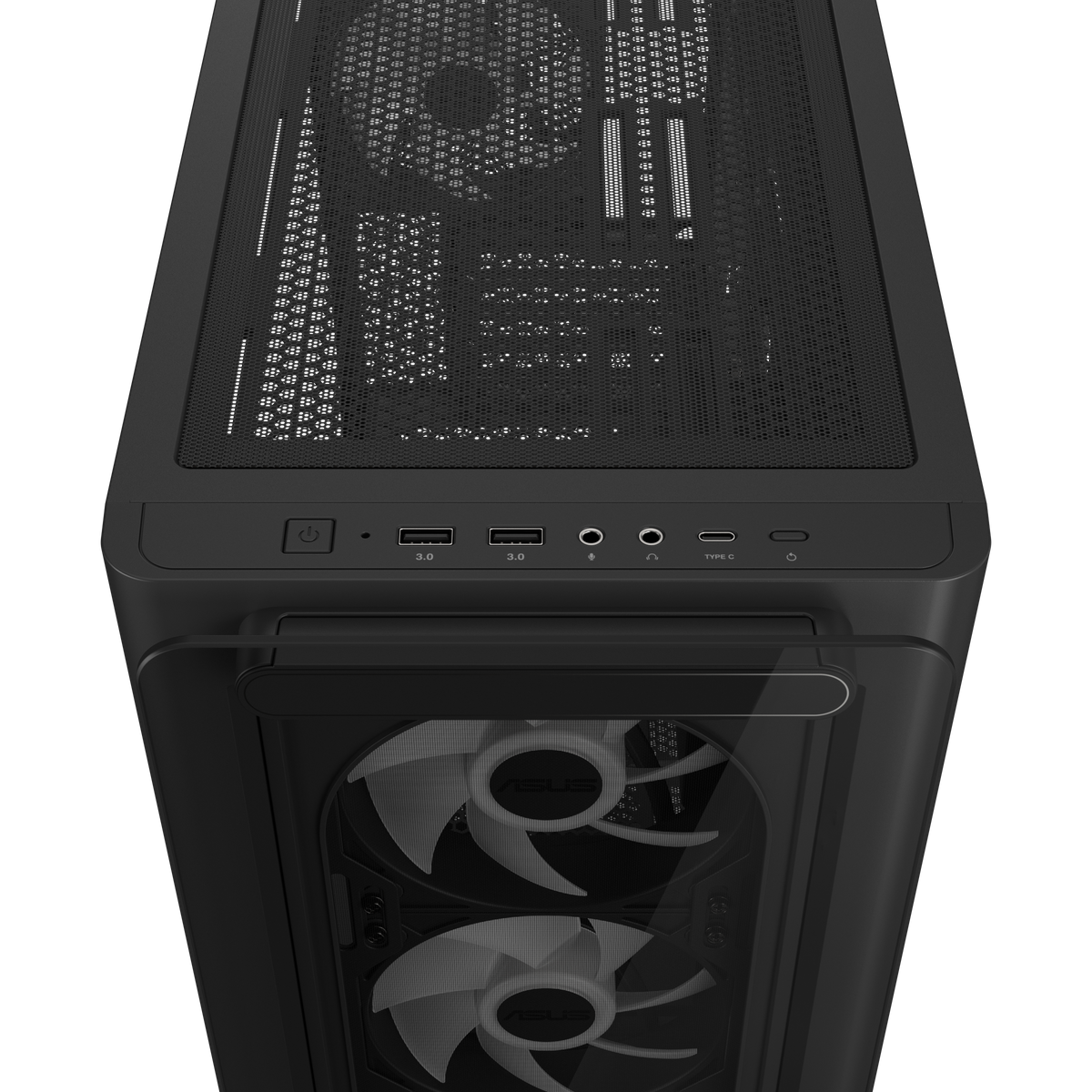

In addition to two USB-A ports, the A23 PLUS front I/O features a USB 10Gbps Type-C® port ripe for transfer speeds up to 10 Gbps.

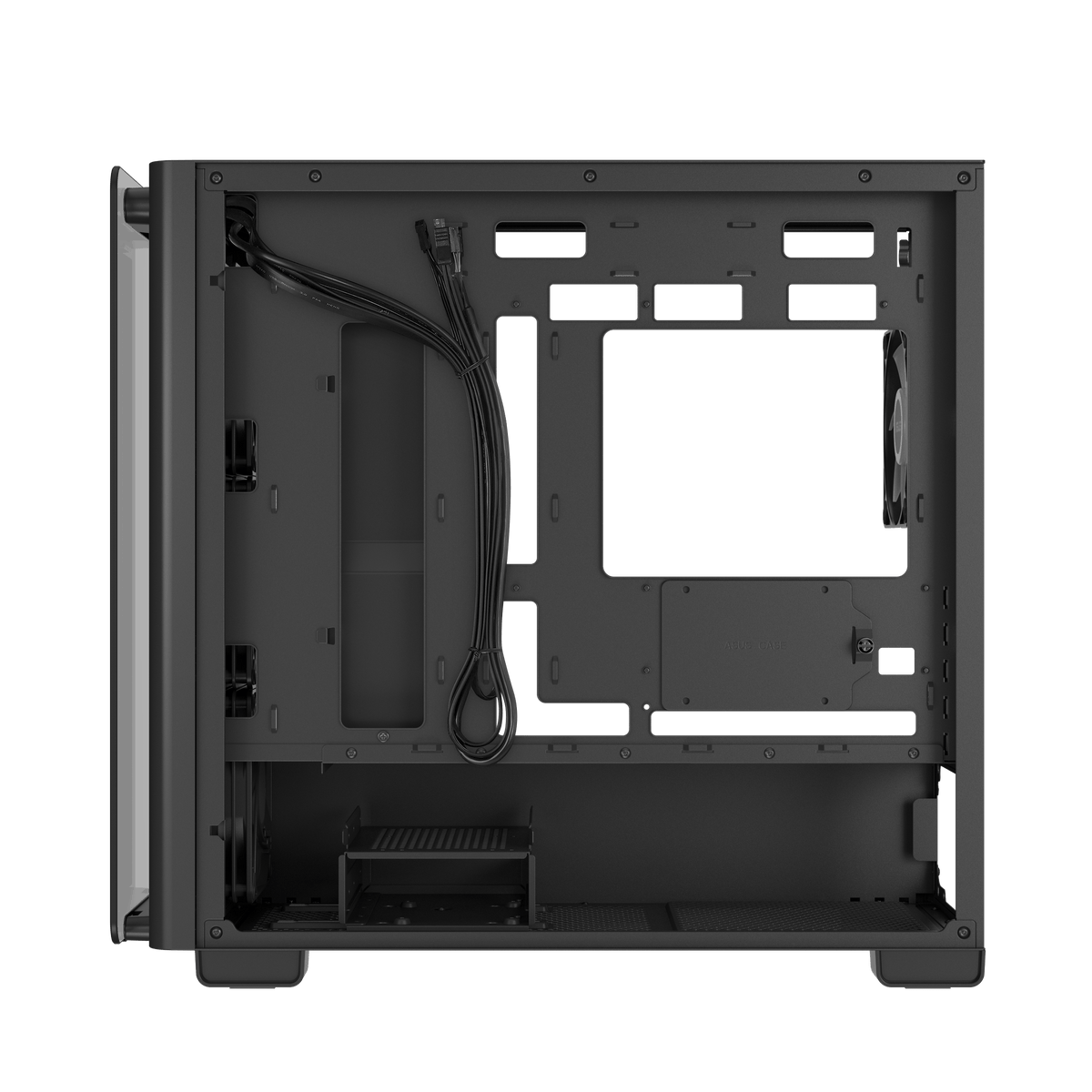

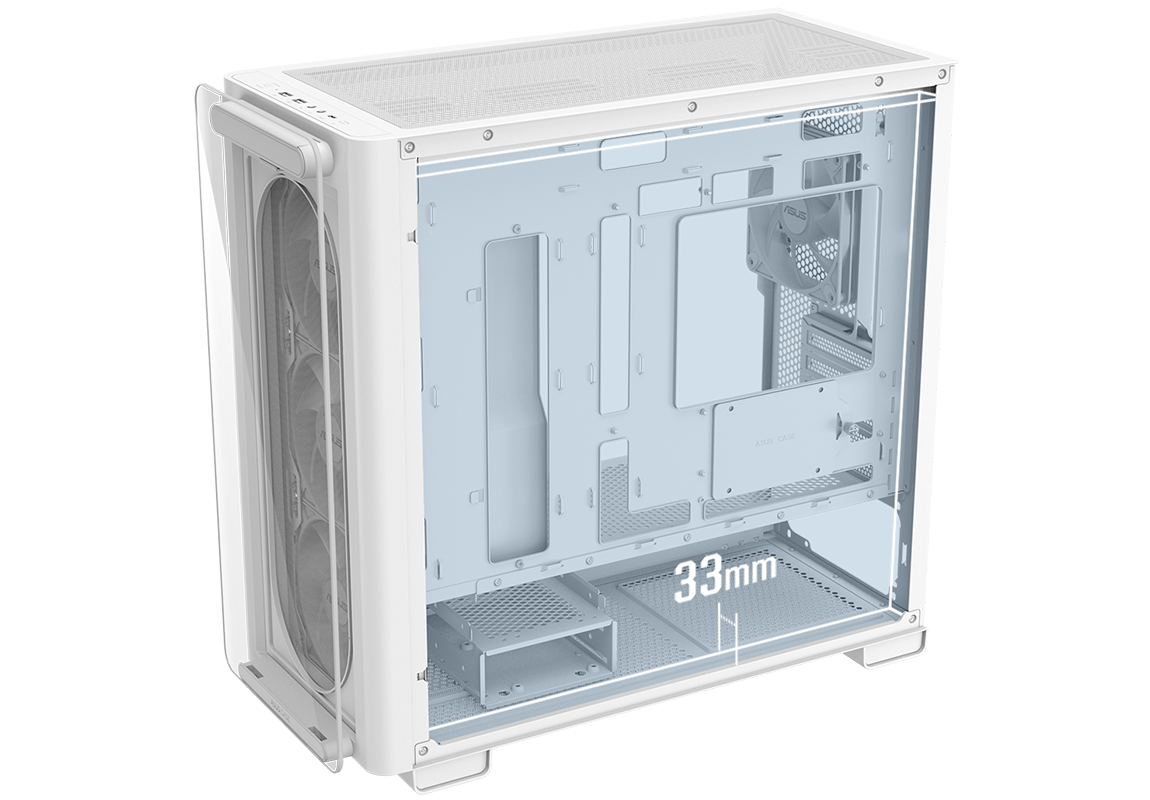

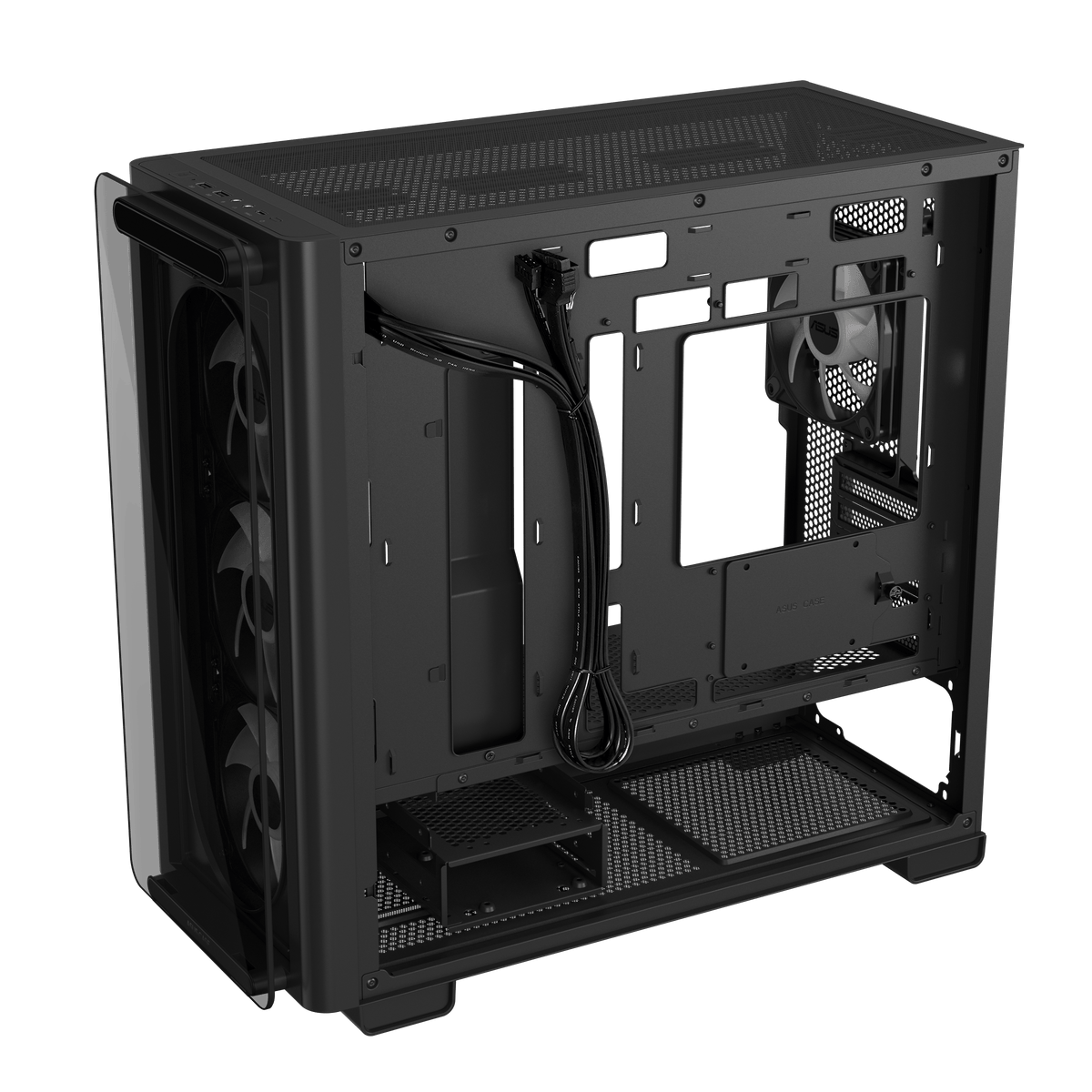

The A23 PLUS provides a compartment behind the motherboard that is 33 mm wide to help you keep your wiring tucked away and tidy.
Both variants of the A23 PLUS come with color-coordinated black or white internal I/O cables to compliment your build theme.
General
| Brand | ASUS |
|---|
Cooling & Radiator Support
| Radiator Support (Front) | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
|---|---|
| Radiator Support (Top) | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Radiator Support (Rear) | 120 mm |
| Cooling Support (Front) | 3 x 120 mm, 2 x 140 mm |
| Cooling Support (Top) | 3 x 120 mm, 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm |
| Maximum CPU Cooler Height | 165 mm |
Compatibility & Capacity
| Motherboard Support | Micro-ATX, Mini-ITX |
|---|---|
| Maximum GPU Length | 380 mm |
| Maximum PSU Length | 210 mm |
| Expansion Slots | 5 |
| Drive Bays | 1 x 2.5" Bay, 2 x 2.5"/3.5" Combo Bay |
Front I/O & Lighting
| Front I/O Ports | 1 x Headphone, 1 x Microphone, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-C |
|---|---|
| Pre-installed Fans | 4 x ARGB |
| AURA Sync Support | ARGB |
