ASUS B850 MAX GAMING WIFI AMD ATX Motherboard DDR5 PCIe 5.0

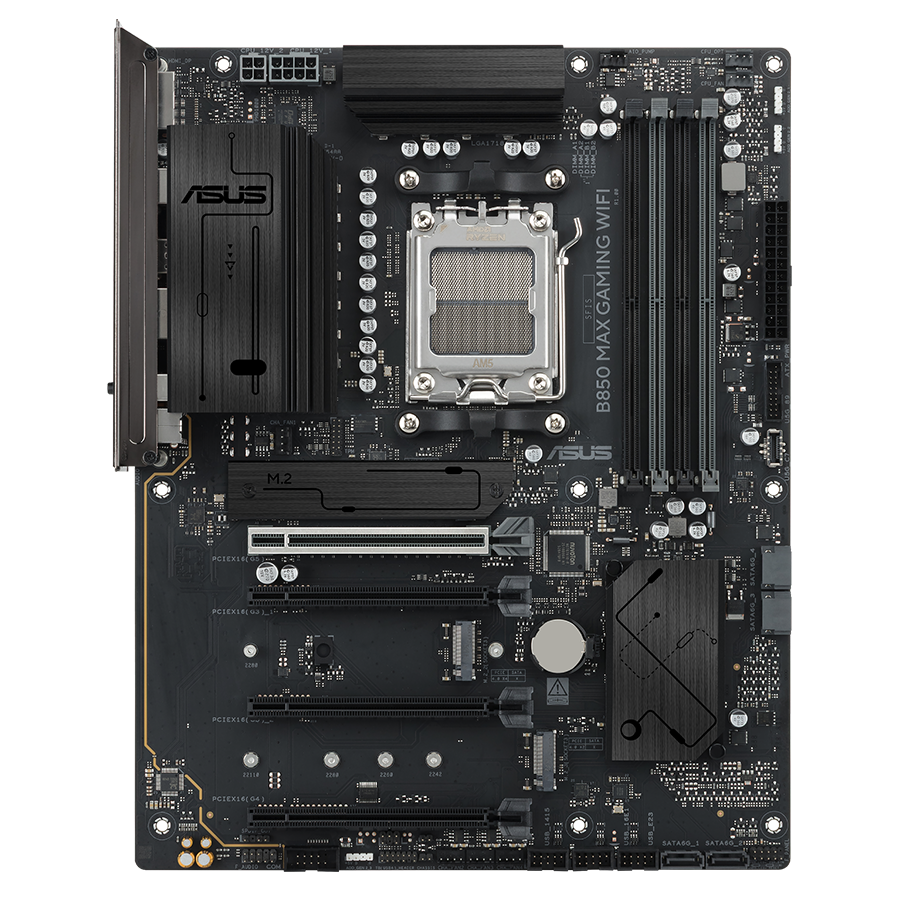

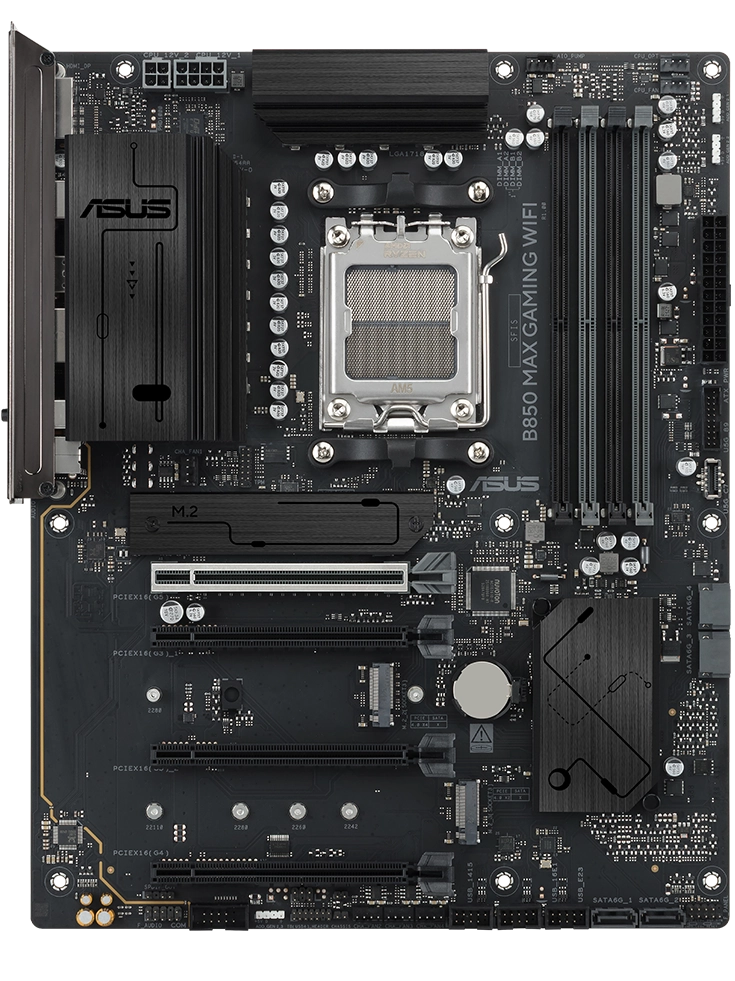

The ASUS B850 MAX GAMING WIFI is an AMD ATX motherboard built for Ryzen 9000, 8000 and 7000 series processors. It pairs PCIe 5.0 storage support with Wi-Fi 6E connectivity and a robust 8+2+1 phase power design, making it suited to builders who need stable performance for gaming, content creation or AI workloads.
Why this product
PCIe 5.0 M.2 slot for next-gen speed
One M.2 slot runs at up to 128 Gbps via PCIe 5.0 on Ryzen 9000 and 7000 series; two additional PCIe 4.0 slots cover storage expansion.
8+2+1 phase power with discrete MOSFETs
Digital power design ensures stable voltage delivery to the CPU under load, supporting overclocking and sustained performance.
Wi-Fi 6E and 2.5 Gbps Ethernet
Dual connectivity options—wireless and wired—with LANGuard protection on the Ethernet port.
Multiple cooling headers and heatsinks
Four chassis fan headers, CPU and AIO pump headers, plus onboard heatsinks help manage thermals under demanding workloads.
BIOS FlashBack and Aura Sync

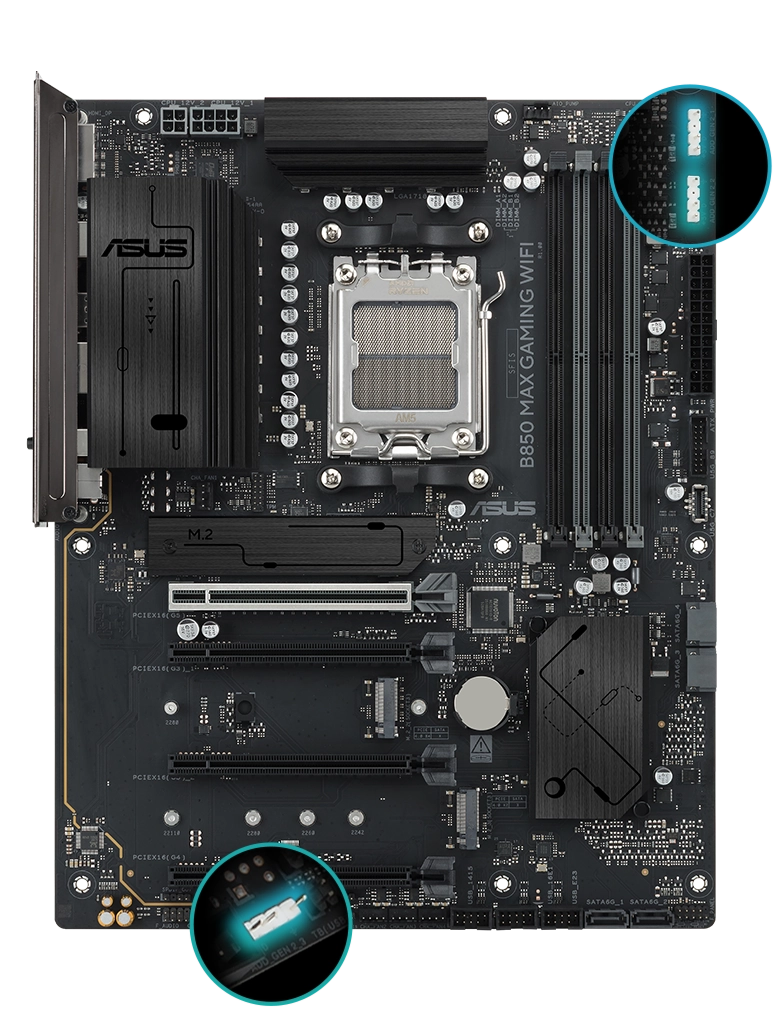

Update BIOS without a CPU installed, and sync RGB lighting across three addressable RGB Gen 2 headers.
- ChipsetAMD B850
- SocketAMD AM5
- Memory TypeDDR5
- Form FactorATX
- M.2 Slots3 (one PCIe 5.0, two PCIe 4.0)
- WirelessWi-Fi 6E
- Ethernet2.5 Gbps
- SKUASU-2730
- EAN4711636465519
- AMD Ryzen 9000, 8000 and 7000 series processors in Socket AM5.
- DDR5 memory up to 256 GB, supporting speeds of 8400+ MT/s (OC) with Ryzen 9000.
- DisplayPort and HDMI video output for integrated graphics or APU-based systems.
- PCIe 5.0 M.2 slot operates at PCIe 5.0 speeds only on Ryzen 9000 and 7000 series; Ryzen 8000 falls back to PCIe 4.0 on that slot.
- Primary PCIe x16 slot runs at x8 mode on Ryzen 8000 series, full x16 on Ryzen 9000 and 7000 series.
Best for
- Builders planning Ryzen 9000 or 7000 series CPUs who want to exploit PCIe 5.0 storage.
- Overclockers and high-performance users relying on the 8+2+1 phase power design.
- Content creators and streamers needing Wi-Fi 6E plus wired Ethernet in one board.
- AI PC builders targeting systems with multiple M.2 drives and stable power delivery.
Trade-offs
- Intel platform builders—it supports AMD Socket AM5 only.
- Ryzen 8000 series users who need full PCIe 5.0 performance; the primary M.2 slot and primary PCIe x16 slot run at PCIe 4.0 and x8 respectively on that generation.
- Users needing onboard USB-C video output; it has DisplayPort and HDMI only.
- Those requiring Intel Thunderbolt certification; this board has a USB4 header for add-in cards.
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

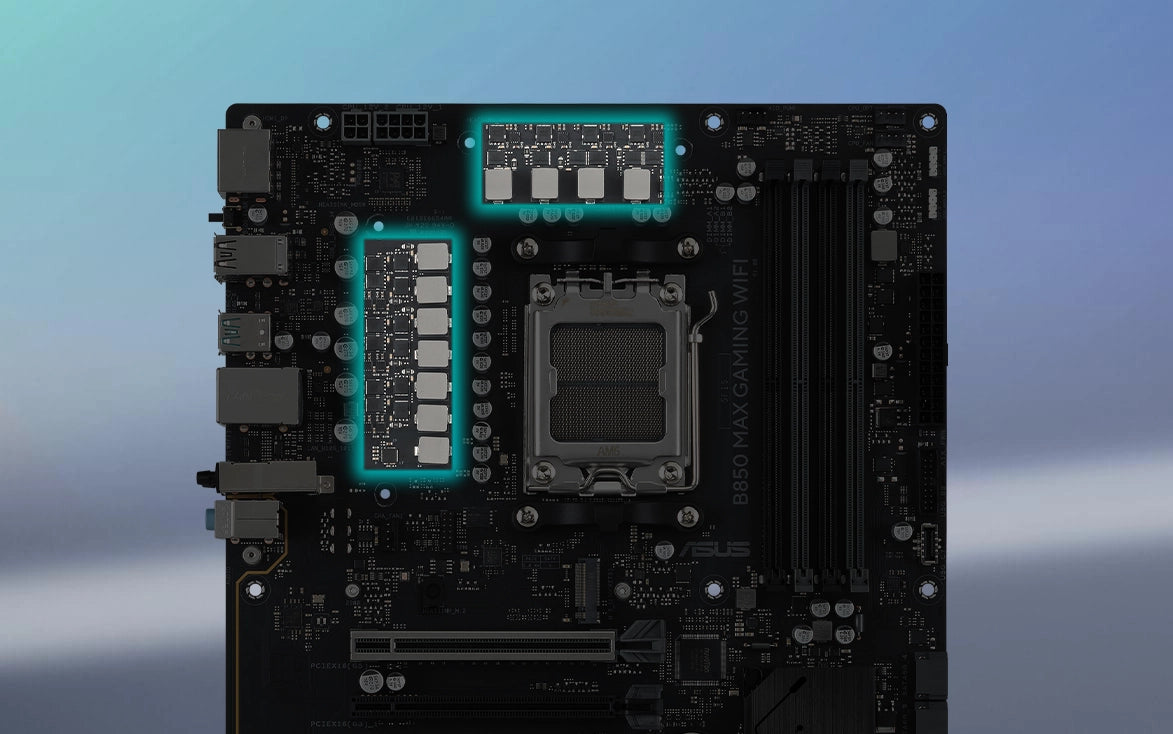

Digital power design
B850 MAX GAMING WIFI features an 8+2+1 phase digital power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Three M.2 slots (up to 128 Gbps)
B850 MAX GAMING WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0.
Cooler by design
The B850 MAX GAMING WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
General
| Brand | ASUS |
|---|---|
| Model | B850 MAX GAMING WIFI |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
Performance
| CPU Socket | AMD Socket AM5 (supports up to 170W) |
|---|---|
| Supported CPUs | AMD Ryzen 9000, 8000 and 7000 series |
| Memory Support | DDR5 up to 256 GB, 8400+ MT/s (OC) with Ryzen 9000 |
| Power Phase Design | 8+2+1 phase digital with discrete MOSFETs |
| RAID | RAID 0/1/5/10 (Ryzen 9000 & 7000 only) |
Networking
| Ethernet | 1 x Realtek 2.5 Gbps with LANGuard |
|---|---|
| Wireless | Wi-Fi 6E |
| Bluetooth | Supported via Wi-Fi 6E module |
Ports & Power
| M.2 Slots | 3 total: M.2_1 (PCIe 5.0 x4 on 9000/7000, PCIe 4.0 x4 on 8000); M.2_2 (PCIe 4.0 x4/x2); M.2_3 (PCIe 4.0 x2) |
|---|---|
| SATA Ports | 4 x SATA 6 Gbps |
| PCIe Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode each) |

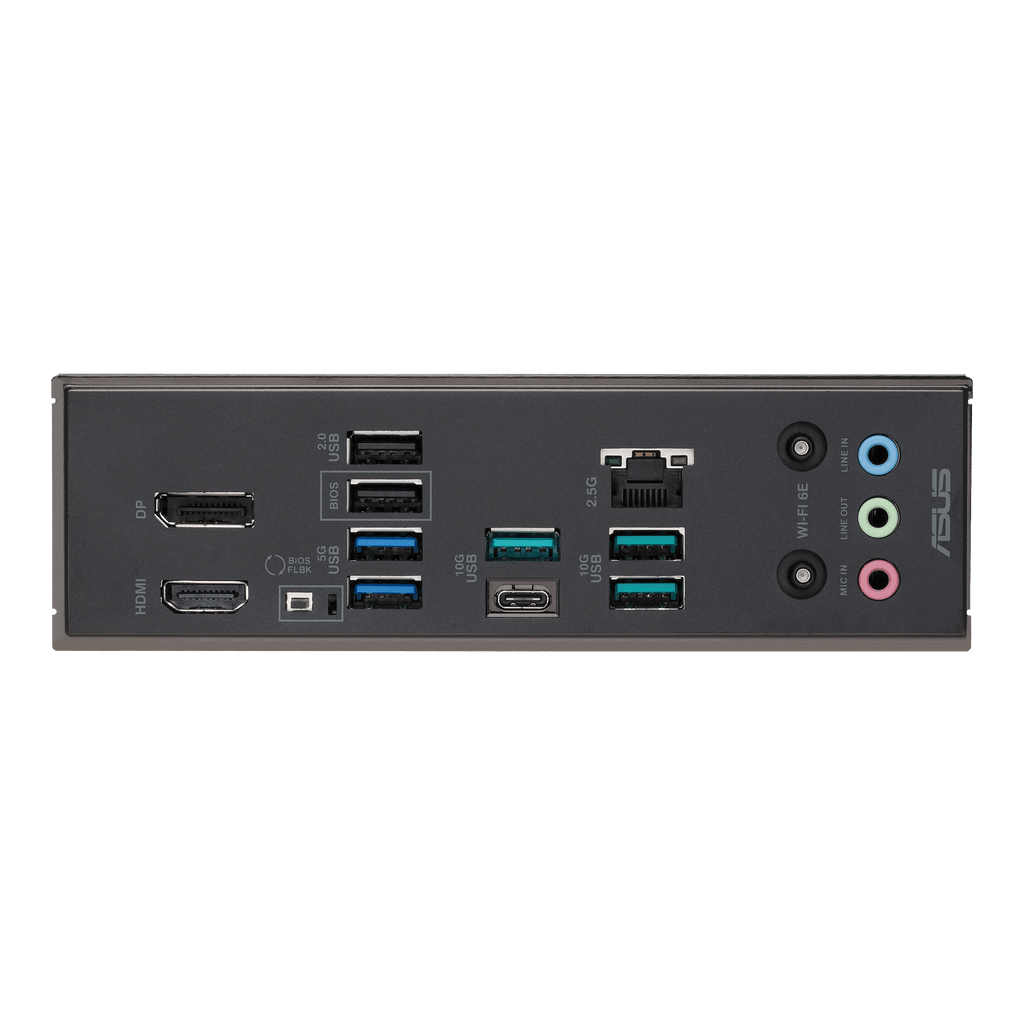

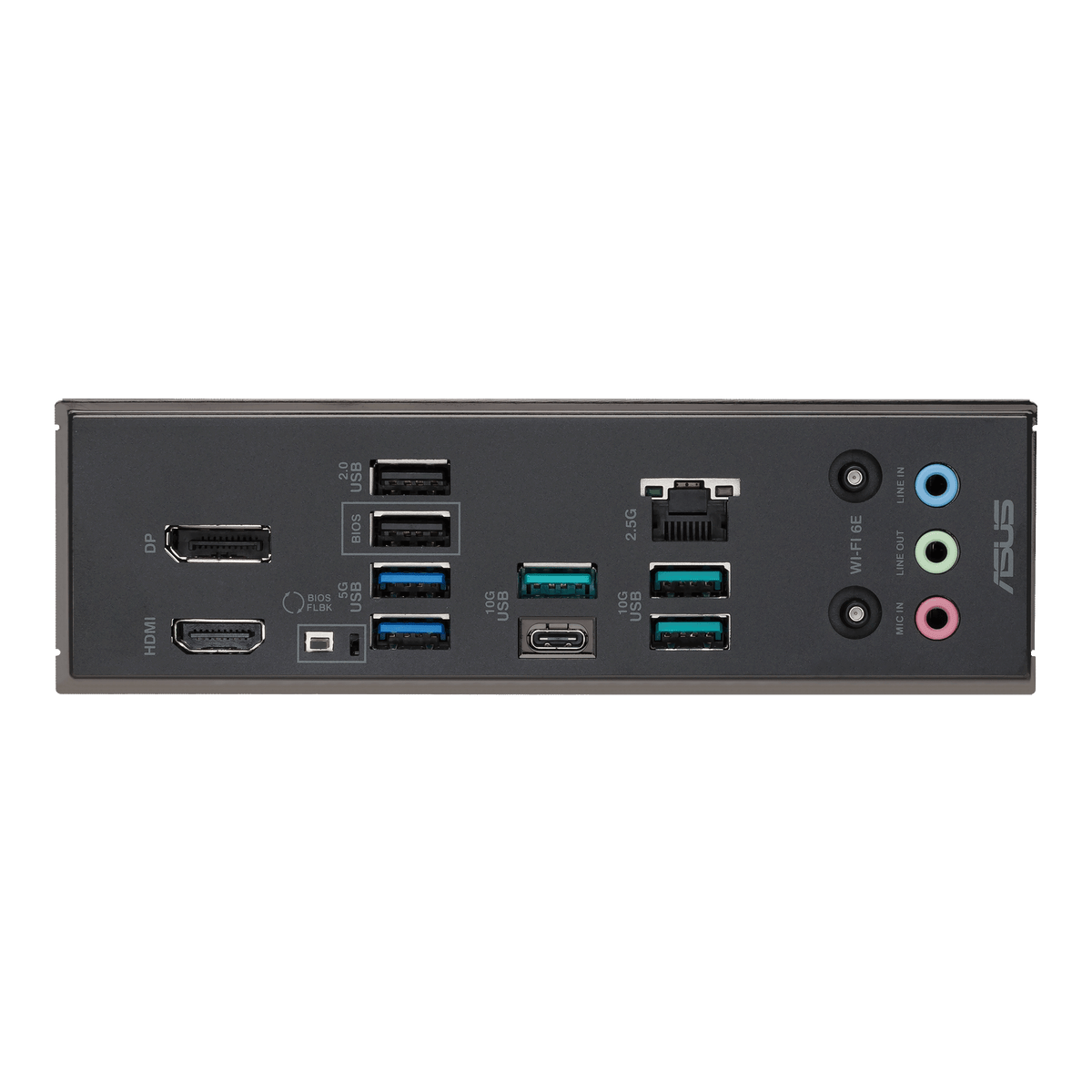

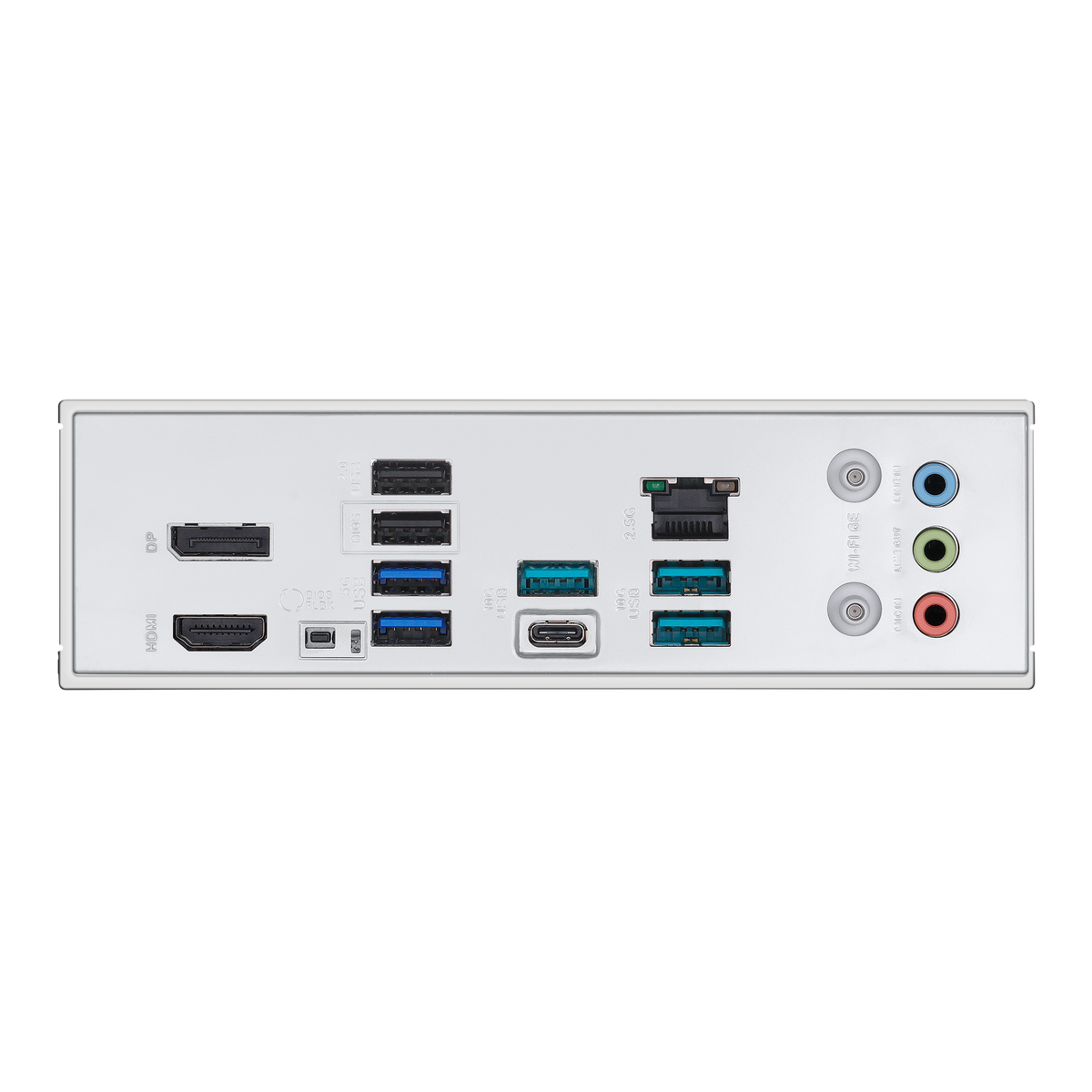

| Rear USB Ports | USB 10 Gbps Type-A and Type-C, USB 5 Gbps Type-A, USB 2.0 Type-A |
| Internal USB Headers | 1 x USB 5 Gbps Type-C connector; 1 x USB 5 Gbps header; 3 x USB 2.0 headers |
| Video Outputs | 1 x DisplayPort 1.4 (8K@30Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan (all 4-pin) |
| Power Connectors | 1 x 24-pin Main, 1 x 8-pin +12V CPU, 1 x 4-pin +12V CPU |
| Thunderbolt Header | 1 x USB4 header |
Features
| RGB Headers | 3 x Addressable RGB Gen 2 with Aura Sync |
|---|---|
| BIOS | 32 MB Flash ROM, UEFI AMI, BIOS FlashBack support |
| Protection | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O |
| Cooling | Multiple onboard heatsinks and hybrid fan headers |

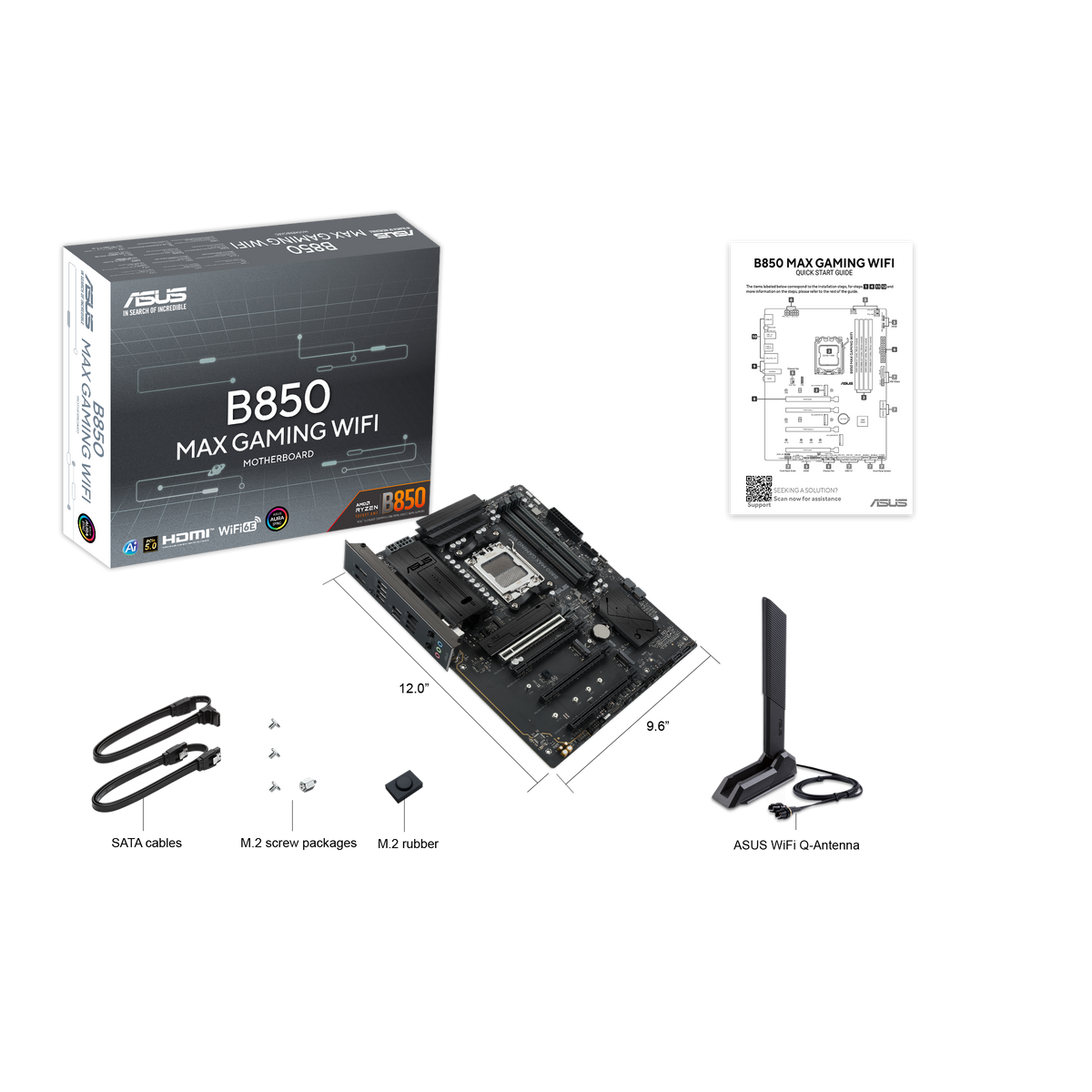

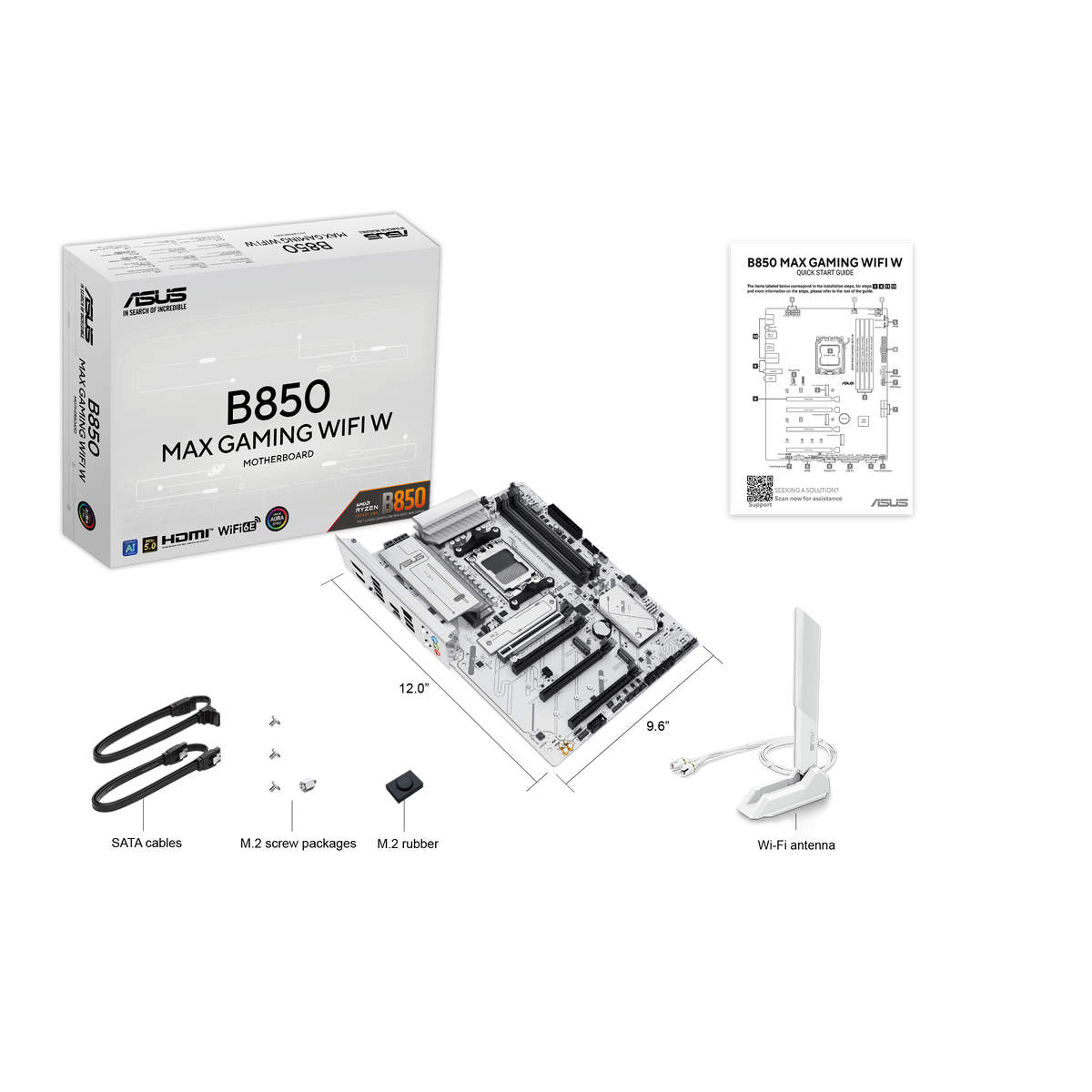

| Included Accessories | 2 x SATA cables, 1 x Wi-Fi Q-Antenna, M.2 rubber packages, 3 x M.2 screw packages, Quick start guide |
