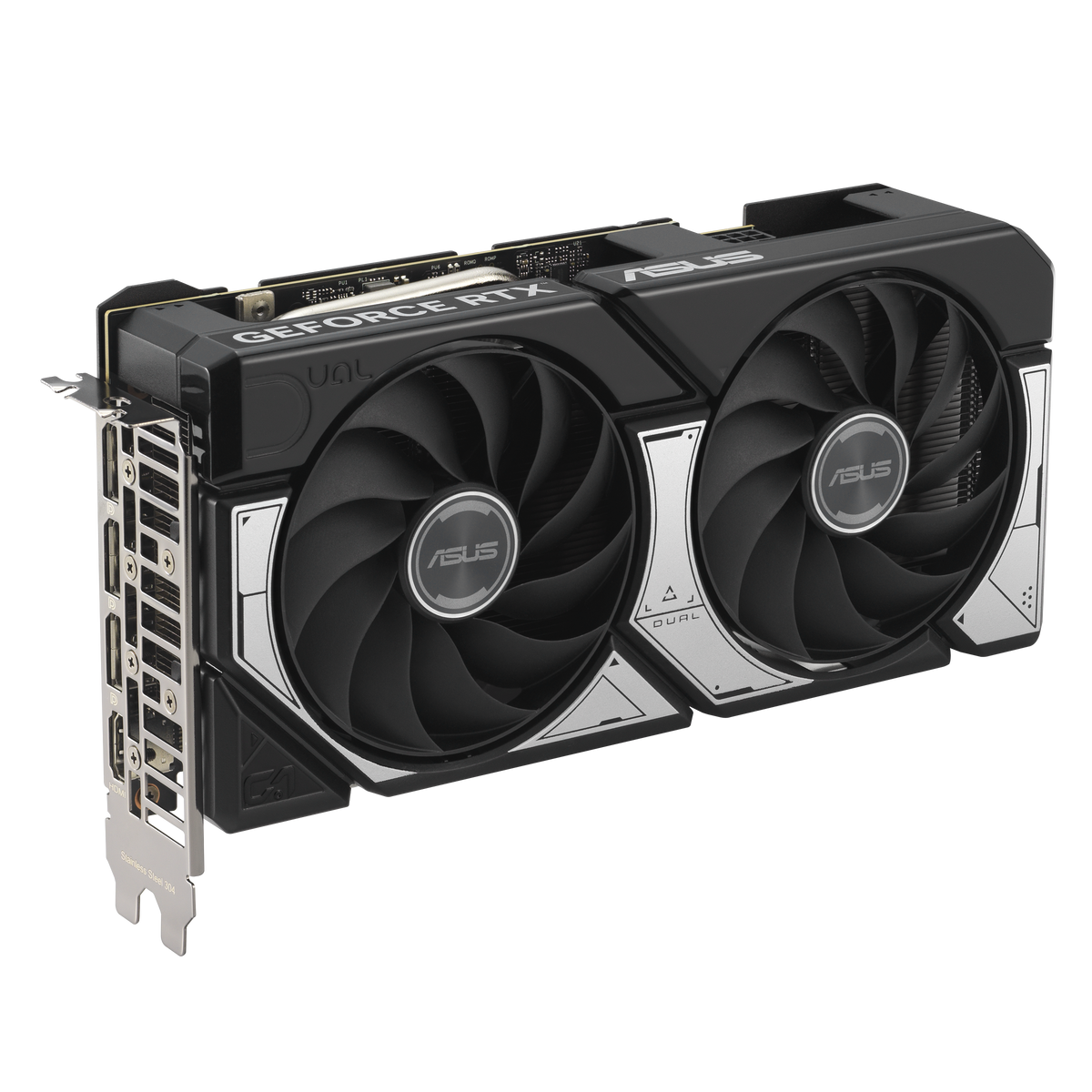

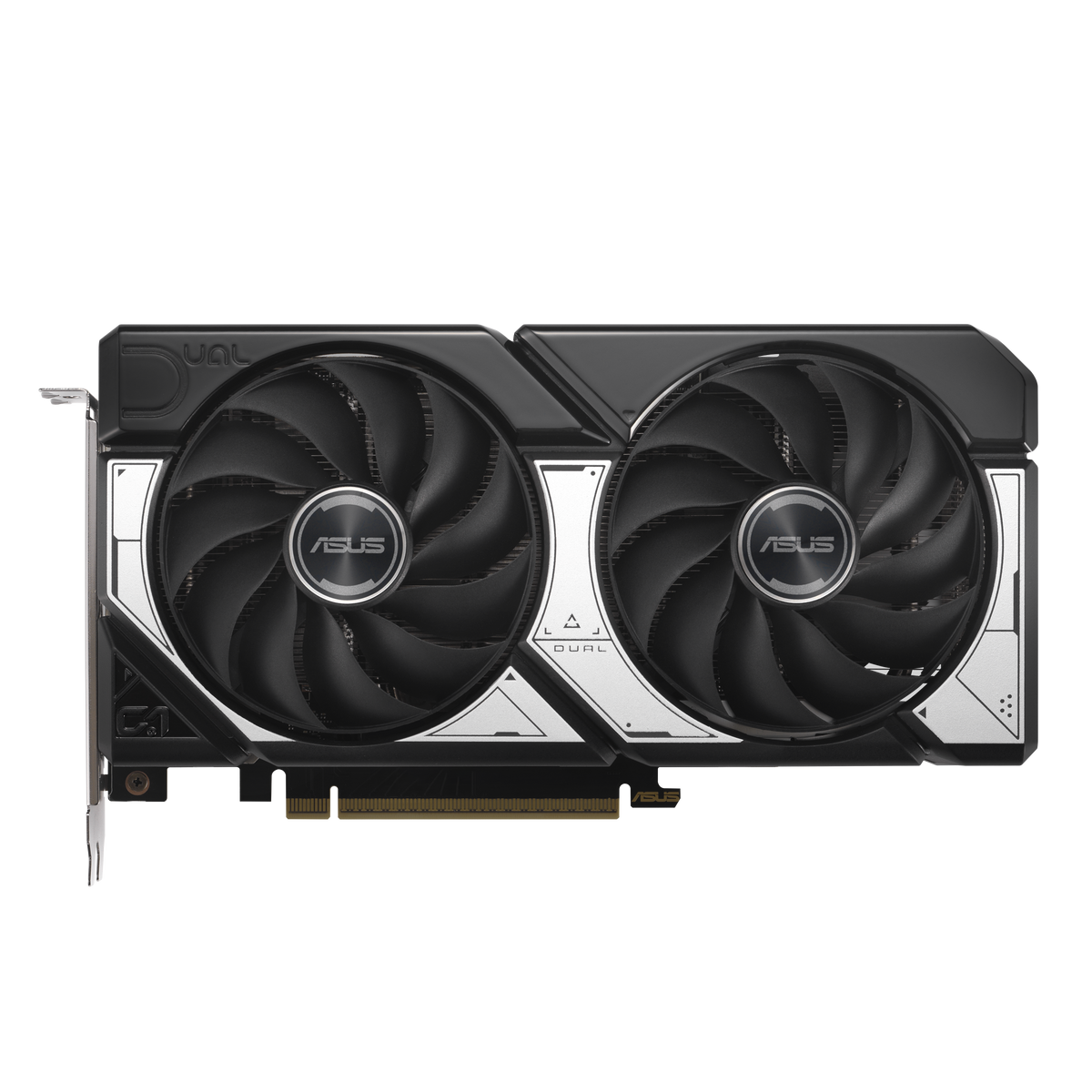

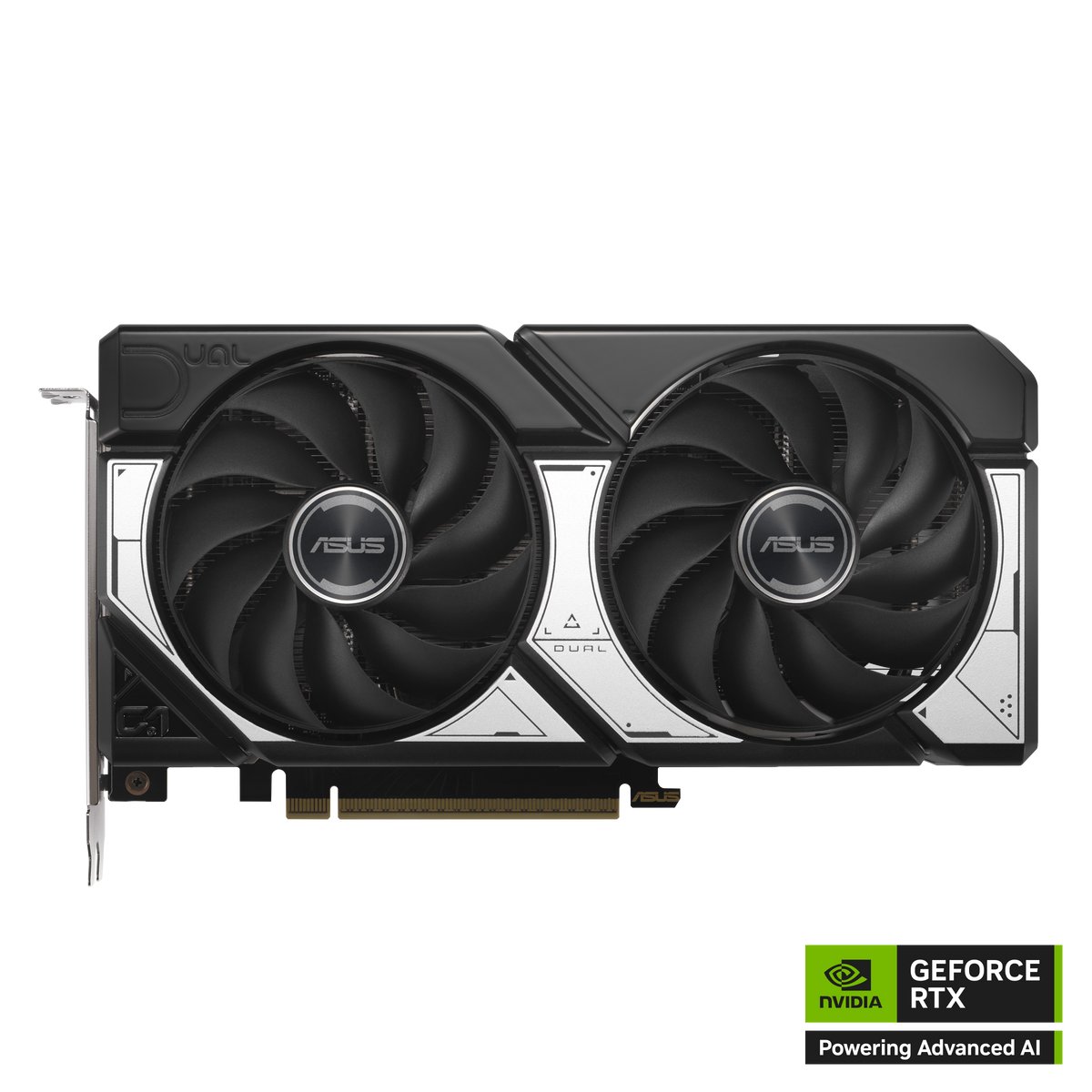

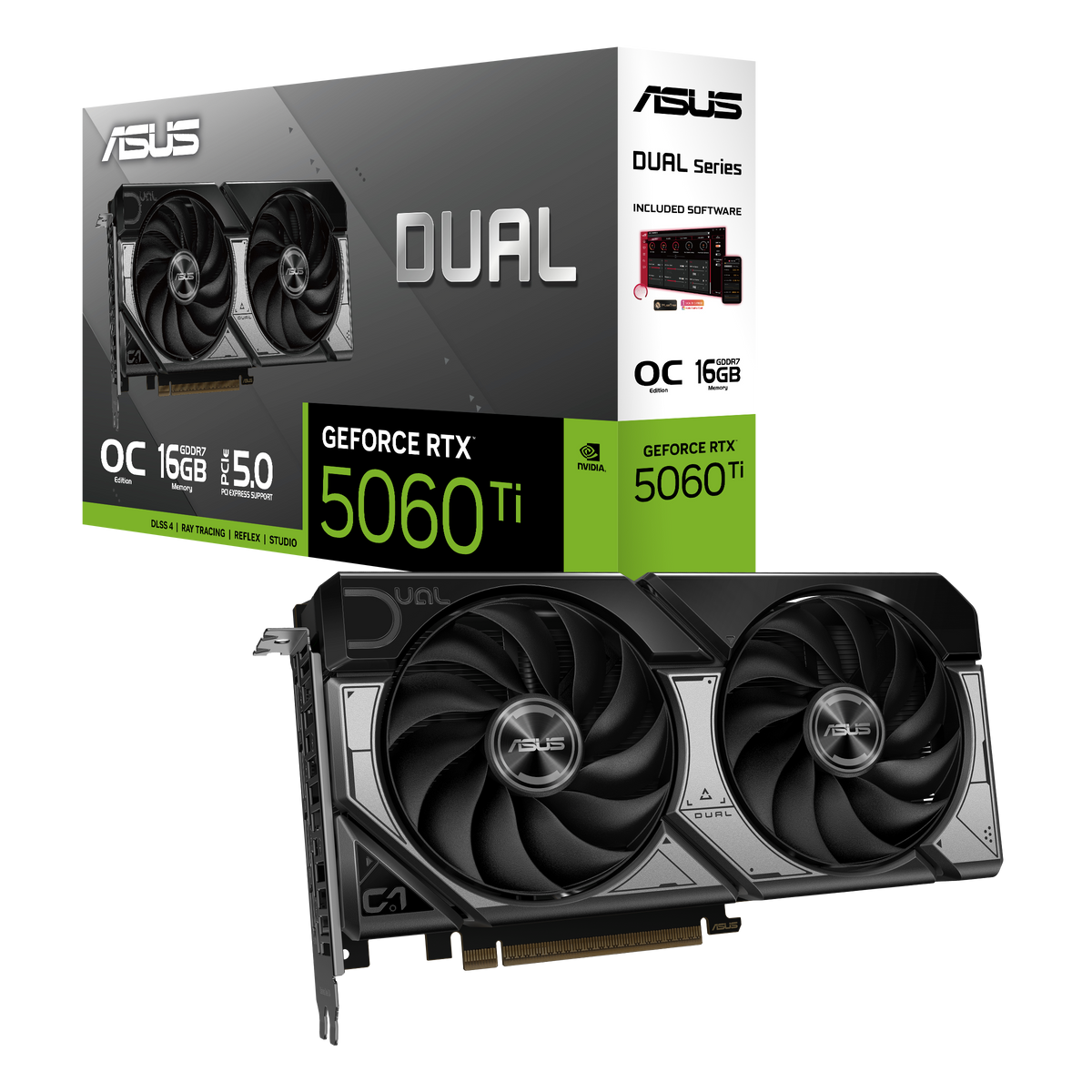

ASUS Dual GeForce RTX 5060 Ti OC 16GB GDDR7 Graphics Card
ASUS
ASUS Dual GeForce RTX 5060 Ti OC 16GB GDDR7 Graphics Card
The ASUS Dual GeForce RTX 5060 Ti OC 16GB GDDR7 Graphics Card is built for gamers who want capable, compact performance without sacrificing cooling. Its 2.5-slot form factor and dual Axial-tech fans make it a practical fit for small-form-factor and mid-tower builds alike. NVIDIA Blackwell architecture brings fourth-gen RT Cores, fifth-gen Tensor Cores, and DLSS 4 with Multi Frame Generation to this accessible tier.
Why this product
16GB GDDR7 at 28 Gbps
A generous 16GB frame buffer running at 28 Gbps gives it headroom for high-resolution textures and future titles without stepping up to a larger card.
Compact 2.5-slot design

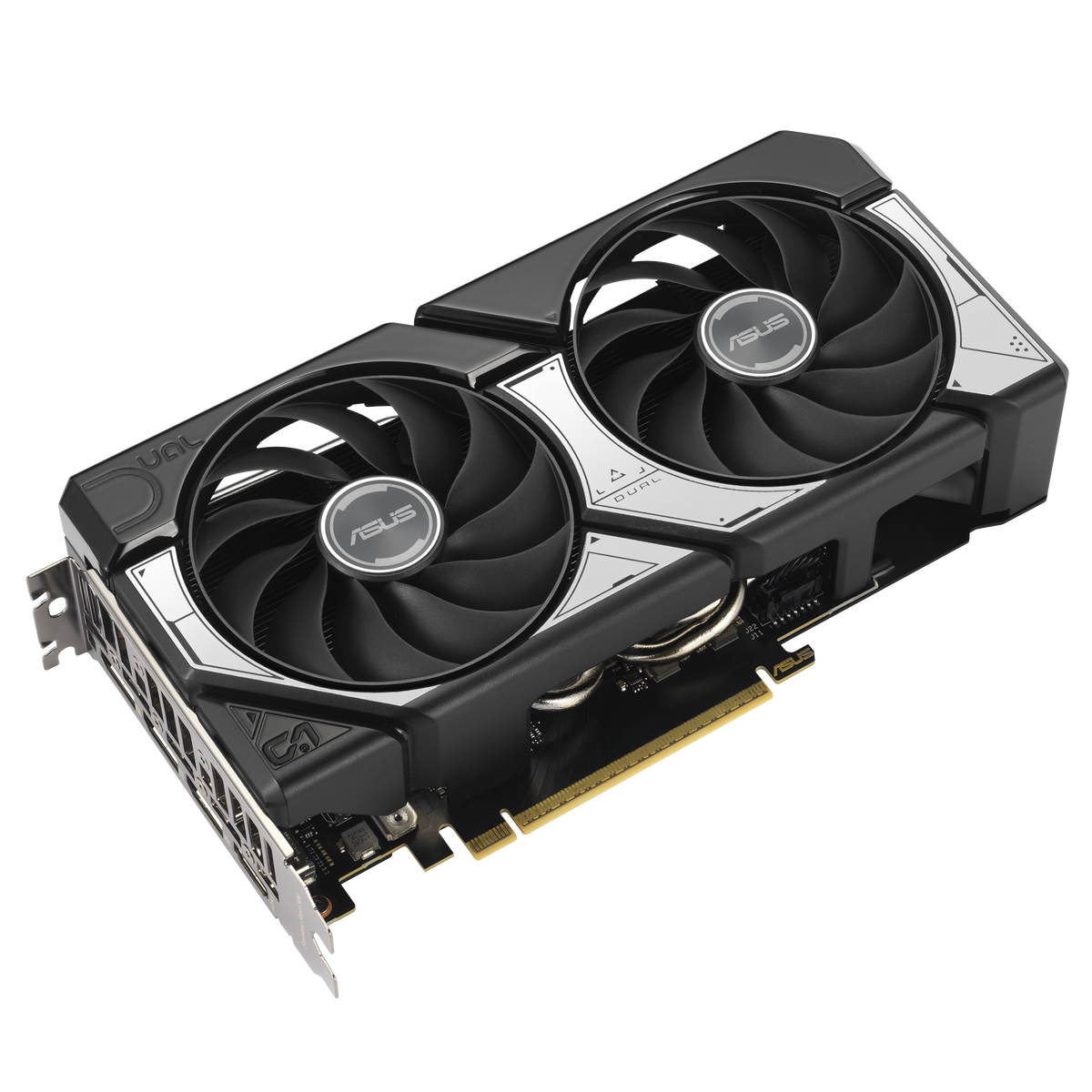

The shroud, heatsink, and heatpipe layout are optimised for a 2.5-slot footprint, making it compatible with small-form-factor and tighter mid-tower cases.

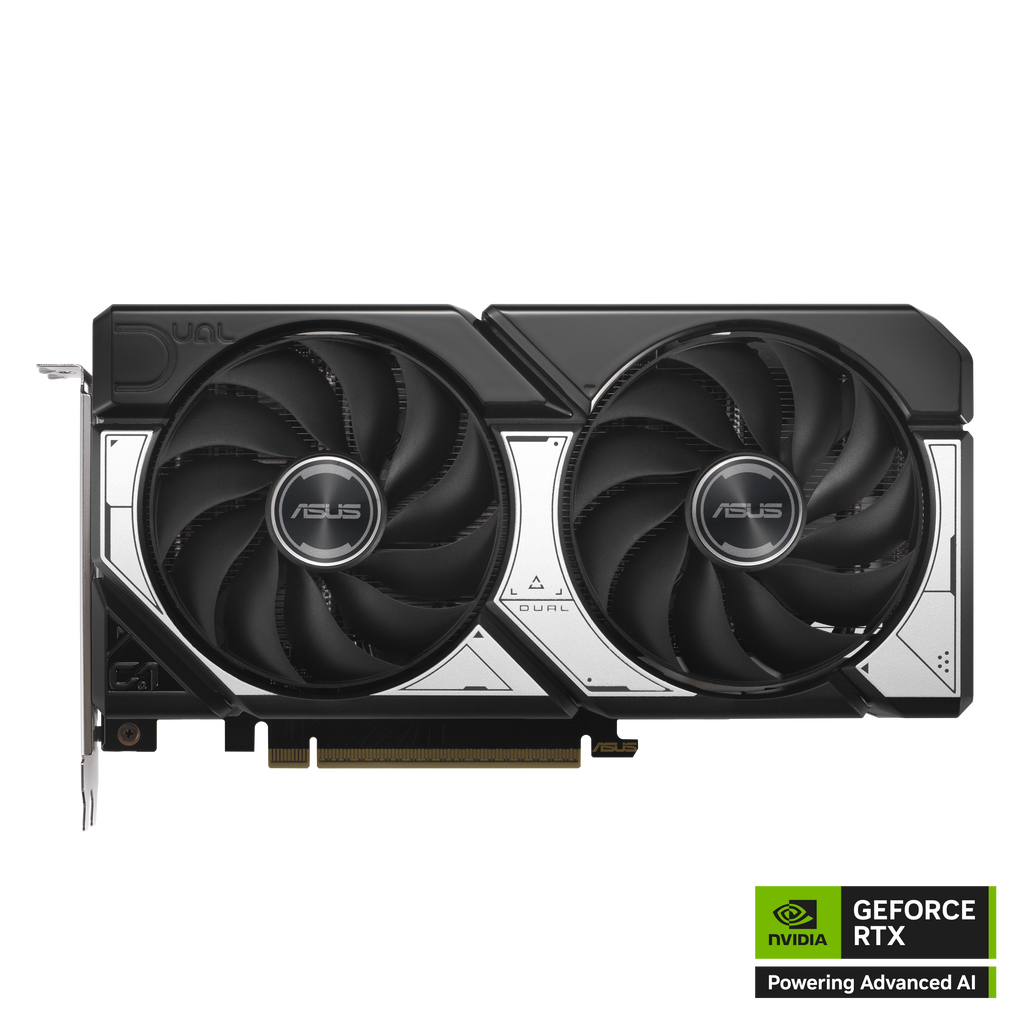

Dual Axial-tech fans with 0dB mode
A smaller hub allows longer blades and a barrier ring increases downward air pressure; fans stop entirely at low loads for silent idle operation.

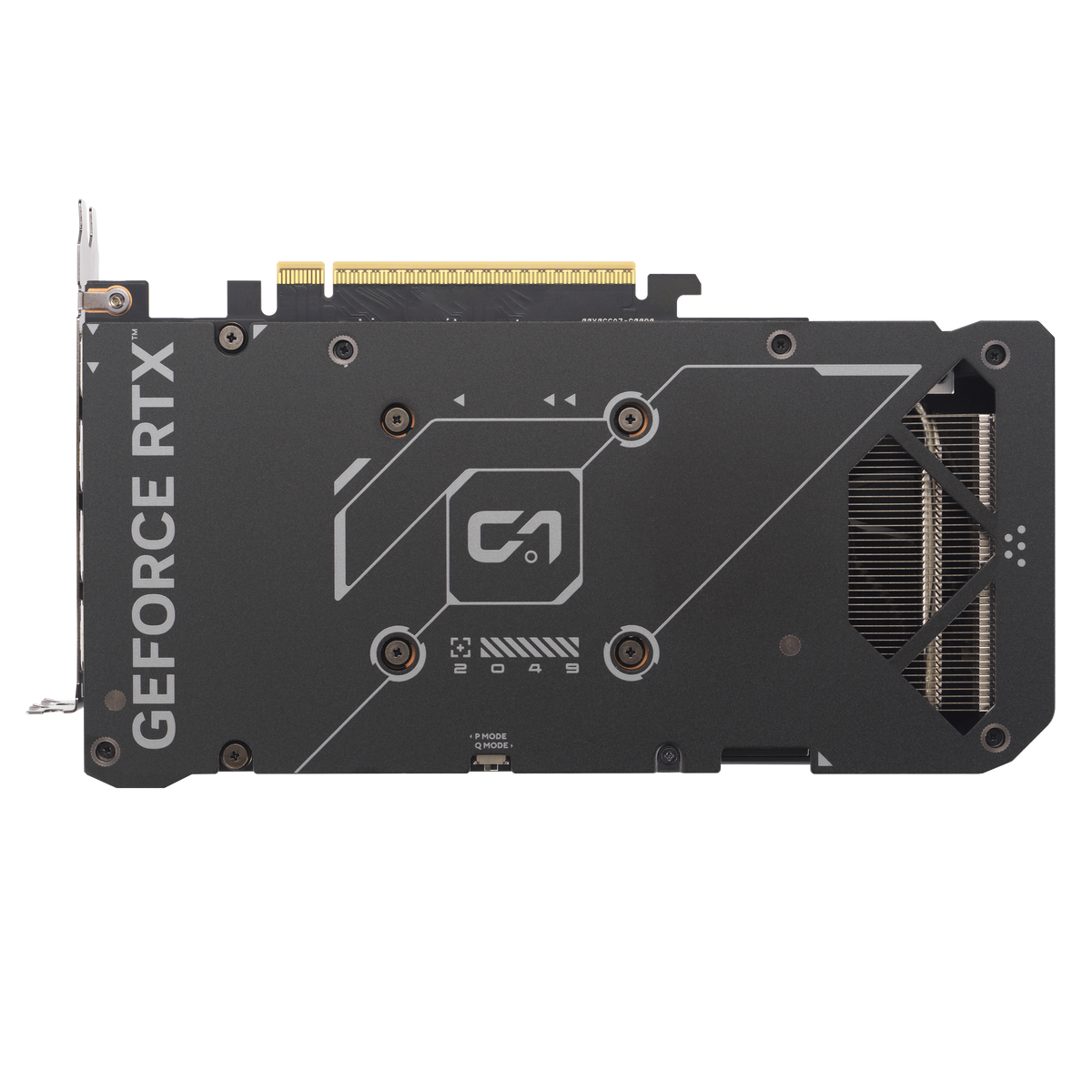

Dual BIOS: Performance or Quiet
A physical switch lets you choose between Performance mode for maximum cooling or Quiet mode for a less aggressive fan curve at medium temperatures.
NVIDIA Blackwell RT and Tensor Cores
Fourth-gen RT Cores handle Mega Geometry workloads, while fifth-gen Tensor Cores with FP4 support power DLSS 4 and neural shading.

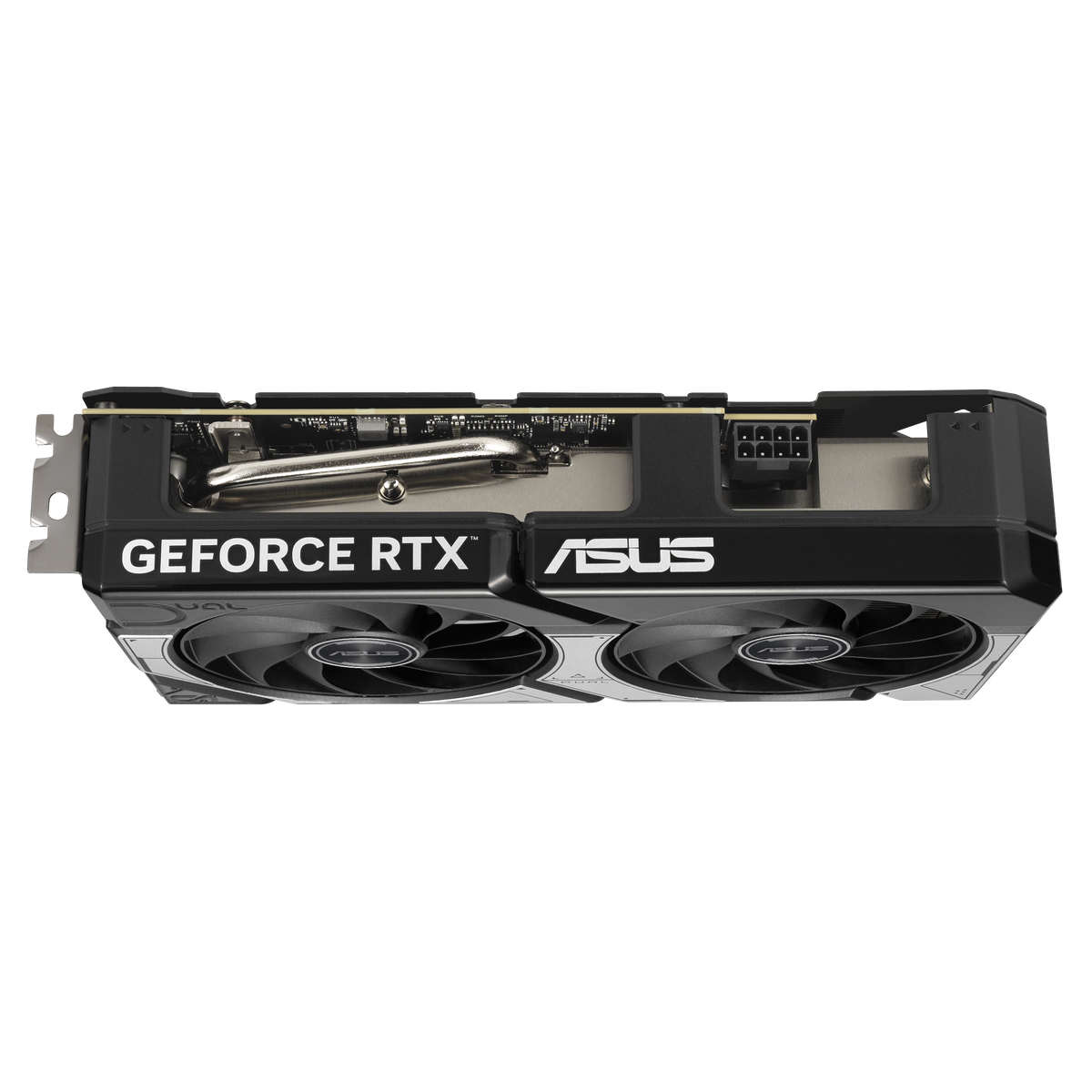

Single 8-pin power connector
It draws from just one 8-pin connector and requires a 550W PSU minimum, keeping cable management straightforward in compact builds.
- GPUNVIDIA GeForce RTX 5060 Ti
- Video Memory16GB GDDR7
- Memory Speed28 Gbps
- Boost Clock (OC mode)2632 MHz
- CUDA Cores4608
- Slot Width2.5 Slot
- Dimensions229 × 120 × 50 mm
- Recommended PSU550W
- SKUASU-2634
- EAN4711387994306
- Fits PCI Express 5.0 motherboard slots (also backward-compatible with earlier PCIe generations).

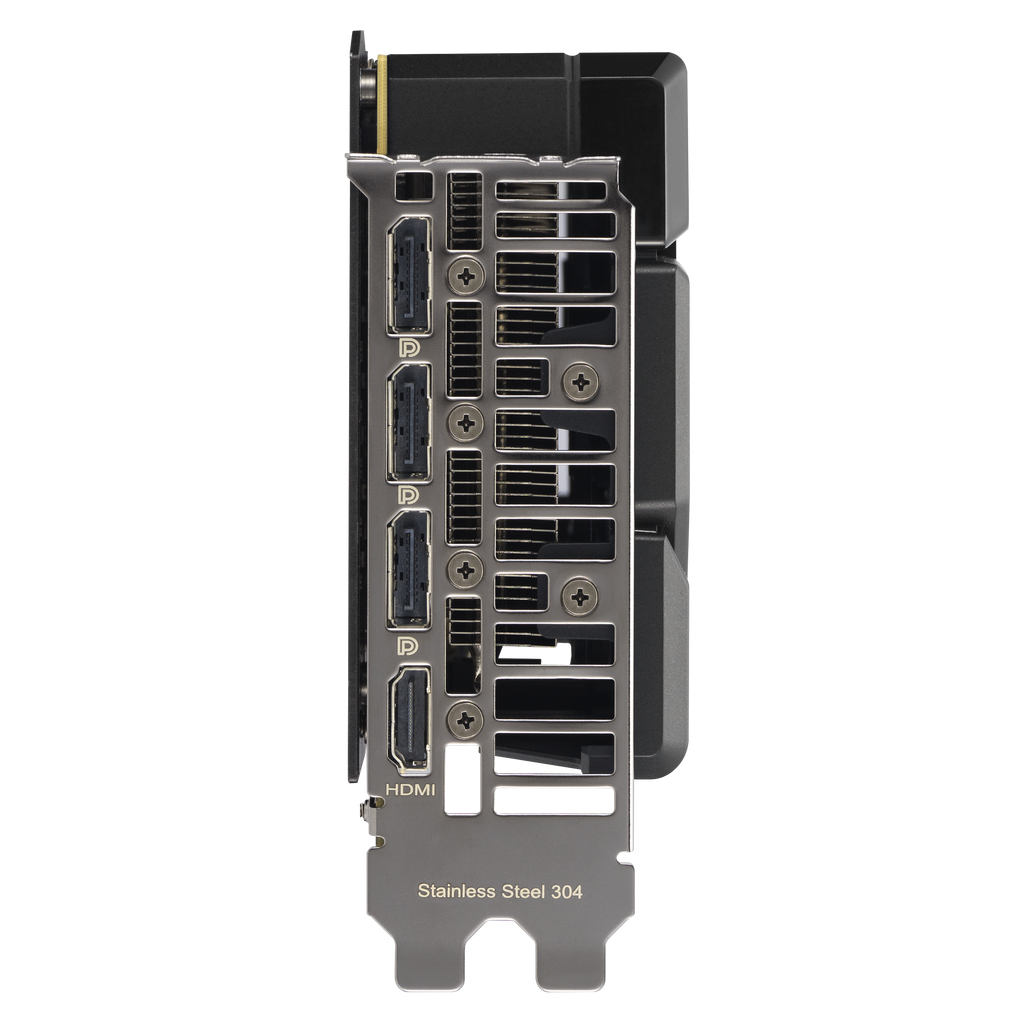

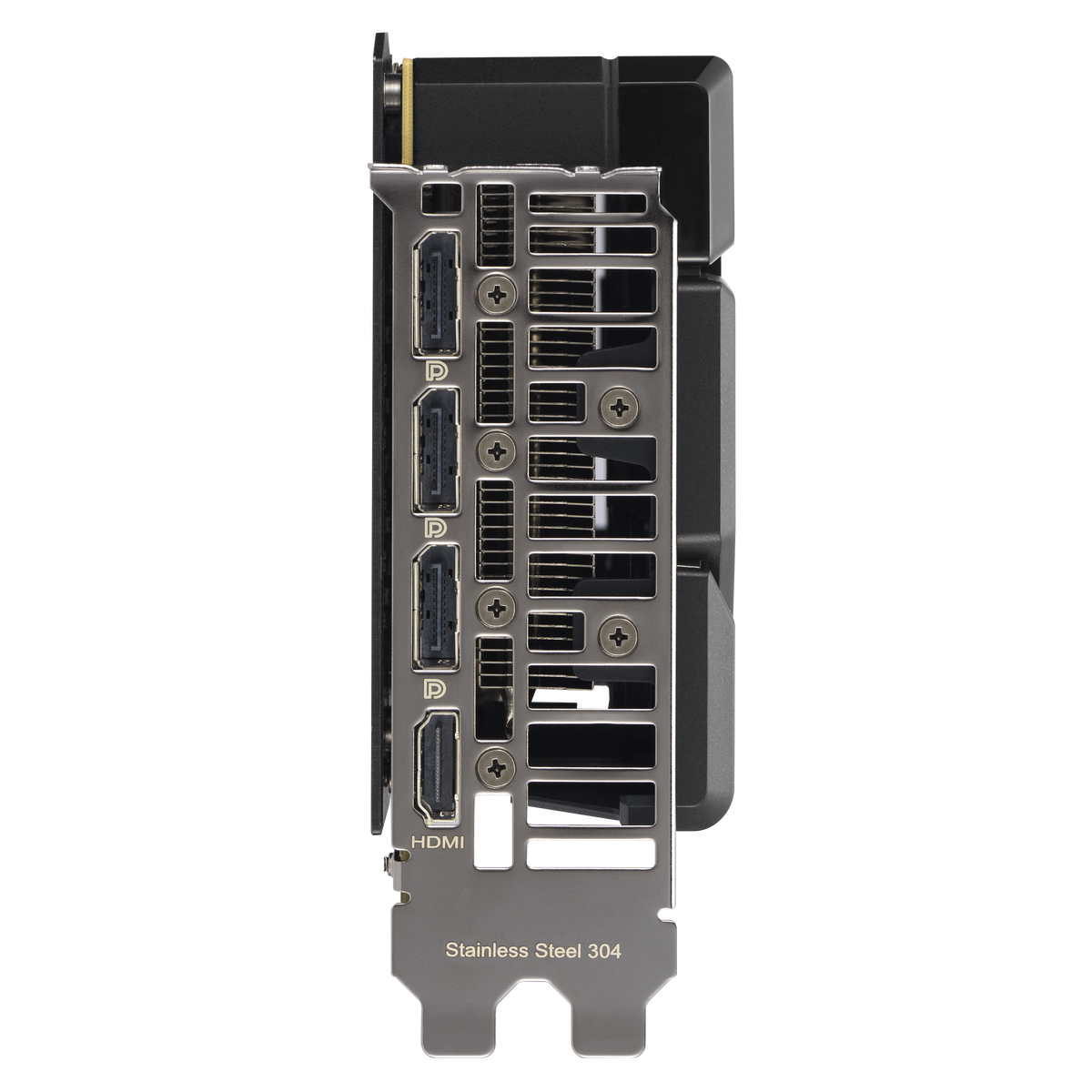

- Supports up to four simultaneous displays via one HDMI 2.1b and three DisplayPort 2.1b outputs.
- Supports 8K digital output at up to 7680 × 4320 resolution.
- HDCP 2.3 support for protected content playback on compatible displays.
- Requires a minimum 550W power supply; ASUS recommends pairing with their Prime Gold 850W or 750W PSU for optimal headroom.
- NVLink and CrossFire multi-GPU configurations are not supported.
Best for
- Small-form-factor builders who need a capable GPU that fits within a 2.5-slot space and a 229 × 120 × 50 mm footprint.
- Gamers wanting DLSS 4 with Multi Frame Generation and Reflex 2 without moving to a higher-tier card.
- Content creators who benefit from 767 AI TOPS, the ninth-gen NVIDIA Encoder, and NVIDIA Studio driver support.
- Quiet-PC enthusiasts who can toggle Quiet BIOS mode and rely on 0dB fan-stop at idle.
- Existing 550W PSU owners who want a straightforward single 8-pin connector upgrade.
Trade-offs
- Multi-GPU setups — NVLink and CrossFire are explicitly not supported.
- Narrow 2-slot cases — the card occupies 2.5 slots and measures 50mm thick, which may block adjacent slots.
- Users with sub-550W PSUs — the minimum recommended PSU is 550W and pairing below that is outside vendor guidance.
- Buyers who want analog output — all four outputs are digital only (HDMI 2.1b and DisplayPort 2.1b); no VGA or DVI is present.
DUAL GEFORCE RTX™ 5060 Ti
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
AI PERFORMANCE: 767 AI TOPS
Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
Engineering
Dual BIOS — Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores — Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors — Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores — Built for Mega Geometry
- AI-Enhanced Graphics and Performance — NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness — NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics — Full ray tracing with neural rendering
- Digital Humans and AI Assistants — NVIDIA ACE
- Accelerate Your Creativity — NVIDIA Studio creator tools and technology
- Enhance Any Video with AI — NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability — NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies — NVIDIA G-SYNC
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies.
General
| Brand | ASUS |
|---|---|
| Model | DUAL-RTX5060TI-O16G |
| GPU | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| AI Performance | 759 TOPs |
| OpenGL | OpenGL 4.6 |
Memory
| Video Memory | 16GB GDDR7 |
|---|---|
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
Clock & Processing
| Boost Clock — OC Mode | 2632 MHz |
|---|---|
| Boost Clock — Default Mode | 2602 MHz |
| CUDA Cores | 4608 |
| Bus Standard | PCI Express 5.0 |
Display & Connectivity
| Max Digital Resolution | 7680 × 4320 |
|---|---|
| Maximum Displays | 4 |
| HDMI | 1 × HDMI 2.1b (Native) |
| DisplayPort | 3 × DisplayPort 2.1b (Native) |
| HDCP | 2.3 |
| NVLink / CrossFire | Not supported |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Slot | 2.5 Slot |
| Dimensions | 229 × 120 × 50 mm |
