ASUS GeForce GT 730 4x HDMI Passive 2GB GDDR5 Graphics Card
ASUS
ASUS GeForce GT 730 4x HDMI Passive 2GB GDDR5 Graphics Card

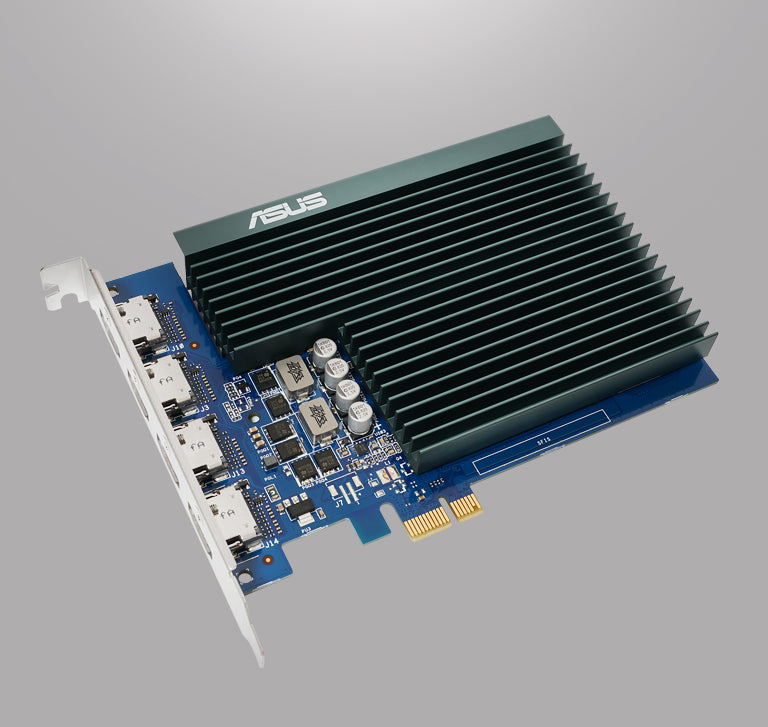

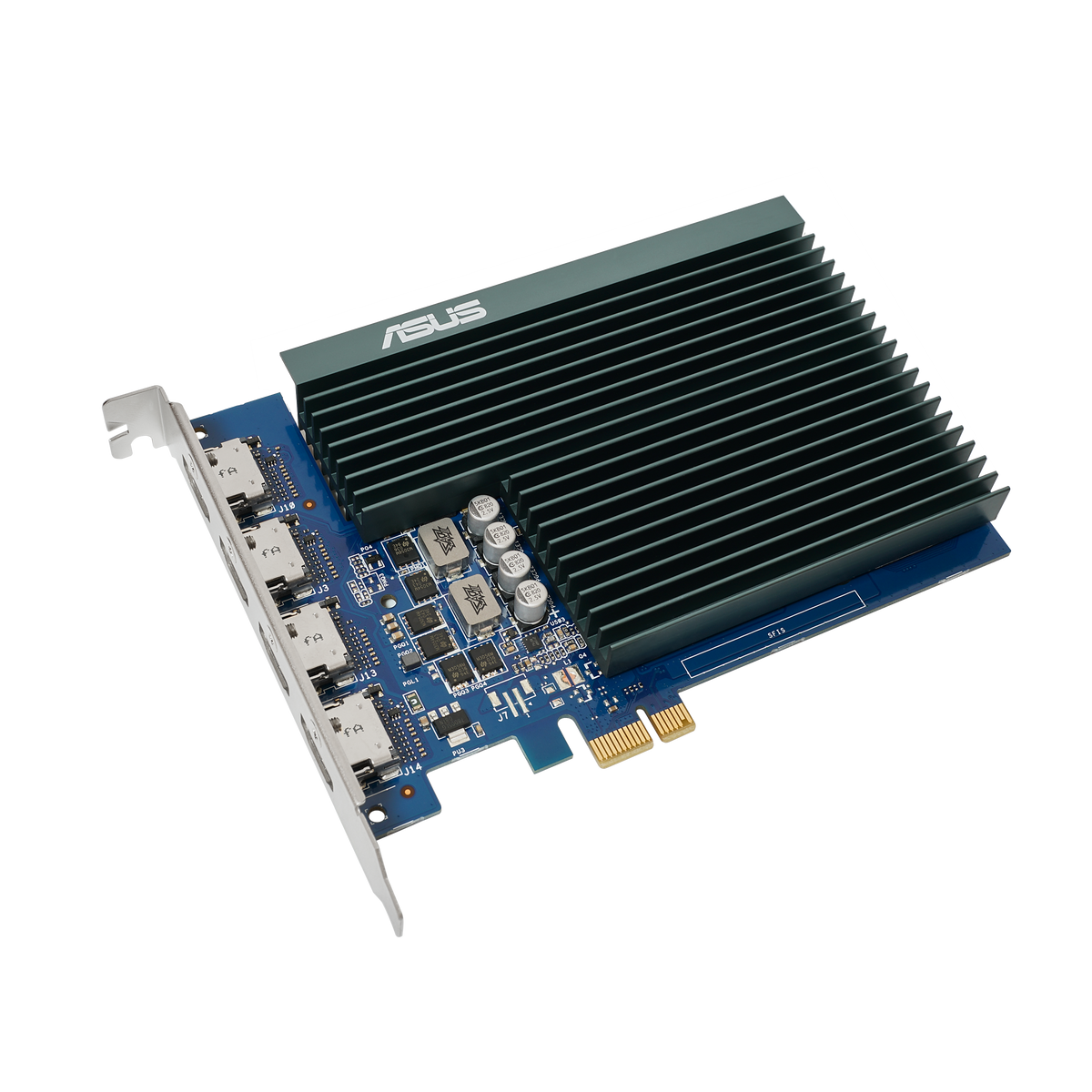

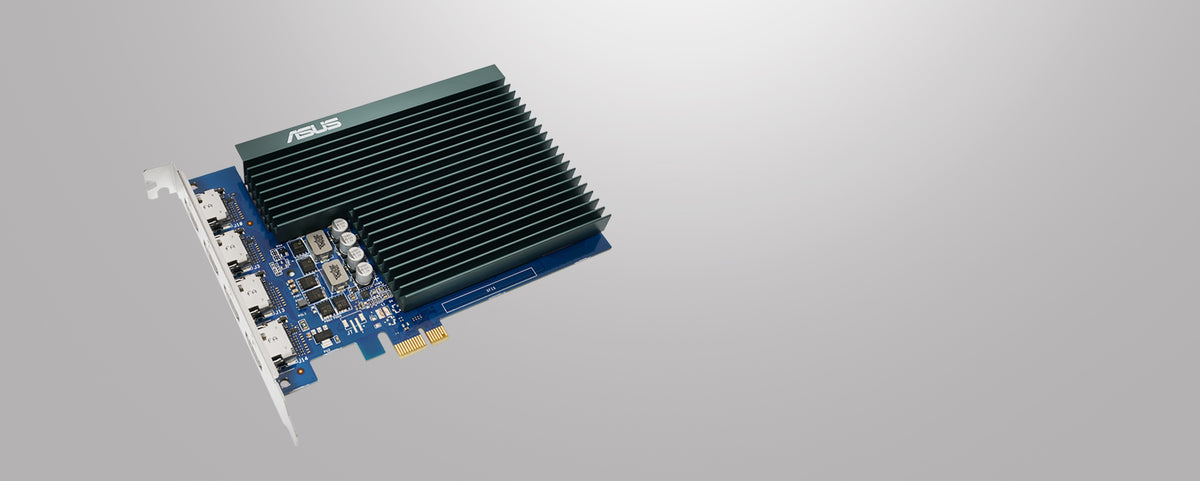

The ASUS GeForce GT 730 4x HDMI Passive 2GB GDDR5 Graphics Card is a passively cooled, single-slot add-in card designed for office and professional users who need to drive up to four displays without adding fan noise or occupying extra PCIe slots. It suits system builders working in quiet environments—reception desks, trading floors, digital signage installations—where silence and multi-monitor output matter more than gaming performance.
Why this product
Zero-noise passive cooling
The heatsink-only design produces no fan noise whatsoever, making it well suited to libraries, studios, or any workspace where a quiet environment is a requirement.
Four HDMI outputs, one card
Four native HDMI 1.4b ports let a single card drive up to four external monitors simultaneously, eliminating the need for daisy-chaining or additional adapters.
Single-slot footprint
At just one expansion slot wide, it leaves adjacent PCIe slots free and even allows multiple cards to be installed side by side in the same system.
No external power connector needed
It draws power entirely from the PCIe slot, so no separate power cable is required—helpful in compact or older systems with limited PSU connectors.
4K digital output
Maximum digital resolution of 3840 × 2160 is supported, so each connected display can run at 4K when the content and display allow it.
Automated manufacturing process
Auto-Extreme Technology completes all soldering in a single pass, reducing thermal stress on components and avoiding harsh cleaning chemicals during production.
- GPUNVIDIA GeForce GT 730
- Video Memory2 GB GDDR5
- Display Outputs4 × HDMI 1.4b
- Max Displays4
- Max Resolution3840 × 2160
- CoolingPassive (fanless)
- Slot WidthSingle slot
- Recommended PSU300 W
- SKUASU-2620
- EAN4711081369417
- Fits any motherboard with a PCI Express 2.0 x16 slot.
- Requires a minimum 300 W system power supply.
- Supports HDCP 2.2, so it can output copy-protected 4K content to compliant displays.
- OpenGL 4.6 support covers CAD, GIS, and most professional visualisation applications that rely on OpenGL.
- Outputs are HDMI only—no DisplayPort or DVI ports are present, so monitors without HDMI inputs will require an active adapter not included in the box.
- NVLink and CrossFire multi-GPU configurations are not supported.
Best for
- Quiet multi-monitor workstations — passive cooling and four HDMI ports in one slot make it ideal for office setups where silence and display count are the primary requirements.
- Digital signage and display walls — a single card can feed four independent screens, and multiple cards can be stacked in the same chassis thanks to the single-slot design.
- Compact or small-form-factor systems — no external power connector and a 148 × 105 × 18 mm body fit into tight builds where space and wiring are constrained.
- Upgrading older desktops — the 300 W PSU requirement and PCIe 2.0 bus mean it works in legacy systems that cannot support higher-end cards.
Trade-offs
- PC gaming — the GT 730 is a productivity and display-output card; its specification is not positioned for gaming workloads.
- Video editing or GPU-accelerated rendering — the 64-bit memory interface and 2 GB of GDDR5 are suited to desktop productivity, not large-frame-buffer creative workloads.
- DisplayPort or DVI monitor setups — all four outputs are HDMI 1.4b only; users with non-HDMI displays will face adapter complexity not addressed in the box contents.
- Multi-GPU configurations — NVLink and CrossFire are explicitly unsupported, so it cannot participate in a linked GPU pair for additional compute or graphics throughput.
The ASUS GeForce® GT 730 is a passively-cooled single-slot graphics card that enables quiet multi-monitor productivity.
COOLING

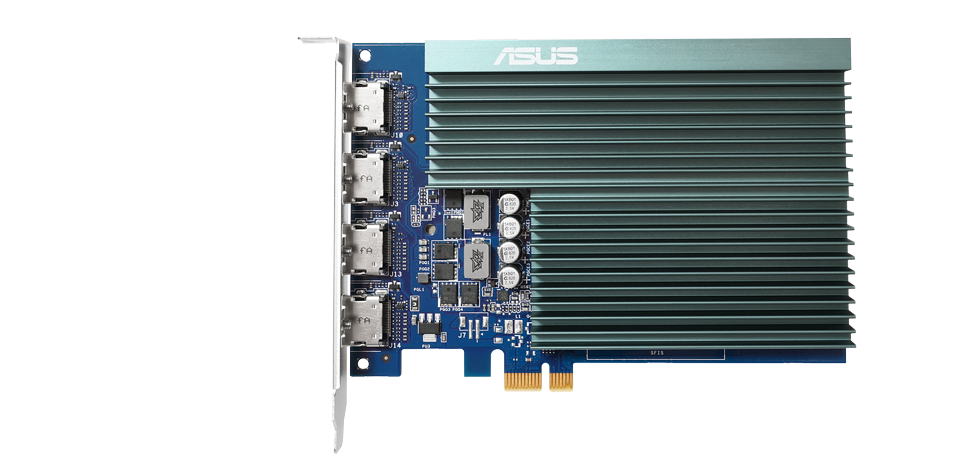

Passive Cooling
A passively-cooled design creates a quieter workspace.
ENGINEERING

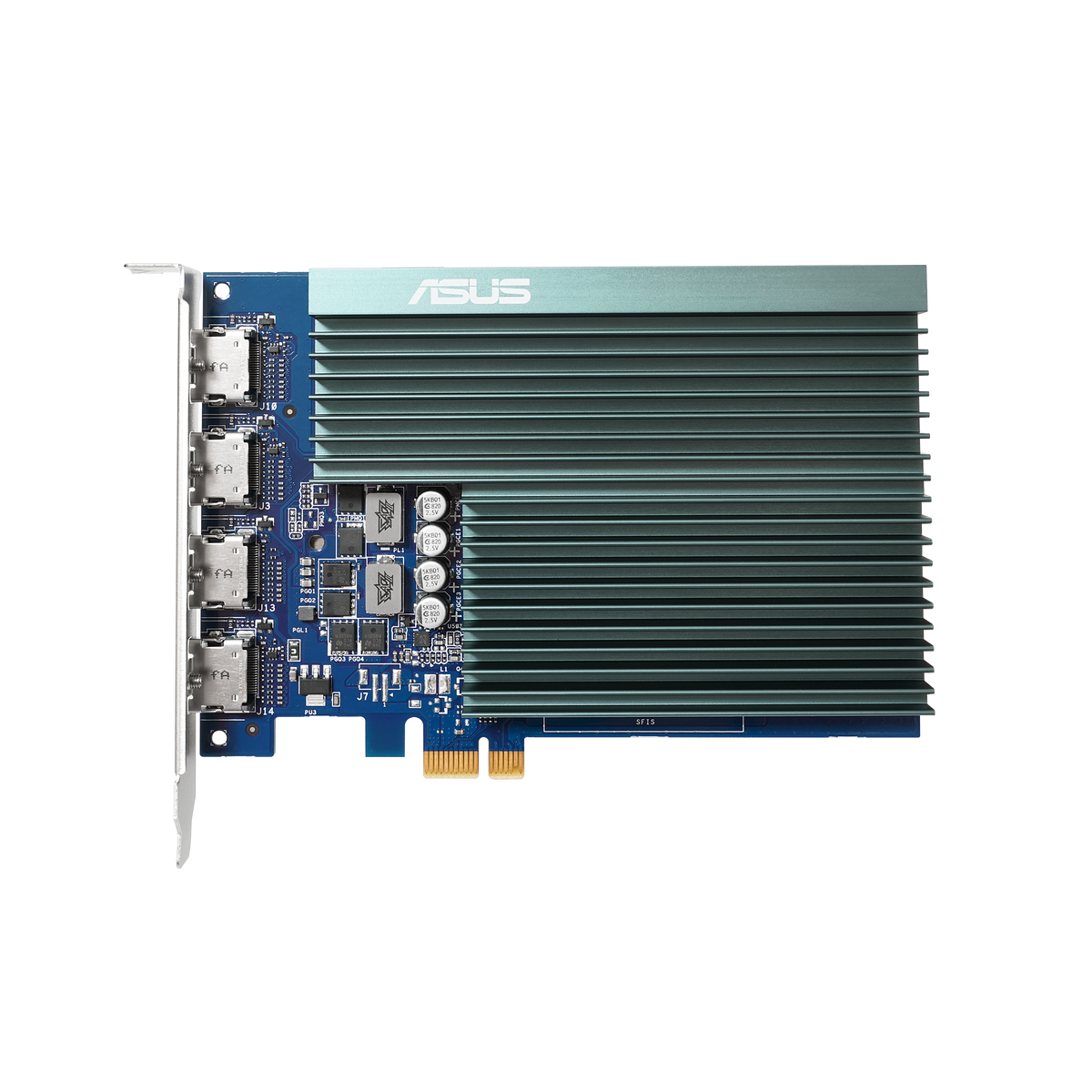

4x HDMI Ports
Enable multi-monitor productivity with support for up to 4 external displays connected to the built-in HDMI ports.

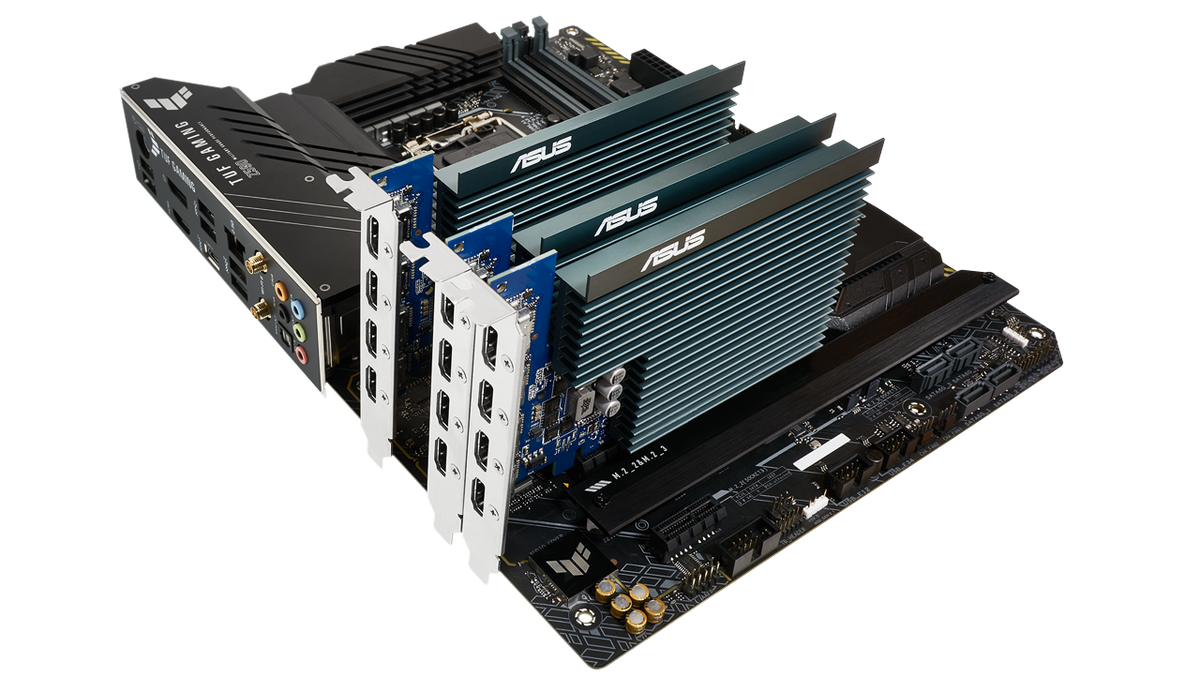

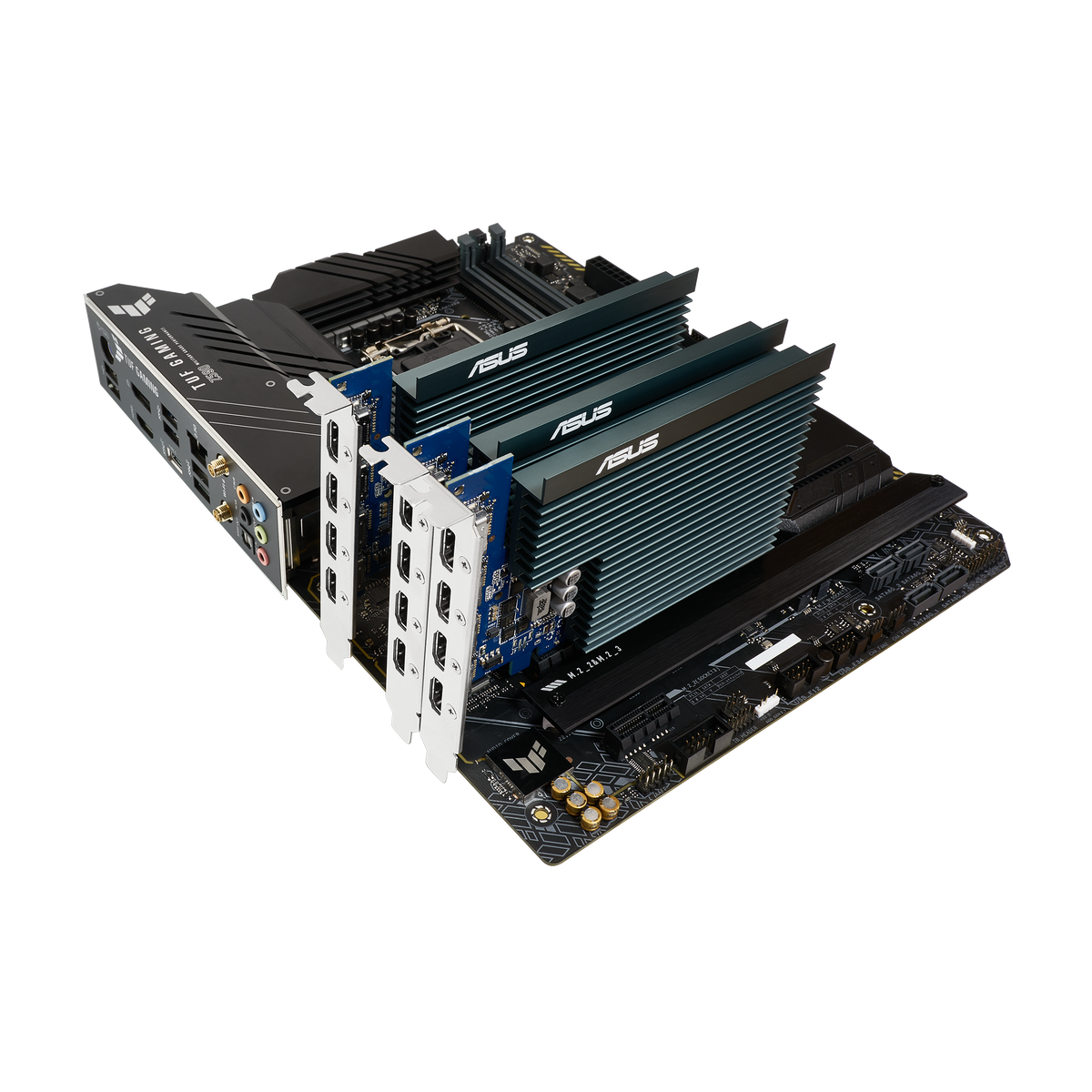

Single-slot Design
A compact design increases compatibility with other PCIe peripherals and even allows multiple ASUS GT730s to be stacked in a single system.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
SOFTWARE
GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
General
| Brand | ASUS |
|---|---|
| Model | ASUS GeForce GT 730 4x HDMI Passive 2GB GDDR5 |
| GPU | NVIDIA GeForce GT 730 |
| Bus Standard | PCI Express 2.0 |
| Slot | Single slot |
| Dimensions | 148 × 105 × 18 mm (5.8 × 4.1 × 0.7 in) |
Memory & Performance
| Video Memory | 2 GB GDDR5 |
|---|---|
| Memory Speed | 5010 MHz |
| Memory Interface | 64-bit |
| CUDA Cores | 384 |
| Engine Clock (OC Mode) | 927 MHz (Boost) |
| Engine Clock (Gaming Mode) | 902 MHz (Boost) |
| OpenGL | OpenGL 4.6 |
Display & Connectivity
| Video Outputs | 4 × HDMI 1.4b (native) |
|---|---|
| Maximum Displays | 4 |
| Max Digital Resolution | 3840 × 2160 |
| HDCP | 2.2 |
| NVLink / CrossFire | Not supported |
Power & Accessories
| Recommended PSU | 300 W |
|---|---|
| Power Connectors | None required |
| Cooling | Passive (fanless) |

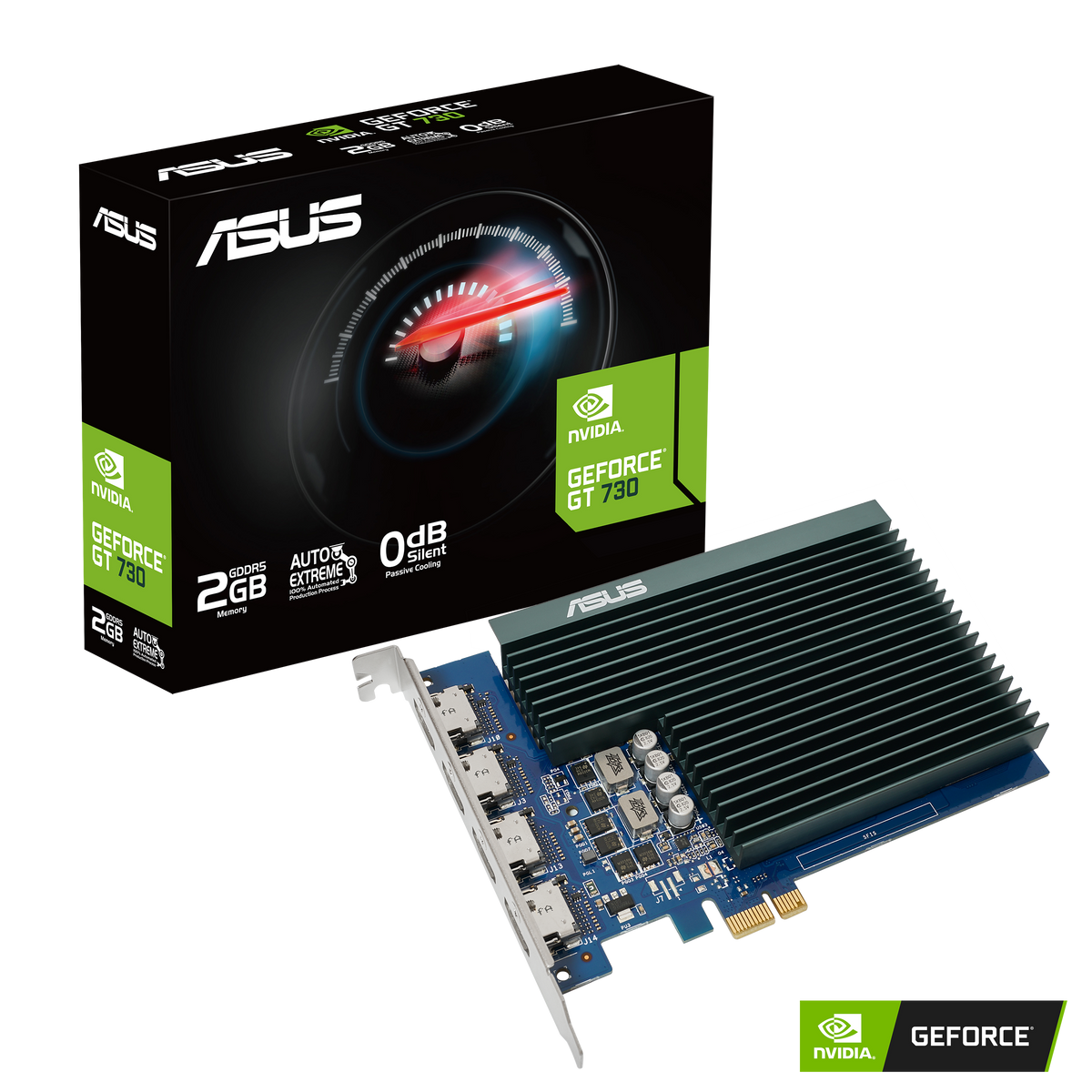

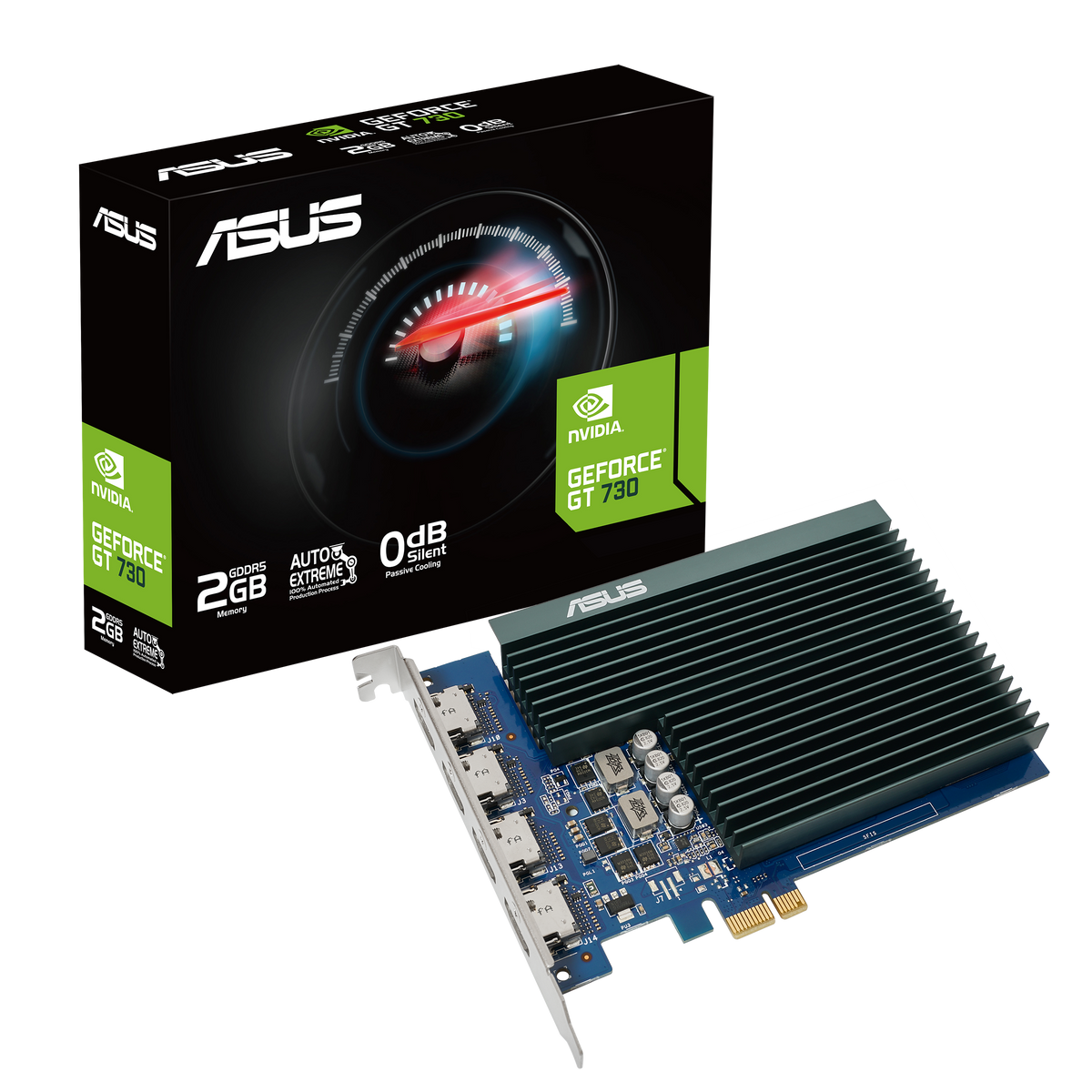

| Accessories | 1 × Quick-start manual |
| Software | ASUS GPU Tweak II & Drivers |
