ASUS Prime AP304 TG ARGB Black ATX Case - 4 ARGB Fans
ASUS
ASUS Prime AP304 TG ARGB Black ATX Case - 4 ARGB Fans
The ASUS Prime AP304 TG ARGB Black is an ATX case built for builders who want to display their system components without compromise. It pairs a curved tempered-glass panel with four pre-installed ARGB fans, a tool-free graphics card clamp, and a patented slot vent designed to cool graphics cards up to 420mm in length.
Why this product
Curved glass panoramic view
The tempered-glass panel wraps from front to side, displaying internal components and lighting from nearly any angle.
Four pre-installed ARGB fans
Three 120mm fans mount on the side as exhaust and one on the rear, with integrated ARGB lighting that syncs via Aura Sync.
Tool-free graphics card installation
A patented slot clamp secures graphics cards without tools, and the reinforced bracket supports cards up to 420mm long.
Patented slot vent cooling
A three-sided ventilation structure in the lower chassis improves airflow directly around the graphics card.
Tool-less panel removal
Side panels detach without tools, and cable management space of 33mm makes assembly and upgrades straightforward.
- Form factorATX
- Motherboard supportATX, Micro-ATX, Mini-ITX
- Max GPU length420 mm
- Dimensions240 × 535 × 450 mm
- Weight11 kg
- Pre-installed fans4 × ASUS Prime MR120 ARGB
- Warranty2 years manufacturer
- SKUASU-2544
- EAN4711636559621
- Supports ATX, Micro-ATX, and Mini-ITX motherboards with 7 expansion slots for graphics cards and other upgrades.
- Fits graphics cards up to 420mm in length and power supplies up to 200mm, covering most standard configurations.
- CPU coolers up to 175mm tall fit without obstruction.
- Flexible radiator support for 120mm, 240mm, or 360mm models, plus multiple fan placements for custom cooling loops.
- Front I/O includes one USB 3.2 Gen 2x2 Type-C port (20Gbps), two USB 3.2 Gen 1 Type-A ports (5Gbps), and audio jacks.
- Supports up to 3 x 2.5" or 2 x 3.5" drive bays; smaller drives require adapter brackets not included.
Best for
- Builders prioritizing visual display with RGB lighting coordination.
- High-end systems with long graphics cards and custom water cooling.
- Users who value tool-free assembly and frequent component swaps.
- ATX and Micro-ATX builds that benefit from optimized graphics card airflow.
Trade-offs
- Budget builds where pre-installed ARGB fans and RGB synchronization are not priorities.
- Compact builds: The case is full-size ATX with dimensions of 240 × 535 × 450 mm and weighs 11 kg; Mini-ITX users may find it oversized.
- Storage-heavy configurations: Drive bay count is limited to 2 × 3.5" or 3 × 2.5"; systems requiring many drives will need external storage.
- Setups without an Aura Sync-compatible motherboard, since the integrated ARGB band and four fans synchronize through that ecosystem.
The ASUS Prime AP304 ARGB is an ATX case with a curved glass panel and four pre-installed ARGB fans, supporting graphics cards up to 420mm in length and featuring a patented airflow design that includes an innovative slot vent in the lower section of the chassis.
The ASUS Prime AP304 ARGB is a versatile panoramic ATX chassis designed to showcase system components with style.

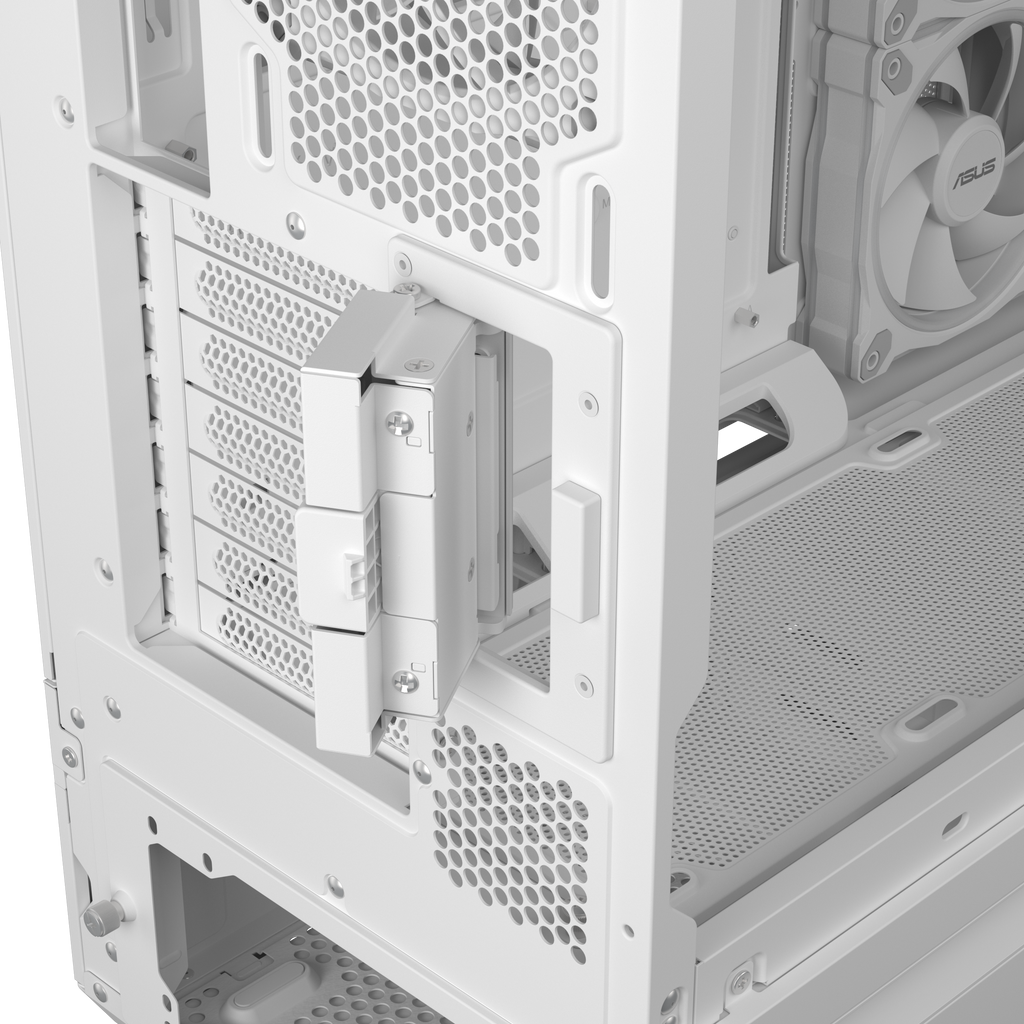

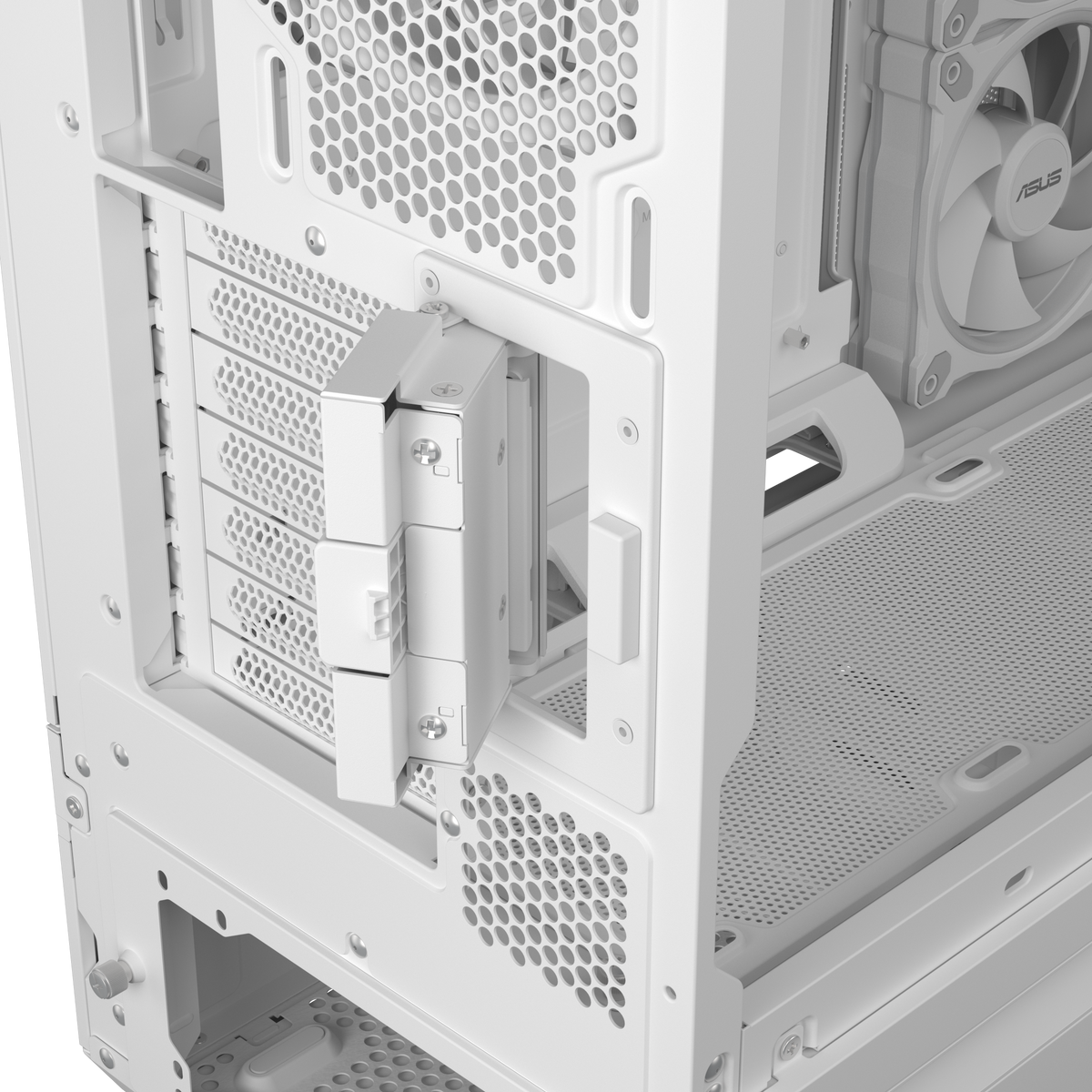

A tool-free graphics card slot clamp makes PC building faster and hassle-free with a simple mechanism that secures your graphics card in place.

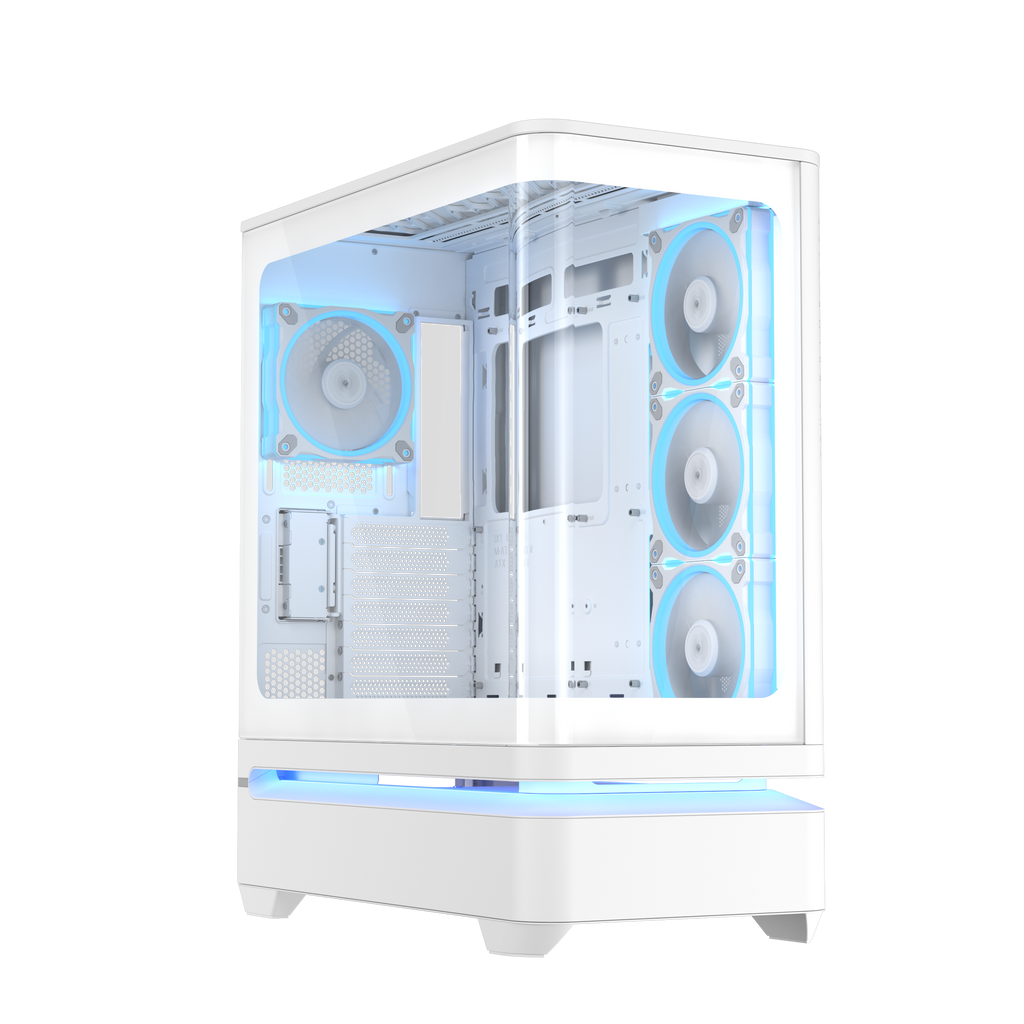

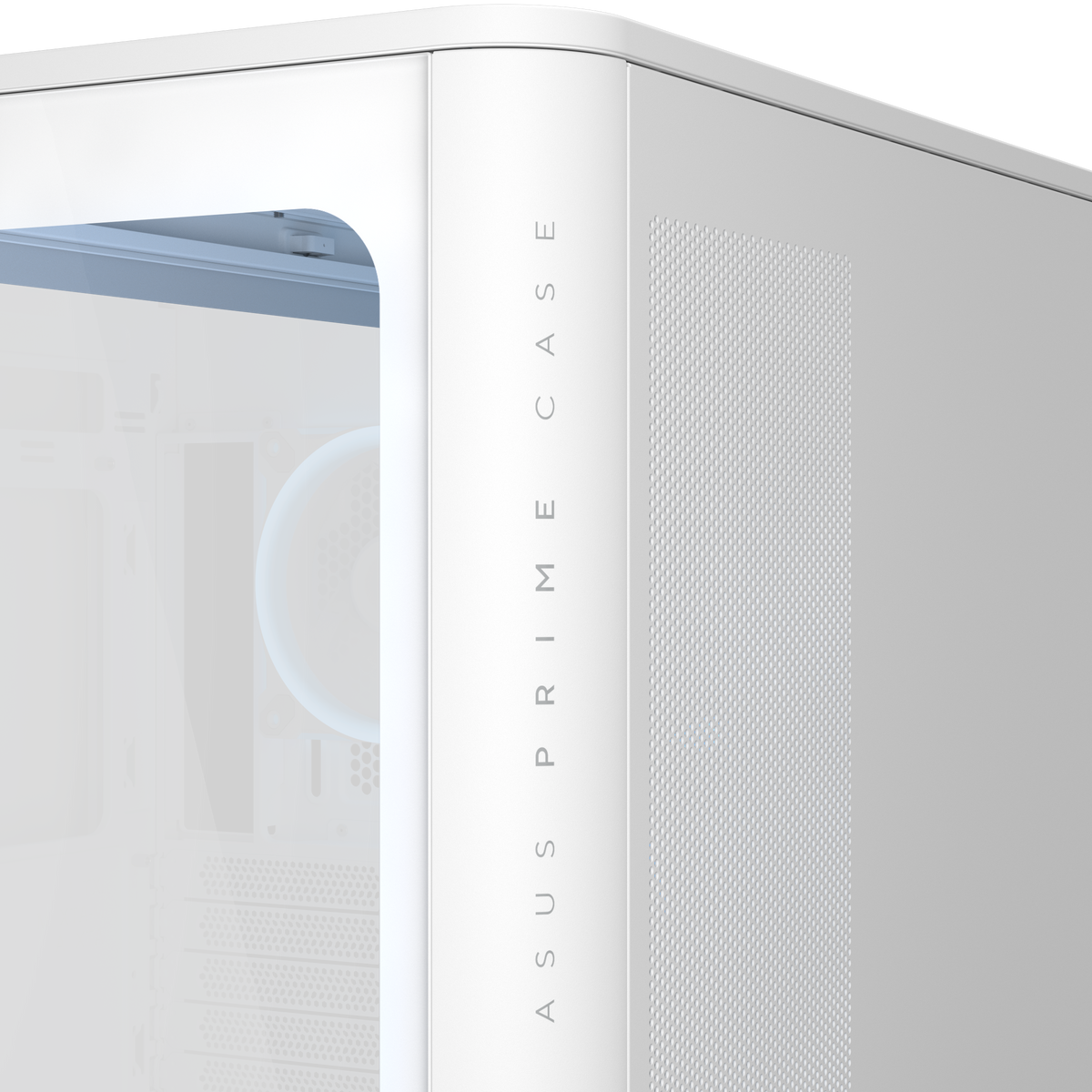

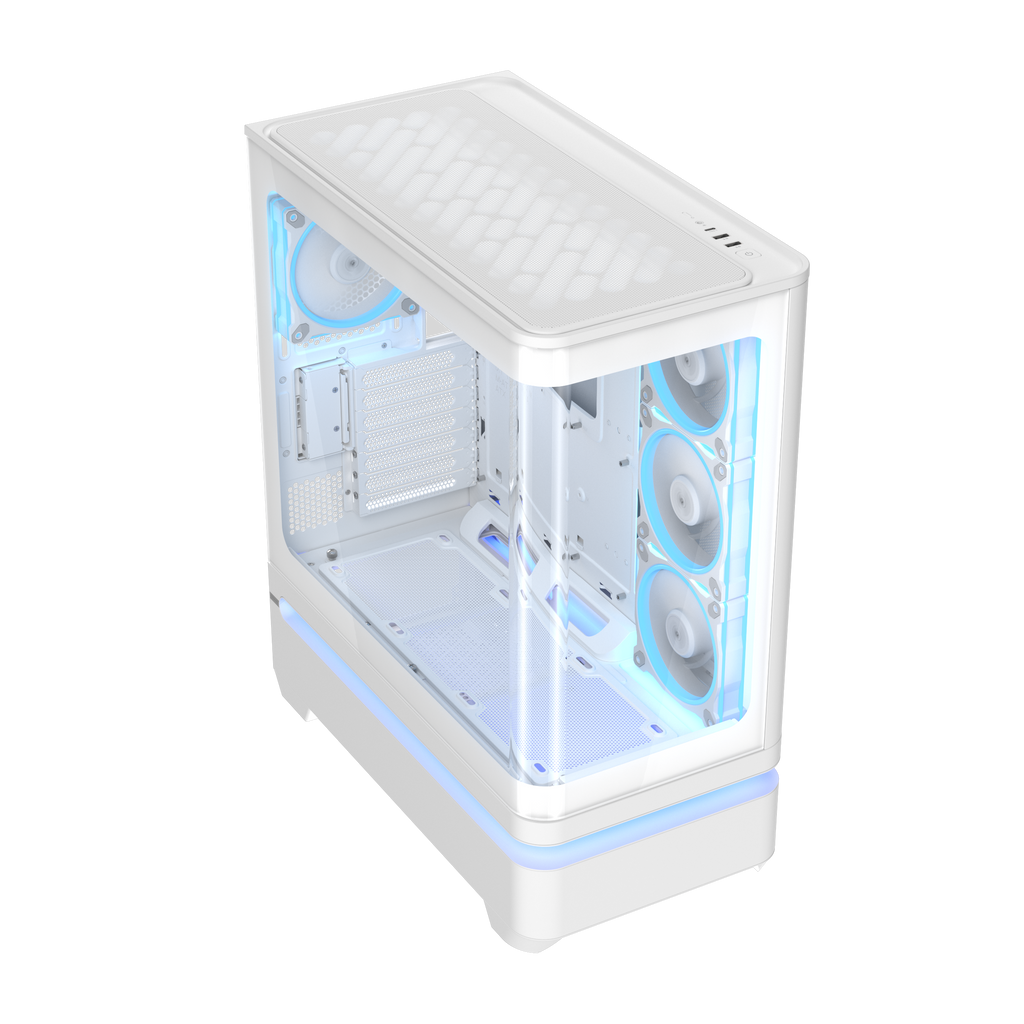

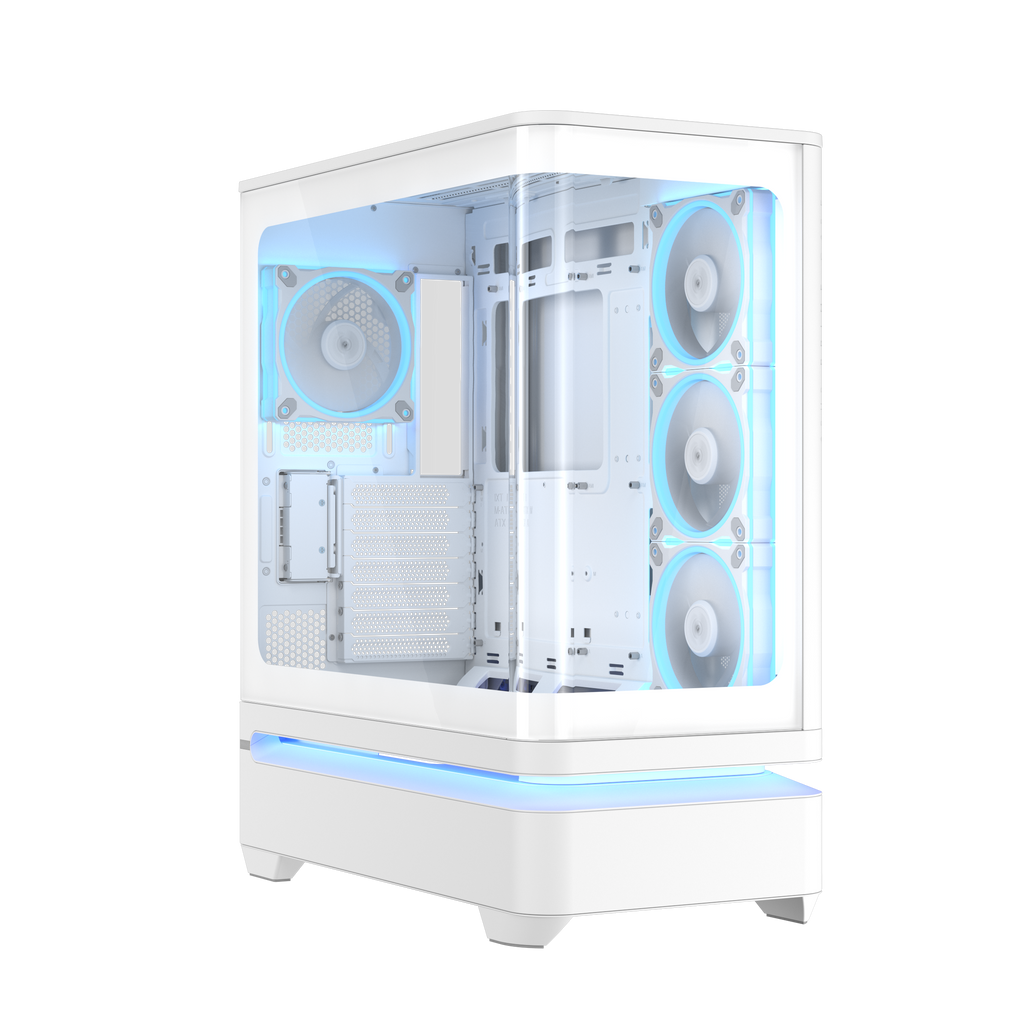

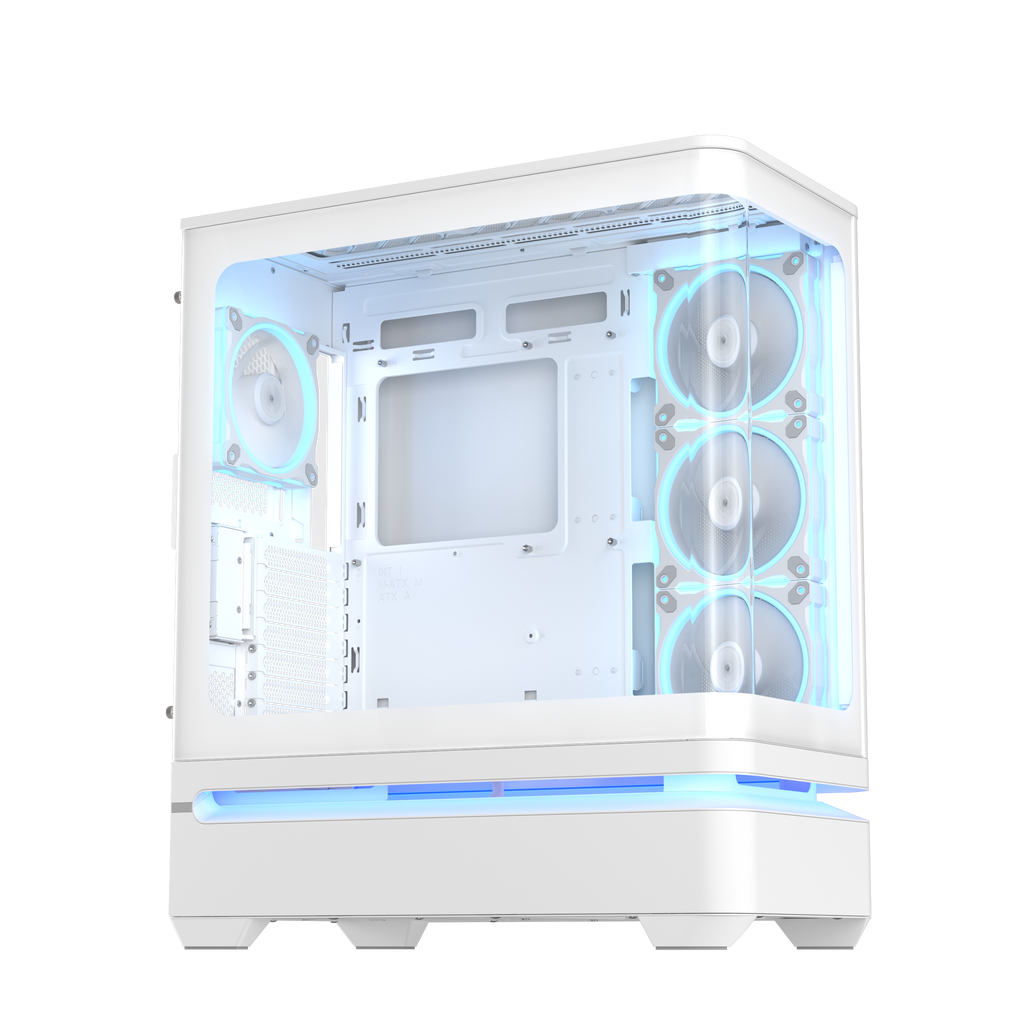

The ASUS Prime AP304 ARGB features a curved tempered-glass panel that creates a panoramic design, clearly showcasing internal components and system lighting.

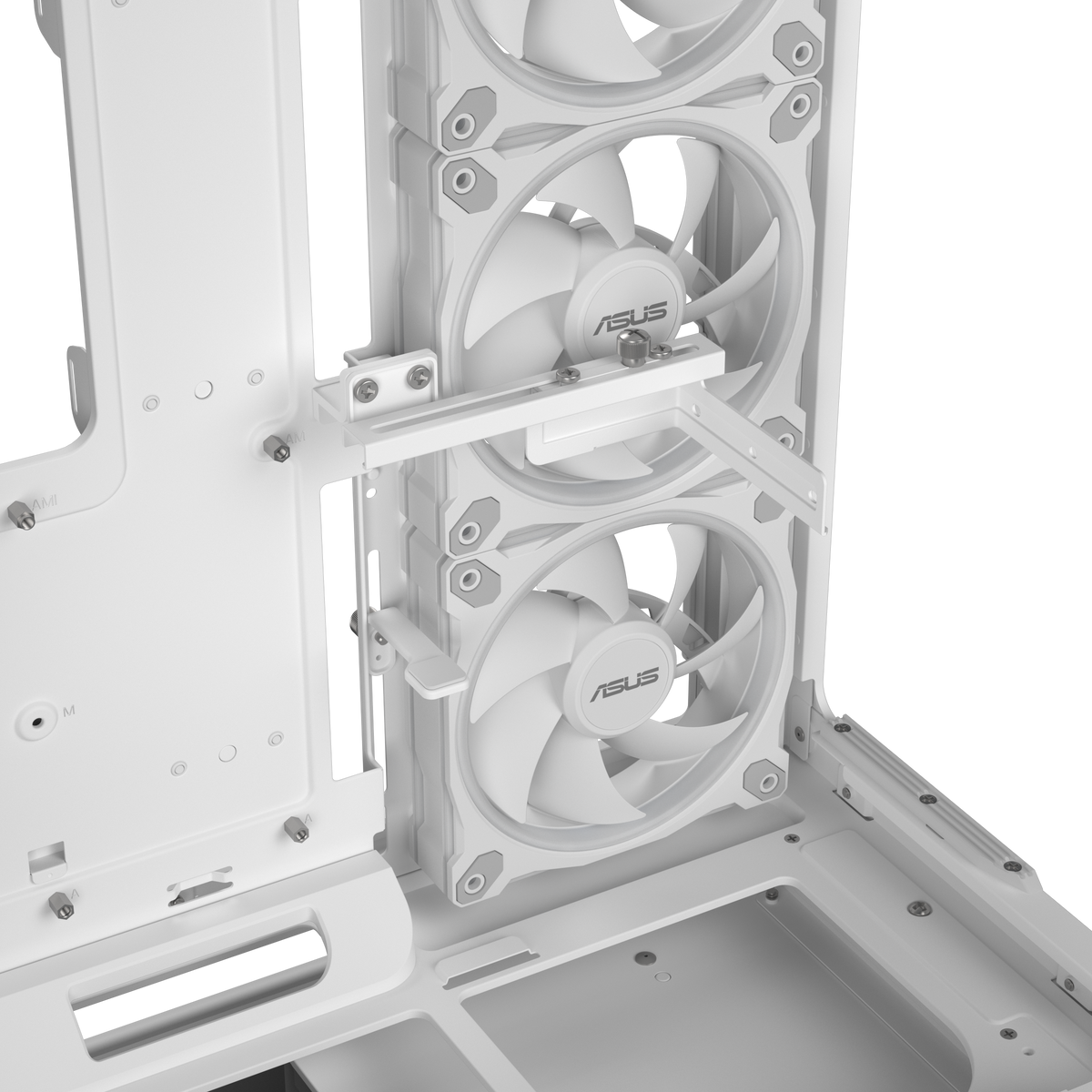

A patented slot clamp and reinforced bracket provide robust installation support for a wide range of graphics cards.

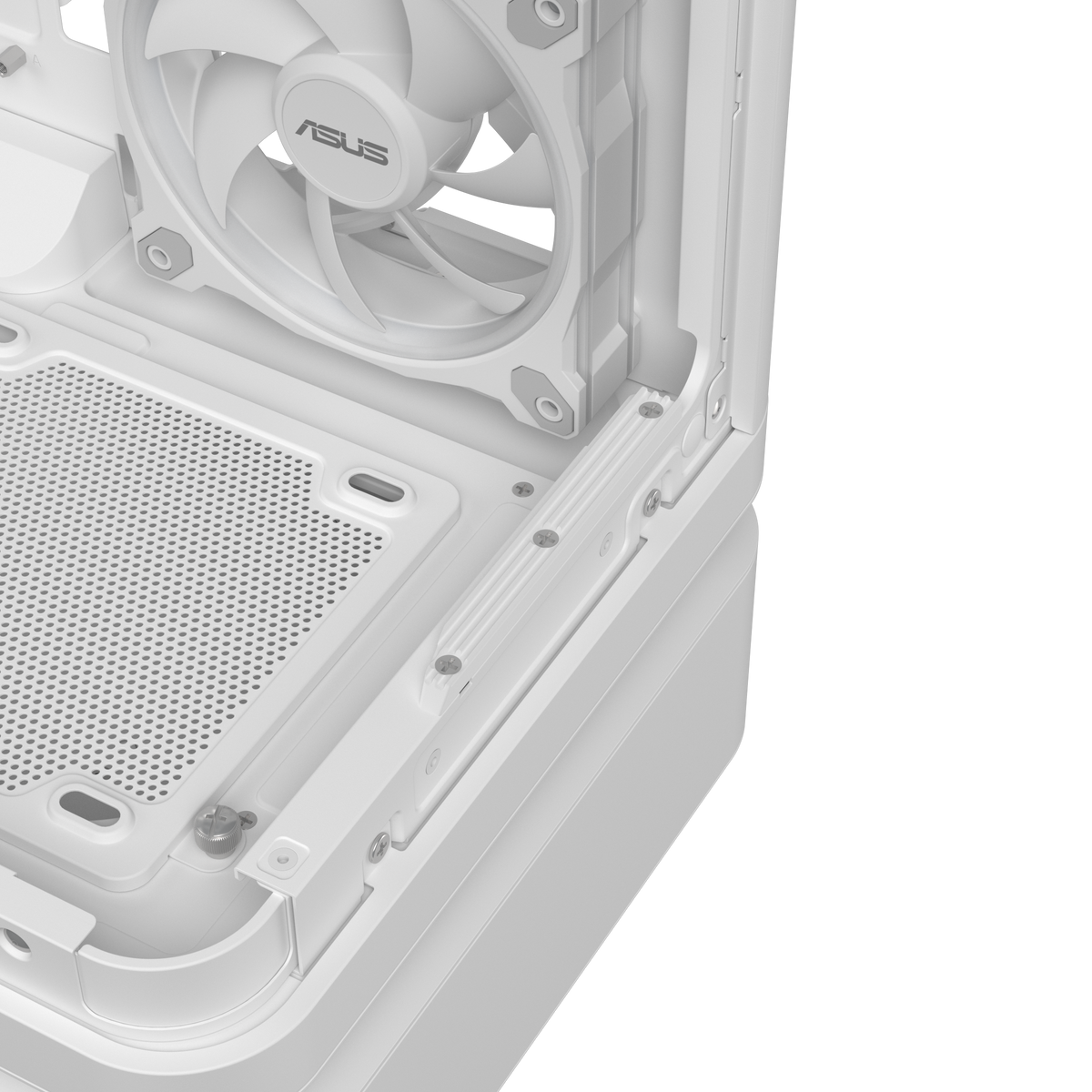

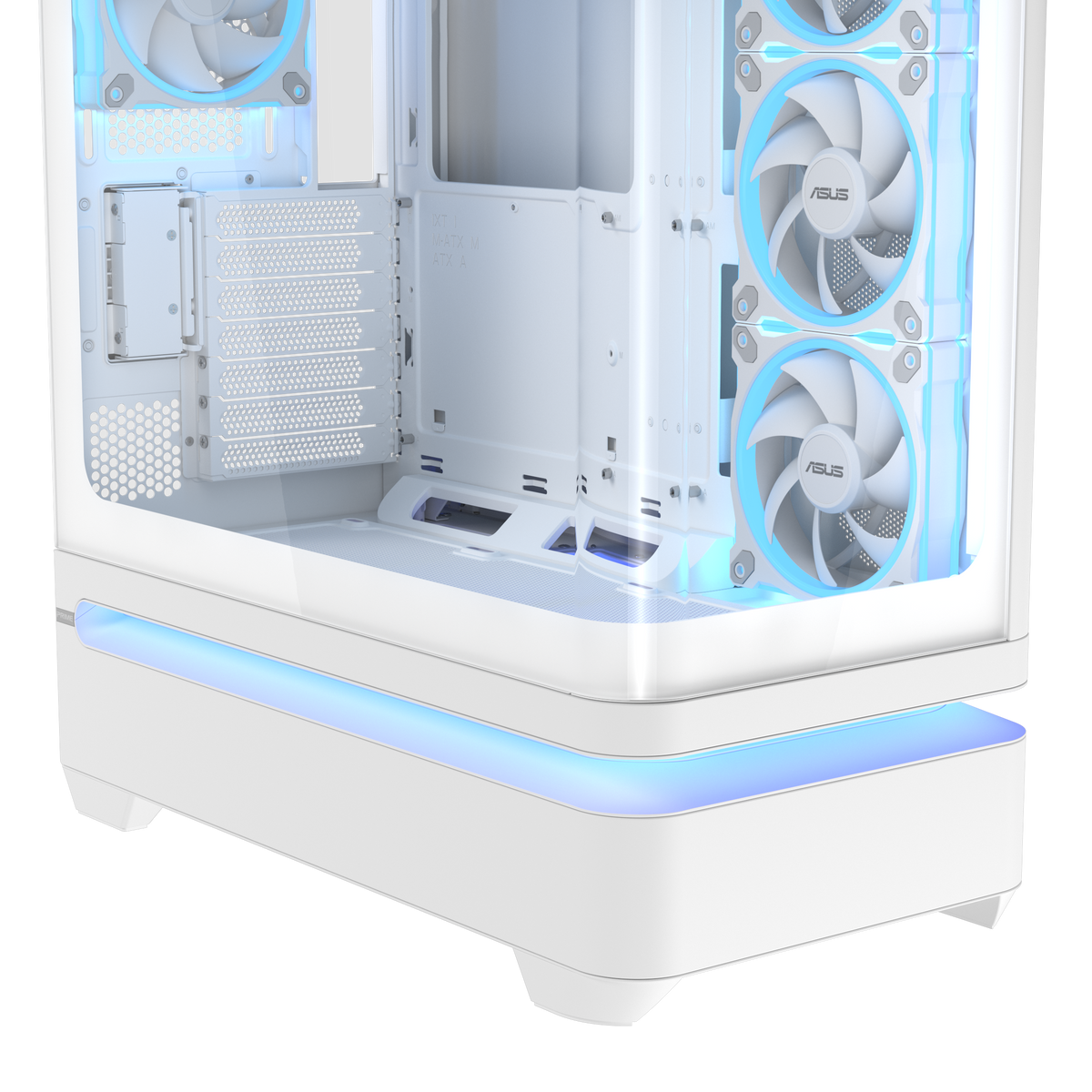

The ASUS Prime AP304 ARGB PC case includes four pre-installed ARGB fans and a patented slot vent with a three-sided ventilation structure that improves airflow around the graphics card, helping to deliver efficient cooling for key components.

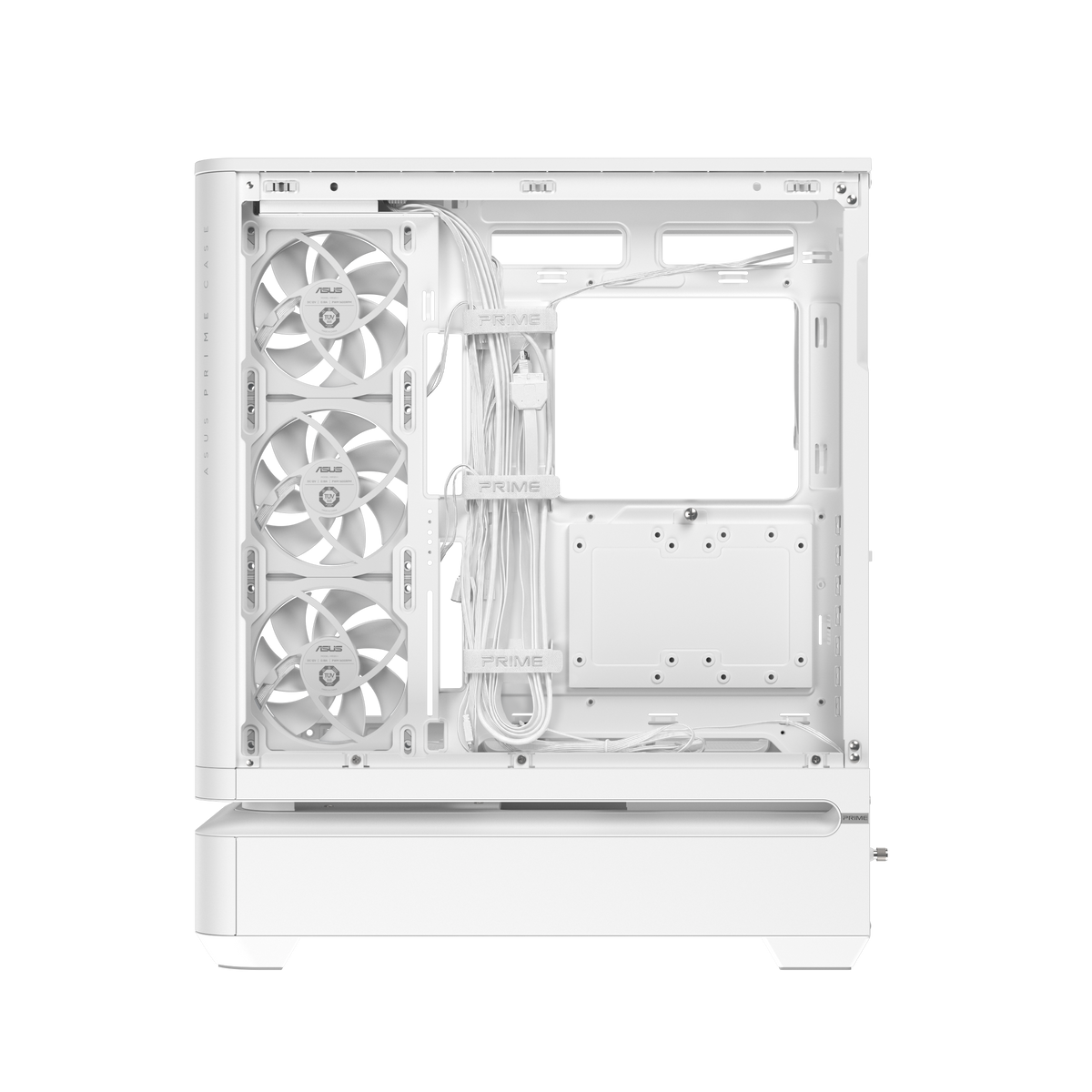

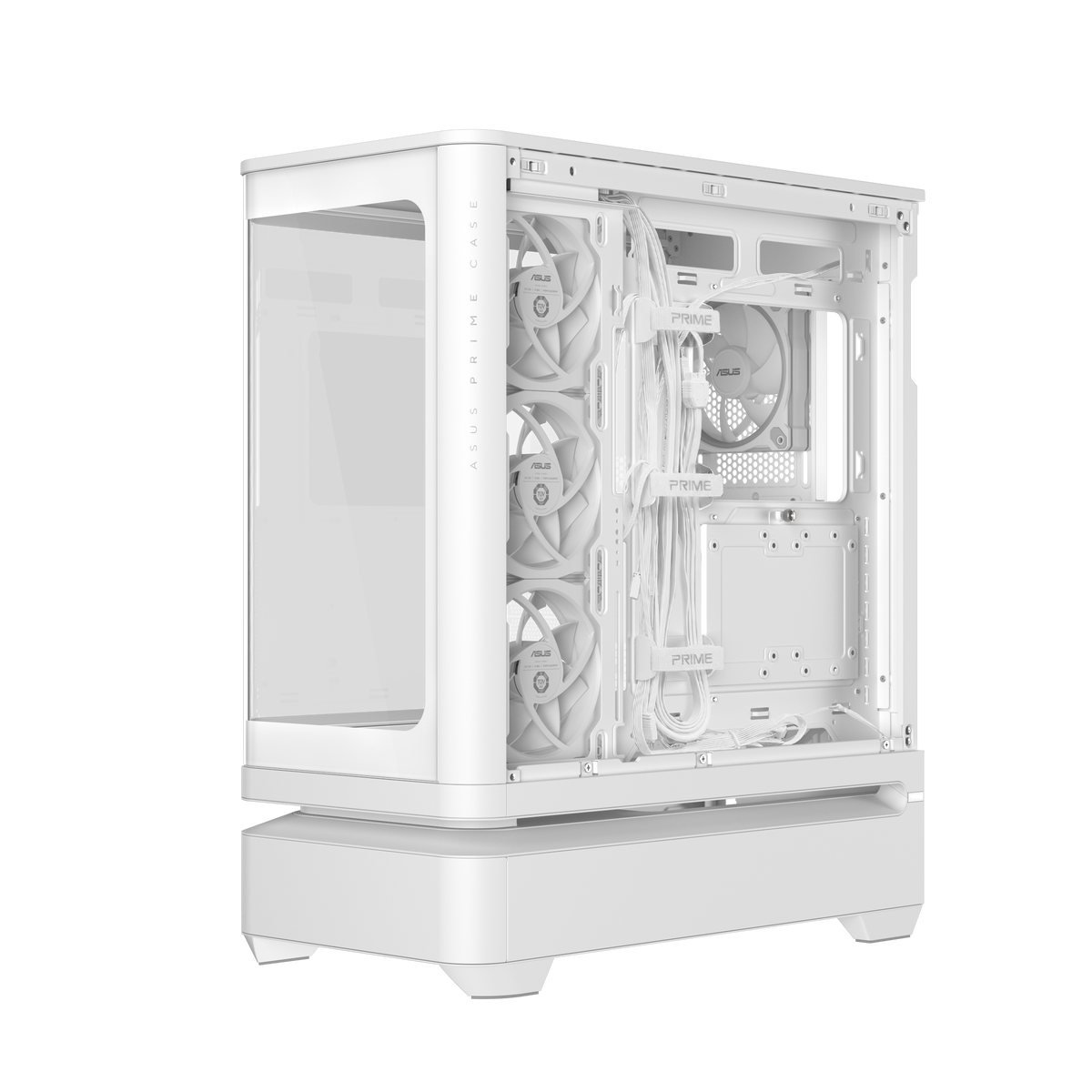

The AP304 ARGB includes tool-less side panels and a generous 33mm-wide cable management space, making assembly, cleaning, and future upgrades easy.
Both variants of the AP304 ARGB come with color-coordinated black or white internal I/O cables to complement any build theme.
The ASUS Prime AP304 ARGB PC case supports a wide range of PC components, including motherboards, graphics cards, power supplies, and cooling solutions.
The ASUS Prime AP304 ARGB PC case supports flexible cooling configurations, allowing multiple fan and radiator placements to help optimize airflow and maintain efficient system cooling.

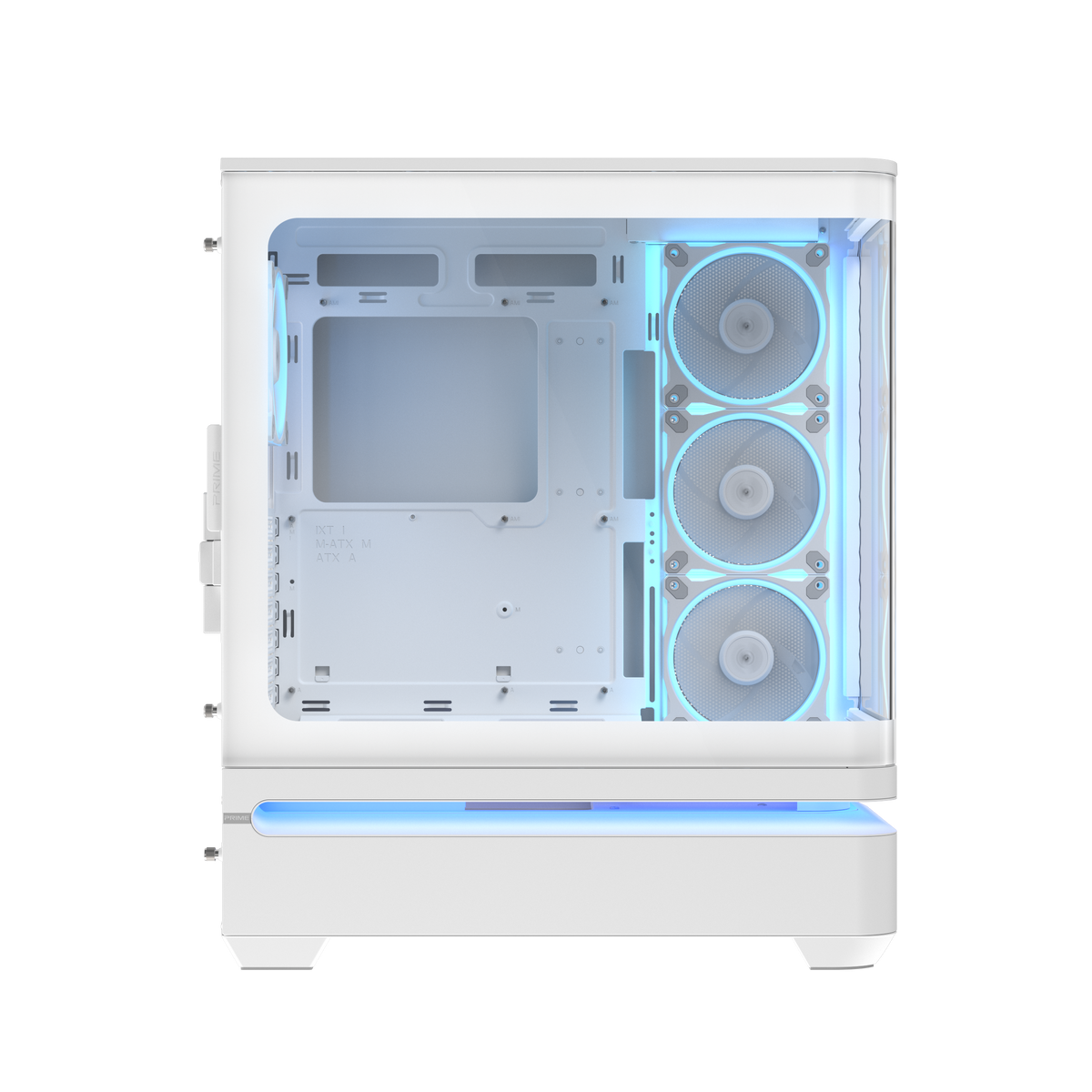

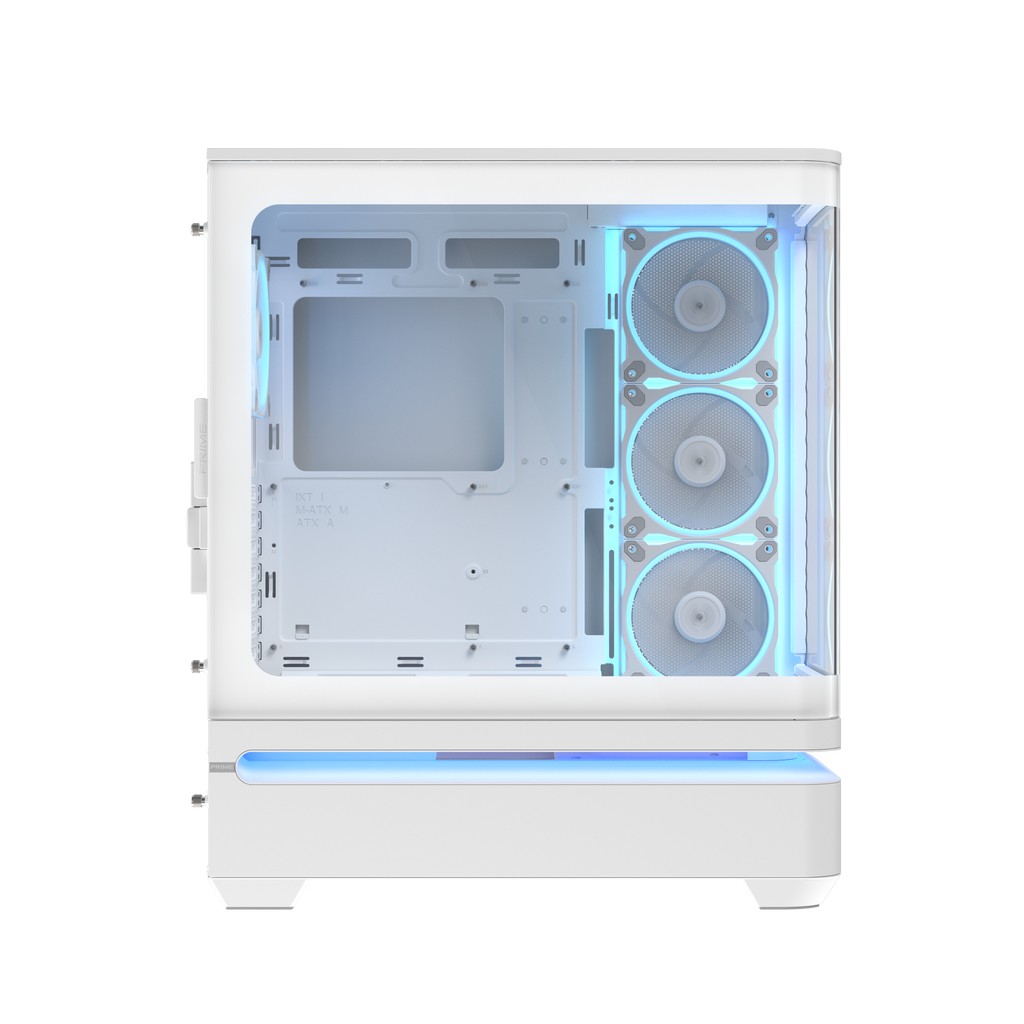

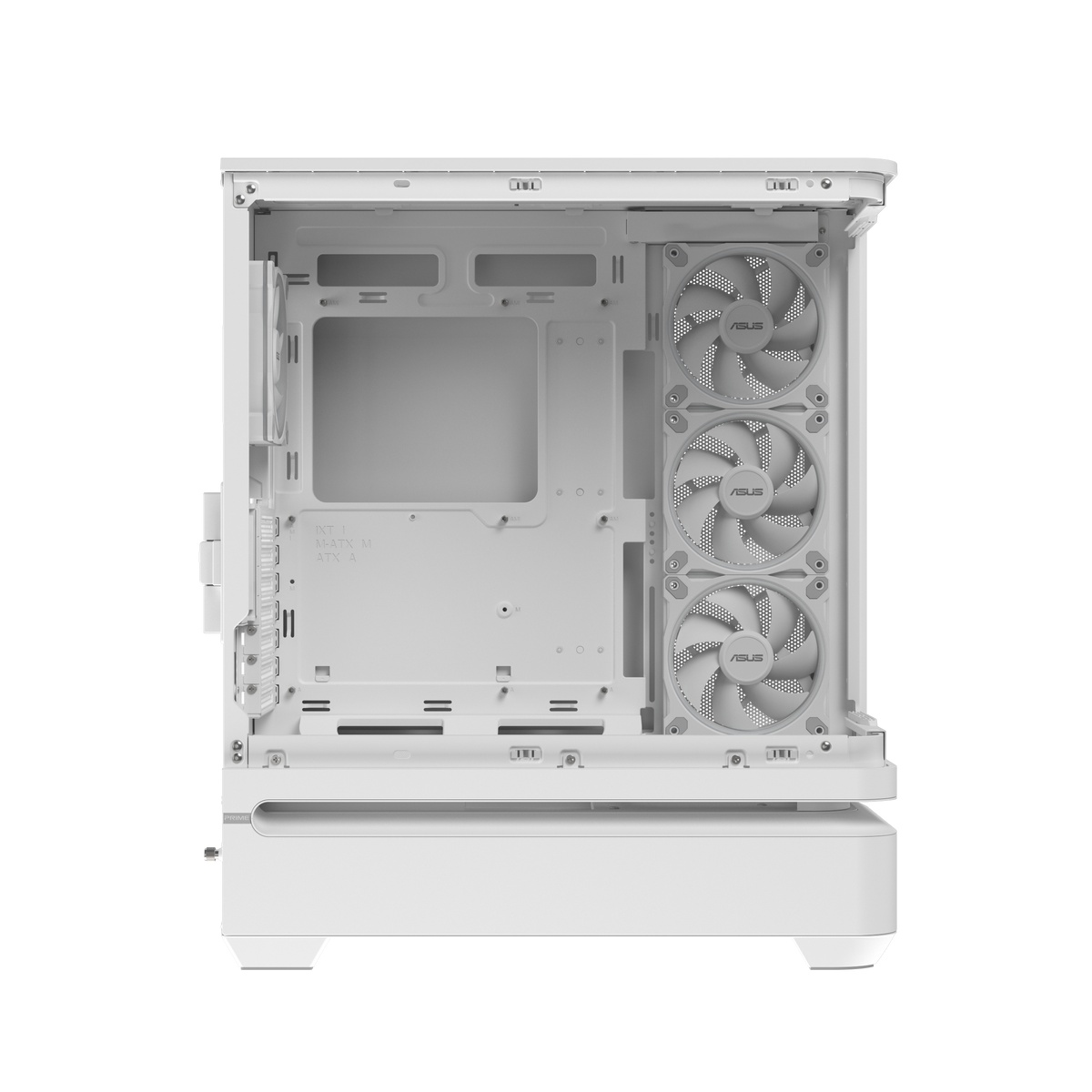

Pre‑installed fans: Three ASUS Prime MR120 ARGB standard‑blade fans (side exhaust) and one ASUS Prime MR120 ARGB standard-blade fan (rear exhaust).

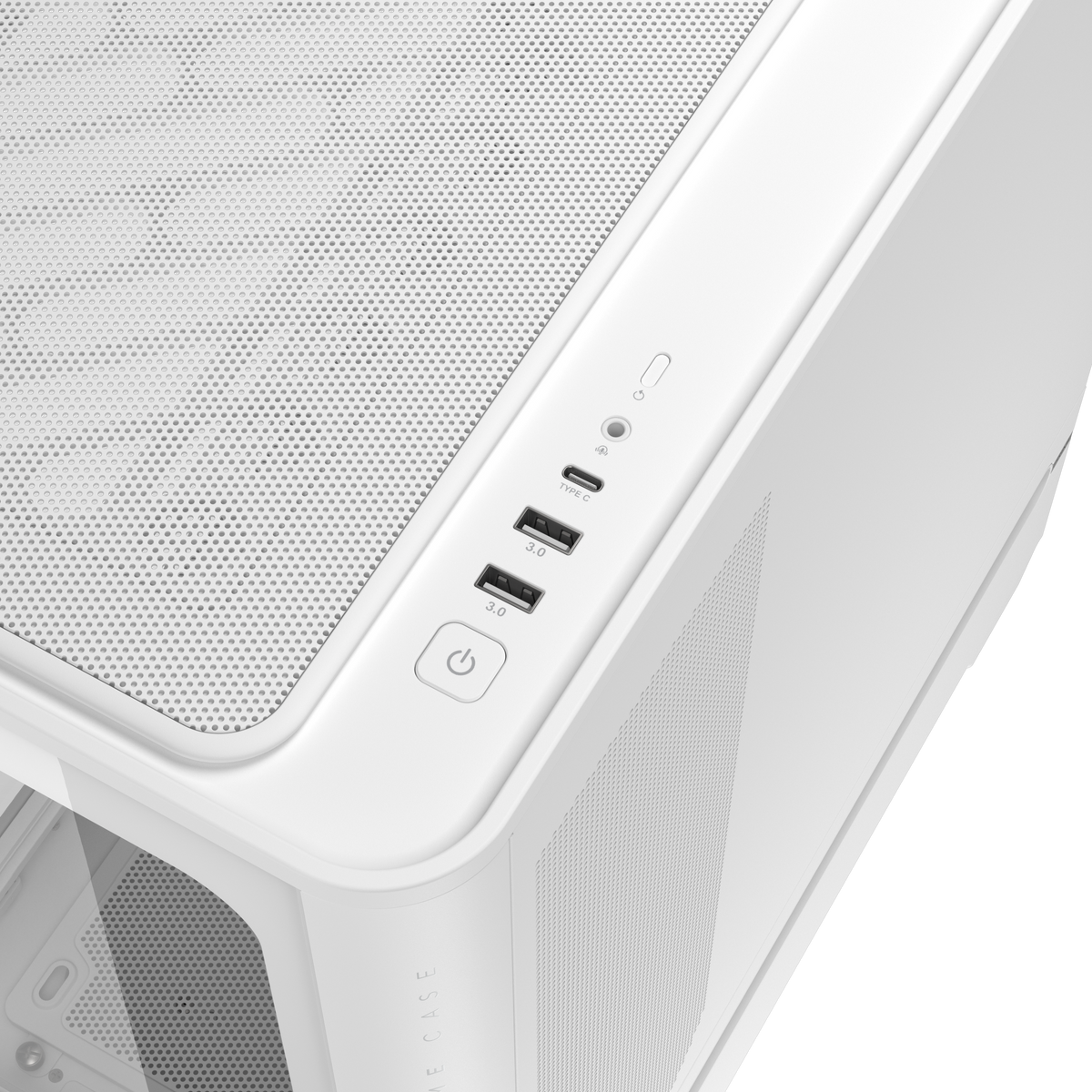

The ASUS Prime AP304 ARGB PC case I/O panel includes one USB Type-C port rated for up to 20Gbps, two USB 5Gbps Type-A ports, and audio input/output jacks.
General
| Brand | ASUS |
|---|---|
| Part Number | 90DC0110-B18000 |
Fan
| Pre-installed fans | 3 × 120 mm side exhaust, 1 × 120 mm rear exhaust (ASUS Prime MR120 ARGB) |
|---|---|
| Side fan support | 3 × 120 mm or 2 × 140 mm |
| Top fan support | 3 × 120 mm |
| Rear fan support | 1 × 120 mm |
| Bottom fan support | 3 × 120 mm |
| Radiator support | 120 mm, 240 mm, 360 mm |
Performance
| Motherboard support | ATX, Micro-ATX, Mini-ITX |
|---|---|
| Expansion slots | 7 |
| Max GPU length | 420 mm |
| Max CPU cooler height | 175 mm |
| Max PSU length | 200 mm |
| Drive bays | 2 × 3.5" or 3 × 2.5" |
| Cable management space | 33 mm |
Acoustics & power
| Front I/O | 1 × USB 3.2 Gen 2x2 Type-C (20Gbps), 2 × USB 3.2 Gen 1 Type-A (5Gbps), headphone/microphone jack |
|---|
