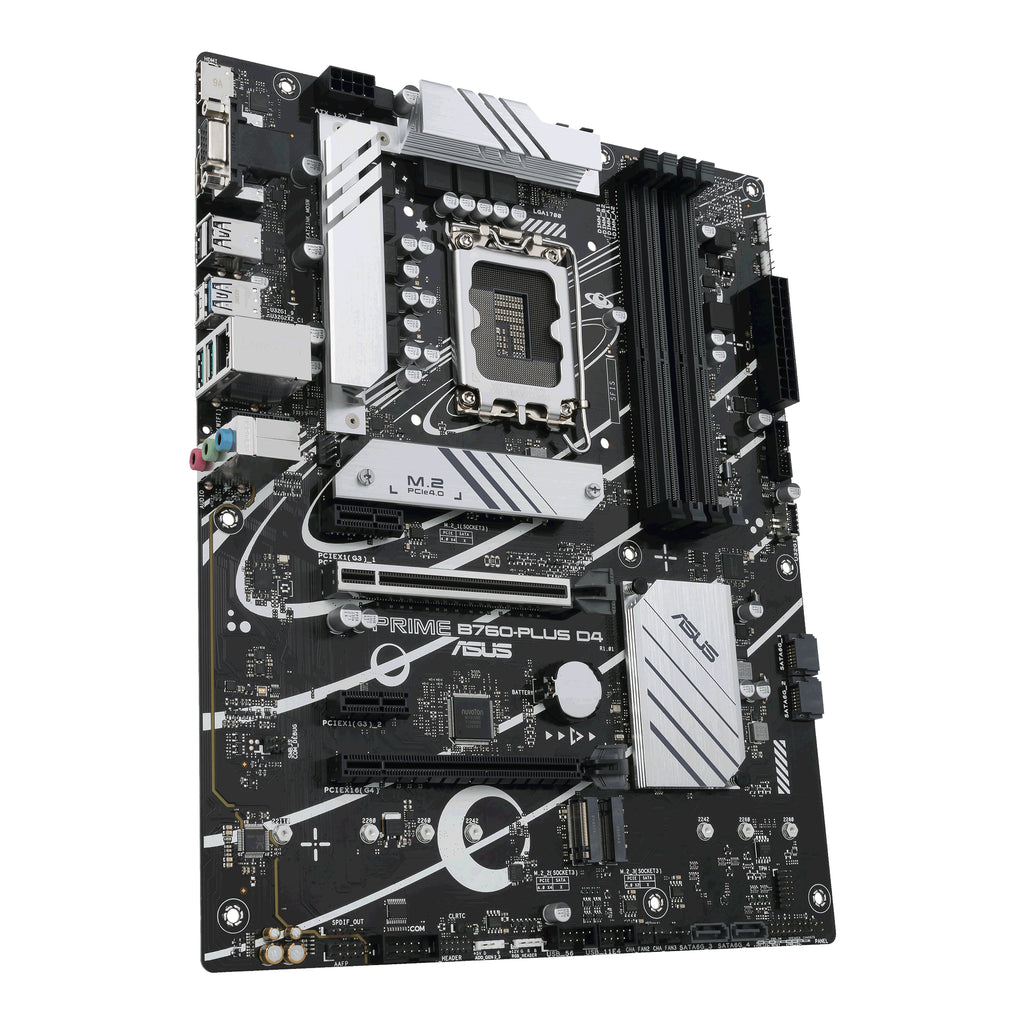

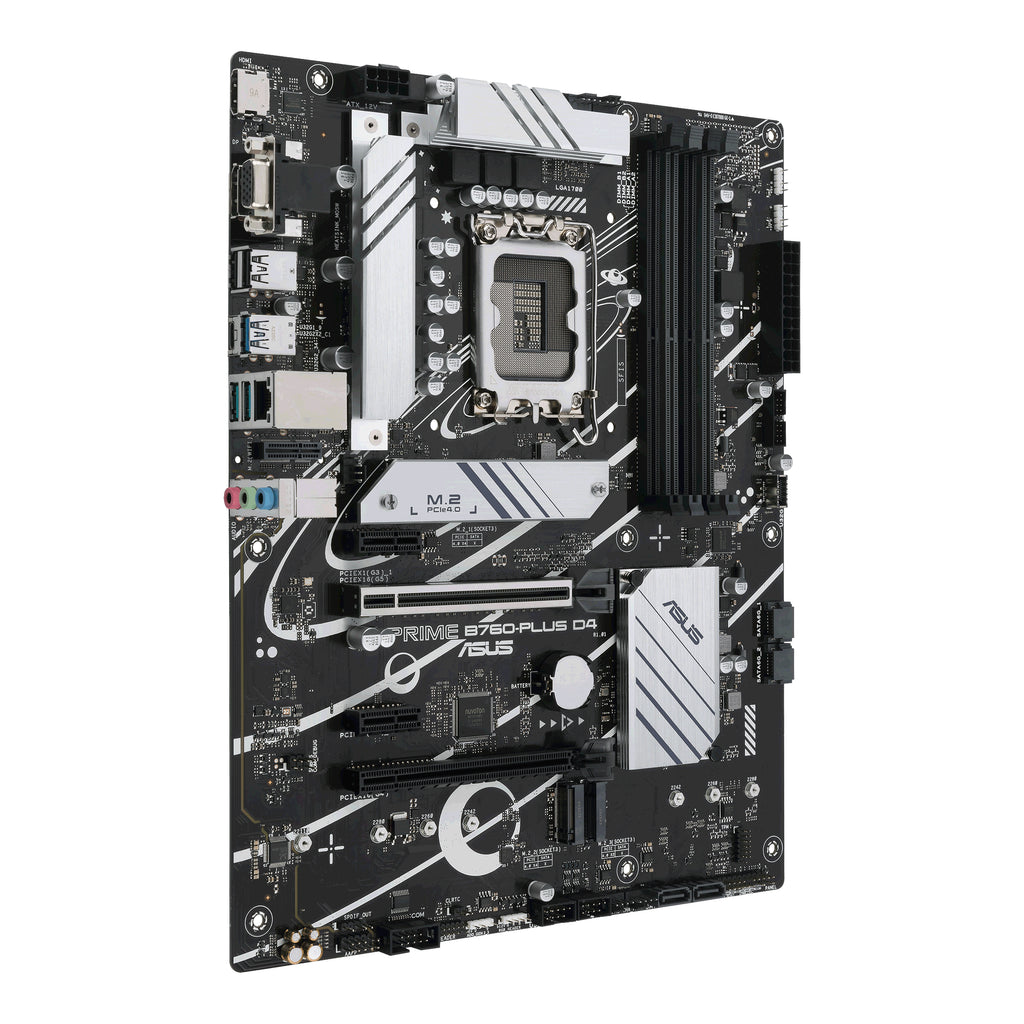

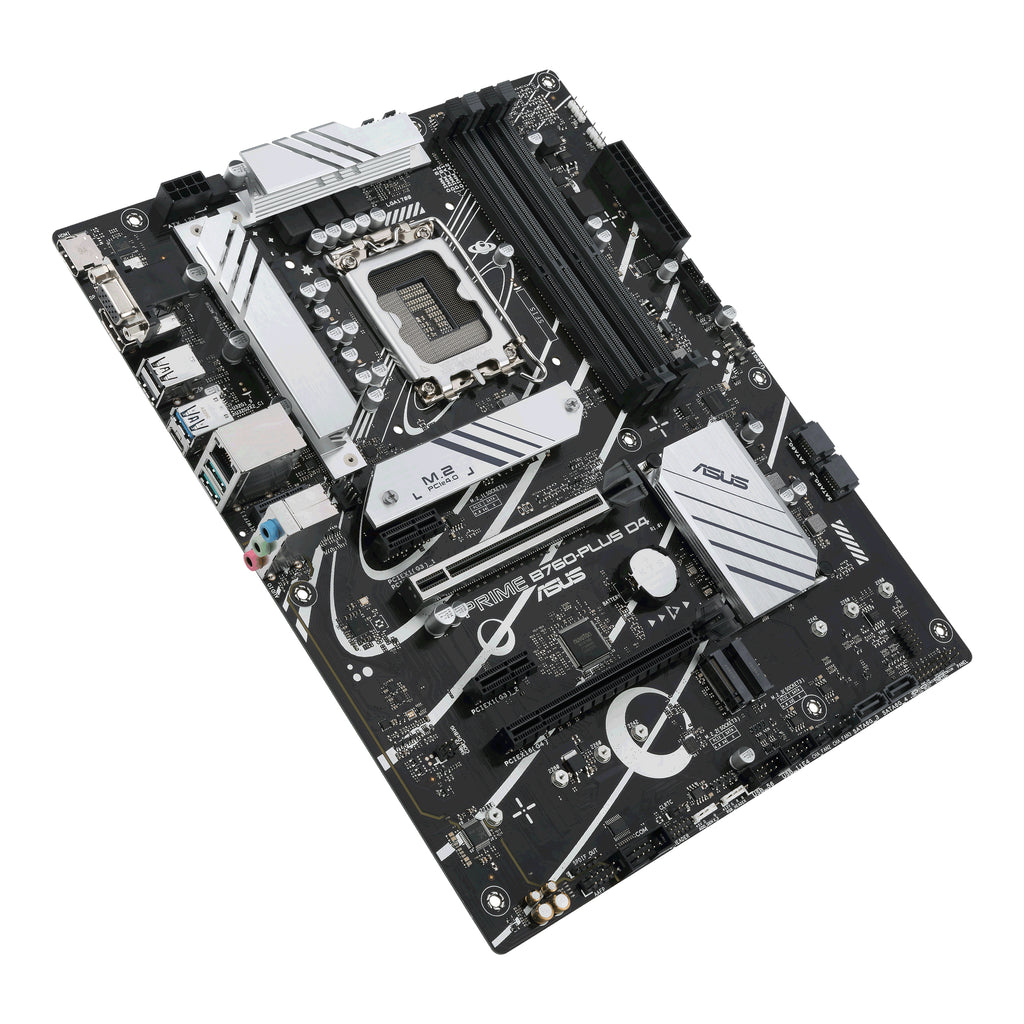

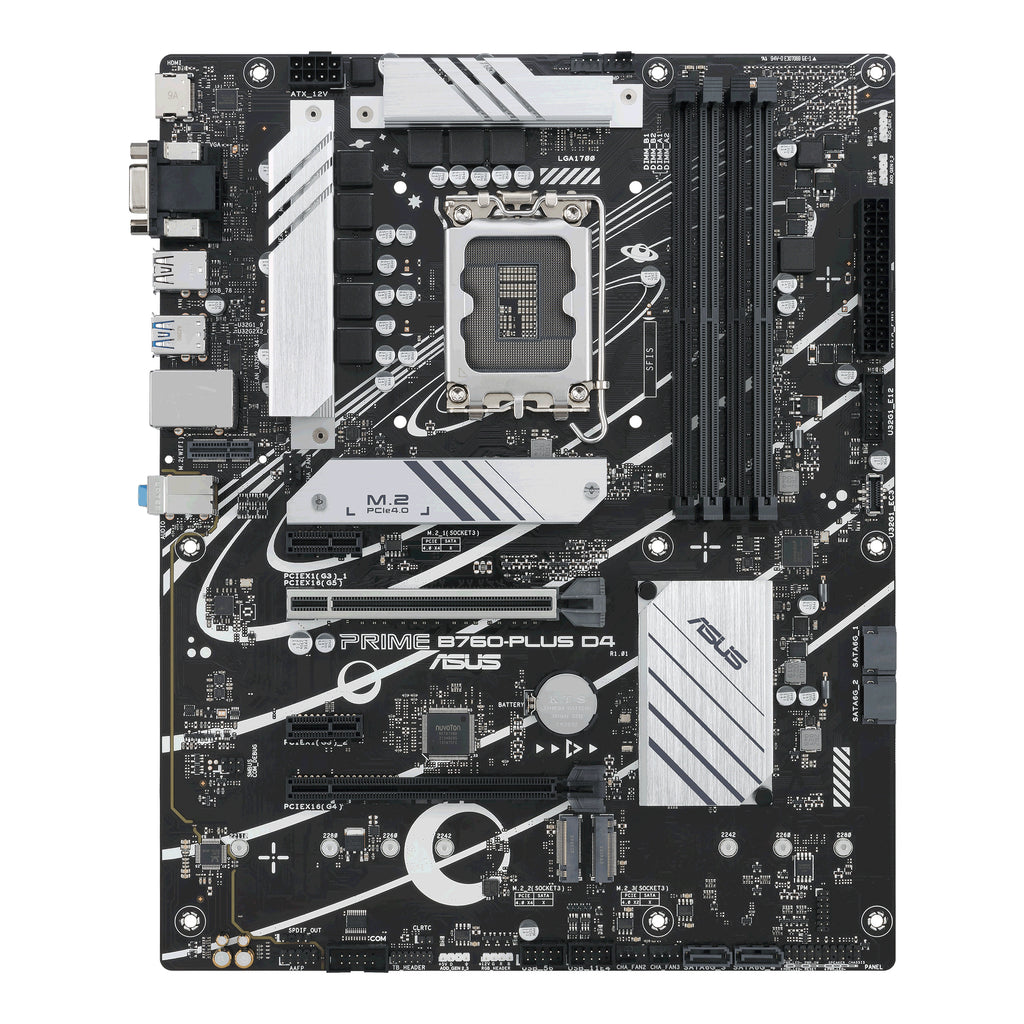

ASUS PRIME B760-PLUS D4 Intel B760 LGA1700 ATX Motherboard
ASUS
ASUS PRIME B760-PLUS D4 Intel B760 LGA1700 ATX Motherboard
The ASUS PRIME B760-PLUS D4 is an Intel B760 LGA1700 ATX motherboard built for 12th and 13th Gen Core processors. It combines PCIe 5.0 support with three fast M.2 slots, DDR4 memory, and comprehensive cooling to suit DIY builders and enthusiasts seeking a capable mid-range platform.
Why this product
PCIe 5.0 and three M.2 slots
The top slot runs PCIe 5.0 x16 for next-gen graphics cards; all three M.2 sockets support PCIe 4.0 (x4, x4, and x2 respectively) for fast storage up to 64 Gbps per slot.
Multiple display outputs
DisplayPort 1.4, HDMI 2.1, and VGA provide flexibility for multi-monitor setups and legacy equipment without adapters.
Thunderbolt USB4 support
An onboard header can host an ASUS add-on card to deliver 40 Gbps bi-directional speeds and high-speed device charging on a single cable.
Comprehensive cooling design
Heatsinks on the VRM, M.2 slot, and chipset, plus hybrid fan headers and Fan Xpert 2+ software, keep components cool under load.
RGB and Aura Sync
Two Addressable Gen 2 headers and an Aura RGB header let you sync lighting across compatible peripherals.
- SocketIntel LGA1700
- ChipsetIntel B760
- Memory4 x DDR4 DIMM, max 128 GB
- M.2 Slots3 (PCIe 4.0 x4, x4, x2)
- Form FactorATX (30.5 × 24.4 cm)
- Expansion SlotsPCIe 5.0 x16, PCIe 4.0 x16 (x4 mode), 2 × PCIe 3.0 x1
- SKUASU-3395
- EAN4711081970309
- Intel 14th, 13th and 12th Gen Core, Pentium Gold and Celeron processors in LGA1700 socket
- DDR4 memory up to 128 GB across four DIMM slots, with support for XMP and speeds up to DDR4-5066 (overclocked)
- Standard ATX form factor (12 × 9.6 inches) fits most mid-tower and full-tower cases
- USB4 via Thunderbolt header requires a separate ASUS add-on card for physical connectivity
- No DDR5 support; this board uses DDR4 memory only
Best for
- 12th and 13th Gen Intel CPU builders on a budget
- DIY enthusiasts wanting PCIe 5.0 without high-end pricing
- Multi-monitor productivity setups
- Gamers and content creators using fast NVMe SSDs
Trade-offs
- DDR5 adopters; this board lacks DDR5 memory support entirely
- Systems requiring integrated Thunderbolt connectivity; the USB4 header needs an optional add-on card
- High-end workstations; the B760 chipset and power delivery target mid-range rather than enthusiast use
- Mini-ITX or micro-ATX form-factor builds; this is a full ATX board
ASUS Prime B760-PLUS D4, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
PRIME B760-PLUS D4 motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge devices.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
PRIME B760-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
General
| Brand | ASUS |
|---|---|
| Product | PRIME B760-PLUS D4 |
| Form Factor | ATX |
| Chipset | Intel B760 |
Processor and Memory
| Socket | Intel LGA1700 |
|---|---|
| CPU Support | 12th, 13th and 14th Gen Intel Core, Pentium Gold, Celeron |
| Memory Slots | 4 x DIMM |
| Memory Type | DDR4 |
| Max Memory | 128 GB |
| Supported Speeds | DDR4-2133 to DDR4-5066 (with overclocking) |
| Memory Features | XMP, OptiMem, Dual Channel |
Storage and Connectivity
| M.2 Slots | 3 (PCIe 4.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) |
|---|---|
| SATA Ports | 4 x 6 Gbps |
| Ethernet | 1 x Realtek 2.5 Gbps |
| USB 3.2 Gen 2x2 | 1 x Type-C (rear) |
| USB 3.2 Gen 2 | 2 x Type-A (rear) |
| USB 3.2 Gen 1 | 1 x Type-A (rear), 1 x header (2 additional ports) |
| USB 2.0 | 2 x Type-A (rear), 2 x headers (4 additional ports) |
Video and Audio

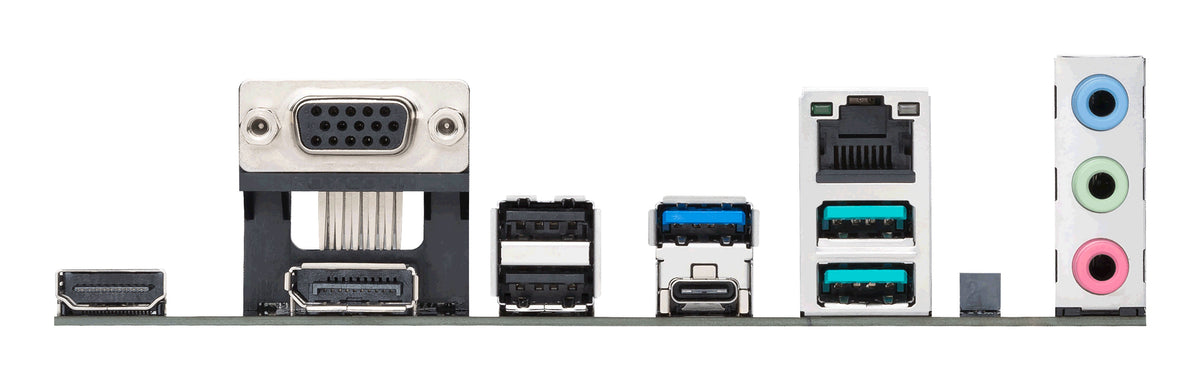

| Video Outputs | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x VGA |
|---|---|
| Audio | Realtek 7.1 Surround, 24-bit/192 kHz, with audio shielding and dedicated PCB layers |
Expansion and Features
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
|---|---|
| Thunderbolt/USB4 | Header support (requires ASUS add-on card, up to 40 Gbps) |
| M.2 Vertical Slot | 1 x Key E (rear I/O) |
| Cooling | VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, Fan Xpert 2+ |
| RGB Lighting | 3 x Addressable Gen 2 headers, 1 x Aura RGB header, Aura Sync support |
| Protection | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core+) |
| BIOS | 128 Mb Flash ROM, UEFI AMI |
| RAID Support | Intel Rapid Storage Technology (RAID 0/1/5/10) |
