ASUS PRIME B760M-A WIFI D4 Intel B760 mATX Motherboard
The ASUS PRIME B760M-A WIFI D4 is a compact Intel B760 motherboard for 12th through 14th Gen Core processors, designed for builders who need PCIe 4.0 storage, Wi-Fi 6, and solid power delivery in a smaller form factor. It balances core features with straightforward BIOS controls, making it suitable for both first-time builders and experienced overclockers.
Why this product
PCIe 4.0 storage with dual M.2 slots
Both M.2 slots run at full PCIe 4.0 x4 speed and support NVMe drives up to 2280 length, allowing fast boot and application load times without bottleneck.
Wi-Fi 6 and 2.5Gb Ethernet
Built-in Wi-Fi 6 (802.11ax) and Realtek 2.5Gb wired networking give you both wireless convenience and wired speed for gaming or large file transfers.
mATX form factor for compact builds
Smaller than ATX but retains four DIMM slots, dual video outputs, and four SATA ports—fitting neatly into Mini-ITX or mATX cases without sacrificing connectivity.
Comprehensive thermal management
VRM, M.2, and PCH heatsinks work with Fan Xpert 2+ software to dynamically adjust cooling based on CPU and GPU temperature sensors, keeping thermals in check under load.
Supports 14th Gen Intel processors
LGA 1700 socket ready for the latest Intel Core 14th Gen chips, as well as 13th and 12th Gen, with full Turbo Boost support.
- ChipsetIntel B760
- SocketLGA 1700 (Intel 12th–14th Gen)
- Form FactormATX
- Memory Slots4 × DIMM, up to 128 GB DDR4
- M.2 Slots2 (both PCIe 4.0 x4)
- NetworkWi-Fi 6, 2.5Gb Ethernet
- SKUASU-2654
- EAN4711081982661
- Fits Intel Core 12th, 13th, and 14th Gen processors in LGA 1700 socket, including Pentium Gold and Celeron variants.
- Accepts DDR4 memory up to 5333 MHz (overclocked) across four DIMM slots, with support for Intel XMP profiles.
- Dual M.2 slots accept NVMe drives in 2242, 2260, and 2280 sizes, both running at PCIe 4.0 x4.
- Fits mATX and Mini-ITX cases; verify your case accepts mATX layout before purchase.
- Does not support Intel Xeon, AMD Ryzen, or any non-LGA 1700 socket processors.
- DDR5 memory is not supported; this board requires DDR4.
Best for
- First-time PC builders seeking an affordable, feature-complete platform with dual M.2 and Wi-Fi 6.
- Compact gaming or workstation builds that need PCIe 4.0 NVMe speed without the footprint of full-size ATX.
- Overclockers interested in manual tuning through ASUS firmware; OptiMem II and extensive BIOS options support memory tweaking.
- Users building network-dependent systems, thanks to integrated Wi-Fi 6 and 2.5Gb Ethernet.
Trade-offs
- High-end multi-GPU rigs. Two PCIe x16 slots exist, but one runs at x4 mode; the third slot runs at x1, limiting parallel GPU configurations.
- Workloads requiring DDR5 memory. This board supports DDR4 only, so cannot use newer, faster DDR5 modules.
- Full-size ATX case builds. The mATX layout does not fit standard ATX cases, only mATX or smaller enclosures.
- Servers or systems needing redundant storage. Four SATA ports and two M.2 slots offer modest expansion; NAS or RAID-heavy setups may outgrow this connectivity.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI D4.
Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones to preserve signal integrity for improved memory overclocking.
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. A dedicated integrated circuit protects each fan header from overheating and overcurrent.
General
| Brand | ASUS |
|---|
Networking
| Ethernet | Realtek 2.5Gb |
|---|---|
| Wireless | Wi-Fi 6 2×2 (802.11a/b/g/n/ac/ax) |
| Bluetooth | Integrated (via Wi-Fi 6 module) |
Performance
| CPU Socket | Intel LGA 1700 (14th, 13th, 12th Gen Core; Pentium Gold; Celeron) |
|---|---|
| Memory Support | DDR4-5333 (OC), DDR4-5066 (OC), DDR4-5000 (OC), DDR4-4800 (OC), DDR4-4600 (OC), DDR4-4400 (OC), DDR4-4266 (OC), DDR4-4000 (OC), DDR4-3733 (OC); up to 128 GB |
| Memory Architecture | Dual Channel, 4 × DIMM slots |
| XMP Support | Intel Extreme Memory Profile |
| OptiMem II | Trace routing and ground layer optimization for signal integrity |
Ports & Connectivity

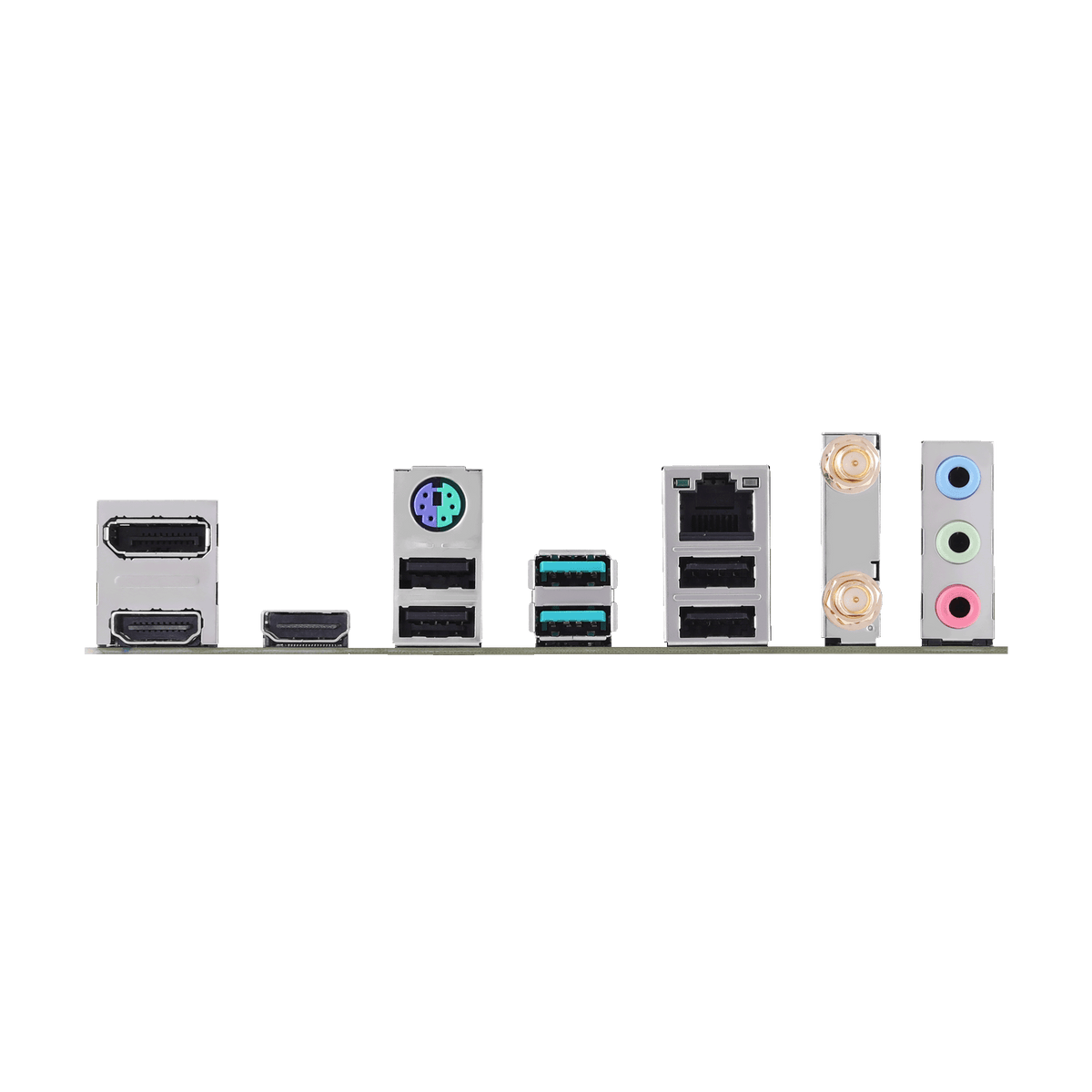

| Video Outputs | 1 × DisplayPort (4K@60Hz), 2 × HDMI (4K@60Hz) |
|---|---|
| M.2 Storage Slots | 2 (both Key M, PCIe 4.0 x4; supports 2242/2260/2280) |
| SATA Ports | 4 × SATA 6 Gbps |
| Rear USB | USB 3.2 Gen 2 (rear), PS/2 combo port |
| Front Panel USB Headers | 1 × USB 3.2 Gen 1 Type-C connector, 3 × USB 2.0 headers (supports 5 additional USB 2.0 ports) |
| PCIe Slots | 1 × PCIe 4.0 x16 (from CPU), 1 × PCIe 4.0 x16 (x4 mode from chipset), 1 × PCIe 4.0 x16 (x1 mode from chipset) |
| RGB Headers | 3 × Addressable Gen 2 headers, 1 × Aura RGB header |
| Audio | 1 × Front Panel Audio header, 1 × S/PDIF Out header |
| Other Headers | Clear CMOS, COM Port, LPT, SPI TPM (14-1 pin), System Panel (20-3 pin with Chassis Intrude) |
Physical
| Form Factor | mATX |
|---|---|
| Cooling | VRM heatsink, M.2 heatsink, PCH heatsink, Fan Xpert 2+ with dynamic thermal control |
Software & BIOS
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3, EZ Mode |
|---|---|
| Software Suite | Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving AI Suite 3, Digi+ VRM, PC Cleaner, ASUS CPU-Z, MyAsus, Norton Deluxe (60 Days Free Trial), WinRAR |
| Supported OS | Windows 11, Windows 10 64-bit |
Protection & Reliability
| Power Protection | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O) |
|---|---|
| Design Features | ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ProCool connectors |
