ASUS PRIME B760M-A WIFI II - Intel B760 mATX DDR5 Motherboard

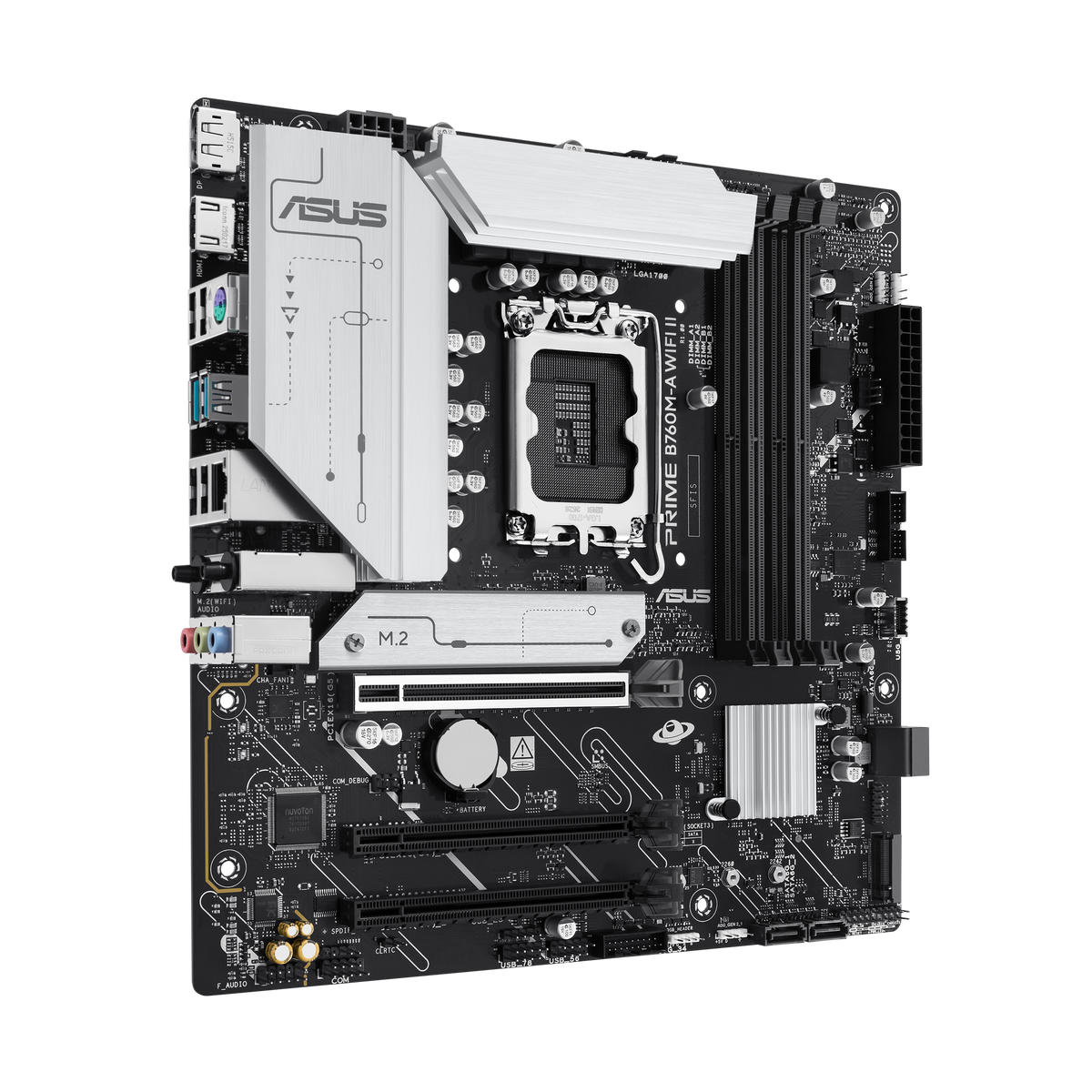

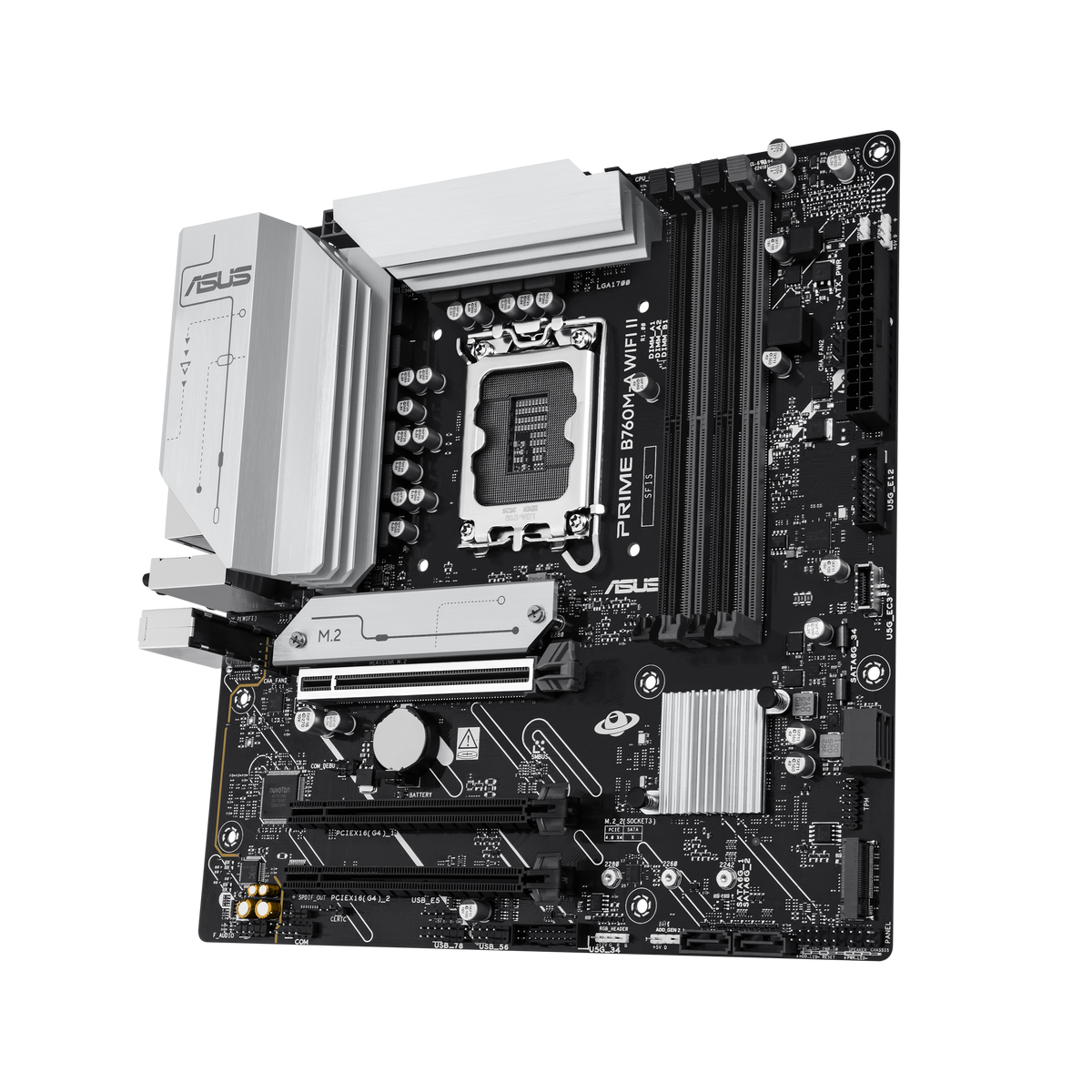

The ASUS PRIME B760M-A WIFI II is an Intel B760 mATX motherboard built for PC builders upgrading to 14th, 13th, or 12th Gen Intel Core processors. It combines DDR5 memory support, Wi-Fi 6E connectivity, and PCIe 5.0 expansion with comprehensive cooling and AI-ready architecture for both gaming and workstation builds.
Why this product
Wi-Fi 6E and multi-gigabit ethernet

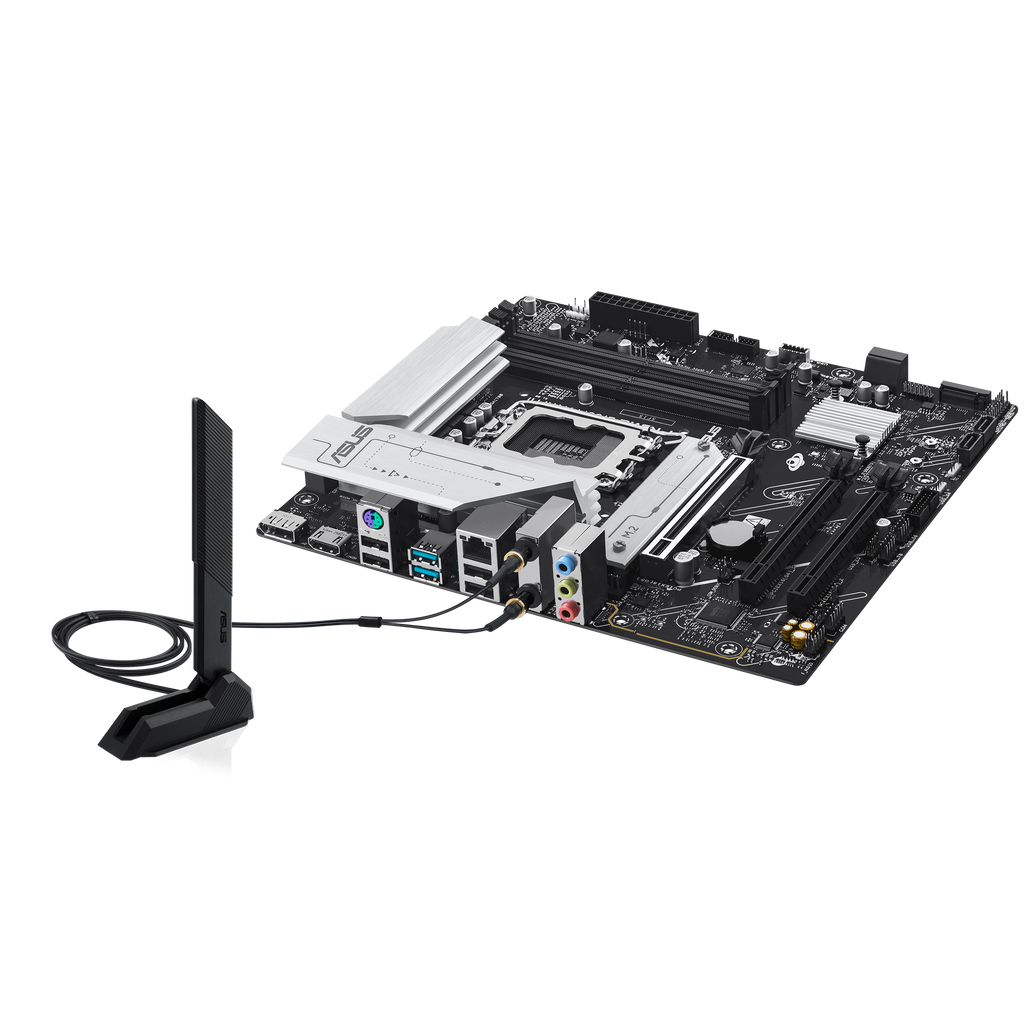

Built-in Wi-Fi 6E (802.11ax) covers 2.4/5/6 GHz bands with 160 MHz bandwidth, and a Realtek 2.5Gb Ethernet port handles wired connectivity. Bluetooth 5.4 rounds out wireless support.
PCIe 5.0 expansion and dual M.2 storage
One PCIe 5.0 x16 slot from the CPU pairs with two additional PCIe 4.0 slots. Two M.2 slots (both PCIe 4.0 x4) and four SATA ports provide storage flexibility.
DDR5 memory up to 256GB

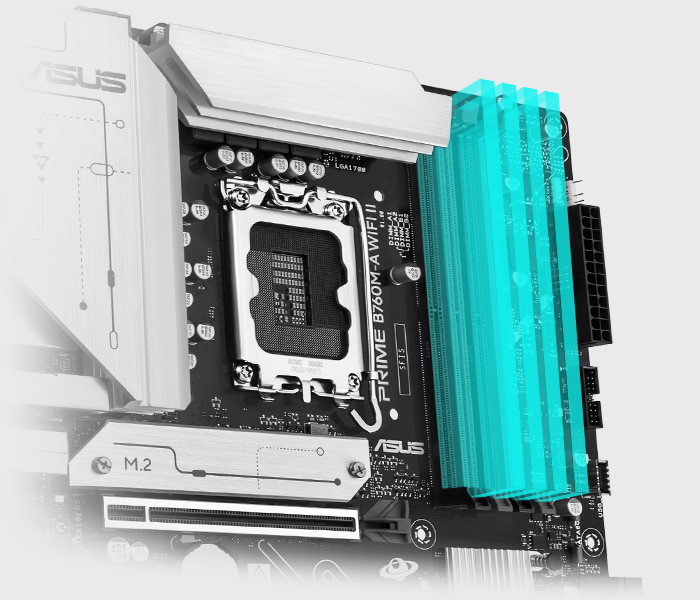

Supports DDR5 up to 7200+ MHz with Intel XMP profiles. Four DIMM slots allow for high-capacity builds and overclocking headroom.
Comprehensive cooling and power delivery
VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ software manage thermals. Supports Intel Turbo Boost Technology 2.0 and 3.0.
Rear USB 10Gbps and front USB Type-C
Two rear USB 10Gbps Type-A ports plus USB 2.0, plus front headers for additional USB 5Gbps ports and one USB Type-C connector.
Aura Sync RGB and AI noise cancelation
Three onboard addressable Gen 2 headers sync RGB lighting across compatible devices. Two-way AI noise cancelation improves microphone and speaker clarity.
- ChipsetIntel B760
- SocketIntel LGA1700
- Form FactormATX
- Memory SupportDDR5 up to 7200+ MHz
- ExpansionPCIe 5.0 x16, PCIe 4.0 x16 (x4), PCIe 4.0 x16 (x1)
- Storage2× M.2 (PCIe 4.0 x4), 4× SATA 6Gb/s
- WirelessWi-Fi 6E, Bluetooth 5.4
- SKUASU-2713
- EAN4711636275439
- Intel Socket LGA1700 for 14th, 13th, and 12th Gen Core processors, Pentium Gold, and Celeron CPUs.
- DDR5 memory only; does not support DDR4.
- mATX form factor (24.4 cm × 24.4 cm) fits standard mid-tower and compact cases.
- Windows 11 and Windows 10 64-bit operating systems.
- M.2_2 slot operates in PCIe 4.0 x4 mode; full PCIe 5.0 speeds are available on the primary M.2_1 slot.
Best for
- DDR5 gaming builds and workstations on a budget-conscious platform
- Small-form-factor PCs and compact case builders needing full feature set
- Wireless-first users who need Wi-Fi 6E and multi-gig ethernet combined
- Builders planning PCIe 5.0 NVMe and GPU expansion
- AI workstation applications leveraging 14th Gen Intel processors
Trade-offs
- DDR4 memory builds; this board supports DDR5 only.
- Users needing more than four SATA storage connections; limited to four SATA 6Gb/s ports.
- E-ATX or full ATX form factor requirements; mATX limits physical space and power delivery scale.
- AMD Ryzen processors; Intel LGA1700 socket only.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides a feature-rich platform for your build.
Upgrade to ASUS Prime B760M-A WIFI II for seamless AI computing. Supports Intel® Core™ processors, Wi-Fi 6E, PCIe 5.0, and robust cooling for top performance.

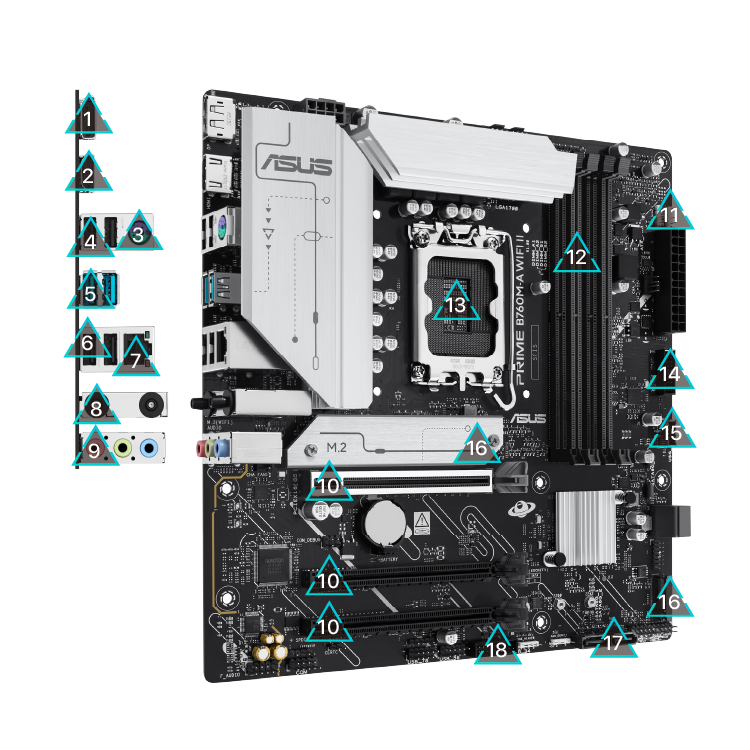

Intel® B760 (LGA 1700) mATX motherboard, DDR5, PCIe 5.0 Ready, two M.2 slots, WIFI 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps Type-A and front USB 5Gbps Type-C®, Aura Sync
Networking
| Brand | ASUS |
|---|---|
| Wireless Standard | Wi-Fi 6E (802.11ax) 2×2 |
| Wireless Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Wireless Bandwidth | 160 MHz |
| Bluetooth | 5.4 |
| Ethernet | Realtek 2.5Gb Ethernet |
| Network Security | ASUS LANGuard |
Performance
| CPU Socket | Intel LGA1700 |
|---|---|
| Supported Processors | Intel Core 14th, 13th, 12th Gen; Pentium Gold; Celeron |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 4800–7200+ MHz (OC) |
| XMP Support | Intel Extreme Memory Profile |
| Turbo Boost | Intel Turbo Boost Technology 2.0 and 3.0 |
Ports & Power
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4), 1× PCIe 4.0 x16 (x1) |
|---|---|
| M.2 Slots | 2 (both PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6 Gb/s |

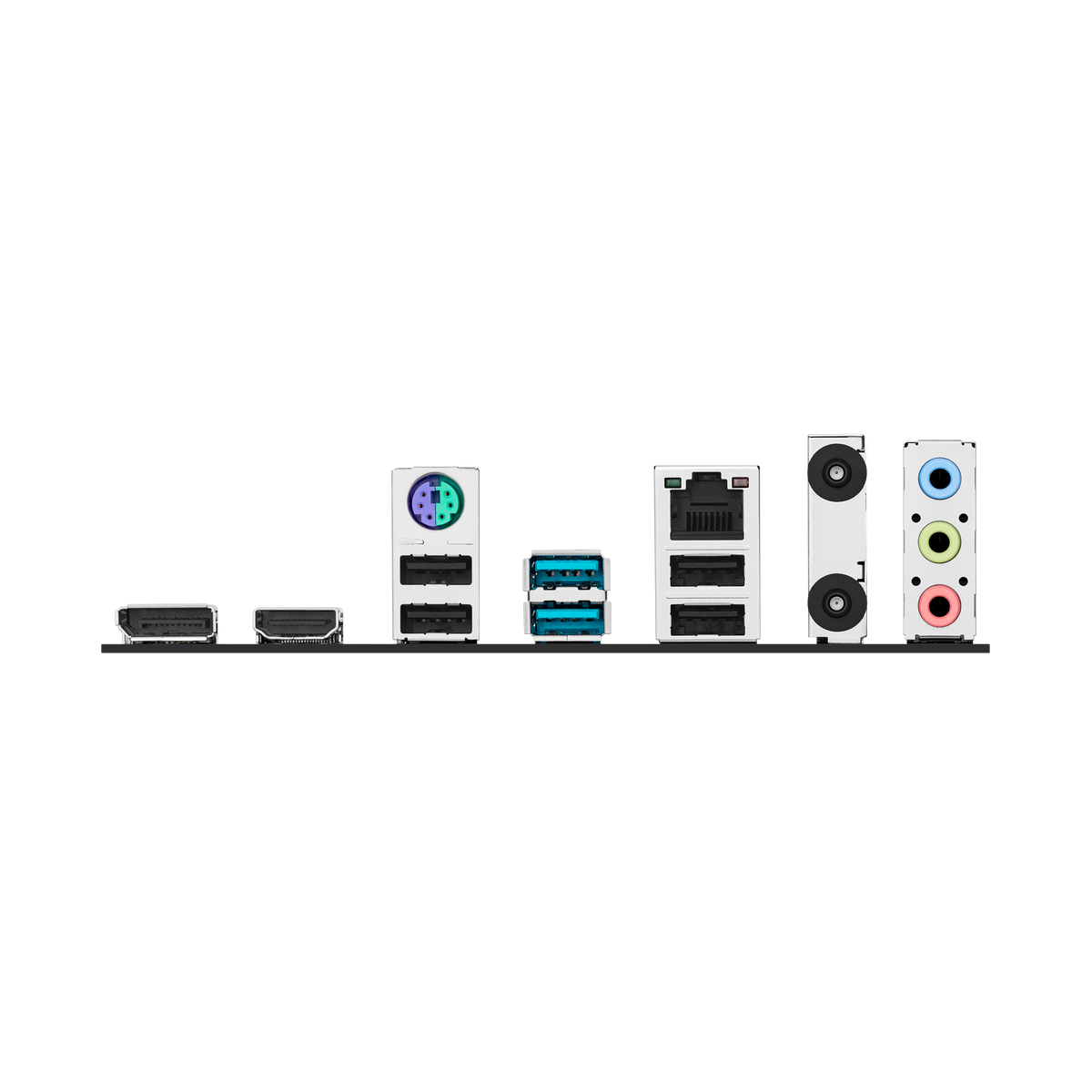

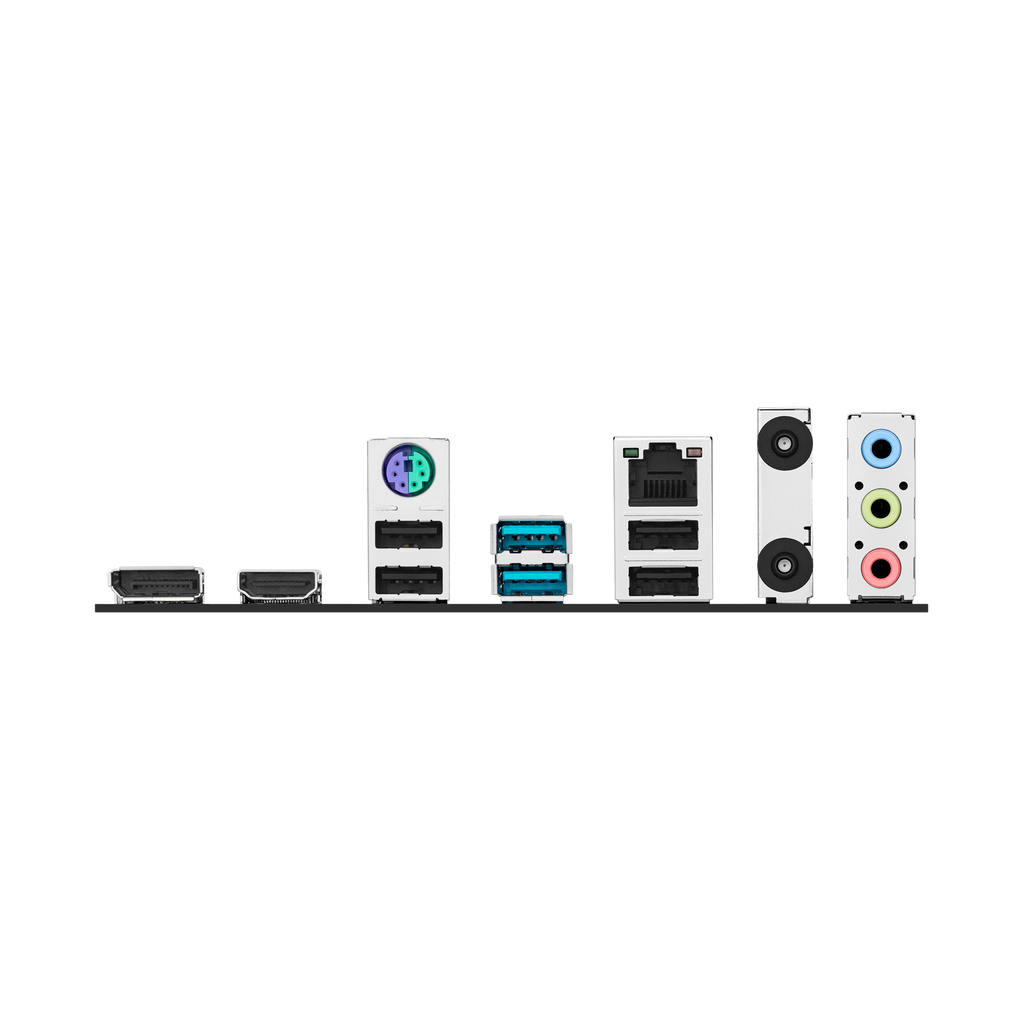

| Rear USB Ports | 2× USB 10Gbps Type-A, 4× USB 2.0 |
| Front USB Headers | 2× USB 5Gbps headers, 1× USB 5Gbps Type-C connector, 2× USB 2.0 headers, 1× USB 2.0 header |
| Video Outputs | 1× DisplayPort 1.4, 1× HDMI 2.1 |
| Audio | Realtek 7.1 Surround Sound, 24-Bit/192 kHz |
| CPU Fan Headers | 1× 4-pin, 1× 4-pin OPT |
| Chassis Fan Headers | 2× 4-pin |
| Power Connectors | 1× 24-pin, 1× 8-pin +12V |
Physical
| Form Factor | mATX |
|---|---|
| Dimensions | 24.4 cm × 24.4 cm (9.6 in × 9.6 in) |
| BIOS | 128 Mb Flash ROM, UEFI AMI |
| RGB Lighting | 3× Addressable Gen 2 headers, 1× Aura RGB header |
| RGB Sync | Aura Sync |
| Cooling | VRM heatsinks, PCH heatsink, Fan Xpert 2+ software |
