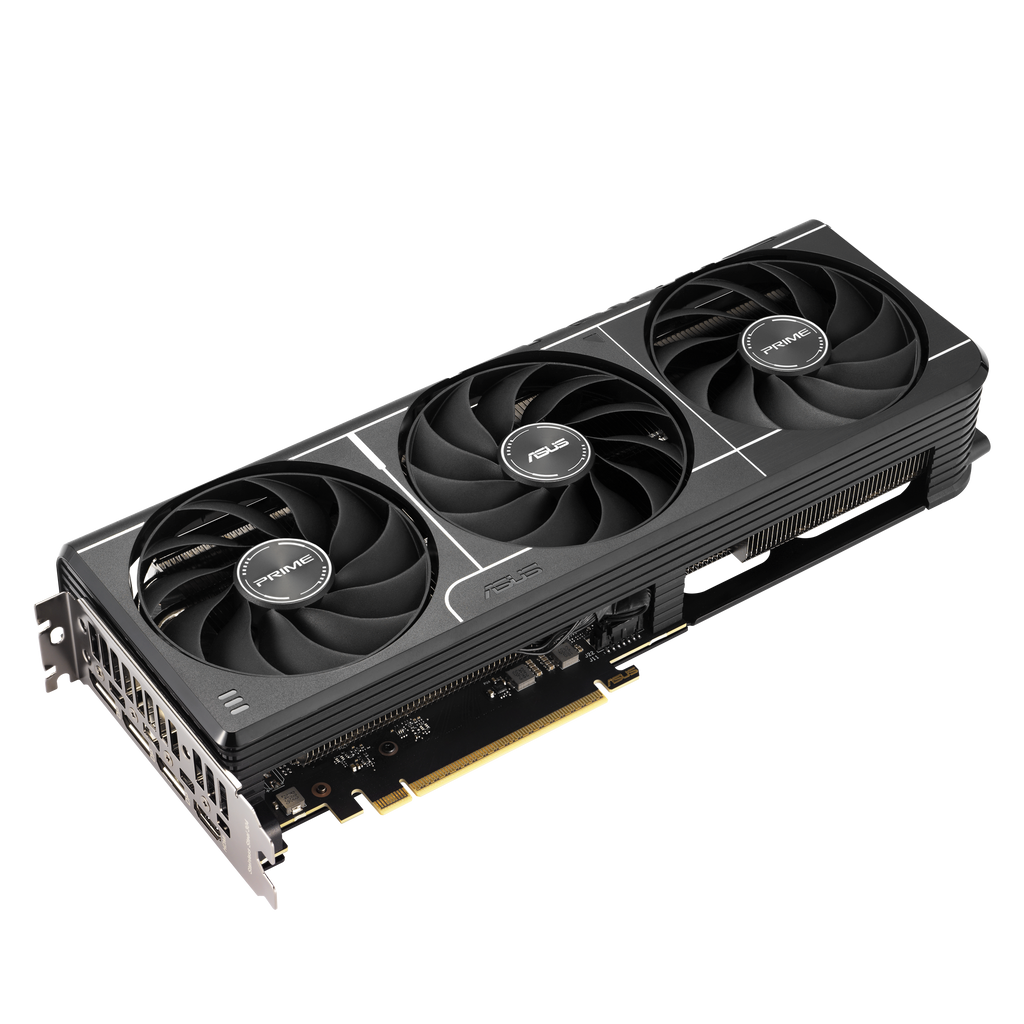

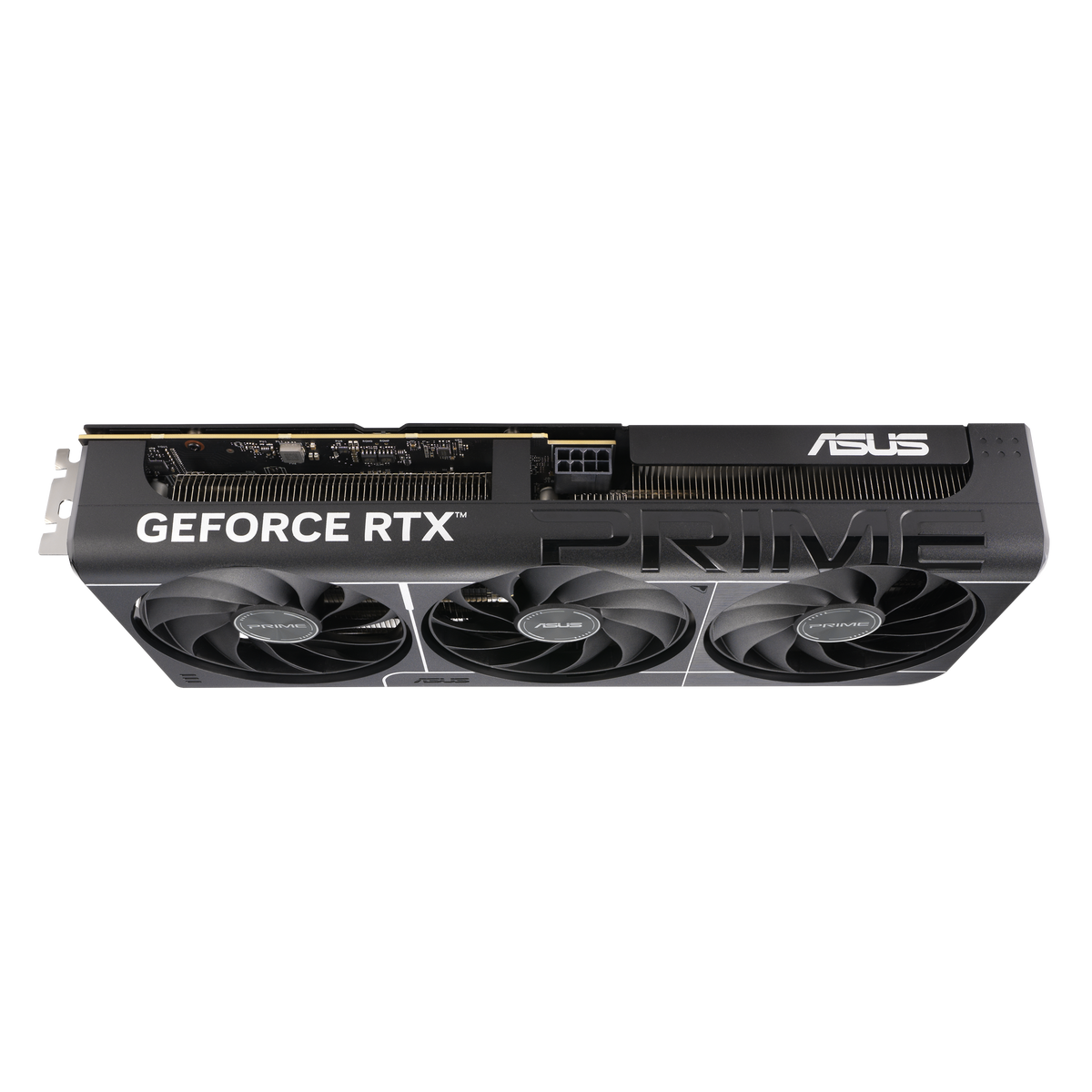

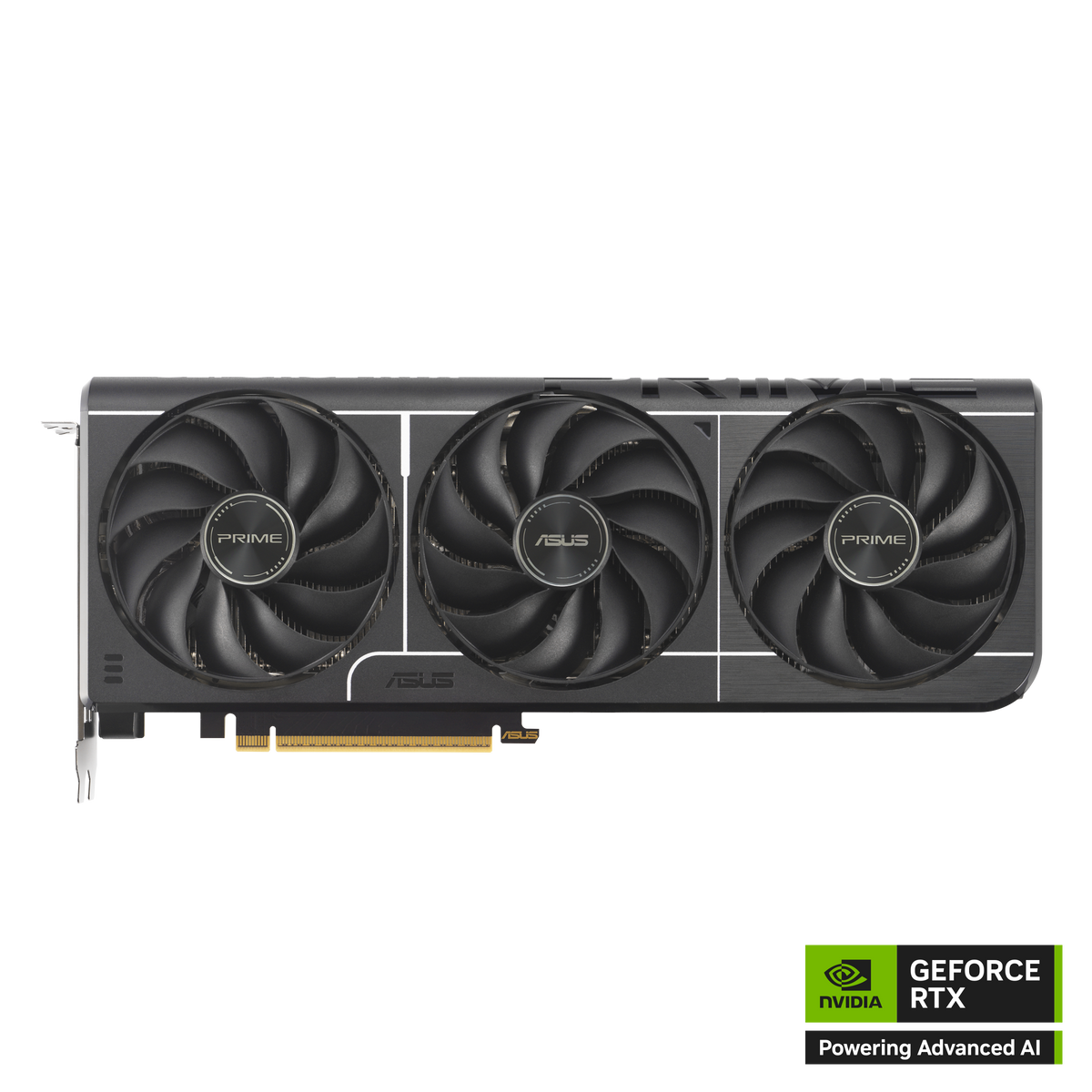

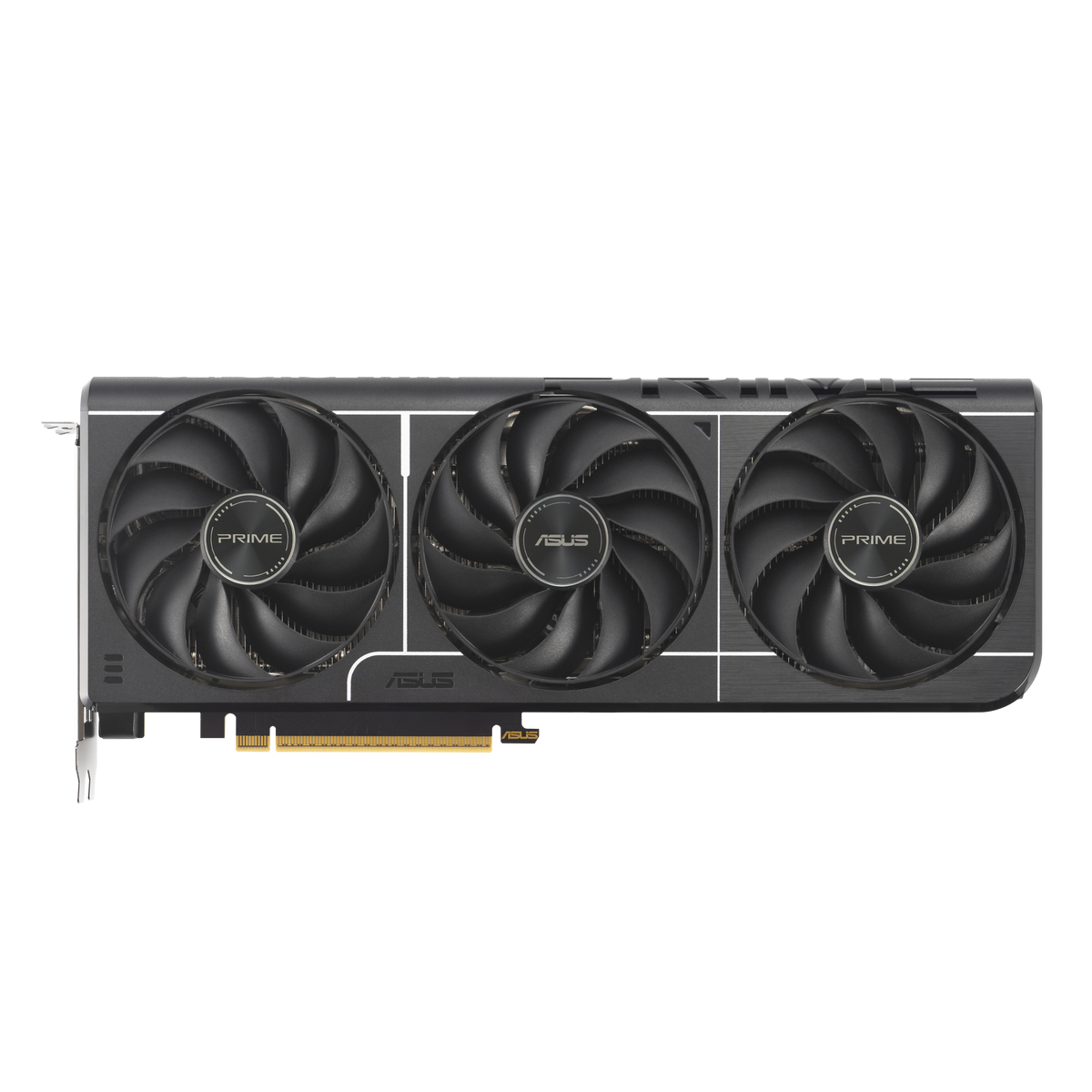

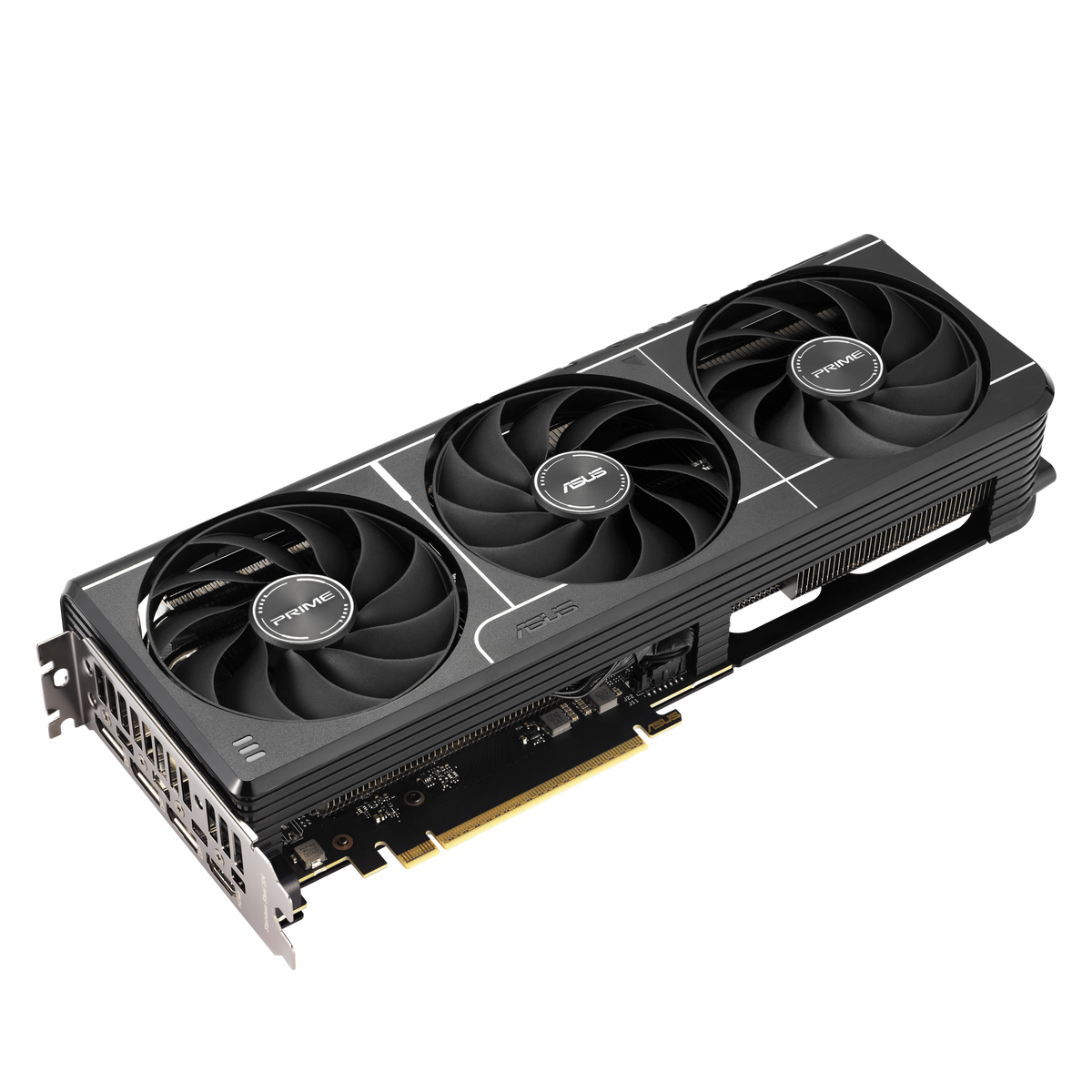

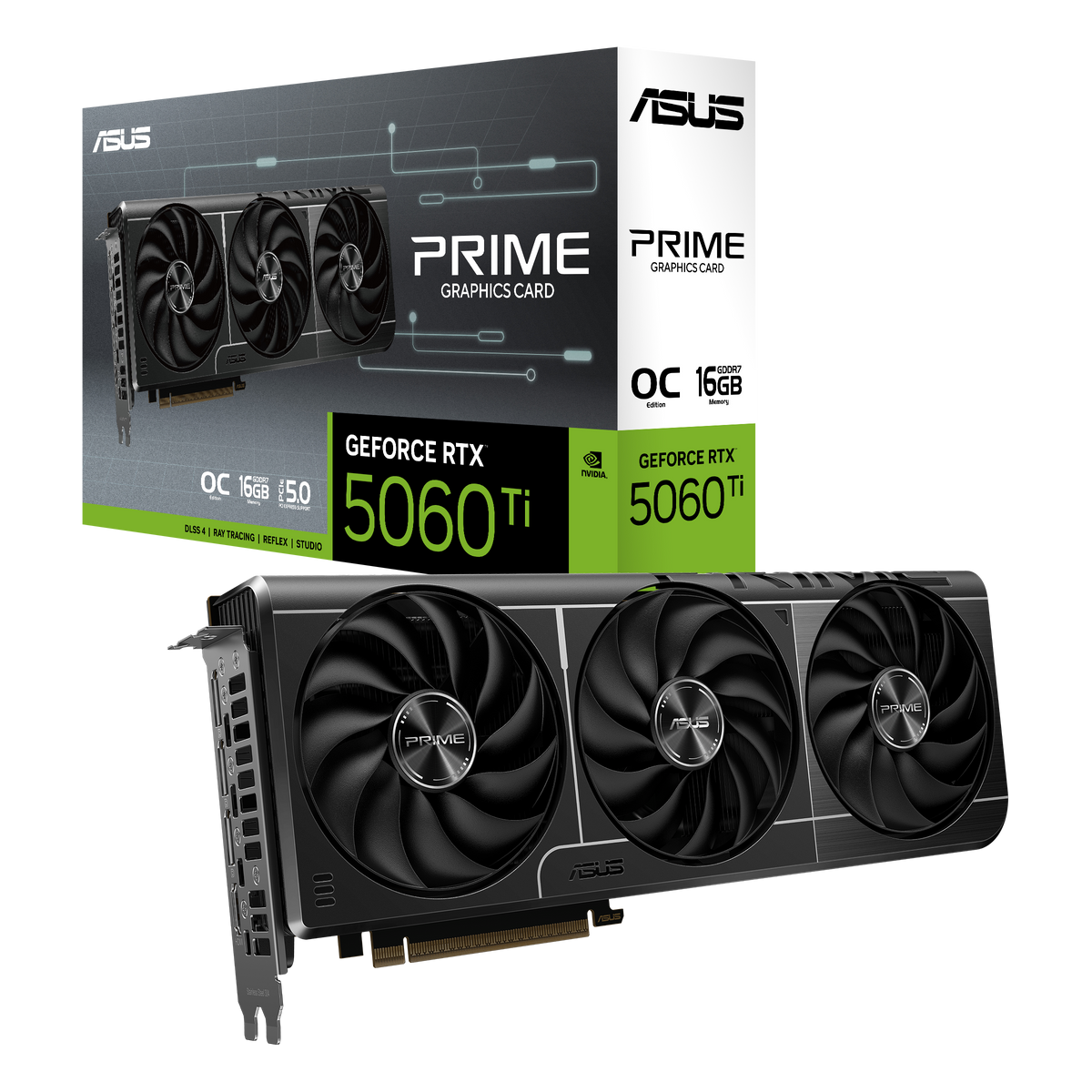

ASUS Prime GeForce RTX 5060 Ti OC 16GB GDDR7 Graphics Card
ASUS
ASUS Prime GeForce RTX 5060 Ti OC 16GB GDDR7 Graphics Card
The ASUS Prime GeForce RTX 5060 Ti OC 16GB GDDR7 Graphics Card is built for gamers and creators who want capable mid-range performance in a compact, SFF-ready package. Its three Axial-Tech fans and 2.5-slot design keep thermals in check without demanding a full-size tower, making it a practical fit for space-conscious builds. A Dual BIOS switch lets you choose between Performance and Quiet modes depending on your priorities.
Why this product
SFF-Ready 2.5-Slot Design
The card's 2.5-slot footprint and compact 304 x 120 x 50 mm dimensions make it compatible with small-form-factor cases that larger cards cannot fit.

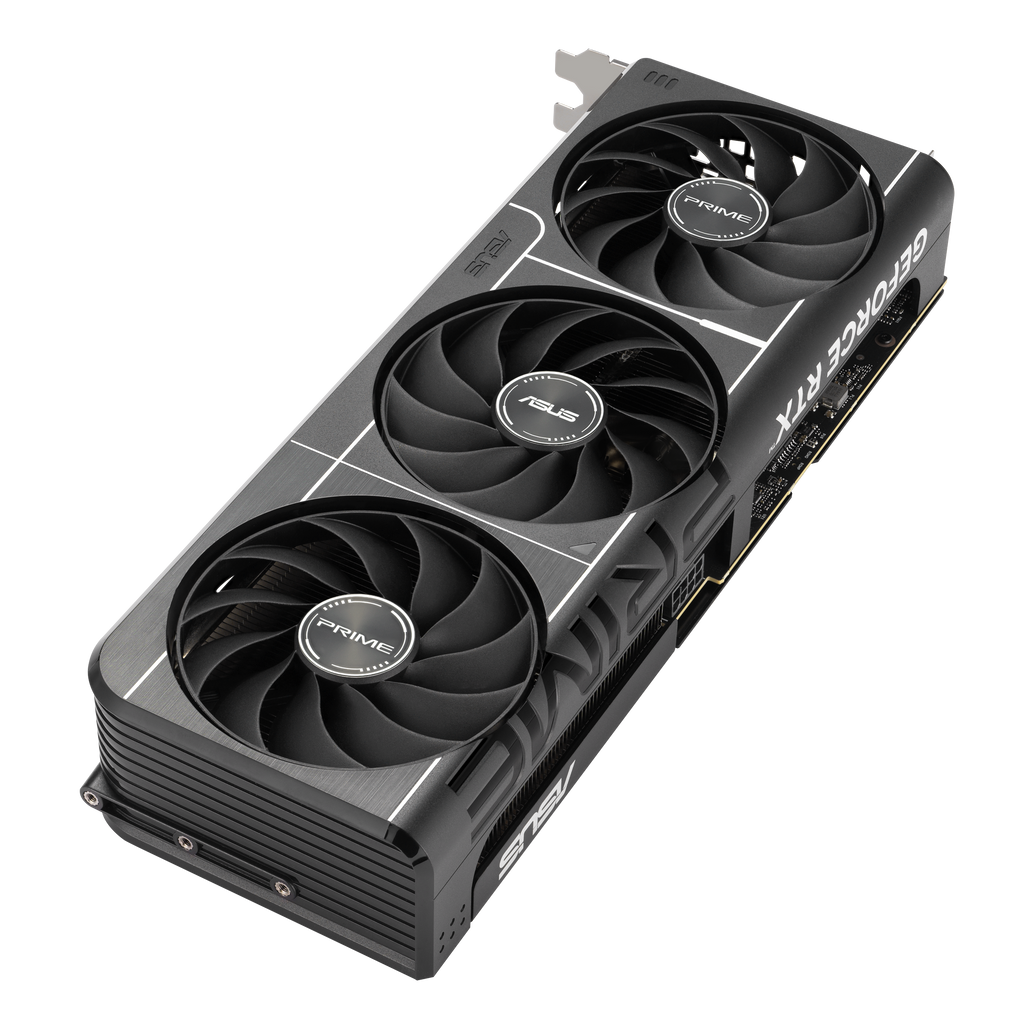

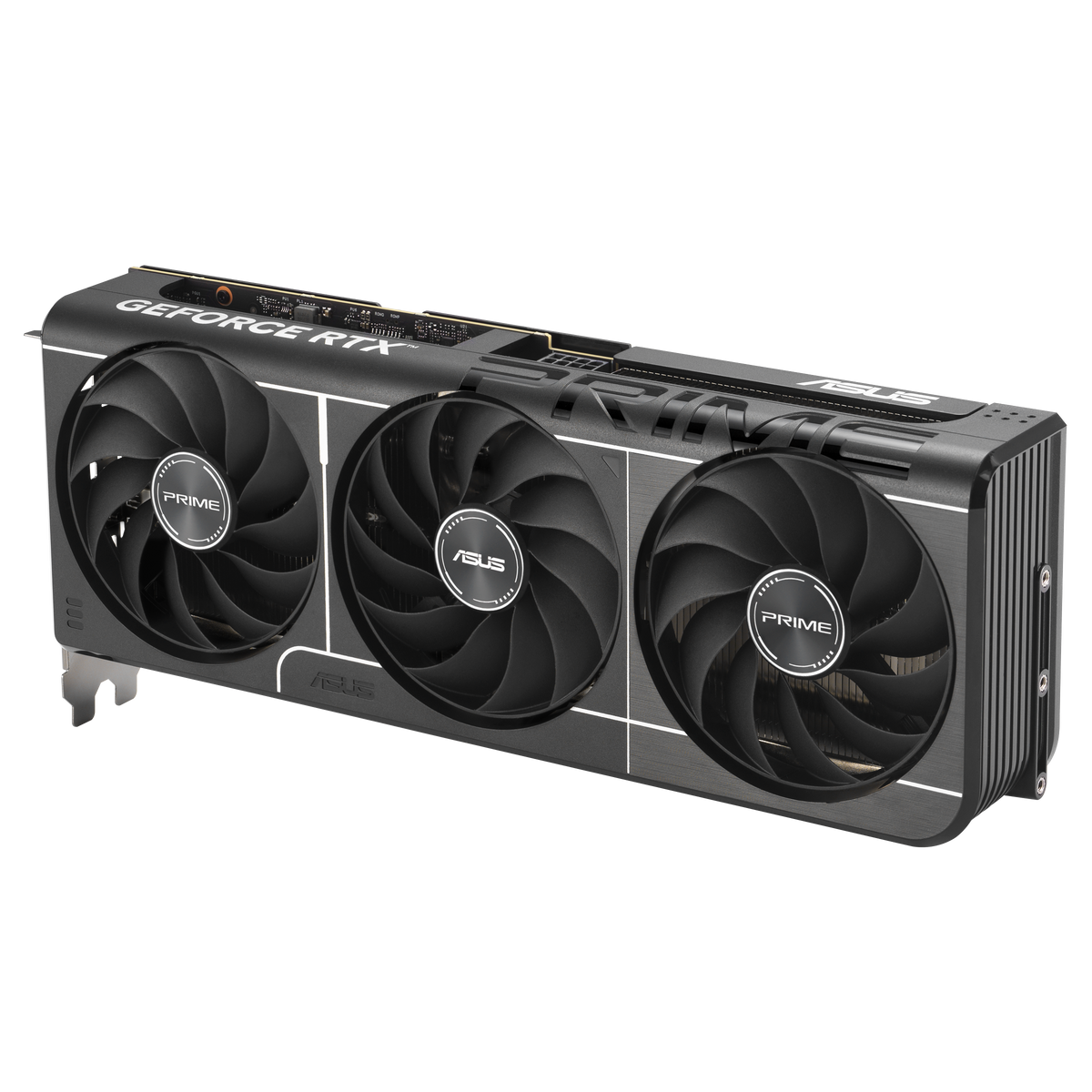

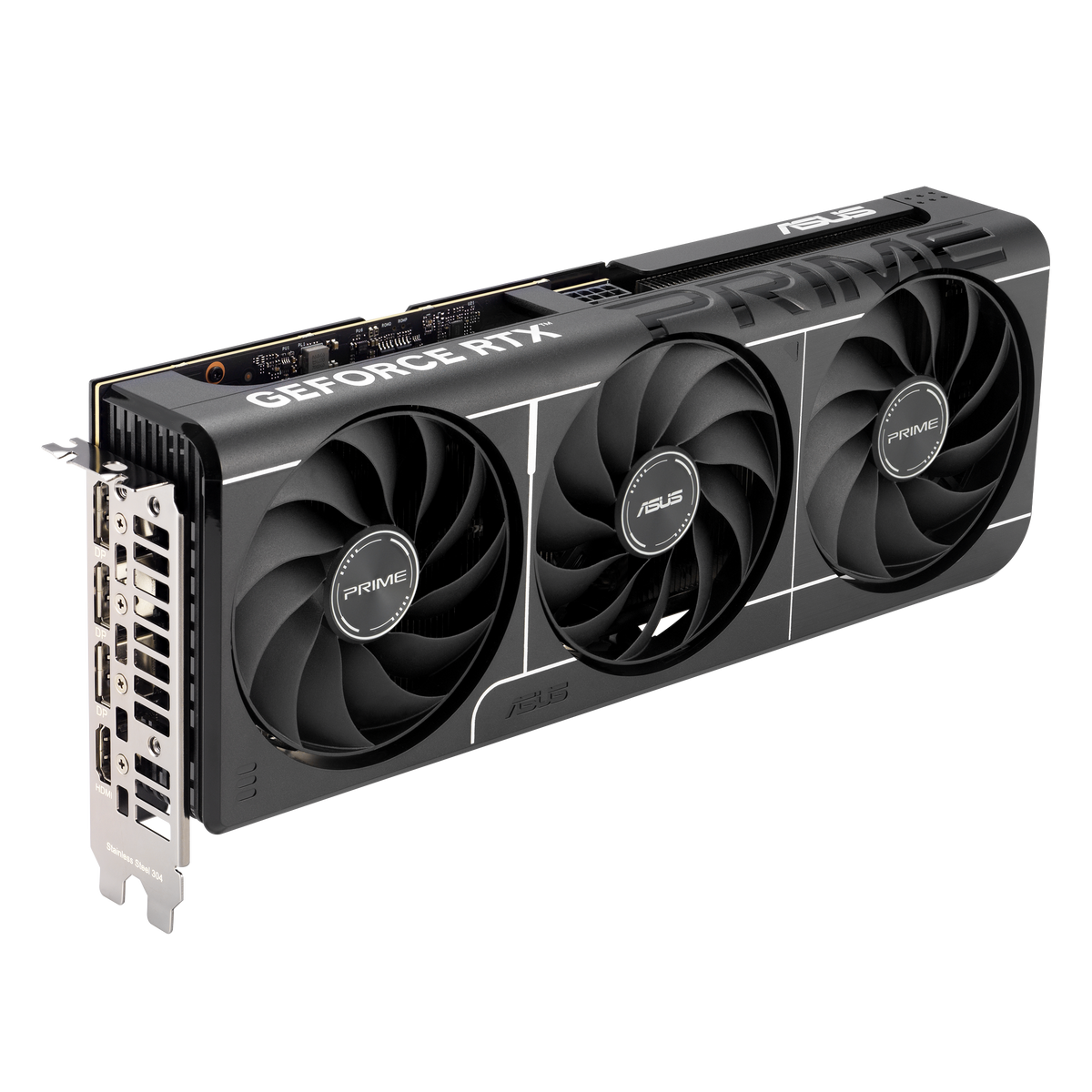

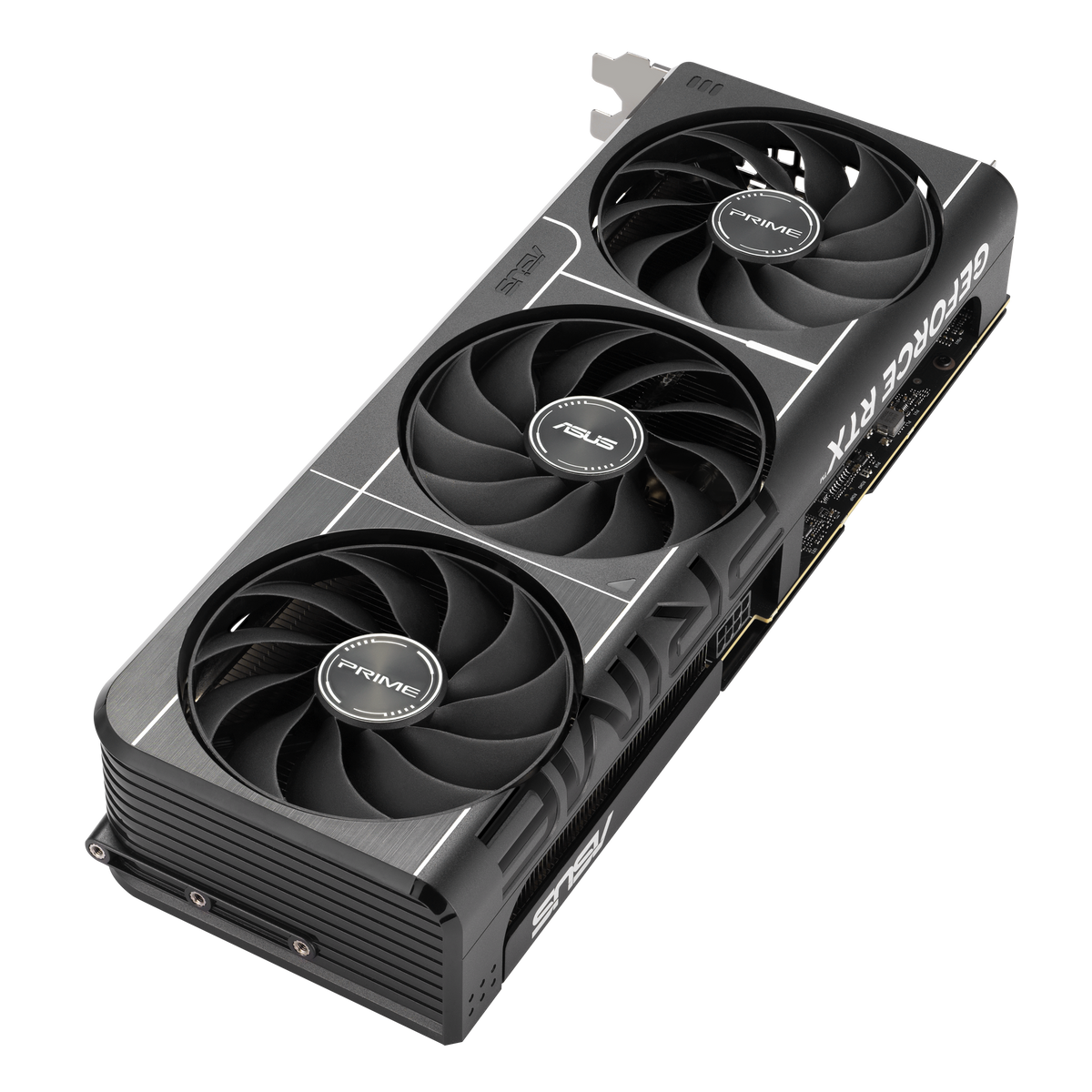

Triple Axial-Tech Fans
Three Axial-Tech fans with longer blades improve airflow and heat dispersion across the heatsink, leveraging chassis side-panel ventilation for efficient cooling.
Dual BIOS for Performance or Quiet
A physical switch lets you toggle between Performance mode, which runs the fans aggressively to keep temperatures low, and Quiet mode, which uses a softer fan curve at moderate loads.
Dual-Ball Fan Bearings
Dual-ball bearing fans offer up to twice the rated lifespan of sleeve-bearing designs, reducing long-term wear on moving components.
16 GB GDDR7 Memory
16 GB of GDDR7 running at 28 Gbps gives the card headroom for high-resolution textures and memory-intensive creative workloads.
Fourth-Gen RT Cores and Fifth-Gen Tensor Cores
NVIDIA Blackwell architecture brings fourth-generation Ray Tracing Cores and fifth-generation Tensor Cores, enabling full ray tracing and AI-accelerated features including DLSS 4 with Multi Frame Generation.
- GPUNVIDIA GeForce RTX 5060 Ti
- Video Memory16GB GDDR7
- Boost Clock (OC Mode)2647 MHz
- Memory Speed28 Gbps
- AI Performance759 TOPs
- Card Dimensions304 x 120 x 50 mm
- Slot Width2.5 Slot
- Recommended PSU550W
- SKUASU-2365
- EAN4711387994054
- Fits standard ATX and micro-ATX cases via PCI Express 5.0 x16 slot.
- Certified SFF-Ready — compatible with small-form-factor cases that accommodate a 2.5-slot card measuring 304 x 120 x 50 mm.
- Supports up to four displays simultaneously via one HDMI 2.1b and three DisplayPort 2.1b outputs.
- HDCP 2.3 support for protected content playback on compatible displays.
- Requires a minimum 550 W PSU; ASUS recommends the Prime Gold 850 W or 750 W units as companions but any compliant unit meeting the 550 W requirement should be sufficient.
- NVLink and Crossfire multi-GPU configurations are not supported.
Best for
- Small-form-factor builders who need a three-fan card that fits in tight chassis without sacrificing airflow.
- Gamers wanting ray tracing and AI upscaling who benefit from fourth-gen RT Cores and DLSS 4 with Multi Frame Generation.
- Creators using NVIDIA Studio tools, including NVIDIA Broadcast and the ninth-gen NVIDIA Encoder, who want AI-assisted video and content workflows.
- Multi-monitor users who need to drive up to four displays at resolutions up to 7680 x 4320 from a single card.
- Noise-conscious users who want the option of a quieter fan curve via the Dual BIOS Quiet mode without changing the power target.
Trade-offs
- Multi-GPU builds — NVLink and Crossfire are explicitly not supported, so this card cannot be paired for combined rendering.
- Builds with a sub-550 W power supply — the card's stated minimum PSU requirement is 550 W, which rules out lower-wattage systems.
- Cases too shallow for a 2.5-slot card — at 50 mm thick and 304 mm long, it will not fit enclosures with tighter clearance constraints.
- Users needing more than four simultaneous displays — the card is limited to four outputs regardless of port count.
The SFF-Ready ASUS Prime GeForce RTX™ 5060 Ti OC Edition 16GB GDDR7 boasts three axial-tech fans for supreme cooling.
PRIME GEFORCE RTX™ 5060 Ti
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5060 Ti, featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores Built for Mega Geometry
- AI-Enhanced Graphics and Performance NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics Full ray tracing with neural rendering
- Digital Humans and AI Assistants NVIDIA ACE
- Accelerate Your Creativity NVIDIA Studio creator tools and technology
- Enhance Any Video with AI NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies NVIDIA G-SYNC
Cooling
2.5-slot Design

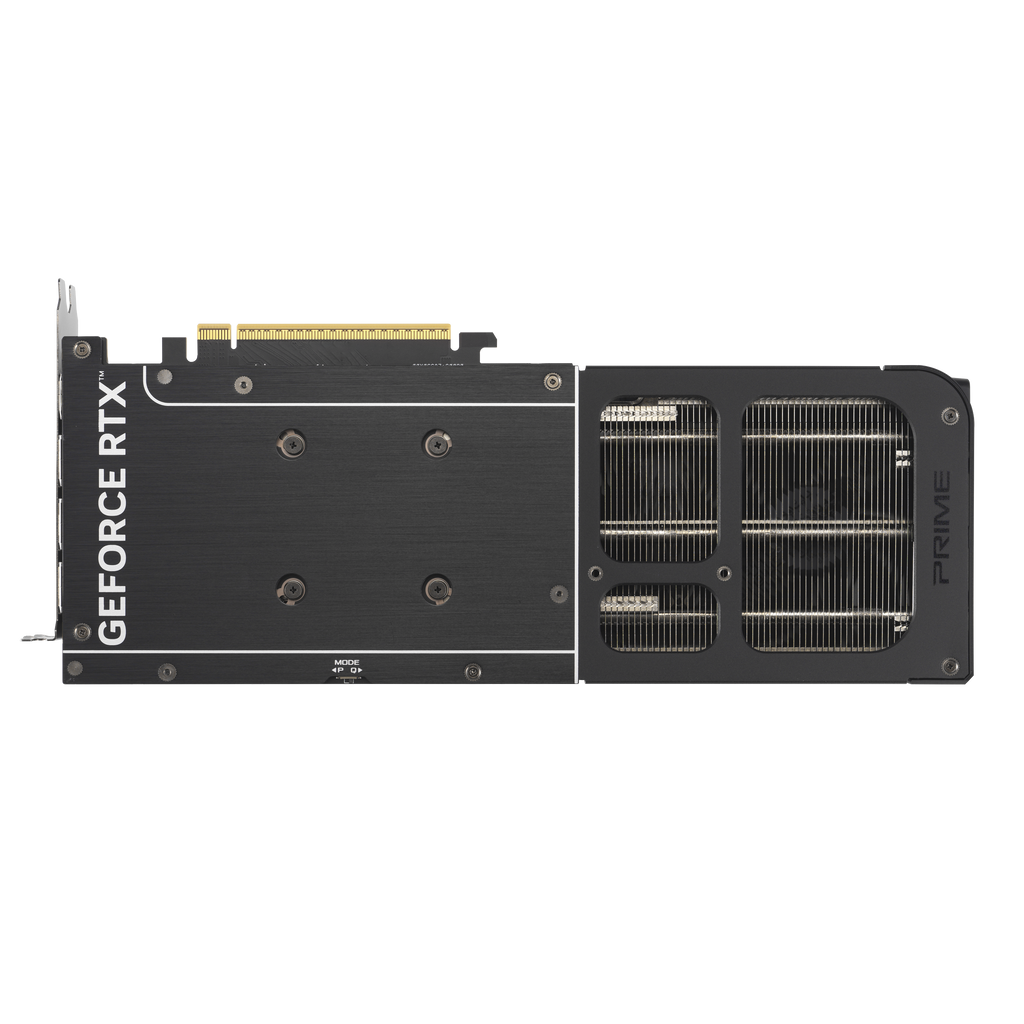

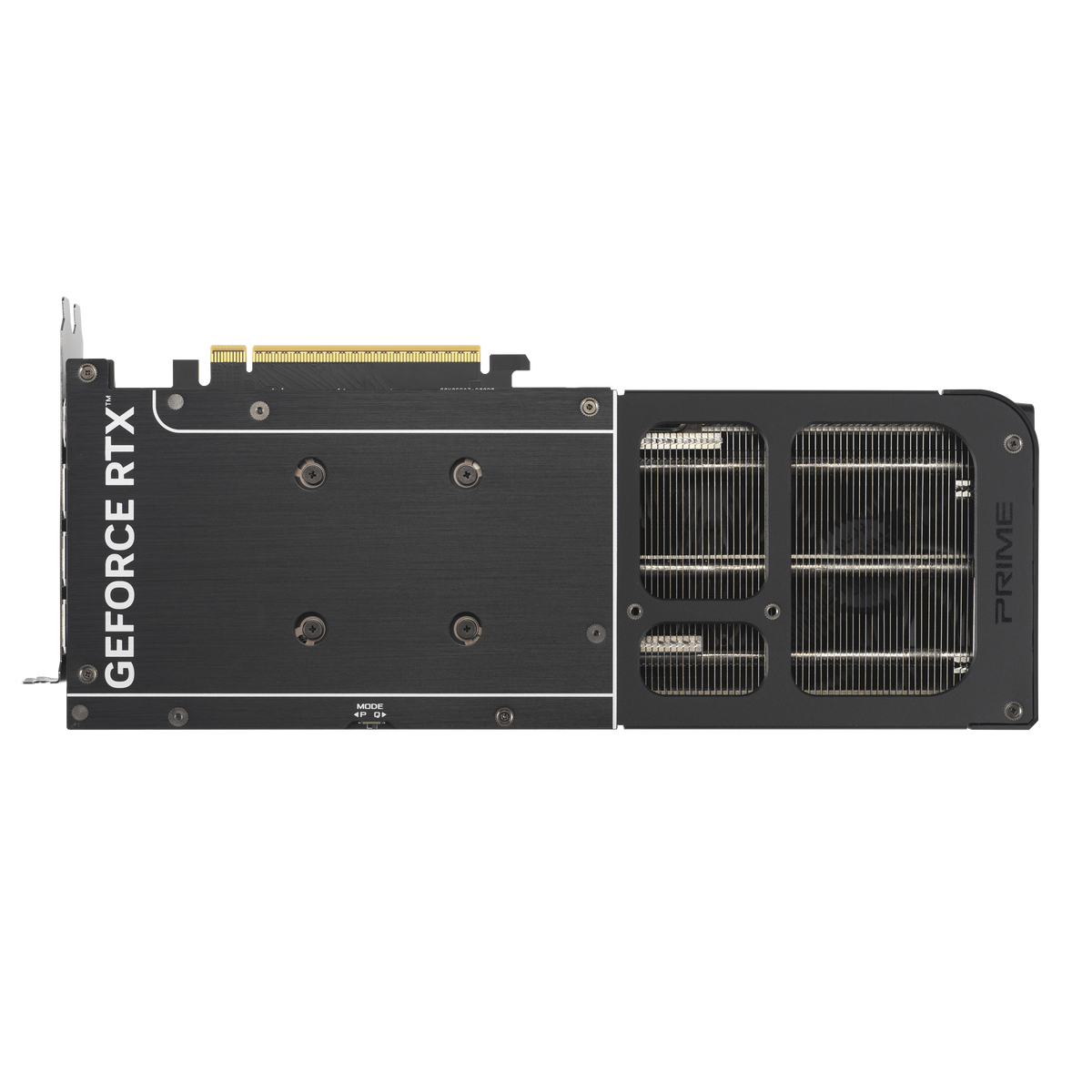

The Prime RTX 5060 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Engineering
Prime RTX 5060 Ti card PQ mode Dual BIOS Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
General
| Brand | ASUS |
|---|---|
| Model | PRIME-RTX5060TI-O16G |
| GPU | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| AI Performance | 759 TOPs |
Memory
| Video Memory | 16GB GDDR7 |
|---|---|
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
Clock Speeds & Performance
| Boost Clock (OC Mode) | 2647 MHz |
|---|---|
| Boost Clock (Default Mode) | 2617 MHz |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL 4.6 |
| Max Digital Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
Connectivity & Physical

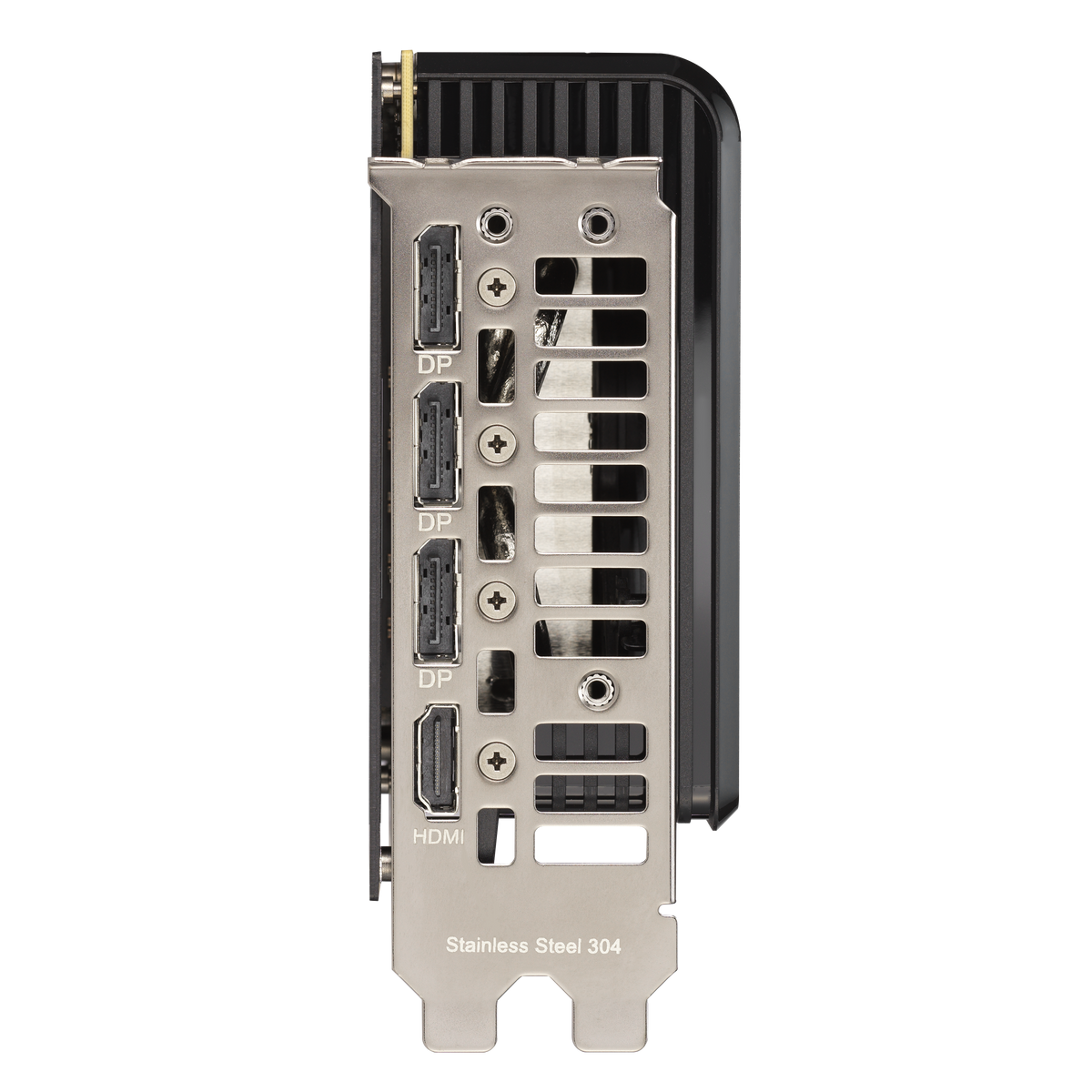

| Display Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
|---|---|
| HDCP | 2.3 |
| NVLink / Crossfire | Not supported |
| Power Connector | 1 x 8-pin |
| Recommended PSU | 550W |
| Slot Width | 2.5 Slot |
| Dimensions | 304 x 120 x 50 mm |
| Accessories | Speedsetup Manual, ASUS Velcro Hook & Loop, Thank You Card |
