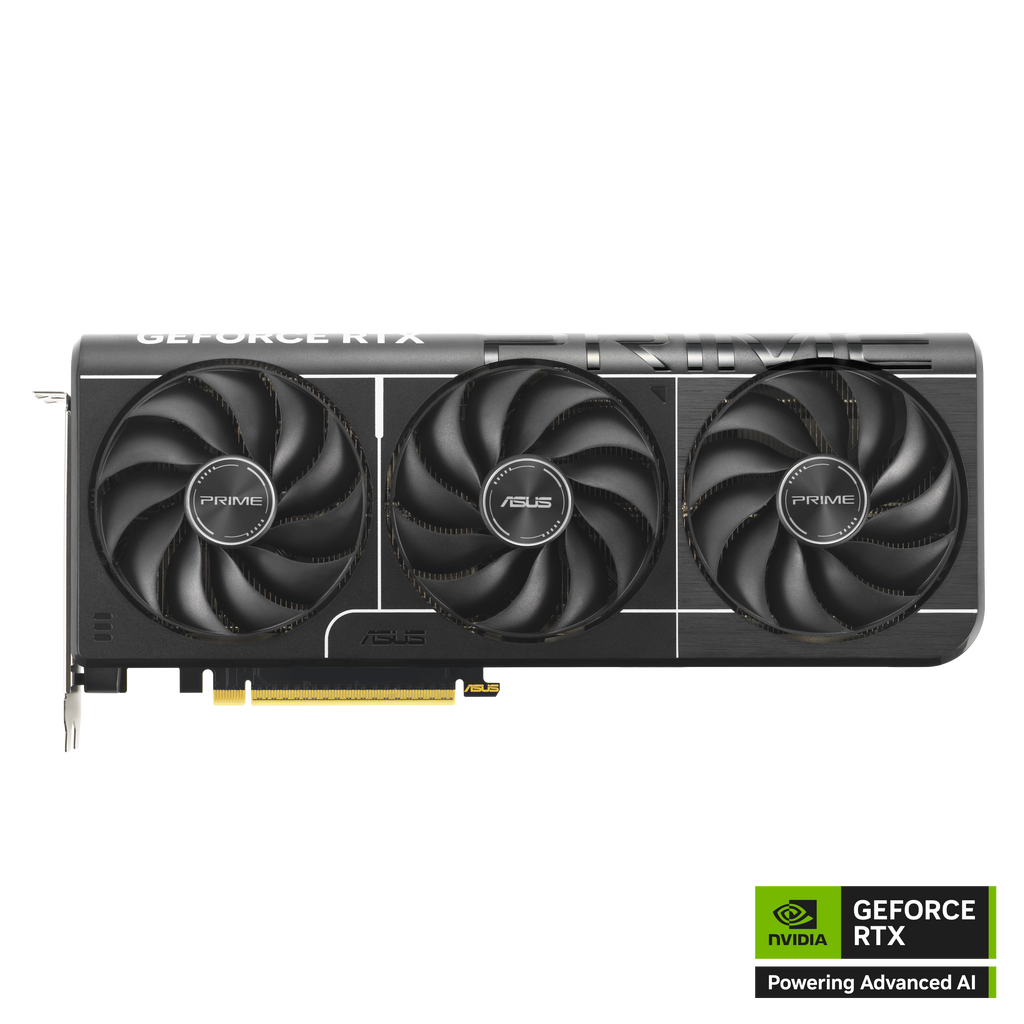

ASUS Prime GeForce RTX 5070 Ti OC 16GB GDDR7 Graphics Card
ASUS
ASUS Prime GeForce RTX 5070 Ti OC 16GB GDDR7 Graphics Card

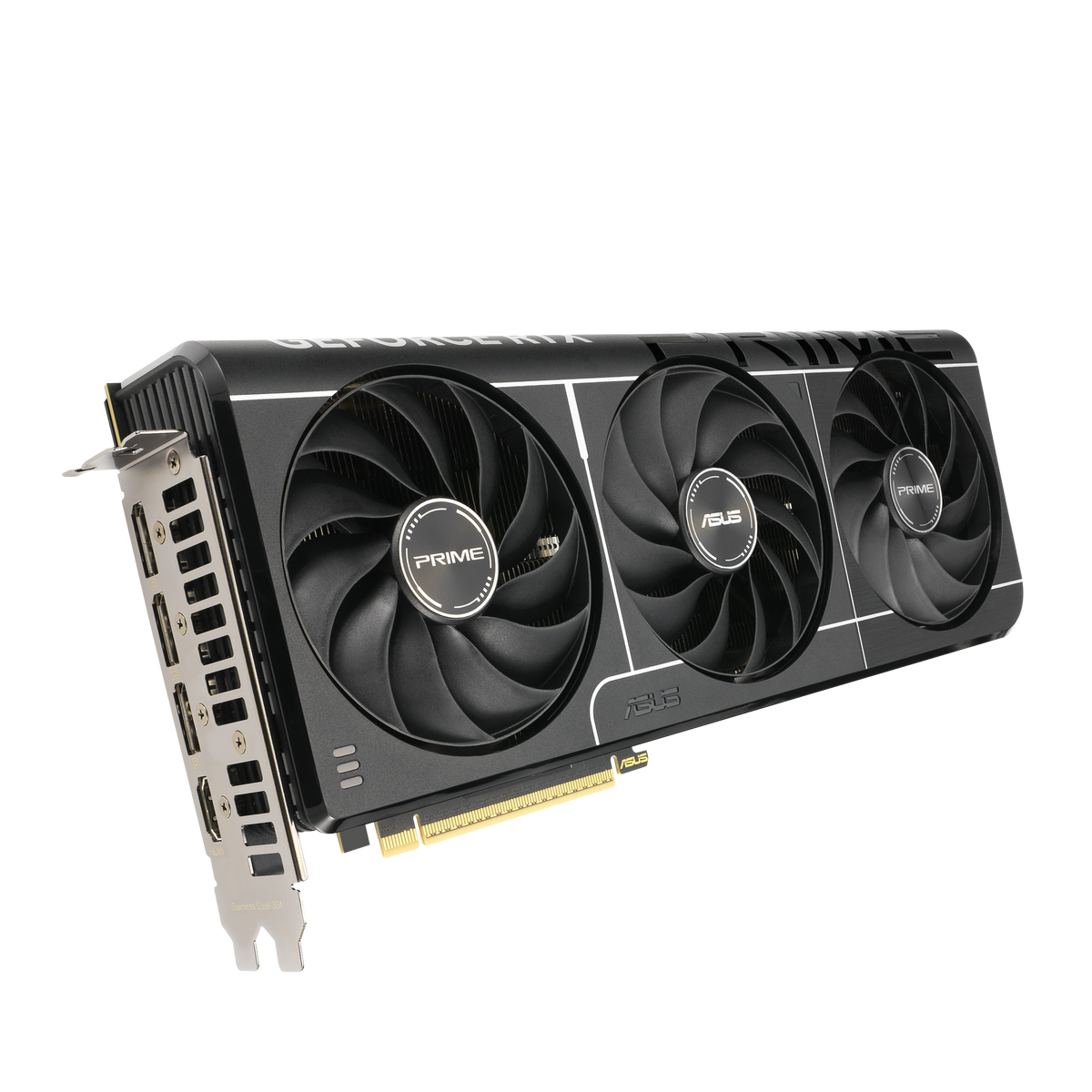

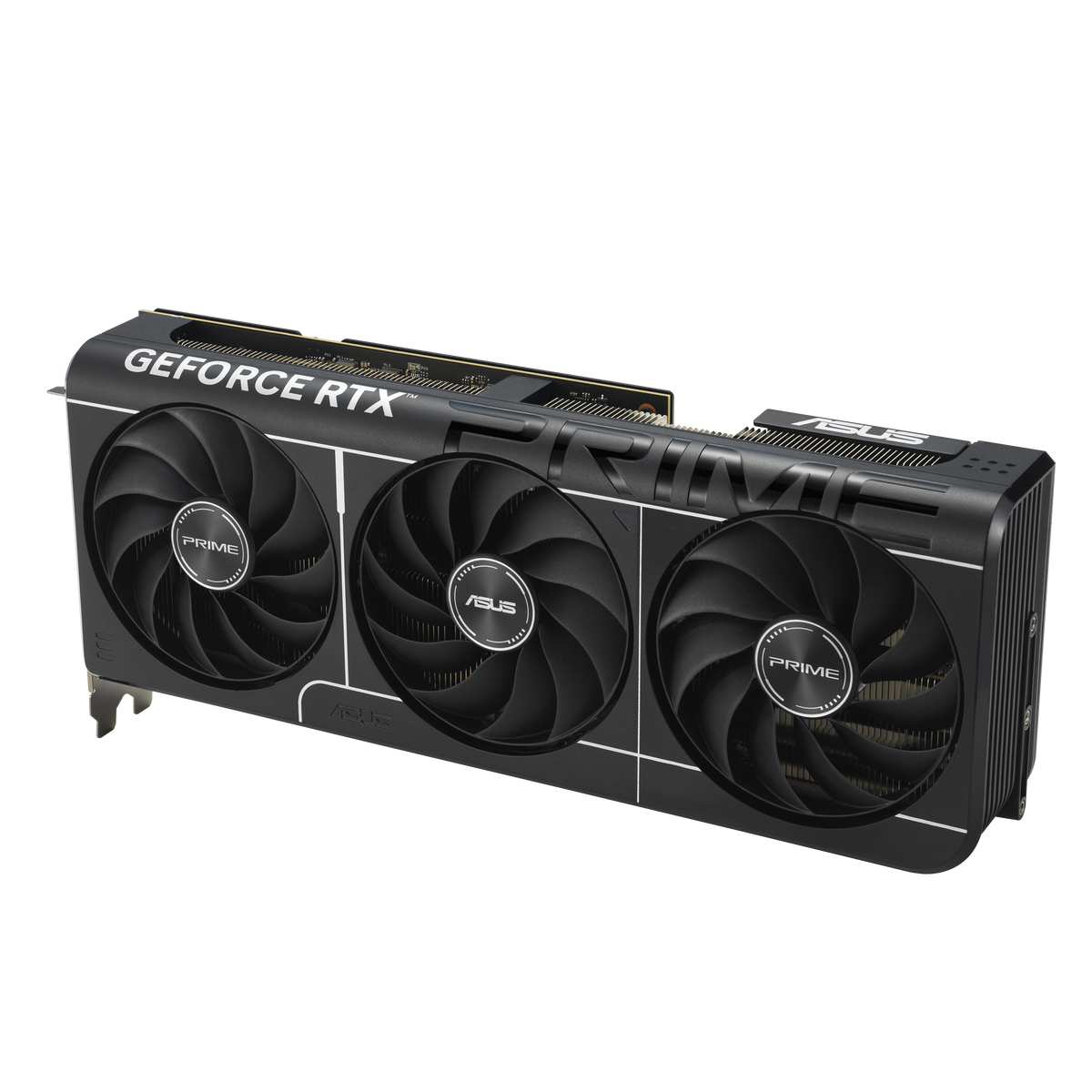

The ASUS Prime GeForce RTX 5070 Ti OC is an SFF-ready graphics card built for small-form-factor builds and enthusiasts who need strong cooling in a compact footprint. Its 2.5-slot design with triple axial-tech fans balances thermal performance with acoustic efficiency, making it suitable for both demanding gaming and intensive AI workloads.
Why this product
SFF-Ready 2.5-Slot Design
Engineered for small-form-factor compatibility without compromising cooling capacity. The compact footprint fits tighter builds while maintaining full performance headroom.

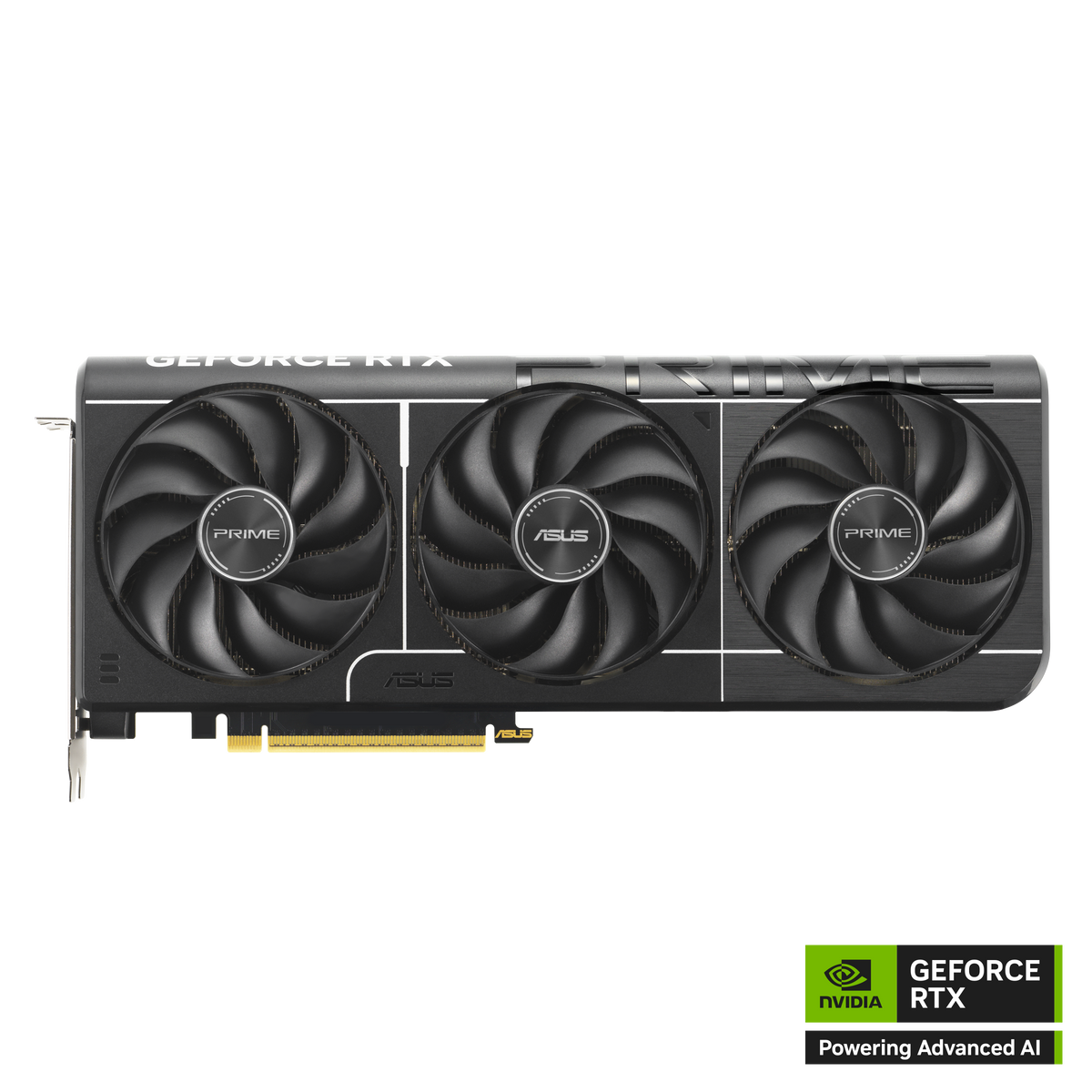

Triple Axial-Tech Fans
Extended blade design improves airflow efficiency. Fans automatically stop below 50°C for silent operation during light loads, resuming at 55°C.
MaxContact Heatspreader
ASUS's manufacturing process expands thermal contact surface by 5%, improving temperatures by up to 2°C compared to traditional designs.
NVIDIA DLSS 4 and Reflex 2
AI-enhanced graphics with multi-frame generation and neural rendering. Frame Warp technology reduces latency in competitive scenarios.
Dual BIOS Modes
Toggle between Performance and Quiet modes to optimize the card for your workload without any hardware changes.
- GPUNVIDIA GeForce RTX 5070 Ti
- Memory16GB GDDR7
- Boost Clock2527 MHz (OC mode)
- CUDA Cores8960
- AI Performance1406 TOPs
- Slot Width2.5 Slot
- Max Displays4
- Dimensions304 x 126 x 50 mm
- SKUASU-2621
- EAN4711387861516
- PCI Express 5.0 slot required; works in any modern motherboard with x16 slot.

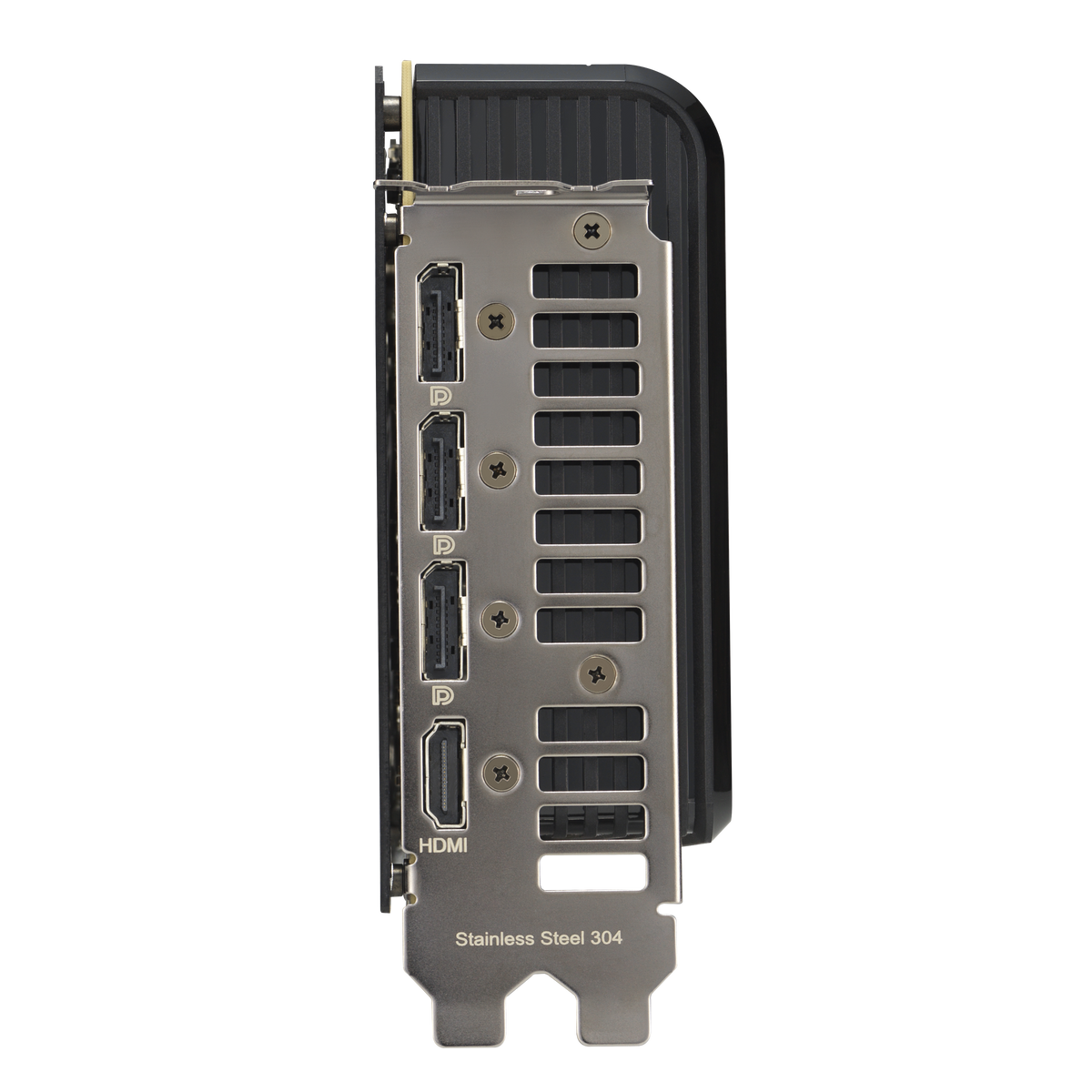

- Supports up to four simultaneous displays via one HDMI 2.1b and three DisplayPort 2.1b outputs.
- Confirmed SFF-Ready; designed for small-form-factor chassis with proper airflow planning.
- Requires a single 16-pin PCIe power connector; 750W PSU recommended as minimum.
- Does not support NVLink or CrossFire multi-GPU configurations.
Best for
- Small-form-factor and compact builds needing high-end performance in tight spaces
- AI workloads and content creation using NVIDIA's Tensor Cores and DLSS 4
- Gamers who want ray tracing and neural rendering without a multi-slot footprint
- Users prioritizing acoustic efficiency with automatic fan shutdown during light loads
Trade-offs
- Systems with limited power delivery; requires a dedicated 750W PSU minimum
- Multi-GPU setups; this card does not support NVLink or CrossFire
- Builds requiring more than four monitor outputs at once
Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

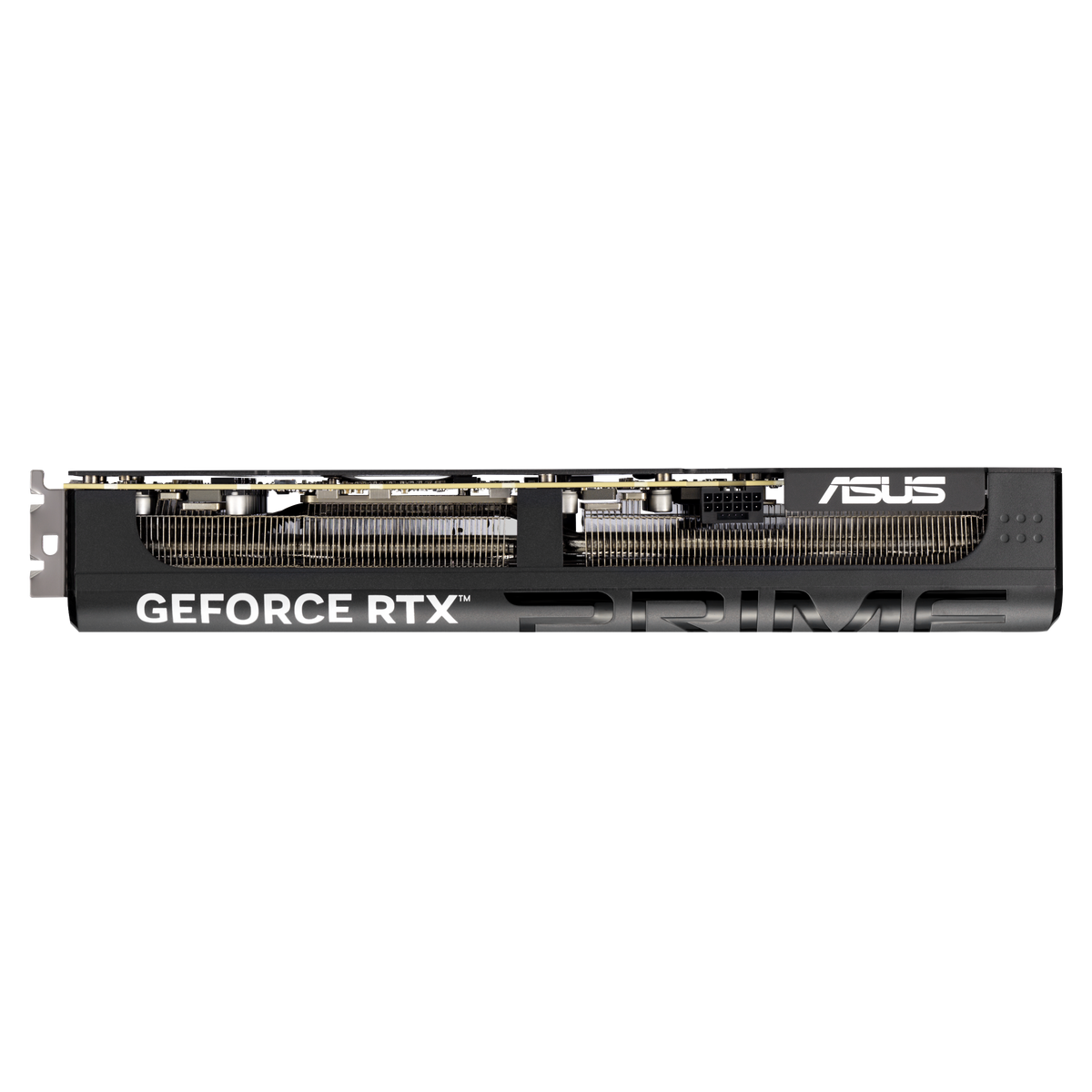

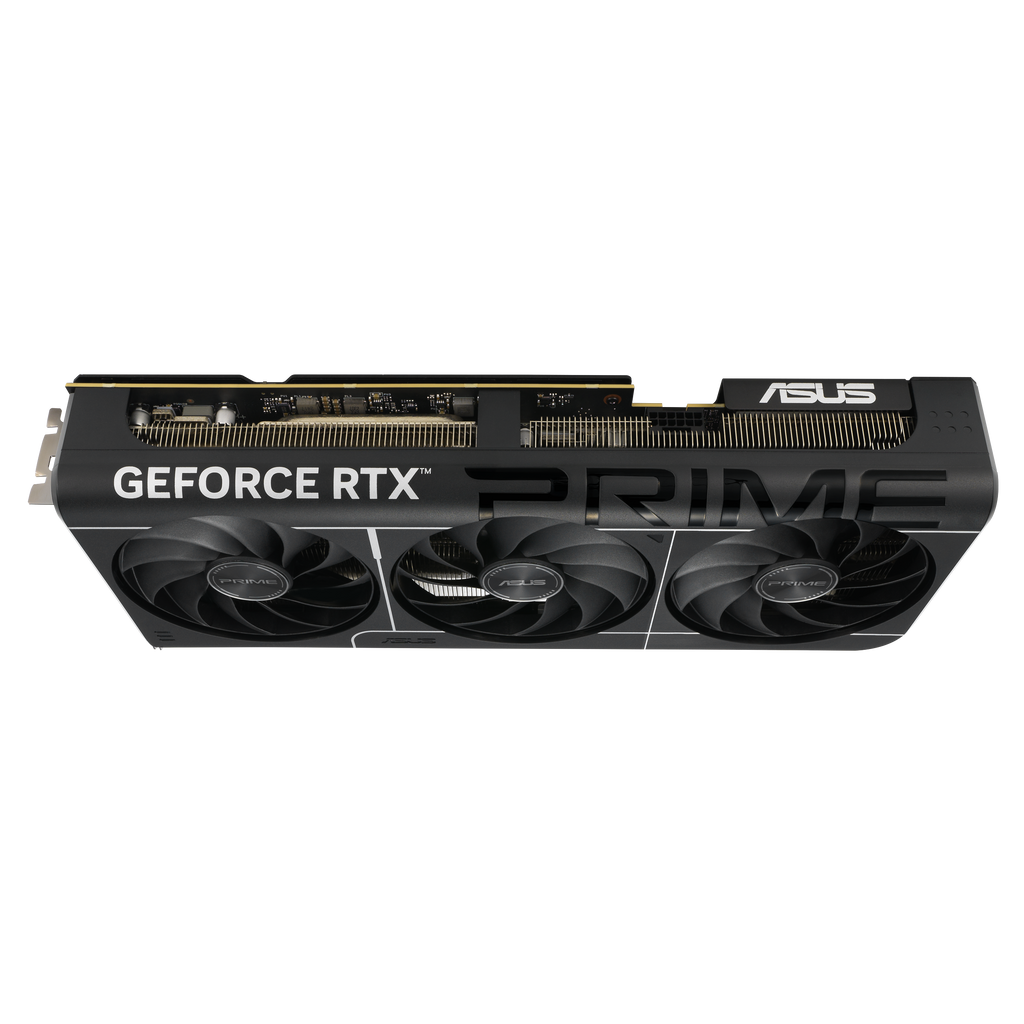

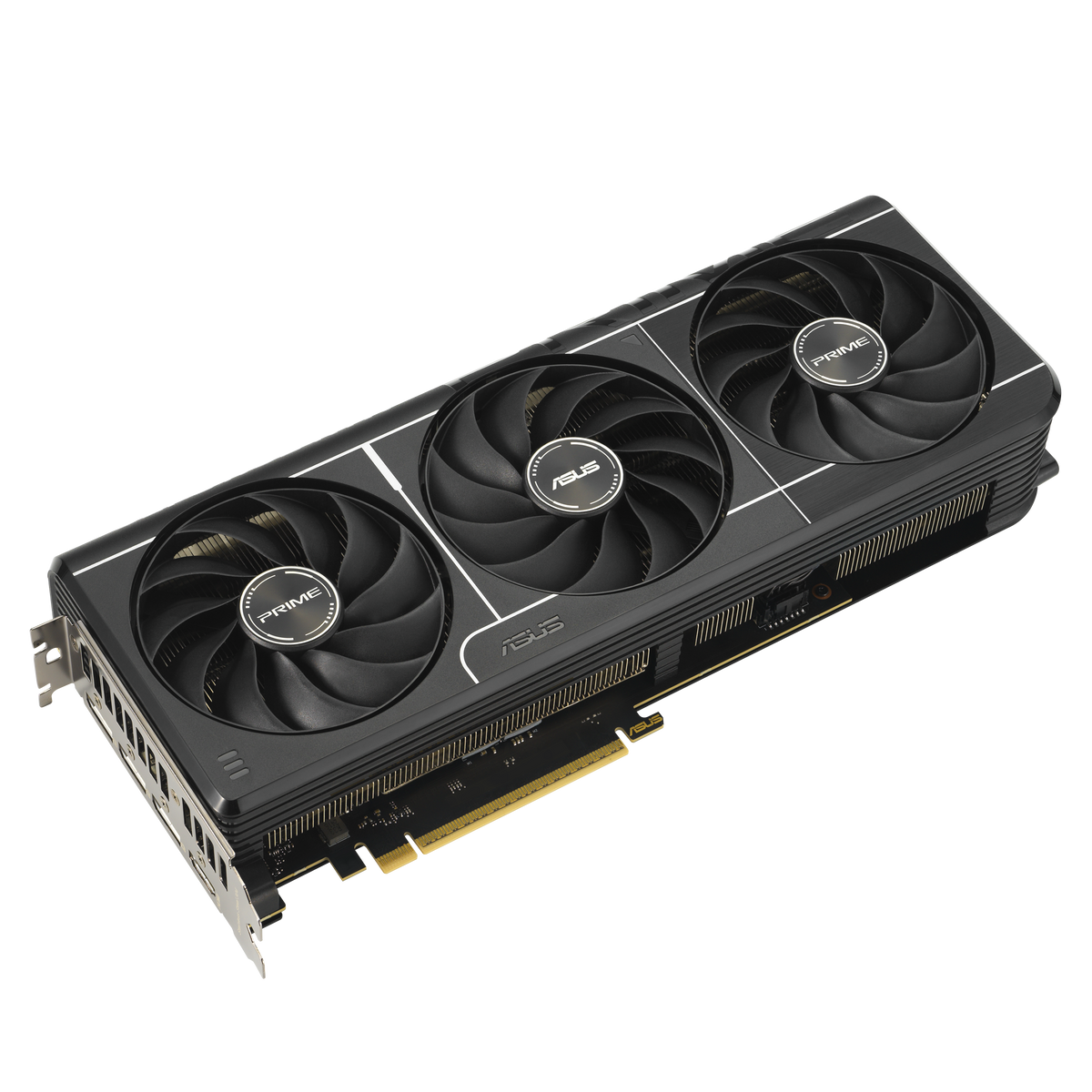

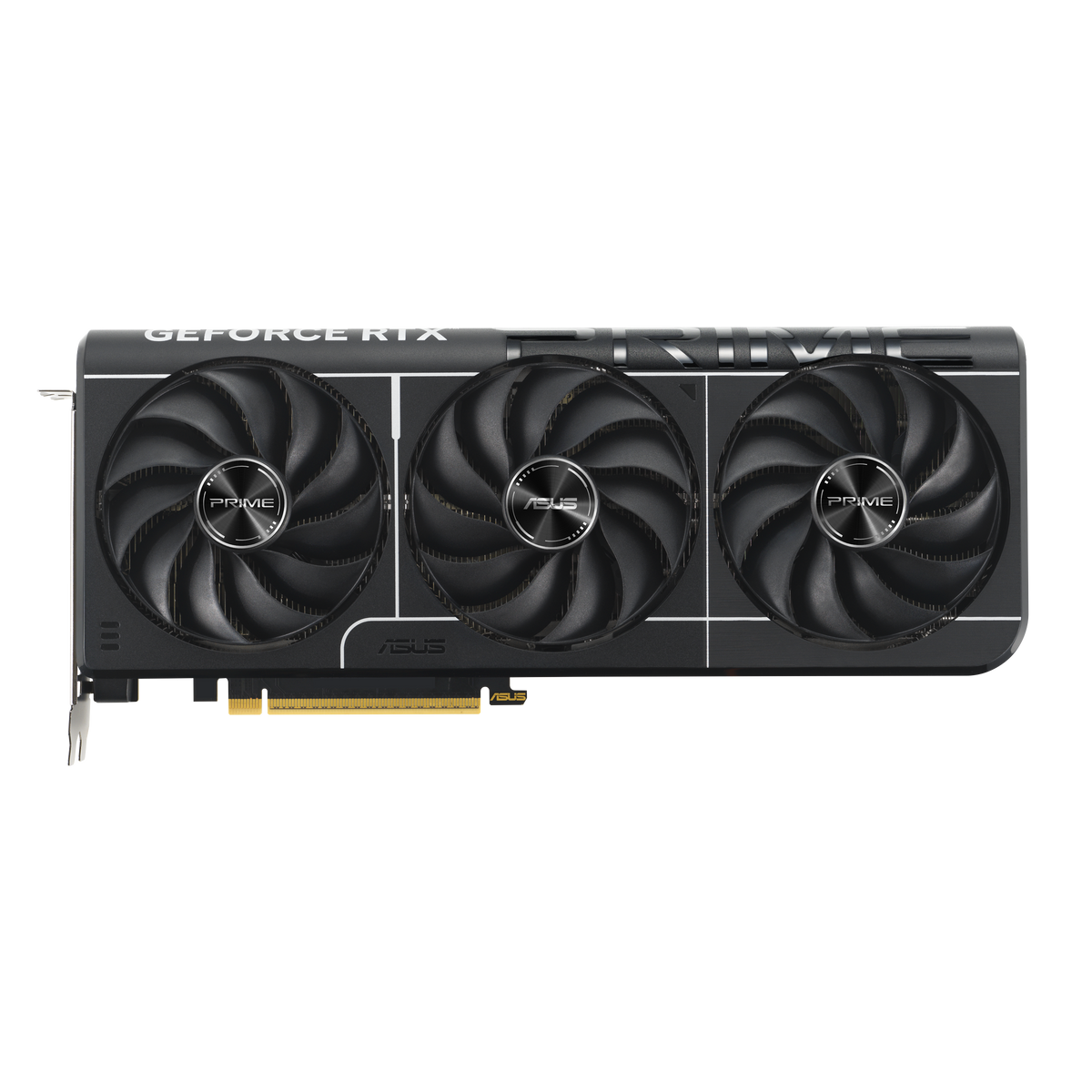

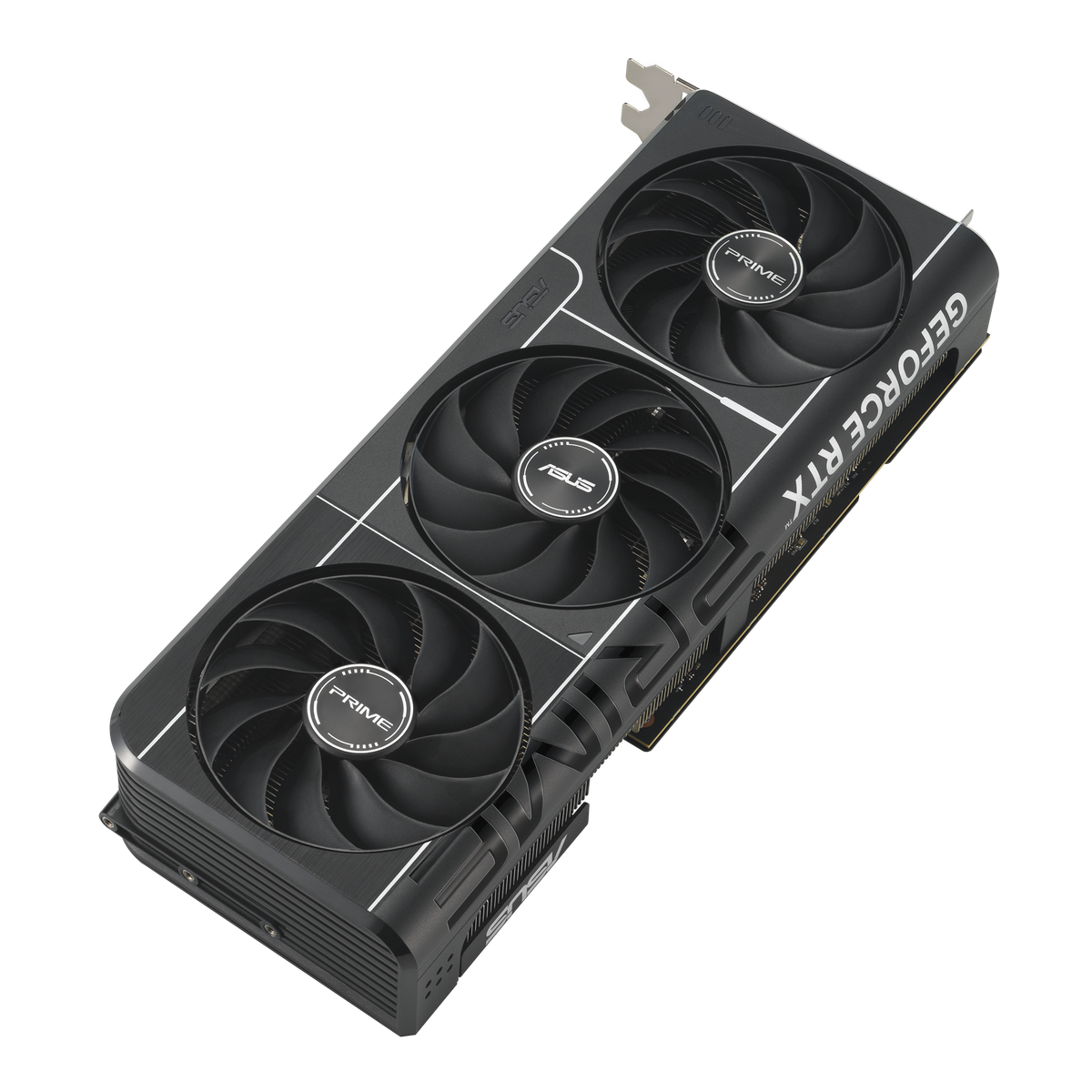

The Prime RTX 5070 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.

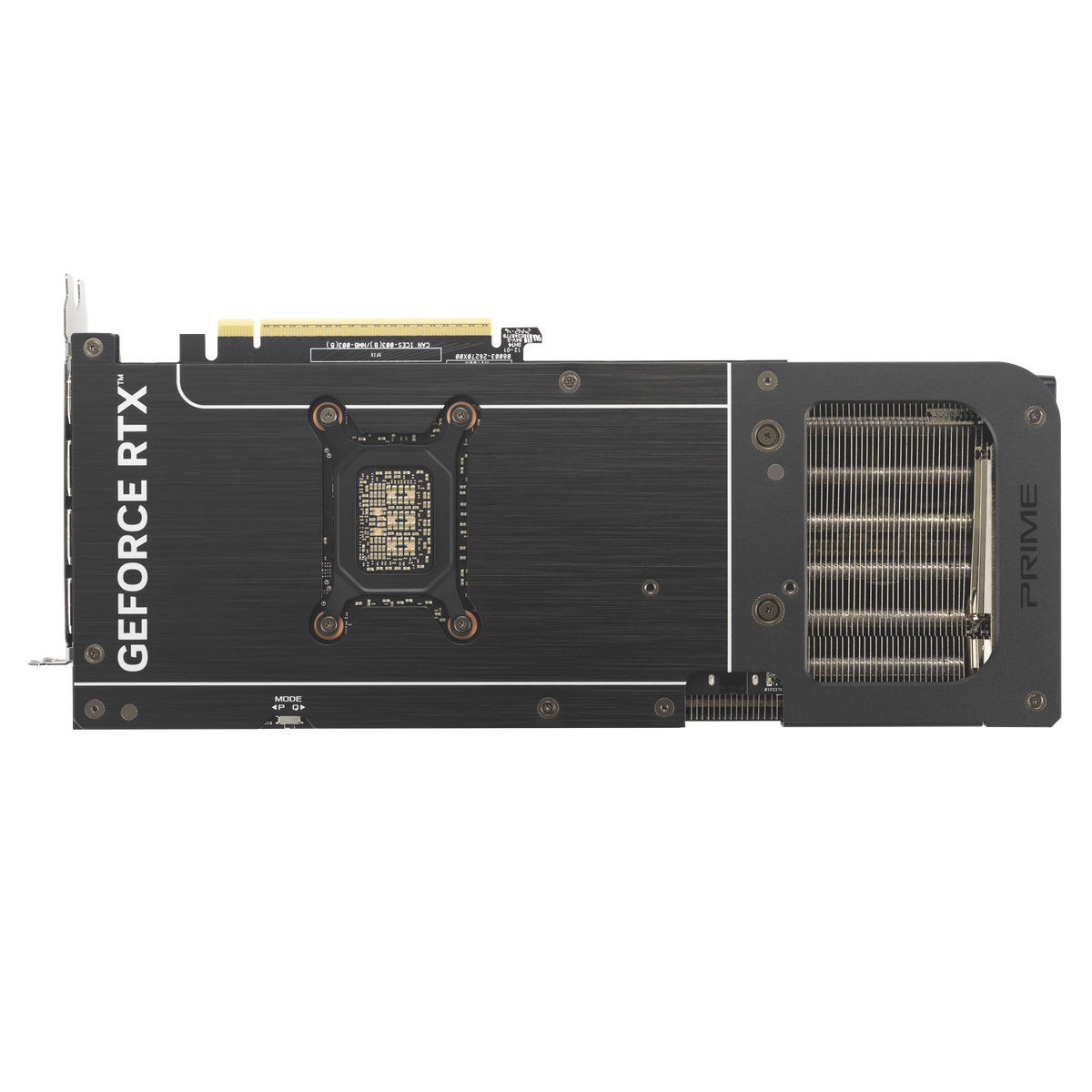

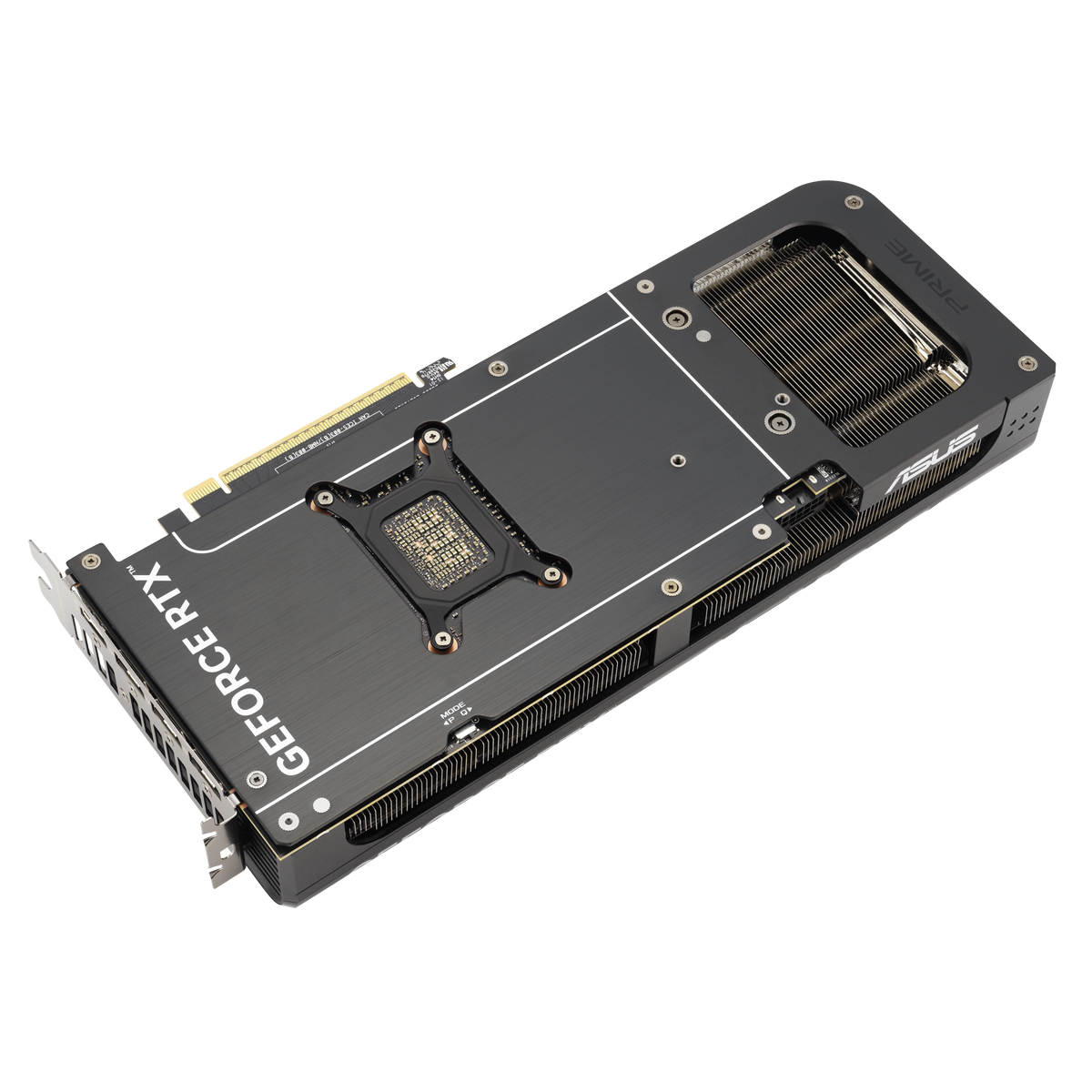

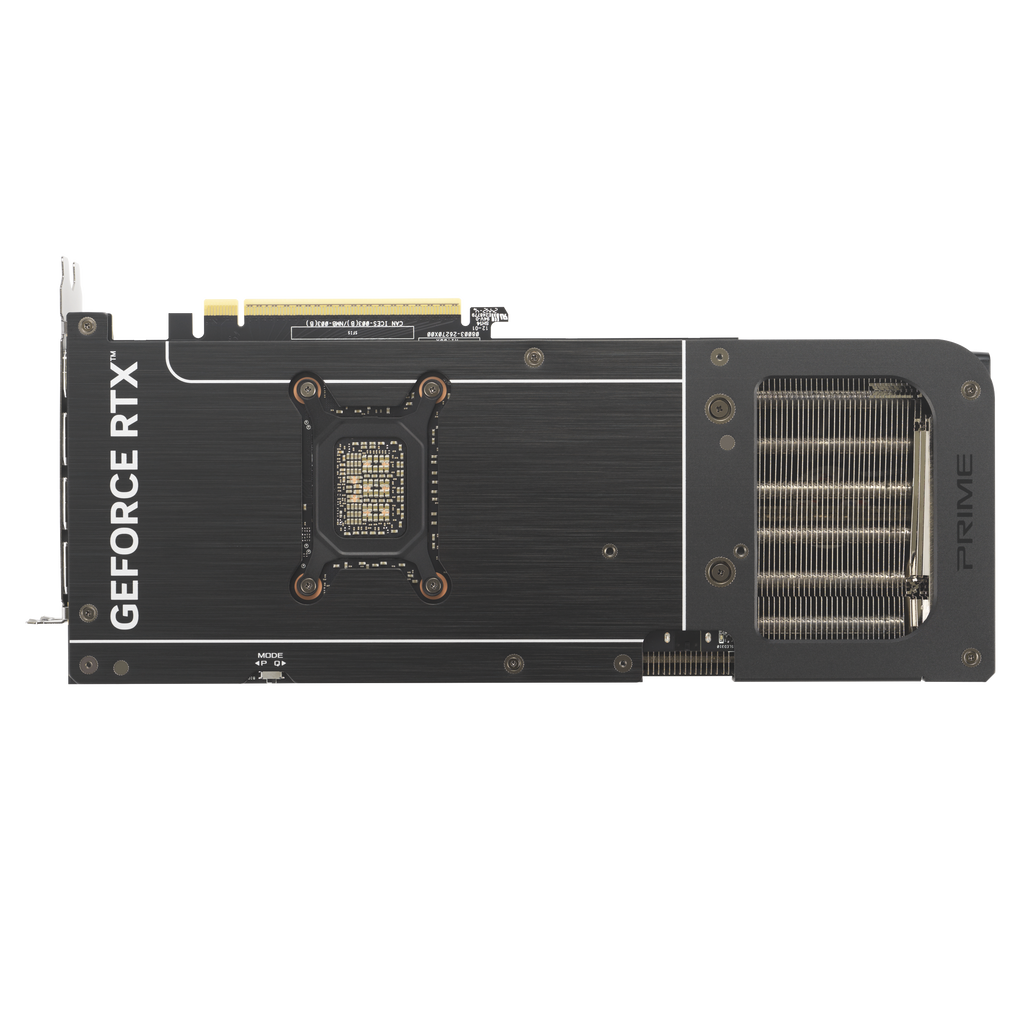

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks.
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation.
General
| Brand | ASUS |
|---|---|
| Model | PRIME-RTX5070TI-O16G |
GPU & Memory
| Graphic Engine | NVIDIA GeForce RTX 5070 Ti |
|---|---|
| CUDA Cores | 8960 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 28 Gbps |
| AI Performance | 1406 TOPs |
Performance & Clocks
| Engine Clock (OC Mode) | 2527 MHz |
|---|---|
| Engine Clock (Default Mode) | 2497 MHz |
Connectivity & Power
| Bus Standard | PCI Express 5.0 |
|---|---|
| HDMI Outputs | 1 x HDMI 2.1b |
| DisplayPort Outputs | 3 x DisplayPort 2.1b |
| Maximum Displays | 4 |
| Power Connectors | 1 x 16-pin PCIe |
| Recommended PSU | 750W |
| OpenGL | OpenGL 4.6 |
Thermal & Physical
| Slot Width | 2.5 Slot |
|---|---|
| Dimensions | 304 x 126 x 50 mm |
| SFF Ready | Compatible |
