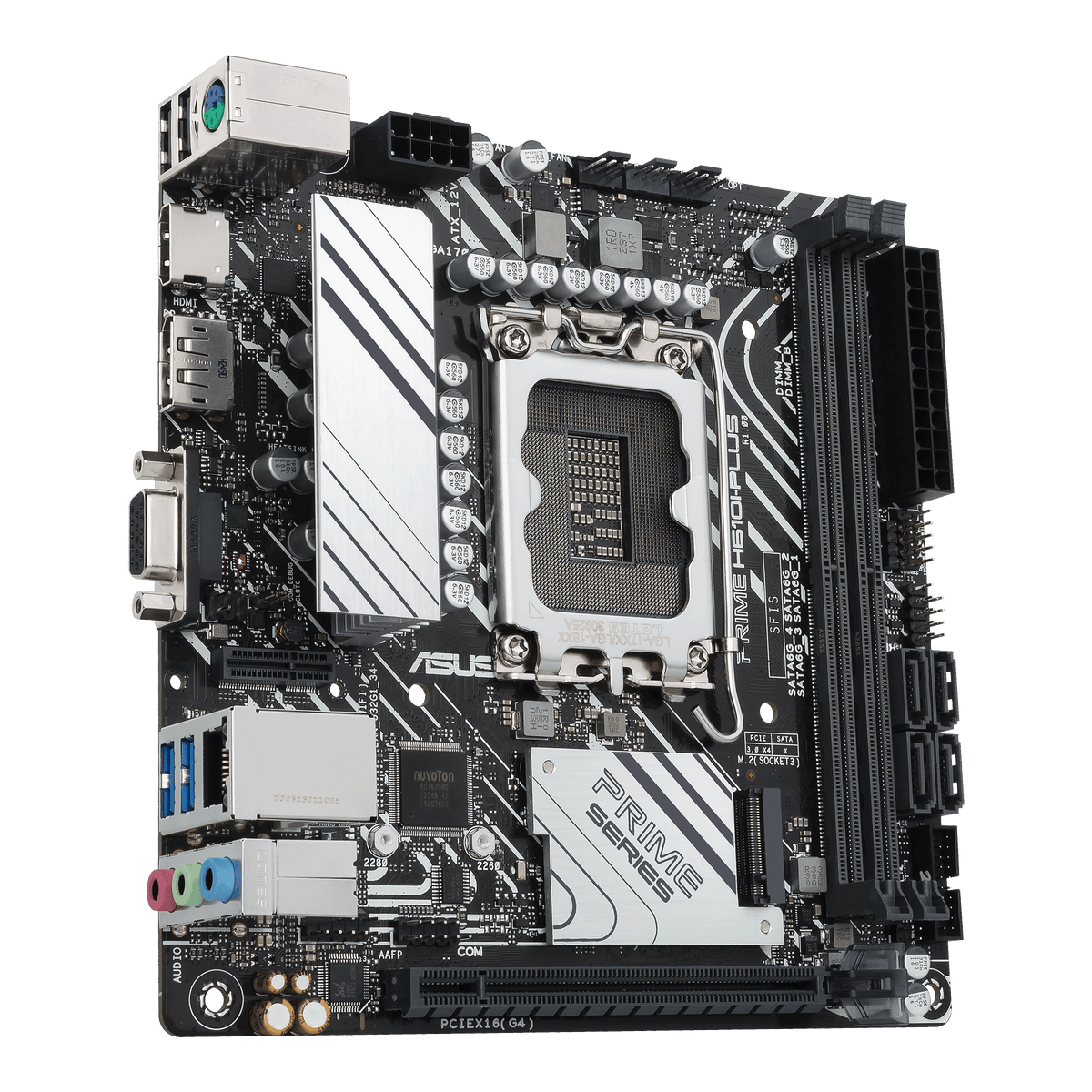

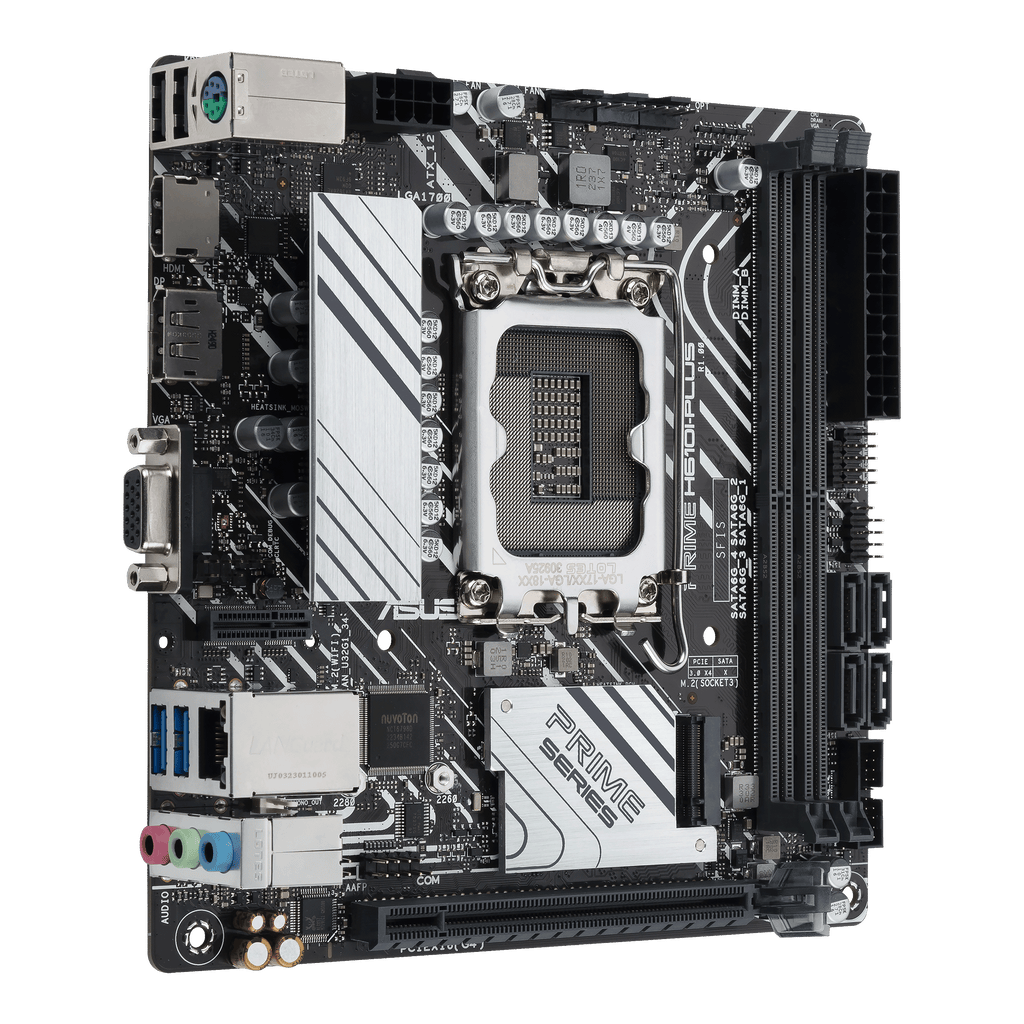

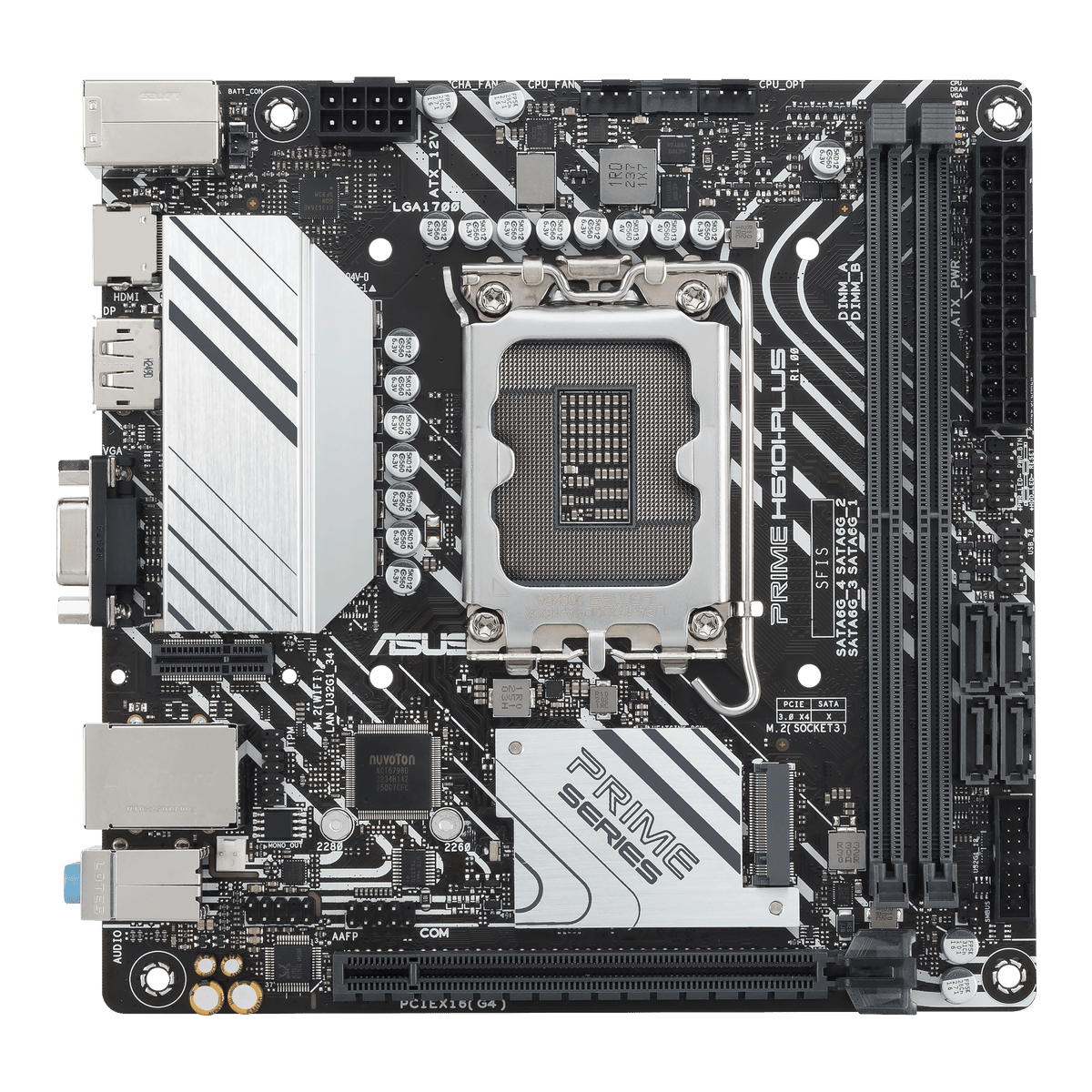

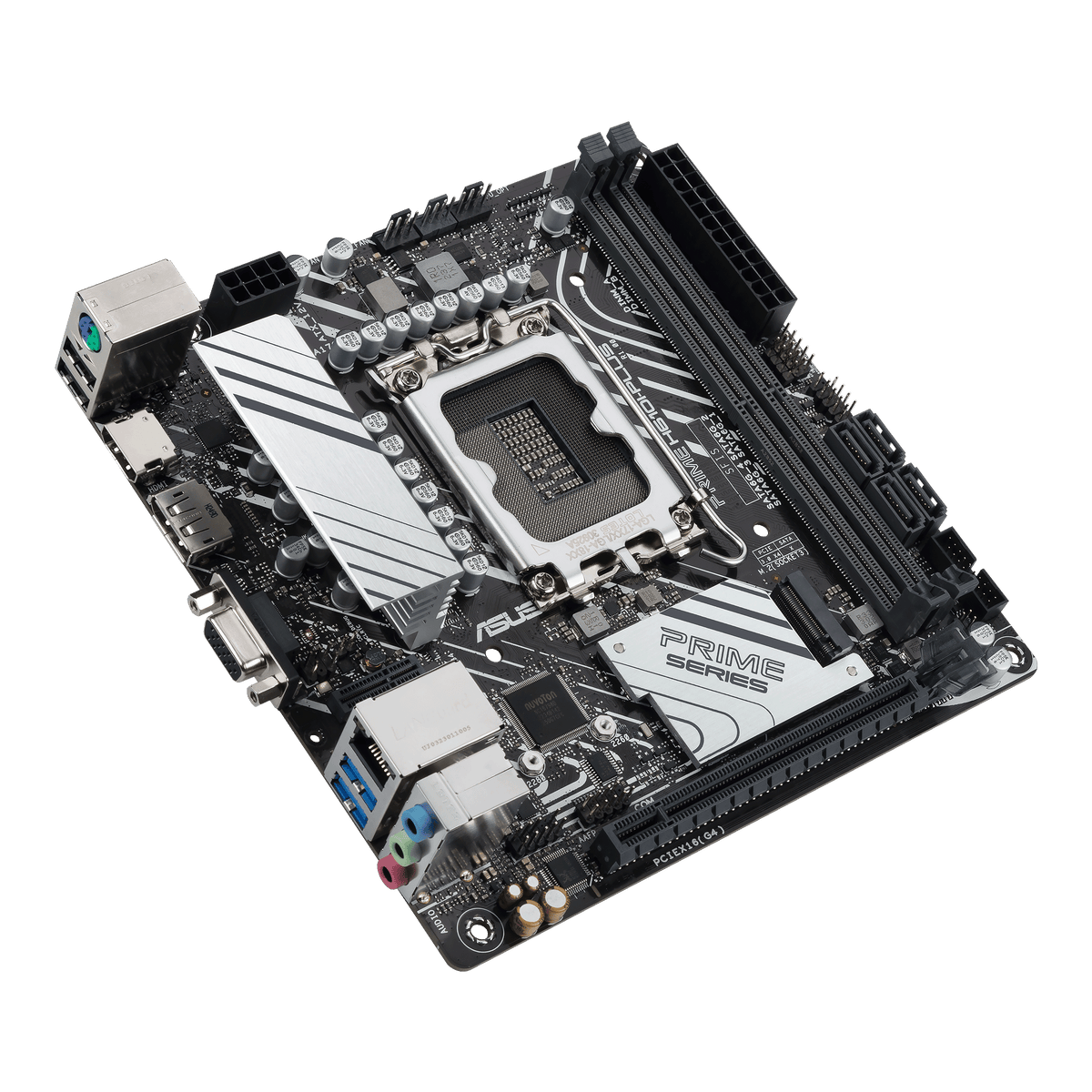

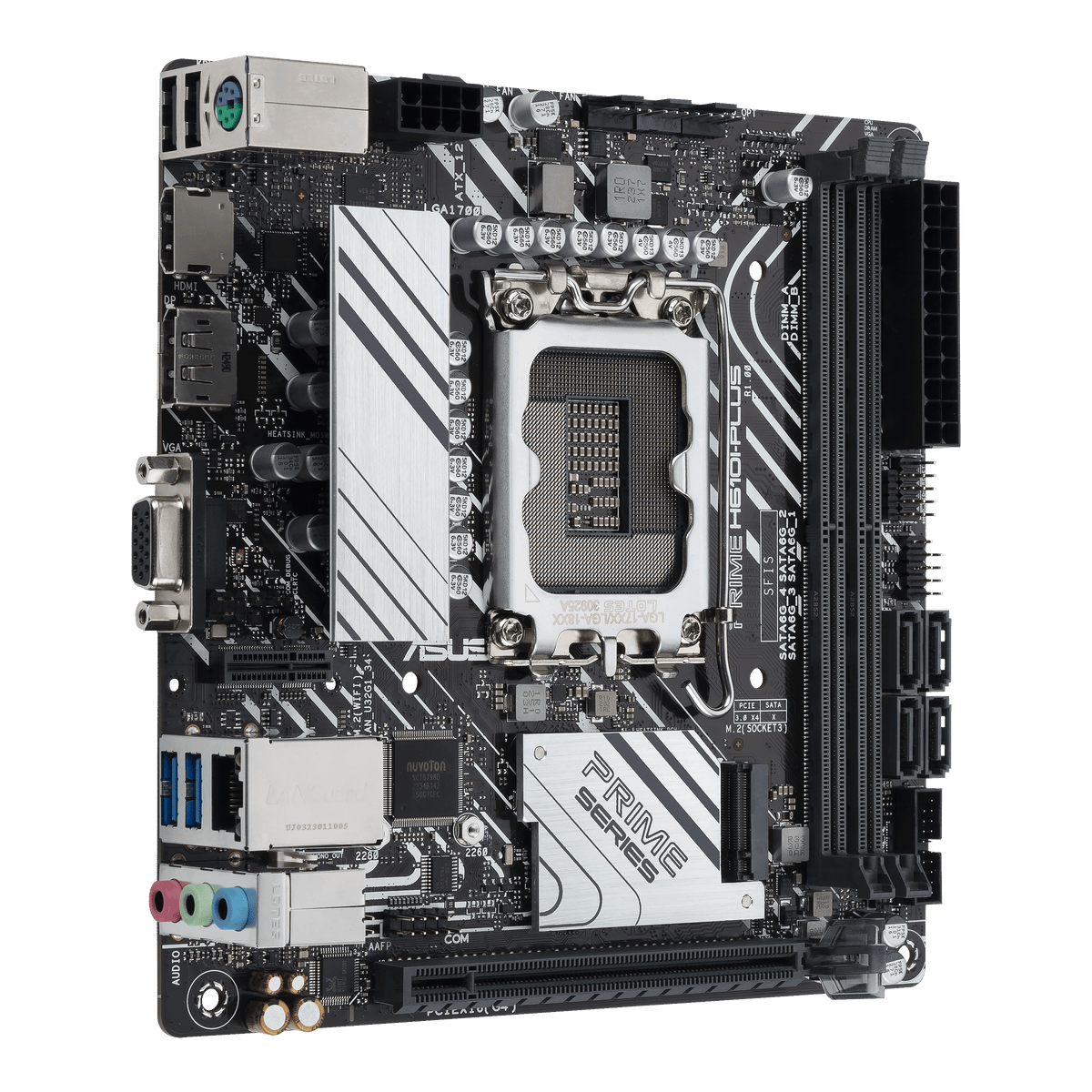

ASUS PRIME H610I-PLUS-CSM Mini-ITX LGA1700 DDR5 Motherboard
ASUS
ASUS PRIME H610I-PLUS-CSM Mini-ITX LGA1700 DDR5 Motherboard

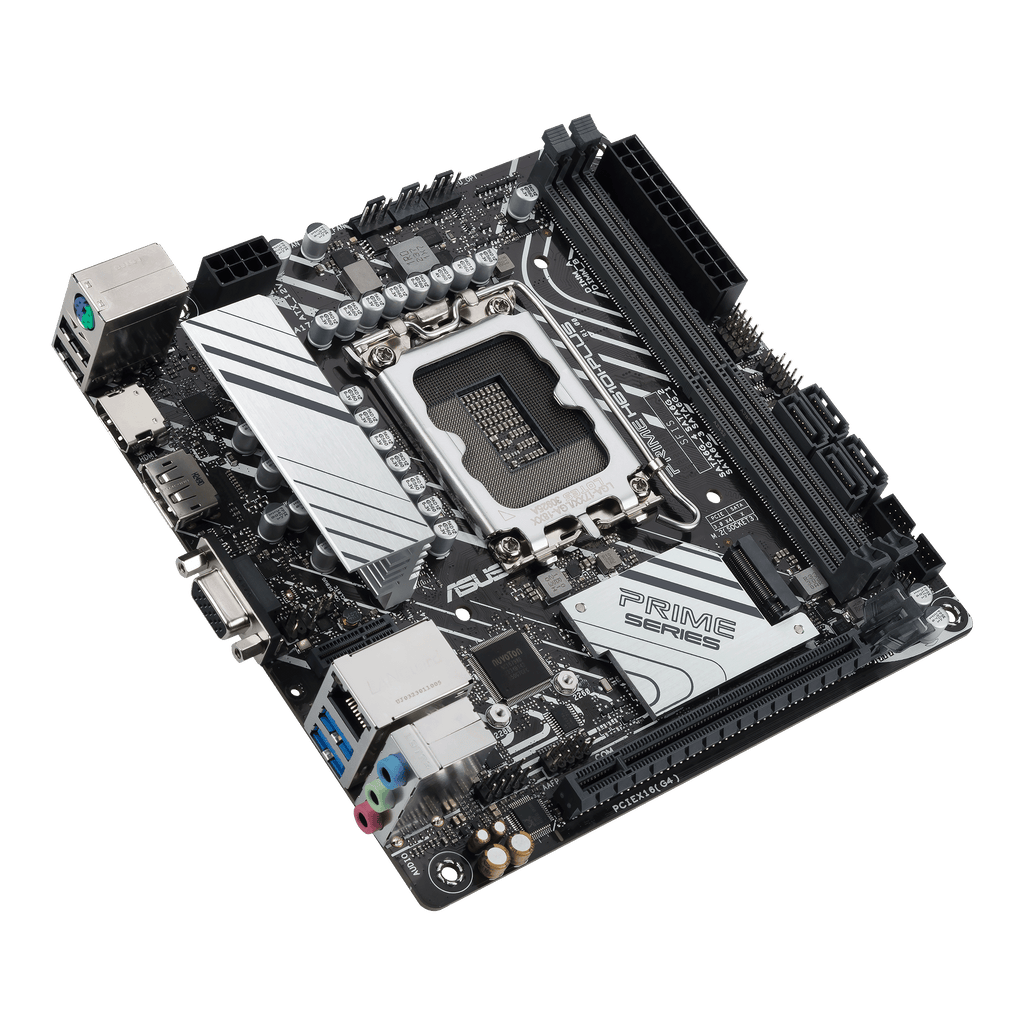

The ASUS PRIME H610I-PLUS-CSM is a Mini-ITX motherboard built for 12th, 13th and 14th generation Intel Core processors in compact builds. It combines DDR5 memory support, PCIe 4.0 connectivity and integrated remote management, making it suited to small-form-factor PCs that need stable power delivery and flexible expansion without the bulk.
Why this product
Mini-ITX design for tight builds
At 6.7 × 6.7 inches, it fits small cases while retaining four SATA ports, one M.2 slot and a PCIe 4.0 x16 graphics slot.
DDR5 5600 memory support
Handles up to 96 GB of DDR5 across two DIMM slots, with XMP profiles for faster performance out of the box.
5+1+1 power stages for stable delivery
Robust DrMOS power design keeps the processor and chipset fed cleanly, especially useful in compact cases with less airflow.
Three video outputs

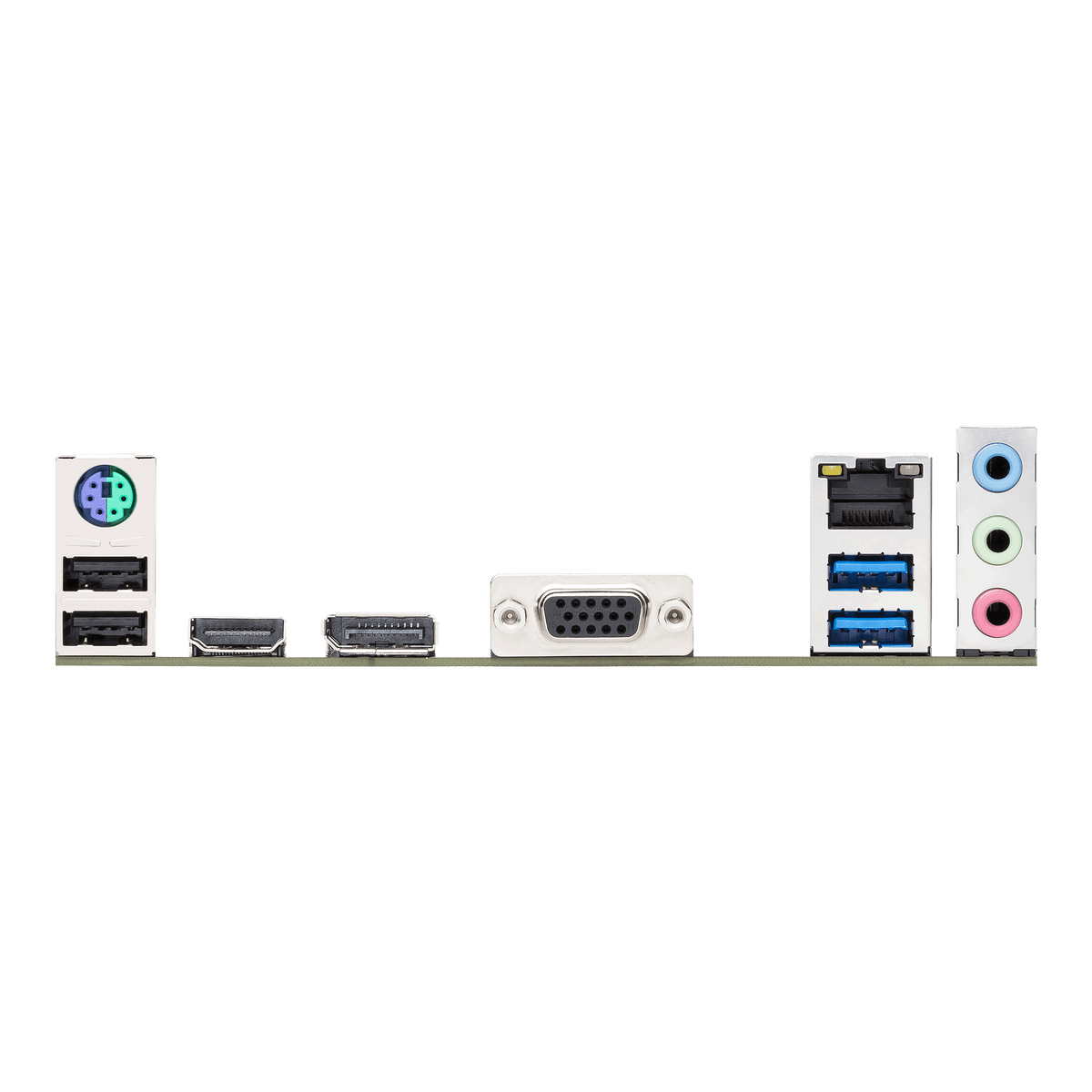

DisplayPort 1.4, HDMI 2.1 and D-Sub (VGA) connectors let you choose the display connection that suits your setup.
Built-in remote management (ACCE)
ASUS Control Center Express software comes included for managing the system remotely, a feature usually reserved for server motherboards.
- Form FactorMini-ITX
- SocketIntel LGA1700
- Memory2 × DIMM, DDR5 5600 MHz, up to 96 GB
- M.2 Slots1 × PCIe 3.0 x4 (Key M)
- SATA Ports4 × 6 Gbps
- PCIe Expansion1 × PCIe 4.0 x16
- ChipsetIntel H610
- SKUASU-2640
- EAN4711387330500
- Intel 14th, 13th and 12th generation Core, Pentium Gold and Celeron processors in LGA1700 socket.
- DDR5 memory modules (non-ECC, unbuffered) rated at 4800 MHz and above, up to 96 GB total across two slots.
- M.2 SSDs in 2260 and 2280 sizes using PCIe 3.0 x4, plus four SATA 6 Gbps drives.
- Wi-Fi and Bluetooth via M.2 Key E slot (CNVi and PCIe), but the Wi-Fi module must be purchased separately.
- Intel 11th generation and older processors — this board requires LGA1700 and H610 chipset support.
Best for
- Small-form-factor and SFF PC builds where Mini-ITX is mandatory and space is at a premium.
- Budget-conscious builders who want DDR5 and PCIe 4.0 without stepping up to a larger, more expensive board.
- IT environments and managed endpoints needing ASUS Control Center Express for remote monitoring and administration.
- Users requiring integrated networking, multiple display outputs and straightforward firmware updates via ASUS EZ Flash.
Trade-offs
- High-end gaming or workstation builds: H610 is an entry-level chipset without overclocking support or premium power delivery for sustained high-load scenarios.
- Systems needing Wi-Fi out of the box: Wireless is sold separately; you must purchase an M.2 Wi-Fi module and install it yourself.
- Builders wanting maximum storage expansion: Limited to one M.2 slot and four SATA ports; no additional PCIe slots for NVMe expansion.
- Dual-GPU or multi-expansion setups: Only one PCIe 4.0 x16 slot means you cannot add a second graphics card or high-bandwidth expansion card.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors.
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.
Prime H610 series are built to handle the additional cores and increased bandwidth of 14th, 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
A dedicated integrated circuit protects each fan header from overheating and overcurrent. Each onboard header supports auto-detection of PWM or DC fans.
Prime H610 motherboards are designed specifically for 14th, 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs.

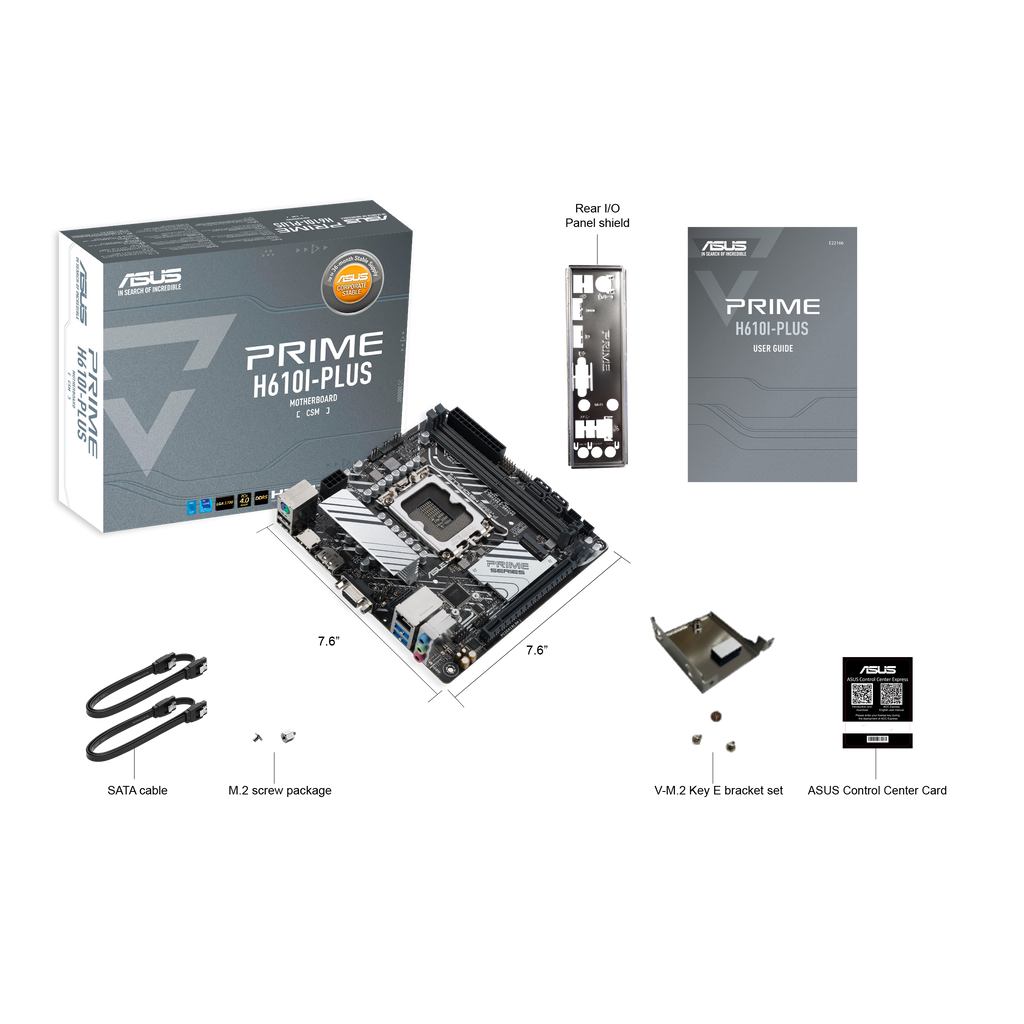

PRIME H610I-PLUS-CSM comes along with a vertical M.2 (Key E) slot and ASUS exclusive Wi-Fi card holder which provide you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.
Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
General
| Brand | ASUS |
|---|
Processor & Memory
| CPU Socket | Intel LGA1700 (14th, 13th, 12th Gen Intel Core; Pentium Gold; Celeron) |
|---|---|
| Memory Slots | 2 × DIMM |
| Memory Type | DDR5 Non-ECC, Unbuffered |
| Memory Speeds | DDR5 5600, 5400, 5200, 5000, 4800 MHz |
| Maximum Memory | 96 GB |
| XMP Support | Yes, Intel Extreme Memory Profile |
Storage & Expansion
| M.2 Slots | 1 × Key M (PCIe 3.0 x4), types 2260/2280 |
|---|---|
| SATA Ports | 4 × 6 Gbps |
| PCIe Slots | 1 × PCIe 4.0 x16 |
| M.2 Key E Slot | Yes (Wi-Fi module sold separately) |
Connectivity & Video
| Ethernet | Intel 1 Gb with LANGuard protection |
|---|---|
| USB 3.2 Gen 1 (Rear) | 2 × Type-A (5 Gbps) |
| USB 2.0 (Rear) | 2 × Type-A |
| USB Headers (Internal) | 1 × USB 3.2 Gen 1 (supports 2 additional ports), 1 × USB 2.0 (supports 2 additional ports) |
| Video Outputs | DisplayPort 1.4 (4K@60Hz), HDMI 2.1 (4K@60Hz), D-Sub (VGA) |
| Audio | Realtek 7.1 surround (24-bit/192 kHz), Mono-out with Amp IC |
Features & Physical
| Power Stages | 5+1+1 DrMOS |
|---|---|
| Cooling | VRM heatsink, PCH heatsink, Fan Xpert software |
| Fan Headers | Auto-detection of PWM or DC fans with overcurrent protection |
| BIOS | 128 Mb Flash ROM, UEFI AMI, CrashFree BIOS 3, EZ Flash 3 |
| Protection | 5X Protection III, Overvoltage Protection, LANGuard, SafeSlot Core |
| Management | ASUS Control Center Express (ACCE), WOL by PME, PXE |
| Form Factor | Mini-ITX, 6.7 × 6.7 inches (17.02 × 17.02 cm) |
| Supported OS | Windows 11 64-bit, Windows 10 64-bit |
