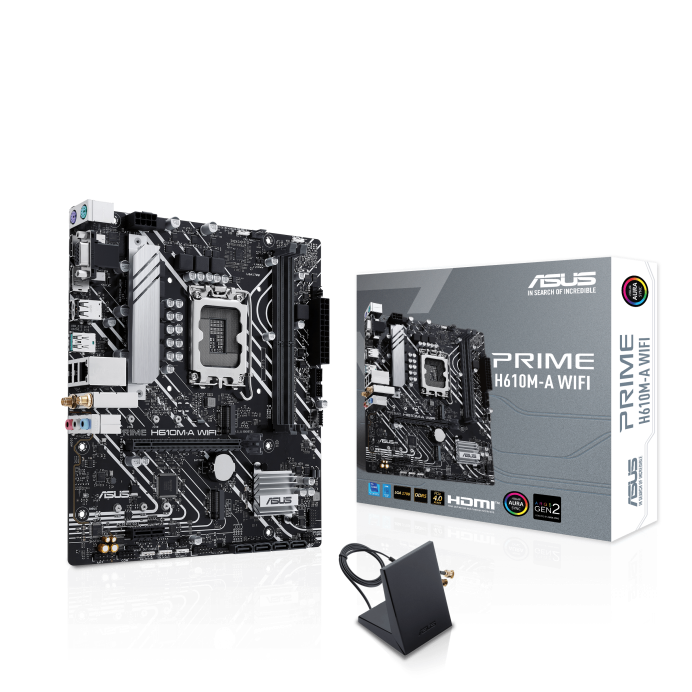

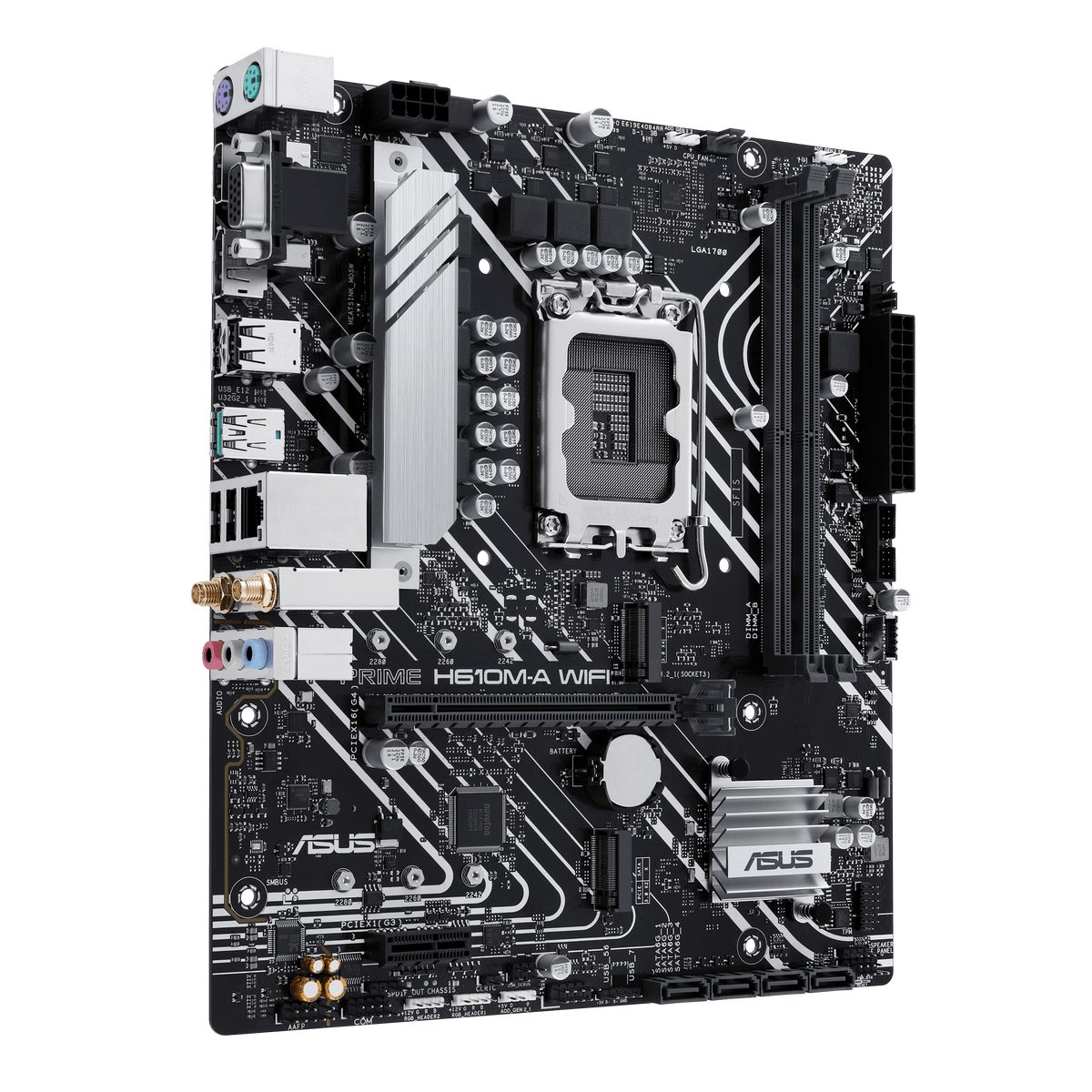

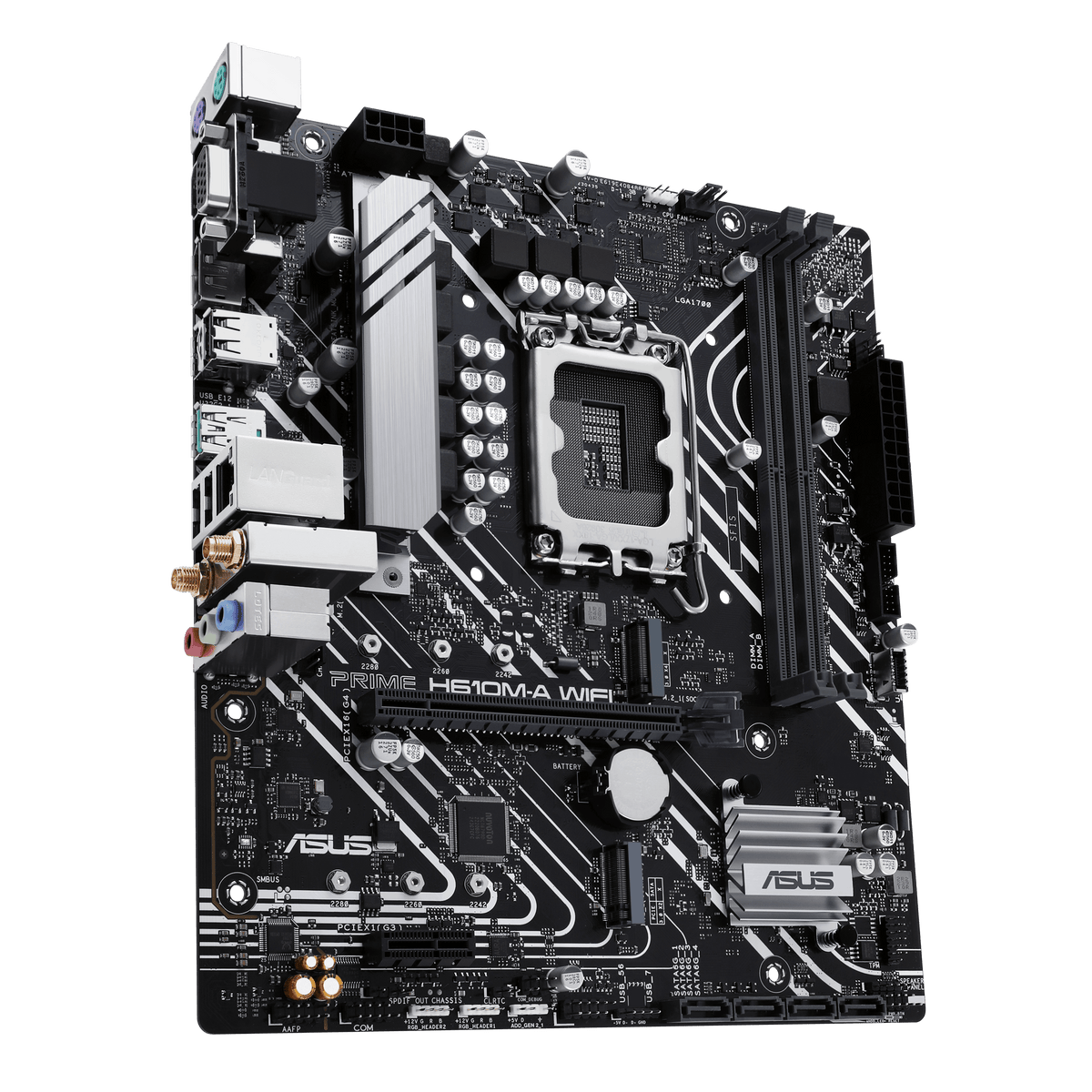

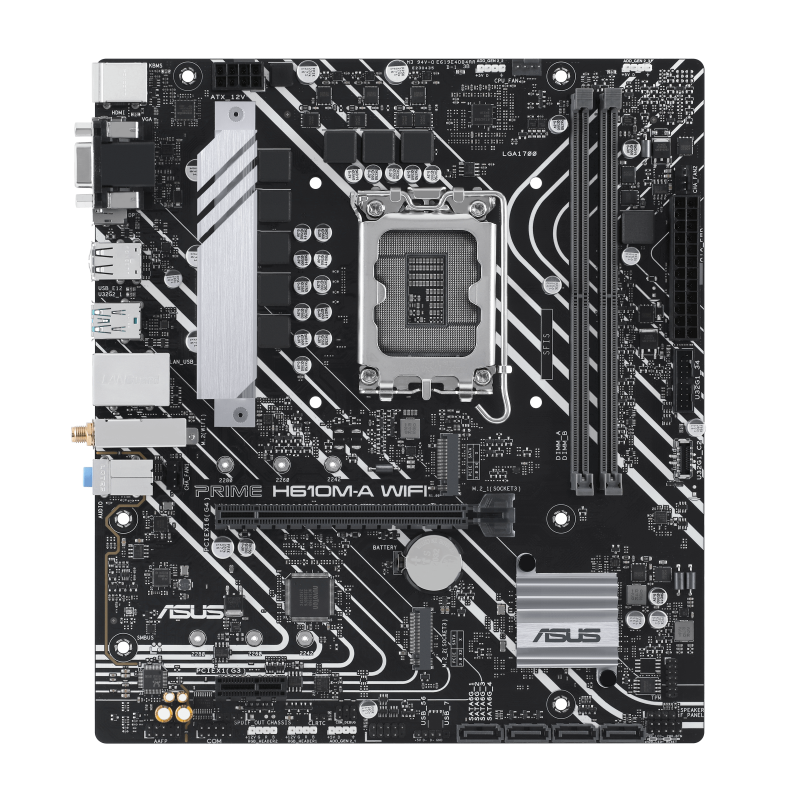

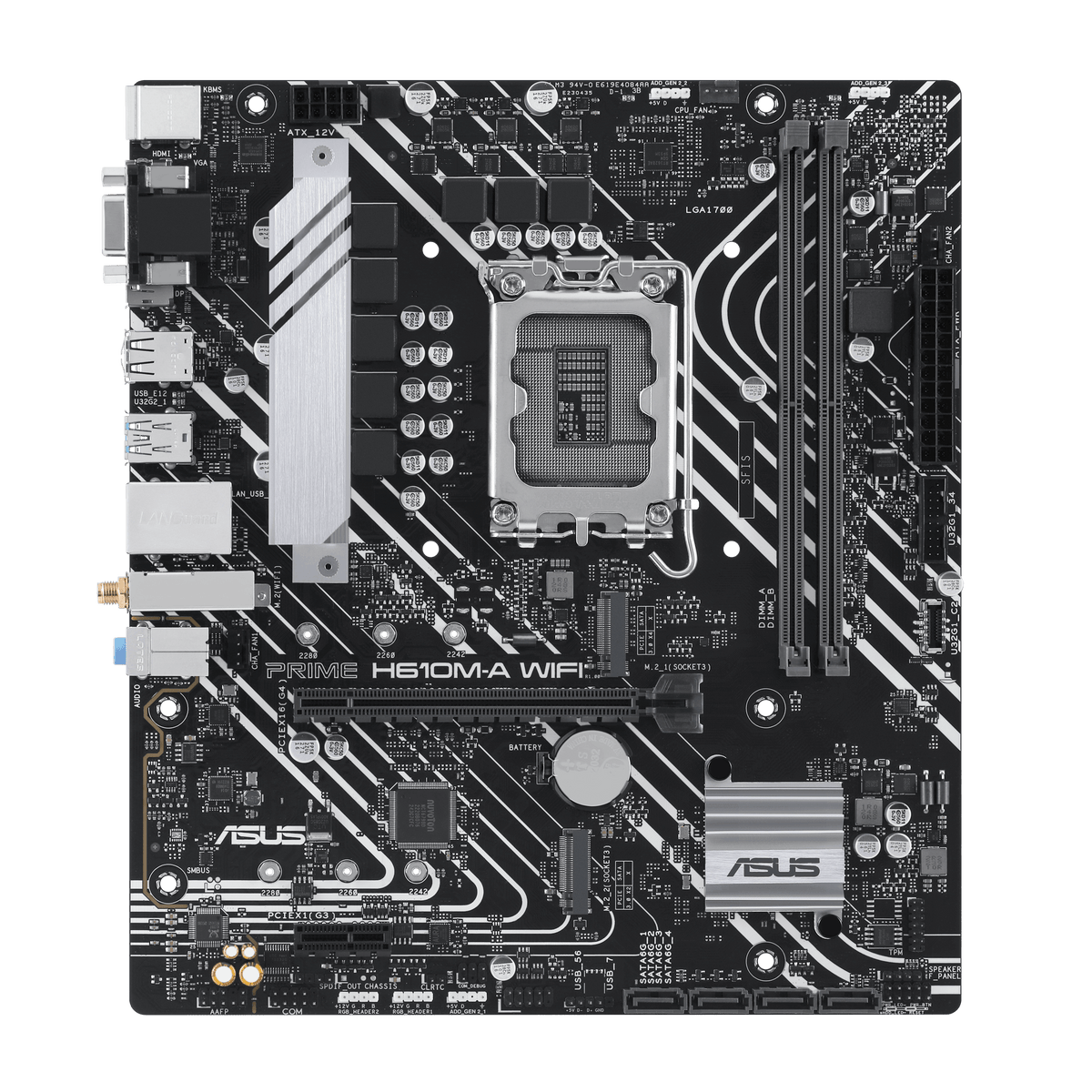

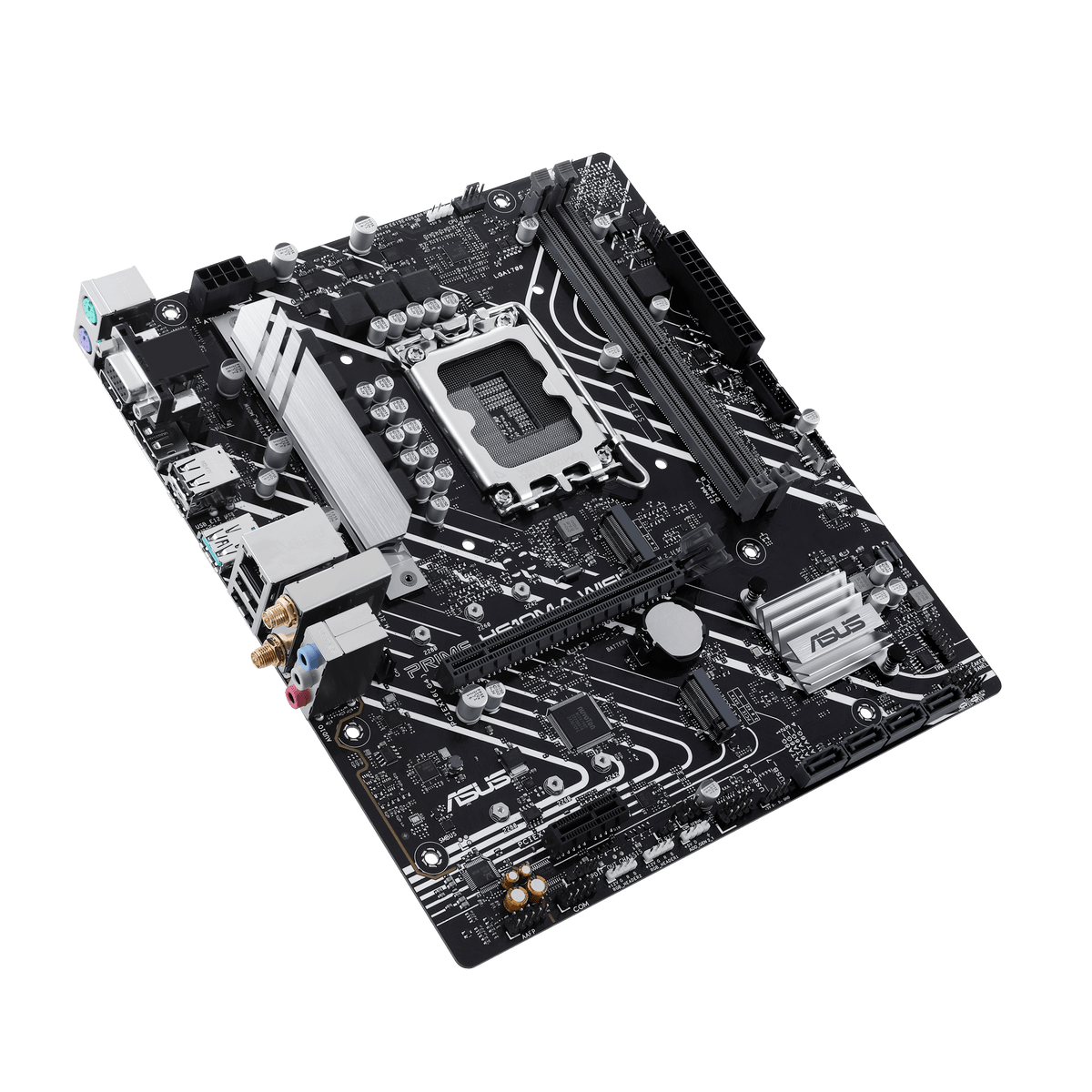

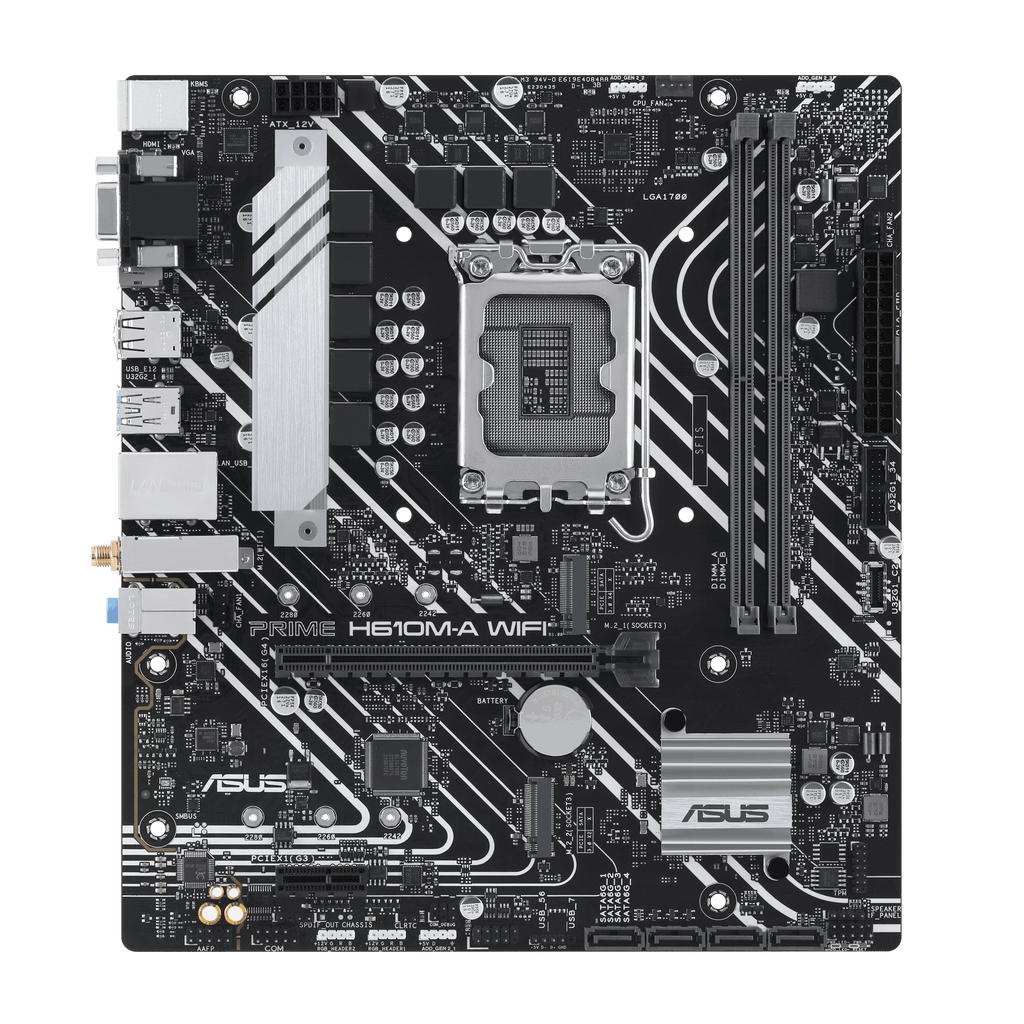

ASUS PRIME H610M-A WIFI DDR5 mATX Motherboard LGA1700
ASUS

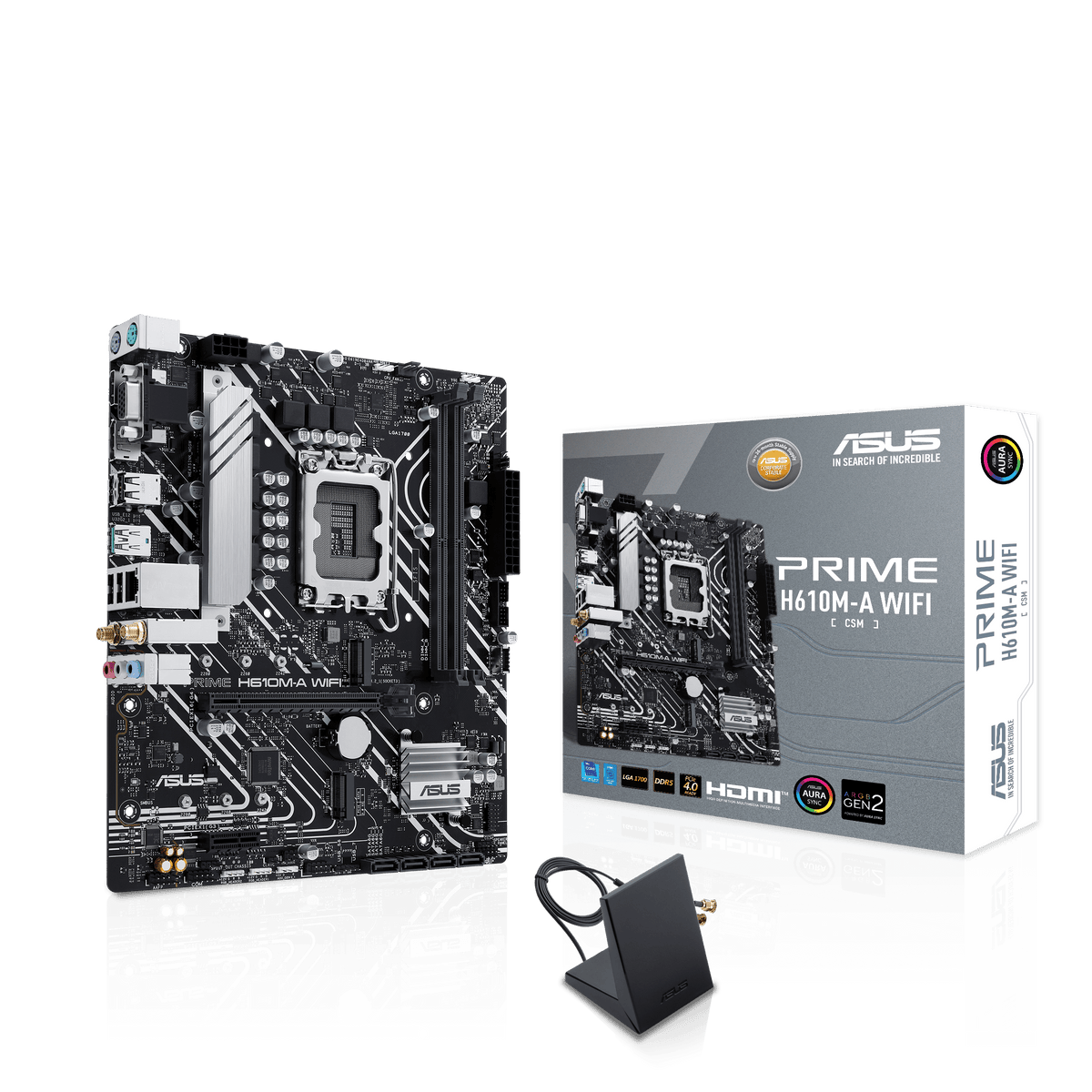

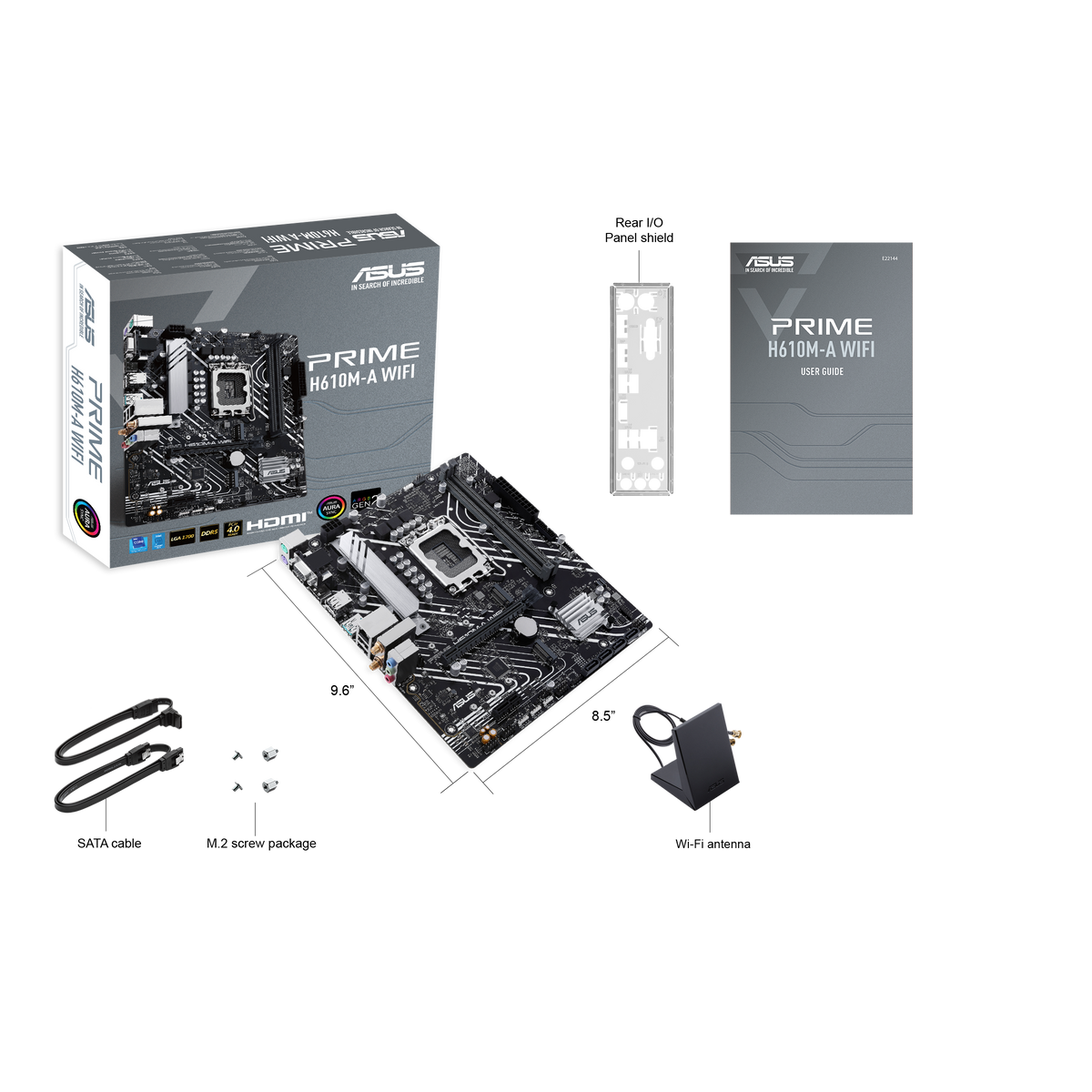

ASUS PRIME H610M-A WIFI DDR5 mATX Motherboard LGA1700
The ASUS PRIME H610M-A WIFI DDR5 mATX Motherboard LGA1700 is a compact Intel H610-based board aimed at first-time PC builders and budget-conscious enthusiasts who want modern connectivity without overcomplicating their build. It supports 12th, 13th, and 14th Gen Intel Core processors, pairs them with DDR5 memory, and includes built-in Wi-Fi and dual M.2 slots — covering the essentials in a small footprint.
Why this product
Supports 12th, 13th & 14th Gen Intel CPUs
The LGA1700 socket is compatible with Intel Core, Pentium Gold, and Celeron processors across three generations, giving builders flexibility when choosing or upgrading their CPU.
DDR5 memory up to 96 GB
Two DIMM slots accept DDR5 at speeds up to 5600 MHz with Intel XMP support, providing headroom for memory-intensive workloads.
Dual M.2 slots plus four SATA ports
Two M.2 Key-M slots and four SATA 6 Gb/s ports offer flexible storage configurations for SSDs and traditional drives simultaneously.
Wi-Fi 5 and Intel 1 Gb Ethernet built in
802.11ac Wi-Fi with 2.4/5 GHz support and Bluetooth 5.0 are included alongside a wired Intel 1 Gb Ethernet port, so no separate networking card is required.
Triple display output options
DisplayPort 1.4, HDMI 2.1, and VGA outputs on the rear panel support up to 4K@60 Hz, giving users choice in monitors and multi-display setups using integrated graphics.
Aura Sync RGB with addressable headers
Three Addressable Gen 2 headers and two AURA RGB headers let builders connect and synchronise LED strips and components through ASUS Aura Sync software.
- CPU SocketIntel LGA1700
- ChipsetIntel H610
- MemoryDDR5, 2 slots, max 96 GB
- Form FactormATX, 9.6 × 8.5 in (24.4 × 21.6 cm)
- WirelessWi-Fi 5 (802.11ac), Bluetooth 5.0
- EthernetIntel 1 Gb
- Storage2 × M.2, 4 × SATA 6 Gb/s
- OS SupportWindows 10 / 11 (64-bit)
- SKUASU-4122
- EAN4711387301777
- Compatible with Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors using the LGA1700 socket.
- Accepts Non-ECC, un-buffered DDR5 memory modules (DDR5 4800–5600 MHz) in a dual-channel configuration.
- Fits standard mATX cases — board dimensions are 9.6 × 8.5 inches (24.4 × 21.6 cm).
- Runs Windows 10 64-bit and Windows 11 64-bit.
- Bluetooth version may vary; check the Wi-Fi module manufacturer's website for the exact specification on your unit.
- Does not support DDR4 memory — DDR5 modules only.
Best for
- First-time PC builders who want a board with Wi-Fi, Ethernet, and display outputs included out of the box, reducing the need for add-in cards.
- Home and office users building around integrated graphics, with three rear display outputs supporting up to 4K@60 Hz.
- Storage-focused builds needing both fast NVMe drives and traditional SATA storage, with two M.2 slots and four SATA ports available.
- RGB enthusiasts who want addressable lighting control, with three Addressable Gen 2 headers and two AURA RGB headers on board.
Trade-offs
- Overclocking enthusiasts — the H610 chipset does not support CPU overclocking; that requires a Z-series board.
- High-bandwidth GPU workloads requiring PCIe 4.0 x16 from the chipset — the single PCIe 4.0 x16 slot is CPU-fed, while the chipset provides only a PCIe 3.0 x1 slot.
- Users needing ECC memory — only non-ECC, un-buffered DDR5 is supported (on-die ECC is present in the memory modules themselves, not board-level ECC).
- Multi-GPU or high-expansion builds — with only one full-size PCIe slot and an mATX form factor, expansion options are limited.
Intel® H610 (LGA 1700) mATX motherboard with DDR5,PCIe 4.0, dual M.2 slots, Intel® 1Gb Ethernet, WIFI 5, DisplayPort, HDMI™, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Prime H610 motherboards are designed specifically for 14th, 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.
PRIME H610M-A WIFI has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps transfer speeds to ensure that every connected user experiences the best wireless and online speeds!
General
| Brand | ASUS |
|---|---|
| Form Factor | mATX, 9.6 × 8.5 in (24.4 × 21.6 cm) |
| CPU Socket | Intel LGA1700 — 12th, 13th & 14th Gen Core, Pentium Gold, Celeron |
| Chipset | Intel H610 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
Networking
| Standard | Wi-Fi 5 (802.11 a/b/g/n/ac) |
|---|---|
| Frequency Bands | 2.4 GHz / 5 GHz |
| Throughput | Up to 433.3 Mbps (Wi-Fi, 1×1 antenna) |
| Ethernet | Intel 1 Gb Ethernet with ASUS LANGuard; supports WOL by PME, PXE |
| Bluetooth | Bluetooth 5.0 |
Memory & Storage
| Memory Slots | 2 × DIMM |
|---|---|
| Memory Type | DDR5, Non-ECC, Un-buffered |
| Max Memory | 96 GB |
| Memory Speeds | 4800 / 5000 / 5200 / 5400 / 5600 MHz |
| Memory Profile | Intel XMP supported |
| M.2 Slots | 2 × Key-M (type 2242/2260/2280); M.2_1: PCIe 3.0 x4; M.2_2: PCIe 3.0 x2 |
| SATA Ports | 4 × SATA 6 Gb/s |
Ports & Expansion
| PCIe Slots | 1 × PCIe 4.0 x16 (CPU); 1 × PCIe 3.0 x1 (chipset) |
|---|---|

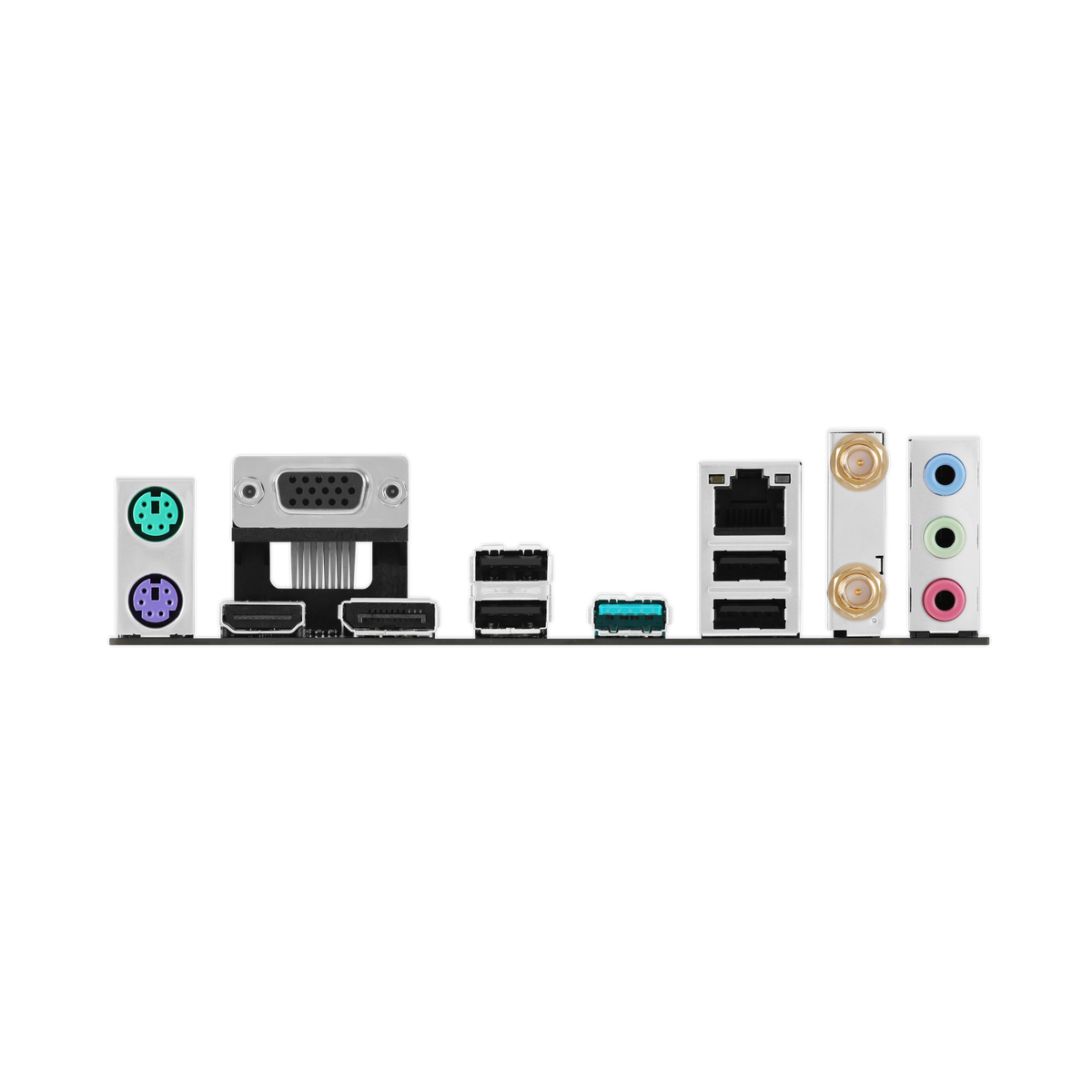

| Graphics Output | 1 × DisplayPort 1.4 (4K@60Hz), 1 × HDMI 2.1 (4K@60Hz), 1 × VGA |
| Rear USB | 1 × USB 3.2 Gen 2 (10 Gbps, Type-A); 4 × USB 2.0 (Type-A) |
| Front USB | 1 × USB 3.2 Gen 1 (5G, Type-C); 1 × USB 3.2 Gen 1 header (2 ports); 1 × USB 2.0 header (1 port); 1 × USB 2.0 header (2 ports) |
| Audio | 3 × audio jacks (rear); 1 × front panel audio header |
| Legacy | 1 × PS/2 keyboard port, 1 × PS/2 mouse port |
| RGB Headers | 3 × Addressable Gen 2; 2 × AURA RGB |
